Deep learning radiomics for focal liver lesions diagnosis on long-range contrast-enhanced ultrasound and clinical factors

Introduction

Liver cancer is one of the most aggressive and frequent malignant tumors globally, with approximately 841,000 new cases and 782,000 deaths per year, representing a significant challenge to human health, especially in China (1,2). In clinical procedures, the combination of alpha fetoprotein (AFP) and imaging examination play a crucial role in early screening and diagnosis (3-6). Contrast-enhanced ultrasound (CEUS) plays an important role in the differential diagnosis of liver cancer from focal liver lesions (FLLs). Therefore, it has been recommended as one of the four imaging methods for the diagnosis of liver cancer (5,6). Studies show that compared with computed tomography (CT) and magnetic resonance imaging (MRI), it has the advantages of superior safety, fewer allergic reactions (7), lower cost, and real-time imaging (8,9). The diagnostic accuracy of CEUS can be higher or comparable to that of spiral CT, especially in characterizing <3 cm FLLs (10). However, the performance of CEUS is more complicated due to diverse types of FLLs, and significantly affects the application and popularization of CEUS in the differential diagnosis of FLLs (11-13). Particularly, routine clinical factors, such as hepatitis, AFP, and tumor markers, often affect the physiological and pathological changes of the liver, and should be taken into consideration during the analysis of CEUS in diagnosing liver cancer (8,14,15). However, they are often ignored, leading to unnecessary misdiagnosis and missed diagnosis. Simultaneously, comprehensive image analysis is challenging and requires tedious manual annotation by radiologists.

Deep learning (DL) with convolutional neural networks (CNNs) can automatically extract the hierarchy features of input data (16). It has been widely used for the analysis of FLLs in US (17,18), CT (19-22), and MRI (23-25). Former researchers have investigated computer technology in CEUS analysis, such as time intensity curves (TICs) (26-28) or intensity-based features (29,30). However, these features are relatively simple. In recent years, previous attempts have been made to algorithmically identify FLLs on CEUS with DL for extracting hierarchy features to improve the accuracy of diagnosis and postoperative prediction (31-35). However, these attempts mainly used CEUS images (30) or CEUS cines with two frames per second (33,34), i.e., not frame-to-frame, and did not take advantage of the spatiotemporal characteristics of CEUS. Moreover, routine clinical factors are rarely used in computer-assisted diagnosis (31-33,35).

Therefore, in this retrospective and multicenter study, we conducted DL radiomics to diagnose FLLs by simultaneously combining features from CEUS cines and clinical factors. Furthermore, we compared the classification accuracy and efficiency of the model with those of the radiologists in the internal and external validation (EV) cohorts. We present the following article in accordance with the TRIPOD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-21-1004/rc).

Methods

This retrospective study was approved by the institutional review board (No. KY2019129), and was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Requirement for patient consent was waived because of the retrospective nature of this study.

Patients

A total of 1017 pathologically confirmed after-surgery patients were researched from institution 1, between February 2018 and August 2019, and institutions 2 and 3, between February 2018 and August 2018. After applying the inclusion and exclusion criteria, 303 patients were enrolled (Figure 1), of which 253, 26, and 24 were from institution 1, 2, and 3, respectively. The inclusion criteria were (I) patient aged 18 years or older; (II) no ultrasound contrast allergy history; (III) ultrasound-found FLLs; and (IV) pathologically confirmed after-surgery patients. The exclusion criteria were (I) lack of complete CEUS imaging recording or clinical information; (II) poor quality of CEUS imaging; and (III) excessive motion during CEUS examination.

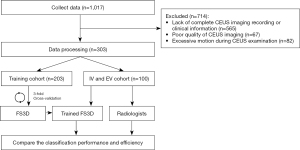

Figure 1 Flowchart of the study from data collection to evaluation. CEUS, contrast-enhanced ultrasound; IV, internal validation; EV, external validation; FS3D, Four-Stream three-dimensional.

CEUS acquisition

CEUS examinations were performed by seven radiologists with more than five years of experience in liver CEUS using four ultrasound instruments (Table S1). First, the patient took the left lateral position, and the location of the lesion before CEUS was determined through B-mode US. Thereafter, the patient was observed for 5 min after injecting 2.4 mL of the second-generation contrast agents (SonoVue, Bracco Imaging, Italy) via the elbow vein followed by a 5-mL saline flush. For multiple tumors, patients received additional administrations of SonoVue to ensure each tumor was observed and the largest tumor was chosen in our study.

For each patient, approximately 20 s arterial phase cines, two portal venous phase images, and two delayed phase images of the maximum width of the lesion were acquired. All the cines were stored in .wav or .avi formats, and the images were stored in .jpg format.

Clinical information acquisition

All the patients’ demographic and clinical data were recorded from the picture archiving and communication systems, including age, sex, pathological results, hepatitis, AFP, tumor location, and tumor size in B-mode US. Hepatitis includes hepatitis B virus infection, hepatitis C virus infection, fatty liver, and hepatic cirrhosis. If patients presented with hepatitis, it would be encoded to one, else zero. AFP was measured within one week before surgery, and its value was scaled to (0, 1) by log-normalization. Tumor location included the right lobe, left lobe, and caudal lobe, according to the anatomy. Tumor size was measured according to the largest boundary of the ROI of the lesion in clinical settings.

CEUS pre-processing

CEUS cines were collected with ultrasonic instruments, which usually include two parts, B mode and CEUS mode, which are in the RGB mode and are usually arranged in a left-right layout. First, the original CEUS cines were split into two separate parts: B mode and CEUS mode. Second, the optical flow for each cine was calculated using the Gunnar Farneback algorithm (36), which could help us better capture the hidden dynamic motion information of videos. Third, four cines for each patient, two RGB parts and two optical flow parts with the same width, height and frames, were cut into several short segments, known as four-stream segments with sixteen 224×224 frames, because of the limited graphics memory of GPUs. Finally, the pixels in each segment were normalized to (0, 1) (Figure 2).

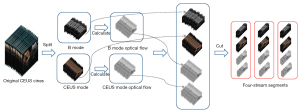

Figure 2 Pre-processing of CEUS cines. CEUS, contrast-enhanced ultrasound.

The cines were processed using FFmpeg 4.2.2 (https://ffmpeg.org/) and Python Imaging Library Pillow 3.3.1 (https://pypi.python.org/pypi/Pillow/3.3.1).

DL radiomics model

A 3D CNN was trained on the four-stream cines above and named four-stream 3D (FS3D) CNN (Figure 3). These segments were fed sequentially into two independent CNNs, inflated 3D CNN (I3D) and channel-separated CNN (CSN) for feature extraction (37,38). The extracted features were then fused by channel concatenation to obtain a feature vector with a fixed length of 8192, and incorporated with clinical information. Finally, 544 of the most important features were selected by setting the importance threshold to 0.02, and combined with clinical factors to classify FLLs using a classification CNN (39).

Figure 3 Four-stream three-dimensional convolutional neural network composed of four steps: input, feature extraction, feature selection, and output. CEUS cines and images were normalized as input and predicted values of malignant lesions were calculated as output. I3D, inflated three dimentional; CSN, channel-separated convolutional networks; CNN, convolutional neural network; CEUS, contrast-enhanced ultrasound; AFP, alpha fetoprotein.

The I3D network is a classical video-classification CNN with a 3×3×3 3D convolutional layer, 1×1×1 3D convolutional layer, and 3×3×3 3D Max-pooling layer. It gathers information from four different paths with different convolutional kernels and max pooling layers to aggregate spatial and temporal features at different scales. The CSN network is mainly composed of a 1×1×1 3D CNN and 3×3×3 depthwise CNN, which are used to extract channel interactions and local interactions, respectively. This structure leads to improved video-classification accuracy and lower computation cost. The features extracted by I3D and CSN are complementary; they can be combined to obtain a complete feature representation of the dynamic CEUS cines.

Four models, FS3D^U (trained with CEUS cines only), FS3D^U+A (trained with CEUS cines and AFP), FS3D^U+H (trained with CEUS cines and hepatitis history), and FS3D^U+A+H (trained with CEUS cines, AFP, and hepatitis history) were investigated to analyze their diagnostic capabilities.

Experimental details

In the training stage, 3-fold cross-validation was used to adjust the network architecture (hyper-parameters, number of iterations, regularization method, and class weights). For each fold, one model was trained with a subset of 2/3 of the training dataset, and the remaining 1/3 was used for validation. After three cycles, the model with the highest AUC was chosen, and the holdout internal validation (IV) and EV cohorts were used for the final evaluation (Tables S2-S4).

Transfer learning was used in this study. The parameters of the I3D and CSN were initialized with those from the Kinetics dataset (40) and fine-tuned with our dataset (41). Using pretrained weights helped the model converge faster on our smaller dataset. We downloaded parameters that were generated from the training DL model with the Kinetics dataset and initialized our model for training. We trained 5,000 iterations with a learning rate of 0.001, batch size of one, and the learning optimizer was Adam.

The models were built using Python 3.5 (https://www.python.org/downloads/release/python-350/) and Pytorch 1.2 (https://pytorch.org/). All the experiments were run on an NVIDIA GeForce GTX 1080 GPU.

Comparative evaluation of diagnostic performance

Patients were stratified into three subgroups according to lesion size measured in the B-mode US (<20.0, 20.0–50.0, and >50.0 mm). Two radiologists with 12 years and 5 years of experience were invited to evaluate the IV and EV cohorts according to (3) based on the imaging characteristic and clinical factors. All the information, including approximately 20 s arterial phase cines, two portal venous phase images, two delayed phase images, and clinical data, except for pathological results, were presented to the radiologists in .ppt format. The start time was when the radiologists started to read the first page of the PPT.

Statistical analysis

Pearson’s chi-square tests were conducted for categorical clinical factors, which were described as percentages. For continuous clinical factors, Student’s t-tests were conducted.

The area under the receiver operating characteristic curve (AUC), accuracy (ACC), sensitivity (SEN), specificity (SPE), positive predictive value, negative predictive value, and receiver operating characteristic curve (ROC) for diagnosing each category were calculated for the IV and EV cohorts. Two-sided Delong tests were used to calculate statistical differences between AUC values. The statistical analyses were performed using Python 3.5 (https://www.python.org/downloads/release/python-350/), and P<0.05 was considered significant.

Results

Baseline characteristics

A total of 303 patients from three hospitals were enrolled according to the enrollment criteria. Up to 565 patients were excluded because of a lack of complete CEUS imaging or clinical data, and 67 and 82 patients were excluded because of poor imaging quality and excessive motion, respectively. All the enrolled patients were divided into a training cohort (n=203, 123 men and 80 women, mean age: 48.5±13.3, 85 benign and 118 malignant lesions, 15 FLL types), an IV cohort (n=50, 30 men and 20 women, mean age: 52.6±10.8, 12 benign and 38 malignant lesions, 7 FLL types) with a ratio of 4:1 from institution 1, and an EV cohort (n=50, 22 men and 28 women, mean age: 49.2±12.2, 21 benign and 29 malignant lesions, 7 FLL types) from the other two institutions. The baseline characteristics of all the enrolled patients are summarized in Table 1. There were no significant differences in characteristics and demographics between the training, IV, and EV cohorts, except for the ultrasound equipment (P<0.05, Table 1). In total, 18 types of FLLs were enrolled in this study (Table S5).

Predictive performance of the models

The diagnostic performance of the FS3D models is shown in Table 2 and Figure 4. FS3D^U+H+A, which incorporated CEUS cines, hepatitis, and AFP, achieved superior diagnostic performance, with AUC values of 0.969 (0.95% CI: 0.901–1.000) and 0.957 (0.95% CI: 0.894–1.000) in the IV and EV cohorts, respectively. The results were statistically improved compared to FS3D^U (P<0.05, Table 2) in the IV cohort as well as FS3D^U (P<0.05, Table 2) and FS3D^U+H (P<0.05, Table 2) in the EV cohort.

Figure 4 ROC curves of the final model in the (A) training dataset, (B) IV dataset, and (C) EV dataset. The red five-pointed star indicates the AUC values of a radiologist with 12 years of experience. The red dot indicates the AUC values of a radiologist with 5 years of experience. ROC, receiver operating characteristic curve; IV, internal validation; EV, external validation; AUC, area under the receiver operating characteristic curve.

Compared to their performance in the EV cohort, the performance of all models in the IV cohort deteriorated. However, the Delong tests showed no significant differences among the four models in the IV and EV cohorts (P>0.05 for all, Table 2; Table S6).

Stratification analysis of the models and radiologists

In the stratification analysis, the FS3D^U+H+A model exhibited statistically improved AUCs compared with R2 in the IV and EV cohorts (P<0.05 for all, Table 3). It also showed slightly improved AUCs compared with R1, while the improvement was not statistically significant.

Meanwhile, a hierarchical analysis was performed according to the tumor size measured in the US images (Table 3; Tables S7-S9). In the <20 mm subgroup (n=26, 19 malignant lesions and 7 benign lesions), the AUCs of FS3D^U+H+A were lowest in the IV cohort but higher than that of R2 in the EV cohort. In the 20–50 mm (n=34, 23 malignant lesions and 11 benign lesions) and >50 mm (n=40, 25 malignant lesions and 15 benign lesions) subgroups, the FS3D^U+H+A model achieved the best performance compared to R1 and R2.

Predictive efficiency of the models compared to the radiologists

In terms of predictive efficiency, the four models, which achieved the same diagnosis speed (10.67 s per patient, Table 2), were almost three times faster than the radiologists in the IV cohort and approximately two times faster than the radiologists in the EV cohort. The experienced radiologist, R1, was faster than the young radiologist, R2.

Location performance of the model

To better understand the ability of the proposed models, the feature maps were converted into Gradient-weighted Class Activation Mapping (Grad-CAM) and visualized (Figure 5) (42). Each pixel in the maps was encoded using pseudo-color, and the warm color (red) represents a more substantial contribution to the predictive classification. By reading Grad-CAM heat-maps, we preliminarily concluded that the red/warm color regions occurred in patients with hyper-enhancement in the arterial phase. It indicates that our model is tracking the flow of CAs. Not only does it provide a visualization and interpretable capability for the network, but in future research we can also use Grad-CAM for ROI localization (43,44).

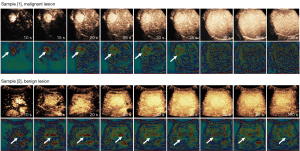

Figure 5 Feature visualization. There are two samples: the first and third rows show continuous frames of CEUS on a malignant lesion and a benign lesion, respectively. The lesions on the CEUS are marked by a white asterisk. The second and fourth rows show the corresponding feature maps of the lesions, marked by a white arrow. Sample [1], obtained from a 28-year-old man with liver cirrhosis, exhibited a malignant lesion of dimensions 38 mm × 35 mm (HCC) in the right liver, with an AFP concentration of 4.22 ng/mL. The imaging features showed rapid hyper-enhancement from the periphery to the center of the lesion in the artery phase and iso-enhancement in the portal venous phase. Sample [2], obtained from a 32-year-old woman with no history of hepatitis, exhibited a benign lesion of dimensions 41 mm × 27 mm (FNH) in the right liver, with an AFP concentration of 2.5 ng/mL. The imaging features showed slow hyper-enhancement from the center to the periphery in the late artery phase and wash-out in the late portal venous phase. CEUS, contrast-enhanced ultrasound; HCC, hepatocellular carcinoma; FNH, focal nodular hyperplasia.

Here, we visualized and analyzed two samples: Sample [1], obtained from a 28-year-old man with liver cirrhosis, exhibited a malignant lesion of dimensions 38 mm × 35 mm (hepatocellular carcinoma, HCC) in the right liver, with an AFP concentration of 4.22 ng/mL. The imaging features showed rapid hyper-enhancement from the periphery to the center of the lesion in the artery phase and iso-enhancement in the portal venous phase. It is a case of HCC with atypical imaging, and the R1 misdiagnosed it; however, it was correctly diagnosed by the FS3D^U+H+A model; Sample [2], obtained from a 32-year-old woman with no history of hepatitis, exhibited a benign lesion of dimensions 41 mm ×27 mm (focal nodular hyperplasia, FNH) in the right liver, with an AFP concentration of 2.5 ng/mL. The imaging features showed slow hyper-enhancement from the center to the periphery in the late artery phase and wash-out in the late portal venous phase. It is a case of benign FLL with atypical imaging, and R2 misdiagnosed it, whereas the FS3D^U+H+A model correctly diagnosed it.

In addition, the misclassified cases of our model were analyzed, and we found that they mainly presented atypical imaging characteristics in CEUS (Figure 6). Case A of hemangioma was misdiagnosed as a malignant tumor. It presented peripheral annular enhancement with obvious internal thrombosis, which was different from the typical nodular enhancement, and was hard to differentiate from hepatocellular carcinoma with partial internal necrosis. Case B of cholangiocarcinoma was misdiagnosed as a benign tumor. It showed inhomogeneous and slight hyper-enhancement, and an unclear boundary. It was not the typical annular enhancement, and was difficult to differentiate from inflammatory lesions. Case C of primary liver cancer was misdiagnosed as a benign tumor. The enhancement pattern in the arterial phase was annular and nodular hyper-enhancement because of the necrotic areas, and was difficult to differentiate from that of hemangioma.

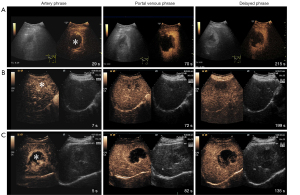

Figure 6 The misclassified cases reported by the model. Case A of hemangioma was misdiagnosed as a malignant tumor. Case B of cholangiocarcinoma was misdiagnosed as a benign tumor. Case C of primary liver cancer was misdiagnosed as a benign tumor. The lesions on the CEUS are marked by a white asterisk. CEUS, contrast-enhanced ultrasound.

Discussion

Rapid wash-in and wash-out is the typical imaging characteristic of liver cancer. The hepatocarcinogenesis is accompanied by decline in normal vascularity and the development of neoangiogenesis and sinusoidal capillarization. Microbubble contrast agents in CEUS can enhance the echo signals of the blood supply, and real-time perfusion information about the lesion can be analyzed frame-to-frame. Hence CEUS plays an important role in the early diagnosis of liver cancer in clinical practice. However, recent studies have shown that the imaging features of liver cancer can be presented through various features corresponding to clinicopathological characteristics. For example, small HCC or well-differentiated HCC could exhibit iso-enhancement for atypical imaging in the late phase, which is consistent with the imaging characteristic of dysplastic nodules, and is easily misdiagnosed. Therefore, combining the patient’s medical history and related laboratory examinations is of significant importance for the accurate identification of liver cancer.

DL has been shown to perform well in extracting features of medical imaging. 3D CNNs, in particular, can extract spatiotemporal information effectively. Therefore, the established the FS3D^U+H+A model, incorporated long-range CEUS cines with approximately 20 frames per second and clinical factors, and achieved the best performance in identifying FLLs among other models, and better than earlier studies (28,29,32), which only analyzed CEUS and reported an average accuracy of 94.3%, 93.1%, and 90.3%, respectively. The results indicate that clinical factors are important for computer-assisted diagnosis; this indication is consistent with clinical diagnosis investigation.

In stratified analysis, the FS3D^U+H+A model was significantly advantageous over the younger R2 and provided a better AUC than the more experienced R1 for lesions in the ≥20 mm groups, while slightly worse in the <20 mm group. It may be because the rapid motion in CEUS cine may easily occlude lesions, resulting in the blood perfusion of small lesions in some key frames not being captured. However, the total AUC of the model was higher than that of the radiologists on CEUS in former reports, who achieved an average accuracy of 85% (9,45) and even in CT and MRI (9,45,46). Hence, our model learns discriminative spatiotemporal representations from long-range CEUS cines and clinical factors, and offers remarkable capabilities in the differential diagnosis of FLLs. The EV, 3-fold cross-validation, and variety of CEUS equipment proved the robustness of our models.

It is worth mentioning that diagnosing liver cancer in liver cirrhosis is challenging in clinical practice. Our study’s IV and EV cohorts included 16 patients with liver cirrhosis, including 2 benign and 14 malignant lesions. The diagnostic accuracy of both R1 and FS3D^U+H+A models were 100%, while that of the younger R2 was 93.75%. The results indicate that the model also performed well in diagnosis of liver cancer in liver cirrhosis. However, the comprehensive analysis of misclassified cases show that our model still lacks the differential diagnosis of patients with atypical imaging features, mainly due to the small number of cases included in this study.

In terms of diagnosis speed, our models took 10.76 s to diagnose each patient, which is faster than the manual assessment (9,45,46). Hence, our method could be widely applicable as a cost-effective and safe method in clinical practice, and may replace CT or MRI. In addition, feature maps generated by the algorithm can clearly indicate the location of the lesion and help radiologists focus on blood perfusion information, overcoming observable limitation factors such as breath motion. They can interpret the CNN results, which has important implications for clinical diagnosis and navigation in the future.

Our study has some limitations. First, although fully trained CNNs require a large dataset, the sample size and the number of medical centers in our study were smaller, and there is still an imbalance in the types of FLLs. We also need additional data to verify the performance of the model in the heterogeneity diagnosis of FLLs. Therefore, in subsequent research, more multicenter data with standard formats should be collected and applied. Second, a binary classification of FLLs was achieved, which is only the first step toward clinical applications. Therefore, the classification of different types of FLLs will be one of our future focus areas, especially for the accurate diagnosis of HCC. Third, CT and MRI also provide important information on the extent of the local tumor, which should be included for multimodal analysis in subsequent studies.

In conclusion, the proposed DL radiomics captured the dynamic perfusion information of liver cancer, and combined the patients’ AFP and hepatitis history, which is the key link of diagnosis in clinical practice. Finally, the strategy is more in line with the clinical diagnosis of liver cancer, and achieves an outstanding performance and higher speed in the diagnosis of FLLs, and is superior to skilled radiologists. Hence, it is promising for the wide application of CEUS as a time- and cost-effective imaging method in clinical settings, and could drive further innovation in medicine.

Acknowledgments

The authors are grateful for the support and participation from the Sonographers Branch of the Chinese Medical Doctors Association.

Funding: This work was supported by International Science & Technology Cooperation Program of China (No. 2015DFA30920), Science and Technology (International Science & Technology Cooperation) Research Base Construction Program of Chongqing (No. cstc2014gjhz110004), and the National Natural Science Foundation of China (No. 31671251).

Footnote

Reporting Checklist: The authors have completed the TRIPOD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-21-1004/rc).

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-21-1004/coif). MZ used to be an employee of CHISON Medical Technologies Co., LTD., and LL is a current employee of CHISON Medical Technologies Co., LTD. They provided technology support in this study. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study received institutional review board approval (No. KY2019129), and was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Requirement for patient consent was waived because of the retrospective nature of this study.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
