Bi-exponential fitting excluding b=0 data improves the scan-rescan stability of liver IVIM parameter measures and particularly so for the perfusion fraction

Introduction

In intravoxel incoherent motion (IVIM) theory, D_slow (or D) is the diffusion coefficient representing the slow ‘pure’ molecular diffusion; perfusion fraction (PF, or f) represents the fraction of the compartment related to (micro)circulation; D_fast (or D*) is the perfusion-related diffusion coefficient representing the incoherent microcirculation within the voxel, which holds information for blood perfusion’s speed (1). There have been greater interests to explore IVIM imaging to evaluate diffused liver diseases (2-4). A prerequisite to translating IVIM imaging into clinical applications is accurate measurement of IVIM parameters and acceptable reproducibility. Nevertheless, accurate liver IVIM quantification is challenging, partially due to the limited sampling and low signal-to-noise ratio (SNR) for fast diffusion data acquisition (1,3,5,6).

Recently, we published three studies demonstrating the clinical usefulness of liver IVIM in separating non-fibrotic livers and fibrotic livers. The report of Wáng et al. had 16 healthy volunteers and 33 hepatitis B liver fibrosis patients, among them 15 patients had stage-1 liver fibrosis (7); the report of Huang et al. had 26 healthy volunteers and 12 hepatitis B liver fibrosis patients, among them 4 patients had stage-1 liver fibrosis (8); the report of Li et al. had 20 healthy volunteers and 28 hepatitis B liver fibrosis patients, among them 11 patients had stage-1 liver fibrosis (9). All fibrotic livers and healthy livers in these three studies can be separated by IVIM analysis except one stage-2 fibrosis case in the study of Li et al. Interestingly, the study of Huang et al. and the study of Li et al. both had 4 patients respectively with biopsy showing no fibrosis, and these 8 subjects’ diffusing magnetic resonance imaging (MRI) measurements resembled healthy volunteers (8,9). To achieve these good results, we have taken four measures to improve IVIM data analysis. The first step was to perform an initial image data quality assessment, with images with severe respiratory motion and artifacts discarded (10). In our reports on human data, this led to approximately 15% of the liver diffusion MRI scans being considered not useful for IVIM analysis (8-11). The second step was that b=0 image data was excluded from bi-exponential liver diffusion image curve fitting (7-9,11-14). The third step was, if a segmented fitting is applied, the threshold b-value of 60 s/mm² was chosen (8,9,11,15). Finally, the signal was measured on the right liver with ROI (region-of-interest) based approach, as the left liver is more susceptible to artifact due to content in the stomach and cardiac motion. The ROI-based analysis offers better estimation than the pixelwise-fitting method when the SNR is low (16).

There is strong evidence that the relationship between liver diffusion weighted imaging (DWI) signal and b-value does not follow bi-exponential decay; instead, it can be better fitted by an addition of a very fast component with a tri-exponential decay model (14,17,18). However, with clinical scan settings, the fitting of a tri-exponential decay model can be quite unstable at individual study subject’s levels (17,18). We have empirically demonstrated that liver IVIM analysis can be approximated by the bi-exponential liver diffusion image curve fitting starting from a low b-value [such as b-value =10 s/mm² (7), b-value =15 s/mm² (8), b-value =2 s/mm² (9,11)]. With fitting starting from a non-zero low b-value, the relationship between DWI signal and b-value better follow a bi-exponential decay (12,14). IVIM parameter estimated excluding b=0 s/mm² image improves the separating of non-fibrotic livers and fibrotic livers, which, in our empirical experience, was the most decisive factor to achieve good diagnostic power for separating non-fibrotic livers and fibrotic livers (Figure 1). Due to the fact that a bi-exponential model cannot fit a decay which more resembles a tri-exponential pattern and thus would increase the fitting instability (18), we postulate that IVIM data fitting by excluding b=0 image data improves the reproducibility of liver IVIM measurement. Utilizing the healthy volunteers’ liver IVIM data, this study aims to confirm this hypothesis.

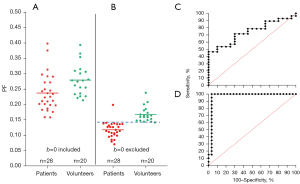

Figure 1 PF of 28 viral hepatitis-b induced liver fibrosis patients and 20 healthy volunteers. Images were acquired at 3T with 16 b-values of 0, 2, 5, 10, 15, 20, 25, 30, 40, 60, 80, 100, 150, 200, 400, and 600 s/mm², and analyzed by segmented fitting with threshold b-value of 60 s/mm². (A) PF values fitted with b=0 data. (B) PF values fitted without b=0 data. PF fitted without b=0 data substantially improves the separation between healthy volunteers and patients (dotted line suggests possible separation). AUROC increased from 0.74 (C for with b=0 data fitting) to 0.97 (D for without b=0 data fitting). Bar: mean value. The data are from reference 9 (available in the supplementary tables, re-used with permission). PF, perfusion fraction; AUROC, area under the receiver operating characteristic.

Methods

For evaluating scan-rescan repeatability, a subject was scanned twice during the same session without any change of anatomical positioning (Figure 2A). MRI data of healthy participants were acquired in Shenzhen, China, from Apr 21 to Nov 17, 2019. To control the increase of blood flow to the liver due to food intake, participants were asked to fast for 6 hours before imaging. Study subjects were scanned using a 1.5-T magnet (Achieva, Philips Healthcare, Best, The Netherlands). Diffusion images with 16 b-values of 0, 2, 4, 7, 10, 15, 20, 30, 46, 60, 72, 100, 150, 200, 400, 600 s/mm² were acquired. The TR was 1,600 ms and the TE was 63 ms. Other parameters included slice thickness =7 mm and inter-slice gap =1 mm, matrix =124×97, FOV =375 mm × 302 mm, NEX =2, number of slices =7. The included slices were focused on the central part of the liver.

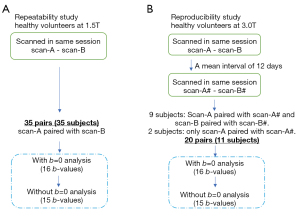

Figure 2 An illustration of study subject number and scan sessions for repeatability and reproducibility studies.

For evaluating scan-rescan reproducibility, each subject was scanned twice in the first scan session with the second scan performed after an interval of 5–18 days (mean: 12 days) and also scanned twice (Figure 2B). MRI data of healthy participants were acquired in Nanjing, China, from Apr 14 to May 7, 2017. A 3T magnet and a 32 channels dStream Torso coil (Ingenia, Philips Healthcare, Best, The Netherlands) was used. Diffusion images with 16 b-values of 0, 3, 10, 25, 30, 40, 45, 50, 80, 200, 300, 400, 500, 600, 700 and 800 s/mm² were acquired. NEX was 2 for b=700 s/mm² and b=800 s/mm², and NSA =1 for other b-values. Other parameters included TR =2,149 ms, TE =55 ms, slice thickness =6 mm, matrix =100×116, FOV =360×300 mm, EPI factor =29, sensitivity-encoding (SENSE) factor =4, number-of-slices =26.

In both studies, the diffusion scan was based on a single-shot spin-echo type echo-planar sequence. Spectral Pre-saturation with Inversion-Recovery technique was used for fat suppression. The data of repeatability study was acquired later than the reproducibility study, and the b-value distribution for repeatability study is considered to be more ‘optimized’ where the highest b-value was 600 s/mm² and b-value around 60 s/mm² was more densely sampled, and 6 hours’ pre-scan fasting was adopted (11). Respiratory-gating was applied in all scans. For both 1.5T study and 3.0T study, the IVIM data acquisition time was around 5–6 min for one scan depending on the respiration cycle of the subjects. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The MRI data acquisition was approved by the local institutional ethics committees in Shenzhen and Nanjing, and informed consent was obtained from all subjects.

All data analysis was implemented in MATLAB (MathWorks, Natick, MA, USA). The IVIM analysis for D_slow, PF, and D_fast followed our previous descriptions (8,9,11). In brief, after MRI data acquisition, we performed a data quality assessment prior to IVIM analysis. Images with notable motion and artifacts were discarded. To avoid potential bias, once a dataset was included for including b=0 data analysis, this dataset would not be excluded for without b=0 data analysis which is the last step. ROIs were placed on b=0 s/mm² image (for including b=0 data fitting) or on b=2 (or 3) s/mm² image (for excluding b=0 data fitting) to cover a large portion of right liver parenchyma while avoiding large vessels and then copied to the images of other b-values of this slice. For ROI analysis, the IVIM parameters were calculated based on the mean signal intensity of the whole ROI. The mean of all included slice measurements was then regarded as the value of the examination, with the last step weighted by the ROI area of each slice. For repeatability analysis, the signal attenuation was modeled according to Eq. [1] or Eq. [2].

SI(b)=SI(0)×[(1−PF)×exp(−b×Dslow)+PF×exp(−b×Dfast)][1]

SI(b)=SI(2)×[(1−PF)×exp(−(b−2)×Dslow)+PF×exp(−(b−2)×Dfast)][2]

where SI(b) and SI(2) denote the signal-intensity acquired with the b-factor value of b and b=2 s/mm², respectively. Both full fitting and segmented fitting were performed (18). For segmented fitting, the threshold b-value to separate the fast component and slow component was 60 s/mm² (11,15). After imaging data considered of insufficient quality were discarded, data of 35 subjects and 35 paired scans (11 males, mean age: 41.82 years, range: 32–60 years; 24 females, mean age: 42.67 years, range: 20–71 years) were available for repeatability analysis (Figure 2A).

For reproducibility analysis, the signal attenuation was modeled according to Eq. [1] or Eq. [3].

SI(b)=SI(3)×[(1−PF)×exp(−(b−3)×Dslow)+PF×exp(−(b−3)×Dfast)][3]

where SI(b) and SI(3) denote the signal-intensity acquired with the b-factor value of b and b=3 s/mm², respectively. Only segmented fitting was conducted, with the threshold b-value of 50 s/mm² chosen. With full fitting, preliminary testing showed general fitting instability for the reproducibility data, which concur with previous reports and thus full fitting was not included for reproducibility data (18,19). Data of 11 subjects with 20 paired scans (4 males, mean age: 26.25 years, range: 25–27 years; 7 females, mean age: 25.57 years, range: 24–27 years) were available for reproducibility analysis (Figure 2B). Repeatability and reproducibility (i.e., stability) of PF, D_slow and D_fast were assessed by the within-subject standard deviation (wSD), Bland-Altman mean difference and 95% limits of agreements (BA-LA), and intraclass correlation coefficient (ICC). wSD is defined by Eq. [4]:

Within−subject SD=Σ(x1-x2)22n[4]

With n being the number of subjects (=35 or 20 in this study) and x₁ and x₂ are the duplicate parameter measurements for each subject. Statistical analysis was performed using GraphPad Prism Software (GraphPad Software Inc., San Diego, CA, USA).

Results

Bi-exponential decay fitting starting from a non-zero low b-value generally offered better fittings (Figure 3). The scan-rescan measures for repeatability are graphically shown in Figure 4 and Figure 5, and measures for reproducibility are graphically shown in Figure 6 and Figure 7. Graphical data suggest the most apparent improvement for without b=0 data analysis is seen with the stability of PF measure.

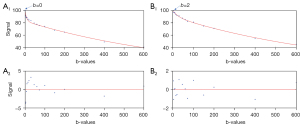

Figure 3 One repeatability study subject’s IVIM segmented fitting with (A) and without (B) b=0 data. B₁ visually shows better fitting than A₁. A₂ and B₂ show deviations of individual data points from the fitted line (i.e., the residual of the fit at each b-value). Overall, the residuals are smaller in B₂ than in A₂. Note the Y-axis scale in A₂ is from 5 to −5, while that in B₂ is from 2 to −2. IVIM, intravoxel incoherent motion.

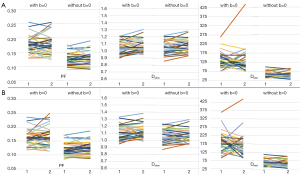

Figure 4 Graphical presentation of scan-rescan repeatability measure of PF, D_slow, and D_fast. (A) Segmented fitting results; (B) full fitting results. 1: first scan; 2: second scan. Unit of D_slow and D_fast: ×10³ mm²/s. PF, perfusion fraction.

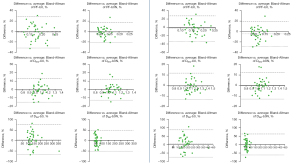

Figure 5 Bland-Altman plots of scan-rescan repeatability. Left panel: segmented fitting, right panel: full fitting. PF-b0: perfusion fraction measures with b=0 data included. PF-b0N: perfusion fraction measures with b=0 data excluded. PF, perfusion fraction.

Figure 6 Graphical presentation of scan-rescan reproducibility measure of PF, D_slow, and D_fast. 1: first scan; 2: second scan. Unit of D_slow and D_fast: ×10³ mm²/s. PF, perfusion fraction.

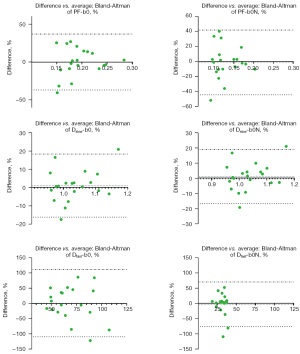

Figure 7 Bland-Altman plots of scan-rescan reproducibility. PF-b0: perfusion fraction measures with b=0 data included. PF-b0N: perfusion fraction measures with b=0 data excluded. PF, perfusion fraction.

Repeatability and reproducibility quantitative results are shown in Table 1. Table 1 shows fitting without b=0 data generally improved the repeatability and reproducibility for all PF, D_slow, and D_fast. For the segmented fitting repeatability, by removing b=0 from analysis, ICC of PF improved from 0.647 to 0.837, wSD of D_slow improved from 0.054 to 0.047, and ICC of D_fast improved from 0.466 to 0.512. For reproducibility, by removing b=0 from analysis, ICC of PF improved from 0.671 to 0.738 and BA 95% limit for D_fast improved from −109.7% to 112.1% to −76.16% to 69.56%. Quantitative stability measures were better for repeatability than reproducibility (such as an ICC of 0.837 vs. 0.738). For repeatability, quantitative stability measures were marginally better for segmented fitting than for full fitting (such as an ICC of 0.837 vs. 0.789). It appears that the most notable improvement of stability by excluding b=0 data was seen with segmented fitting for repeatability. Though repeatability and reproducibility for D_fast generally improved by fitting without b=0, they remained suboptimal (Table 1).

Discussion

Accurate liver IVIM quantification is known to be challenging (6,20). The current study tested the hypothesis that IVIM data fitting by excluding b=0 data improves the stability of liver IVIM measurement. As expected, except D_slow, this study shows PF values computed without b=0 data were modestly smaller than the values computed with b=0 data; D_fast values computed without b=0 data were substantially smaller than the values computed with b=0 data. As can be seen from Eq. [4], wSD intrinsically favors measurements with a smaller value. On the other hand, ICC favors measurements with a larger ‘dynamic range’. D_slow has a very small ‘dynamic range’ and tends to only fluctuate around 1.0 for healthy subjects. Thus, despite good reproducibility, the D_slow reproducibility ICCs for measures with b=0 data and without b=0 data were both <0.4. Therefore, the quantitative performances for repeatability or reproducibility as shown in Table 1 should be considered comprehensively (rather than individually).

In this study, using two data sets acquired at two magnet field strengths and at two sites, and with slightly different b-value distributions, we confirmed that excluding b=0 image data improves scan-rescan stability of liver IVIM estimations, despite there was one data point fewer for without b=0 data fitting than for including b=0 data fitting (i.e., 15 datapoints for without b=0 data fitting and 16 datapoints for including b=0 data fitting). The improvement seemed more apparent with PF and when the b-value distribution is more ‘optimized’ (i.e., that of repeatability study). In liver IVIM studies, it has been repeatedly demonstrated that PF is the most important parameter (3,21-23). D_slow suffers from a small dynamic range, and D_fast suffers from poor stability (6,24). While it has been well demonstrated that liver fibrosis is associated with progressive reduction of all three IVIM parameters, most reports by other authors did not show reliable detection of early-stage liver fibrosis (6). It is expected that this improved measure reproducibility by excluding b=0 data had contributed to our good results that, in three medium-sized studies, IVIM analysis almost completely separated all non-fibrotic livers and fibrotic livers (including those of mild stage fibrosis) (7-9). In our earlier analysis, we showed that, analysis without b=0 data offered a smaller CoV (coefficient-of-variation) for IVIM parameters in a cohort of healthy volunteers, and also a bigger difference between patients’ measure and volunteers’ measure (9). It is noted that, in addition to us, other authors have also adopted IVIM fitting without b=0 data, such as the recent work of Koopman et al. on head and neck imaging (25). Gambarota et al. (26) proposed to remove vessel pixels firstly, and then perform diffusion analysis assuming the remaining liver parenchyma without vessel pixels following a bi-exponential model. However, due to the existence of sub-pixel small vessels, even after vessel pixels are removed from the analysis, the remaining liver parenchyma will still follow a tri-exponential decay pattern (14).

Another point of note is that full fitting is generally considered to be unstable and not commonly used in liver studies (18,19). However, in this study with our ‘optimised’ b-value selection and image analysis, the full fitting repeatability was only marginally inferior to segmented fitting repeatability (Table 1). On the other hand, while fitting without b=0 data appeared to have improved measure stability for D_fast, the final results remain suboptimal in this study, with relatively large wSD, large BA difference, large BA 95% agreement limit, and ICC equaled 0.512 for repeatability study, was <0.4 for reproducibility study. According to Fleiss (27), an ICC value of <0.4 represents poor agreement, a value >0.75 represents good agreement and a value between 0.4 and 0.75 represents fair to moderate agreement. However, it is also possible that, D_fast measures fitted without b=0 data reduced dynamic range, thus potentially can avoid artificial ‘large fluctuations’ (6,24).

On DWI, blood vessels show a high signal when there is no diffusion gradient (b=0 s/mm²) and a low signal even when very low b-values (e.g., 1 s/mm²) are applied. Therefore, the signal difference between images when the diffusion gradient is off and images when the diffusion gradient is on reflects the extent of tissue vessel density (referred to as diffusion-derived vessel density, DDVD) (11-13). It has been shown that DDVD is a useful biomarker for the separation of livers with and without fibrosis, with liver fibrosis associated with a lower DDVD (13,28). According to the original definition, PF which can reflect total hepatic perfusion volume, is estimated to be around 18% (6,29,30). As noted earlier, liver perfusion and diffusion are better measured by DWI with a tri-exponential decay model, where perfusion related diffusion is mathematically (though not anatomically) divided into a very fast compartment and a fast compartment (17,18). The very fast compartment represents the initial very fast signal drop from b=0 to very low b-values, and it is highly unstable during IVIM modeling (17,18). In the recent study of Riexinger et al. (31), 24 b-values were applied: 0.2, 0.4, 0.7, 0.8, 1.1, 1.7, 3, 3.8, 4.1, 4.3, 4.4, 4.5, 4.9, 10, 15, 20, 30, 50, 60, 90, 95, 150, 180 and 500 s/mm². However, this approach of applying multiple very low b-values to measure the very fast compartment is only feasible in dedicated research scanners. In our study when b=0 data was not used in the IVIM analysis, the very fast compartment is not fully captioned; thus the PF values derived from without b=0 analysis were lower than the physiological value of 18%. Our approach constitutes a removal or a partial removal of the highly instable very fast compartment from the perfusion related diffusion IVIM calculation. We can argue that the DWI signal difference between b=0 and b=2 (or b=3), which are measured by DDVD in our studies (13,28), partially reflects the very fast compartment. On the other hand, as shown in our earlier studies, it appears that measuring the fast component only (while without measuring the vary fast component) may be sufficient to differentiate fibrotic livers from non-fibrotic livers in most of the cases (7-9). It is very difficult to precisely measure the very last compartment by IVIM modeling using routine clinical MRI scanners (3). A highly instable very fast compartment’s contribution to the IVIM parameters derived from with b=0 analysis may compromise the utility of liver IVIM imaging in clinical practice.

There are a number of limitations for this study. The stability for D_fast remains suboptimal in this study. This is a well-known limitation of IVIM analysis, and thus even denser sampling of very low b-value may be required for stable D_fast fitting (18). Secondly, this study adopted conventional IVIM segmented fitting and full fitting, it is possible in some cases better results can be obtained by Bayesian analysis (32-35). Thirdly, for the reproducibility study, we didn’t ask volunteers to fast before the MRI examination (36). Fourthly, before computing the IVIM results, we had a process to remove subjects or slices of insufficient data quality. Till now this remained subjective decision for which image data to include and which image data to exclude, and we are currently working to decrease the ratio for unused data, including taking measures of Bayesian analysis, de-noising, and better image registration. After these steps, we plan to develop objective criteria to determine which image data can be used and which image data should be rejected. However, the current subjectivity would not affect the main conclusion drawn in this study, as this study is on the comparisons of healthy subjects’ results with b=0 calculation vs. results without b=0 calculation. Once one image datum was included for including b=0 data analysis, this image datum would not be excluded for without b=0 data analysis. It has been noted that magnetic field difference will have some implications for IVM results. It has been noted that 1.5T scanners’ results have higher D_slow and lower PF, while 3.0T scanners’ results have lower D_slow and higher PF (6,31). This study did not aim to directly compare the scan-rescan stability of a 1.5 scanner vs. a 3T scanner.

In conclusion, we demonstrated the proof-of-principle that the scan-rescan repeatability and reproducibility of IVIM parameters can be improved by bi-exponential fitting without b=0 data, which is particularly so for the most important IVIM parameter of PF. This approach constitutes a removal of the highly instable very fast compartment from the perfusion related diffusion IVIM calculation. We suggest that this improved measure stability may contribute to a better diagnostic performance of IVIM parameters for liver pathologies.

Acknowledgments

Funding: This study was partially supported by Hong Kong GRF Projects (Nos. 14109218 and 14112521).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-2022-02/coif). Author YXJW serves as the Editor-in-Chief of Quantitative Imaging in Medicine and Surgery. Author YXJW is the founder of Yingran Medicals Co., Ltd., which develops medical image-based diagnostics software. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The MRI data acquisition was approved by the local institutional ethics committees in Shenzhen and Nanjing, and informed consent was obtained from all subjects.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
