Assessment of facial autologous fat grafts using Dixon magnetic resonance imaging

Introduction

Aging, trauma, and diseases can cause soft tissue defects, which can be treated with various filling materials to improve a patient’s physical appearance (1). Fat grafting is a process that reallocates fat from the thighs or abdomen to the defect region, allowing good tissue compatibility with a minimized rate of tissue rejection and no allergic reaction (2). Surgeons use this procedure in facial rejuvenation, lipoatrophy (3-5), and breast and glutes augmentation (6-10). Researchers have assessed the surgical outcomes by measuring the autologous fat graft’s long-term volumetric retention in improving surgical procedures and the survival rate of grafted fat (1,11). Noninvasive imaging methods, including ultrasound, computed tomography (CT), 3D facial scanner, and conventional magnetic resonance imaging (MRI), have been applied in previous studies to assess fat graft retention; however, the inaccuracy or insensitivity in such modalities limits their applications for the face due to its small volume (8,11,12). For example, ultrasound imaging applies pressure on soft tissue that changes the tissue’s shape, and the thick layer of the water-based gel used for ultrasound transmission between the probe and skin is not suitable in cosmetic surgery clinics (1). CT images do not offer sufficient contrast to distinguish autologous fat graft from subcutaneous fat l (13). More importantly, ionizing radiation from the X-ray during CT inhibits its broad application. Moreover, previous studies using a fat suppression MRI sequence also found it difficult to delineate grafted fat (1,4,7).

The Dixon sequence can be implemented using various sequence implementation and reconstruction algorithms (14-19). The mechanism of the Dixon sequence is based on the chemical shift effect, which separates the water and fat signal (20). Although the in-phase and water-only (fat-suppressed) images generated by Dixon imaging are commonly used for clinical diagnosis (21,22), the fat-only image has not been frequently used. Fat-only images are usually discarded except in fat quantification measurements, but they provide high-quality anatomical images of adipose tissue without requiring a contrast agent or additional image postprocessing.

We hypothesized that fat-only images could provide visualization of grafted fat following the autologous fat transfer and guide the second injection procedures. This study aimed to assess the application of Dixon imaging’s fat-only image when characterizing autologous fat graft and to assess the changes of the grafted fat signal and its volume retention within 1 year after surgery.

We present the following article in accordance with the MDAR checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-21-570/rc).

Methods

This prospective and observational study was conducted following the Declaration of Helsinki (as revised in 2013). It was approved by the ethics committees in our hospital and in the general hospital where the MRI scans were performed. Written informed consent was obtained from all volunteers and patients.

Patients

This research recruited 4 volunteers to optimize the MRI protocols at the beginning of the study. A total of 68 patients with facial defects were registered to participate in the study between August 2019 and October 2020. All patients were randomly selected to have 1 MRI scan on either 7 days, 3 months, or 1 year after they underwent autologous fat graft surgery.

Of these, 21 patients canceled the surgery due to COVID-19 quarantine, 13 were excluded from the MRI examination due to geographical requirements and COVID-19 travel restrictions, and 11 patients who underwent hyaluronic acid or autologous fat injections before the study were excluded. Eventually, 23 patients were prospectively enrolled in this study.

Surgery

The surgery included liposuction, fat preparation, and lipofilling procedures, as demonstrated in Figure 1. The autologous fat graft was harvested from the abdomen or thighs according to the patients’ preference. Tumescent fluid containing 400 mg of lidocaine and 1 mg of adrenaline per 1,000 mL of saline was infiltrated into the subcutaneous layer. Liposuction was conducted with a 3.0-mm sharp cannula connected to a low-pressure 20-cc syringe liposuction under local anesthesia. The cannula was moved back and forth to collect the autologous fat. Collected fat sedimented for about 15 minutes after rinsing. During sedimentation, the adipose cells were separated from the serosanguineous component and oils. Fat was then transferred into 1-mL syringes for injection.

Figure 1 Surgical procedures in a 44-year-old woman presenting for autologous fat graft injection of the face. (A) The autologous fat graft was harvested from the abdomen with a 3.0-mm sharp cannula connected to a low-pressure 20-cc syringe liposuction. (B) During fat sedimentation, the adipose cells were easily separated from the serosanguineous component. (C) Fat was then transferred into 1-mL syringes for injection. (D) Fat was injected into the deep fat layer when the syringe gradually retracted. This image is published with the patient’s consent.

Two 0.5-mm stab incisions were made on the bilateral malar or nasal sides of each patient with an 18-gauge sharp needle. The plastic surgeon injected fat into the layer of the deep fat using an injecting cannula attached to the 1-mL syringe containing fat. For each case, the volume injected into each site was documented in the medical record.

Postoperative evaluation was performed by both the patients and the doctors and was graded as excellent, good, fair, or poor.

MRI scan protocols

A facial MRI was performed using a 3.0T unit with a 32-channel head coil (Ingenia Elition X, Philips HealthTech) to assess the facial fat signal, morphology, and volume in patients. MRI was performed with submillimeter resolution to reduce the partial volume effect. These examinations were conducted 7 days, 3 months, or 1 year after surgery, and 3 sequences were applied:

A high-resolution 3D T1W Dixon with intrinsic transverse orientation was first applied; then, sagittal and coronal images were reconstructed from this 3D T1W image. These images in 3 orientations served as the fat localizer to identify the grafted fat and plan further scanning. The 3D T1W imaging was obtained with a gradient echo sequence (GRE) to achieve an acceptable signal-to-noise ratio (SNR) and scan time. Images acquired at dual echo times by a bipolar gradient readout were used for calculation of the water and fat image via the 2-point modified Dixon method (23,24).

High-resolution transverse 2D T1W and T2W Dixon TSE sequences were applied after the radiologist and surgeon identified and localized the grafted fat based on the preceding 3D sagittal and coronal images. This Dixon sequence used a dual-acquisition scheme, with an echo shift of 1 ms, to generate water-only, fat-only, and in-phase images (20) (Figure 2). Minimum bandwidth was used in the 2D DXION TSE sequences to enrich SNR. A 7-peak fat spectral model was incorporated in the Dixon imaging algorithm to improve the performance of water-fat separation (20,25-27). The detailed protocol parameters are summarized in Table 1.

Figure 2 Transverse noncontrast-enhanced in-phase (A), water-only (B), and fat-only (C) images of a healthy volunteer (aged 23 years, female) on bilateral malar sites. These images were acquired by a T1W 2D mDixon TSE sequence. (A) The in-phase image appears similar to a conventional TSE image. (B) The water-only image is similar to the fat-saturated image. (C) The fat-only image was generated by the mDixon imaging algorithm. Three layers are clearly displayed in the fat-only image: the first is the superficial fat layer with high signal intensity, the second is SMAS (low signal intensity, indicated by the red arrow), and the third is the deep fat layer. T1W, T1-weighted; TSE, turbo spin echo; SMAS, superficial musculo-aponeurotic system.

Image analysis

A radiologist with 10 years of head and neck image reading experience and a plastic surgeon with 5 years of plastic surgery experience reviewed and analyzed all the MRI images together. They were blinded to the image sequence and time point. A 5-point Likert-type scale based on previous studies was used to qualitatively evaluate the image quality of the 2D T1W and T2W fat-only images. The image quality analysis was based on artifacts and background suppression. Another 5-point Likert-type scale was used to qualitatively assess the image differentiation between grafted fat and the surrounding native fat tissue. The 2 Likert-type scales are illustrated in Table 2. All the gradings were completed via the consensus of 2 doctors.

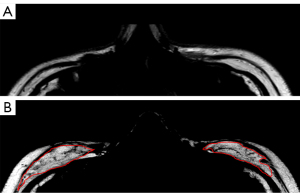

The contour of the grafted fat was delineated by the radiologist and confirmed by the surgeon based on the 2D T1W images, which were sharper than those of the 3D T1W. Each patient had 2 sides (left and right sides) that underwent surgeries, and information for both sides was recorded.

MR T1W and T2W images were scaled by signal receivers, amplifiers, and image reconstruction weighting factors; hence, the signal did not represent the absolute value of tissues. To address this issue, we recorded every signal in the grafted fat (Si) and native fat (Sn) and calculated the relative signal contrast using Eq. [1]. Si was measured in the region-of-interest (ROI) within the grafted fat contour, while Sn was measured within an ellipse ROI larger than 20 mm² near the grafted fat. The ROIs were chosen to avoid the edge of the patients’ native fat and muscles. The grafted fat signal contrast, which is the relative difference between Si and Sn, was calculated to quantify the difference between the signals of grafted fat and native fat.

[1]

The contours were then copied from 2D to 3D images, interpolated into continuous contours to make more slices in the 3D T1W images, and modified if movements were observed. Following this, 3D T1W images were used to measure the volume of grafted fat, which was measured in voxels. The measured volumes of grafted fat were then compared with the volume of injected fat, and the retention rate was calculated for each volume according to Eq. [2].

[2]

Statistical analysis

Statistical analysis was performed with SPSS 22.0 (IBM Corp., Armonk, NY, USA). The Kruskal-Wallis test was used to compare the age of the 3 groups. The Wilcoxon signed-rank test was applied to compare image quality and image differentiation scores of 2D T1W and T2W fat-only images. An unpaired t test with Welch’s correction was applied to analyze the signal contrast and volume retention rate. The Pearson correlation method was used to obtain a linear regression of the relationships between the volume of the injected fat and the measured volume of fat on postoperative day 7. The Shapiro-Wilk test was performed to test if the variables match the normal distribution. All statistical tests were 2-sided, and a P value less than 0.05 was considered statistically significant.

Results

Patient characteristics

With 23 female patients (age 35±7.8 years) participating in the image evaluation, 46 injected sides of the face were acquired. The recipient sides of the patients were 26 at malar and 20 at the nasolabial fold. Eight patients underwent a follow-up MRI scan on postoperative day 7, 9 patients were scanned 3 months postoperatively, and 6 patients were scanned 1 year after surgery. There was no statistical difference in the age of the 3 groups (P=0.2). The mean volume of fat grafted into each side of the face was 2.60±0.53 mL. Patient satisfaction was assessed using questionnaires. Of the 23 patients, 19 (64.5%) had excellent results, 2 (22.1%) had good results, 1 (5.9%) had fair results, and 1 (7.4%) had poor results. Excellent and good results were considered to be satisfactory. In all, 21 (91.3%) patients were satisfied with the results. The postoperative clinical effect was evaluated by the doctors, yielding the following results: excellent (n=18, 78.2%), good (n=4, 17.3%), and fair (n=1, 4.3%).

To date, there have been no complications in patients. No surgical-site infections have been recorded. Three patients underwent a second injection procedure. Table 3 shows the demographic details of patients.

MRI and signal evaluation

The median scores of the T1W image quality and image differentiation were 5 (ranging from 4 to 5) and 5 (ranging from 4 to 5), respectively. The median scores for the T2W image quality and image differentiation were 4 (ranging from 2 to 5) and 3 (ranging from 2 to 5), respectively. There was a statistical difference between T1W and T2W for image quality (P<0.01) and for image differentiation (P<0.0001; Figure 3). Figure 4 shows a representative case to illustrate this finding.

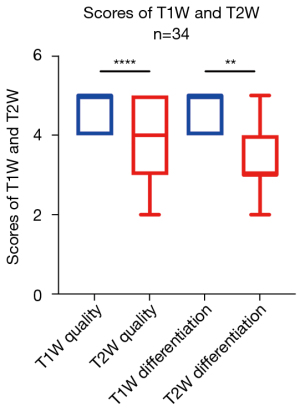

Figure 3 Boxplots show the image quality and image differentiation scores of T1W and T2W fat-only images evaluated by the 5-point Likert-type scale. T1W scores are significantly higher than those of T2W on both variables. ****, P<0.0001; **, P<0.01; Wilcoxon signed-rank test. T1W, T1-weighted; T2W, T2-weighted.

Figure 4 Transverse noncontrast-enhanced fat-only T1W (A) and T2W (B) images of a patient (age 33 years, female) scanned 3 months after autologous fat surgery performed in bilateral nasolabial groove (red arrows). The T1W image (A) is sharper and has more contrast than the T2W image (B). T1W, T1-weighted; T2W, T2-weighted.

The mean and standard deviation of the signal contrast was 28.8%±4.7%, 16.33%±2.1%, 3.3%±1.3%, at 7 days, 3 months, and 1 year after the operation, respectively. There was a statistically significant difference between the postoperative follow-up after 7 days and 3 months (P<0.0001), and between 3 months and 1 year (P<0.0001; Figure 5). The MRI images showed that the injected fat of 1 patient’s left side was completely absorbed 1 year after surgery; therefore, we only recorded the signal contrast of 45 sides.

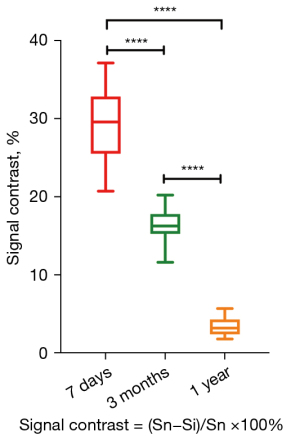

Figure 5 Signal contrast of grafted fat on day 7, 3 months, and 1 year after surgery. Sn: signal of native fat; Si: signal of grafted fat. ****, P<0.0001; Paired t test.

Volume measurement

In this study, Pearson correlation analysis was used to evaluate the relationship between the injected fat volume and the detected fat on day 7. There was a positive correlation between the 2 variables (r=0.9556; P<0.0001; Figure 6A), with a mean measured volume of 2.6±0.47 mL and a mean retention rate of 94.1%±5.75% (Figure 6B). This indicates that the volume of the detected fat on day 7 was almost equal to the volume of the injected fat that was recorded during surgery. The mean volume retention rates of the grafted fat 3 months and 1-year postoperatively were 48.7%±17.34% and 33.1%±12.94%, respectively. The volume retention rates were statistically different between 7 day and 3 months (P<0.0001) and between 3 months and 1 year (P<0.05).

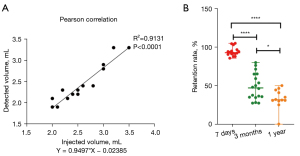

Figure 6 Relationship between the detected and injected volume, and the volume retention rate on day 7, 3 months, and 1 year after the operation. (A) Pearson correlation analysis indicated a positive correlation between the volume of injected fat and detected fat on day 7 (r=0.96; P<.0001). Formula: Detected Volume = 0.95 * Injected Volume – 0.024 (mL). (B) Mean retention rate of injected fat on day 7 (94.1%±5.75%), 3 months (48.7%±17.34%), and 1 year (33.1%±12.94%) after surgery.

Discussion

Our study was the first of its kind to discover a significant decrease in the MRI signal contrast of grafted fat during the 1-year recovery time after a fat transfer procedure. Our findings suggest that the content or density of injected fat was different from the native fat during this recovery time. The autologous fat signal contrast was the most obvious on day 7, and it became close to the signal of native fat tissue 1 year after surgery (Figures 5,7).

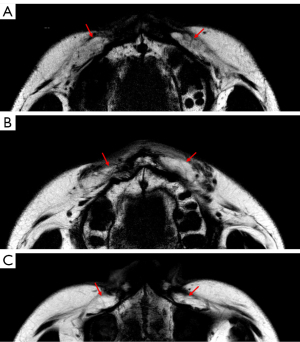

Figure 7 Transverse noncontrast-enhanced 2D Dixon T1W fat-only images of 3 patients, each scanned at 7 days (A, aged 44, female), 3 months (B, aged 33, female), and 1 year (C, aged 40, female) after autologous fat transplantation. They all underwent the fat grafting procedure on the bilateral nasolabial grooves by the same plastic surgeon. (A) The grafted fat (red arrows) signal intensity was very low on day 7, and signal contrast between grafted fat and native facial fat was the greatest. (B) The grafted fat (red arrows) signal was stronger at 3 months, with signal contrast lower than A. (C) The relative signal of grafted fat (red arrows) compared to native adipose tissue was the strongest at 1-year postoperation, and signal contrast was the smallest. The left and right sides grafted fat retention rates were different in patients scanned at 3 months (B) and 1 year (C) after surgery. T1W, T1-weighted.

We identified a signal intensity difference between autologous fat and native facial adipose tissue (Figure 8). As shown in Figure 8B, the autologous fat had a clumped and diffusive appearance compared to the typical lobule-like structure of native fat, and autologous fat had a lower signal intensity than did the native facial fat in the images. Therefore, this difference can be used to distinguish the grafted fat from native fat. We hypothesized that the intracellular space of grafted fat tissue was enlarged due to inflammation and edema, which reduced fat density. Other studies have shown that the existence of collagen, which develops during the recovery process, may impact the longitudinal recovery rate of tissue and result in signal change of the autologous fat (28,29) However, these assumptions regarding chemical and biological changes have not yet been confirmed with advanced MRI methods by quantifying T1 and T2 relaxation rates or via a histologic study. Further animal studies need to be performed to make a histologic comparison of T1 and T2 changes and find the cause of grafted fat signal change in T1W and T2W images.

Figure 8 Transverse fat-only images after autologous fat grafting performed in bilateral malar sites. (A) A transverse view of fat-only image of a normal volunteer. Three layers are clearly displayed in the fat-only image. (B) The transferred autologous fat (red lines) signal intensity is lower than the native adipose tissue, and its texture is diffuse, based on which the transferred autologous fat can be identified.

Normal human adipose tissue is composed of fat lobules units, which are essential for adipocyte survival. The fibrous septa anatomically separate the fat lobules, provide resistance against lobule enlargement, and offer a scaffold to which blood vessels, nerves, and lymphatics attach (30). Hence, without sufficient circulation for nutrition supply and spatial support, adipocytes in grafted fat shrink and even collapse, and are then absorbed by body (31). The septa or blood vessels are regenerated inside the grafted fat during recovery and provide support for long-term retention, and they appear to be dark lines and spots in fat-only images (30) (Figure 8). We delineated the grafted fat based on both the signal reduction and the diffuse texture, because the correct delineation could not be performed based only on the reduced signal without recognizing the texture. The grafted fat’s appearance in signal and texture was close to that of the native fat 1-year postoperation. However, we could still identify the grafted fat compared to native fat in the MRI images because of the different anatomical structures between native and grafted fat (Figure 7).

We noticed that the retention rate decreased from 3 months to 1 year after surgery, and the autologous fat signal contrast also decreased during this period. These findings showed that grafted fat volume continued to decrease from 3 months to 1 year. This is in contrast to a previous study which applied an ultrasound to calculate the retention rate after fat transfer and suggested that the volume of grafted fat would be stable 3 months after surgery (3,12). However, ultrasound imaging is limited in this application in cosmetic surgery, as the pressure applied on soft tissue changes the tissue’s shape (8). Furthermore, Xie (3) arrived at a similar conclusion using patients’ satisfactory questionnaires and by comparing postoperative photos with preoperative photos, but lacked an objective standard to compare patient results. In the past, MRI was only used to measure the volume of fat during fat transplantation in breasts (7). In our study, the Dixon sequence fat images were found to be sensitive to fat tissue and could distinguish grafted fat from native fat. The volume measured 7 days after surgery almost equaled the injected fat volume in all cases, which validated the accuracy of the fat-only image. Our measurements of MRI signal and volume were more quantitative and objective in characterizing the subtle change during the recovery after surgery.

We can conclude that T1W fat-only images may be more suitable for characterizing autologous fat graft, with fewer image artifacts and better image differentiation than offered byT2W fat-only images (Figure 3). The fat-only T2W TSE sequence was more prone to motion artifacts, like other applications of T2W TSE. Also, regarding lower image differentiation in T2W images, the T2W Dixon imaging sequence was not optimized for fat-only images with the currently implemented TE (time of echo) because the fat transverse relaxation rate T2 is much longer than the T2 of water.

Various techniques have been developed to assess fat graft retention during postoperative management and to identify possible predictive factors of this retention. However, previous studies based on CT (13), conventional MRI (1,4,7,32), 3D volumetric surface imaging (33), and ultrasound imaging (1,12) found it challenging to characterize the small amount of facial grafted fat (8,11,12). The fat-only images generated by Dixon imaging have excellent image quality, which can directly measure the amount of grafted fat in patients and provide a full anatomical structure of adipose tissue. The fat-only images were also used to guide the second injection procedures for the 3 patients who underwent second autologous fat transfer.

In the past, patients needed to have comparative scans before and after operations to measure the augmented fat volume (12). Our study found that the fat-only images could clearly delineate grafted fat from native fat on day 7, so a preoperational scan could be unnecessary. Scans of the patients 1 year postoperatively also found there to be no difference between the grafted fat signal and the native fat signal (P=0.43). Further observational experiments need to be conducted to investigate if the volume of grafted fat continues to shrink after 1 year.

Our study had several limitations. The number of participants was low, and not all of the same participants were scanned at all 3 follow-up times. No evaluations were performed to see if any changes of the grafted fat occurred after 1 year. Furthermore, the size of the anatomy under investigation was small; therefore, the partial volume effect could cause flaws in measuring the grafted fat signal and reference signal, so sampling ROIs need to avoid the edges of fat tissue to reduce potential bias.

Conclusions

Based on the fat-only images, we confirmed that the grafted fat signal significantly differed from the native facial fat signal, and the signal contrast and volume gradually decreased during the 1-year recovery time after the fat transfer procedure. T1W fat-only images obtained by Dixon imaging displayed grafted fat more effectively than T2W, with sufficient image quality and image differentiation for grafted fat delineation and volume measurements.

Acknowledgments

The authors would like to thank Xiaofang Xu, the RT for MRI protocol adjustment. His consent was obtained to be cited, and he agreed with the data and conclusions of the study.

Funding: None.

Footnote

Reporting Checklist: The authors have completed the MDAR checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-21-570/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-21-570/coif). XW is employed by Philips, China. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013), and informed consent was obtained from all individual participants. This study was approved by the ethics committees in our hospital and in the general hospital where MRI scans were performed.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
