Three-dimensional morphological analysis of true acetabulum in Crowe type IV hip dysplasia via standard-sized cup-simulated implantation

Introduction

Total hip arthroplasty (THA) in patients with high-riding Crowe type IV developmental dysplasia of the hip (DDH) is a challenging procedure for surgeons. It is crucial for the restoration of anatomical joint biomechanics and reconstruction of the center of rotation (1-3). For acetabular reconstruction, challenges associated with managing the true acetabulum include a distinctively triangular socket, remarkably increased anteversion, hypoplastic anterosuperior wall, and decreased bone stock (4-6).

In terms of severe dysplasia of the hip, the use of a small acetabular prosthesis is recommended to achieve satisfactory bony coverage (7,8). However, polyethylene erosion and risk of postoperative dislocation have been associated with small prosthesis size (9-11). Follow-up studies have shown that the risk of acetabular revision was significantly higher than that of femoral revision (9,11). During prior surgeries, we noted that standard size cup (>44 mm) can also achieve acceptable implant coverage by careful 3-dimensional (3D) preoperative planning and accurate acetabular reaming. Zhou et al. (12) claimed that a standard cup was feasible when implanted posteriorly and inferiorly, resulting in promising bony coverage and clinical survival. In their studies, Hartofilakidis et al. and Xu et al. (7,13) recommended a superior and posterior standard-sized reaming for relatively sufficient bone stock, which was similar to the findings of our previous study (4). However, relevant research involving quantitative coverage status and ideal reaming location are still limited for standard-sized cup implantation.

Few studies have addressed the morphological evaluation of true acetabulum reconstruction and optimal bony landmarks for standard-sized cup implantation in Crowe IV hips (5,14). Using a 3D implantation simulation method, the aim of the present study was to investigate the anatomical size, orientation angles, and 2-dimensional (2D)/3D coverage parameters of the true acetabulum in Crowe IV hips; evaluate the feasibility of standard cup (>44 mm) implantation at the true acetabulum in Crowe IV hips; and identify the optimal position and useful bony landmarks of acetabular reaming center in Crowe IV hips.

We present the following article in accordance with the Materials Design Analysis Reporting (MDAR) checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-21-803/rc).

Methods

Study design and setting

This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Institutional Review Board of Guangdong Provincial People’s Hospital (No. 2019528HR1), and informed consent was provided in writing by all participants. We retrospectively reviewed the preoperative imaging data of 352 patients (496 hips) with DDH who were admitted to our institution from January 2010 to January 2019. According to the Crowe classification, 46 participants (58 hips) were graded as type IV DDH on standing anteroposterior pelvic radiographs. Of those 46, 7 (12 hips) cases who had substandard scans and 2 (4 hips) who had undergone previous surgery were excluded. Therefore, 42 dysplastic hips in 37 cases met the inclusion criteria and were retrospectively evaluated. A total of 18 patients (36 hips) without acetabular fracture or deformities who had undergone computed tomography (CT) angiography to diagnose proximal femoral fractures were selected as controls. Demographic data for the participants are shown in Table 1.

3D reconstruction and acetabular size analysis

Pelvic CT was performed with a Toshiba Aquilion CT scanner (120 kVp, 320 Ma, 512×512 matrix; slice thickness: 0.5 mm; Toshiba, Otawara, Japan) at the Guangdong Provincial People’s Hospital. Participants were placed in a neutral supine position with their patellae facing the ceiling. Scanning was performed from the iliac crest to the distal third of the femur. All standard CT slices were saved in Digital Imaging and Communications in Medicine (DICOM) format and imported into Mimics 19.0 software (Materialise, Leuven, Belgium) for 3D reconstruction. Before simulation and measurement, the pelvic position was standardized with reference to the anterior pelvic plane coordinate system (4,15), determined by the anterior superior iliac spines (ASIS) and the pubic tubercles bilaterally (Figure 1A). According to resliced CT images, the 3D, coronal, sagittal, and transverse views were presented simultaneously in Mimics software. Morphology and bone stock distribution of the true acetabulum were compared between Crowe IV hips and normal hips. According to the true acetabulum, the distal part of the cotyloid notch (DPCN) (4,16,17), the most superolateral point, and the midpoint between them were digitized (Figure 1B). In the coronal and axial plane passing through the midpoint, acetabular length, height, width, and depth were measured to determine the acetabular size in the control and Crowe IV DDH group. According to the acetabular rim, the acetabular volume was also evaluated with reference to the acetabular opening plane (18,19) (Figure 1C-1E).

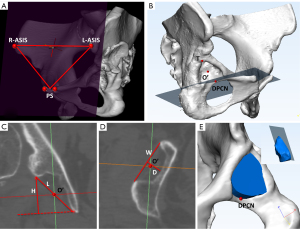

Figure 1 3D reconstruction and acetabular size analysis. (A) Anterior pelvic plane, left and right ASIS, and pubic tubercle. (B) Anatomical landmarks: DPCN, T, and midpoint of T and DPCN. (C) Coronal image. Acetabular height and acetabular length. (D) Axial image. Acetabular width and acetabular depth. (E) Acetabular volume analysis. ASIS, anterior superior iliac spines; DPCN, distal part of the cotyloid notch; T, most superolateral point of the acetabulum.

Simulating implantation of the acetabular component

A set of hemispherical virtual acetabular components with negligible thickness was created by using 3-matic 9.0 software (Materialise). According to the standard size of on-shelf acetabular implants, the outer diameters of these egg-shell cups ranged from 44 to 60 mm in 2 mm intervals. These 3D models were imported into Mimics software in stereolithography (STL) format.

Based on the method described by Yang et al. and Sariali et al. (4,16), the simulated acetabular replacement was performed by placing the component in the true acetabulum, oriented at 40° abduction and 20° anteversion. The cup size was chosen to best accommodate the anteroposterior diameter of the true acetabulum, which tended to utilize the osseous peak of the anterior bone columns in case of deficient bone stock. The inferior edge of the virtual cup was placed at the level of the DPCN, which was considered the position of the transverse acetabular ligament (16,17). In the Crowe IV DDH group, the outer wall of the component was tangent to, but did not penetrate, the inner cortex of the medial acetabular wall to achieve the theoretical maximum coverage. In the control group, the outer wall of the component was tangent to the cortical bone edge of the cotyloid notch.

Evaluations and measurements

Based on the implantation simulation, the morphological assessments and coverage parameters included the following: (I) measurement of the Cup-CE angle and Cup-Sharp angle (Figure 2A); (II) measurement of the acetabular anteversion angle and minimum thickness of medial acetabular wall (Figure 2B); (III) acetabular sector angles (ASAs). Based on the contact point between native bone and the component, we measured the anterior and posterior ASAs in the axial plane (Figure 2B). Further, the ASAs in the 45° anterosuperior direction, superior direction, and 45° posterosuperior direction were also measured on the corresponding planes. Angles were respectively named A-ASA, P-ASA, AS-ASA, S-ASA, and PS-ASA (Figure 2C); (IV) 3D component coverage ratio. Using the simulation and Boolean function of Mimics, segmentations were performed according to the border between the covered and uncovered parts of the virtual cup (Figure 2D). Accordingly, the coverage was calculated as the ratio between the covered and total surface area; and (V) the vertical height of the component center (V-HCC) was defined as the vertical distance from the center of the component to the DPCN (Figure 3A). In Crowe type IV hips, implantation simulation with the same orientation was performed by placing the component at the initial preset position, with a V-HCC =9 mm. Subsequently, the virtual cup was stepwise elevated proximally by 3 mm increments, ranging from 9 to 39 mm (Figure 3B). At each level, the minimum thickness of the medial acetabular wall in the axial plane and the 3D component coverage ratio were evaluated.

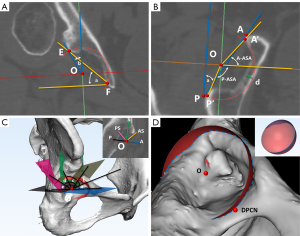

Figure 2 Morphological and coverage parameters analysis after implantation. (A) Cup-Sharp angle (a) and Cup-CE angle (b), measured with the coronal plane passing through the component center. Point O is the component center, points E and F are the superolateral and inferomedial borders between the component and the true acetabulum. (B) Acetabular anteversion angle (a), anterior and posterior ASAs and thickness of the medial acetabular wall (d), measured with the axial plane passing through the component center. Point O is the component center, points A and P are the anterior and posterior borders of the true acetabulum, points A' and P' are the anterior and posterior borders between the component and the true acetabulum. Direction of the medial wall thickness measurement is perpendicular to the acetabular opening (line AP). (C) ASAs through the component center (point O) were measured in the following 5 directions: anterior (a), anterosuperior (b), superior (c), posterosuperior (d), and posterior (e). (D) Coverage ratio of the acetabular component was calculated according to the covered surface area and the total surface area. O is the component center. ASAs, acetabular sector angles; DPCN, distal part of the cotyloid notch.

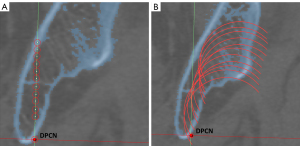

Figure 3 Acetabular reconstruction at different vertical levels. (A) Different vertical levels from the DPCN are shown. (B) Acetabular reconstruction was performed at different vertical levels. DPCN, distal part of the cotyloid notch.

Location analysis of the acetabular component center

On the basis of the implantation at the true acetabulum, the component opening plane was defined as the coordinate system (oriented at 40° abduction and 20° anteversion), with the origin positioned at the center of the acetabular component. Representative bone landmarks included the ipsilateral ASIS; the DPCN; the most superolateral point, the most anteroinferior point, and the most posteroinferior point of the true acetabulum rim were digitized (Figure 4A). Subsequently, the 3D pelvis model and acetabular component were imported into 3-matic software. Based on the coordinate system, bony landmarks were projected to the component plane to characterize the distributed regularity and the location of the component center (Figure 4B).

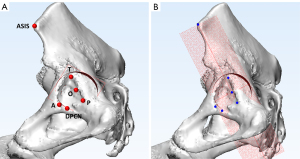

Figure 4 Location analysis of the acetabular component center. (A) Representative bone references are shown. ASIS; DPCN; points T, A, and P indicate the most superolateral, anteroinferior, and posteroinferior point of the true acetabulum, and O is the component center. (B) Based on the coordinate system, bone references are projected and marked as blue points. ASIS, anterior superior iliac spines; DPCN, distal part of the cotyloid notch.

Statistical analysis

To assess interobserver reliability, 2 experienced surgeons (YY and YM) performed the simulating implantation, point selection, and corresponding measurements independently. To assess intraobserver reliability, implantation, points selection, and measurements were removed and repeated twice at monthly intervals by YY. Intraclass correlation coefficient (ICC) was used to calculate interobserver and intraobserver effects.

All statistical analyses were performed using SPSS version 21.0 (IBM Corp., Armonk, NY, USA). A post-hoc power calculation was determined by the statistical power analyses G Power 3.1 to eliminate type II error (20). Group comparisons for quantitative data were performed using unpaired Student’s t-tests, and categorical data were compared using the χ²-test. Correlations between 2 continuous indices were analyzed using Spearman’s correlation coefficient. Paired t-test was used to compare the difference of 2 selected landmark distances towards the component center. A P value <0.05 was considered statistically significant.

Results

Acetabular anatomy and morphological analysis

Compared with the hemispherical shape of the normal acetabulum, the true acetabulum in Crowe IV hips tended to be markedly triangular and shallow. As detailed in Table 2, all aspects of the anatomic parameter in Crowe IV hips were significantly smaller than in normal hips, especially the acetabular width (25.41±5.37 vs. 50.14±2.48 mm). The accurate volume of the dysplastic socket was less than one-third of the normal acetabulum. Both the size and vertical height of the chosen component were significantly greater in normal hips. At the level of the acetabular component center, dysplastic acetabula were found to be more anteverted and abductive, with smaller Cup-CE and larger Cup-Sharp angles. Medially, the acetabular wall was significantly thicker in Crowe IV hips than in normal hips (6.30±2.77 vs. 3.58±1.22 mm).

Acetabular coverage angles and component coverage ratio

As described in previous studies (7), the abnormally distributed bone stock was mainly located at the posterior rim of the true acetabulum. The coverage angles in Crowe IV hips were significantly smaller in the other 4 directions, except the posterior direction (t =−0.628; P=0.549). Further, the component coverage ratio was also significantly lower in the dysplastic hips (79.89% vs. 94.51%) (Table 3).

According to the implanted level, the acetabular medial thickness increased with the V-HCC in Crowe IV hips. However, the coverage ratio increased to the peak values at 12–21 mm above the DPCN. When the V-HCC was >30 mm, the host bone coverage ratio could not reach 70%. When implantation was performed at the level of the true acetabulum, the coverage ratio was greatest, with a mean height of 13.32 mm (Table 4).

Location analysis of the acetabular component

For the coordinate system, the acetabular component center was defined as the origin (O), and the projection of the ipsilateral ASIS was defined as the direction of the y-axis. The projections of 3 extreme landmarks of the acetabular rim were also depicted in reference to the right hip (Figure 5). As illustrated, the component center was positioned posteriorly and superiorly to the center of the triangular acetabulum. Therefore, the midpoint (O₁) and upper one-third point (O₂) of the posterior side in the projected triangle were digitized. Statistically, the mean distance from the origin towards O₁ was significantly shorter than O₂ (t =−11.22; P<0.01) (Table 5). There were 29 hips (69%) with a distance of OO₁ within 5 mm, and the distance was within 10 mm in all hips (100%). The distance of OO₂ was within 5 mm in 7 hips (16%) and within 10 mm in 35 hips (83%).

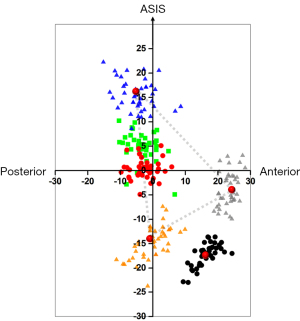

Figure 5 Projections of the bony landmarks to the component opening plane in the reference of the right hip. O is the component center. Blue, grey, and orange triangles represent projections of points T, A, and P, respectively. Black dots represent projections of DPCN. Red and green dots represent projections of midpoint (O₁) and upper one-third point (O₂) of posterior side in the projected triangle (grey dotted line). DPCN, distal part of the cotyloid notch.

Reproducibility

The ICC results of the intraobserver and interobserver reliabilities for all the measurement indices, as evaluated by the one-way random effects model, ranged from 0.92 to 0.97 and 0.88 to 0.95, respectively. Post-hoc power analysis showed a power >0.94 for detecting a significant difference.

Discussion

When performing a primary THA for a patient with Crowe IV DDH, the acetabular reconstruction, in particular, presents considerable technical challenges to orthopedic surgeons. Further, component revision in highly dislocated hips has a significant association with the acetabular osteolysis, cup instability, and severe polyethylene wear both in mid-term and long-term clinical studies (9,21-23). During the prior study, we noted that the acetabular anatomy and bone stock distribution were relatively constant in patients with Crowe IV dysplastic dislocation. Several studies have reported that 3D simulation can not only provide high-resolution visualization of morphological changes in skeletal disorders, but can also predict the postoperative rotation center and the orientation of prosthesis with high validity and accuracy (4,13,16). In the present study, we presented the anatomical size, orientation angles, and 2D/3D coverage indices of the true acetabulum quantitatively. In addition, the feasibility and optimal placement of a standard-sized cup for acetabular reconstruction was also determined in Crowe IV hips.

Compared with other Crowe types, the true acetabulum in Crowe IV is thoroughly separated from the dislocated femoral head, resulting in significant dysplasia and deformation. A Crowe IV acetabulum presents as a narrow, shallow, and low-volume socket, consistent with a previous description (7). Acetabular volume in the triangular acetabulum is less than one-third that of a normal acetabulum, resulting in a significantly smaller component size and lower implanted center height. Due to the lack of articular contact, the Harris fossa is covered by few osteophytes and easy to identify. However, correct reorganization of the inferior edge of the true acetabulum is of particular importance for component implantation intraoperatively (14,24).

After simulated implantation, the Crowe IV acetabulum tended to be sharply abductive, with a smaller Cup-CE and larger Cup-Sharp. In a 5-year follow-up study, Fujii et al. (25) suggested that Cup-CE angle by host bone should be greater than 0° for satisfactory bony fixation. In the present study, the Cup-CE was 23.44°±7.62° according to the lateral edge of the host bone, which indicates that there is no need for structural bone graft in most Crowe IV acetabular reconstructions (9,26). The Cup-Sharp angle is also considered an important parameter to reflect the acetabular inclination and bony coverage during acetabular reconstruction. Although the Cup-Sharp angle was larger in the Crowe IV group than in the control group, it was still smaller than that in the Crowe I and II/III hips in our previous study (4). Compared with normal acetabulum, the dysplastic acetabulum had more excessive anteversion and thicker medial wall, which was also similar to our previous report (4). In the present study, the component was uniformly oriented at 20 anteversion and tangent to the inner cortex of the medial acetabular wall. Surgeons generally apply the technique of combined anteversion and acetabular cotyloplasty for better bony coverage. Although there was relatively sufficient bone stock medially, spongy bone condition and inadequate bone stock in the anteroposterior direction should also be taken into consideration during acetabular reaming.

Quantitative coverage analysis suggested that segmental deficiency was apparent at the entire acetabular rim, except for the posterior direction. In comparison, the most severe dysplastic bone stock was in the anterosuperior direction, whose sector angle decreased more than 35° compared with normal hips. Due to great anteversion, there was no significant difference in the posterior coverage angles between the Crowe IV and control groups. Further, posterosuperior deficiency was less severe than that in the anterosuperior and superior directions, which is consistent with the description of abnormal bone distribution in previous studies (5,7). Overall, 3D coverage can achieve 79.89% coverage by host bone with standard-sized cup implantation. Through 3D planning and clinical practice, we noted that relatively abundant bone stock in the posterosuperior and posterior acetabulum can provide considerable bone contact to accommodate a standard-sized cup with satisfactory coverage.

In terms of the limitation of the thin polyethylene liner and extremely small femoral head, a standard-sized component with ceramic-on-ceramic bearing has been recommended in recent studies (10,12,13). According to the quantitative evaluation at different implantation levels, our findings indicated that standard-sized component coverage was >75% when V-HCC =12–21 mm, increasing to peak values at the level of 13.32 mm. When the V-HCC was >30 mm, the host bone coverage ratio did not reach 70%. Various studies have focused on the minimum coverage provided by native host bone for securing long-term cup fixation without additional support. Garvin et al. (27) suggested that structural bone graft is not needed when host bone coverage is above 75% of the acetabular component. Jasty et al. (28) suggested that the cut-off value of structural bone grafting is 70%, which was supported by Anderson and Harris, as well as by Shinar and Harris (8,29). Considering the coverage variations, satisfactory acetabular coverage in Crowe IV hips should be performed cautiously by anatomical reconstruction, rather than high hip center placement in Crowe II/III hips (30,31).

A reliable bony landmark does not only provide accurate Identification for the surgeon but also avoids intraoperative complications (32). Based on the component opening plane, useful bony landmarks were projected by 3D simulation. Our data showed that the optimal component center was mainly located at the midpoint between the superolateral and posteroinferior points in the coordinate system, demonstrating good feasibility and accuracy intraoperatively (Figure 6). The average distance between the selected point and component center was only 4.12 mm: 2.53 mm horizontally and 0.38 vertically. Xu et al. (13) suggested that the component center in Crowe IV should be placed posterosuperiorly, described to be 4.55 mm superior and 4.37 mm posterior to the center of true acetabular circumcircle. Yoshitani et al. (5) revealed that the ideal center position is located at the upper third point of the posterior bony wall. In contrast, the mean distance in our data was less and variation range was within 10 mm in all hips. Moreover, the extreme poles of the acetabulum had better recognition and lower risk of abrasion and impingement than the acetabular wall.

Figure 6 Perioperative radiographs and intraoperative photographs of a 38-year-old female patient with unilateral Crowe type-IV developmental dysplasia of the hip. (A) Preoperative anteroposterior pelvic view. (B) Intraoperative images of dysplastic acetabulum (blue bony reference points and dotted lines) and reaming center (yellow point). (C) Intraoperative images of prepared acetabulum. (D) Intraoperative images of component implantation. (E-H) Based on the postoperative CT, 3D pelvis model (white) and actual component was reconstructed. Preoperative simulated implantation (combination of yellow pelvis model and red virtual component) was imported to verify the component center by matching the 3D reconstruction. (E) Coronal image. (F) Transverse image. (G) Sagittal image. (H) 3D reconstructive image. (I) Three-month postoperative anteroposterior pelvic view. CT, computed tomography; 3D, 3-dimensional.

Limitations

The limitations of our study should be noted. First, the sample size was relatively small. However, Crowe IV hips are uncommon, and the results of the statistical analysis indicated reliable reproducibility. Second, demographic differences were present between the DDH and control groups. However, the recruitment of bilaterally affected hips to the DDH group restricted the selection of contralateral acetabulum as controls. Accordingly, a body mass index-matched control group would ensure more convincing results in future clinical studies. Third, all the components were oriented at 40° abduction and 20° anteversion, while implantation could be adjusted to be more abductive and anteverted individually during the actual operation. The orientation was decided according to the relative morphological studies. In the present study, unified implantation provided reliable and repeatable data, with satisfactory coverage ratio. As the actual weight-bearing area was difficult to define in the 3D environment, we chose to weigh the uncovered portions equally.

Conclusions

The distinctively triangular acetabulum in Crowe IV DDH was found to be more anteverted and abductive, with a significantly narrow and low-volume opening. The most satisfactory coverage was achieved at the level of the true acetabulum by using standard-sized cup, and the prominent deficiency was mainly located in the anterosuperior and superior directions. Through simulated implantation, the optimal component center was determined as the midpoint between the superolateral and posteroinferior points. Adequate preoperative planning and cautious reaming should be carefully considered to avoid small-sized components in Crowe IV hips.
