Automated knee cartilage segmentation for heterogeneous clinical MRI using generative adversarial networks with transfer learning

Introduction

Osteoarthritis (OA) is the most common cause of knee pain and disability among the patients over the age of 50 with an estimated annual treatment cost of more than $51 billion in the United States alone (1,2). Knee magnetic resonance imaging (MRI) is one of the best imaging modalities to determine the severity of OA. It has been shown to be predictive of outcomes after surgeries such as arthroscopic partial meniscectomy (3-5). Manual grading of cartilage disease using semi-quantitative grading systems, however, is time-consuming and suffers from inter-observer variability limiting its routine use in clinical practice (6). Similarly, quantitative MRI, i.e., compositional and morphologic techniques, which can detect early cartilage degeneration and serve as biomarkers for disease prognostication are not routinely used in clinical practice. One of the major hurdles preventing the adoption of quantitative imaging into clinical practice is the need for cartilage segmentation which, to date, requires significant manual effort and time. Manual or semi-automatic cartilage segmentation is not only laborious and time-consuming but also suffers from intra- and inter-reader variability (7,8). Researchers have attempted to build an end-to-end deep learning network to detect knee joint abnormalities without the segmentation step by using multi-sequence, multi-planar MR images as inputs (9). The diagnostic performance of the model, however, was significantly lower than that of humans. Alternative deep learning approaches including tissue segmentation as a separate step in the pipeline achieved diagnostic performance comparable to humans (10-12). These results suggested that the segmentation stage may still be a necessary step in the deep learning pipeline to maximize diagnostic performance of the models in the detection of early cartilage degeneration (13).

Efforts have been made recently to build fully automated segmentation models based on deep learning (14-23), with cartilage segmentation performance as good as 0.880 in Dice coefficient (21). These models, however, are typically trained and tested on homogeneous research datasets, e.g., the osteoarthritis initiative (OAI) dataset (http://nda.nih.gov/oai). It is not known how well these results will directly translate to the heterogeneous data sets found in clinical practice, since the images are typically obtained from an assortment of MR scanners with variations in imaging parameters, and image quality. To the best of our knowledge, no previous studies have provided an automated cartilage segmentation model that has been successfully applied to a heterogeneous set of clinical MR images or explored the ability to use transfer learning (TL) to improve model performance for cartilage segmentation on heterogeneous MR images collected from clinical routines with different field strengths, different MR systems, different coils, and different protocols etc. Our initial experience applying such models to clinical datasets resulted in poor segmentation performance (Table 1). To improve model performance, models could be trained directly from the clinical datasets. However, such training would require large training datasets that would have to be manually segmented to prevent overfitting which could occur if only a small dataset is used (24). Consequently, the enormous amount of annotated training data needed becomes prohibitive for direct model training. An alternate approach to improve model performance is to optimize a previously trained model with homogeneous data using transfer learning (22,25-34). The advantage of the transfer learning is that only small amount of manually segmented clinical data is needed.

The purpose of this study was to build a model using a conditional generative adversarial network (cGAN) to automatically segment heterogeneous clinical MRI scans by optimizing a pre-trained model built from a homogeneous research dataset with transfer learning from a small dataset of heterogenous clinical MR scans. Specifically, we compared the performance of the model with transfer learning to that of the model without transfer learning and to the performance of manual segmentation by 2 radiologists. If successful, the automatic segmentation model could be used to facilitate qualitative and quantitative grading of OA which would not only allow for the adoption of these methods into routine clinical practice but for the development of models to guide patient management and predict patient outcomes.

We present the following article in accordance with the MDAR checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-21-459/rc).

Methods

Data

The datasets used in this study included two parts: a set of publicly available homogeneous MRIs from the OAI collected in a research setting, and a set of heterogeneous MRIs locally collected through clinical routines. OAI dataset (https://nda.nih.gov/oai/) was used to pre-train our model. It contained 176 sagittal knee MR images collected on Siemens 3T Trio scanner using the 3D sagittal double-echo steady state (DESS) sequence with the same coil model and acquisition parameter settings. Each image consisted of 160 slices (0.7 mm slice thickness) with fixed FOV of 14 cm² and matrix size of 384×384 with cartilage manually segmented by iMorphics (35).

The clinical knee MR images used for transfer learning model training, validation and test were collected from the Cleveland Clinic OME cohort (36), a prospective orthopaedic surgical cohort within Cleveland Clinic health care system. The cohort was operationalized in 2015 and has collected more than 45,000 episodes of care representing over 40,000 patients at 16 Cleveland Clinic sites through the end of 2019. Most of the patients had gone through MRI at the baseline at different locations across the Cleveland Clinic health care system with different scanner models and various 2D/3D imaging parameters. To re-train our model using transfer learning, 25 sets of knee MRIs (15 1.5T and 10 3T) from 9 different locations scanned on 6 different Siemens scanner models were randomly selected from the cohort for patients underwent arthroscopic partial meniscectomy (APM). In addition, 5 more APM patients knee MRIs collected on a Philips 1.5T Achieva scanner were randomly selected for testing purpose. The patients had an age of 45 years and older with no prior orthopedic knee surgeries. Sagittal 2D fat-saturated proton density weighted (PDw) images were common to all the knee MRIs and used for the segmentations. Many institutions did not obtain 3D images as part of routine knee MRI and qualitative grading of cartilage was typically done using 2D images. These 30 sagittal PDw MRIs were a heterogeneous dataset obtained on a variety of scanner models from different vendors, acquired at different field strengths with varying coils, fields of view, spatial resolutions, slice thicknesses, image contrast, and image quality (see Table 2). The positioning of patient knees also varied, with lateral-medial offset from the isocenter ranging from 0 to 120 mm. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by our institutional review board with study number 19-005. Informed consent was waived.

Two radiologist readers manually segmented the Siemens MRIs using an in-house segmentation tool under the supervision of an attending musculoskeletal radiologist with 13 years of experience. After setting the rule set for segmentation during a training session, each sagittal MRI image was segmented separately by the readers. The cartilage of the four different subregions [femoral condyle (FC), patella (PC), medial tibial plateau (MTC), and lateral tibial plateau (LTC)] was included, consistent with the OAI data cartilage segmentation. Each of the 25 Siemens cases contained approximately 23–40 sagittal MRI images for model training, validation, and test. Each case required around 2 hours of work, per radiologist. One radiologist (reader 1) segmented all the 25 Siemens cases. The other (reader 2) segmented the 5 Siemens test cases. Reader 1 further segmented the 5 Philips test cases.

Evaluation metrics

The quantitative metrics chosen to evaluate the cartilage segmentation performance included the Dice coefficient (DC) (37), the 95 percentile Hausdorff distance (HD95) (38,39), and the average symmetric surface distance (ASSD) (40). The DC focuses on assessing the overlap of two sets of segmentations. The Hausdorff distance calculates the maximum point distance between the segmentations, which is sensitive to outliers. The ASSD looks for averaged surface difference between the segmentations. Therefore, these three metrics are complementary to each other.

The Dice coefficient is defined as

DC=2|G∩S||G|+|S|[1]

where G is the ground truth segmentation and S is the segmentation to be evaluated. The DC is a widely accepted metric for knee tissue segmentation. It ranges from 0 to 1, with 0 indicating no overlap in segmentation and 1 indicating a perfect agreement in segmentation. Volumetric DC was calculated to accurately reflect model segmentation performance.

The Hausdorff Distance (HD) (41) between G and S is defined by

HD(G,S)=max(h(G,S),h(S,G))[2]

where the direct Hausdorff distance h(G,S) is given by

h(G,S)=maxg∈Gmins∈S‖g−s‖[3]

The HD is an informative metric since it is an indicator of the largest segmentation error. The HD is, however, known to be sensitive to outliers. The HD95 replaces the maximum in HD with the 95 percentile to reduce the impact of outliers on HD.

The average symmetric surface distance is the average of all distances from points on the boundary of S (∂S) to the boundary of (∂G) and from points on ∂G to ∂S:

ASSD(G,S)=∑g∈∂Gmins∈∂S‖s−g‖+∑s∈∂Sming∈∂G‖g−s‖|∂G|+|∂S|[4]

where ‖⋅‖ denotes the Euclidean norm and |⋅| denotes the cardinality of a set. The smaller the ASSD, the better the segmentation boundaries agree to each other.

Model specifics

The architecture of the deep learning segmentation model was based on the cGAN (42), which was one variant of the generative adversarial networks (GAN) (43). As detailed in (21) (Figure 1), the U-Net (44) was used in place of the generative network or the generator in cGAN to generate four segmentation masks for the four cartilage compartments and a background channel. It contained an encoding path and a decoding path. Every step of the encoding path consisted of two repeated 3×3 unpadded convolutions with stride 2, each followed by batch normalization and a rectified linear unit (ReLU), and a 2×2 max pooling layer with stride 2 for downsampling. Each step of the decoding step consisted of a 2×2 upsampling convolutional layer and two repeated 3×3 convolutional layers followed by batch normalization and a ReLU. Each step in the encoding path was connected to the corresponding step in the decoding path with a skip connection. The number of feature channels was doubled in each step of the encoding path, and halved in each step of the decoding path. The output block contained a 1×1 convolutional layer and a softmax activation function to map the features to the probability maps for the four cartilage compartments channels and a background channel. A threshold of 0.5 was applied to each channel to obtain the binary segmentation masks of different cartilage compartments.

Figure 1 Overall flow of the transfer learning model structure. Modified from Figure 1 in reference (21) with permission. OAI, osteoarthritis initiative; MRI, magnetic resonance imaging.

Details of the network architecture are illustrated in Figure 2A. The discriminative network or the discriminator followed the architecture of a typical convolutional neural network as shown in Figure 2B. It contained 5 convolutional blocks followed by average pooling, 1×1 unpadded convolution, and sigmoid activation. Each convolutional block consisted of two repeated 3×3 unpadded convolutional layers, each followed by batch normalization and ReLU activation, and a 2×2 max pooling layer. The objective loss function was a combination of the averaged DC segmentation loss and the feature matching loss for the generator, and the binary cross entropy loss for the discriminator, as defined in (21).

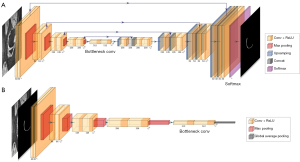

Figure 2 Detailed model architecture of the generator and discriminator of the transfer learning model. (A) A U-Net architecture as the generator. (B) A convolutional neural network architecture as the discriminator.

Model training, validating, and testing

The OAI dataset knee MRIs were randomly split into 70%, 20%, 10% for training, validation, and test respectively for model pre-training. The 25 sets of clinical PDw Siemens knee MRIs were randomly divided into 15, 5, 5 for training, validation, and test respectively for transfer learning using the OAI pretrained model. The clinical PDw MRIs were further augmented by counterclockwise 90-degree rotations and mirroring for training and validation. All scans and segmentation masks were interpolated with bi-cubic and nearest neighbor interpolation respectively to 384×384 to fit the input size of the pretrained OAI model. The discriminator and the generator were trained alternatively, with the discriminator trained once for each generator training iteration. No layers were frozen during transfer learning. The ADAM optimizer was used for all model training with default moment values, an initial learning rate of 1e-3, and a decay rate of 0.9. The batch size was set to 10 due to GPU memory limitation. The maximum number of iterations was set to 90,000. Early stopping was imposed when the learning rate reached 1e-8 to avoid potential overfitting.

Four models were trained and applied to the clinical test cases for comparison: (I) an OAI pretrained model; (II) a model trained from scratch on the APM dataset; (III) a model trained from scratch on the OAI and APM combined dataset; and (IV) a TL model transferred from the OAI pretrained model to the APM dataset. The dependence of the TL model performance on the training set size was further investigated by comparing the model performance trained on different number of training sets (training sizes =1, 5, 10 and 15 respectively) and tested on the 5 Siemens test cases. The TL model performance on scanners from a different vendor (Philips 1.5T Achieva) was also tested. The training, validation, and test of the models were realized with the Python deep learning frameworks Keras (45) and Tensorflow (46) on a NVIDIA Titan Xp GPU.

Inter reader variation

Inter reader variation was assessed on 5 Siemens test cases from one random draw that were not included in the model training and validation. The model trained with segmentation from reader 1 as ground truth was evaluated on the test cases and compared with both readers using DC, HD95, and ASSD. The agreement between the manual segmentation of the two readers was also evaluated.

Cross-validation

Due to the small size of the test set, the transfer learning model for the clinical knee MRIs was further tested for robustness using cross-validation. The 25 sets of Siemens MRIs were randomly partitioned into 5 groups with each group containing 5 sets of MRIs. A 5-fold cross validation was performed on the 5 groups, each time using 4 groups for training and validation and one for testing. In addition, a 4-fold cross-validation was applied to the 4 groups of each training and validation step, using 3 for training and one for validation. The models with best DC on the validation sets through the 4-fold cross-validations were chosen. The 22 test cases from the 5-fold cross validation, excluding the cases with flow artifacts or failed fat saturation, were used to further examine the TL model performance difference between the 1.5T and 3T scans.

Results

The time for one instance of transfer learning model training on the APM dataset was approximately 26 h on the NVIDIA Titan Xp GPU. Once trained, however, the mean time cost per case for automated cartilage segmentation on the test cases was under 2 seconds.

Applying the trained transfer learning model to the holdout test sets yielded an overall averaged DC of 0.819 (±0.039), an averaged HD95 of 1.463 (±0.827) mm, and an averaged ASSD of 0.350 (±0.114) mm. For comparison, an averaged DC of 0.519 (±0.088), an averaged HD95 of 6.227 (±2.751) mm, and an averaged ASSD of 1.224 (±0.465) mm were obtained on the holdout test set when applying the pretrained OAI model without transfer learning. The model trained from scratch using the APM dataset yielded an averaged DC of 0.018 (±0.005), an averaged HD95 of 61.15 (±5.944) mm, an averaged ASSD of 30.21 (±2.212) mm. The model trained from scratch on the mixed dataset with OAI and APM datasets combined produced an averaged DC of 0.741 (±0.083), an averaged HD95 of 2.361 (±0.988) mm, an averaged ASSD of 0.447 (±0.151) mm. Moreover, a comparison between the segmentation of the test sets from two readers showed an averaged DC of 0.782 (±0.046), an averaged HD95 of 1.766 (±0.321) mm, and an averaged ASSD of 0.505 (±0.033) mm. A more detailed breakdown comparison, including a comparison between 1.5T and 3T scans, for the four sub-compartments was shown in Table 1. The TL model performance on test images from a different vendor (Philips) was also shown in Table 1.

Figure 3 showed a sample comparison between the automatic and manual cartilage segmentation on lateral, central, and medial sides of sagittal fat-saturated PDw MR image slices collected on a Siemens 3T Verio scanner with FOV of 134×140 mm², matrix size of 308×320, and the number of slices being 38.

Figure 3 Three sagittal slices from different locations are shown in rows. The first column contains the original FSE fat-suppressed proton density weighted images. The second column presents the segmentation performance of the pretrained OAI model. The third column shows the automatic segmentation from the proposed model. The last column shows the manual segmentation from a trained radiologist. The red, green, magenta, and yellow contours represent femoral, lateral tibial, medial tibial, and patellar cartilage segmentations respectively.

The dependence of the TL model performance on the number of training cases was plotted in Figure 4. Specifically, Figure 4A-4C showed the dependency plots of the TL model performance on the training sizes 1, 5, 10 and 15 in terms of DC, HD95, and ASSD respectively. For each evaluation metric, both the overall model performance and the compartment-wise model performance were plotted.

Figure 4 TL model performance on the number of training cases. (A) TL model performance in DC; (B) TL model performance in HD95; (C) TL model performance in ASSD. DC, Dice coefficient; HD95, 95 percentile Hausdorff distance; ASSD, average symmetric surface distance; TL, transfer learning; FC, femoral condyle; LTC, lateral tibial plateau; MTC, medial tibial plateau; PC, patella.

The results of the TL model performance on the respective holdout test sets of the 5-fold cross validation were shown in Figure 5. The overall mean (± SD) DC, HD95 and ASSD for all 25 test cases of the 5-fold cross validation were 0.801 (±0.051), 1.746 (±0.944) mm, and 0.364 (±0.149) mm, respectively. Compartment-wise violin plots for the TL model performance in DC, HD95, and ASSD on all 25 test cases of the 5-folder cross validation were depicted in Figure 6 respectively.

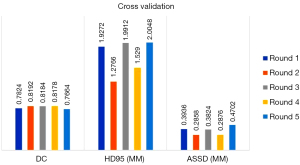

Figure 5 Bar plots of the TL model performance on the holdout test sets for the 5-fold cross validation with DC, HD95, and ASSD as metrics. DC, Dice coefficient; HD95, 95 percentile Hausdorff distance; ASSD, average symmetric surface distance.

Figure 6 Compartment-wise violin plots for the TL model performance on all 25 test sets of the 5-fold cross validation. The blue color represents femoral cartilage; orange represents lateral tibial cartilage; green represents medial tibial cartilage; red patellar cartilage. (A) TL model performance in DC; (B) TL model performance in HD95; (C) TL model performance in ASSD. DC, Dice coefficient; HD95, 95 percentile Hausdorff distance; ASSD, average symmetric surface distance.

Discussion

In this study, we observed that the model trained on the homogeneous OAI dataset did not perform well on the heterogeneous clinical dataset (overall DC of 0.519). However, when the OAI model was used as a pre-trained model for transfer learning to the clinical dataset, the TL model showed a markedly improved performance, even using only a small training dataset. Moreover, the transfer learning model performance was similar to that of the 2 radiologists (overall DC of 0.819). Specifically, the trained TL model achieved overall a Dice coefficient of 0.819, an HD95 of 1.463 mm, and an ASSD of 0.350 mm on a randomly drawn and holdout clinical test dataset with various MR scanner models, field strengths, image resolution, contrast, and quality. It clearly outperformed its counterpart pre-trained on the homogenous OAI dataset collected in a research setting in all three evaluation metrics for all four sub-compartments as shown in Table 1. The TL model trained with reader 1’s segmentation was also tested for inter-reader agreement on the holdout test set by comparing to reader 2’s segmentation, which yielded a similar agreement as that between reader 1 and reader 2.

Compartment-wise, the TL model performance on PC was the best considering all the three metrics as shown in Table 1; the performance on MTC was the worst. As shown in Figure 7A, in the central part of the knee joint close to the tibial eminence, the MTC was not segmented by the TL model but was segmented by reader 1 according to experience in this case. There was however inconsistency in manual segmentation for this difficult area, which may have caused confusion to the model. Focusing on the weight bearing area only may help remediate this problem and improve the model performance without impacting clinical diagnosis.

Figure 7 Examples of poor segmentation (indicated by the arrows) from the TL models compared to the reference segmentation from reader 1. (A) The TL model missing medial tibial cartilage segmentation. (B) The TL model missing patellar cartilage segmentation. (C) False positive lateral tibial cartilage segmentation by the TL model. The red, green, magenta, and yellow contours represent femoral, lateral tibial, medial tibial, and patellar cartilage segmentations respectively. TL, transfer learning.

We also examined the model performance when trained from scratch using the APM dataset and the OAI and APM combined dataset. As shown in Table 1, the performance of the APM model on all compartments was worse compared to the TL model. In particular, it failed on PC, which led to the worst overall performance among all the models. This could be due to the relatively small number of slices available containing PC to train the model. The model performance on the rest compartments, however, was better than directly applying the OAI model. The mixed model performed better than the OAI model and improved the PC results of the APM model, but still worse than the TL model.

Furthermore, there was a clear trend of the TL model performance with regard to the training size as shown in Figure 4. Specifically, the overall DC increased as the number of training cases increased (Figure 4A); the overall HD95 and ASSD decreased as the number of training cases increased (Figure 4B,4C). Moreover, the curves flattened when using 15 training cases. Compartment-wisely, FC and PC showed similar trend. LTC and MTC, however, may benefit from more training data.

The TL model performance difference between 1.5T and 3T scans was also examined as shown in Table 1. The overall DC of the TL model on 3T scans was significantly higher than that on 1.5T scans. The differences in the overall distance metrics, however, were not significant. Similar story was observed among different compartments. One of the potential reasons for the increased DC on 3T scans could be the increased signal to noise ratio compared to 1.5T scans. Studies with larger dataset are needed to better understand the model performance difference between 1.5T and 3T scans.

In addition, the TL model performance on MR scans from a different vendor was also tested. Specifically, the TL model trained on the APM Siemens scans were further tested on 5 APM patient scans collected from a Philips 1.5T Achieva scanner with Philips coils and various acquisition parameters (Table 2). As shown in Table 1, the TL model showed good overall as well as compartment-wise performance in all three metrics on the Philips test cases. The performance was slightly worse than that on the Siemens test cases, which was expected. Including scans from a different vendor in the training dataset should improve the TL model performance on the test cases from the vendor.

To test the robustness of the TL model on the small sized test data set, the best performed TL model was chosen for each round of the 5-fold cross-validation based on 4-fold cross validations among the training and validation sets, which is a standard practice for deep learning model training. Figure 5 showed the robustness of the TL models across the 5 rounds of cross validation when comparing the automatic segmentations with the manual segmentation references. Specifically, the DCs had minimal variation while the HD95s and ASSDs had some fluctuations. This was expected since the DC served as a general measure for checking segmentation overlaps, while the HD95 and the ASSD looked for segmentation boundary discrepancies. The HD95 captured the worst-case boundary discrepancy between the segmentations, and the ASSD evaluated the averaged boundary discrepancy. That being said, the fluctuations in HD95 and ASSD are comparable to the literature reported values for articular cartilage segmentation (19,47).

The compartment-wise robustness of the model on all 25 test cases was shown in violin plots (Figure 6) with DC, HD95, and ASSD as the metric respectively. The distribution of the DCs shown in Figure 6A for all 4 compartments was reasonably good except for PC, where there was a clear failure with a DC of 0.444. The cause for this failure was that the fat-saturation in the corresponding case failed during the clinical scan as shown in Figure 7B, which made it difficult for the model to distinguish between cartilage and other fat tissues. Including more failed fat-saturation cases in the model may help remediate the problem. For HD95 shown in Figure 6B, a clear outlier of HD95 of 36.283 mm was calculated for LTC. A close look at the case as shown in Figure 7C suggested that this was due to the heavy flow artifact collected during the clinical scan. The flow artifact was also one of the major contributors to the spikes in ASSD for LTC and PC shown in Figure 6C. Training the model on more images with non-ideal fat saturation or flow artifacts may help improve the model performance to clinical images with sub-optimal image quality.

One of the major potential problems of applying deep learning models to small training data set is model overfitting. Transfer learning has been recognized as a solution to this problem. In this study, we have in addition employed other remedies including a variable learning rate for early stopping, data augmentation with 90-degree rotations and mirroring, cross validation, and l1 regularization. We observed an averaged DC of 0.875 on the 5 validation sets, compared to the averaged DC of 0.819 on the test sets, which indicated that a slight overfitting problem still existed. Inclusion of dropout layers in the TL model and usage of more sophisticated augmentation such as finer angle rotation, translation, and deformation may help to further reduce the overfitting problem and improve the model performance (48,49).

This study has several limitations. First, although the robustness of our TL model has been validated through cross validation, the small size of the test set is still one limitation. Evaluation on larger sized test dataset will be conducted before its implementation into clinical workflow. Second, we did not compare our current TL model with other model structures on this clinical dataset. Some initial comparisons have been made in the literature (21). We will extend this comparison with existing models (16,17) in future studies. We will also explore the possibility to build the generator using U-Net with VGG or ResNet backbones (50). In addition, only 2D networks were used in our current cGAN model. Multi-planer or fully 3D networks, while requiring more CPU/GPU computing resources, could incorporate more 3D information to improve segmentation accuracy and efficiency over 2D models (51-53). Third, although results in the DC, HD95, and ASSD were reported in this study, the loss function was solely based on the DC. Model performance of incorporating different metrics or a hybrid of them into the loss function needs to be investigated in the future. Fourth, single contrast PDw images were used in this study. Training and testing the TL model on multi-contrast images need to be further investigated. Another limitation is that all training images were collected with scanners from one vendor, although with different models, and all within the Cleveland Clinic system. In the future, we will develop and test models using multi-site and multi-vendor data.

Conclusions

In this study, we observed that the model trained on the publicly available homogeneous OAI dataset did not perform well on the heterogeneous clinical dataset. As a remedy, we created a transfer learning model using a small training data set. This TL model was able to automatically segment knee cartilage, with performance comparable to human, for a wide range of knee MR images chosen to reflect the realities of clinical practice, i.e., different field strengths, scanner models, coils, imaging parameters, and image quality. In addition, we showed the robustness of the proposed model through cross validation. We found it feasible to perform fully automated segmentation of clinical knee MR images, which would enable the clinical application of quantitative MR imaging technique and other prediction models for improved patient treatment planning.
