An observational MRI study of methotrexate-treated children with acute lymphoblastic leukemia in remission and subtle cognitive decline

Introduction

Magnetic resonance imaging (MRI) is a non-invasive, advanced diagnostic imaging technique with wide-ranging clinical and research applications (1). It not only sensitively detects lesions, but also serves as a powerful quantitative tool. MR spectroscopy (MRS) utilizes the 1H nucleus, as the prevalent isotope in most brain metabolites, as its spectral signal to directly measure the concentrations of brain metabolites, such as N-acetylaspartate (NAA), creatine (Cr), and choline (Cho). Another quantitative application of MRI is diffusion-tensor imaging (DTI), which estimates the diffusion rate of water molecules between cells to reflect in vivo microscopic interactions.

As a sensitive, non-invasive, in vivo qualitative and quantitative imaging technique, MRI has benefited many patients with mild-to-moderate as well as early neurologic or psychiatric conditions by providing critical information to help guide early therapeutic intervention. Methotrexate (MTX) is a powerful anticancer drug, but it can be neurotoxic when used as a standardized chemotherapy protocol, although symptoms may be transient in some cases (2). Neurotoxic side effects of MTX include leukoencephalopathy, which appears as transient, hyperintense regions on T2-weighted imaging (T2WI). In previous research, regularly scanning of patients with acute lymphoblastic leukemia (ALL) showed that leukoencephalopathy had a prevalence of between 17% and 87%, and 15% to 83% of patients presented with leukoencephalopathy when scanned only after a central nervous system event (3). Survivors of childhood ALL have been shown to experience treatment-related complications, such as secondary malignancies or neurocognitive impairment, which impact their quality of life after remission (4). The underlying mechanism of MTX neurotoxicity involves alterations in folate physiology and homeostasis. Folate is essential for neurons and other cells of the central nervous system due to its critical roles in DNA and RNA synthesis, DNA methylation, and myelin maintenance (5). Sequential MRI examination facilitates the detection of leukoencephalopathy in all symptomatic patients with clinical neurotoxicity and in some asymptomatic patients after MTX treatment (2). During the acute phase of leukoencephalopathy, DTI reveals restricted diffusion of water molecules within the cerebral deep white matter, and some residual focus with increased signals on T2WI and fluid-attenuated inversion recovery (FLAIR) (2,6). One study that used MRS to examine MTX-treated children with ALL revealed transient decreases in the NAA/Cho and NAA/Cr values and temporary increases in the Cho/Cr values at 20 weeks after treatment (7).

For the present study, we hypothesized that MR examination (MRS and DTI) of children with ALL would allow for efficient monitoring of MTX neurotoxicity in patients who might be asymptomatic. We also hypothesized that changes in MR parameter sensitivity would correlate with neurocognitive performance and with changes in MRS and DTI parameters. MTX can cause structural damage to brain areas, mainly to white matter, especially in the frontal lobe and corpus callosum. The occipital lobe and internal capsule can also be involved, so these structures were selected for our study (8-11). This study aimed to evaluate changes in brain metabolites, diffusion and anisotropy features, and cognitive performance in children with ALL after MTX treatment.

We present the following article in accordance with the MDAR checklist and STROBE reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-21-748/rc).

Methods

Methods and materials

This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Institutional Review Board of Shenzhen Children’s Hospital, and informed consent for each of the patients was acquired from their parents or legal guardians.

Study participants

Between December 2013 and December 2015, 30 children aged 2 to 14 years old with a first-time diagnosis of ALL were recruited randomly from Shenzhen Children’s Hospital. All the children were treated with a standardized protocol of intravenous MTX, including induction and consolidation therapy. The standardized protocol and the clinical risk classification are detailed in the Appendix. All cases achieved complete remission of their malignancy. Children diagnosed with ALL who had an incomplete medical history or whose records were not available for evaluation were excluded from the study, as were those with any of the following complications: other hematological malignancies, neurologic disorders, congenital dysmorphism, or inborn errors of metabolism.

For the control group, 30 healthy children, who were matched to the ALL group by age, educational level, and sex at the individual level, were recruited from the hospital’s neurological outpatient services department. These children had not taken any medications or received radiation that can cause conditions of functional neurologic disorders. Healthy children who did not have a complete evaluation and medical history were also ineligible to participate.

MRI, MRS, and DTI acquisition and analysis

The children in the ALL group underwent two MR examinations, at baseline and at 1 to 3 days after MTX treatment during ALL remission. The children were evaluated for remission at 46 days after receiving MTX. Human brain development is relatively stable after the first 24 months of life (12-14); hence, children under the age of 2 were excluded to minimize the effects of rapid maturation of white matter (15). Also, the interval between the two MR examinations was 46 to 49 days, and there were not many neurodevelopmental changes occurred in healthy individuals during such a short space of time. Therefore, healthy controls only underwent MR evaluation at baseline. Upon the completion of MTX treatment and confirmation of remission by bone marrow biopsy, children in the ALL group were scheduled for an MR examination within 3 days.

The MR images were acquired with a 3.0-T MRI scanner and workstation (Magnetom Skyra, Siemens Healthcare, Erlangen, Germany) using an 8-channel orthogonal head and neck coil. Children under 6 years of age who were unable to cooperate with the MR scan were sedated via anal administration of 0.5% chlorine hydrate.

The MR techniques used in this study included axial T1WI [repetition time/echo time (TR/TE) 1,800/40 ms; field of view (FOV) 24×24 cm; matrix 120×93; slice thickness 5 mm], axial T2WI (TR/TE 2,300/120 ms), axial T2 FLAIR (TR/TE 9,000/135 ms), sagittal T1WI FLAIR (TR/TE 200/2.5 ms), multi-voxel 1H MRS, point resolved spectroscopy (TR/TE 1,500/35 ms; FOV 23×23 cm; matrix 64×64; number of layers 4-10; slice thickness 6 mm), DTI [echo-planar imaging (EPI) sequences, b 1000, 20 dispersion directions; TR/TE 1,500 ms/30 ms; FOV =12×12 cm; matrix 60×60; number of layers 15; slice thickness 5 mm), and DWI [echo-planar imaging (EPI) sequences, TR/TE 200/2.5 ms; FOV 25×25 cm; matrix 100×100; slice thickness 5 mm].

After processing, the workstation software syngoMMWP VE40B (Siemens AG, Munich, Germany) and the DTI analysis software Neuro 3D (Siemens AG, Munich, Germany) were used for image analysis. Five regions of interests (ROIs) were sampled with MRS, including the bilateral frontal white matter, the genu of the corpus callosum, and the genu of the bilateral internal capsule. In the frontal lobe, in order to avoid the influence of the frontal sinus and the frontal bone on the MRS examination, the location information area on 1H-MRS was located in the bilateral posterior frontal lobes, including part of the basal ganglia, the bilateral anterior horns of the lateral ventricles, and the genu of the corpus callosum. Each ROI was approximately 3 to 8 mm³ in size. The ROIs of the MRS were measured repeatedly three times and then averaged. The volume was 30×30×20 mm³, and the voxel ROI volume size was 10×10×10 mm³. The NAA/Cr, Cho/Cr, and NAA/Cho values of the ROIs were calculated. The additional three ROIs, which included the bilateral occipital lobe and the splenium of the corpus callosum, were sampled by DTI. The size of each ROI on DTI was approximately 3 to 7 mm³. The apparent diffusion coefficient (ADC) and fractional anisotropy (FA) of the ROIs were calculated, and three-dimensional DTI maps were constructed. The average of the values measured from the bilateral sites represented the final data point.

The MR images, and MRS and DTI data were independently analyzed by two radiologists (W.C. and L.L., with 15 years and 6 years of post-training clinical experience, respectively), who were blinded to the participants’ characteristics.

Cognitive functional assessment of participants

The cognitive function of the study participants was evaluated using the Wechsler Preschool and Primary Scale of Intelligence (WPPSI-III) test (2002) for children under 6 years of age (the under-6 group) and the Wechsler Intelligence Scale for Children (WISC-IV) test (2003) for children above 6 years of age (the over-6 group). Two physicians (KW and BY, with 1 and 21 years of post-training clinical experience, respectively) performed the cognitive assessments for each participant in cooperation, while blinded to their medical history. Both the healthy children and the children with ALL completed the baseline assessment before treatment, but only the children in the ALL group underwent additional evaluation, after MTX treatment and ALL remission.

Statistical analysis

Using SPSS software v. 20 (SPSS, Chicago, IL, USA), the baseline data (including data from cognitive tests and NAA/Cr, NAA/Cho, Cho/Cr, FA, and ADC values) of children with ALL and healthy controls were compared using the two-sample t-test. The baseline and post-treatment evaluation data of the children in the ALL group were compared using paired t-tests. A statistically significant difference was indicated by a P value of less than 0.05. Data in this study are reported as the mean ± standard deviation. Correlation analysis of MRS data (or DTI parameters) with cognitive scores was performed by using a linear regression model. The cognitive function of the participants was evaluated using the WPPSI-III test [2002] for children under 6 years of age and the WISC-IV test [2003] for children above 6 years of age. In all statistical analyses involving cognitive scores [including analyses of baseline data, post-treatment evaluation data, and the correlation of MRS data (DTI parameters) with cognitive scores], participants were categorized into older and younger groups using 6 years of age as the cut-off.

Results

Participant characteristics

Initially, 30 children with ALL (age 6.9±3.3 years, 14 boys) who were scheduled for intravenous MTX treatment in Shenzhen Children’s Hospital, China, were recruited. The intervals between the two MR examinations ranged from 46 to 49 days, with the median interval being 47 days. Participants’ demographic features, baseline cognitive performance (before MTX treatment), and initial MRS and DTI evaluation parameters are summarized in Table 1. The symptoms experienced by the children with ALL are listed in Table 2. The demographic characteristics and cognitive performance scores of the 30 healthy children (age 6.0±3.1 years, 14 boys) recruited from the hospital’s neurological outpatient services department were comparable to those of the ALL group at baseline. In the under-6 group (12 in ALL group and 14 in control group), 7 children in the ALL group and 9 healthy controls were sedated. Neither the children with ALL nor the healthy controls had any abnormal T1WI, T2WI, or restricted water diffusion signals. No significant differences were observed in the characteristics [age, sex, educational years, and intelligence quotient (IQ)], initial MRS or DTI parameters, or cognitive scores of the two groups (Table 1).

Abnormal findings on MRI after MTX treatment

After the completion of the MTX regimen, all 30 children with ALL achieved hematological remission. One child had an abnormal hypointensity signal on T1WI, coupled with hyperintensity on T2WI and a restricted water diffusion signal on DWI. Another patient had abnormal hyperintensity on T2WI and associated hyperintensity on DWI (Figure 1A-1H). Seven children (7/30, 23%) displayed mild brain atrophy, physiological manifestations of which included widening split-brain, reduced brain volume, and dilated ventricles (Figure 2A,2B). However, using three-dimensional DTI stereoscopical technology, the white matter fiber bundles were digitally reconstructed. No gross abnormalities in the shape or volume of the fiber bundles were observed after MTX treatment.

Figure 1 MR non-contrast images of a 2-year-old girl with ALL [repetition time/echo time (TR/TE) 1,800/40 ms] at the baseline and after MTX treatment. (A) Normal diffusion-weighted image at baseline; (B) T2-weighted image at baseline; (C) T2-weighted FLAIR image at baseline; (D) T1-weighted images at baseline; (E) diffusion-weighted image after treatment showing restricted water diffusion and hyperintensity in the deep white matter of both cerebral hemispheres (arrowheads); (F) T2-weighted image after treatment showing the hyperintensity in the deep white matter of both cerebral hemispheres; (G) T2-weighted fluid-attenuated inversion recovery image showing the hyperintensity in the deep white matter of both cerebral hemispheres; (H) T1-weighted image showing no abnormal intensity. MR, magnetic resonance; ALL, acute lymphoblast leukemia; MTX, methotrexate; FLAIR, fluid-attenuated inversion recovery.

Figure 2 MR T2-weighted images of a 5-year-old boy with acute lymphoblast leukemia [ALL; repetition TR/T 1,800/40 ms] at baseline and after MTX treatment. (A) Normal T2-weighted image at baseline; (B) T2-weighted image after treatment, showing part of the brain fissure widened and deepened, and the bilateral lateral ventricles dilated. MR, magnetic resonance; TR/T, time/echo time; MTX, methotrexate.

Alteration of brain metabolites on MRS after MTX treatment

MRS showed that MTX treatment had altered the brain metabolite ratios of children with ALL (Figure 3A-3D). In the frontal lobe, the NAA/Cr ratio decreased by 43.6% (1.88±0.56 vs. 1.06±0.12; P<0.001), the Cho/Cr ratio increased by 22.2% (1.17±0.20 vs. 1.43±0.18; P<0.001), and the NAA/Cho ratio decreased by 54.8% (1.66±0.55 vs. 0.75±0.14; P<0.001). In the genu of the corpus callosum, the NAA/Cr ratio decreased by 42.0% (1.76±0.43 vs. 1.02±0.21; P<0.001), the Cho/Cr ratio increased by 20.7% (1.21±0.52 vs. 1.46±0.18; P=0.01), and the NAA/Cho ratio decreased by 57.8% (1.66±0.71 vs. 0.70±0.15; P<0.001). In the genu of the internal capsule, the NAA/Cr ratio decreased by 47.7% (2.14±0.60 vs. 1.12±0.14; P<0.001), the Cho/Cr ratio increased by 52.0% (1.00±0.20 vs. 1.52±0.21; P<0.001), and the NAA/Cho ratio decreased by 64.5% (2.14±0.47 vs. 0.76±0.16; P<0.001). In all three areas, all the neurochemical ratios (NAA, Cho, and Cr) changed significantly (Figure 3D). The differences between baseline and after treatment were larger in the genu of the internal capsule than in the other two areas.

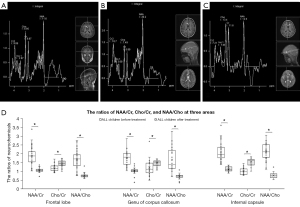

Figure 3 MRS image samples and statistical analysis of the NAA/Cr, Cho/Cr, and NAA/Cho ratios of children with ALL between the baseline and after MTX treatment. (A) MRS image acquired from a normal child; (B) MRS image acquired from a child with ALL at baseline; (C) MRS image acquired from a child with ALL after MTX treatment; (D) the NAA/Cr, and NAA/Cho ratios in the frontal lobe, the genu of the corpus callosum, and the internal capsule all decreased significantly after MTX treatment (n=30), while the Cho/Cr ratios in three areas increased significantly after MTX treatment (n=30). *, indicates that the difference between the baseline and post-treatment was statistically significant. MRS, magnetic resonance spectroscopy; ALL, acute lymphoblast leukemia; MTX, methotrexate; NAA, N-acetylaspartate, Cho, choline, Cr, creatine.

Alteration of DTI parameters after MTX treatment

To assess the impact of MTX on the local diffusion features of white matter, the difference in the FA values after treatment was calculated for the five areas (Figure 4A). In the frontal lobe, the FA values after treatment decreased by 10.8% (0.38±0.06 vs. 0.34±0.08; P=0.03), and the ADC values decreased by 4.7% (0.89±0.08 vs. 0.85±0.07; P=0.03). In the genu of the corpus callosum, the FA values decreased by 13.2% (0.74±0.15 vs. 0.64±0.15; P=0.01), but the ADC values (0.83±0.11 vs. 0.77±0.12; P=0.11) did not change. In the genu of the internal capsule, neither the FA (0.42±0.13 vs. 0.37±0.14; P=0.08) nor the ADC (0.86±0.07 vs. 0.85±0.05; P=0.93) values showed a change from baseline. The FA values in the splenium of the corpus callosum (0.59±0.05 vs. 0.56±0.15; P=0.30) and the occipital lobe (0.60±0.09 vs. 0.57±0.07; P=0.20) did not change from baseline, nor did the ADC values in the occipital lobe (0.75±0.06 vs. 0.76±0.06; P=0.65). Due to the presence of outliers and the small sample, the ADC values in the splenium of the corpus callosum were discarded (Figure 4B,4C).

Figure 4 ROIs on DTI and statistical analysis of the FA and ADC values of children with ALL. (A) The eight ROIs selected for DTI parameter evaluation: left and right frontal lobes, genu of the corpus callosum, left and right genu of the internal capsule, left and right occipital lobe, and the splenium of the corpus callosum. (B) The FA values of the frontal lobe, genu of corpus callosum, genu of internal capsule, occipital lobe, and splenium of corpus callosum of the children with ALL at baseline and after MTX treatment (n=30). After treatment, the FA values in the frontal lobe (P=0.03) and the genu of the corpus callosum (P=0.01) were reduced compared to those at baseline. (C) The ADC values in the frontal lobe decreased (P=0.03) after treatment (n=30). Due to the presence of outliers and the small sample, the ADC values in the splenium of the corpus callosum were discarded. *, indicates that the difference between the measurements at baseline and after treatment was significant. ROI, region of interest; FA, fractional anisotropy; ADC, apparent diffusion coefficient; DTI, diffusion tensor imaging; ALL, acute lymphoblast leukemia.

Cognitive decline of children with ALL after MTX treatment

MTX treatment impaired the cognitive performance of children with ALL. After treatment, the under-6 group exhibited lower scores for total intelligence quotient (IQ) (−6.6%, 96.58±6.28 vs. 90.25±7.12; P=0.002), verbal IQ (−6.9%, 97.25±4.77 vs. 90.58±4.78; P=0.003), and performance IQ (−7.0%, 97.25±4.00 vs. 90.42±3.20; P<0.001), while the over-6 group displayed lower scores for total IQ (−3.1%, 97.39±3.93 vs. 94.39±6.80; P=0.02), perceptual reasoning (−3.2%, 90.28±4.61 vs. 87.39±3.16; P=0.02), working memory (−9.6%, 102.22±4.83 vs. 92.44±7.74; P<0.001), and processing speed (−7.7%, 99.39±3.47 vs. 91.72±6.03; P<0.001). However, no difference was observed in verbal comprehension scores (88.28±3.03 vs. 87.56±3.20; P=0.30) in the over-6 group (Figure 5A). These results indicated that MTX treatment led to a prominent reduction in cognitive scores for working memory and processing speed.

Figure 5 The cognitive performance of children with ALL and the correlations of brain metabolite ratios and DTI parameters. (A) The children with ALL displayed significantly reduced cognitive test scores after MTX treatment. The total (P=0.002), verbal (P=0.003), and performance IQ scores (P<0.001) all decreased in children aged under 6 years. In children aged over 6 years, the total IQ (P=0.02), perceptual reasoning (P=0.02), working memory (P<0.001), and processing speed (P<0.001) scores all decreased, but no change was observed in the verbal comprehension score. (B) In the over-6 group (n=18), the reduction in FA value (ΔFA) after MTX treatment was positively correlated (r=0.51, P=0.04) with the NAA/Cr ratio reduction (ΔNAA/Cr) in the genu of the corpus callosum. *, indicates that the difference between the measurements at baseline and after treatment was significant. FA, fractional anisotropy; ADC, apparent diffusion coefficient; DTI, diffusion tensor imaging; ALL, acute lymphoblast leukemia; NAA, N-acetylaspartate; Cr, creatine; IQ, intelligence quotient.

Relationships of altered MRS and DTI parameters, and cognitive decline in children with ALL

Next, the relationships between alterations in brain metabolite ratios and DTI parameters and cognitive decline were further explored. Separate multiple linear regression models were calculated for the over-6 group and the under-6 group to predict cognitive decline based on the alterations in brain metabolite ratios and DTI parameters. The regression was not statistically significant. However, a relationship between metabolite ratios and DTI parameters was encountered. After MTX treatment, the change in the FA values (ΔFA) at the genu of the corpus callosum in the over-6 group was correlated with the change in the local NAA/Cr ratio (ΔNAA/Cr; r=0.51; P=0.04) (Figure 5B), whereas no obvious correlation was found for the under-6 group. All correlation analyses were corrected by the Benjamini and Hochberg (BH) false discovery rate (FDR) method.

Discussion

ALL is the most prevalent childhood malignancy, accounting for 26.8% of childhood cancers diagnosed in developed countries (16). Brain neurotoxicity in ALL includes cerebrovascular events, such as infarction and haemorrhage, or intracranial cancer cell infiltration (17,18). In the past decade, therapeutic strategies have improved the survival rate among patients with ALL (19). However, neurocognitive development in survivors treated with MTX should be carefully monitored due to the risk of acute and chronic neurotoxicity caused by this drug (20). In the present study, MTX-treated children with ALL showed subtle cognitive decline (decreased cognitive scores and impaired working memory and processing speed). Although not all the children with ALL had acute symptoms of neurotoxicity (such as confusion, seizure, or muscle weakness), their neurocognitive decline did indicate neuronal or axonal injury related to MTX treatment. The MRI results revealed bilateral abnormalities in deep white matter on T1WI or T2WI in 2 children (7%). The MRS assessment further revealed considerable changes (20–64%) between baseline and after treatment in ALL, when compared to cognitive performance (3–9%) or DTI parameters (4–13%). Substantial changes in brain metabolites were found widely within the frontal lobe, the genu of the corpus callosum, and the internal capsule. The results of DTI showed a different pattern of alteration, with a significant decrease in both the FA and ADC values appearing only in the frontal lobe. The white matter of the frontal lobe was abnormal in both cellular metabolism and axonal integrity. Therefore, MTX treatment may have interfered with the microscopic integrity or connectivity of white matter in the frontal lobe.

In the present study, abnormalities detected in the deep white matter of the bilateral cerebral hemispheres on T1WI and T2WI were consistent with the MR findings of leukoencephalopathy reported in another study (2). And these abnormalities in MR may resolved 1 year after treatment (7). White matter injury is one of the major treatment-induced brain defects seen in survivors of childhood ALL (4). Our results revealed that 7 MTX-treated children had mild brain atrophy, which was also reported in another study, along with decreased grey and white matter volumes in cortical and several subcortical brain regions after chemotherapy (4). The MTX-induced changes in brain metabolite ratios were consistent with those observed in Chu’s study (7). Furthermore, the NAA content increased logarithmically with age, while the Cho content decreased logarithmically with age (21,22). This may indicate that, at a younger age, robust neuronal and axonal development and myelin sheathing may be more vulnerable to MTX neurotoxicity (23).

Creatine is a reminder of energy metabolism in brain tissue, and its kurtosis is stable compared with peaks of other brain metabolites. This experiment therefore chose creatine as the reference peak. NAA is related to the synthesis of myelin in the developing brains of children, and can also repair the axons of the mature brain (24). Therefore, the decrease of NAA in the frontal lobe, the genu of the internal capsule, and the genu of the corpus callosum may have been indicative of a reduction in neurons, or some demyelination changes occurring. Considering the possible threshold effect, the decrease of NAA that may have occurred it has not been shown on the baseline MR at present. Furthermore, the metabolism of choline main reminds the metabolism of phospholipid, this may also reflect the degradation of myelin products and the integrity of myelination (25). An increase in Cho kurtosis may indicate demyelinating changes in the brain and gliosis. In our study, the increases in Cho in the frontal lobe, the genu of the internal capsule, and the genu of the corpus callosum may have prompted the increase of myelin degradation products in these regions and damage to the myelin sheath. According to a logarithmic curve, the content of NAA increased with age, while that of Cho decreased, which contradicts the MRS results of our study. This may serve as further evidence that the changes are caused by treatment. Our findings also revealed that the FA values significantly decreased at the genu of the corpus callosum after MTX treatment and that the reduction in the FA values was also correlated with a decrease in the local NAA/Cr ratio.

Microstructural injury of the genu of the corpus callosum might partially cause cognitive decline in the processing speed of children with ALL who receive MTX treatment (26). The corpus callosum is the largest white matter fiber bundle connecting the two cerebral hemispheres. The integrity of the corpus callosum is essential to children’s cognitive development (27). During brain development and maturation, nerve fiber myelination gradually increases the cellular content of the brain and decreases its water content (28,29). The developmental changes in the FA and ADC values observed in Salat et al.’s study were consistent with decreasing diffusivity and increasing anisotropy (30). Changes in DTI parameters may indicate that the frontal lobe is the brain part that is most vulnerable to MTX neurotoxicity (31). At present, researchers have differing opinions regarding the brain changes on DTI in various periods after chemotherapy for ALL. Some studies (32,33) have found that the FA values of brain tissue decrease, whereas others (34) have reported that these values increase. The cause of the above-mentioned contradictions is still unclear. One explanation may be that the integrity of the white matter myelin sheath is affected differently in different parts of the brain. In the future, more comprehensive and time-point research is required to further explore the changes in FA and ADC values in MTX-treated ALL.

Our study has the following limitations. Firstly, the sample sizes (n=30) of the ALL and healthy control groups in this study were small. Secondly, the first MR examination for the children with ALL was scheduled for 1 to 3 days after complete remission was confirmed. The second MR examination was scheduled for at least 46 days after the completion of MTX treatment, by which point some asymptomatic children may have recovered from MTX-related leukoencephalopathy and become negative on T1 WI and T2 WI (3,35). After intensive treatment, there might have impacted on the children’s energy levels or psychological state, the effect of this on their cognitive scores cannot be overlooked. Also, the influence of neurodevelopment cannot be ruled out on our results. The diffusion tensor has been shown to fail in regions containing several fiber populations with distinct orientations. Although alternative models have been suggested, each of these has inherent limitations, and our study is no exception. The evaluation of brain atrophy and three-dimensional tele-immersion was based on the radiologists’ subjective judgement, without an objective quantitative protocol.

In conclusion, ¹H MRS and DTI are able to detect changes associated with cognitive outcomes in children with ALL after MTX treatment. MRS and DTI might be useful for monitoring the effects of MTX neurotoxicity on brain metabolism and the microstructure of white matter fibers. Baseline MR evaluation, MRS, and DTI have the potential to be effective methods for detecting leukoencephalopathy in children with ALL after MTX treatment and for efficiently monitoring changes in neuroanatomic structure and brain metabolism in this group. The prospects of long-term MR examination follow-up of children with MTX-treated ALL are favourable. For research purposes, in the future, with multiple scoring methods, a systematic, comprehensive, and large sample-sized clinical study protocol will be desirable.
