Differentiating between drug-sensitive and drug-resistant tuberculosis with machine learning for clinical and radiological features

Introduction

Tuberculosis (TB) drug resistance is a global public health concern since it threatens the progress made in TB care and control (1). In 2019, there were an estimated 10 million new TB cases; approximately half a million cases are resistant to rifampicin, of which 78% are multidrug-resistant TB (MDR-TB) (2). MDR-TB is a type of TB that is resistant to at least two first-line anti-TB drugs: isoniazid and rifampicin. Drug-resistant TB is a growing public health concern since it requires more complex treatment than drug-sensitive TB and incurs more costs. In 2019, it was estimated that globally 3.3% of new TB cases and 17.7% of previously treated TB cases are MDR-TB (2).

Early identification of drug resistance enables patient-specific drug treatment, which reduces the period of infectiousness and disease spread in addition to improving outcomes. However, discrimination between drug-resistant TB (DR-TB) and drug-sensitive cases (DS-TB) using readily available clinical information and images, preferably during the first visit, is still an open problem. Currently, there are two types of TB drug susceptibility tests: conventional culture-based phenotypic testing and molecular testing. The former involves looking at the bacteria behavior, which requires a well-equipped laboratory facility and may take several weeks to obtain the results (3). The latter involves looking at genetic mutations, which is fast but expensive and may produce inconclusive results (4). Therefore, it is desirable to predict the suspicion of DR-TB automatically from radiological findings and clinical information in patient medical records.

Inspired by the work in (5), we hypothesize that the number of affected sextants may serve as important radiological features for DR-TB identification, and that both clinical and radiological features are important factors for machine classification between DR-TB and DS-TB.

Previous work

There is evidence that certain clinical data and radiological findings may enable differentiation between DR-TB and DS-TB. Faustini et al. (6) conducted a review of twenty-nine studies before 2006 and reported that prior treatment for TB is the strongest determinant of MDR-TB in Europe. Tembo and Malangu (7) collected 2,568 medical records in Botswana and found that previous treatment and positive sputum smear microscopy are associated with the prevalence of MDR-TB or rifampicin-resistant TB (RR-TB). Mdivani et al. (8) reported three risk factors for MDR-TB based on analysis of 1,422 patients from Georgia: retreatment case, history of injection drug use and female gender. O’Donnell et al. (9) found that women admitted to hospital in KwaZulu-Natal, South Africa with drug-resistant TB are 38% more likely than men to have XDR-TB based on an analysis of 4,514 patients. Shen et al. (10) conducted an analysis of 8419 patients from Shanghai, China, and stated that patients aged 30–59 years are more likely to be DR-TB in previously treated cases. Lv et al. (11) reported from 3,552 patients in Dalian, China, that previously treated patients and older age are more likely to have MDR-TB. Icksan et al. (12) compared chest X-ray (CXR) findings from 183 MDR-TB and 183 DS-TB cases in Indonesia and reported that the MDR-TB group has more large-size lesions while the DS-TB group has more small- and medium-size lesions. Wáng et al. (13) performed a review on available articles before 2018 for radiological signs of MDR-TB and found that thick-walled multiple cavities (particularly with count ≥3 and size ≥30 mm) present the most promising radiological sign for MDR-TB with good specificity but at the cost of low sensitivity. Huang et al. (5) reported from 468 DR-TB cases and 223 DS-TB cases that a combination of consolidated nodule number and size can be used to predict the probability of MDR-TB. Flores-Treviño et al. (14) found from 144 patients in Mexico that multiple cavities is a predictor for DR-TB.

Based on these past studies, we hypothesized that the number of affected sextants may serve as a useful feature when applying machine learning techniques to the discrimination of DR-TB and DS-TB. To date, very few works have been concerned with discriminating between DR-TB and DS-TB in an automated manner. Kovalev et al. (15) apply different machine learning methods to features extracted from CXR images or CT images or both. They achieve an accuracy of 73% with an AUC value of 72%, a sensitivity of 82% and a specificity of 58% when combining the features from both X-ray and CT images. The accuracy for CXR images alone or CT images alone falls to 62% and 65%, respectively. Our previous work (16) applied both traditional machine-learning methods and deep learning networks to CXR images, achieving an AUC value around 66% and an accuracy around 60%.

Methods

Data collection

We use a dataset of 2,237 patients, which includes de-identified clinical data and CXR images publicly available from the NIAID TB Portals program (17). Each patient record is manually annotated with clinical information and radiological findings based on CXR images. Clinical information includes age of onset, gender, patient type (new, relapse or failure), type of sample (pulmonary or extrapulmonary), BMI, diagnosis, prescription drugs, laboratory tests, treatment period, treatment status and outcome. A new case refers to a patient who has never been treated for TB or has taken anti-TB drugs for less than one month. A relapse case refers to a patient who has previously been treated for TB, was declared cured or completed treatment at the end of the most recent course of treatment, and is now diagnosed with a recurrent episode of TB (either a true relapse or a new episode of TB caused by reinfection). A failure case represents a patient who has previously been treated for TB and whose treatment failed at the end of the most recent course of treatment (17). Radiological findings include chest radiography patterns such as the number and location of affected sextants, the presence of mediastinal lymphadenopathy, presence of other non-TB abnormalities, the overall percentage of abnormal volume, and the pleural effusion percentage of the hemithorax involved. Due to financial constraints and the size of the TB portals CXR dataset, radiological features are obtained using a single experienced radiologist-reading per image. The whole dataset was annotated by multiple radiologists from the countries contributing data to the program. Due to the large number of radiologists participating in this study, their annotations are not biased toward a single radiologist. The 2,237 patients include 782 DS-TB and 1,455 DR-TB patients, acquired from 11 countries. Distribution of the origin is listed in Table 1. The type of drug susceptibility was determined by sputum cultured drug resistance testing and/or molecular testing, specifically Bactec, Hain (FL-LPA), SL-LPA, GeneXpert, and Lowenstein -Jensen testing (17,18). Data usage is exempt from local institutional review board review as it is publicly available from the TB portals program. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The TB portals program participants are responsible for ensuring compliance with their countries’ laws, regulations, and ethics considerations (17).

Statistical analysis

In this work, we hypothesize that the number of affected sextants may serve as an important radiological feature for DR-TB identification, and that both clinical and radiological features are relevant for machine classification of DR-TB and DS-TB. Lung sextants are defined by dividing each lung into three equal sections from apex to base, as shown in Figure 1. A sextant is said to be affected if either nodules, cavities, collapses, or infiltrates are present. We utilize three clinical features and 26 radiological features, as listed in Table 2. Age in this paper means age of onset. To gain insight into the statistical significance of extracted features with different types of resistance (DR-TB or DS-TB), Pearson’s chi-squared test is applied. A feature with P<0.05 is considered statistically significant.

Figure 1 Definition of lung sextants in our study.

Machine classification of drug-sensitive and drug-resistant TB

Based on the clinical and radiological features selected by Chi-squared tests, we train a machine learning classifier, a Support Vector Machine (SVM) (19), to discriminate between DS-TB and DR-TB. We illustrate the pipeline of our machine classification in Figure 2. To compare the contributions of different features for classifying DR-TB vs. DS-TB, we train the SVM classifier using different feature combinations.

Figure 2 Workflow of the proposed machine classification between DR-TB and DS-TB. DS-TB, drug-sensitive tuberculosis; DR-TB, drug-resistant tuberculosis.

Our dataset includes 782 DS-TB cases and 1,455 DR-TB cases, and is thus biased toward DR-TB. Machine learning classifiers are sensitive to the proportions of different classes in the training set. If ignored, data imbalance will bias predictions in favor of the majority class, leading to inaccurate results. To balance the dataset, several approaches can be applied: down-sampling of the majority class, over-sampling of the minority class, or synthetic minority over-sampling (SMOTE) type techniques (20-23). Data down-sampling involves randomly removing samples from the majority class, which might discard useful information. Data over-sampling is a process of randomly duplicating samples of the minority class, which will not lose any information from the original dataset, but is prone to over-fitting to the training data. The SMOTE technique is an improved over-sampling method that synthesizes new samples from the minority class. It often outperforms simple/random over-sampling (21-23). In our study, we use the classic SMOTE method (20) for data over-sampling in imbalanced binary dataset classification. We evaluate the classification performance based on ten-fold cross validation: 782 DS-TB cases and 1,455 DR-TB cases are first divided into ten folds, each of which includes 78 (or 79) DS-TB cases and 145 (or 146) DS-TB cases. To balance the data between DS-TB and DR-TB cases, the 78 (or 79) DS-TB cases in each fold are oversampled to 145 (or 146) cases using the SMOTE method, or the 145 (or 146) DR-TB cases in each fold are down-sampled to 78 (or 79). Then, nine folds are used for training data and the remaining fold is used as testing data to calculate the accuracy. The process is repeated ten times, with each fold serving once as testing data, and the average performance of the ten rounds is reported as the final evaluation result. Figure 3 visually illustrates the ten-fold cross validation scheme on balanced data obtained via the SMOTE oversampling method.

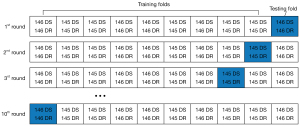

Figure 3 Ten-fold cross validation based on balanced data with oversampled DS-TB cases. DS-TB, drug-sensitive tuberculosis.

Results

Figure 4 illustrates the distribution of the three clinical features we use (patient type, age and gender) for the 1,455 DR-TB and 782 DS-TB cases analyzed in this work. We find visible differences for patient type distributions between DR-TB and DS-TB: For DR-TB cases, 62.96% are in the New category, 23.71% are in the Relapse category, and 13.33% are in the Failure category. However, for DS-TB cases, 90.41% are in the New category, 9.34% are in the Relapse category, and only 0.26% are in the Failure category. Age categories follow those defined in (24), with a slightly finer resolution. Clear differences are observed among age groups between DR-TB and DS-TB. Both DS-TB and DR-TB patients are more likely to be less than 65 years old, whereas the frequency of DR-TB is higher in the age groups of 35–44 and 45–54. No clear difference is observed for the gender distribution between DR-TB and DS-TB. Differences observed in feature distributions are consistent with the statistical significance analysis using Pearson’s chi-squared test, which is performed based on the null hypothesis that the clinical feature categories are independent from being drug-sensitive or drug-resistant. Patient type (P<0.001) and age (P<0.01) show a statistically significant association with resistance type. More details about the distribution and chi-squared test results of the three clinical features can be found in Table S1.

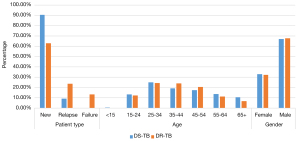

Figure 4 Distributions of three clinical features for 782 DS-TB patients (blue) and 1,455 DR-TB patients (orange). Shown are the percentage of cases for each feature present in a given category (e.g., the blue bars for patient type show that 90.41% of DS-TB patients are in the New category, 9.34% in the Relapse category, and 0.26% in the Failure category). DS-TB, drug-sensitive tuberculosis; DR-TB, drug-resistant tuberculosis.

Figure 5 shows the distribution of 12 nodule features. Visible differences are observed between DS-TB and DR-TB. Nodules occur in approximately 82% of DR-TB patients and in approximately 56% of DS-TB patients. Multiple small or medium nodules, large nodules, huge nodules, multiple non-calcified nodules, multiple clustered nodules, multiple low ground-glass-density (GGD) nodules, multiple medium-density nodules and multiple high-density nodules are more likely to occur in DR-TB. Pearson’s chi-squared tests on the 12 nodule features show that all the nodule features are statistically significant regarding DR-TB vs. DS-TB, except for the number of sextants with calcified nodules (P>0.05). Figure 6 depicts the distribution of six cavity features. We find that cavities occur in approximately 40% of DR-TB patients and in approximately 29% of DS-TB patients. Multiple small cavities, multiple medium cavities, and large cavities tend to occur in DR-TB patients. Pearson’s chi-squared tests indicate that all six cavity features are statistically significant regarding DR-TB vs. DS-TB. Figure 7 shows the distribution of eight other lung abnormality features. We observed that multiple sextants with collapses, multiple sextants with low GGD infiltrates, high-density infiltrates, more than 50% abnormal volume, and mediastinal lymphadenopathy are more likely to occur in DR-TB. Chi-squared test results show that, the number of sextants affected by medium density infiltrates (P>0.05) and the presence of other non-TB abnormalities (P>0.05), are not statistically significant with respect to discriminating between DR-TB and DS-TB. Differences visible in the feature distributions in Figures 4-7 are consistent with Pearson’s chi-squared tests. More details about distributions and chi-squared test results of the 26 radiological features can be found in Tables S2,S3.

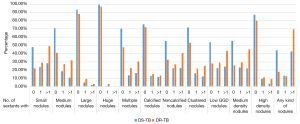

Figure 5 Distributions of 12 nodule related features for 782 DS-TB patients (blue) and 1,455 DR-TB patients (orange). Shown are the percentages of cases for each feature present in a given category (e.g., the blue bars in the category Small nodules show that 48.08% of DS-TB cases have no sextant affected by small nodules, 23.79% have only one sextant affected by small nodules, and 28.13% have more than one sextant affected by small nodules). DS-TB, drug-sensitive tuberculosis; DR-TB, drug-resistant tuberculosis.

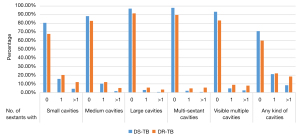

Figure 6 Distributions of six cavity-related features for 782 DS-TB patients (blue) and 1,455 DR-TB patients (orange). Shown are the percentages of cases for each feature present in a given category (e.g., the blue bars in the category Small cavities show that 80.31% of DS-TB cases have no sextant affected by small cavities, 15.60% have only one sextant affected by small cavities, and 4.09% have more than one sextant affected by small cavities). DS-TB, drug-sensitive tuberculosis; DR-TB, drug-resistant tuberculosis.

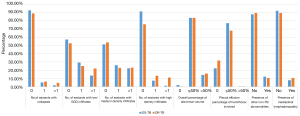

Figure 7 Distributions of eight other lung abnormality features for 782 DS-TB patients (blue) and 1,455 DR-TB patients (orange). Shown are the percentages of cases for each feature present in a given category (e.g., the blue bars in the category No. of sextants with collapses show that 92.71% of DS-TB cases have no sextant affected by collapse, 5.37% have only one sextant affected by collapse, and 1.92% have more than one sextant affected by collapse). DS-TB, drug-sensitive tuberculosis; DR-TB, drug-resistant tuberculosis.

To investigate the possibility of automatically differentiating between DR-TB and DS-TB and to evaluate the importance of specific features, we train SVM machine classifiers using eight different combinations of features listed in Table 2: (I) three clinical features; (II) 12 nodule features; (III) six cavity features; (IV) 12 nodule features plus six cavity features; (V) three clinical features plus 12 nodule features plus six cavity features; (VI) all 26 radiological features; and (VII) 25 significant clinical and radiological features. Tables 3,4 show the results for machine classification of DR-TB cases vs. DS-TB cases using data down-sampling (Table 3) and data augmentation (Table 4) for data balancing, respectively. Comparing the results in Tables 3,4, we find that (I) classifiers with data augmentation achieve better results; (II) classifiers using only clinical features obtain an accuracy around 61%, with very low sensitivity; (III) compared to classifiers using only clinical features, classifiers using radiological features achieve a higher sensitivity at the cost of much lower specificity; (IV) classifiers using a combination of clinical and radiological features achieve a better performance than those using any of them alone; (V) the classifier using the 25 statistically significant features with SMOTE data augmentation achieves the best performance, with an average accuracy of 72.34% and an average AUC value of 78.42%. The 25 significant features are obtained by excluding the four non-significant features (i.e., gender, number of sextans with calcified nodules, number of sextants with medium density infiltrates, and presence of other non-TB abnormalities) from the 29 features (three clinical features and 26 radiological features). The ROC curve for SVM-based machine classification using the 25 significant features is shown in Figure 8. More details of our trained SVM model can be found in Table S4.

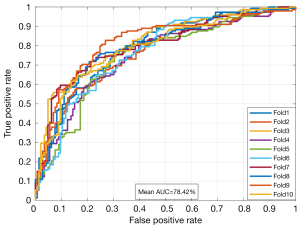

Figure 8 ROC curve of SVM classifier based on 25 significant features with data over-sampling and 10-fold cross validation. ROC, receiver operating characteristic; SVM, Support Vector Machine; AUC, area under the curve.

Discussion

Limitation of the study

The current study has some limitations. First, we did not use radiological features from chest CT images, since many of the existing records do not include annotated CT radiological findings. Second, distribution bias is present in the source of both DR-TB and DS-TB. This work includes 2,237 patients from 11 countries. However, about 97% of all drug-sensitive cases are from five countries (Georgia, Belarus, India, South Africa, and Kazakhstan) and about 81% of all drug-resistant cases are from four countries (Belarus, Georgia, Kazakhstan and Ukraine). That is, our machine classifier learns drug-sensitive and drug-resistant features primarily from six countries, and the classification performance will decrease when we use it to identify DR-TB from other countries or when we perform a country-level evaluation. Third, DR-TB and DS-TB cases are imbalanced. We used SMOTE data augmentation techniques to balance the dataset; it would be better to have a truly balanced dataset for both the statistical significance analysis and machine classifier training. We are now working to increase the sample size of DR-TB and DS-TB cases to obtain a balanced data set with more uniformly distributed countries of origin. Fourth, our best machine learning model based on 25 significant features requires radiological findings reported by a radiologist, which limits the full automation of our machine learning model. Our next step will be to automatically detect such radiological features from radiographs based on deep learning methods.

Roles of patient type, age, and gender

In our study, the strongest predictor of DR-TB is patient type (New, Relapse or Failure). This is consistent with previous studies in Europe, Botswana, and Georgia (6-8). The treatment history is a well-known risk factor for the development of DR-TB. The WHO Global Report on Surveillance on MDR-TB and XDR-TB (25) stated that TB cases with a history of previous TB treatment are significantly associated with DR-TB. Such a predictor can be used in early screening of DR-TB cases, especially in resource-limited clinical settings. For example, a relapsed patient would indicate that drug susceptibility testing is recommended at treatment start.

The association between DR-TB and age is not well established in the previous reports since different studies use different cut-off points for age groups. The European MDR-TB analysis (6) indicated that MDR-TB patients are more likely to be younger than 65 years, while the report on MDR-TB in Shanghai, China (10) stated that the age group of 30–59 years is associated with MDR-TB. In our data, age also showed a significant association with DR-TB. However, we found both that DR-TB and DS-TB are more likely to happen in age groups less than 65 years, and that the frequency of DR-TB is higher than DS-TB in the age groups of 35–44 and 45–54.

Tuberculosis is more common in males (26-28). In (6) it was reported that male gender is a risk factor for MDR-TB cases in Western Europe, but not in Eastern Europe. Contrary to that observation, it was found in Georgia, that female gender is significantly associated with MDR-TB (8,9). The authors in (8) assumed that this association is related to the fact that the majority of health care workers are females in Georgia. In our study, we did not find a significant association between gender and DR-TB. We hypothesize that gender is likely a regional risk factor for DR-TB, but does not present a general association in the TB data from 11 countries used in this work.

Roles of radiological features

Previous works (29-31) have revealed that active TB is likely to affect the upper lung regions exhibiting cavities, consolidations, and nodules, and to affect unilateral lung regions exhibiting pleural effusions. However, based on a review paper from 2018 (13) and our literature search in PubMed on Feb 4, 2021, only a small number of reports have mentioned the importance of lesion types and their locations in the development of DR-TB. Both the systematic review of radiological signs for MDR-TB before 2018 (13) and the report on MDR-TB in Mexico (14) found that multiple cavities is a promising sign for identifying MDR-TB. This radiological feature may offer good specificity at the cost of low sensitivity (13). Our work confirms that there is a significant association between DR-TB and multiple cavities (P<0.001), and also quantitatively demonstrates that a SVM classifier using cavity lesions can predict DR-TB with an average specificity of 80%, at the cost of an average sensitivity of 34%. It was reported that MDR-TB patients are more likely to have large-size lesions, and DS-TB patients are more likely to have small- or medium-size lesions (12). Our study confirms that large nodules and large cavities are more common in DR-TB. In addition, we found that multiple nodules and multiple cavities are more common in DR-TB, which confirms the analysis in (5,13).

In our study, we also found that DR-TB patients are more likely to have more abnormalities in all the six lung sextants. Figure 9 shows the abnormality distribution in the six lung sextants for DR-TB and DS-TB patients, using an abnormality occurrence index (AOI) that is calculated by dividing the sum of abnormalities of all patients in a given group for a given sextant by the number of patients in this group and sextant. A higher index indicates a higher possibility of abnormality occurrence in that sextant. In our future work, we will investigate the possibility of incorporating abnormality location into features for automated identification of DR-TB.

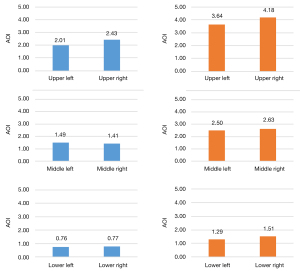

Figure 9 Abnormality distribution for 782 DS-TB patients (blue) and 1,455 DR-TB patients (orange). Shown are the abnormality occurrence indices (AOI) in each lung sextant (upper left, upper right, middle left, middle right, lower left and lower right). Taking DS-TB patients for example, the abnormality occurrence index in a given sextant is calculated by dividing the number of abnormalities in this sextant for all DS-TB patients by the number of DS-TB patients. A higher index indicates a higher possibility of abnormality occurrence in this sextant. DS-TB, drug-sensitive tuberculosis; DR-TB, drug-resistant tuberculosis.

Conclusions

In this paper, we investigated the possibility of using the number of affected sextants for drug resistance prediction and the possibility of applying machine learning to discriminate between drug-resistant TB and drug-sensitive TB by incorporating both clinical and radiological features. We found that, clinical features can predict DR-TB cases with an accuracy of around 61%, with a relatively low sensitivity, while radiological features based on the number of affected sextants can predict DR-TB cases with an accuracy of around 67%, with low specificity. The combination of clinical and radiological features improves these results. For the combined features, our machine classifier achieves an average accuracy of 72.34% and an average AUC value of 78.42%. Our study suggests that the number of affected sextants can be used for identifying drug-resistant TB, and that automatic discrimination between drug-resistant TB and drug-sensitive TB is possible by utilizing both clinical features and radiological features.
