Quantification of brown adipose tissue in vivo using synthetic magnetic resonance imaging: an experimental study with mice model

Introduction

Obesity-associated disorders, such as diabetes, cardiovascular diseases, hypertension, strokes, musculoskeletal disorders, and cancer, are the leading cause of mortality in the adult population (1). Obesity is caused by excessive intake of energy stored as fat. Adipose tissues have a vital role in maintaining the body’s energy balance (2). In mammals, the white adipose tissues (WATs) and brown adipose tissues (BATs) are two main types of adipose tissues showing different spatial variations, cell structures, and functional roles. The WATs are distributed in subcutaneous and visceral locations, while BATs are mainly located in the interscapular region in rodents (3). The WATs are composed of large unilocular lipid droplets containing an eccentric nucleus within the cell and a limited amount of cytoplasm, whereas BATs contain small multilocular lipid droplets with an abundance of cytoplasm (3). The BAT is a highly heterogeneous adipose tissue containing dense vascular and iron-rich mitochondria, specifically expressing uncoupling protein 1 (UCP1) (4). Compared to the WAT that stores excess energy as triglycerides, BAT is responsible for releasing energy via thermogenesis (5,6), which utilizes UCP1 in the mitochondria to consume fat and generate heat (7). Our previous study (8) showed that the visceral adipose tissue volume at the level of the 3^rd lumbar vertebrae was associated with the incidence of type 2 diabetes. However, the increased quantity or activity of BATs may effectively enhance energy utilization, reduce the storage of WATs, combat the development of obesity and type 2 diabetes, as well as maintain the metabolic balance in the body (6,9). Therefore, BAT is considered a potential target tissue for developing new drugs that might induce the browning of WAT or increase the BAT volume to ameliorate obesity and its related metabolic disorders (10).

Noninvasive imaging approaches are vital for examining BATs in humans, among which positron emission tomography-computed tomography (PET/CT) and magnetic resonance imaging (MRI) are the most popular techniques for distinguishing BAT from WAT and measuring the BAT volume in clinical practice. However, at present, the identification and quantification of BAT in small rodents remain challenging (2).

Imaging using fluorodeoxyglucose F 18 (¹⁸F-FDG) PET is the standard method for BAT detection due to its high sensitivity in detecting metabolic alterations. Nonetheless, PET is not suitable for longitudinal studies requiring repeated scans due to its high ionizing radiation (3). In addition, ¹⁸F-FDG is mainly taken up by the metabolically active BAT but not by inactive tissues, which can underestimate the total quantity of BATs (2). In contrast, MRI is a valuable tool for quantifying the characteristics of BAT independent of the tissue’s activation state. The lower fat content in BATs and the use of non-ionizing radiation make MRI a particularly attractive method (11,12), especially when assessing BAT alterations in response to pharmacologic stimulation that requires repeated scans. Chemical shift imaging has also been used to differentiate WAT and BAT; yet, BAT shows poor tissue-signal contrast due to the relatively limited imaging spatial resolution in this method (13,14). The use of magnetic resonance spectroscopy (MRS), based on the different endogenous biochemical properties and histological composition of the two adipose tissues, has also been investigated for this purpose (15). However, in practice, MRS is severely limited by spatial resolution (15,16) and magnetic field inhomogeneity, with the latter being commonly present (3).

Synthetic MRI is a novel imaging technique that simultaneously offers conventional weighted images and quantitative maps in one scan, as well as the correction of B1 field inhomogeneity (17,18). The physical properties of tissues like the longitudinal and transverse relaxation times (T1 and T2, respectively, in ms) are obtained from a multiple-dynamic multiple-echo (MDME) sequence. The quantitative relaxation maps obtained using synthetic MRI have been reported as promising candidates for the differential diagnosis of various diseases (19) and have been routinely used for neural (20-22), knee (23), and breast (24) imaging. The T1 and T2 values reflect the tissue compositions (21) and may act as potential quantitative biomarkers for different pathological properties. As the BATs and WATs have differing fat and water contents, with BAT containing a large number of mitochondria, blood vessels, and iron, the relaxation characteristics of BAT and WAT tend to vary. Hamilton et al. (15) used MRS to demonstrate that the T1 relaxation rate of the water component differed between BAT and WAT, and that the water content T1 in the WAT was almost twice that in BAT. However, MRS requires a sufficient tissue volume for accuracy, which may limit spatial resolution. A previous study (2) applied the T2 value to distinguish between BAT and WAT, using a conventional multi-echo spin-echo (MESE) sequence, which was the most commonly used technique for T2 measurement (25); still, the relatively long scanning period hinders its clinical application. In addition, it has been demonstrated that T2-weighted images (T2WIs) can be utilized to estimate the BAT volume in rats (2). The T2WIs obtained using synthetic MRI may be of clinical significance when used in similar applications.

Ouwerkerk et al. (26) showed shorter T2 and lower unsaturated fatty acids (UFAs) in BAT compared to WAT in healthy humans without cold stimulation. Also, previous literature showed that the T1 of water was lower in BAT compared with WAT regardless of the tissue’s activation state (15). Yet, to the best of our knowledge, previous studies have not reported the application of synthetic MRI for distinguishing BAT from WAT and quantifying BAT volumes. Because WAT is mostly fat, the T1 and T2 are close to the T1 and T2 of the most prominent triglyceride signal. In BAT, the water signal is a significantly larger portion of the total signal, and both T1 and T2 are markedly different from the T1 and T2 of triglycerides. In the present study, we hypothesized that the differing tissue composition of the BATs and WATs might lead to different relaxation times, which in turn would allow for differentiation at thermoneutral temperature. Additionally, the synthetic T2-weighted (sT2w) images, obtained simultaneously, may be used for estimating the BAT volume.

Methods

Animal care

A total of 16 C57BL/6 mice, between 20 and 22 weeks of age, were obtained from the Nanjing Biomedical Research Institute of Nanjing University (Nanjing, China). All animals were maintained in an environment of temperature 22±1 °C prior to the MRI scan, relative humidity of 50–60%, and a light/dark cycle of 12/12 h, with free access to a regular diet and water. All animal experiments were approved by the Institutional Animal Care and Use Committee of the Sun Yat-sen University (NO. [2017]104) and performed in compliance with institutional guidelines for the care and use of animals.

MRI scanning

All mice were scanned in the prone position using a 3.0 T scanner (SIGNA Pioneer, GE Healthcare, Milwaukee, WI) equipped with a 5-cm diameter receive coil suitable for animals. The chest and abdomen of each mouse were wrapped by a piece of cloth during the examination, which had an auxiliary effect on reducing breathing-induced motion artifacts. A scout localizer scan was performed first, followed by conventional axial T2WI and synthetic MRI examinations. The detailed scan parameters for T2WI were: repetition time (TR), 7,245 ms; echo time (TE), 85 ms; slice thickness, 1 mm; slice spacing, 0 mm; number of slices, 20; field of view, 6×6 cm²; matrix, 352×320; echo-train length, 10; bandwidth, 41.67 kHz. For the synthetic MRI, a two-dimensional MDME pulse sequence was applied to acquire both the axial and sagittal sections. This synthetic MRI sequence used was a multisaturation delay multi-echo fast spin-echo sequence comprising four automatically calculated saturation delays (inversion times, TI) and two TEs (27,28). Hence, the result of each MDME acquisition was 8 (complex) images per slice (4 saturation delays, at 2 TEs). The detailed scan parameters for the MDME sequences were: auto TR range, 4,400 to 4,517 ms; TE, 24.3 and 121.4 ms; slice thickness, 2 mm; slice spacing, 0 mm; number of slices, 20; field of view, 9×9 cm²; matrix, 352×352; echo-train length, 16; bandwidth, 27.78 kHz. The total scanning time of synthetic MRI was 13 minutes and 4 seconds for each model. No respiratory gating of animals was used during the examination. The respiratory rates and body core temperature were not monitored because our experiment was carried out by 3.0 T MRI scanner, which did not provide a technical platform to monitor these indicators.

The quantitative maps (T1 and T2), synthetic T1-weighted (sT1w), and sT2w images were simultaneously generated from the MDME raw data, using an offline post-processing software (synthetic MRI 8.0; Synthetic MR, Linköping, Sweden). Specifically, to retrieve T1 and T2 maps while accounting for B1 inhomogeneity, a least-square fit was performed on the signal intensity S of each pixel of the 8 images per slice according to (18):

S=A⋅PD⋅exp⁡(−TE/T2)⋅1−[1−cos⁡(B1θ)]⋅exp⁡(−TI/T1)−cos⁡(B1θ)⋅exp⁡(−TR/T1)1−cos⁡(B1α)⋅cos⁡(B1θ)⋅exp⁡(−TR/T1)[1]

where A is an overall intensity scaling factor taking into account the coil sensitivity, the RF chain amplification, and the voxel volume; α is the applied 90 degrees excitation flip angle, and θ is the applied 120 degrees saturation pulse angle. Once T1 and T2 values are calculated, the contrast-weighted images, such as T1w, T2w images, can be synthesized in combination with virtual scanner settings for TE, TR, and TI. The overall processing time is less than one minute.

The values of both BAT and WAT were measured using the means of regions of interest (ROI)-based method (28,29). T2w images showed good contrast compared to the T2 map, so the ROI contours of BAT were manually delineated surrounding the edge of the interscapular BAT (IBAT) in the axial sT2w images slice-by-slice while avoiding the surrounding vessels. Also, comparative ROIs were manually drawn in the dorsal subcutaneous WAT, which was present on the same slices. Thereafter, the mean quantitative values of both IBAT and WAT were automatically calculated across all the pixels in the ROIs using the synthetic MRI software. The delineation of ROIs for each slice was independently conducted by a radiologist with 10 years of experience in MRI, and the ROIs were inspected for accuracy by another radiologist with 15 years of experience in MRI.

To quantify the IBAT volume, the ROIs were manually delineated around the margin of the IBAT on contiguous slices of the axial sT2w images by utilizing the GE post-processing workstation (GE Advanced Workstation 4.7) (Figure 1). Subsequently, the volume of the IBAT was measured by merging all ROIs. The body weight, weight of IBAT gross specimen, and IBAT volume of thirteen mice were analyzed; the remaining three mice were utilized for specimen preparation.

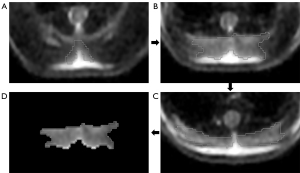

Figure 1 Quantitative measurement of the IBAT volume using sT2w images. (A,B,C) ROI (white contours) was manually drawn around the IBAT margin on each slice of the sT2w images; (D) the volume of IBAT was measured by merging all ROIs. IBAT, interscapular brown adipose tissue; sT2w, synthetic transverse relaxation time-weighted; ROI, region of interest.

Signal-to-noise ratio (SNR) of BAT and WAT were measured (ITK-SNAP Version 3.8.0) on conventional T2WI using the means of the ROI-based method. The ROI contours of BAT and WAT drawn on conventional T2WI should be as consistent as possible with the ROI contours on the sT2w image and completed by the same two radiologists. The mean pixel value of each ROI was used as the signal intensity of the corresponding tissue, whereas the mean standard deviation of a background ROI placed posterior to the skin surface over the BAT was used as the noise. SNR was determined as the signal intensity of tissue divided by standard deviation of tissue (17).

Dissection and analysis of BAT and WAT ex vivo

The mice were anesthetized using pentobarbital sodium at a dose of 40 mg/kg of body weight via intraperitoneal (i.p.) injection prior to the experiments. After MRI scanning, the mice were immediately euthanized by administering an overdose of pentobarbital sodium (200 mg/kg, i.p.). A surgical incision was then done in the interscapular region to conduct a visual inspection of the IBAT and the adjacent dorsal subcutaneous WAT layer. The BAT specimens in the interscapular region were excised and weighed, whereas the dorsal subcutaneous WATs were dissected. During BAT dissection, the interference of WAT on BAT was minimized by removing the neighboring WAT that was visible with the naked eye, ensuring the excision of IBAT depots only. The BAT and WAT samples were then stored in 10% normal buffered formalin to perform hematoxylin and eosin (HE), Prussian blue, and UCP1 immunohistochemistry (IHC) staining.

HE, Prussian blue, and IHC staining

The tissues were excised, fixed in 10% formalin for 24 h, embedded into paraffin, serially sectioned to obtain 4 µm sections, deparaffined, and rehydrated. The sections were stained using HE staining according to standard procedures. Prussian blue staining was performed using freshly prepared equal proportions of potassium hexacyanoferrate and hydrochloric acid. After one hour, the sections were counterstained with nuclear fast red, dehydrated, and placed on slides under coverslips.

For performing UCP1 IHC staining, the sections were first dewaxed and then rehydrated. Antigen retrieval was carried out in EDTA buffer (PH 9) by boiling the tissue sections in a microwave oven for 8 min at medium power and then stopping heating for 8 minutes. Finally, samples were heated for 7 minutes at medium and low power. The sections were then incubated with 3% hydrogen peroxide for 25 min to block endogenous peroxidases. Bovine serum albumin (3%) was added to the sections after rinsing them in phosphate-buffered saline. Subsequently, the sections were incubated overnight with primary antibodies at 4 °C; the primary antibodies were rabbit anti-UCP1 (1:500, ab 10983; Abcam, Cambridge, United Kingdom). Finally, the sections were incubated with a horseradish peroxidase-conjugated goat anti-rabbit immunoglobulin G secondary antibody (1:200, GB23303, Servicebio, Wuhan, China) for 50 min.

Statistical analysis

All statistical analyses were performed using SPSS Statistics version 25.0 (IBM Corp, NY, USA) and MedCalc Statistical Software version 19.1 (MedCalc Software bv, Ostend, Belgium). The comparisons of both quantitative parameters (T1 and T2) between BAT and WAT were conducted using either a pairwise t-test or Wilcoxon test according to the data distribution. A receiver operating characteristic (ROC) curve was generated for each parameter to assess the parameter’s diagnostic performance in differentiating BAT from WAT using the MedCalc software. The optimal thresholds for differentiation of BAT and WAT, sensitivity, and specificity were determined using Youden’s J statistic. Meanwhile, a ROC curve was plotted to assess the diagnostic performance of SNR in differentiating BAT from WAT using the MedCalc software. The sensitivity and specificity were also determined using Youden’s J statistic. The pairwise comparisons of areas under curves (AUCs) among T1, T2, and SNR were made using the method described by DeLong et al. (30). Spearman correlation analysis was conducted to evaluate the association between the synthetic MRI-derived IBAT volume and the weight of IBAT gross specimen and between the synthetic MRI-derived IBAT volume and the mouse body weights. A value of P<0.05 was considered statistically significant.

Results

The mean and range of T1 and T2 values of the BAT and WAT are shown in Table 1. The mean T1 values of BAT were significantly higher than those of WAT (pairwise t-test, P<0.001), whereas the mean T2 values of BAT were significantly lower compared to WAT in all mice (pairwise Wilcoxon test, P<0.001). Figure 2 shows the number of overlapping of T1 and T2 in BAT and WAT, respectively.

Figure 2 Overlapping histograms of T1 and T2 in BAT and WAT. (A) The number of overlapping of T1 in BAT and WAT; (B) the number of overlapping of T2 in BAT and WAT. BAT, brown adipose tissue; WAT, white adipose tissue; T1, longitudinal relaxation time; T2, transverse relaxation time.

The AUC of the T1, T2 values, and SNR for differentiating BAT from WAT was 0.942, 0.995, and 0.915, respectively (Figure 3). The AUC of the T2 values was higher than that of T1 and SNR (P=0.04, P=0.007, respectively), and there was no significant difference between the AUC of T1 and SNR using the DeLong test (P>0.05). The optimal cut-off value for T2 was 76 ms in the differentiation between BAT and WAT (100% sensitivity and 93.7% specificity), and the optimal cut-off value for T1 was 312 ms in the differentiation between BAT and WAT (85.4% sensitivity and 95.8% specificity).

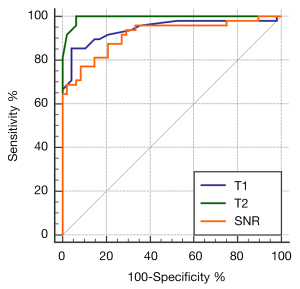

Figure 3 ROC curves of the T1, T2 values, and SNR for differentiating between BAT and WAT. The optimal cut-off value of T1 is 312 ms (AUC =0.942, sensitivity: 85.4%, specificity: 95.8%, 95% CI: 0.875–0.979); the optimal cut-off value of T2 is 76 ms (AUC =0.995, sensitivity: 100%, specificity: 93.7%, 95% CI: 0.952–1.000); the optimal cut-off value of SNR is 18.7 (AUC =0.915; sensitivity: 77.1%, specificity: 91.7%, 95% CI: 0.840–0.962). T1, longitudinal relaxation time; T2, transverse relaxation time; SNR, signal-to-noise ratio; ROC, receiver operating characteristic; BAT, brown adipose tissue; WAT, white adipose tissue; AUC, areas under curve.

Figure 4 shows the sT1w image, sT2w image, T1 map, and T2 map for the mouse BAT. The synthetic MRI-derived IBAT volume for each mouse was measured based on the sT2w images (Figure 1). A moderate correlation was observed between the synthetic MRI-derived IBAT volume and the weight of the IBAT gross specimen (r=0.662, P=0.014). The synthetic MRI-derived IBAT volume moderately positively correlated with the mouse body weight (r=0.653, P=0.016) (Figure 5). Figure 6 shows that the visualized IBAT and WAT on the MR images were confirmed to be BAT and WAT via autopsy.

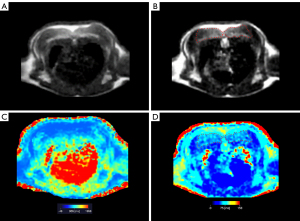

Figure 4 Synthetic T1w (A); synthetic T2w (B) image; T1 map (C); and T2 map (D) for the mouse BAT. BAT areas are labeled with the red dashed line. T1, longitudinal relaxation time; T2, transverse relaxation time; T1w, T1-weighted; T2w, T2-weighted; BAT, brown adipose tissue.

Figure 5 Correlation analysis of the synthetic MRI-derived volume of IBAT depot with the weight of IBAT gross specimen and mouse body weight. (A) A moderately positive correlation was observed between the synthetic MRI-derived IBAT volume and the weight of IBAT gross specimen (r=0.662, P=0.014); (B) the synthetic MRI-derived IBAT volume was moderately correlated to the mouse body weight (r=0.653, P=0.016). IBAT, interscapular brown adipose tissue; MRI, magnetic resonance imaging.

Figure 6 Postmortem dissection of BAT and dorsal WAT in the interscapular region. (A) The BAT (black arrow) and WAT (white arrow) in the interscapular region were observed from a dorsal side; (B) a deep BAT (black arrow) was observed by flipping the dorsal WAT (white arrow) in the interscapular region. Abundant blood vessels were visible in the BAT; (C) BAT (black arrow) and WAT (white arrow) are shown in an isolated adipose tissue. BAT, brown adipose tissue; WAT, white adipose tissue.

HE, UCP1, and Prussian blue staining were used to identify the BAT and WAT (Figure 7). The BAT was characterized by small multilocular adipocytes containing a large amount of cytoplasm and abundant blood vessels. The WAT exhibited large unilocular lipid droplets containing an eccentric nucleus within the cell and low amounts of cytoplasm. In addition, a positive expression of UCP1 was observed in BAT but not in WAT (Figure 7C,7D). Figure 7E shows the presence of iron particles, which appeared as blue spots in the BAT sections stained with Prussian blue, but not in the WAT (Figure 7F).

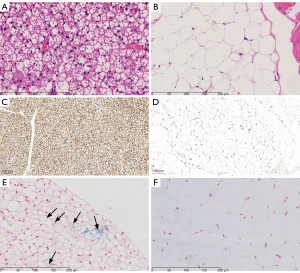

Figure 7 Histologic analyses of the BAT and WAT specimens. The BAT and WAT were taken from the interscapular area. (A) HE staining (×40): the BAT was characterized by small multilocular adipocytes. A large number of red cells were distributed among the adipocytes; (B) HE staining (×40): the WAT exhibited a single large unilocular lipid droplet with an intracellular eccentric nucleus; (C,D) UCP1 immunohistochemistry staining (×10): UCP1 expression is positive (brown color) in (C) BAT, (D) but not in WAT; (E,F) prussian blue staining (×40): the arrows refer to the iron particles distribution (blue color) in BAT (E), iron particles were not shown in WAT (F). BAT, brown adipose tissue; WAT, white adipose tissue; HE, hematoxylin and eosin; UCP1, uncoupling protein 1.

Discussion

The WAT is often referred to as “bad fat”, as its excessive accumulation may lead to obesity, type 2 diabetes, cardiovascular disease, and cancer. In contrast, the BAT is referred to as “good fat,” as it consumes energy to generate heat, thereby maintaining body temperature. The BAT is also considered a target tissue for treating metabolic diseases, such as obesity and diabetes. It is therefore of clinical interest to quantify BAT and estimate its volume in vivo.

The T1 and T2 maps are fundamental signal-formation parameters in MRI (21,31,32). The T1 has been associated with tissue fat content (33), free water content (34), the categories and concentration of macromolecules (35), such as myelin (36), and iron content (34,35). The change in T2 has been mainly related to the variation in water (23) and iron contents (37); it has also been associated with macromolecules (23) and tissue fat content (38). T1 and T2 values were also influenced by molecular motion. Small, rapidly rotating molecules (like free water) have long T1 and T2 times. As molecular motion slows (as in proteins and dense solids), T2 shortens, and T1 increases (39).

Synthetic MRI is a novel MRI approach that may be used to simultaneously obtain multiple relaxation maps as well as contrast-weighted images in a single scan (19-24). Importantly, synthetic MRI applies a saturation pulse rather than an inversion pulse, and as the starting position of the T1 relaxation curve is a function of the B1 field, it is possible to measure the local B1 field at the same time. The estimated B1 field can be used to correct the effects of local deviations in flip angle (18,40). Furthermore, synthetic MRI is reportedly accurate (41) and reproducible (41,42), and it has also been applied in several clinical areas. Specifically, Lee et al. (23) evaluated the feasibility and accuracy of synthetic MRI T2 mapping compared with conventional T2 mapping. The phantom study showed an excellent correlation between the T2 values obtained by the two approaches. In the study of Kumar et al. (17), synthetic MRI of the knee was accurate for T1, T2, and proton density quantification. Also, simultaneously generated morphologic MR images had detection rates of structural abnormalities similar to those of conventional MR images, with similar acquisition time. In the present study, the AUC of T2 values for differentiating BAT from WAT was higher than that of SNR on conventional T2WI, and there was no significant difference between the AUC of T1 and SNR. Hence, T2 values obtained from synthetic MRI were superior to conventional T2WI in distinguishing BAT and WAT, and T1 values and conventional T2WI showed similar performance in distinguishing BAT and WAT. It is well-known that breath-induced motion artifact is one of the crucial factors that may influence the accuracy of quantitative MRI mapping techniques. The synthetic MRI showed excellent performance in motionless organs such as knees and brains. Other motional organs, including the liver and heart, were easily affected by the respiratory motion artifacts. The BAT of the mouse is predominantly located in the interscapular region, which is barely influenced by the respiratory movement. Besides, we wrapped the chest and abdomen of each mouse with a piece of cloth during the examination, which had an auxiliary effect on minimizing the possible motion artifacts induced by breathing. However, in order to apply synthetic MRI in the liver or the heart, respiratory or cardiac triggered sequences are needed. In this study, the relaxation maps and contrast-weighted images obtained using synthetic MRI were investigated for estimating the volume of BAT.

It was observed that the mean T1 values in WAT were significantly lower than those in BAT, which indicated a higher fat level in WAT, as the T1 values were negatively correlated with tissue fat content (33). This observation is consistent with previous studies, which have shown that WAT has a higher fat content and stronger resonance strength of fat than BAT (4,5); the T1 values of fat decrease as the fat fraction increases. In addition, the T1 is associated with water content (34). BAT contains intracellular and extracellular water (4), leading to long T1. The T1 is also influenced by the iron content (34,35). The presence of iron in BAT is associated with a low T1 value, and a large amount of water content in BAT corresponds to high T1 values. In our study, the T1 values of BAT were higher than those of WAT. Therefore, we speculated that the water content was the major cause of T1 variation between BAT and WAT. In addition, the differences in the T1 values between BAT and WAT may be attributed to the differences in macromolecule characteristics, such as triglyceride composition and degree of lipid saturation in the two adipose tissues (15,33).

The BAT was also found to show lower T2 values (mean: 66.06±5.06 ms) than WAT (mean: 88.23±7.68 ms). Chen et al. (2) reported that the BAT in rats could be identified with a conventional MESE sequence using a 9.4 T MRI scanner. In their study, T2 values of BAT (mean: 57.76±3.92 ms) were significantly lower than those of WAT (mean: 83.07±2.20 ms). Following are possible explanations for the lower T2 value of BAT: BAT contains large amounts of mitochondria and intracellular iron (2,11), which results in a higher magnetic field susceptibility of the tissue. The presence of iron in the BAT was confirmed via Prussian blue staining. High iron content was associated with a reduced T2 value (6). Next, the rich vasculature in the BAT can lead to a decreased T2 value (2,11). Finally, fat fluidity differences caused by variances in saturated fatty acid content may also cause differences in relaxation time of T1 and T2. A study of excised rodent tissue samples examined with proton MR spectroscopy (15) showed that triglyceride in BAT was more saturated than in WAT, and BAT had a lower proportion of unsaturated triglycerides. Animal studies (43) showed that the triglyceride composition of BAT could be lower in UFA and polyunsaturated fatty acid (PUFA) when deriving fatty acid content in large parts from de novo synthesis from glucose. More saturated fatty acid lowers the fluidity (26), which was also consistent with a lower UFA content in BAT (15,43). Lower fluidity shortens T2 and lengthens T1 (26,44).

Currently, there is no widely accepted standard method for the measurement of the volume of the BAT. In this study, the volume of IBAT was measured via manual segmentation. The obtained results revealed that the volume of IBAT estimated via synthetic MRI was moderately positively correlated with the weight of the excised IBAT specimen, which was similar to that reported by Chen et al. (2). Assuming that the BAT density was approximately equal among the mice used in this study, it can be indirectly inferred that the IBAT volume measured via synthetic MRI may be positively correlated with the actual IBAT volume. Endocrinologists need to establish imaging biomarkers to accurately evaluate the treatment response of a drug in obese or diabetic patients undergoing anti-obesity or anti-diabetic treatments. Using synthetic MRI, the changes in the BAT tissue-relaxation values and the BAT volume may be measured and compared before and after anti-obesity or anti-diabetic treatment, thus allowing for the potential longitudinal assessment of the efficacy of anti-obesity or anti-diabetic drugs.

In the present study, the volume of the IBAT estimated via synthetic MRI was moderately positively correlated with the body weight of the mice, in agreement with the results reported by Hu et al. (45) and Chen et al. (2). However, this result may only be applicable to lean mice, and whether it applies to obese mice needs further validation. In ob/ob obese mice, swollen BAT can be observed due to fat accumulation, while the capillary density, tissue blood flow, the concentration of UCP1 in mitochondria, and the thermogenesis of BAT are all reduced compared to lean mice (46). This evidence suggests that the tissue composition of BAT in obese mice changes, the effective components for heat production decrease, and the fat content increases. However, the relationship between the overall volume of BAT and body weight still needs to be investigated.

The current study has several limitations. Firstly, while the drainage approach is the most commonly used method for measuring the volume of BAT, it was not used in the present study as the density of the BAT is lower than that of water, and the volume of BAT is small, which makes it challenging to avoid artificial measurement errors. Secondly, the inability to completely remove the surrounding WAT and residual blood from the BAT during BAT dissection might have affected the weight of the dissected BAT in a few mice, thus resulting in a higher value than the actual weight. Thirdly, this study lacked a comparison between the values obtained using synthetic MRI and conventional MESE techniques. These values could provide meaningful data if compared with quantitative measures using conventional T1 and T2 quantitative mapping techniques in the same mouse. Lastly, in this study, we did not add conventional sequences to the imaging protocol. So, the analysis of conventional sequences in distinguishing BAT from WAT is lacking. Finally, this study utilized relaxation measures using synthetic MRI to characterize the BAT in the resting state, but did not further explore the quantitative magnetic profiles of BAT in the activated state further, which should be addressed by future studies.

In conclusion, our study demonstrated the feasibility of differentiating BAT from WAT and quantifying BAT volume in vivo via quantitative measurements using synthetic MRI. Synthetic MRI may be an ideal tool to longitudinally evaluate the BAT alteration induced by anti-obesity or anti-diabetic drugs. Future studies are needed to explore further the quantitative magnetic profiles of BAT in the activated state.
