Application of machine learning with multiparametric dual-energy computed tomography of the breast to differentiate between benign and malignant lesions

Introduction

Breast cancer is the most commonly diagnosed cancer in women (1). Recognition of the status of breast tumors is essential for reducing unnecessary biopsies of benign tumors and is vital for treatment decision-making. Magnetic resonance imaging (MRI) is a key means for diagnosing breast lesions and subsequently choosing the appropriate therapy. It is sensitive and is increasingly being used for clinical purposes, such as to assess the extent of malignant breast lesions and monitor the response to chemotherapy (2,3). However, MRI is limited by low specificity, high costs, and incompatible implanted devices (4,5). Thus, the accurate differentiation of breast lesions using MRI remains challenging.

Dual-energy computed tomography (DECT) has promising clinical applications in oncological imaging for the characterization of tumors (6), including the differentiation between benign and malignant tumors (7-10). DECT can provide various quantitative parameters for objective quantitative analysis of breast tumors while screening for lung metastases and inflammation lesions compared with mammograms and ultrasounds. Currently, some studies have investigated the role of DECT in the diagnosis of breast cancer via multiple quantitative parameters (11). One study using DECT quantitative parameters showed that the iodine concentration was higher in breast tumors than in the pectoral muscle and normal breast tissue (12). Another study (10) demonstrated that DECT is a reliable imaging technique with good consistency among observers and can be used for the locoregional staging of breast cancers.

Moreover, the iodine concentration and attenuation [at 70 and 40 kiloelectron volts (keV)] of benign tumors were significantly lower than those of malignant breast tumors. Our previous research (13) found that DECT parameters, including normalized iodine concentration (NIC) and normalized effective atomic number (nZ_eff), could be used to discriminate the expression status of immunohistochemical biomarkers of breast cancer. However, to the best of our knowledge, there are no related studies on the diagnostic performance of multiparametric DECT (mpDECT) in differentiating between benign and malignant breast lesions.

Machine learning methods can generate predictive models by extensively searching the model and parameter spaces, which is different from traditional statistical methods that typically consider and evaluate a limited set of assumptions (14-17). One previous study (18) demonstrated that combining low-dose perfusion breast CT parameters and machine learning approaches is a useful noninvasive method for predicting the molecular subtypes and prognostic biomarkers of breast cancer. Another study (19) showed that machine learning with multiparametric MRI of the breast enables early prediction of pathological complete response to neoadjuvant chemotherapy, as well as survival outcomes, with high accuracy. However, to the best of our knowledge, no study has evaluated the diagnostic performance of machine learning using mpDECT in differentiating between benign and malignant breast lesions.

Previous studies have demonstrated the potential for the application of imaging features with machine learning in breast cancer; however, the potential of mpDECT has not yet been fully tapped. Thus, this study aimed to evaluate the diagnostic performance of conventional univariate analysis and machine learning with mpDECT in distinguishing between benign and malignant breast lesions.

Methods

Participant characteristics

The study was approved by the ethics committee of Chongqing University Cancer Hospital (No.: CZLS20200215-A), and individual consent for this retrospective analysis was waived. This study was conducted per the Declaration of Helsinki (as revised in 2013). The inclusion criteria were as follows: (I) dual-phase contrast-enhanced DECT scan of the thorax; (II) pathological biopsy-confirmed breast malignant or benign lesions; (III) women ≥18 years who were not pregnant or breastfeeding; and (IV) patients with no history of chemotherapy or radiation therapy in the breast space. The exclusion criteria were as follows: (I) patients with incomplete pathological/medical information; (II) patients who underwent breast mass biopsy within 1 week before the initial CT examination; (III) cases involving invisible target lesions on CT images; (IV) poor image quality (severe motion artifacts or poor signal-to-noise ratio); and (V) patients with obesity causing breast mass beyond the field of view. Details regarding patient exclusions can be found in Figure 1.

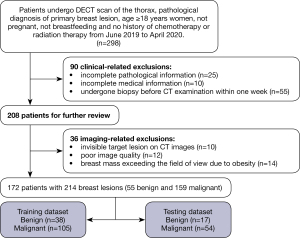

Figure 1 Flowchart of study participant enrolment and selection process. DECT, dual-energy computed tomography; CT, computed tomography.

Between June 2019 and April 2020, 172 patients who fulfilled the inclusion criteria were enrolled in our study. All patients underwent DECT scanning once. Among them, 117 patients were diagnosed with malignant breast lesions, 42 patients were diagnosed with unilateral malignant breast lesions (and the other side was diagnosed as benign breast lesions), and 13 patients were diagnosed with benign breast lesions. For all patients, the following information was recorded: age, the largest diameter of the lesion, menstruation state, and histopathological information. The overall workflow chart of this study is shown in Figure 2.

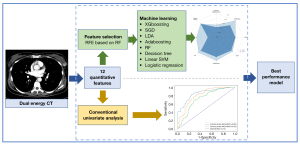

Figure 2 The overall workflow chart of this study. CT, computed tomography; RFE, recursive feature elimination; RF, random forest; XGBoost, extreme gradient boosting; SGD, stochastic gradient descent; LDA, linear discriminant analysis; AdaBoost, adaptive boosting; SVM, linear support vector machine; NIC, normalized iodine concentration; AUROC, area under the receiver operating characteristic curve.

DECT image acquisition

DECT data were acquired on a 2.5 generation dual-energy dual-source CT unit (SOMATOM Drive, Siemens Healthineers, Germany). Automatic exposure control (CARE Dose 4D, Siemens Healthineers) was used in our study scans. The scanner settings were as follows: rotation time, 0.28 s; collimation, 64×0.6 mm; pitch, 0.55; reference tube current-time product, 71 milliamperes second for the 100 kilovolt tube and 60 milliamperes second for the Sn140 kilovolt tube; reformatted section increment, 1.5 mm; and reformatted section thickness, 1.5 mm. All participants were scanned craniocaudally in the supine position. Noncontrast DECT images were obtained first. The iodinated nonionic contrast agent (Ioversol, 320 mg/mL iodine, HENGRUI Medicine, China) was administered through the ulnar vein by a dual-head injector. The dosage was 1.5 mL/kg with a flow rate of 2.5 mL/s, followed by a bolus injection of 30 mL saline administered at the same flow rate. The arterial phase scanning was initiated using a bolus-tracking method with a 100 Hounsfield unit (HU) threshold in the descending aorta and an additional delay of 10 s. The venous phase scan delay time was 25 s after the end of the arterial phase scan.

DECT quantitative features

DECT imaging data were analyzed using viewer software on a syngo.via workstation (syngo.via VB20A, Dual Energy, Siemens Healthineers, Germany). Standard linear-blended images were reconstructed by applying a blending factor of 0.5 (M_0.5; 50% of the low kV and 50% of the high kV spectrum) for attenuation (HU) measurements. We measured the attenuation in three phases (precontrast, arterial, and venous phases). Dual-energy quantitative parameters were measured in the arterial and venous phases by two radiologists (XXW, with 8 years of experience in breast diagnostic imaging, and XFZ, with 3 years of experience in post-processing of DECT) who were blinded to the biopsy results of the breast tumors. A region of interest (ROI) was placed in the breast lesion area as large as possible, excluding the areas of calcification, obvious gross necrosis, or large vessels. The mean area of all ROIs was 421.61 (range, 110.28–1,253.15) mm². The NIC and nZ_eff were obtained through the breast lesions iodine concentration (mg/cm³) and effective atomic number dividing by the aortic iodine concentration and the effective atomic number. The slope of the spectral HU curve (λ_Hu, HU/keV) was computed according to the following equation (20):

λHu=(HU40keV−HU70keV)/30keV[1]

Eqs. [2-4] for calculating the differences in quantitative DECT features between the arterial phase and venous phase were as follows:

ΔNIC=NICarterialphase−NICvenousphase[2]

ΔnZeff=nZeffarterialphase−nZeff venousphase[3]

ΔλHu=λHuarterialphase−λHu venousphase[4]

Conventional univariate analysis

Univariate analysis of all mpDECT features was performed to differentiate between benign and malignant breast lesions. The optimal cut-off points of all mpDECT features for predicting benign and malignant breast lesions were determined by the Youden index (21). The area under the receiver operating characteristic curve (AUROC) was used as the classification metric and was used to evaluate the model’s predictive ability.

Machine learning

A recursive feature elimination (RFE) method combined with random forest (RF) was used to select the optimal sequence of features in our study. The concrete implementation was as follows: (I) train the RF model with 10-fold cross-validation (CV); (II) calculate the importance of permutation features; (III) keep the most important features; (IV) repeat steps 1 through 3 until optimal performance is achieved; and (V) select the subset of a feature that predicts the best performance (22).

Eight machine learning models, including logistic regression, extreme gradient boosting (XGBoost), stochastic gradient descent (SGD), linear discriminant analysis (LDA), adaptive boosting (AdaBoost), RF, decision tree, and linear support vector machine (SVM), were applied with the mpDECT to distinguish between benign and malignant breast lesions. A python (version 3.7.6) library named scikit-learn (version 0.22) was used in our study. The specific parameters of machine learning can be seen in Figure S1.

For more information about each algorithm, see Appendix 1. Each particular learning algorithm was used to provide the best performance model for fitting the input DECT data and correctly predicting benign or malignant breast lesions. Our data were divided into a training group (used to train the model) and a testing group (used to evaluate the model’s generalization ability) at a ratio of 67%:33%. Five-fold CV was used to distinguish between the benign and malignant breast lesions groups to improve the performance evaluation and manage the stochasticity in machine learning models. The AUROC was used as the performance metric.

Statistical analysis

Statistical analyses were performed by using commercially statistical software (SPSS software, version 25.0; USA). We randomly selected 30 patients to assess inter-observer agreement in the analysis of the mpDECT features. The ROIs of mpDECT measurements were repeated twice, with an interval of at least 1 month, following the same procedure. Our study used the intraclass correlation coefficient (ICC) with a two-way random effects model of consistency. In the univariate analyses, 12 mpDECT features were compared using the independent sample t-test (normal distribution) or Mann-Whitney U-test (non-normal distribution). Menstruation state was assessed using the χ² test. The Delong test was used within the conventional univariate analysis and machine learning models to compare the difference between the AUROCs. The level of significance was defined as P<0.05.

Results

Participant characteristics

In total, 172 participants with 214 histopathologically confirmed breast lesions were included in our study. The patients’ clinicopathological characteristics are shown in Table 1. Histopathologically, 159 malignant lesions and 55 benign lesions were diagnosed. No statistically significant differences were observed between the training and testing datasets in terms of age, largest diameter of the lesion, and menstruation state.

Our study’s mean cumulative CT dose index was 5.42±1.94 mGy, while the mean dose length product was 166.12±56.04 mGy cm, and the average effective dose was 2.31±0.78 mSv for each phase.

Conventional univariate analysis

The ICCs of the study for inter-observer variability in terms of mpDECT were 0.930 (0.759–0.990). The mpDECT between benign and malignant breast lesions is shown in Table 2. The results showed that, except for ΔnZ_eff (P=0.728), the 11 other quantitative parameters of malignant lesions were higher than those of benign lesions (P<0.001– 0.002). In the univariate analysis, the venous phase λ_Hu had the highest AUROC (0.88), followed by arterial phase attenuation (0.87) and venous phase attenuation (0.87) (Figure S2). The representative images are shown in Figure 3.

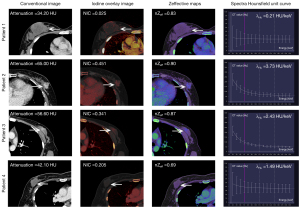

Figure 3 Representative DECT images of contrast-enhanced venous phase in four breast lesion patients. Patient 1: pathological diagnosis of a 34-year-old woman with right breast mucinous carcinoma (arrows). According to the multiple parameters of DECT, benign breast lesions were diagnosed (false negatives). Patient 2: a 52-year-old woman was diagnosed with left breast invasive ductal carcinoma (arrows) on both histopathology and multiple parameters of DECT (true positive). Patient 3: pathological diagnosis of a 45-year-old woman with left breast adenosis (arrows). According to the multiple parameters of DECT, malignant breast lesions were diagnosed (false positive). Patient 4: a 45-year-old woman was diagnosed with right breast fibroadenoma (arrows) on both histopathology and multiple parameters of DECT (true negative). DECT, dual-energy computed tomography; NIC, normalized iodine concentration; λ_Hu, slope of the spectral Hounsfield unit curve, nZ_eff, normalized effective atomic number, HU, Hounsfield unit.

Optimum ranking of the features

The mpDECT model was based on RFE incorporated with RF, and the importance of the features in the model for the prediction of benign and malignant breast lesions is summarized in Figure 4. The most relevant features for predicting benign and malignant breast lesions were those quantitative features, including arterial phase λ_Hu, venous phase λ_Hu, arterial phase attenuation, arterial phase NIC, venous phase attenuation, and venous phase attenuation phase NIC. According to the ranking of importance scores, we selected six of the most important features to construct models with eight machine learning algorithms.

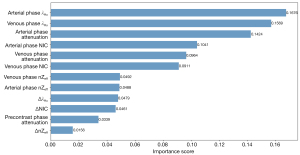

Figure 4 Important features (horizontal) in the mpDECT (vertical) model for predicting malignant and benign breast lesions. mpDECT, multiparametric dual-energy computed tomography; λ_Hu, slope of the spectral Hounsfield unit curve; NIC, normalized iodine concentration; nZ_eff, normalized effective atomic number.

Diagnostic performance of the eight machine learning models

All models performed excellently, with high AUROC values in training (AUROCs, 0.88–0.99) and testing (AUROCs, 0.83–0.96) datasets (Figure S3). Table 3 and Figure 5 summarize the AUROCs for all models in the training and testing datasets. Among them, AdaBoost showed the highest performance and outperformed the decision tree models (AUROC 0.96 vs. 0.83; P=0.034). There was no statistically significant difference in our study between the performance of the AdaBoost and that of the other six groups of models, including XGBoost, SGD, LDA, AdaBoost, RF, and linear SVM, in the prediction of benign and malignant breast lesions (P=0.060–0.838).

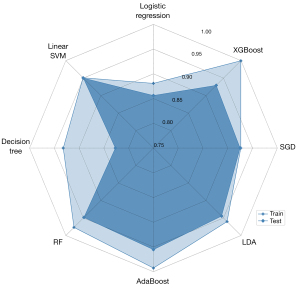

Figure 5 Radar plot illustrations of mean performance in the training and testing datasets to recognize the most stable learning model machine (with high accuracy and low variance) for predicting malignant and benign breast lesions. XGBoost, SGD, LDA, AdaBoost, RF, and linear SVM. XGBoost, extreme gradient boosting; SGD, stochastic gradient descent; LDA, linear discriminant analysis; AdaBoost, adaptive boosting; RF, random forest; SVM, support vector machine.

Figure 6 presents the boxplot illustration of the mean performance of five-fold CV in the training dataset along with eight machine learning models in looking for the most stable, high accuracy, and low variance model for predicting benign and malignant breast lesions. AdaBoost was the most stable model (least variance), with AUROC values of 0.99 and 0.96 in the training and testing datasets, respectively (Figure 7). Therefore, we chose the AdaBoost model to compare with the univariate analysis. The AUROC of AdaBoost was significantly higher than that determined by univariate analysis [AUROC of AdaBoost, 0.96 vs. AUROC of venous phase λ_Hu, 0.88 (P<0.001); AUROC of AdaBoost, 0.96 vs. AUROC of arterial phase attenuation, 0.87 (P<0.001); and AUROC of AdaBoost, 0.96 vs. AUROC of venous phase attenuation, 0.87 (P<0.001), respectively].

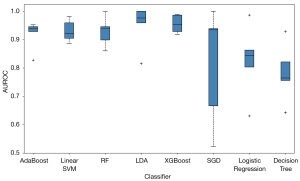

Figure 6 A boxplot illustration of the mean performance of various machine learning algorithms using five-fold CV in the training dataset to predict malignant and benign breast lesions. The AUROC was used as the classification metric. XGBoost, SGD, LDA, AdaBoost, RF, and linear SVM. CV, cross-validation; AUROC, area under the receiver operating characteristic curve; XGBoost, extreme gradient boosting; SGD, stochastic gradient descent; LDA, linear discriminant analysis; AdaBoost, adaptive boosting; RF, random forest; SVM, support vector machine.

Figure 7 A boxplot illustration of the mean performance of various machine learning algorithms using five-fold CV in the training dataset to predict malignant and benign breast lesions. The AUROC was used as the classification metric. XGBoost, SGD, LDA, AdaBoost, RF, and linear SVM. CV, cross-validation; AUROC, area under the receiver operating characteristic curve; XGBoost, extreme gradient boosting; SGD, stochastic gradient descent; LDA, linear discriminant analysis; AdaBoost, adaptive boosting; RF, random forest; SVM, support vector machine.

Discussion

This study applied conventional univariate analysis and machine learning with mpDECT of the breast to distinguish between benign and malignant breast lesions. With the univariate analysis, the venous phase λ_Hu offered the highest AUROC. Of all machine learning models, the AdaBoost classifier model using mpDECT was more stable than the other machine learning models and outperformed conventional univariate analysis in differentiating between benign and malignant breast lesions.

DECT can reconstruct multiparametric images and corresponding quantitative parameters as analysis tools and quantitative indicators for clinical diagnosis (23,24). The effective atomic number can quantitatively depict the changes in the X-ray absorption rate for various materials and reflect the atomic number of composite materials; the higher the compound density, the higher the effective atomic number (25). We concluded that the nZ_eff of malignant breast lesions was higher than that of benign lesions. These differences may be due to the varying anatomical structures of malignant and benign lesions caused by the uneven density of breast cell components (1). The iodine concentration can be used to quantitatively reflect the vascularization of various tissues and local corresponding blood volume (6,26,27). New tumor vessels in malignant lesions usually contain immature microvessels, increasing blood flow within the tumor (28). We found that the NIC was higher in malignant breast lesions than in benign lesions, which is consistent with the findings of a recent study (29). This result might mean that malignant breast lesions have more underlying microvascular and tumor angiogenesis than benign lesions. λ_Hu demonstrates the attenuation changes of the lesion when enhanced by a contrast agent; the faster the spectral curve changes, the higher the proportion of contrast agent in the lesions (30). From our results, we found that the venous phase λ_Hu had the highest diagnostic value for differentiating between benign and malignant breast lesions. We obtained similar results to the most recent study (20), indicating that λ_Hu was the best parameter for identifying metastatic sentinel lymph nodes in breast cancer.

RFE is a common integrated tool with strong information feature search capabilities. This algorithm calculates and updates the importance level and eliminates the least important features (31). RF is a good candidate for integrating large amounts of omics data. It can often deal with high-dimensional-related problems, confirm the strong predictors of a specified outcome, and not require assumptions about the underlying model (22). However, high-dimensional datasets have a common problem: the existence of correlated predictors will affect RF’s ability to recognize the strongest predictors by reducing the estimated importance scores of relevant variables. The RFE algorithm incorporated with RF was the suggested solution, which presents a promising machine learning algorithm for medical imaging (22). Our study used this method and obtained a ranking of the importance of mpDECT features. Among them, six quantitative features were found to be important for accurately distinguishing between benign and malignant breast lesions.

In contrast to prior research (11), we used multiple quantitative parameters extracted from DECT. We extracted and calculated 12 features per lesion and used eight machine learning algorithms. We demonstrated that the AdaBoost classifier model was more stable than the other machine learning models and outperformed the conventional univariate analysis in differentiating between benign and malignant breast lesions. The AdaBoost method is different from the other seven data mining methods of the machine learning model. It first creates a group of weak classifiers by assigning appropriate extra weight to them and then combines them into a strong model. AdaBoost has unique advantages in accuracy rate and training time compared with other data mining methods (32). To the best of our knowledge, no research has evaluated the value of machine learning approaches in differentiating between benign and malignant breast lesions using mpDECT. The results of our study confirmed the robust performance of the AdaBoost model.

According to the National Comprehensive Cancer Network (NCCN) guidelines for breast cancer (33), chest diagnostic CT with contrast is routinely recommended in clinical stage I–IIb (if directed by signs or symptoms) and IIIa above breast cancer patients for screening lung metastases and other lesions. Primary breast lesions are also included in the screening field. This ‘one scan, many searches’ approach can provide information about lung lesions and provide additional DECT quantitative parameters of primary breast lesions to assist clinical diagnosis. Unfortunately, at present, the clinical value of DECT in breast cancer screening and diagnosis is relatively limited, and we are also looking forward to furthering research that explores the clinical value of DECT in breast cancer screening and diagnosis.

Our study has several limitations that should be noted. Firstly, this study was performed using one DECT device from a single institution. Secondly, the participants underwent thoracic DECT scans to evaluate the breast lesion stage and the presence of potential lung metastasis lesions or other potential lung lesions, which may be considered a selection bias. Finally, fewer participants with benign lesions were included, resulting in an imbalance in the sample size. It should be noted that most patients underwent DECT for breast cancer staging, while patients with benign breast tumors rarely underwent DECT. Therefore, few benign tumors were included in this study.

In conclusion, the performance of AdaBoost based on mpDECT was superior to that of the other machine learning models and conventional univariate analysis in differentiating between benign and malignant breast lesions. The combination of machine learning with mpDECT may provide valuable information for differential diagnoses to guide clinical treatment decisions. This is a key step in achieving precision medicine in breast cancer.

Acknowledgments

The authors thank all volunteers who participated in the study and the staff of the Department of Radiology, Chongqing University Cancer Hospital, Chongqing Cancer Institute, and Chongqing Cancer Hospital in Chongqing, China, for their selfless and valuable assistance. We acknowledge the support of Xiaoyue Zhang from Siemens scientific research.

Funding: This study has received funding from the National Natural Science Foundation of China (Grant No. 82071883), the combination projects of medicine and engineering of the Fundamental Research Funds for the Central Universities in 2019 (Project No. 2019CDYGYB008), the Chongqing key medical research project of a combination of science and medicine (Grant No. 2019ZDXM007), and the 2019 SKY Imaging Research Fund of the Chinese International Medical Foundation (Project No. Z-2014-07-1912-10).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/qims-21-39). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was approved by the ethics committee of Chongqing University Cancer Hospital (No.: CZLS20200215-A) and individual consent for this retrospective analysis was waived. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
