Prognostic value of regional strain by cardiovascular magnetic resonance feature tracking in hypertrophic cardiomyopathy

Introduction

Hypertrophic cardiomyopathy (HCM) is the most common genetic cardiomyopathy and is usually defined by increased ventricular wall thickness with non-dilated ventricular chamber, which cannot be explained by loading conditions. In general adult samples, the prevalence of HCM is reported to be approximately 0.02–0.23% (1,2). HCM is usually clinically diagnosed by maximal left ventricular (LV) wall thickness ≥15 mm in at least 1 LV myocardial segment based on echocardiography, cardiovascular magnetic resonance (CMR) imaging, or cardiac computed tomography (1,3).

HCM is one of the most common causes of sudden cardiac death (SCD). The annual incidence of SCD, heart failure, and stroke is about 1–2% (4,5). Risk factors for SCD in HCM patients include non-sustained ventricular arrhythmia, LV wall thickness (LVWT) ≥30 mm, prior history and family history of SCD, and unexplained syncope (1,4). Restrictive filling pattern, LV apical aneurysms, atrial fibrillation, left ventricular ejection fraction (LVEF), left atrial (LA) size, ejection fraction (LAEF), and late gadolinium enhancement (LGE) (6-11) are also likely to be associated with a higher risk of a major adverse cardiovascular event.

Myocardial strain is a non-invasive tool to evaluate ventricular function, especially to detect ventricular dysfunction in preserved ejection function (EF) in HCM patients (12-14). HCM-based feature tracking imaging is a new technique for strain analysis and has evolved rapidly in recent years. It has been proven to be robust with good reproducibility and agreement with CMR tagging (15). Previous studies have also reported the prognostic value of global strain aside from its diagnostic value, and an abnormal global longitudinal strain has been found to be associated with adverse composite cardiac outcomes and ventricular arrhythmias (16). However, global strain cannot indicate regional function, whereas regional strain can do so. A few research studies have examined the diagnostic value of regional strain (17,18) and described impaired segmental strain in HCM patients; however, the prognostic value of using CMR feature tracking imaging is still unknown. In this study, we aimed to explore the prognostic implications of strain parameters generated by CMR feature tracking analysis in HCM patients.

Methods

Patient population

This study consecutively included 104 clinically diagnosed HCM patients evaluated in our department between March 2013 and May 2019. The diagnostic criteria followed the 2011 American Heart Association (AHA) and 2014 European Society of Cardiology (ESC) guidelines (1,4) on diagnosis and management of HCM. HCM is clinically diagnosed when maximal LVWT ≥15 mm or with a borderline wall thickness of 13 to 14 mm based on CMR in the presence of a family history of HCM. Obstructive HCM is confirmed when the LV outflow tract or mid LV cavity peak gradient are ≥30 mmHg at rest. Apical HCM is confirmed when the apical to basal LVWT ratio is ≥1.3–1.5 (3). Thirty age- and gender-matched healthy volunteers were enrolled as the control group. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the ethics committee of our institute, and written informed consent was obtained from each patient and volunteer.

CMR protocol

One 1.5 T MRI system (Avanto, Siemens, Munich, Germany) and one 3.0 T MRI system (Achieva, Philips, Eindhoven, The Netherlands) were used to obtain MRI images. MRI acquisition on both systems included 2-, 3-, and 4-chamber and short axis (SA) view cine MR imaging and LGE images. LGE delay time (10 to 15 min) and injected contrast dose (0.2 mmol/kg gadodiamide, Omniscan, GE Healthcare, Cork, Ireland) were also the same between patients. The coverage of the SA view was the whole left ventricle from the base to apex. Cine MR imaging was performed using retrospective electrocardiogram (ECG) gating, LGE images were acquired using ECG triggering, and both were performed with breath holding in a supine position. An 8-channel phased-array body coil was used in a 1.5 T Siemens system. A true fast cine MR imaging sequence with steady precession was used with the following parameters: slice thickness =8 mm, gap =2 mm, field of view (FOV) =330 mm ×280 mm, repetition time (TR) =39.75 ms, echo time (TE) =1.12 ms, flip angle =42°, and reconstructed cardiac phases =25. LGE imaging consisted of magnitude and phase-sensitive inversion recovery (PSIR) images, with the following parameters: TR =700 ms, TE =3.36 ms, flip angle =25°, inversion time (TI) =200–300 ms; slice thickness =8 mm, and gap =2 mm. A 16-channel dedicated phased-array torso coil was used in a 3.0-T system. The cine MR imaging based on sense balanced turbo field echo sequence was used, with FOV =300×300 mm, TR/TE =2.89/1.45 ms, flip angle =45°, reconstructed cardiac phases =25, slice thickness =8 mm, and gap =2 mm. LGE images used a phase-sensitive inversion recovery turbo field echo (PSIR-TFE) sequence, with FOV =300×300 mm, TR/TE =6.12/3.00 ms, TI =280–450 ms, flip angle =25°, slice thickness =8 mm, and gap =2 mm. A nonenhanced CMR protocol was performed for healthy volunteers, using a 3.0-T Philips system with a 16-channel dedicated phased-array torso coil and the same scanning parameters.

CMR analysis

CMR analysis was performed using specialized software (CVI 42, version 5.11.3, Circle, Calgary, Canada), consisting of LVWT, biventricular, left atrial structure and function, and LGE quantification. Left ventricular wall thickness was obtained via directly measuring the maximum thickened wall thickness at end diastole. Biventricular structure and function analysis were based on SA view cine MR imaging. The endocardium and epicardium were contoured manually, slice by slice, at end systolic and end diastolic phases. The papillary muscle was included in LV volume and excluded from the endocardial ventricular border (19). Trabeculations of the LV and right ventricular (RV) were ignored and included in ventricular volume. After contouring was completed, ventricular structural and functional indices were generated according to the Simpson method, including left ventricular end diastolic volume (LVEDV), left ventricular end systolic volume (LVESV), LVEF, mass, right ventricular end diastolic volume (RVEDV), right ventricular end systolic volume (RVESV), and right ventricular ejection fraction (RVEF).

Left atrial volume (LAV) and function analysis were based on the biplane (2- and 4-chamber view cine MR imaging) area-length method, and endocardial contouring was performed manually at phases when the left atrium was maximum and minimum. Left atrial volume was calculated according the following formula (20): LAV =0.85×A2C×A4C/L.A2C, where A4C denotes the LA areas on the 2- and 4-chamber views, and L is the shorter long-axis length of the LA from these 2 views. Left atrial maximum volume (LAVmax), left atrial minimum volume (LAVmin), and LAEF were calculated.

LGE quantification was performed using a tissue characterization module. The SA view of PSIR images was used to quantify LGE, while 2-, 3-, and 4-chamber views were used to help distinguish the enhancement from the artefact. LGE was calculated using a semiquantitative analysis, according to the following formula: threshold = mean + 6 standard deviation (21), where mean and standard deviation were generated when a region of interest approximately 20 mm² was placed at the remote myocardium. The area with a higher intensity than threshold was deemed an LGE area. Finally, an experienced observer (with more than 10 years of experience in CMR) adjusted the LGE area if an artefact was included.

Feature tracking analysis

Feature tracking analysis was performed using CVI 42 software (Circle Cardiovascular Imaging). In tissue tracking module, SA, 2-, 3- and 4-chamber cine MR imaging was used for analysis. The left ventricular end diastole phase was chosen after manual review in SA, and 2-, 3- and 4-chamber views. The left ventricular range was defined using 2 basal points and 1 apical point, the endocardial and epicardial contours were drawn automatically in 2- and 4-chamber view sand each SA slice, and the observer needed to confirm and make necessary adjustments manually if the contouring was not exact. Then, LV global and regional strain parameters were computed automatically. Global strain parameters included global radial strain (GRS), global circumferential strain (GCS), and global longitudinal strain (GLS); and regional radial strain, regional circumferential strain, and regional longitudinal strain were computed according to the AHA 16-segment model (Figures 1,2). If the computed borders were not satisfactory, the contour was adjusted, and the analysis was repeated. Finally, RRS, RCS, and the regional longitudinal strain of hypertrophic segments (RLS) were calculated for further analysis.

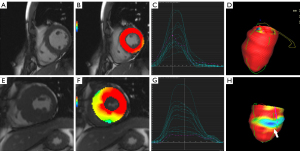

Figure 1 Feature tracking analysis in a healthy volunteer and a hypertrophic cardiomyopathy (HCM) patient. Feature tracking analysis in one healthy volunteer: left ventricular wall thickness (A) and regional radial strain of segments (B) in the mid-left ventricle were normal. (C) Shows regional radial strain curves of American Heart Association (AHA) segments. (D) Shows 3D model of radial strain. Feature tracking analysis in one HCM patient, where septal, anterior, and inferior wall (E) were thickened, and regional radial strain of thickened segments (F) were decreased. The purple curve shows the regional radial strain of the mid anteroseptal wall (G). Regional radial strain curves of AHA segments (H) in a 3D model show the regional radial strain of the mid anteroseptal wall (white arrow).

Figure 2 Bar graph of groups for primary and secondary end points. For primary end points (A), the difference of regional radial strain of hypertrophic segments (RRS) between the event and event-free groups was statistically significant. For secondary end points (B), the differences in RRS and regional circumferential strain of hypertrophic segments between groups were statistically significant.

Reproducibility

Intraobserver and interobserver agreement for global strain and mean regional strain was tested in a subset of 10 healthy volunteers and 10 HCM patients who were selected randomly. Both observers had more than 5 years’ experience in CMR diagnosis and post-processing. One observer performed feature tracking analysis, which was repeated after four weeks for intraobserver reliability, and the other observer, who was blind to the myocardium contour and results of the first observer, performed feature tracking analysis on the same participants.

Clinical outcomes

Patient outcome data were obtained via medical electronic records, direct communication, or telephone interviews with patients or their family members. The initial time was the day of the first CMR examination, and the end of follow-up time was November 2019. The primary end points was defined as all-cause mortality or implantable cardioverter-defibrillator (ICD) discharge due to ventricular fibrillation of tachycardia, and the secondary end points was a combination of primary end points and hospitalization due to progression of heart failure. CMR measurements and feature tracking analysis were blind to outcome data.

Statistical analyses

The quantitative data are presented as mean ± SD, and categorical data are presented as frequencies and percentages. The Kolmogorov-Smirnov test was used to assess the distribution of data. The independent samples Student’s t test was used to compare normally distributed data between groups, and the Mann-Whitney U test was used for nonnormally distributed data. The chi-squared or Fisher’s exact test was used to analyze categorical variables. Pearson’s or Spearman’s correlations were used to perform bivariate correlation analysis for normally and nonnormally distributed data, respectively. Intraclass correlation coefficients (ICC) for inter- and intraobserver agreement were used to test the reproducibility of strain indices. Univariate and multivariate Cox proportional hazards regression analysis was used to calculate the hazard ratio (HR) and 95% confidence interval (CI). We examined the proportionality assumption by assessing interactions between each variable and follow-up time. Kaplan-Meier survival curve analysis was performed, and the log-rank method was used to compare groups. For primary and secondary end points, the optimal cutoff values of CMR parameters were determined according to the area under the curve (AUC) of receiver operating characteristic (ROC) curve analysis. Statistical analysis was performed using SPSS (version 20.0; IBM Corp., Armonk, NY, USA), GraphPad Prism (version 7.00; GraphPad Software, Inc., San Diego, CA, USA) and MedCalc (version 18.2.1; MedCalc Software Ltd., Ostend, Belgium). All variables with a P value <0.05 were considered statistically significant.

Results

Baseline characteristics

In all, 104 HCM patients and 30 healthy volunteers were enrolled in this study. Demographic data and baseline characteristics are shown in Table 1. In the 104 HCM patients, 20 (19.2%) had obstructive HCM, and the remaining 84 (80.8%) had non-obstructive HCM, including 17 patients (16.4%) with apical HCM, 4 (3.9%) with concentric HCM, and 63 (60.6%) with septal HCM. There were 433 hypertrophic segments in 104 patients and 4.2±1.9 hypertrophic segments per patient according to the AHA 16-segment model. HCM patients showed an increased body mass index (BMI) and body surface area (BSA) compared with healthy volunteers.

CMR indices between groups

For CMR parameters, the chambers of LV, RV, and LA were dilated in HCM patients, and LAEF was reduced in the HCM group (Table 1). However, LVEF and RVEF between HCM volunteers and healthy patients did not reach statistical significance. Feature tracking analysis indicated impaired global strain (GRS, GCS, and GLS). The regional strain of hypertrophic segments (RRS, RCS, and RLS) were also impaired compared with mean regional strain of all segments in the healthy control group (20.9%±7.6% vs. 37.4%±7.3%, –13.4%±3.7% vs. –20.1%±2.2%, –7.0%±6.3% vs. –15.7%±2.8%, respectively).

Correlations between regional strain of hypertrophic segments and other CMR indices in HCM patients

For regional strain of hypertrophic segments (Table 2), bivariate analysis indicated statistically significant correlations between RRS and LVWT, LVESV, LVEF, mass, LGE, GRS, GCS, and GLS. Correlations between RCS and LVWT, LVEF, mass, LGE, GRS, GCS, and GLS; and correlations between RLS and LVWT, LVEDV, RVEDV, RVESV, LGE, and GCS were also statistically significant. RRS was most strongly correlated with GCS (r=–0.72), RCS was most strongly correlated with GCS (r=0.69), and RLS correlated with other indices only weakly.

Outcomes

The median follow-up time was 32 months, and during the follow-up time, 8 (7.7%) patients reached a primary end points, 2 of whom (1.9%) reached all-cause death; 6 (5.8%) patients experienced ICD discharge due to ventricular arrhythmia; and 14 (5.8%) patients reached a secondary end points and were admitted to hospital due to heart failure.

For the primary end points group, the event group had a thicker wall and LGE compared with the event-free group, but the difference of total LV mass and other LV, RV, and LA structural and functional parameters between the two groups was not statistically significant. The event group also showed worse global strain (GRS, GCS, and GLS) and regional strain of hypertrophic segments (RRS and RCS) except RLS. HCM patients with secondary end points presented greater LGE; increased LVWT, mass, and LVESV; and worse LVEF, RVEF, LAEF, global strain, RRS, and RCS compared with HCM patients without secondary end points (Figure 3).

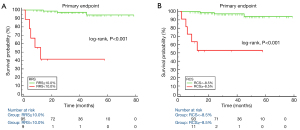

Figure 3 Primary end points Kaplan-Meier survival curves for groups of hypertrophic cardiomyopathy (HCM) patients. Primary end points Kaplan-Meier survival analysis for groups of HCM patients with different regional radial strain of hypertrophic segments (cutoff value was 9.97%) (A) and regional circumferential strain of hypertrophic segments (cutoff value was –8.46%) (B).

Univariate and multivariate analyses

In univariate Cox regression analysis (Table 3), history of syncope, LVWT, LVESV, LVEF, GRS, GCS, RRS, and RCS were associated with the primary and secondary end points. GCS (HR 1.58, 95% CI: 1.02–2.44), RRS (HR 1.64, 95% CI: 1.13–2.38), and RCS (HR 2.35, 95% CI: 1.20–4.59) were still independent predictors of primary end points in multivariate Cox regression analysis for primary end points (Table 4); meanwhile, for secondary end points, LAEF (HR 0.88, 95% CI: 0.79–0.99), GLS (HR 1.31, 95% CI: 1.01–1.69), RRS (HR 1.71, 95% CI: 1.09–2.66), and RCS (HR 2.63, 95% CI: 1.20–5.75) remained independent predictors (Table 5).

Kaplan-Meier survival analysis

Table 6 shows the diagnostic performance of GCS, RRS, and RCS for primary end points patients and event-free patients; and of LAEF, GLS, RRS, and RCS for secondary end points patients and event-free patients. RRS and RCS showed similar diagnostic performance for primary end points patients and event-free patients, and for secondary end points patients and event-free patients, respectively. Figure 4 shows the Kaplan-Meier survival curves for primary and secondary end points event-free survival. Patients with RRS <10.0% and RCS ≥–8.5% had higher rates of primary end points, while patients with RRS <17.9% and RCS ≥–12.1% experienced higher rates of secondary end points.

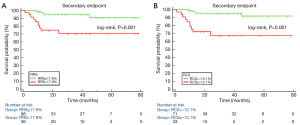

Figure 4 Kaplan-Meier survival curves of secondary end points for groups of hypertrophic cardiomyopathy (HCM) patients. Secondary end points Kaplan-Meier survival analysis for groups of HCM patients with different regional radial strain of hypertrophic segments (cut-off value was 17.93%) (A) and regional circumferential strain of hypertrophic segments (cutoff value was −12.1%) (B).

Inter- and intraobserver agreement

Inter- and intraobserver agreement for strain parameters was good. GRS, GCS, and GLS showed excellent intraobserver (0.953, 0.949, and 0.937, respectively) and interobserver ICC (0.949, 0.910, and 0.907, respectively) agreement, while RRS, RCS, and RLS also showed good intraobserver (0.931, 0.913, and 0.902, respectively) and interobserver agreement (0.926, 0.893, and 0.891, respectively).

Discussion

CMR strain parameters indicated impaired global strain, although LVEF and RVEF were preserved, which has been reported by previous studies (14,22). The majority of HCM patients in this study had New York Hear Association (NYHA) stage I or II diagnoses, and normal LVEF but reduced GRS, GCS, and GLS, revealing subclinical ventricular dysfunction. These results show the value of strain detecting early ventricular dysfunction. There were hypertrophic and non-hypertrophic segments in HCM, and regional function varied between different segments. Therefore, regional strain was be better than global strain in assessing regional function, including each segment in all slices or AHA 16 segments, and the evaluation of regional dysfunction by regional strain was more accurate and detailed in HCM patients. Comparison of regional strain showed that the regional strain of hypertrophic segments was lower than the mean regional strain in the control group. These results may be related to the underlying regional histopathology of HCM (23). Moreover, for preclinical HCM patients with normal LVWT, LV diastolic function was reduced in participants with preclinical HCM compared with control participants (24), but the variable degree of diastolic dysfunction may be related to variable global and regional function. Reduced LA function and enlarged LA volume suggest that impaired LV diastolic function was possibly prevalent and led to LA structural and functional abnormalities in this study, which is also supported by previous studies (10,25,26).

Another recent study (9) reported increased LGE and reduced LV strain in HCM patients with adverse outcomes. In our study, both LVWT and LGE were increased more in the primary and secondary end points group, and was accompanied by reduced global strain and RRS. Moreover, biventricular and LA ejection fraction were all reduced in HCM patients with primary end points. Our study showed not only LGE and global strain abnormalities but also abnormal regional strain. Regional radial strain of hypertrophic segments and RCS were reduced in HCM patients with secondary end points, but the difference in RLS between groups for primary and secondary end points did not reach statistical significance. The possible reason for this may be that RRS and RCS were generated by SA view cine MR imaging, and RLS was calculated by 2-, 3-, and 4-chamber view cine MR imaging; SA view was a stack of images covering the whole LV; while longitudinal view cine MR imaging’s coverage was part of LV, and this could miss a portion of the hypertrophic segments.

A previous study (27) found global strain to be related to LV mass and LGE. Other studies (17,18) on regional strain of HCM patients reported regional strain to be correlated with LVWT, LGE, and LVEF. In our study, all regional strain of hypertrophic segments correlated with LVWT, LGE, and GCS, but the coefficients were relatively small between RLS and other CMR indices. On the other hand, RRS and RCS correlated with LVWT, LGE, and all global strains more strongly, while RRS and RCS strongly correlated with GCS (r=0.717 and 0.687, respectively). Abnormal pathology of myocardial hypertrophy possibly contributed to impaired LV diastolic filling and chamber stiffness. This indicates that RRS and RCS were more robust and stable than RLS in HCM patients.

While decreased global strain and regional strain in HCM patients compared with normal volunteers has been demonstrated (18), other reports (10,16,28) indicate that HCM patients with adverse outcomes have worse global strain. However, the regional strain’s change between event and event-free group is unknown. In this study, we further explored the performance of regional strain of hypertrophic segments in HCM patients for primary and secondary end points. The comparison between groups showed statistically significant regional strain except RLS. Regional radial strain of hypertrophic segments and RCS were reduced more in HCM patients for secondary end points, while RRS remained impaired in HCM patients for primary end points. These changes of regional strain may help to provide more information on segmental myocardial functional abnormalities in HCM patients with different outcomes.

Previous studies (28-30) demonstrated global ventricular function including LVEF and RVEF, and global strains were useful for further risk assessment of life-threatening cardiovascular events. In this study, history of syncope, LVWT, LVESV, LVEF, GRS, GCS, RRS, and RCS were associated with primary end points, history of syncope, LVWT, LVESV, LVEF, and mass. In univariate analysis, RVEF, LAVmax, LAEF, LGE, GRS, GCS, GLS, RRS, and RCS were associated with secondary end points. Multivariate Cox regression analysis further demonstrated GCS, RRS, and RCS to be predictors for primary end points, and LAEF, GLS, RRS, and RCS remained independent predictors for secondary end points. Previous studies have also demonstrated that global strain is a predictor for adverse outcomes in HCM patients (28,29). Hinojar et al. (29) have also reported left atrial ejection fraction as a predictor for adverse outcome in HCM patients with poor cardiac outcomes, particularly cardiovascular mortality and HF. Although global strain is a potential predictor for major adverse cardiovascular outcome, the prognostic value of regional strain by CMR feature tracking imaging is still unclear. This study demonstrated RRS and RCS were independent predictors for both primary and secondary end points. Kaplan-Meier survival analysis for primary and secondary end points events indicated the cutoff value of RRS for primary end points event was lower than those with secondary end points events, and the cutoff value of RCS for primary end points events was higher than the value for the secondary end points events, which indicates worse regional radial and circumferential strain of the hypertrophic segments in HCM patients with primary end points events. It is reasonable to assume that severely damaged regional strain was related to malignant results such as SCD or ICD discharge. Estimation of major adverse cardiovascular events risk in HCM patients was an integral part of clinical management, and these 2 indices may potentially have predictive value in clinical risk assessment.

Currently, LVEF is still the reference standard of ventricular function despite its limitations in regional function assessment. Myocardial strain is a superior parameter to evaluate global and regional myocardial function. Usually, speckle tracking echocardiography, CMR tagging, and feature tracking are used to perform strain analysis (31). CMR feature tracking imaging is currently widely available due to measurement of myocardial deformation without the need for dedicated acquisition and complex postprocessing. Global strain not only has good agreement with CMR tagging but also demonstrates good reproducibility (15,32,33). Inter- and intraobserver agreement for strain parameters were also good in this study. The limitation of CMR feature tracking imaging is mainly the potentially lower temporal resolution compared with speckle tracking echography and the fact that the strain value varies between different methods and software.

This study has some limitations. First, it was a single-center study, the sample size was not sufficiently large, and the number of adverse events in patients was relatively small. Therefore, the statistical power of this study was limited. Second, several types of software were used for CMR feature tracking strain analysis, and strain value and reproducibility might therefore have varied depending on the method and software used. Third, among the 104 HCM patients, the majority underwent CMR examination using a 1.5 T MRI scanner, and 12 patients underwent examination using a 3.0 T system. Although the cine MR imaging’s frame was the same between different scanners, the signal to noise ratio of images by 3.0 T was superior, which might have improved the myocardial contouring, and this may also have had potential effects on strain results. Finally, HCM was diagnosed clinically and not through use of biopsy or a genetic test, and thus no preclinical HCM patients were included. Therefore, the prognostic performance of regional strain and other CMR indices for preclinical HCM patients remain unknown and should be addressed by future research.

In summary, HCM patients with primary and secondary end points demonstrated more thickened walls and LGE, along with worse global strain and RRS. Regional radial strain of hypertrophic segments and RCS were associated with primary and secondary end points in univariate analysis and remained independent significant predictors in multivariate analysis. HCM patients with lower RRS and RCS experienced a higher rate of adverse cardiovascular outcomes.

Acknowledgments

We thank Professor Paul Schoenhagen for his assistance with language and copyediting.

Funding: This study was funded by a key project grant from the Jinhua Municipal Science and Technology Bureau (No. 2021-3-107) and a key project grant from the Jinhua Municipal Central Hospital (No. JY2019-1-02).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/qims-21-42). XC, JP, XZ, LY, LC, and YH are current employees of the Affiliated Jinhua Hospital, Zhejiang University School of Medicine. RY is a current employee of The Second Affiliated Hospital, Zhejiang University School of Medicine. JS is a current employee of Jinhua People’s Hospital. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the ethics committee of our institute, and written informed consent was obtained from each patient and volunteer.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
