Edge prior guided dictionary learning for quantitative susceptibility mapping reconstruction

Introduction

Magnetic susceptibility is a physical property of a material. When an external magnetic field is applied, different materials will produce different degrees of magnetization, which allows quantitative analysis of iron content, calcification, blood oxygen saturation, and contrast agents in tissues (1-5). Accurate reconstruction of tissue susceptibility map from local phase measurements is of great significance in clinical research such as brain micro-bleeds, Parkinson's, liver iron deposition, and hemorrhage (6-9).

Quantitative susceptibility mapping is a technique that solves the inversion problem of the magnetic field to the susceptibility source. The susceptibility map is extracted from the phase of the magnetic resonance imaging (MRI) sequence, such as gradient echo (10). However, due to the near-zero values in the dipole kernel, the dipole inversion is an ill-posed problem (3). Many methods have been proposed to solve this problem. The Thresholded K-space Division (TKD) method solves this ill-conditioned problem in the Fourier domain (11). TKD method tackles this by replacing the small values with a preset threshold in the dipole kernel. However, the selection of threshold value is data specific, and has a large effect on the susceptibility calculation, often resulting in obvious artifacts when an unmatched threshold is used (11). Some methods use least squares to minimize the difference between predicted and actual susceptibility maps, such as (10,12-14). Studies (15,16) also proposed some total generalized variation (TGV) methods. Study (17) proposed a preconditioned total field inversion (TFI) method and study (18) proposed a least-norm direct dipole inversion method. In the Morphology Enabled Dipole Inversion (MEDI) method proposed in (19,20), the edge information extracted from the magnitude images is incorporated into the prior term in QSM regularization. The Calculation Of Susceptibility through Multiple Orientation Sampling (COSMOS) (21) can provide high-quality magnetic susceptibility distribution, and the result of COSMOS is usually used as the gold standard in evaluating different QSM algorithms. However, the COSMOS method requires multiple orientation data, which is hard to be realized in the clinic. Some deep learning models are also used to solve this problem, such as QSMnet (22) and deepQSM (23). Such data-driven methods usually have a large demand for training data.

In recent years, methods based on sparse representation and feature learning have been well developed for CT reconstruction (24-27), and MRI reconstruction from highly under-sampled k-space data (28). Feature learning methods such as dictionary learning show better improvement in reconstruction quality than traditional sparse representation methods in MRI reconstruction (28). Additionally, the idea of edge prior is also applied to improve under-sampled MRI reconstruction (29,30).

In this paper, by incorporating feature learning into sparse representation, an edge prior guided dictionary learning (EP-DL) based reconstruction is developed for the dipole inversion in quantitative susceptibility mapping reconstruction. With a 3D structure feature dictionary, a more effective sparse representation is realized for the dipole inversion method in the proposed approach. The performance of the proposed method is well validated using in vivo human brain clinical data.

Methods

QSM theory

In QSM, the local field B is the convolution of the susceptibility map χ and the dipole kernel C. In the Fourier domain, χ could be expressed as:

B(k)=C(k)χ(k)[1]

Herein, C(k)=1/3−kz2/k2 where k denotes spatial vector in the Fourier domain. However, solving χ(k) from Eq. [1] is an ill-posed problem due to the near-zero values in C(k). To tackle this problem, the TKD method simply applies a constant to replace the near-zero values in C(k) to avoid streaking artifacts caused by noise amplification (20). Recent studies have shown that regularization QSM methods can be used to suppress the streaking artifacts by incorporating the edge information extracted from magnitude images, such as the MEDI method (20).

The MEDI method calculates the susceptibility map χ by solving minimization: λ1‖W(B−Cχ)‖22+‖MGχ‖1 where λ₁ is the regularization parameter, W is the signal to noise ratio matrix. B is the local field, C is the dipole kernel, M is the edge prior from magnitude images and G is the gradient operator.

EP-DL reconstruction

The above MEDI method still suffers from over-smoothing and artifacts (31). To overcome this problem, an EP-DL reconstruction method is proposed in this study. The EP-DL method is formulized as follows:

minχλ1‖W(B−Cχ)‖22+λ2∑i,j,kI,J,K‖Ei,j,kχ−Dαi,j,k‖22+‖MGχ‖1s.t.‖αi,j,k‖0≤Tand‖Ei,j,kχ−Dαi,j,k‖22≤ε[2]

Here, the fidelity term is evaluated in the spatial domain, λ₁ and λ₂ are regularization parameters, E_i,j,k is an operator to extract a 3D block from χ located at {i,j,k}, D is the 3D feature dictionary built by the algorithm below, α_i,j,k is the sparse representation vector, T is the sparsity level, ε is the tolerance parameter, and all blocks are fully overlapped, which means that the distance in pixels between corresponding pixel locations in adjacent blocks is set to 1.

Construction of 3D feature dictionary

It is shown in (19) that the edges in the susceptibility maps often have similar feature distribution as the structures in the magnitude images of gradient recalled echo (GRE) obtained in the same acquisition. Magnitude images are used in dictionary learning. The block f_i,j,k (size: N=m×m×h) is extracted only from ROI of magnitude images to avoid all-zero blocks. Each extracted 3D block is normalized by subtracting the DC component, divided by the maximum absolute value in the block, and added to the sample block array F={fi,j,k}∈RN×M1 (M₁ is the total block number).

After this, we estimate the dictionary D∈RN×M2 from F∈RN×M1 (M₂ is the dictionary atom number). The dictionary D and sparse representation vector α can be alternatively estimated by the following minimization process:

min‖F−Dα‖22s.t.‖α‖0≤TL[3]

where T_L is the parameter of sparsity level in dictionary learning.

Eq. [3] is solved by the methods of K-Singular Value Decomposition (K-SVD) and Orthogonal Matching Pursuit (OMP) (32). The implementation of dictionary construction is given as follows:

Implementation of the EP-DL reconstruction

The implementation of the EP-DL method includes the following steps:

Step 1. Use the TKD method to obtain the initialized susceptibility map χ₀. With dictionary D and χ fixed, we solve the sparse coefficients α_i,j,k for each extracted block separately via Eq. [4] using the Batch-OMP algorithm (33).

minαi,j,k‖αi,j,k‖0s.t.‖Ei,j,kχ−Dαi,j,k‖22≤ε[4]

Step 2. In (20), using a complex exponential function as a fidelity term, we obtain Eq. [5] from Eq. [2]. Then the susceptibility map χ can be updated by solving the minimization problem Eq. [5]:

minχλ1‖W(exp(iCχ)−exp(iB))‖22+λ2∑i,j,kI,J,K‖Ei,j,kχ−Dαi,j,k‖22+‖MGχ‖1[5]

Here the Eq. [5] can be expanded using Taylor expansion with respect to the first order at the nth solution:

argmin∇χnλ1‖W(exp(iCχn)(1+iC∇χn)−exp(iB))‖22+λ2∑i,j,kI,J,K‖Ei,j,k(χ+∇χn)−Dαi,j,k‖22+‖MG(χ+∇χn)‖1[6]

With the definition of w=Wexp(iCχ_n) and b=Wexp(iB), the solution can be solved by setting the gradient of Eq. [6] to zero with respect to ∇χ_n:

(2λ1(wC)TwC+2λ2∑i,j,kI,J,KEi,j,kTEi,j,k+(MG)T/|MGχn|MG)∇χn=−(2λ1real(iwC)T(w−b)+2λ2∑i,j,kI,J,KEi,j,kT(Ei,j,kTχn−Dαni,j,k)+(MG)T/|MGχn|MGχn)[7]

Then we calculate ∇χ_n and update χ by Conjugate Gradient method as follows:

The overall EP-DL method for QSM reconstruction is outlined as follows:

Several parameters need to be set in algorithm implementation, including the regularization parameters λ₁, λ₂, dictionary atom number M₂, and block size N. Regularization parameters λ₁, λ₂ are used to balance the data fidelity and two constraint terms in Eq. [6]. A reasonable block size should be used to ensure effective QSM reconstruction. Reducing block size contributes to the restoration of fine structures in the susceptibility map, but also tends to introduce high-frequency artifacts. On the other side, a large block size N may lead to detail loss and increased computation cost. A large dictionary atom number M₂ may lead to increased representation accuracy and higher computation cost.

It is found in the experiment that the same parameter setting can be used for the same type of dataset. In this study, the parameters are set to give the best results in terms of RMSE and HFEN for different methods.

The implementation of EP-DL is available at https://github.com/R1vaille/EP-DL

Ethical approval

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study protocol was approved by the ethics committee of Southeast University, and written informed consent was obtained from each participant. All ethical guidelines were followed in our description of the experiments performed with human samples.

Results

QSM challenge data results

Data pre-processing

All brain masks are extracted by the BET algorithm provided by FSL Toolbox (34). For the phase of the MRI sequence, the methods of phase unwrapping and background field removal are used to preprocess the data. Unwrapping was performed using a Laplacian algorithm (35), whereas background removal was performed using the Laplacian boundary value approach (36).

Experiment setting

The public 3T human brain data in the 2016 QSM reconstruction challenge (31) and 7T human brain data in the 2019 QSM reconstruction challenge (http://qsm.snu.ac.kr/?page_id=30) are used to assess the proposed EP-DL algorithm. In our method, the constructed 3D structure feature dictionary is illustrated in Figure 1. Magnitude images of GRE data are used in dictionary learning. The 3D structure feature dictionary extracts the morphological information of magnitude images. Each atom is an extracted image feature. In this experiment, to obtain the best results in terms of quantitative metrics (RMSE and HFEN), in the EP-DL method, parameter settings are shown in Table 1. MEDI Toolbox (19) is used for implementation, and the regularization parameter λ₁ is set to the default value 1,000.

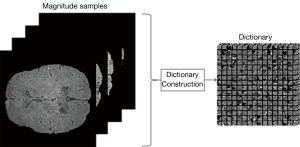

Figure 1 Construction flow chart of a 3D feature dictionary.

Qualitative analysis

Figure 2 shows typical reconstructed susceptibility maps with TKD, MEDI, EP-DL, and COSMOS methods for the 2016 QSM reconstruction challenge data in axial, sagittal, and coronal views. In Figures 2,3, fewer streaking artifacts are observed in the EP-DL method than the MEDI method in contrast to the COSMOS method (see the red arrows in Figures 2,3).

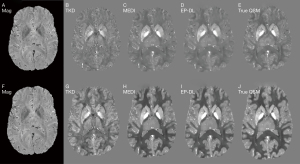

Figure 2 Magnitude images and corresponding QSM results of the 2016 QSM challenge. The first, second, and last rows are the axial, sagittal, and coronal views, from the second to the last column are the results from TKD, MEDI, EP-DL, and COSMOS methods, respectively. Red arrows are placed where the artifacts are conspicuous. The window/level is from −0.15 to 0.15 ppm. QSM, quantitative magnetic susceptibility mapping; EP-DL, edge prior guided dictionary learning; TKD, Thresholded K-space Division; MEDI, Morphology Enabled Dipole Inversion; COSMOS, Calculation Of Susceptibility through Multiple Orientation Sampling.

Figure 3 Axial QSM results of the 2016 QSM challenge. (B) to (E) are enlarged views of the red box in (A) and (G) to (J) are enlarged views of the red box in (B). Red arrows are placed where the artifacts are conspicuous, we can observe that artifacts in the EP-DL method are less compared with the MEDI method. The window/level is from −0.15 to 0.15 ppm. QSM, quantitative magnetic susceptibility mapping; EP-DL, edge prior guided dictionary learning; TKD, Thresholded K-space Division; MEDI, Morphology Enabled Dipole Inversion; COSMOS, Calculation Of Susceptibility through Multiple Orientation Sampling.

Figure 4 depicts two typical slices of reconstructed susceptibility maps by MEDI, EP-DL, and COSMOS methods, the top row [Figure 4A-4D] is the 80^th slice, and the bottom row [Figure 4E-4H] the is 85^th slice. With the COSMOS method used as the reference, we can observe in Figure 4 that the EP-DL method preserves structural details of the cortical ribbon while the MEDI method loses some tissue information (see the red arrows).

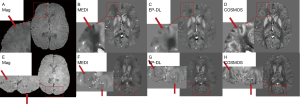

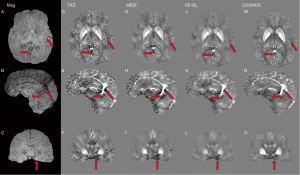

Figure 4 From the left to right column are magnitude images and corresponding QSM results of MEDI, EP-DL, and COSMOS methods, respectively. The top row (A-D) is slice 80 and the bottom row (E-H) is slice 85, in the red rectangle, we can observe that more structural details are recovered in the EP-DL method than the MEDI method where red arrows place. QSM, quantitative magnetic susceptibility mapping; EP-DL, edge prior guided dictionary learning; MEDI, Morphology Enabled Dipole Inversion; COSMOS, Calculation Of Susceptibility through Multiple Orientation Sampling.

Figure 5 shows the reconstruction results of TKD method still have high noise, while the reconstruction results of MEDI and EP-DL method both have high reconstruction quality visually, and almost no artifacts can be observed for two data sets in the 2019 QSM reconstruction challenge.

Figure 5 Magnitude images and corresponding QSM results of two data sets in the 2019 QSM challenge. From the second to the last column are the results from TKD, MEDI, EP-DL, and COSMOS methods, respectively. The window/level is from −0.15 to 0.15 ppm. QSM, quantitative magnetic susceptibility mapping; EP-DL, edge prior guided dictionary learning; TKD, Thresholded K-space Division; MEDI, Morphology Enabled Dipole Inversion; COSMOS, Calculation Of Susceptibility through Multiple Orientation Sampling.

Quantitative analysis

RMSE and HFEN with respect to the COSMOS method are calculated for quantitative performance evaluation (31). Here the RMSE is defined by Eq. [8]:

‖χ−χR‖F2/‖χR‖F2[8]

where χ is the recovered quantitative susceptibility map, with χ_R and ||·||_F denoting the reference and the Frobenius-norm.

HFEN is defined by Eq. [9]:

‖LoG(χ)−LoG(χR)‖F2/‖LoG(χR)‖F2[9]

where LoG is the Laplacian of the Gaussian operator.

The RMSE and HFEN values of the reconstructed susceptibility maps are summarized in Tables 2,3 for the TKD, MEDI and EP-DL methods.

The results in Table 2 show that in the 2016 QSM reconstruction challenge data, the RMSE and HFEN of the EP-DL method are lower than the MEDI method, and the absolute improvements are 15.6% and 8.34% in terms of RMSE and HFEN, respectively.

Similarly, the EP-DL method also showed an advantage in the 2019 QSM reconstruction challenge data. For the first set, the quantitative indicators of EP-DL and MEDI were basically the same, and both were much lower than TKD. For the second set, the RMSE and HFEN of EP-DL were lower than those of TKD and MEDI.

In addition, Table 4 quantitatively evaluates the reconstruction performances of two slices showed in Figure 4. In the EP-DL method, the values of RMSE and HFEN are lower than the MEDI method. We also analyze the absolute values of the error in regions of interest (ROIs) for brain tissues of gray matter [globus pallidus (GP), putamen (PU), caudate nucleus (CN), red nucleus (RN), and substantia nigra (SN)] relative to the reference COSMOS data.

ROI_error is defined as:

ROI_error=sum(abs(χROI−χR_ROI))/ROI_px[10]

where χ_ROI is the ROI of recovered susceptibility map, χ_{R_ROI} is the ROI of reference and ROI_px is the pixel number of ROI. The range of the sum operation is the entire ROI.

Figure 6 depicts five selected ROI (Red is GP, blue is PU, green is CN, yellow is RN and pink is SN) of reconstructed susceptibility maps by MEDI, EP-DL, and COSMOS method. Table 5 lists the absolute value of the error of these ROIs, and we can observe that in the EP-DL method, the ROI error of GP, PU, CN, and RN are lower than the MEDI method.

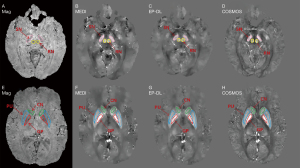

Figure 6 ROI of magnitude images and corresponding reconstructed susceptibility maps of MEDI (A,B), EP-DL (B,E) and COSMOS (C,F) method. Red is pallidus (GP), blue is putamen (PU), green is the caudate nucleus (CN), yellow is the red nucleus (RN) and pink is the substantia nigra (SN). The window/level is from −0.15 to 0.2 ppm.

Clinical GRE data results

Additionally, two sets of single orientation in vivo brain data are used in algorithm evaluation. 3T GRE data is obtained from Philips MRI platform with acquisition parameters: FOV: 230 mm × 230 mm × 126 mm, matrix size: 352×352×126, TR/TE₁/∆TE: 50 ms/7.5 ms/7.2 ms, FA: 17° and echo number: 6. And 1.5 T GRE data is obtained from the XGY (an MRI equipment manufacturer in Ningbo, Zhejiang Province, China) MRI platform with acquisition parameters: FOV: 240 mm × 192 mm × 128 mm, matrix size: 256×205×64, TR/TE₁/∆TE: 62 ms/7.1 ms/7.1 ms, FA: 15° and echo number: 4.

The EP-DL and the MEDI methods are used to reconstruct the susceptibility maps of these two datasets. In the experiments, we find that in the EP-DL method, setting λ₂/λ₁, block size and dictionary atom number are the same as in Table 1, and in the MEDI method, setting λ₂ to 1,000 can get good results visually. Improved performance in artifact suppression is also validated by the visual results in Figure 7 (3T Philips clinical data) and Figure 8 (1.5T XGY clinical data) for the EP-DL method, and the susceptibility mapping results use the same parameters given in Section III. A. This also confirms the robustness when the same parameter setting is used for the same data type in the proposed algorithm.

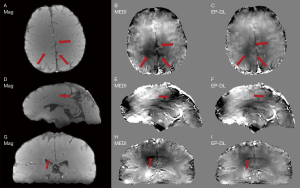

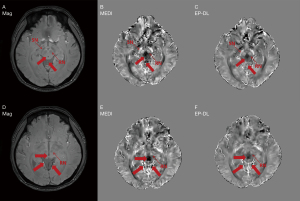

Figure 7 Magnitude images and corresponding QSM results of 3T Philips GRE data. Two selected slices of magnitude images (A,D) and the corresponding QSM reconstruction results from MEDI and EP-DL methods. We can observe that the streaking artifacts near ROI (RN, SN) in the MEDI method are better suppressed in the EP-DL method (where the red arrows indicate) than the MEDI method. The window/level is −0.15 to 0.15 ppm for QSM images. QSM, quantitative magnetic susceptibility mapping; EP-DL, edge prior guided dictionary learning; MEDI, Morphology Enabled Dipole Inversion; RN, red nucleus; SN, substantia nigra.

Figure 8 Magnitude images and corresponding QSM results of 1.5T XGY GRE data. The first, second, and last rows are the axial, sagittal and coronal, views, respectively. QSM reconstruction results by MEDI and EP-DL methods. MEDI method (B,E,H), EP-DL method (C,F,I). From top to bottom are the axial, sagittal, and coronal views respectively. We can observe that streaking artifacts in the MEDI method are more effectively suppressed in the EP-DL method (the red arrows). The window/level is from −0.2 to 0.2 ppm for QSM images. QSM, quantitative magnetic susceptibility mapping; EP-DL, edge prior guided dictionary learning; MEDI, Morphology Enabled Dipole Inversion.

Discussion

In the proposed method, the parameters (regularization parameters λ₁ and λ₂, block size N and dictionary atom number M₂) are closely related to QSM reconstruction quality. Here the above parameters are analyzed with the other parameters fixed to the values given in Table 1. Experiment setting. Experiment results also confirm that the same parameter setting can be used for the same type of dataset.

Eq. [5] has two regularization parameters λ₁ and λ₂, and the ratio between λ₁ and λ₂ needs to be well set to achieve a balance between different terms. With λ₁ ranging from 500 to 1,000, Figure 9 shows that the lowest RMSE and HFEN can be obtained when λ₂/λ₁ equals to 0.05.

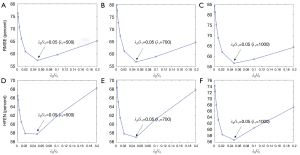

Figure 9 Analysis of the suitable ratio between regularization parameters λ₁ and λ₂ for EP-DL method, λ₁ set from 500 to 1,000, from (A) to (D), we can observe that when λ₂/λ₁ equals 0.05, RMSE and HFEN are always lowest.

It can be observed in Figure 10 that the minimal RMSE and HFEN in the EP-DL method are obtained when λ₁ is set to 1,100 and 1,300, respectively. And the minimal RMSE and HFEN in the MEDI method are obtained when λ₁ equals 250 and 350, respectively.

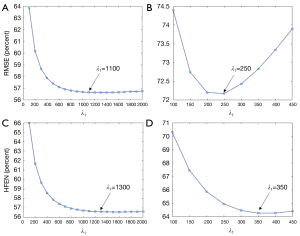

Figure 10 Analysis of regularization parameters λ₁ in EP-DL and MEDI method. The left column is the EP-DL method and λ₁ from 100 to 2,000, RMSE is minimum when λ₁ equals 1,100 and HFEN is minimum when λ₁ equals 1,300. The right column is the MEDI method and λ₁ from 100 to 450 and RMSE is minimum when λ₁ equals 250 while HFEN is minimum when λ₁ equals 350. EP-DL, edge prior guided dictionary learning; MEDI, Morphology Enabled Dipole Inversion.

Nevertheless, in the experiment of 3T Philips data, when is set to 250, the MEDI method suffers from obvious over-smoothing (see in Figure 11). When varies from 600 to 1,400, the obvious difference can be observed between these reconstructed susceptibility maps (see in Figure 11). Here, we denote as the difference map, and are reconstructed results with regularization parameters and, respectively. In the EP-DL method (is fixed to 0.05), when the value of is set from 800 to 2,000, the variations of quantitative metrics are found to be small for the 2016 QSM challenge data. And the lowest RMSE and HFEN are obtained when equals 1,100 and 1,300 (see in Figure 10A,10C), respectively. In the experiment of 3T Philips data, in Figure 11, we can observe that in the EP-DL method, the reconstructed results are almost the same, and the difference between these susceptibility maps is smaller than the MEDI method.

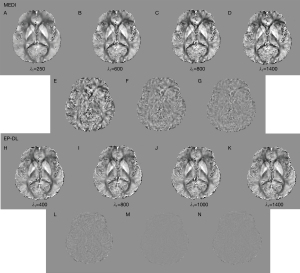

Figure 11 Reconstruction results for 3T Philips data. (A) to (D) are the reconstructed results by the MEDI method, and regularization parameter λ₁ is set to 250, 600, 800 and 1,400, respectively, (E), (F) and (G) are the difference map between (A) and (B), (B) and (C), (C) and (D), respectively. (H) to (K) are reconstructed results by the EP-DL method, and regularization parameter λ₁ is set to 400, 800, 1,000 and 1,400, respectively, (L), (M) and (N) are the difference maps between (H) and (I), (I) and (J), (J) and (K), respectively. The window/level is −0.15 to 0.15 ppm for (A) to (D) and (H) to (K) while −0.05 to 0.05 ppm for (E) to (G) and (L) to (N). EP-DL, edge prior guided dictionary learning; MEDI, Morphology Enabled Dipole Inversion.

Moreover, in the experiment of 1.5T XGY data, in Figure 12, we can observe that when varies from 600 to 1,400, the difference between these reconstructed susceptibility maps by the MEDI method are obvious large than the EP-DL method (see the difference maps in Figure 12D,12E,12I,12J). Compared with the MEDI method, the proposed EP-DL method is found to be less sensitive to the regularization parameter when the parameter ratio is fixed.

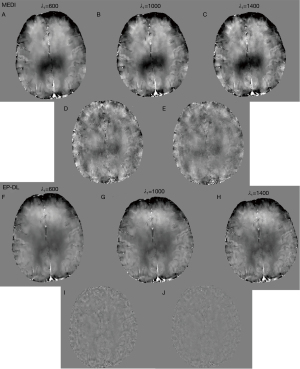

Figure 12 Reconstruction results of 1.5 T XGY data. (A) to (C) are the reconstructed results by the MEDI method, and the regularization parameter λ₁ is set to 600, 1,000, and 1,400, respectively, (D) and (E) are difference map between (A) and (B), (B) and (C), respectively. (F) to (H) are reconstructed results by the EP-DL method, and the regularization parameter λ₁ is set to 600, 1,000, and 1,400, respectively, (I) and (J) are the difference maps between (F) and (G), (G) and (H), respectively. The window/level is −0.15 to 0.15 ppm for (A) to (C) and (F) to (H) while −0.05 to 0.05 ppm for (D), (E) and (I) and (J). EP-DL, edge prior guided dictionary learning; MEDI, Morphology Enabled Dipole Inversion.

The analysis of the block size N and dictionary atom number is provided in Figure 13 and Figure 14. Figure 13 shows that the minimal RMSE and HFEN can be obtained when the block size is set to 3×3×3 and 5×5×5, respectively. And we observe that the distance between the highest and lowest value of RMSE and HFEN are 0.69 and 1.39, respectively. In Figure 14, we can see that the minimum RMSE and HFEN are reached when the dictionary atom number N is set to 300. We also find that the difference between the highest and lowest value of RMSE and HFEN are 0.23 and 0.19, respectively. Such results show that the parameters N and have little effect upon the reconstruction quality in terms of metrics RMSE and HFEN.

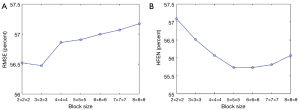

Figure 13 (A) is the RMSE curve of block size in EP-DL method for 2016 QSM challenge data, and correspondingly, (B) is the HFEN curve. Block size set from 2×2×2 to 8×8×8, we can observe RMSE is minimum when the block size set to 3×3×3 and HFEN is minimum when the block set to 5×5×5. QSM, quantitative magnetic susceptibility mapping; EP-DL, edge prior guided dictionary learning.

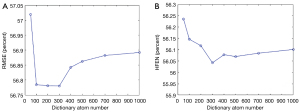

Figure 14 (A) is the RMSE curve of dictionary atom number in EP-DL method for 2016 QSM challenge data, and correspondingly, (B) is the HFEN curve. Dictionary atom number is set from 50 to 1,000, we can observe that both RMSE and HFEN change little. QSM, quantitative magnetic susceptibility mapping; EP-DL, edge prior guided dictionary learning.

For the 2016 QSM challenge data, EP-DL took about 10 min to train the dictionary using an Intel(R) Core(TM) i7-6820HK CPU. In terms of reconstruction times, EP-DL took about 10 minutes to reconstruct the QSM image, and the method of MEDI reconstructing time was about 5 min.

Conclusions

In this paper, we propose an EP-DL method for dipole inversion in quantitative susceptibility mapping reconstruction. Improved performance in streaking artifacts suppression, structural recovery, deep gray matter reconstruction is obtained.

Future work will be focused on the evaluation of the effectiveness of the EP-DL method in patients with brain injuries such as micro-bleed multiple sclerosis lesions, hemorrhage, etc. To achieve a more robust QSM reconstruction, the adaptive parameters selection method needs to be developed for the data with different properties. Also, to meet the requirement of feasible applications, the iteration process needs to be accelerated by using parallelized computing architectures such as the Graphical Processing Unit (GPU).
