Quantitative analysis of late iodine enhancement using dual-layer spectral detector computed tomography: comparison with magnetic resonance imaging

Introduction

Myocardial extracellular volume (ECV) fraction with magnetic resonance imaging (MRI) is now the reference standard for the noninvasive assessment of myocardial fibrosis (1-4). Myocardial ECV is elevated in a variety of cardiomyopathies, including both ischemic and nonischemic cardiomyopathy (5,6). However, cardiac MRI examinations are not appropriate for patients with claustrophobia or metallic implants.

Recently, ECV quantification derived from CT has been reported in several studies with a good correlation between CT-ECV and MRI-ECV (7-11). Iodine density images derived from dual-energy CT represent distribution of iodine in a voxel in a state of equilibrium. After contrast injection, ECV by cardiac CT is calculated from an iodine density map (incorporating the patient’s hematocrit level), thus reducing the possibility of misregistration between the pre- and postcontrast CT images and improving measurement accuracy (10). A previous study also demonstrated a threshold value of CT-ECV that distinguishes healthy myocardium from cardiomyopathy (12). However, ECV assessment among ischemic, nonischemic, and late gadolinium enhancement (LGE) negative myocardial segments using dual-layer spectral detector CT has not been studied.

The aim of this study was to evaluate segmental myocardial ECV fraction and to define a threshold ECV value to distinguish LGE-positive segments from LGE-negative myocardial segments using dual-layer spectral detector CT with MRI as a reference.

Methods

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by the Institutional Committee of Ethics of Peking Union Medical College Hospital. All participants signed written informed consent before cardiac CT and MRI scans.

Study population

In this prospective study, consecutive patients diagnosed with cardiac disease or with suspected cardiac disease underwent both late iodine enhancement (LIE) on CT (CT-LIE) and MRI-LGE on separate occasions within a week from each other between December 2018 and December 2020. Patient exclusion criteria included allergy to iodine and gadolinium contrast agents, insufficient renal function, claustrophobia, non-MRI compatible devices (such as metallic implants), age <20 years, and previous cardiac surgery, or pregnancy. In total, 126 patients with cardiac disease or with suspected cardiac disease were initially included. The flowchart of population enrollment is showed in Figure 1.

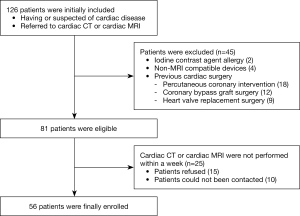

Figure 1 The flowchart shows study population enrollment. CT, computed tomography; MRI, magnetic resonance imaging.

Cardiac CT examination

Cardiac CT was performed with a dual-layer spectral CT scanner (IQon, Philips Healthcare, Best, the Netherlands). Patients received oral β-blockers 1 hour before CT scanning when the heart rate was >70 beats/min. All patients received sublingual nitroglycerin 3 min before scanning and were given breath-holding instructions before scanning.

Coronary CT angiography was performed using a prospective axial scanning mode if the patients had a heart rate <70 beats/min or a retrospective helical scanning mode if the patients had a heart rate >70 beats per minute. The acquisition parameters were as follows: detector collimation, 64×0.625 mm; gantry rotation time, 0.27 s; tube voltage, 120 kVp; and tube current automatic modulation. The acquisition ranged from the carina to the level of the diaphragm. A 20 G dual-syringe power injector was used to intravenously inject 0.9 mL/kg of contrast agent (Iopamiro, 370 mgI/mL; Bracco Sine Pharma, Shanghai, China) at a 4.5–5 mL/s flow rate, followed by 40 mL saline flush at the same flow rate.

Immediately after coronary CT angiography, 0.5 mL/kg of iodinated contrast medium (Iopamiro, 370 mgI/mL; Bracco Sine Pharma, Shanghai, China) was injected at 2.5–3 mL/s flow rate. In total, 1.4 mL/kg of iodinated contrast medium, with the maximum dose of contrast medium not exceeding 100 mL, was injected (9,13). CT-LIE images were obtained 7 min after coronary CT angiography using the prospective axial scanning mode. The scanning parameters were the same as those of the coronary CT angiography imaging. The effective radiation dose (ED) of CT was calculated as follows: dose-length product (DLP) × conversion factor of 0.014 (14).

Cardiac MRI examination

Cardiac MRI was performed using a 3T whole-body scanner (MAGNETOM Skyra, Siemens Healthineers, Erlangen, Germany), with an 18-element body matrix coil and a 32-element spine array coil. A bolus of gadolinium contrast agent (Gadobenate Dimeglumine, Beijing BEILU Pharmaceutical Co, Ltd, Peking, China) was injected at a 0.05 mmol/kg dose and at a 4 mL/s flow rate for obtaining first pass perfusion images. Then 0.1 mmol/kg gadolinium contrast agent was immediately injected at a 1 mL/s flow rate. MRI-LGE images were obtained 10 minutes after contrast was injected with a 2D phase-sensitive inversion-recovery (PSIR) gradient-echo pulse sequence. The image acquisition parameters were as follows: repetition time (TR) 5.2 ms, echo time (TE) 1.96 ms, flip angle (FA) 20 degrees, and a voxel size of 1.4 mm × 1.4 mm × 8.0 mm. Native and 15 minute postcontrast T1 mapping data were scanned in identical imaging locations with 3 short-axis slices (at apical, mid, and basal portions of the left ventricle), using a modified Look-Lockers inversion recovery (MOLLI) sequence. The image acquisition parameters included the following: TR 2.7 ms, TE 1.12 ms, FA 20 degrees, and a voxel size of 1.4 mm × 1.4 mm × 8.0 mm. MRI-ECV was semiautomatically measured using dedicated cardiac MRI software CVI42 (Version 5.3, Circle Cardiovascular Imaging, Calgary, Canada) by contouring the endocardium and epicardium on the MRI-ECV maps.

Image analysis

All CT images were transferred to a commercial spectral workstation (IntelliSpace Portal Version 10.0, Philips Healthcare).

On CT-LIE images, the iodine density map was applied to the short-axis plane with an 8 mm slice thickness and no gap. Three short-axis slices (apical, mid, and basal left ventricle) from CT-LIE images were matched with the T1 map images from the cardiac MRI. Regions of interest (ROIs) were manually drawn in each segment of the myocardium according to the American Heart Association's 16-segment model of the left ventricle, with the extreme edges of the myocardium being avoided (15,16). A circular ROI was placed in the blood pool to avoid papillary muscle (Figure 2). After the iodine density value (in mg/mL) was obtained from all the ROIs, the CT-ECV per segment was calculated as follows (17): CT-ECV (%) = (1 – hematocrit) × (iodine density in myocardium)/(iodine density in the blood pool). To calculate the reproducibility of measurements, 2 radiologists independently measured both CT-ECV and MRI-ECV.

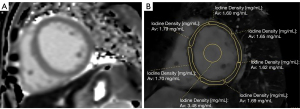

Figure 2 Example of ECV quantification. An iodine map from dual-layer spectral detector CT (B) was matched with the T1 map images from cardiac MRI (A). CT, computed tomography; ECV, extracellular volume fraction; MRI, magnetic resonance imaging.

On cardiac MRI-LGE imaging, the presence of LGE was defined as positive when myocardial enhancement was found in both short-axis and matching long-axis images (18). The LGE pattern was classified as subendocardial, transmural, midwall, epicardial, patchy, and none. Based on CT and MRI findings, we classified myocardial segments into 3 groups: ischemic LGE segments (group 1), nonischemic LGE segments (group 2) and LGE-negative segments (group 3). An ischemic pattern was defined as subendocardial or transmural myocardial delayed enhancement on MRI image corresponding to the perfusion territory of a coronary artery, and a nonischemic pattern demonstrated that myocardial delayed enhancement was not limited to a vascular territory (19-21). An ischemic segment and nonischemic segment were defined as LGE-positive segments, and an LGE-negative segment was defined as a myocardial segment without delayed enhancement. MRI-LGE images were independently observed by 2 experienced radiologists. Discrepancies were resolved with a third radiologist.

Statistical analysis

Continuous variables are expressed as the mean ± standard deviation or median (interquartile range). A paired t-test was used to compare mean CT-ECV and MRI-ECV. An independent Mann-Whitney U test was used to compare ECVs among the 3 groups. The correlations and agreement between CT-ECV and MRI-ECV on a per-segment basis were evaluated using Spearman correlation and Bland-Altman analyses. ROC curve analysis, with the corresponding area under the curve (AUC), was performed to establish a threshold for LIE. Interobserver reliability for each imaging modality was tested using an intraclass correlation coefficient (ICC). A P value <0.05 was considered statistically significant. All statistical analyses were performed using MedCalc (version 19.6.4) and SPSS (version 25, IBM corporation, Armonk, NY, USA) software.

Results

Baseline characteristics

Based on the inclusion and exclusion criteria, a total of 56 patients (32 males and 24 females; mean age, 52±16 years) were enrolled in our study and underwent both CT-LIE and MRI-LGE within a week. The patient characteristics are presented in Table 1.

Among the 56 patients, 10 patients had ischemic LGE, 28 patients had nonischemic LGE, and 18 patients had no LGE on cardiac MRI. Nonischemic patients included those with dilated cardiomyopathy (n=12), hypertrophic cardiomyopathy (n=2), hypertensive cardiomyopathy (n=4), arrhythmogenic cardiomyopathy (n=2), noncompaction of left ventricular myocardium (n=2), connective tissue disease (n=2), peripartum cardiomyopathy (n=1), and unknown conditions (n=3).

Among the 56 patients, 896 segments were analyzed; of these, 302 segments had LGE, with 73 segments in group 1 and 229 segments in group 2; meanwhile, 594 segments group 3 showed no LGE. On MRI-LGE imaging, 18% (55/302) of segments showed a subendocardial pattern, 13% (38/302) showed a transmural pattern, 26% (77/302) showed a midwall pattern, 5% (16/302) showed an epicardial pattern, and 38% (116/302) showed a patchy pattern. The median DLP and mean ED of the LIE images were 188.4±65.7 mGy·cm and 2.6±0.9 mSv, respectively. The scan parameters are shown in Table 2.

Myocardial ECV in per-subject analysis

In a per-subject analysis, the myocardial ECV of CT imaging was 28.7% (26.5–31.9%), and that of MRI imaging was 28.4% (26.6–32.2%). There was no significant difference between CT-ECV and MRI-ECV (P=0.383). Interobserver agreement for ECV on CT imaging and MRI was excellent (ICC=0.889 and 0.904, respectively).

Myocardial ECV in per-segment analysis

In a per-segment analysis, the CT-ECV value of subendocardial, transmural, midwall, epicardial, and patchy pattern was 35.9% (27.5–50.1%), 40.7% (29.5–54.3%), 34.4% (26.9–47.4%), 38.8% (30.1–50.4%), and 37.0% (26.0–50.9%), respectively. The CT-ECV in group 1 (33.2%; 30.7–36.3%) and group 2 (34.9%; 32.3–39.8%) was significantly higher than that of group 3 (27.0%; 24.9–28.9%; all P values <0.001). These results are summarized in Figure 3.

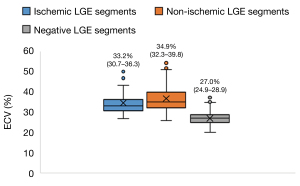

Figure 3 The mean CT-ECV values on ischemic LGE myocardial segments (group 1), nonischemic LGE myocardial segments (group 2), and LGE-negative myocardial segments (group 3). CT-ECV in group 3 was significantly lower than that in group 1 and group 2 (all P values <0.001). CT, computed tomography; ECV, extracellular volume fraction; LGE, late gadolinium enhancement.

Good correlations were seen between CT-ECV and MRI-ECV measurements for group 1 (r=0.920), group 2 (r=0.936), and group 3 (r=0.799; all P values <0.001). Bland-Altman analysis between CT-ECV and MRI-ECV showed a small bias (group 1: −2.1%, 95% limits of agreement −11.3–7.1%; group 2: −0.6%, 95% limits of agreement −13.1–11.9%; group 3: 1.0%, 95% limits of agreement −12.7–14.7%; Figures 4,5).

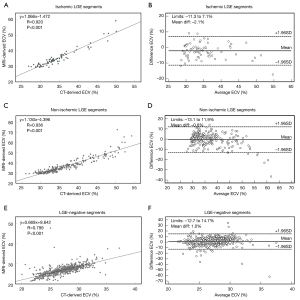

Figure 4 Scatter plots and Bland-Altman plots. The scatter plots show the results of correlation (A, C, and E) and Bland-Altman plots show the results of agreement (B, D, and F) for comparisons between CT- and MRI-derived ECV on ischemic LGE segments, nonischemic LGE segments, and LGE-negative myocardial segments. CT, computed tomography; ECV, extracellular volume fraction; LGE, late gadolinium enhancement; MRI, magnetic resonance imaging.

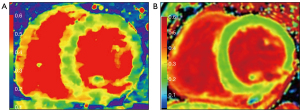

Figure 5 Example of ECV maps. Comparison of a CT-derived ECV map (A) and an MRI-derived ECV map (B) in a 50-year-old man. Increased ECV values were observed on both CT-ECV and MRI-ECV of the basal inferolateral LV myocardium (ECV =53% and 50%, respectively). CT, computed tomography; ECV, extracellular volume; LV, left ventricle; MRI, magnetic resonance imaging.

From ROC curve analysis, CT-ECV differentiated between LGE-positive and LGE-negative segments, with an 83.1% sensitivity and a 93.3% specificity at a cutoff of 31%; the area under the curve of ROC was 0.957. The same analysis also suggested that CT-ECV could differentiate between ischemic LGE myocardial segments and LGE-negative myocardial segments (sensitivity 93.2%; specificity 78.0%; AUC 0.936) and between nonischemic LGE myocardial segments and LGE-negative myocardial segments (sensitivity 86.0%; specificity 93.3%; AUC 0.964; Figure 6).

Figure 6 ROC curves. Results from ROC curve analysis (with a corresponding AUC) to differentiate LGE-positive and LGE-negative myocardial segments (A). Results from ROC curve analysis (with a corresponding AUC) to differentiate ischemic LGE myocardial segments and LGE-negative myocardial segments (B), and to differentiate non-ischemic LGE myocardial segments and LGE-negative myocardial segments (C). AUC, area under the curve; LGE, late gadolinium enhancement; ROC, receiver operating characteristic.

Discussion

This study showed the feasibility of quantifying myocardial ECV using dual-layer spectral detector CT with the iodine density maps. First, our results demonstrated a strong correlation with a small bias between segmental CT-ECV and MRI-ECV. Second, our results suggested that an ECV >31% could differentiate between LGE-positive and LGE-negative segments.

There are two methods to calculate CT-ECV: the subtraction-derived method and the iodine density-derived method. The subtraction-derived method requires the acquisition of precontrast and delayed images to obtain ECV value. It is relatively difficult to perfectly match these 2 images because of the movement of the heart and the diaphragm. Misalignment may cause deviation of ECV value. The iodine density-derived method of calculating ECV has notable advantages over the subtraction-derived method. ECV derived from iodine density images needs only a single delayed acquisition. This method does not require image co-registration, enabling precise evaluation of ECV. Emoto et al. (10) evaluated CT-derived ECV quantification between the subtraction-derived method and the iodine density-derived method using dual-layer spectral detector CT, and compared the quantification outcomes to those determined by MRI. The evaluation revealed that the iodine density-derived method yielded more accurate myocardial ECV quantification than did the subtraction-derived method and had a strong correlation with MRI. Our results also confirmed a strong correlation of CT-ECV using iodine density maps from dual-layer spectral detector CT, with MRI-ECV demonstrating a small bias.

Some recent studies have investigated the feasibility of CT-ECV in different cardiac diseases, including cardiac amyloidosis (22), hypertrophic cardiomyopathy (23), dilated cardiomyopathy (24), heart failure (7), and in hemodialysis patients (25). Ohta et al. (24) evaluated CT-ECV in both nonischemic dilated cardiomyopathy patients and normal participants, and defined a threshold (a cutoff of 28.82%) to distinguish healthy myocardial tissue from dilated cardiomyopathy patients. However, this study did not include ischemic cardiomyopathy patients, and the ECV results were not compared with MRI-ECV. Abadia et al. (12) investigated the CT-ECV of healthy myocardium, nonischemic cardiomyopathy, and ischemic cardiomyopathy, and set a threshold (a cutoff of 29.5%) to discriminate healthy participants from cardiomyopathy patients, but the CT-ECV was not compared with MRI-ECV in this work. In our study, we found a strong correlation of CT-ECV with MRI-ECV and set a cutoff value (31%) with a 83.1% sensitivity in differentiating between LGE-positive and LGE-negative segments. However, approximately 17% of LGE-positive patients showed false-negative results on CT image. Possible explanations for this are the misdiagnosis of small thin fibrosis. In the case of a subendocardial enhancement, the signal intensity in the delayed enhancement area is similar to that from the adjacent blood pool; therefore, it is difficult to differentiate subendocardial enhancement from the blood pool. Subepicardial enhancement and midwall enhancement are also misdiagnosed in iodine density images due to a lower contrast to noise ratio compared to other LGE patterns. Thus, it is necessary to further perform MRI examination for these small LGE patterns.

To date, a standard contrast injection protocol has not been established for ECV quantification on cardiac CT. Two common contrast injection methods were used in the present study. Lee et al. (16) chose a single contrast injection protocol with an infusion of 1.8 mL/kg of body weight to obtain coronary CT angiography and CT delayed enhancement imaging. Ohta et al. (9) used a 2-contrast injection protocol: one with an infusion of 0.9 mL/kg of body weight for coronary CT angiography followed by another injection of 0.5 mL/kg of body weight immediately after coronary CT angiography. To obtain good contrast between myocardial tissue and the left ventricular cavity on CT delayed enhancement images, the amount of iodine contrast medium used for calculating ECV has ranged from 120 to 147 mL in some previous studies (23,26,27). These relatively big volumes of iodine contrast in a single contrast injection protocol may result in a high density of contrast material in the right heart cavities, which may cause streak artifacts affecting the lumen evaluation of the proximal right coronary artery. Thus, the contrast medium injection in our study was performed twice in the CT protocol in order to better assess the coronary artery lumen while evaluating the myocardium.

Several limitations must be considered in this study: first, cardiac CT-ECV measurements were compared with cardiac MRI findings rather than with histologic findings because the latter is hard to obtain, and a previous study has reported that CT-ECV correlated well with histologic quantification and MRI-ECV for detecting myocardial fibrosis (8). Second, this study did not compare CT-ECV values based on the percentage of LGE in the segment. Further studies are needed to explore the feasibility of CT-ECV in different delayed enhancement patterns, which is helpful for clinical management. Third, a relatively high contrast volume was used to obtain CT-LIE images for ECV measurements (a total of 89.5 mL contrast dose in our study), and further studies need to investigate the feasibility of ECV quantification with a low contrast volume using dual-layer spectral CT for reducing the risk of contrast-induced nephropathy.

Conclusions

ECV derived from CT showed good correlation and agreement with MRI findings, and CT-ECV provided high diagnostic accuracy to allow discrimination between LGE-positive and LGE-negative segments. Thus, cardiac CT might be a suitable noninvasive imaging technique for myocardial ECV quantification.
