Long-term hemodialysis may affect enlarged perivascular spaces in maintenance hemodialysis patients: evidence from a pilot MRI study

Introduction

End-stage renal disease (ESRD) is a result of chronic renal dysfunction (1), which occurs when chronic kidney disease (CKD) progresses to a glomerular filtration rate (GFR) of <15 mL/min/1.73 m². In recent years, ESRD has become an increasing global health problem (2). To clear away surplus urea and other metabolic waste from the body, patients with ESRD generally undergo regular HD three times per week. However, ESRD patients may experience neurologic complications such as dialysis disequilibrium syndrome, hypertensive encephalopathy, osmotic myelinolysis, intracranial hemorrhage, stroke, and dementia (3-5), which may be related to ESRD itself or HD. These nervous system abnormalities are probably associated with brain edema or tissue swelling, which may be caused by the osmotic gradient between brain tissue and plasma during HD (6).

HD may gradually cause WM microstructure modifications (7). In a previous study, researchers explored the effects of long-term HD on WM integrity using the diffusion tensor imaging (DTI) technique by comparing fractional anisotropy (FA) values between ESRD patients and normal subjects (8). The research showed that FA values in many WM regions were significantly decreased and that reductions in FA values were negatively correlated with the duration of HD. Zhang et al. showed that abnormalities in associative and radiation fiber tracts of ESRD patients resulting in brain edema were associated with cognitive function decrease (9). Yi et al. found that widespread impairments in corona radiata and thalamic radiations may have influenced cognitive function in ESRD patients, and serum urea levels were related to these WM changes (10). The existing literature has focused on exploring alterations in WM microstructure, but few studies have investigated visible WM alterations, such as enlarged PVS in WM regions (11-13).

Enlarged PVS, also known as Virchow-Robin spaces, are fluid-filled cavities surrounding the penetrating vessels, which hold metabolic waste cleared from the brain, and are a conduit for fluid transport (14). Enlarged PVS are visible in T1-weighted and T2-weighted MRI images as linear, ovoid, or round cerebrospinal fluid (CSF) intensities in the centrum semiovale (CS) and basal ganglia (BG) (15). Although it is common to see many enlarged PVS at different ages, enlarged PVS have been documented in elevated numbers in the elderly population (16). Previous studies have reported that enlarged PVS are related to impaired cognitive function (17), small vessel disease (SVD) (18), and inflammatory aggravations in multiple sclerosis (19).

ASL imaging has been used as a non-invasive perfusion imaging technique to investigate brain perfusion alterations in HD patients (20,21). Meanwhile, previous studies showed that voxel-based morphometry could be utilized to exhibit cerebral gray matter (GM) morphological changes in HD patients (22,23). The existing studies have focused on exploring the GM changes in ESRD patients (24). There have been no studies investigating WM changes, and correlations between WM alteration levels and enlarged PVS, in HD patients.

The purpose of this study was to explore the extent of enlarged PVS in WM regions of the brain in maintenance HD patients, using T2-weighted MRI. In addition, we investigated whether enlarged PVS in the CS, CW, and BG regions share the same pathogenesis. Correlation analyses were used to explore the associations of HD duration and biochemical variables with enlarged PVS. To explore the underlying mechanisms of enlarged PVS, ASL and CAT12 techniques were performed in ESRD patients. To our knowledge, this is the first study to investigate enlarged PVS alterations in WM regions in maintenance HD patients.

Methods

Participants

Fifty-one HD patients (30 male and 21 female) were recruited. The underlying reason for requiring HD in these patients was primary hypertensive nephropathy or glomerulonephritis. Fifty-one normal age- and sex-matched subjects (32 male and 19 female) were enrolled as HCs. GFR was used to diagnose all HD patients. When the GFR <15 mL/min/1.73 m², patients need to be hospitalized for maintenance HD, and the duration of dialysis is longer than six months. All HD patients underwent HD treatments three times per week as a standard, and a single HD session was approximately 4 h. To aviod for the acute effects of HD treatment, all HD patients were scanned one day after the last HD session each week. The exclusion criteria for participation in the study were (I) diabetic nephropathy; (II) other dialysis therapy; (III) brain disease history, including stroke, cerebral trauma, cerebral infarct, and tumors; (IV) psychiatric disorder history; (V) vertigo or intolerance of MR scanning; and (VI) history of drug or alcohol abuse. The study was conducted following the Declaration of Helsinki (as revised in 2013). This study was approved by the Medical Ethics Committee of Beijing Friendship Hospital, Capital Medical University. Informed consent was obtained from each participant included in the study.

MRI data acquisition

All subjects underwent imaging performed using a 3.0-Tesla MR system with an eight-channel phased array coil (Discovery MR750W, General Electric, Milwaukee, Wisconsin, USA). All participants were required to refrain from intake caffeine-containing foods or drinks before MRI scanning. Soft but comfortable, foam padding was employed to minimize head motion, and earplugs were used to reduce scanner noise. The perfusion imaging used was pseudo-continuous arterial spin labeling (PCASL) sequence (25). The major parameters for PCASL imaging using fast spin echo (FSE) imaging readout were: 36 axial slices, slice thickness =4 mm; labeling duration/post label delay =2,025 ms/2,025 ms; repetition time/echo time (TR/TE) =4,844/10.5 ms; matrix =128×128; field of view (FOV) =240×240 mm across whole-brain coverage; number of excitations =3; spiral-in readout of 512 sample points with eight arms; and number of label and control images =72. The overall acquisition time of the resting-state ASL performance was 4 min 41 s. A T1-weighted structural image was acquired using the 3D brain volume imaging (BRAVO) sequence [TR =8.8 ms, TE =3.5 ms; inversion time (TI) =450 ms; 196 slices with 1-mm thickness (no gap); matrix =256×256; FOV =24 cm ×24 cm; flip angle =15°]. A T2-weighted image was generated using the FSE sequence (TR =7,299 ms, TE =169 ms; 20 slices with 6-mm thickness; matrix =256×256; FOV =24 cm ×24 cm; flip angle =15°). During the scans, all subjects were asked to relax, keep their eyes closed, think of nothing in particular, and avoid falling asleep.

Enlarged PVS assessment

Enlarged PVS were defined as fluid-filled entities presenting as sharply delineated ovoid or round structures, depending on the imaging plane (26). Enlarged PVS is located in the CS, BG, and CW, with CSF intensity signal in T2WI, size <3 mm, and follow the typical course of a vessel. Enlarged PVS were counted in the plane with the largest number visible (Figure 1). The definition of CS, BG, and CW reference the study by Potter et al. (27). CW refers to regions of the body that receive dual blood supply from the most distal branches of two large arteries (Figure 1E). To eliminate the effect of small infarctions, 3D BRAVO was used to assess the enlarged PVS (see Fgure S1). The severity of enlarged PVS in the CS, CW, and BG region was assessed by following a 4-point rating ordinal scale (27) (1: 1–10 enlarged PVS; 2: 11–20 enlarged PVS; 3: 21–40 enlarged PVS; 4: >40 enlarged PVS). All data were estimated by two experienced neuro-radiologists blind to the clinical data.

Figure 1 Examples of different categories of enlarged PVS (arrowheads) scoring from 1 to 4 at the level of the CS, CW area, and BG area. (A-D) PVS in the CS; from left to right, the scores go from 1 to 4. (E-H) PVS in the CW area (marked blue); from left to right, the scores go from 1 to 4. (I-L) PVS in the BG area; from left to right, the scores go from 1 to 4. PVS, perivascular space; CS, centrum semiovale; CW, cerebral watershed; BG, basal ganglia.

Cerebral blood flow (CBF) calculation

Each ASL image series was first evaluated for subject motion. Quality controls were applied to exclude unqualified results, which were defined as results from subjects whose head motion exceeded 2 mm of translation or 2° of rotation during the ASL acquisition. An ASL difference image was calculated using a single-compartment model after subtracting the label image from the control image. The 3 ASL difference images were averaged to calculate the CBF maps combined with the proton density-weighted reference images (28).

Anemia, generally decreasing hemoglobin level, is common in HD patients. Relaxation time (T₁) of blood (T_1B) varies with age and hematocrit or hemoglobin levels (11). CBF quantification results are significantly modified by the T_1B. To achieve rigorous CBF quantification, a single-compartment model was used for CBF quantification (25). The hemoglobin levels of participants and the previously proposed general model were used to estimate the T_1B in this study (11,29). The hemoglobin levels of HD patients were derived from blood samples obtained during standard HD treatments; an age- and sex-dependent hemoglobin level was applied for HCs (30). T1_B was estimated by using a fixed normal arterial blood oxygen saturation level of 0.97 for all participants.

The data preprocessing was carried out with Statistical Parametric Mapping (SPM8). Using a nonlinear transformation in SPM8, the CBF images of the 51 HCs were co-registered to a positron emission tomography (PET) perfusion template in the Montreal Neurological Institute (MNI) space. The mean co-registered CBF map of the 51 HCs was defined as the standard CBF template. The CBF maps of all participants (HCs and patients) were co-registered to the standard CBF template of the MNI and resampled to a 2×2×2 mm voxel size. An 8-mm full-width at half-maximum (FWHM) Gaussian kernel was used to smooth each co-registered CBF image. The CBF of each voxel was normalized by dividing by the mean CBF of the whole brain (31).

White matter volume (WMV) calculation

CAT12 (http://www.neuro.uni-jena.de/cat/) was utilized to calculate the WMV (32). Firstly, spatially co-registered T1-weighted images were normalized to the MNI space by applying the Diffeomorphic Anatomical Registration Through Exponentiated Lie Algebra (DARTEL) algorithm. Secondly, the bias-field inhomogeneity was corrected. Thirdly, applying the standard unified segmentation model, the structural images were segmented into WM, GM, and CSF. Due to spatial registration, the segmentations were normalized by scaling with plenty of volume changes. The total amount of GM in the normalized image remained the same as in the original image. Finally, a 6-mm FWHM Gaussian kernel was used to smooth the WMV images to reduce inter-individual variability.

Statistical analysis

Statistical analysis was performed using SPSS v.19.0 (Chicago, IL). Two-tailed t-tests χ² tests, Mann-Whitney U tests, and Friedman M tests were used to analyze the descriptive differences, depending on the data sample. We set statistical significance at P<0.05. Group differences in blood pressure (BP) among the three readings (pre-HD, intra-HD, and post-HD) were tested using Friedman M tests. We used the intraclass correlation coefficient to estimate the agreement between the two radiologists. We conducted multiple regression analyses with data from HD patients to investigate the relationship between enlarged PVS number and HD duration. Group differences in CBF and WMV were tested using voxel-wise t-tests with the hemoglobin level, age, and sex as covariates (cluster size >50 voxels). For t-tests of CBF and WMV, we used an FDR method with a significance threshold of P<0.05.

Results

Demographics and clinical characteristics

Fifty-one subjects with HD and 51 healthy individuals in total were enrolled in this study. The intraclass correlation coefficient (ICC) coefficients for the CS-PVS, CW-PVS, and BG-PVS were 0.815, 0.823, and 0.842. The demographic and clinical features of the participants are shown in Table 1. The two groups were well-matched in terms of sex (χ²=0.17, P=0.685), education (two-sample t-tests, t=0.03, P=0.871), and age (two-sample t-tests, t=0.05, P=0.819). Moreover, there was no significant difference in the PVS score for the BG-PVS, and there were significant differences between the HD group and HCs group in the PVS score for the CS-PVS and CW-PVS. A Friedman M test showed differences in the systolic blood pressure (SBP) and diastolic blood pressure (DBP) of HD patients among the three readings taken (pre-HD, intra-HD, and post-HD).

Correlations between HD duration and PVS number in HD patients

The CS-PVS number had a significant positive correlation with HD duration in the HD patients (r=0.3695, P=0.0001) (Figure 2A). The CW-PVS number had a significant positive correlation with HD duration in the HD patients (r=0.4307, P=0.0001) (Figure 2B). We did not find significant correlations between HD duration and BG-PVS number.

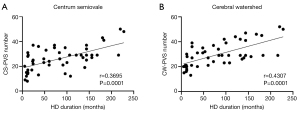

Figure 2 Correlations between HD duration and PVS number in HD patients. (A) A significant positive association was noted between HD duration and the CS-PVS number in HD patients. (B) A significant positive association was shown between HD duration and the CW-PVS number in HD patients. CS-PVS, centrum semiovale perivascular space; CW-PVS, cerebral watershed perivascular space; HD, hemodialysis; HD duration, hemodialysis duration; PVS, perivascular space.

White matter CBF and volume alterations in HD patients and HCs

The HD group showed increased CBF and decreased WMV in the WM compared to the HCs group (Figure 3).

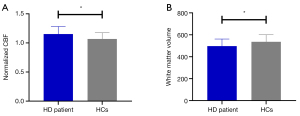

Figure 3 White matter normalized CBF and volume alterations in HD patients and HCs. (A) The HD group showed increased CBF compared to the HCs group in the WM. (B) The HD group showed decreased WMV compared to the HCs group. Covariance analysis adjusted for age and sex was conducted for the intergroup comparisons. Horizontal bars = significant differences. *P<0.05. CBF, cerebral brain fluid; HCs, healthy controls; HD, hemodialysis; WM, white matter; WMV, white matter volume.

White matter CBF in HD patients and HCs

The HD group showed increased CBF in the bilateral CS, CW, corona radiata, and BG areas compared to the HCs group (Figure 4).

Figure 4 Brain regions exhibiting different CBF values between the HD patients and HCs. The HD group showed increased CBF compared to the HCs group in the bilateral CW areas, CS, corona radiata, and BG areas. Two-sample t-test; P<0.05, with FDR correction. The CBF results with HD group > HCs group are in red. L, left; R, right. CBF, cerebral brain fluid; CS, centrum semiovale; CW, cerebral watershed; FDR, false discovery rate; HCs, healthy controls; HD, hemodialysis.

White matter volume in HD patients and HCs

The HD group showed decreased WMV in the bilateral CS, CW, corona radiata, and BG areas compared to the HCs group (Figure 5).

Figure 5 Brain regions WMV differences between the HD patients and the HCs group. The HD group showed decreased WMV compared to the HCs group in the bilateral CW areas, CS, corona radiata, and BG areas. Two-sample t-test; P<0.05, with FDR correction. WMV results with HD group < HCs group are in blue. L, left; R, right. CS, centrum semiovale; CW, cerebral watershed; BG, basal ganglia; FDR, false discovery rate; HCs, healthy controls; HD, hemodialysis; WMV, white matter volume.

Correlations between PVS number and white matter CBF and white matter volume in HD patients

In the CW regions demonstrating CBF alterations, the CW-PVS number had a significant positive correlation with normalized CBF of CW in the HD patients (r=0.2996, P=0.0327) (Figure 6A). In the CW regions demonstrating WMV alterations, the CW-PVS number had a significant positive correlation with decreased WMV of CW in the HD patients (r=0.3149, P=0.0244) (Figure 6B). We did not find significant correlations between BG-PVS number and normalized CBF and decreased WMV.

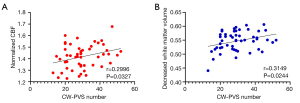

Figure 6 Correlations between PVS number and WM CBF and volume in HD patients. (A) A significant positive association was noted between CW-PVS number and the normalized CBF. (B) A significant positive association was noted between CW-PVS number and decreased WMV in HD patients. CBF, cerebral brain fluid; HD, hemodialysis; CW-PVS, cerebral watershed perivascular space; HD, hemodialysis; PVS, perivascular space; WM, white matter; WMV, white matter volume.

Discussion

PVS, which hold fluid, generated waste, and compounds from the brain, surround the brain perforating vessels and constitute part of the lymphatic system. Recent studies have highlighted that enlarged PVS is likely to result in part from inflammation (33), modifications of cerebrovascular reactivity (CVR) and CBF (34,35), blood-brain barrier (BBB) abnormalities, and elevated extra-cranial and intracranial vascular pulsatility (36,37). Understanding the mechanisms leading to enlarged PVS may provide valuable insight into the reasons for increased cognitive impairment prevalent in HD patients. Previous diffusion-weighted imaging (DWI) and DTI studies (38,39) have indicated that WM exhibited microstructural abnormalities and widespread cerebral tissue swelling in HD patients. However, the pathogenesis of enlarged PVS and visible structural dysfunction remains unclear in HD patients. To our knowledge, this is the first prospective multimodal image study to (I) investigate enlarged PVS alterations in WM regions in maintenance HD patients, (II) to perform rigorous CBF quantification using individually estimated T₁B values based on hemoglobin levels to compensate for anemia effects on T₁B, and (III) to perform WMV quantification using the voxel-based analysis method. Our cross-section study results provide novel and indirect evidence supporting the association between enlarged PVS and increased CBF of the CW region and reduced WMV of the CW region in HD patients.

The observed increase in the number of enlarged PVS in HD patients is likely associated with CBF changes in the CW region. As a result of anemia occurring secondary to renal failure, ESRD patients show brain hyper-perfusion at rest (40,41). Our results also agree with this finding. Anemia occurs early in the setting of renal disease and escalates in severity with disease progression (42). The brain vascular effects of anemia in ESRD present as reduced blood viscosity and decreased oxygen delivery. Both of these changes cause increased CBF, and several studies have reported that CBF alteration was associated with hematocrit fluctuation in ESRD (20,41). Normally, CBF is closely connected with cerebral oxygen delivery so that oxygen content in the blood is enough to meet the needs of brain metabolism. However, oxygen-carrying capacity is decreased, and brain oxygen delivery remains inadequate despite slowly increased CBF found with anemia (43). Although elevated CBF plays an important protective mechanism role by raising brain oxygenation during the course of anemia, brain oxygen delivery does not fully recover and remains damaged in ESRD at rest (43). The brain in ESRD remains over-perfused yet under oxygenated, at rest (44). Several investigations suggest that the HD process itself may exert harmful effects on the brain (45). Most studies have found that CBF decreases 7–22% during HD and there may be limited reserve to endure further decreases in brain oxygenation caused by decreasing CBF (46). It has been reported that repeated HD may lead to cerebral “stunning”, which might be associated with cerebral perfusion change (47).

On the other hand, our study also found that the SBP and DBP during intra-HD were lower than that of the pre-HD and post-HD conditions. Due to fewer capillaries than in the cortex and the existence of CW, WM is more sensitive to perfusion than GM (48,49). Therefore, we inferred that hypoxia, neuronal dying, and other neuronal pathological alterations were triggered by alteration in perfusion, which aggravates the brain environment, and the inflammation, demyelination, and dysfunction of the BBB accelerates the enlargement of PVS. In addition, because of disturbances in calcium and phosphorus metabolism, loss of pulsatility and increased stiffness caused by calcification of cerebral vasculature is common in HD patients (50). Cerebral arterial pulsatility drives fluid flow along the brain drainage pathway (51). It then follows that weakening pulsatility and elevated stiffness could reduce waste clearance (52,53). Therefore, we supposed that enlargement of the PVS might be related to dysfunction in fluid clearance caused by perfusion changes.

Reduced WMV may play a role in the observed number of enlarged PVS in HD patients. The findings of our study show that enlarged PVS of the WM regions occurs more often in long-term patients with HD and that the numbers of CS-PVS and CW-PVS are positively associated with HD duration. Our findings also showed that the CW-PVS number significantly correlated with decreased WMV of CW in HD patients. This suggests that the more the number of enlarged PVS, the more severe the WM atrophy. Prohovnik et al. also found that serious brain atrophy in HD patients was associated with dialysis time (54). WM alterations after HD have been reported in only a few studies utilizing conventional MRI (55,56). In sum, these studies showed that persistent alteration of perfusion of the brain occurring with HD might contribute to progressive brain atrophy over time in HD patients (43). Cerebral atrophy may lead to perivascular structures widening. Maclullich et al. (57) indicated that enlarged PVS was not only a form of relatively obvious pathological alteration observed in different disease states but also a benign manifestation of aging.

Furthermore, we also revealed that CS-PVS, CW-PVS, and BG-PVS were differentially affected, which was inconsistent with previous results in patients with SVD (58,59). This location-specific discrepancy may suggest that the functions of CS-PVS and CW-PVS differ from those of BG-PVS. Recent studies have reported that the anatomical structures of the PVS in the BG areas differ from deep WM around the CS and CW regions (26,60). BG-PVS are branching or winding, and CS-PVS do not go through the subarachnoid space on the brain surface (61). Yamada et al. (62) highlighted that the superficial artery penetrating the brain's surface has a lower pulse pressure wave amplitude and smaller flow volume than the lenticulostriate arteriole penetrating the BG. The CS and CW regions are more relatively vulnerable than the BG regions in HD patients, which was supported by our results. Therefore, the atrophy of deep WM related to long-term HD might be associated with enlarged PVS.

Our study still has several limitations that need further exploration. Firstly, as well understood, due to the low perfusion level and low signal-noise ratio (SNR) of ASL imaging, it remains challenging to measure WM CBF using the ASL method today. The low imaging resolution in this study and a large smoothing kernel in the normalized space will inevitably result in partial volume effects. Therefore, an alternative high-resolution imaging sequence, such as multiband EPI PCASL, should be used in the future. Secondly, further studies should investigate the relationship between cognitive impairment and enlarged PVS. Thirdly, when the FDR correction was used to analyze the relationship between WMV and HD duration, no cluster was statistically significant. A possible reason might be that the sample size of the HD patients was relatively small. Finally, the brain is subject to age-related physiological changes such as atrophy, and this should be taken into consideration when taking measurements.

In conclusion, enlarged CS-PVS and CW-PVS on MRI might be features of long-term HD in patients. Enlarged CW-PVS are associated with higher CBF in the CW region and lower WMV in the CW region in HD patients and warrant further study given the widespread use of HD in the community.

Acknowledgments

Funding: This work was supported by Natural Science Foundation of China (no. 61931013) and Beijing Scholar 2015 (Zhenchang Wang).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/qims-20-1246). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work, including ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by the Medical Ethics Committee of Beijing Friendship Hospital, Capital Medical University. Participants provided written informed consent (version V1.1/2018-09-17) before inclusion in the study.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
