Sensitivity improved Cerenkov luminescence endoscopy using optimal system parameters

Introduction

Gastric cancer is a highly prevalent disease in China and has the highest mortality rate in the world (1-3). Currently, the conventional diagnostic method for gastric cancer involves the use of white light endoscopy to observe tumor morphology change. However, the change of tumor morphology cannot be identified in the early stages of tumor development.

The molecular function of tumor cells changes earlier than that of tumor morphology. Thus, optical imaging, an important branch of molecular imaging technology, has become one of the most widely used techniques in the field, as it can quantify the living biological processes from the cellular and molecular levels (4-10) and may provide a solution to early diagnosis of gastric cancer. In particular, Cerenkov luminescence imaging, which is based on the Cerenkov radiation effect (11-13), can solve the problem of limited available probes for clinical applications of optical imaging techniques (14-20). The emergent Cerenkov luminescence endoscopy (CLE), the product of further combination with endoscopic detection techniques, can overcome the issue of limited penetration depth encountered in the optical imaging of gastric cancer. CLE therefore opens up new potential for the early diagnosis of gastric cancer.

The concept and prototype system of CLE, first developed by Cheng et al. (21,22). involved a charge-coupled device (CCD) camera that could image the ocular head of a commercial endoscope. There was no physical link between the CCD camera and the endoscope, and the light transfer process between the 2 instruments occurred in free space. This strategy demonstrated the feasibility of the use of CLE in tumor recognition and surgical resection (22). Subsequently, Cao et al. developed a CLE system that seamlessly integrated an electron multiplying charge-coupled device (EMCCD) camera with a clinical gastrofiberscope (23). The group used an optical adapter to complete a seamless link between the EMCCD and the endoscope. The minimum theoretical activity of Gallium-68 (⁶⁸Ga) that could be detected was 1.5 µCi for in vitro and 3.2 µCi for in vivo measurements within 5 minutes. The same system was also applied to the preliminary diagnosis of clinical colorectal cancer patients, yielding consistent diagnostic results with those obtained by positron emission tomography (PET) (24). Using similar techniques, Song et al. subsequently constructed a CLE system by combining the electron multiplying CCD with a rigid laparoscope and validated its effectiveness by performing imaging on a mouse abdominal cavity (25). Despite the effectiveness of the current CLE systems, their broader use has been limited, particularly within clinical settings. This is because it currently takes 5 minutes to capture a single high-quality image, and this long data acquisition time severely restricts the clinical usability and value of the system.

The long data acquisition time is a result of the poor sensitivity of the current CLE system. The two contributing factors include the weakness of the Cerenkov luminescent (CL) light emission and the large light loss of the endoscope. One method to overcome these limitations is to enhance the emission of luminescence light. Researchers have previously aimed to find more suitable radionuclides with a higher yield of CL light (26), while other studies have tried to enhance the CL light emission by using scintillators or combining the radionuclides with nanoparticles (27-35). An example of this was demonstrated in the study by Cao et al., where the detection sensitivity of the CLE system was improved by a factor of 50 (30). Although these are effective solutions, new nanoparticle probes and radionuclides with a high yield of CL light are generally not clinically available.

A second method for improving the system collection efficiency involves optimizing the detection performance of the CLE system. This can be achieved by designing the objective probe, fiber parameters, and materials of the optical fiber endoscope to be more suited to CL collection and transmission; designing an optical adapter for large light transmission efficiency; and selecting a detector suitable for CL light sensing.

This paper focuses on the second method of system-level optimization to enhance the detection sensitivity of the CLE system. We first investigated the influence of imaging parameters on detection performance and then developed a CLE system with high detection sensitivity. Through a series of experiments, we systematically evaluated the performance of the developed CLE system by measuring the in vitro and in vivo detection sensitivity, indicating the minimum radionuclide activity. The feasibility of clinical use of the system was determined based on these measurements of minimum activity.

Methods

Design of the CLE system

The CLE system presented in this study has different structures from those used in our previous studies (24,25). An optical fiber endoscope was connected to the EMCCD (Andor iXon Ultra 888/897) camera via a straight connection device (SCD; Figure 1, lower left). The SCD was first used to adjust the distance between the eyepiece end of the endoscope and the EMCCD chip. The SCD was then used to avoid leakage of ambient light into the system. One end of the SCD was plugged directly into the EMCCD camera via the standard C-port, and the other end was connected to the eyepiece port of the endoscope via the standard interface. Both the standard C-port and the standard interface were tightly connected to the connected object and were not adjustable, which avoided the emergence of possible gaps that could cause ambient light leakage problems. In contrast to the converter lens (Figure 1, lower right), the SCD lacked a lens set, which acted to reduce the light loss attenuated by the lens set to a certain extent. In the developed CLE system, the optical fiber endoscope and the SCD were made in-house by Nanjing Chunhui Science and Technology Industrial Co. Ltd and the EMCCD was purchased from the Titan Electro-Optics Co. Ltd.

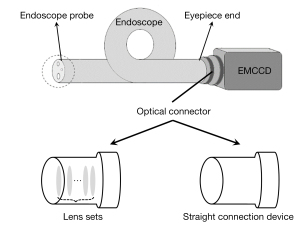

Figure 1 Schematic of the CLE system. (Lower left) The CLE system connected via the straight connection device. (Lower right) The CLE system connected via the converter lens. CLE, Cerenkov luminescence endoscope.

Optical fiber endoscopes with different structural parameters

In the developed CLE system, the optical fiber endoscope is made up of a fiber bundle and an endoscopic probe. The fiber bundle contains tens of thousands of monofilament (MF) fibers, while the endoscope probe is made up of an objective lens set, located at the front of the optical fiber endoscope (as labeled in Figure 1). The structural parameters mentioned above determine the performance of the optical fiber endoscope, which further affect the detection sensitivity of the CLE system. We therefore first optimized the structural parameters of the optical fiber endoscope. In theory, a larger range of pixel size in an EMCCD camera means a larger MF diameter and a better light-collecting ability of the fiber bundle. In the CLE experiment, the EMCCD camera usually operates in a binning mode, for example 4×4 binning. It was hypothesized that if set at 4×4 binning, the pixel size of the detector used in our system would be larger than 50 µm. To validate this hypothesis, we customized 3 endoscopes with different MF diameters, labeled A, B, and C in Table 1. Using these endoscopes, we observed the influence of different MF diameters on the imaging results of CLE. The detailed structural parameters are shown in Table 1.

The CL emission has a broad spectrum (13), ranging from ultraviolet to the near-infrared region. Such a broad spectral range has high requirements for the fiber materials of image bundles and probe coating. To investigate the influence of the fiber materials and probe coating, we customized another endoscope that had the same field of view (FOV) angle and MF diameter as endoscope C had; however, the custom endoscope was made from different fiber materials and probe coating (labeled D in Table 1). The detailed parameters are listed in Table 1.

Comparative evaluation of different optical fiber endoscopes

In this experiment, 300 µCi of ¹⁸F-FDG mixed with saline constitutes 300 µL of mixed liquid filled a single well of a black 96-well plate which was placed directly below the endoscope probe to act as the emission source of CL light. Due to the fact that Cerenkov luminescence is susceptible to interference from ambient light, the well plate was placed together with the endoscope probe in a home-made light-tight box. The endoscope eyepiece end was connected to the EMCCD camera by the SCD. The EMCCD was left outside of the light-tight box, and the joint of the EMCCD and endoscope eyepiece end was wrapped by shading cloth. The room light in the data acquisition room was left off during the experimental data acquisition. The experimental configuration was set up to mimic the reality of clinical applications. The relevant results of the noise analysis (Figure S1) showed that the effect of ambient noise in such an experimental setup is negligible. In order to balance the efficiency of signal collection and clinical operability, the distance between the endoscope probe and ¹⁸F-FDG source was fixed at 1 cm. For each endoscope, 5 images were acquired in succession for further analysis. During data acquisition, the parameters of EMCCD were set as binning =4×4, EM =1000, and exposure time =300 s.

Because the MF diameter of the fiber bundle may affect the spatial resolution of the CLE system, we tested the white-light spatial resolution of the CLE system equipped with endoscopes of different MF diameters using a resolution test board (1951 USAF) as a sample. During data acquisition, the distance between the endoscope probe and the resolution test board was 1 cm, and the EMCCD parameters were set as EM =1, binning =1×1, and exposure time =0.1 s.

Influence of source–probe distance on signal detection

The distance from radionuclides to endoscope probe [source–probe (SP) distance] greatly influences signal detection. We investigated the dependency of CLE signal intensity on SP distance. In the experiment, 300 µL of the ¹⁸F-FDG solution containing 150 µCi radionuclides was injected into a single well of a black 96-well plate. The initial SP distance was set at 0 cm; i.e., the endoscope probe was immediately adjacent to the CL emission source. When the SP distance was within 1 cm, the SP distance was increased every 0.2 cm. Starting from 1 cm, the endoscope probe was then moved upward, increasing the SP distance at intervals of 0.5 cm until the SP distance reached 5 cm. At each distance, 3 CLE images were acquired in succession and were then averaged for further analysis. The EMCCD parameters were set as EM =1,000, binning =1×1, and exposure time =120 s. This SP distance affected the FOV detected by the optical fiber endoscope. When the FOV angle of the endoscope probe was 45°, the FOV detected by the endoscope was five-sixths of the SP distance. For example, when the SP distance was 1 cm, the FOV size was 0.83 cm.

Performance evaluation of the proposed CLE system

After evaluating the performance of different endoscopes, we found the optimal endoscope for the highest efficiency of CL collection and then assembled a sensitivity- improved CLE system. We finally measured and evaluated the performance of the newly assembled CLE system, including the spatial resolution, linearity, and sensitivity (minimum detection activity of the radionuclides). In the performance evaluation experiments, the radionuclides of ⁶⁸Ga were used as the emission source for CL light. This was due to two main considerations. First, in the published work chosen as a reference (23), ⁶⁸Ga was selected to investigate the system performance, allowing direct comparison between our study and the reference. Second, ⁶⁸Ga has been used in clinical diagnostics; for example, ⁶⁸Ga-FAPI was reported in the clinical diagnosis of malignancies of the lower gastrointestinal tract (36,37).

We specially designed a resolution test board suitable for CL resolution measurement of the CLE system. The test board was made of aluminum and painted black to avoid interference from reflections. Groups of evenly distributed lines were drilled into the test board. In each group, the width of the lines was the same as the width of the interval between the edges of the 2 lines. The line widths used in our experiments were 0.6, 0.8, 1.0, and 1.2 mm. Approximately 25 µCi of ⁶⁸Ga was injected into the concave lines of the test board, which was then placed 1 cm below the endoscope probe for data acquisition. The white-light image was first collected with an exposure time of 0.1 s and a binning value of 1. The CL image was then captured with an exposure time of 300 s and a binning value of 4.

A single well in a black 96-well plate containing 300 µL of saline mixed with 10 µCi of ⁶⁸Ga was placed 1 cm below the endoscope probe. The CLE images were sequentially acquired at fixed intervals. During data acquisition, the parameters of the EMCCD camera were set at a binning value of 4 and an EM value of 1,000. The total data acquisition time was around 780 min, approximately 11.5 half-lives of ⁶⁸Ga. To make comparisons with the CLE system used in the previous study (24), we first acquired an image every 15 min, with an image acquisition time of 300 s. To further investigate the performance improvement of the CLE system presented within this study, we also acquired an image every 10 min, with an image acquisition time of 180, 120, 60, and 30 s. To provide additional guidance for clinical applications, we measured the detection sensitivity of the developed CLE system using the ¹⁸F-FDG solution as a CL light emission source. The CLE images emitted from ¹⁸F were acquired with an image acquisition time of 300 s.

The 96-well plate-based in vitro experiments adequately evaluated the detection performance of the CLE system under ideal conditions. However, in clinical applications, gastrointestinal lesions are usually located under the mucosal layer, and therefore the CL light needs to pass through this layer in order to be collected by the CLE system. Thus, we conducted further pseudotumor experiments to measure the in vivo detection sensitivity. The ⁶⁸Ga of 15 µCi was diluted to 50 µL with normal saline to form the ⁶⁸Ga solution. The pseudotumor was constructed with a mixture made of Matrigel (BD Biosciences) and ⁶⁸Ga solution at a ratio of 1:1. The 100 µL mixture was injected subcutaneously into the right flank of a hairless mouse. The mouse was then placed on a warm platform for 3 min until the Matrigel solidified. The CLE images were sequentially acquired every 10 min, with an image acquisition time of 300 and 60 s. The other parameters were the same as those of in vitro sensitivity measurements.

The pseudotumor mouse model-based imaging experiments were performed under a project license granted by the Fourth Military Medical University Animal Studies Committee (no. KY20163349-1) in compliance with the Fourth Military Medical University Animal Studies Committee guidelines for the care and use of animals.

Data processing

Because the radionuclides undergo nuclear decay over time, time-related decay correction was applied for images that were collected continuously over time. In the comparison experiments of different SP distances and different optical fiber endoscopes, the final imaging results were normalized to 150 µCi for investigation of SP distance and 300 µCi for comparison of different endoscopes. In the experiments of sensitivity measurements, the collected images were decay-calibrated based on initial radionuclide activity and acquisition time.

Heavy impulse noise was generated on the EMCCD by high-energy gamma rays of radionuclides during image acquisition. Here, the median filter with a template size of 5×5 was used to remove these strong noise points. A region of interest (ROI) was outlined automatically by setting a threshold determined empirically through experiments. The mean and standard deviation of the averaged signal intensity in the ROI were used in the following plots. Background subtraction was applied before analysis. An area outside the ROI was selected, which was approximately the same size as the ROI, and the mean intensity value of this area was calculated as the background value. This background value was subtracted from the image for background subtraction. All data processing algorithms were self-written with Matlab 2013b software (MathWorks).

Results

Influence of the monofilament diameters of the imaging fiber bundle

Figure 2A-2C present the CLE images acquired by endoscopes A, B, and C, the results of which were used to investigate the influence of MF diameters of the imaging fiber bundle on collection efficiency of the CLE system. An obvious difference can be observed among the 3 endoscopes from the comparison maps. The CLE image acquired by endoscope C had the strongest brightness, followed by endoscopes B and A. In order to quantitatively evaluate the difference, we calculated the mean intensity of the ROI in each image and plotted them in Figure 2D). We found that the highest signal intensity was obtained by endoscope C while the lowest was obtained by endoscope A. Furthermore, a linear increase in the light collection efficiency of the CLE system was obtained as the MF diameter increased (R²=0.9996). To intuitively evaluate the improvement on collection efficiency of the CLE system, we set the signal intensity of endoscope A as the baseline and then calculated the improvement ratio by dividing the signal intensity of the other endoscopes by this value, as plotted in Figure 2E. The CLE system configured with endoscope C provided the best-improved collection efficiency, with an improvement ratio of 2.20. The results collectively showed that the larger the MF diameter was, the better the collection efficiency of the CLE system.

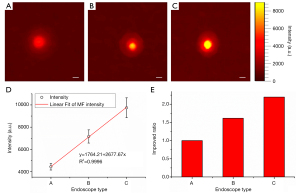

Figure 2 Influence of monofilament (MF) diameters of the imaging fiber bundle on the collection efficiency of the CLE system. (A-C) The CLE images collected by using the A, B, and C endoscopes. (D) Quantitative comparison between 3 endoscopes. (E) Improvement ratio of the B and C endoscopes compared to endoscope A. Here, the ¹⁸F-FDG solution was used as the Cerenkov luminescence light emission source. Scale bar: 4 mm. CLE, Cerenkov luminescence endoscope.

By calculating the smallest line pair area that can be clearly distinguished in the captured image of the resolution test board, we obtained the white-light spatial resolution of the CLE. We found that the white-light spatial resolution of the CLE system decreases slightly as the MF increases, from a spatial resolution of 0.25 mm at 20 µm to 0.35 mm at 30 µm. Such a decrease in white-light spatial resolution is negligible compared to the improvement in the detection efficiency of the system.

Influence of the fiber materials and probe coating

Figure 3A,3B present the CLE images acquired by endoscopes C and D, the results of which were used to investigate the influence of the fiber material and probe coating on collection efficiency of the CLE system. We found that the image acquired by the CLE system equipped with endoscope D was much brighter than that acquired with endoscope C. Similarly, we calculated the mean intensity of each image and the corresponding improvement ratio, as plotted in Figure 3C,3D. The CLE system configured with endoscope D provided higher signal intensity and better signal collection efficiency. The improvement ratio was about 1.84 compared with that equipped with endoscope C. These results proved that the endoscope, made from silica glass and having a probe coating suitable for broad spectrum transmission from ultraviolet to near infrared light, can improve the collection efficiency of the CLE system.

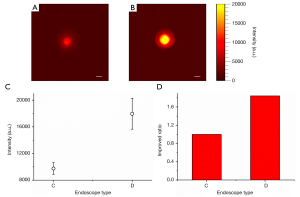

Figure 3 Influence of the fiber materials and probe coating on collection efficiency of the CLE system. The CLE images collected by endoscope C (A) and endoscope D (B). (C) Quantitative comparison between 2 endoscopes. (D) Improvement ratio of endoscope D compared to endoscope C. Here, the ¹⁸F-FDG solution was used as the Cerenkov luminescence light emission source. Scale bar: 4 mm. CLE, Cerenkov luminescence endoscope.

Influence of the source-probe distances

Figure 4A shows the CLE images acquired at different SP distances. We found that with the increase of SP distance, the signal intensity initially changed little before rapidly decreasing after a certain distance. We further calculated the average intensity of the ROI in each image and then plotted the relationship between the average intensity and the SP distance, as drawn in Figure 4B. As SP distance increased, a significant and sharp drop in signal strength was observed when this distance was greater than 1 cm. The average intensity of the detected signal was approximately linearly proportional to the SP distance. When this distance was less than 1 cm, we found that the strength of the detected signal did not decrease with distance, but showed a fluctuation of first increasing and then decreasing. This phenomenon is presumed to be caused by two reasons. First, the CLE cannot focus the radioactive source onto the detector when the SP distance is less than 1 cm. Second, if the distance between the probe and the radionuclides is too small, the FOV of the endoscope will greatly reduce, making it impossible for the endoscope to completely cover the radionuclide boundary. Therefore, the amount of radionuclide covered by the FOV of the endoscope is increased as the distance in this segment increases. Consequently, there will be an increase in signal intensity with an increase in the SP distance. To balance the signal collection efficiency and clinical operability, the SP distance was fixed as 1 cm in the other experiments.

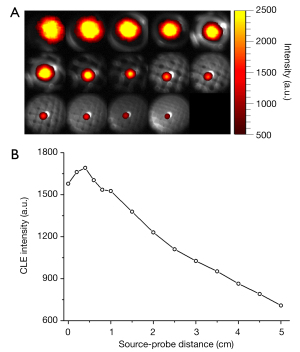

Figure 4 Influence of source-probe distance on signal detection. (A) The CLE images collected at different source-probe distances. (B) The CLE signal intensity as a function of source-probe distance. Here, the ¹⁸F-FDG solution was used as the Cerenkov luminescence light emission source. CLE, Cerenkov luminescence endoscope.

Performance of the sensitivity-improved CLE

Following the aforementioned investigation experiments, endoscope D was selected as an optimal configuration in this study for the construction of the sensitivity-improved CLE system. However, the larger the MF diameter, the more brittle the imaging fiber bundle becomes and the more likely it is to break. Thus, we customized an endoscope that had an imaging fiber bundle with a MF diameter of 28 µm and was made of silica glass, and integrated it into the sensitivity-improved CLE system. This MF diameter gave full consideration to the white-light spatial resolution and the maximum light collection efficiency. Additionally, the working distance (SP distance) was fixed at 1 cm.

Fluorescence spatial resolution

Figure 5A presents the photograph of the specially designed resolution test board, and Figure 5B displays the CLE images fused with the corresponding white-light images for each investigated group of lines. We found that when the line width was not less than 0.8 mm, different lines were clearly distinguished from each other by directly reading the image. There was slight blurring of the CLE image when the line width was 0.6 mm, but low signal strength valleys were still seen between the 3 lines. We extracted a line profile along the white line in the CLE image of 0.6 mm line width, as plotted in Figure 5C. This line profile quantitatively confirmed that the fluorescence spatial resolution of the CLE system was better than 0.6 mm. This spatial resolution was slightly better than that of PET for superficial imaging. Note that the curve in Figure 5C is smoother than the heat map in Figure 5B. This is due to the avoidance of high-energy noise points (Figure 5B) as much as possible when drawing and interpolating this curve.

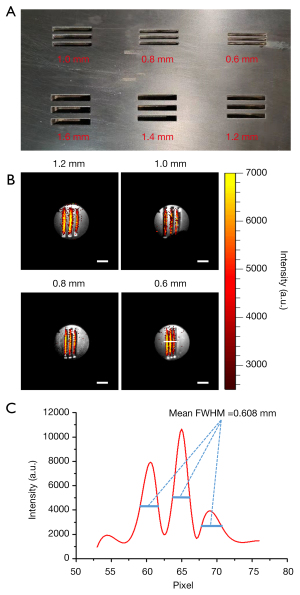

Figure 5 Fluorescence spatial resolution of the highly-sensitive CLE system. (A) Photograph of the specially designed resolution test board. (B) CLE images fused with the corresponding white-light images for each investigated group of lines. (C) Quantitative line profile (white line in the group of 0.6 mm line width). Here, the ⁶⁸Ga was used as the Cerenkov luminescence light emission source. Scale bar in B: 3 mm. CLE, Cerenkov luminescence endoscope.

In vitro sensitivity

Figure 6 shows the sequential images acquired by using the CLE system over the decay of radionuclides with an image integration time of 300 s. As these images were acquired at different time points, we calibrated these time points to the activity values of the radionuclides based on their decay law. With the decrease of radionuclide activity of ⁶⁸Ga, an apparent trend of intensity attenuation was observed. The minimum resolvable activity we read from the images was 0.27 µCi (circled in yellow). The minimum resolvable activity was defined as the activity corresponding to the point at which the magnitude and distribution of the intensity of the CLE image begins to converge to a constant as the activity decreases. For quantitative analysis, we calculated the average intensity of the CLE signals in the extracted ROIs. The average intensity as a function of radionuclide activity of ⁶⁸Ga is plotted in Figure 6B. With linear fitting, a strong linear relationship can be obtained between the average intensity versus the ⁶⁸Ga activity (R²=0.9963). The linear correlation equation indicated that a theoretical minimum activity of ⁶⁸Ga detected by the CLE system was as low as 0.03 µCi. This result was an order of magnitude higher than our previous result (24).

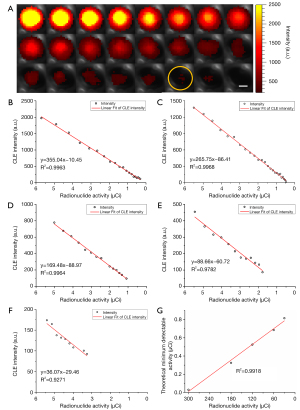

Figure 6 In vitro sensitivity. (A) Sequential images over the decay of radionuclide of ⁶⁸Ga acquired by the CLE system at image integration time of 300 s. The radionuclide decays from 6.65 to 0.19 µCi from upper left to lower right. (B-F) CLE intensity as a function of the radionuclide activity of ⁶⁸Ga and corresponding linear fitting results for image integration time of 300, 180, 120, 60, and 30 s, respectively. (G) Linear fitting between the theoretical minimum detectable activity of ⁶⁸Ga and the image integration time. Scale bar: 2 mm. CLE, Cerenkov luminescence endoscope.

To demonstrate the high sensitivity of the new CLE system, additional time series CLE images were further acquired with a reduced image integration time, including 180, 120, 60, and 30 s. The minimum activity at which the images can be resolved was 0.48, 1.09, 1.53, and 3.26 µCi, respectively. Figure 6C-6F show the CLE intensity as a function of the radionuclide activity of ⁶⁸Ga and the corresponding linear fitting results. A strong linear relationship was obtained with an R² value larger than 0.9500 for all the investigated cases. From the fitting results, we calculated the theoretical minimum detectable activity of ⁶⁸Ga, which were 0.32 µCi at 180 s image integration time, 0.53 µCi at 120 s, 0.68 µCi at 60 s, and 0.82 µCi at 30 s. Furthermore, there was a strong linear relationship between the theoretical minimum detectable activity and the image integration time (R²=0.9918), as plotted in Figure 6G. These results collectively revealed that even with the reduced image integration time of 60 s, our new CLE system still has a submicrocurie detection sensitivity.

With similar processing and analysis methods, the minimum resolvable activity of the developed CLE system for ¹⁸F was 1.82 µCi at 300 s image integration time. The corresponding theoretical minimum detectable activity was 0.72 µCi. The detailed results are presented in Figure S2. These results revealed that the developed CLE system also has a submicrocurie detection sensitivity for a radionuclide of ¹⁸F.

In vivo sensitivity

The sequential CLE images over the decay of radionuclides of ⁶⁸Ga were acquired from the pseudotumor (indicated by red circles and arrows in Figure 7A) of the mouse model with an image integration time of 300 s, as presented in Figure 7B. Similarly, an apparent trend of CLE intensity attenuation was observed with the decrease of the radionuclide activity. The relationship between the average intensity of the extracted ROIs and the activity of ⁶⁸Ga is depicted in Figure 7C. A strong linear relationship was observed (R²=0.9940). As seen in Figure 7B, we found that the minimum activity at which the image was resolved was 0.93 µCi (circled in yellow). The linear fitting results showed that the theoretical minimum detectable activity was 0.44 µCi, which was also an order of magnitude higher than our previous result (24).

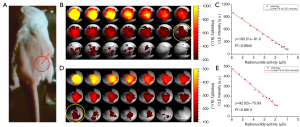

Figure 7 In vivo sensitivity of the sensitivity-improved CLE system. (A) White light image of a pseudotumor mouse model. Sequential images over the decay of radionuclide of ⁶⁸Ga acquired by the CLE system at the image integration time of 300 s (B) and 60 s (C). The radionuclide decays from 6.84 to 0.32 µCi from upper left to lower right in (B), and from 5.89 to 0.77 µCi in (C). (D,E) CLE intensity in (B) and (C) as a function of the radionuclide activity of ⁶⁸Ga and corresponding linear fitting results. Scale bar: 6 mm. CLE, Cerenkov luminescence endoscope.

To illustrate the high sensitivity of our CLE system and the credibility of its clinical application, we acquired time series CLE images at 60 s image integration time and explored the minimum radionuclide activity detectable by the system based on these data. Figure 7D shows the time series CLE images, exploring the lowest activity resolvable on the image was smaller than 1.41 µCi (circled in yellow). Similarly, we fitted the relationship between the CLE signal intensity and the radionuclide activity, as shown in Figure 7E. The linearity of the fitting result is very strong, with an R² value of 0.9913. Based on the fitting equation between these results, the theoretical minimum detectable activity was calculated to be as low as 0.83 µCi. These results proved that our CLE system achieved a relatively high detection sensitivity at a submicrocurie level in the in vivo measurement.

Discussion

Cerenkov luminescence endoscope (CLE) integrates a clinical endoscope into the Cerenkov luminescence imaging system, providing promising potential for clinical translation of optical imaging. However, low detection sensitivity limits its clinical applications. In this paper, 4 endoscopes were customized and installed on the CLE system to investigate the influence of the MF fiber diameters of the imaging fiber bundle as well as the fiber material and probe coating on detection efficiency. Results found that larger MF diameter and more suitable fiber material and probe coating for CL transmission led to an increased detection efficiency of the CLE system. By using the endoscope with the optimized system parameters, we developed a sensitivity-improved CLE system and measured its sensitivity by imaging ⁶⁸Ga, which showed an enhanced detection sensitivity at a submicrocurie level for both in vitro and in vivo applications. The minimum radioactive activity of radionuclides was as low as 0.03 µCi for in vitro measurements and 0.44 µCi for in vivo measurements, being an order of magnitude higher than the current CLE system (23).

The main obstacle to the clinical application of the current CLE technology is the long image acquisition time required to ensure adequate sensitivity. Therefore, providing high detection sensitivity with a short image acquisition time is the primary challenge that needs to be addressed in early detection of gastric cancer with CLE technology. With an image integration time of 60 s, the in vivo detection sensitivity of ⁶⁸Ga measured from the pseudotumor mouse model was around 0.83–1.41 µCi. Generally, gastric cancer originates from the mucosa of the gastrointestinal tract. Thus, CLE imaging of subcutaneous pseudotumor in hairless mice can adequately mimic the endoscopic detection of gastric cancer. According to the American Joint Committee on Cancer (AJCC) cancer staging manual, tumors less than 2 cm in diameter are defined as early tumors (38). To distinguish between the benign and malignant tumors in clinical settings, the standardized uptake value of radionuclides in the positive tumor area should not be less than 3. Considering the radionuclides dosage commonly injected into clinical patients, the concentration of radionuclides that accumulate in the positive tumor area should be greater than 0.3 µCi/mL. Thus, with the above in vivo detection sensitivity, it is clinically possible to detect a gastric tumor of 1.4 to 1.67 cm in diameter within 1 mi using the proposed CLE system. This is a considerable improvement to the clinical application of CLE technology.

There are issues that need to be addressed before the CLE system can be introduced to clinical environments. First, both the benefits and drawbacks of the use of a radioactive source-based probe need to be considered. ¹⁸F-FDG as a type of radioactive source that can reflect metabolic capacity has been widely used for detection of early-stage cancer in clinics. However, the proposed CLE system is not highly sensitive in detecting ¹⁸F, making it difficult to apply this method to the diagnosis of early gastric cancer. As mentioned above, the detection sensitivity of the proposed CLE system for ⁶⁸Ga can reach a submicrocurie level with an image acquisition time of 1 minute, which realizes the detection of early gastric tumor with a diameter of about 1.5 cm. ⁶⁸Ga has also been used in clinic, including in the diagnosis of gastric cancer. For example, the ⁶⁸Ga labeled fibroblast activation protein inhibitor (⁶⁸Ga-FAPI) has been used in the clinical diagnosis of malignancies of the lower gastrointestinal tract (36,37).

A second issue involves the requirement of the imaging device to be approved by a designated agency. The CLE system presented within this study is a new imaging device with components that need to be inserted inside the human body. Thus, the system will need to undergo a series of additional experiments, such as a biosafety assessment and preclinical validation. A license for clinical use is also needed before the device can be used in clinic. Although this may be a lengthy process, we believe that the use of this technology within a clinical setting can significantly improve the outcome of clinical gastrointestinal diseases.

In the evaluation experiments of different endoscopes, when the MF diameter increased from 20 to 30 µm, the average signal intensity increased linearly by 2.20. This indicates that detection efficiency can be further improved by a greater increase in MF diameter. However, the spatial resolution decrease as the monofilament diameter increases. Furthermore, if the MF diameter is too large, the flexibility of the optical fiber bundle will be poor and therefore unsuitable for clinical use. Thus, a compromise was decided on for the level of performance with the endoscope set at a MF diameter of 28 µm for the CLE system. When changing the fiber materials to silica glass, the detection efficiency of the CLE system was also increased, resulting in an almost 2-fold improvement. Theoretically, improvement of the fiber material and probe coating properties to increase the transmittance values would further enhance the detection performance of the CLE system.

We also investigated the working temperature of the EMCCD camera to determine the effects of dark current noise on image quality. The working temperature was controlled by changing the temperature from 0 to −85 °C (Figure S3). Results showed that the trend of dark current noise decreased when the temperature dropped below −50 °C. In our experiments, the EMCCD camera was cooled to –85 °C to allow it to function at a dark-current-noise–limited condition. Although the working temperature could be decreased to −100 °C, this had little effect on improving image quality. In addition, we explored the effects of scintillation effects arising from the interaction of high-energy radioactive particles with optical fibers. By comparing CLE images acquired with and without the radionuclide source covered by black cardboard (detailed in Figure S4), we found that the influence of the scintillation effect on image acquisition was negligible under the experimental conditions of this study.

There is still room for further improvement of the CLE system, such as the use of a more suitable detector. As mentioned earlier, Cerenkov luminescence light has unique spectral properties. The wide spectrum ranges from ultraviolet to near-infrared wavelength, with most of the energy located at the region of lower wavelengths. The ongoing study aimed to improve the detection efficiency of the CLE system by identifying a detector sensor with higher sensitivity at the lower wavelength region. It should also be noted that the FOV of the optical fiber endoscope occupies a small circular space on the EMCCD, an area roughly one-sixteenth of the size of the pixels occupied by the effective detection area of the EMCCD. This results in a very small effective area in which the EMCCD can be used. In order to present the results clearly, the images in Figures 4,6, and 7 were cropped to retain only the endoscopic image region. Through our series of experiments, we found that it is possible to increase the number of pixels occupied by the endoscopic image on the EMCCD by extending the length of the SCD, but this in turn causes a reduction in the efficiency of signal detection. Increasing the use of the EMCCD pixel area while maintaining the efficiency of signal detection is an issue which is currently being addressed.

Conclusions

In summary, with the goal of improving the detection sensitivity of the current CLE system to allow for greater clinical applications we developed a highly sensitive CLE system by optimizing structural parameters. The series of experimental results showed that the detection sensitivity of the system was able to reach a submicrocurie level at 1 min image acquisition time. This verifies the ability of this technology to detect early tumors within 1 min in clinical settings and brings to light a promising potential method for the diagnosis of clinical gastrointestinal diseases.
