Two-stage multitask U-Net construction for pulmonary nodule segmentation and malignancy risk prediction

Introduction

Lung cancer is one of the most aggressive cancers, with a 5-year survival of only 19% (1). Lung cancer is also the leading cause of disability-adjusted life years for men in developed and developing countries (2). Due to air pollution and a high cigarette smoking rate, lung cancer incidence and mortality are rising in emerging countries, such as Brazil, Russia, India, China, and South Africa (3). However, early detection and diagnosis can greatly reduce the mortality rate of lung cancer. Although the survival rate of lung cancer is low for advanced lung cancer patients, the estimated 10-year survival of stage I lung cancer is up to 75%. Therefore, detecting and diagnosing lung cancer in the early stage is important for patients’ survival. The helical thoracic computed tomography (CT) screen as a non-invasive method is an effective means for lung cancer detection (4). The nodule’s CT image characteristics can help radiologists assess the risk of malignant nodules. As quantitative measurements of morphological, texture, or gray-level characteristics are easily interfered by surroundings, it is necessary to perform accurate nodule edge segmentation.

A robust and accurate automatic pulmonary nodule segmentation method has clinical significance in avoiding tedious manual processing and reduces interobserver variability (5). However, automatic pulmonary segmentation is challenging for several reasons. First, some ground-glass opacities (GGOs) often have low contrast to the surrounding background. The obscure boundaries of GGOs make them hard to detect and segment. Second, the adhesive lesions’ edges (juxta-pleural and juxta-vascular) attached to pleural surfaces or vascular structures cannot be segmented easily using the traditional morphology-based method. Finally, it is hard to distinguish small nodules with a diameter less than 5 mm from the nodule-like lung structures in the noisy CT image.

Many computer-aided diagnosis (CADx) systems have been proposed to segment pulmonary nodules and perform benign and malignancy classifications. CADx systems can be divided into the following 2 categories: radiomics-based methods and deep learning methods (6). The radiomics workflow often involves imaging examination, nodule segmentation, quantitative imaging feature extraction, and analysis. Nodule segmentation methods, such as region growing (7,8), level set (9), or graph cut (10), often fail to segment juxta-pleural nodules and small nodules. These methods are sensitive to the size and morphological characteristics of the nodules. For quantitative imaging feature extraction, radiomics studies extract numerous hand-crafted features from segmented CT images. These features involve the nodule’s intensity distribution descriptors, spatial relationships to other structures, texture patterns, and morphological characteristics. However, an end-to-end scheme for the segmentation and classification cannot be constructed using the radiomics strategy. Although the nodule’s hierarchy and internal features can be learned automatically, more robust feature representation methods need to be constructed manually.

To overcome these issues, data-driven learning methods were implemented into medical segmentation and classification tasks. Recently, CADx systems have been developed based on convolutional neural networks (CNNs). Due to efficient and automatic feature extraction, CNN-based CADx systems have better performance and stronger flexibility than traditional CADx systems (11). In addition, state-of-art CNN structures, such as the feature pyramid network, region proposal network, and dual-path network, extract in-depth features that boost segmentation, detection, and classification performance in the pulmonary nodule CADx (12).

In terms of the medical segmentation area, the U-shape network U-Net has been widely applied as a backbone (13). This network has a more efficient structure compared with that of the fully connected network (FCN) (14). The U-Net structure has been modified with additional mechanisms since it was proposed. The attention mechanism was introduced for the construction of the attention U-Net (15), the recurrent structure was applied for the construction of the R2U-Net (16), and the squeeze-and-excitation blocks were used to construct the USE-Net (17). These mechanisms further improved efficiency and performance in the modified U-Net structures compared with the original U-Net structure (18). For malignant risk prediction of pulmonary nodules, deep learning methods can also achieve better performance. Due to the shortcut connection in the residual block, the ResNet can solve the problem of vanishing/exploding gradients in a deep CNN (19). To develop an end-to-end framework that can simultaneously complete segmentation and malignancy classification, we combined the residual block and U-Net structure to build a multitask learning network.

Because CT images contain 3D information, the model should possess a 3D, rather than 2D, structure. However, 3D-structured networks require relatively larger computational capacity and have lower accuracy in slice-level segmentation compared with those of 2D networks. Therefore, in the present study, we proposed a 2.5D structured network known as a multiscale separable U-Net (MSU-Net). A 2.5D image has 1 more slice axis compared with that of a 2D image. This strategy harnesses the advantage of 2D and 3D networks to increase feature extraction efficiency of the U-Net architecture. The features from the encoding and decoding paths of MSU-Net have been used for classification feature learning. Residual blocks can efficiently extract the nodule features and predict their probability for malignancy or other morphological characteristics.

Due to significant variability in the size of nodules, a single segmentation model often fails to achieve good results. Therefore, researchers use cascaded or parallel models to segment medical images from multiple perspectives or scales (20-23). With a similar aim, we designed a coarse-to-fine structure for pulmonary nodule segmentation and classification. A 3D multiscale U-Net (MU-Net) is used to quickly locate the nodule position in a 3D CT image. For the refinement stage, multitask 2.5D MSU-Net was proposed to refine the 3D network’s output and obtain the classification output.

We introduced a coarse-to-fine strategy for pulmonary nodule segmentation and classification. The algorithm applied the following 2-stage prediction: a 3D MU-Net for nodule localization and a 2.5D MSU-Net for refinement.

We proposed a multitask network. A 2.5D MSU-Net was introduced to perform the segmentation and classification task. The 2.5D input structure, multiscale, and separable convolution strategies increased the accuracy of segmentation and classification.

We integrated traditional hand-crafted features, such as texture, calcification, and margin characteristics, into the framework. These characteristics play important roles in the radiological diagnosis of benign and malignant nodules.

A series of 2D, 2.5D, and 3D networks were implemented to demonstrate the 2.5D MSU-Net’s performance. The MSU-Net’s encoding/decoding single-branch classification networks and machine learning methods were also implemented to compare the dual branch (encoding and decoding paths) of the MSU-Net network’s performance.

Methods

The proposed coarse-to-fine pipeline of pulmonary nodule segmentation and classification contains the following 2 networks: 3D MU-Net and 2.5D MSU-Net. These are both based on the U-Net structure. The proposed framework is shown in Figure 1.

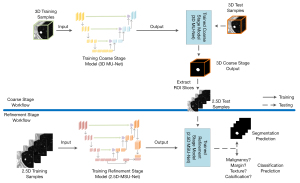

Figure 1 Proposed pipeline of pulmonary nodule segmentation and classification. MU-Net, multiscale U-Net; MSU-Net, multiscale separable U-Net; ROI, region of interest.

For training, the 3D and 2.5D training samples were simultaneously applied to train the 3D MU-Net and 2.5D MSU-Net to obtain the coarse and refinement stage model. First, for inference, the 3D MU-Net located the rough region of interest (ROI) of the 3D input. Then, based on the 3D segmentation result, the ROI slices were extracted automatically and fed into the trained 2.5D MSU-Net. Finally, we obtained the segmentation results and classification output from the trained multitask 2.5D MSU-Net.

Data preprocessing

Data preprocessing was aimed to reduce input redundancy and unify the spatial resolution of 3D CT. To reduce memory usage, the original 16-bit medical data were converted into a 10-bit unsigned integer. The pixel value of each data sample was bounded from –1,000 to 500 HU and quantized into an integer ranging from 0 to 1,023.

3D bilinear interpolation was used to unify the spatial resolution of 3D CTs. After reconstruction, the spatial resolution was unified to 1 mm × 1 mm × 1 mm. We extracted 64×64×64 3D cubes as input data of the 3D MU-Net and 64×64×4 2.5D slices as the input data for 2.5D MSU-Net.

Multitask 2.5D MSU-Net

The proposed 2.5D MSU-Net is a deep end-to-end network consisting of the following main parts: an encoder and decoder. We used the following 3 strategies for constructing the network: separable convolution in the encoder to avoid the structural damage caused by the 2D convolution kernel, a gate unit for attention information extraction, and multiscale input for constructing the pyramid input (24).

Because the CT is a spatially continuous 3D image, the 3D network structure can fully utilize the information from the spatial 3D context (25). Moreover, the inference process of 3D networks is much faster than that of 2D networks (26); however, the 3D network’s training and deployment require a large computation capacity, especially in the semantic segmentation aspect. Due to its large input and relatively shallow network depth, the 3D network cannot rival the performance of the 2D network in the fine segmentation stage. To achieve the network learn context information of 3D CT but minimize the network’s computational requirements, we proposed a 2.5D network. This strategy combines the advantages of 2D and 3D networks. Different from the 2D network, the 2.5D network uses a series of ROI slices with a 4-slice image structure as the input. Interpolation is applied to nodules with less than 4 ROI slices. For nodules with more than 4 ROI slices, every 4 slices of the nodule serve as the input. The network structure is shown in Figure 2.

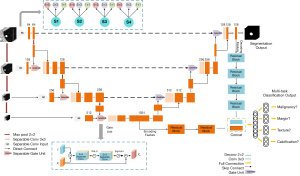

Figure 2 Multitask 2.5D MSU-Net structure. Blue dotted boxes at top and bottom represent structures of the separable convolution and gate unit, respectively. MSU-Net, multiscale separable U-Net; Concat, concatenation operation; Conv, convolution layer.

The proposed network has the following 2 outputs: segmentation and classification. These 2 outputs share the network’s hidden layers and reserve 1 fully connected layer for implementation. This pattern of parameter sharing results in a low probability of overfitting. Due to semantic segmentation, results have a strong correlation with classification characteristics, shared encoding, and the decoding feature that widens the feature space and increases classification performance.

Given the k tasks, the model consists of a shared-bottom network. Two branches from the encoding feature and decoding feature were concatenated after passing the residual blocks. For classification tasks, the shared-bottom network f_share is:

fshare=[resα(fenc),resβ(fdec)][1]

where f_enc represents the encoding branch model, f_dec denotes the decoding branch model, and res represents the residual blocks. In this task, we used 2 residual blocks in the encoding branch and 4 residual blocks in the decoding branch.

For task k, the classification model y_k can be formulated as:

yk=Lk(fshare)[2]

where L^k represents the full connection layer after the shared-bottom network. For the classification task, prediction output is:

yck=softmax(Lk(fshare(x)))[3]

For segmentation, y_s output is:

ys=softmax(Ws*fdec(x))[4]

where W_s is the final convolution operator before output. The output of the multitask network is:

y=[ys,yc1,yc2,…,yck][5]

Output y consists of two parts, which are segmentation output y_s and classification output yc1,yc2,…,yck.

Separable convolution

Previous 2.5D networks stack 2D convolutions as a basic network structure. This strategy causes the 2.5D structure to degrade into a 2D structure. To preserve the hierarchical features of the 2.5D structure and avoid the destruction of 2.5D information by the 2D convolution kernel, we applied separable convolution. Different from the normal convolution operation, separable convolution conducts a convolution operation for each slice-group feature map, as shown in Figure 3. In the encoding path of MSU-Net, separable convolution ensures that the network fully extracts the features in each slice. In the decoding path, the slice-separated features merge for semantic segmentation. This structure can reduce the network’s complexity.

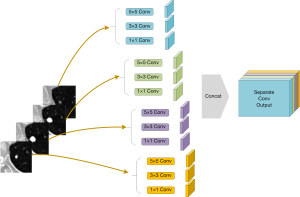

Figure 3 Separable convolution and structure of the multiscale input layer. Concat, concatenation operation; Conv, convolution layer.

Multiscale input layer

A multiscale input layer was applied to merge small-scale to large-scale features. The pyramid pooling structure was the key to forming a 2.5D network. Discrete pixels from the image had different aggregation modes in different imaging scales. The max pool operation reduced the original image to a scale of 2. In the CNN structure, the receptive field was presented as the feature scale that we extracted. Figure 3 shows the structure of a multibranch separable convolution input layer. This operation obtains different feature scales from any input image scale. The convolution outputs of each slice were concatenated for the next operation.

Gate unit

Gate unit operation integrates the multiscale feature and encoding-decoding feature. Due to the convolution operation and non-linearities, detailed spatial information becomes lost in the top-down structure of the encoder, and it is difficult to reduce false-positive predictions for small objects that show large shape variability (15). To prevent missing pixel-level information, we conducted a spatial attention mechanism to improve the accuracy of feature extraction.

Different from the squeeze-and-excitation block extraction of channel attention coefficients (17,27), the gate unit exploits the spatial attention of feature maps. The gate unit fuses the top-down/bottom-up feature with the multiscale-input/encoding feature. The gate unit produces the attention parameter F_att. The concrete formula for calculating F_att is:

Fatt=σ2(W2⊗(σ1(W1⊗(f+Xi))))[6]

For the encoder, f denotes the multiscale feature extracted by separable convolution, X_i represents top-down branch feature maps, σ₂ denotes the sigmoid activation function, and σ₁ denotes the rectified linear unit (ReLU) function. The multiscale feature f and top-down branch feature X_i are summed up, and then pass through 2 convolution layers. The sigmoid activation function was applied to normalize the attention coefficients F_att between 0 and 1.

The output X_o of the gate unit is:

Xo=Xi⊙Fatt[7]

The top-down (bottom-up) feature X_i maps are multiplied with attention coefficients F_att. The attention coefficients can progressively suppress irrelevant background information with different feature scales and can focus on the foreground ROI.

3D network for localization

As the segmentation algorithm is executed, the 3D network plays a vital role throughout the whole process. The network provides 2.5D MSU-Net with ROI slices in the test stage. The missing slice from the coarse segmentation stage would be ignored during the next fine segmentation stage.

To obtain more accurate location information from the coarse segmentation stage, we applied a 3D MU-Net to accomplish this task. The 3D gate unit applied the attention mechanism by fusing 2 types of feature maps. The multiscale strategy was applied to merge different scale inputs with that of the top-down feature maps. These strategies can improve segment performance compared with the traditional 3D U-Net structure without increasing too many parameters.

Loss function

In the medical community, Dice loss is widely applied for segmentation tasks (28). Dice loss is calculated as follows:

DL=1−2∑i=1Npigi∑i=1Npi2+∑i=1Ngi2[8]

where p_i represents the prediction of each pixel, g_i denotes ground truth, and N represents the number of pixels.

Due to the different sizes of the nodules, the loss function must balance the foreground and background pixels. As small nodules, background pixels take up a large percentage of the total pixels. Most of the background pixels can be classified easily. The loss function should be focused on pixels that are difficult to classify. We used the focal loss to solve this problem (29). The loss of the network is:

FL=−∑i=1,gi=1Nα(1−pi)γlogpi−∑i=1,gi=0N(1−α)piγlog(1−pi)[9]

Hyperparameters γ and α control the contribution of hard misclassified pixels and are set as 2 and 0.25. Classification loss can be formulated as:

CL=−1k∑i=1kgcilogpci[10]

where k represents the number of classification tasks and gci and pci denote the label and prediction in task I, respectively. The total loss is as follows:

L=logDL+λFL+CL[11]

When these 3 loss functions are combined, log is used to magnify the Dice loss and hyperparameter λ to shrink focal loss. Hyperparameter λ is set to 0.2 in the experiments.

Evaluation metrics

To investigate the performance of 2.5D MSU-Net and the 2-stage coarse-to-fine strategy, the Dice similarity coefficient (DSC), and overlapping error (OE) were used to measure the performance on pulmonary nodule segmentation. The Jaccard Index and DSCs have been widely used as performance metrics. The OE is calculated based on the 1-Jaccard Index. The DSC is the harmonic mean of precision and recall (30):

DSC(Sg,Sp)=2∗Region(Sg∩Sp)Region(Sg)∪Region(Sp)=2TP2TP+FP+FN[12]

OE(Sg,Sp)=1−Region(Sg∩Sp)Region(Sg∪Sp)=1−TPTP+FP+FN[13]

where S_g is the ground-truth mask; S_p is the predicted segmentation mask; S_g∩S_p and the S_g∪S_p are the interaction and union region of ground truth and prediction, respectively; and TP, FP, and FN represent the true positive, false positive, and false negative, respectively.

The receiver-operating characteristic (ROC) curve and the area under the ROC curve (AUC) were applied to analyze the classification results. Accuracy, sensitivity, and specificity were also used to evaluate the results.

Experiment implementation

For the experiments, we used a dynamic learning rate to prevent overfitting. The learning rate automatically changes when the training loss cannot decrease by 5 epochs. The experiments are based on the PyTorch framework and programmed in Python 3.6. The experiment was carried out on a server with 64 GB memory and 3 NVIDIA GTX-1080 graphics processing units (GPUs).

Results

Dataset

We used the public dataset Lung Image Database Consortium and Image Database Resource Initiative (LIDC-IDRI) (31) to perform the experiments. The tube peak potential energies used for CT scan acquisition ranged from 120 to 140 kV. The tube current ranged from to 627 mA (mean: 222.1 mA) (32). Each case in this dataset was labeled by 4 experienced radiologists. Due to differences in labels between the radiologists, in the present study, all 1,561 collected pulmonary nodules met a 50% consistency criterion. Each nodule was labeled by more than 2 radiologists, and its ground truth voxel points were also labeled by more than 2 radiologists. Furthermore, each nodule in the dataset was assessed by a panel that considered the nodule’s likelihood for malignancy, based on 8 nodule characteristics (33).

Five sections were used for 5-fold cross-validation to make the results more reliable (34). We use a pretrained U-Net and Gaussian mixture model for data division (35). This method ensures that the nodules in each section have a similar statistical distribution. Tables 1,2 show the characteristic distribution of each fold. Nodule diameters in this research ranged from 4 to 50 mm. As shown in Table 1 and Figure 4, the nodules were concentrated at a diameter of 10–15 mm.

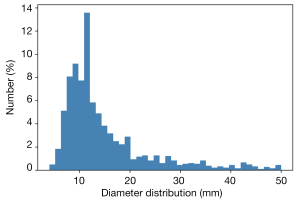

Figure 4 Distribution of nodule diameters.

Some researchers have applied the generative adversarial network (GAN) to augment the pulmonary nodule dataset. CT surroundings and nodule segments were used to generate the synthetic nodule samples (36,37). However, for some synthetic nodules, it was difficult to develop an accurate label for their malignant risk, texture, and calcification characteristic. Moreover, the augmentation amount required for this task was relatively small. Therefore, each characteristic was augmented by rotation, flipping, and scaling operations. Data distribution in the augmented dataset is shown in Table 3.

Coarse stage segmentation

Our method was constructed in 2 stages. The localization stage was applied to locate the appearance slices of the nodule, and the refinement stage was applied to precisely segment the nodule’s edge and characteristics classification.

We used 5-fold cross-validation to improve the reliability of the results. The 5 folds shown in Table 1 were divided into 3 training sets, 1 validation set, and 1 test set for each training phase. Therefore, each model used for the experiment collects 5 sets of experimental results. Each 3D nodule cube was extracted with a pixel size of 64×64×64. We used 3 popular 3D segmentation networks—3D U-Net (38), V-Net (28), and 3D FCN (14), as baselines to perform a comparison of the network performance.

Table 4 shows the results for the localization segmentation stage of the pulmonary nodule. The implementations of 3D FCN and 3D U-Net were borrowed from the semantic segmentation methods code base (39). The V-Net is provided by the code base (40). The parameter sizes of 3D FCN, V-Net, 3D U-Net, and 3D MU-Net were 15.40, 19.40, 25.88, and 25.97 M (M =10⁶), respectively. The MU-Net achieved a 0.46% higher Dice with a 0.1 M parameter size increase compared with that of the U-Net 3D model, which verified that the multiscale input structure was effective for segmentation of the network’s performance.

Refinement stage segmentation

For the refinement training procedure, each input of 2.5D data consisted of 4 continuous image slices for the pulmonary nodule. We compared our method to 5 other semantic segmentation networks as follows: U-Net (13), attention U-Net (15), R2U-Net (16), nested U-Net (41), and DeepLabV3 (42). We also conducted an ablation study to measure the performance of the 2.5D strategy and MSU-Net separately. For the 2.5D strategy, we compared 2.5D segmentation methods with their 2D structure. Networks with 2.5D separable convolution strategy were used to verify the significance of separable convolution in the encoding path of U-shape structures.

Table 5 shows the results of the refinement segmentation stage of the algorithm. The U-Net family networks—U-Net, attention U-Net, R2U-Net, and nested-U-Net—use different feature merge techniques, such as the attention mechanism and recurrent convolution strategy. The 2.5D convolution neural networks achieved a 2.26% higher Dice and 2.66% lower OE compared with those 2D networks on average. The 2.5D neural network achieved a significant improvement compared with its 2D version. 2.5D MSU-Net obtained the highest Dice and the lowest OE compared with those of other networks. The S-Network parameters were reduced by approximately 3 times compared with those of the 2.5D networks. As shown by the results in Table 5, the proposed network MSU-Net achieved the best performance.

To demonstrate that the performance of the proposed method was comparable to the results obtained by human experts, we implemented a consistency comparison between the method’s prediction and 4 radiologists’ hand labels. Table 6 shows that the DSC between each radiologist and proposed method was 82.9% on average, which was 0.39% higher than that of the inter-radiologist result. Moreover, the results also showed that the proposed method achieved a more stable performance than that of human experts.

Multitask classification

To assess the performance of the dual feature branch (encoding and decoding feature) concatenated in MSU-Net, we used the single-branch (encoding/decoding feature branch) networks as baseline models. The encoding/decoding feature coupled with a random forest classifier model served as the experimental comparison.

Table 7 shows the performance results of multitask prediction performance for each method. For the malignancy, margin, texture, and calcification characteristics, the MSU-Net achieved a mean accuracy of 77.8%, 75.6%, 85.2%, and 87.10%; mean sensitivity of 83.4%, 81.4%, 92.7%, and 92.4%; mean specificity of 76.2%, 81.4%, 78.2%, and 80%; and mean AUC of 84.3%, 83.2%, 90.6%, and 90.1%. The performance of MSU-Net was better than the baselines. Figure 5 shows the ROC curve and AUC for each task. The random forest model was set with 50 trees and 1,500 features, and the results indicated that the machine learning methods cannot predict multitask situations well. The AUCs suggested that the dual-feature branch concatenation in MSU-Net had better capability for feature extraction and multitask classification.

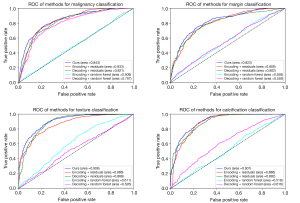

Figure 5 ROC curve of classification results for malignancy, margin, texture, and calcification of each method. Area represents the area under the ROC of each model. ROC, receiver-operating characteristic.

Discussion

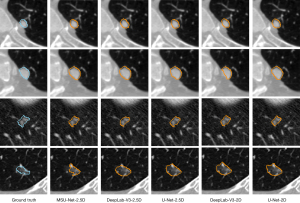

A visual comparison of the segmentation results using different methods is shown in Figure 6. From top to bottom, a small juxta-pleural nodule (diameter <6 mm), large juxta-pleural nodule, small and isolated nodule, and GGO are shown. All networks work well for the juxta-pleural nodules. For the small and isolated nodule, these networks also performed well, while for the DeepLabV3-2.5D network, these were slightly inferior to those of other networks. The prediction result of MSU-Net was closest to the ground truth, as it possessed the most detailed contour information. For GGO, the predictions for all networks included a partition of the surrounding material.

Figure 6 Visual comparison of the prediction edges of different networks. Blue and orange lines depict the ground truth and predicted contours, respectively. MSU-Net, multiscale separable U-Net.

Table 8 shows the performance of several different methods. Tachibana et al. applied a distance-transformation method and watershed method to segment nodules automatically (43). Wang et al. adopted the dynamic programming and a multidirectional fusion strategy for constructing the algorithm (44). These 2 traditional methods did not work well for juxta-pleural nodules and small nodules. Wang et al. and Cao et al. each used a dual branch structure for segmentation (46,48); Messay et al. used a semi-automated system to improve segmentation performance (45); Singadkar et al. introduced the deconvolution residual blocks into 2D U-Net (49); and Pezzano et al. proposed the CoLe-CNN, which was focused on the nodule images’ context learning and loss calculation (50). These 6 networks are all a 1-stage structure. The general segmentation framework nnU-Net (51) is a 2-stage structure with 2 cascaded 3D U-Net segment nodule edges from a large to small scale. According to Table 8, the deconvolution residual network achieved better results than the proposed method. However, based on a larger dataset, the proposed method exhibited good segmentation performance. The localization step can limit the target nodule to a series of slices. The 2.5D MSU-Net can perform finer edge segmentation in a smaller range.

We also performed segmentation tests on each type of nodule. As shown in Table 9, the nodules with fuzzy edges or non-solid internal structure achieved relatively poor segmentation results, and the nodules with calcification or clear edges are better segmented. The experiment results show that the proposed method achieves 81.1% or more DSC and 31.4% or less OE performance on all kinds of nodules.

Pulmonary nodule segmentation and malignancy classification achieved significant improvement in clinical applications. The precise segmentation of the nodule boundary aids the network to accurately predict its shape characteristics and malignant risk. The segmentation and classification outputs of MSU-Net are shown in Figure 7. The classification predictions were given in a probability format, and the threshold in the present study was set to 0.5 to balance the sensitivity and specificity. The probability of malignancy indicates the likelihood that a nodule is benign or malignant. Moreover, when the threshold was set to 0.65, the prediction precision (TPTP+FP) reached 94.7%; for those nodules with prediction probability below 0.35, the benign-precision (TNTN+FN) reached 94.1%. Based on this probability, we can preliminarily determine the nodules as benign or malignant.

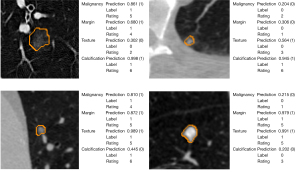

Figure 7 Segmentation output and classification output of the MSU-Net (0.5 threshold). Orange lines depict the predicted contours. MSU-Net, multiscale separable U-Net.

There are some limitations to the present study. Figure 8 shows the nodules with large deviations between prediction and ground truth, Figure 8A,8B are pure ground glass nodules; and Figure 8C is a juxta-vascular. Due to the indistinguishable edge, the present study has limitations in the segmentation of these 2 kinds of nodules. For the multitask classification, because of the small number for certain characteristics in the dataset, we had to augment the dataset for each characteristic, which may lead to model overfitting. Moreover, due to the limitation of the LIDC-IDRI dataset, we were unable to obtain more important characteristics of the nodules.

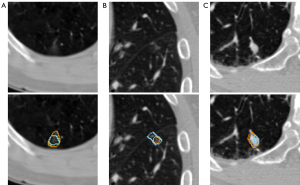

Figure 8 Nodules with large deviation between prediction and ground truth. (A,B) Performance of the proposed method on pure ground glass nodules. (C) Prediction result on juxta-vascular. Blue and orange lines depict the ground truth and predicted contours, respectively.

Several improvements can be investigated in further research. First, the deconvolutional residual blocks could replace the rescale operation in the decoder of MSU-Net (48); the 2.5D strategy could extract more inter-layer information through spatial transformation, such as squeeze-and-excitation operation (17). These strategies could be used to potentially improve the segmentation performance. Second, for malignant risk prediction, the model could be finetuned by expert labels by weighting more significant features in difficulty cases. Finally, more clinical data with accurate edge and characteristic labels should be collected to improve the generalization performance of the method.

This coarse-to-fine algorithm operates within an end-to-end framework. The nodule’s contour and characteristics can be predicted simultaneously. These predictions may help doctors achieve a clear understanding of the nodule’s morphological characteristics and quantitative information. Doctors can refer to the probability of malignancy given by the network to form a preliminary judgment of the nodule.

Conclusions

In the present study, we proposed a coarse-to-fine framework for pulmonary nodule segmentation and classification. This framework was composed of a 3D MU-Net as the localization network and a multitask 2.5D MSU-Net as the refinement network. The novel 2.5D network was used to extract hierarchical features from the 3D CT. Moreover, features from the encoding and decoding paths of MSU-Net could be used to improve nodule classification accuracy by widening the feature space. Our method achieved state-of-the-art results in the LIDC-IDRI dataset for both nodule segmentation and classification. Therefore, this method can help radiologists obtain a more accurate nodule contour with quantitative nodule analysis and malignancy risk prediction.
