Baseline retinal thickness measurements with a novel integrated imaging system (concurrent optical coherence tomography and fundus photography) positively correlates with spectralis optical coherence tomography

Introduction

In the last decade, optical coherence tomography (OCT) has become a mainstay in providing high-resolution, quantitative measurements in retinal evaluation. The retinal thickness measurements with different OCT imaging systems e.g., Heidelberg Spectralis and Zeiss Stratus has been well documented with established variations in measurement (1-5). Retinal thickness measurements in normal-appearing eyes additionally differ based on patient age, sex, ethnicity, and refractive error with older age, female gender, African American ethnicity, and degree of myopia (myopia of >5D have thinner retinal thickness measurements) (1,2).

Fundus photographs are routinely obtained (Zeiss, Topcon) in addition to OCT in evaluation and management of retinal disorders. Traditional fundus photographs (flash based) record 30–45° of the retina, and require pupillary dilation. Nine-field imaging is utilized to obtain image of larger area of retina. Confocal fundus cameras based on confocal imaging technology (Optos, Clarus, RetCam, Panoret) may provide a wide field of view (up to 200°). Typically, OCT and fundus photography are performed separately. In addition to OCT, fundus photographs are routine in the documentation of retinal disease and treatment course.

The Optos Monaco Integrated Imaging System Optical Coherence Tomography (MIIS-SD OCT), a novel instrument, acquires ultra-widefield (UWF) fundus photographs (200°) as well OCT images concurrently with confocal technology and obviates the need for two separate tests. The increasing speed of data collection (A-Scan rate up to 70k cycles per second) allows enhanced resolution and better delineation of retinal layers with the assistance of built-in active eye tracking and automatic scan positioning. This unique capability of the MIIS-SD OCT reduces image acquisition time and permits improved clinic flow as both studies are completed simultaneously instead of independently. Although OCT scans may help detect morphological alterations in the retina, in the absence of normative data, it is difficult to obtain objective quantitative comparison between scans.

In this study, we sought to establish the comparative normative data for clinical use and to investigate differences in retinal thickness both in central subfoveal, as well as eight perifoveal subfields between MIIS-SD OCT and Spectralis OCT. In addition, we assessed the quality of UWF fundus photographs that were obtained in tandem in all subjects.

Methods

This is a cross-sectional study comparing retinal thickness measurements between Monaco and spectralis OCT in normal healthy subjects without known retinal disease. Study approval was obtained from the local institutional review board. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). A written study consent was obtained as study procedures were part of routine clinical testing. Eligible study subjects were at least 18 years of age with no history of known ocular pathology, medical treatment for retinal disorders, or therapy that may have affected the structural integrity of the retina. Each subject underwent a complete ophthalmologic examination, best-corrected visual acuity (BCVA) testing utilizing the ETDRS charts, tonometry, and anterior and posterior segment examination. Exclusion criteria included history of ocular disease, intraocular pressure >21 mmHg, history of intraocular laser or surgical treatment, BCVA <20/20, and refractive error ±0.50 Diopters.

Heidelberg Spectralis OCT images were obtained with the OCT camera, which centers on the subject’s fovea while the operator of the OCT camera monitored stability of foveal fixation using an infrared camera. The measured scan extended from the vitreoretinal interface to the outer portion of the retinal pigmented epithelium-Bruch’s membrane complex and images were obtained through dilated pupil. Retinal thickness is defined by the distance between these two interfaces at each point along the x-axis. Axial and transverse OCT macular scans were 7 µm and 10 µm, respectively with production of an 8.9 mm × 8.9 mm macular OCT image. Cross-sectional scans were analyzed using incorporated software with subsequent generation of mathematical values of retinal thickness.

The Optos Monaco UWF imaging device with integrated OCT was used to generate a 200° single-capture optomap fundus photograph with cross-sectional 40° spectral-domain OCT scans in a single comprehensive view (Figure 1A,1B). The scanning laser ophthalmoscope technology combined with an ellipsoid mirror allowed for simultaneous acquisition of an optomap ultra-widefield image and OCT scan. Pupillary dilation was not required. Monaco OCT images were generated with the Monaco OCT camera, which uses a blue target as the patient looks into the device. The operator of the OCT camera monitored the correct orientation without need for focusing given built-in automatic scan-positioning. Similar to Heidelberg Spectralis OCT, the program maps the foveal umbo, and the surrounding 1.5 mm² area extending from the interface to the outer portion of the retinal pigmented epithelium-Bruch’s membrane complex.

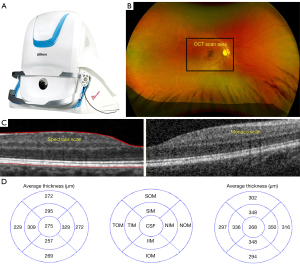

Figure 1 Optos Monaco fundus photography and optical coherence tomography (OCT) scan as compared with Heidelberg Spectralis OCT. (A) Representative image of the Optos Monaco Integrated Imaging System Optical Coherence Tomography. (B) Demonstrative fundus photo obtained by the Optos Monaco Imaging System. Up to 200° of the retina are observable with the imaging device. (C) Cross-section of the macula by MIIS-SD OCT (right) and Heidelberg Spectralis OCT (left). Demonstration of retinal segmentation from anterior to posterior retinal surface in measurement of retinal thickness by MIIS-SD OCT on the right and Heidelberg Spectralis on the left. (D) Average retinal thickness obtained in subset of patients utilizing the nine ETDRS subfields on MIIS-SD OCT and Heidelberg Spectralis OCT with radii of curvature of circles 1, 3, and 6 mm, respectively. Description of ETDRS subfields: CST, central subfield; SIM, superior inner macula; SOM, superior outer macula; NIM, nasal inner macula; NOM, nasal outer macula; IIM, inferior inner macula; IOM, inferior outer macula; TIM, temporal inner macula; TOM, temporal outer macula.

Retinal thickness was defined by the distance between these two interfaces at each point along the x-axis. Each OCT image has an axial and transverse resolution of 10 µm and 20 µm, respectively with production of a 12 mm × 9 mm macular OCT image.

Image J measuring tools (National Institute of Health, Bethesda, MD, USA) was calibrated using the built-in 200 µm legend of Heidelberg report. The measured scan generated by the MIIS-SD OCT spanned the same area measured by the Heidelberg OCT. Images acquired by the MIIS-SD OCT were measured using the caliper tool. We utilized the retinal map analysis protocol for both the MIIS-SD OCT and Heidelberg Spectralis OCT to average retinal thickness measurements including central subfield thickness (CST) and central point thickness (CPT) (Figure 1C,1D). CST was defined by the average of all points within the inner circular area of 1 mm radius centered on the umbo. CPT was defined by the direct subfoveal thickness from the inner aspect of the foveola extending to the outer portion of the retinal pigmented epithelium for all thirty-four eyes (Figure 2A,2B). The MIIS-SD OCT CPT scans were correlated to the “center” measurement in the Heidelberg Spectralis OCT report as well as the subfield foveal thickness (CST). An example of a pathological OCT scan demonstrating an epiretinal membrane is also included for comparison to our study subjects (Figure 2C). We also obtained average measurements for each of the eight subfield segments (four inner and four outer zones) as defined by the Early Treatment Diabetic Retinopathy Study (ETDRS) in a subset of our patients (10 total subjects) (6). Inner, intermediate, and outer rings with radii of 1, 3, and 6 mm, respectively, were used for analyses (Figure 2B). Results were then analyzed using the Student’s t-test/ANOVA test (InStat, version 3.06; GraphPad, San Diego, CA, USA) for the comparison of means and the Pearson coefficient test for the correlation studies.

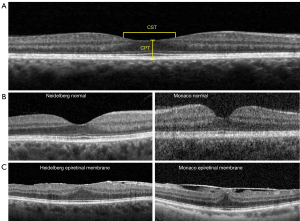

Figure 2 Optical coherence tomography (OCT) scan of the macula with demonstration of (A) Central Point Thickness (CPT) and Central Subfield Thickness (CST) measurements along with a side-by-side comparison of the Heidelberg (left) and Monaco (right) OCT scans, including both (B) normal and (C) pathological scans.

Results

Demographics

Thirty-four eyes of 17 patients were included in the study with a spread amongst all races (eyes included 12 White/Caucasian, 12 Asian, 10, Black/African American). Serial OCT scans were performed with both MIIS-SD OCT and Heidelberg Spectralis OCT imaging systems on all subjects (Figure 2B). The mean age of the participants was 40 years of age (SD ±9 years old). There was a total of 6 males and 11 females in the study population. Subjects had a negligible refractive error of ±0.50 Diopters without any ocular morbidity.

Fundus photography

Optos Monaco generated wide-angle fundus photographs (200°) with simultaneous spectral-domain OCT in all subjects without the need for pupillary dilation (Figure 1). The integrated imaging modality allowed for a rapid, yet wide-ranging view of the central pole, thus permitting a detailed view of the macula. Stereo images allowed for pairing for optic disc and retinal evaluation. Fundus parameters including disc, macula, vasculature and periphery were normal in all subjects.

CPT

The mean CPT using the MIIS-SD OCT was 268.55 µm with a SD ±20.70 µm (for a confidence interval of 95%, the standard margin of error was 268.5588±6.96 (±2.59%). While using the Heidelberg Spectralis OCT, the mean thickness obtained was 230.67 µm with a SD ±17.75 µm [for a confidence interval of 95%, the standard margin of error was 230.6765±5.969 (±2.59%)]. The r-value was 0.5697, P<0.0004.

CST

The mean CST using the MIIS-SD OCT was 300.53 µm with a SD ±22.81 µm [for a confidence interval of 95%, the standard margin of error was 300.53±7.67 (±2.55%)]. While using the Heidelberg OCT, the mean thickness obtained was 265.18 µm with a SD ±17.33 µm [for a confidence interval of 95%, the standard margin of error was 265.18±5.83 (±2.20%)]. The r-value was 0.5285, P<0.0013.

ETDRS subfield analysis

Mean retinal thickness in ETDRS subfields, as measured by MIIS-SD OCT and Heidelberg Spectralis OCT in a subset of our patients is shown in Table 1. Mean retinal thickness was highest in the nasal inner and outer fields in both MIIS and Heidelberg Spectralis OCT. The mean difference between retinal thicknesses was 44.88 µm (range, 21–91 µm) in the eight ETDRS subfields. Pearson correlation coefficient ranged from 0.51 to 0.60. The relationship between MIIS-SD OCT and Heidelberg Spectralis OCT central subfield foveal thickness was calculated. The r-value was 0.53, P<0.05 (Figure 3).

Figure 3 Correlation graph of Central Subfield Thickness (CST) and Central Point Thickness (CPT) measurements (µm) by MIIS-SD OCT and Heidelberg Spectralis OCT. (A) Demonstration of CST and (B) CPT utilizing both imaging modalities.

Discussion

During the last decade, OCT has become a clinically useful imaging modality in providing high-resolution, quantitative data in the evaluation of macular thickness and management of retinal pathology. Previous studies have validated the reproducibility and reliability of measurements of retinal thickness (1-5). Our study is the first of its kind to demonstrate that the retinal thickness measured with MIIS-SD OCT is comparable to thickness data obtained by Spectralis OCT in healthy individuals without retinal pathology.

In concordance with the Heidelberg Spectralis and other OCT imaging systems, MIIS-SD OCT demonstrated similar trends in macular thickness measurements. The thinnest area of retinal thickness was indeed within the fovea, with increased parafoveal thickness, and gradual decrease in perifoveal thickness (7-9). The difference across subfield thickness (being higher in inner subfields than outer) is consistent with other high-resolution OCTs in healthy subjects (10). This normative data is consistent with the normal macular contour.

The imaging technique utilized by the MIIS-SD OCT was able to render an overall CSF that is thinner than the average described by Grover et al. (2). Measurement of retinal thickness in MIIS-SD OCT relies on definition of the anterior and posterior retinal surfaces. This variation in macular thickness measurement seen with the Monaco OCT could be due to differences in definition of the retinal boundary, which is different in various OCT instruments (8,11). It is almost apparent that the cross-section displays a retinal pigment epithelium (RPE) and Bruch’s membrane complex that is thicker than in the Heidelberg Spectralis imaging system. MIIS SD-OCT additionally allows for detailed mapping of the macula, whereby macular thickness is derived from more data points (70,000 axial scans/image) leading to more reproducible results (11-15).

In our study, within the 9 ETDRS subfields, retinal thickness in the 1 mm region was the thinnest; nasal zone of the 3 mm the thickest, and temporal portion of the 6 mm zone the thinnest. The area of the macula within 3 mm of the center is the thickest, and decreases towards the outer 6 mm region. Our results are in concordance with similar quantitative measurements performed on the Cirrus and Stratus OCTs (10,16). Additionally, retinal thickness was maximal in the nasal inner quadrant with the OCT Monaco (in contrast to maximal retinal thickness in the nasal outer quadrant with Spectralis), secondary to the use of different radii of curvature in the studies (2).

Differences between Cirrus and Heidelberg Spectralis OCT have been reported and our study adds a new OCT imaging modality similar to these. Previous studies have evaluated macular thickness measurements in healthy eyes using different OCT instruments. One study found that six different OCT systems provided different results for CRT, with measurements with the Cirrus HD-OCT (276±17 µm in right eye and 277±21 µm in left eye) and Heidelberg Spectralis HRA+OCT yielding the highest values (16). Other studies utilizing the Heidelberg Spectralis instrument have demonstrated mean CST thickness in the range of 270±23–24 µm (3,7). In our study, the Heidelberg Spectralis OCT yielded a mean CST thickness of 265.18 µm with a SD ±17.33 µm. Discrepancies seen in measuring macular thickness have been attributed to differences in retinal segmentation algorithms utilized by the various OCT devices or sample size. Cirrus HD-OCT and Heidelberg Spectralis HRA+OCT include the RPE layer in measurements, whereas other systems do not. The MIIS SD-OCT includes the RPE layer in measurements (like the Cirrus and Heidelberg Spectralis imaging systems) and yields an average thicker macular thickness (268.55±20.39 µm) as demonstrated in our study. Based on the data, different OCT devices cannot be used interchangeably to measure retinal thickness. However, they are all likely to detect underlying pathology as they are based on the same optical principle.

Traditional retinal practice often entails acquisition of fundus images as well as OCT as part of clinical care. Flash photography (e.g., Zeiss) in conjunction with pupillary dilation typically captures 30–45° of the retina. Recently non-contact, often non-mydriatic UWF imaging (Optos confocal scanning laser ophthalmoscopy, Dunfermline, UK) is used to acquire wide angle photographs. Hence two separate devices are required (fundus photography and OCT) and serial testing adds to wait time and negatively affects patient flow.

The Optos Monaco UWF device with an integrated OCT imaging system features a 200° single-capture optomap fundus photograph with quick acquisition time and concurrent high-resolution OCT images. Its ease of use (built-in active eye tracking and automatic scan-positioning) enables a fast (in as little as 60 seconds to produce a single-capture retinal image with 6-image panel including color, AF, OCT), multimodality image overview without the need for pupillary dilation, and obviates the need for separate fundus photography and OCT devices. Ultra wide angle photographs may additionally reveal peripheral retinal pathology (despite small pupils) outside the field of view of traditional small-field fundus photography and improve disease detection (2C), documentation, and management without compromising practice efficiency.

In conclusion, this study provides the first report of normative OCT data utilizing the Optos Monaco Integrated Imaging System in quantitative estimation of retinal thickness. MIIS-SD OCT retinal thickness measurements strongly correlated with and is comparable to the Heidelberg Spectralis OCT. Simultaneous high-resolution 200° single-capture fundus photographs is an added benefit in evaluation and management of retinal pathologies.
