Percutaneous contrast-enhanced ultrasound for localization and qualitative diagnosis of sentinel lymph nodes in cutaneous malignant melanoma of lower extremities: a preliminary study

Introduction

Cutaneous malignant melanoma (CMM) is a malignant tumor occurring in melanocytes in the basal layer of the epidermis, whose morbidity and mortality are increasing globally (1). It has been reported that CMM is becoming one of the cancers with the fastest-growing incidence, thus resulting in a growing public health burden worldwide (2). Besides endogenous risk factors, such as fair skin type or genetic predisposition for forming multiple nevi, exposure to ultraviolet light is the most important exogenous risk factor (3). CMM is known to spread via the lymphatic system primarily. Therefore, the presence or absence of metastatic regional lymph nodes (LNs) is of obvious importance for staging, prognosis, and determination of the treatment means for the patient (4,5).

In 1977, Cabanas first reported the presence of sentinel lymph nodes (SLN) in penile carcinoma and its significance in clinical treatment (6). In the early 1990s, identification and SLN biopsy (SLNB) in clinical node stage 0 (N0) cutaneous melanoma was first reported by Morton et al. (7). The SLN is defined as the first node in the regional LN drainage basin to drain the lymph fluid around the primary tumor. Tumor cells first metastasize to the SLN and then to the next LN level. With no histological evidence of SLN metastases, the risk of regional lymphatic spread is small. At present, standard treatment strategies include wide excision of the primary tumor and SLNB to assess the status of the regional nodal basin(s) (8,9).

Identification and location of the SLN is a prerequisite for SLNB. The combined application of biological dyes and radionuclides is the current gold standard for localizing the SLN (10,11). The standard protocol involves preoperative lymphoscintigraphy using an injection of radiopharmaceuticals and intraoperative injection of vital blue (VB) dye. VB provides visual identification of draining lymphatic channels (LCs) and SLNs. An intraoperatively hand-held gamma probe is used to identify radioactive LNs. SLNs are identified through the colocalization of radiotracer and VB dye uptake (12). However, there are some drawbacks to this method. First, Technetium sulfur colloid and VB can identify secondary echelon LNs, resulting in unnecessary extensive nodal dissection (13). Secondly, radioactive materials increase the risk of radiation exposure and add to medical costs. Thirdly, lymphoscintigraphy cannot provide information regarding the presence of metastatic infiltration in the SLNs (12). Hence, some studies have been focusing on new sentinel node tracer technology, for example, superparamagnetic iron oxide (SPIO) nanoparticles (14,15) and indocyanine green (ICG) fluorescence imaging (16).

Over recent years, percutaneous contrast-enhanced ultrasound (pCEUS) has been extensively investigated to evaluate SLNs in breast cancer, revealing that SLCs and SLNs could be preoperatively detected with high accuracy (17-19). Nevertheless, to the best of our knowledge, there are few studies on the evaluation of SLN in CMM using pCEUS, and these studies draw inconsistent conclusions. Animal studies showed that pCEUS could detect SLNs in CMM and depict metastases within the SLN (12,20-22). However, the only research that included humans did not support the use of pCEUS to detect SLNs in humans (23). Therefore, more studies are needed to clarify the role of pCEUS in the SLN evaluation of CMM.

Methods

The study was conducted following the Declaration of Helsinki (as revised in 2013). Furthermore, our study was approved by the West China Hospital of Sichuan University Ethics Committee, and written informed consent was obtained from all patients.

Study sample

Patients with CMM of the lower extremities who were scheduled for surgery and SLNB at the West China Hospital of Sichuan University between April 2019 and October 2020 were prospectively recruited into the study. Exclusion criteria included: multiple tumors, pregnancy, allergy to the contrast agent, LN involvement by physical examination, clinical suspicion of extranodal dissemination, and severe concomitant disease. The diagnosis of primary cutaneous melanoma was confirmed by a pathologic specimen.

Ultrasound (US) examination

All patients underwent US examination one day before surgery, which was performed by an experienced sonographer. A Philips iU22 scanner (Amsterdam, The Netherlands) equipped with high-frequency linear array probes (9-3 MHz) and contrast pulse sequences (CPS) was used. Low mechanical index (MI) values were applied (MI: 0.06) to reduce microbubble destruction. The patient remained supine during the examination with adequate leakage of the affected lower extremities and bilateral groin. The relevant LN region was examined using a gray-scale US before injection of the contrast agent to get the general idea of the position of LNs. In addition, the popliteal fossa and the groin of the ipsilateral side of the primary tumor were explored. Meanwhile, the contralateral groin was routinely explored.

The microbubbles (SonoVue, Bracco, Milan, Italy) used as a contrast agent were reconstituted with 5 mL of saline (NaCl 0.9%) and fully oscillated for use. As shown in Figure 1, 0.5 mL of SonoVue suspension was subcutaneously injected at each of four symmetric points 5 mm around the tumor or surgical incision (total of 2.0 mL). The injection site was continuously massaged for at least one minute to promote the drainage of the contrast agent to the LCs. Then, the area was examined for enhanced LNs and LCs draining from the injection site toward the regional LN basin. The first or first group of LNs along the enhanced LCs was considered as SLN/s (Figure 2).

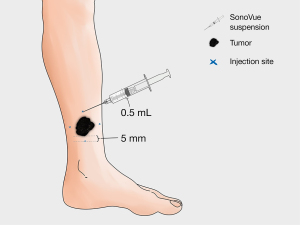

Figure 1 Scheme map for the injection method.

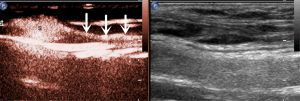

Figure 2 pCEUS identified SLN (S) along with enhanced LC (arrows). pCEUS, percutaneous contrast-enhanced ultrasound; SLN, sentinel lymph node; LC, lymphatic channel.

Meanwhile, lymphatic drainage patterns (LDPs) were observed. The corresponding location of the SLNs was marked on the body surface for SLNB purposes. The scanning lasted for 5 min, and if no enhanced LCs or LNs were found, SLN localization was considered as having failed.

Treatment options

Routine surgery was then performed with SLNB and wide local excision (WLE). The marked SLNs were sent separately for pathological examination by hematoxylin-eosin (HE) and immunohistochemistry (IHC). The following indicators were used: S-100, HMB45, MelanA, MART-1, MITF, and Ki-67. Finally, a completion LN dissection (CLND) was performed if the SLNs were positive for metastases.

The postoperative follow-up evaluation included physical examination, chest X-ray, and US assessment of the regional nodal basins. In addition, further investigations, including computed tomography (CT) scan, magnetic resonance imaging (MRI), and/or positron emission tomography (PET) scan were also performed selectively to confirm abnormal findings suggestive of metastatic melanoma.

Statistical analysis

The Statistical Program for the Social Sciences (SPSS) software (Version 20.0, IBM, Armonk, NY, USA) was used for statistical analysis. The corresponding statistical description and analysis methods were selected according to the data distribution. The pathological results were used as the gold standard to calculate the sensitivity and specificity of pCEUS for the diagnosis of SLN metastasis. Fisher’s exact test was used to compare the difference in recurrence or metastasis rates between the two groups (patients with negative SLNs vs. patients with positive SLNs). A two-sided P value less than 0.05 was considered as indicating statistical significance.

Results

Patients

From April 2019 to October 2020, 53 selected patients with primary cutaneous melanoma were enrolled to undergo pCEUS studies before performing WLE and SLNB at the West China Hospital of Sichuan University. Clinical characteristics of the study sample are presented in Table 1. The mean age was 59±15 years, and 29 patients were female. The average height was 159.6±8.7 cm, and the average weight was 62.8±11.5 kg. In our study population, 46 patients had a cutaneous melanoma on the foot, 3 patients had melanoma on the lower leg, 2 patients on one of the thighs, 1 patient on one of the knees, and 1 patient on one of the ankles.

pCEUS

No adverse reactions occurred during the pCEUS examination and within one week after the examination. In 48 out of 53 CMM cases, enhanced LC draining from the primary lesion was clearly visualized, and the SLNs that enhanced LCs were located. The identification rates of pCEUS for SLNs were 90.6% (48/53). In the 48 successful cases, only one SLN was detected on pCEUS in 37 cases (77.1%), and 11 cases (22.9%) had two visualized SLNs. In total, 59 SLNs were detected by pCEUS averaging 1.23±0.42 SLNs per case. All SLNs were located in the ipsilateral inguinal region. Regarding the remaining 5 cases, there were no enhanced LCs or LNs in 4 of them, while a short segment of a lymphatic vessel was identified in 1 patient.

LDP detection by pCEUS

In this study, we also observed the pattern of lymphatic drainage. The following main patterns were identified (Figures 3,4): (I) one enhanced LC pointed to one SLN, which was the most common pattern (21 cases); (II) one enhanced LC pointed to more than one SLN (4 cases); (III) multiple enhanced LCs pointed to one SLN (15 cases); (IV) multiple enhanced LCs pointed to multiple SLNs (8 cases).

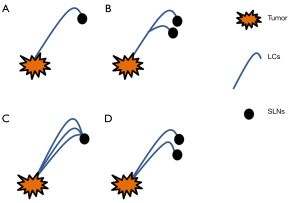

Figure 3 Lymphatic drainage patterns in 4 types. (A) One enhanced LC pointed to one SLN. (B) One enhanced LC pointed to more than one SLN. (C) Multiple enhanced LCs pointed to one SLN. (D) Multiple enhanced LCs pointed to multiple SLNs. LC, lymphatic channel; SLN, sentinel lymph node.

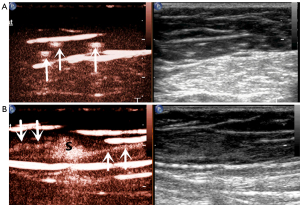

Figure 4 Multiple enhanced LCs (arrows) pointed to one SLN (S). (A) Cross section of LCs. (B) Longitudinal section of LCs. LC, lymphatic channel; SLN, sentinel lymph node.

Enhancing pattern of pCEUS

According to different enhancement features of SLNs, we divided enhancing patterns into the following four types: (I) type 1, overall uniform enhancement (Figure 5A); (II) type 2, annular enhancement with low or no center enhancement (Figure 5B); (III) type 3, overall uneven enhancement with a mixture of high and low enhancement (Figure 5C); and (IV) type 4, no enhancement or weak enhancement of the node connected with enhanced LCs (Figure 5D). Among the 59 SLNs detected in our study, there were 11 of type 1 (18.6%), 26 of type 2 (44.1%), 16 of type 3 (27.1%), and 6 of type 4 (10.2%).

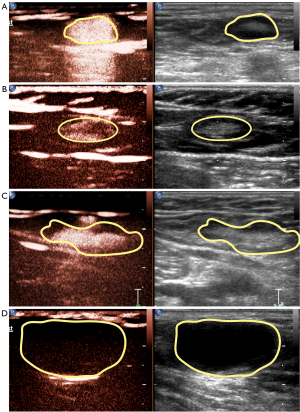

Figure 5 pCEUS enhancement of SLNs in 4 types. (A) Overall uniform enhancement. (B) Annular enhancement with low or no center enhancement. (C) Overall uneven enhancement with a mixture of high and low enhancement. (D) No enhancement or weak enhancement of the node connected with enhanced LCs. The yellow circles indicate the marginal outline of the lymph node. pCEUS, percutaneous contrast-enhanced ultrasound; SLN, sentinel lymph node; LC, lymphatic channel.

SLNs qualitatively assessed by pCEUS

Among four pCEUS enhancing patterns, type 1 and type 2 were considered benign SLNs, and type 3 and type 4 were considered metastatic SLNs. Hence, CEUS findings indicated 37 negative SLNs and 22 positive SLNs. According to pathological diagnosis, there were 48 negative SLNs and 11 positive SLNs. Thus, the sensitivity and specificity of CEUS for the diagnosis of SLN were 90.9% (10/11) and 75.0% (36/48), respectively (Table 2).

Post-surgical follow-up

Thirty-two of the 53 patients were followed up successfully, including 21 patients with positive SLNs and 11 patients with negative SLNs defined by pCEUS. The median follow-up time was 7 months (range, 1–16 months). In the positive group, 4 patients developed distant metastases (lung, bone), and 1 patient had regional LN recurrence. The rate of recurrence or metastases in the SLNs positive group was 45.5% (5/11). In the negative group, 1 patient developed surgical site recurrence, and 1 patient developed pulmonary metastasis, but no regional LN abnormality was found. The rate of recurrence or metastases in SLNs in the negative group was 9.5% (2/21). The difference between the two groups was statistically significant (P<0.05).

Discussion

CMM is the most aggressive type of skin cancer, accounting for 90% of all skin cancer-related mortalities (24). Although melanoma incidence remains low in China, it has rapidly increased, with approximately 20,000 new cases reported each year (25). Among Chinese people, primary melanoma of the extremities accounts for about 50% of primary melanomas, where the most common primary sites include feet, fingers, and lower extremities (26). Therefore, as a preliminary study, we only included patients with CMM of the lower extremities.

LN status is the most important prognostic factor in CMM. Current guidelines for treating cutaneous melanoma recommend SLNB for melanomas with Breslow depth greater than 1 mm or tumors with less than 1 mm in depth and with certain high-risk features, followed by CLND, if the SLN is tumor positive (10). The standard protocol for SLNB involves preoperative lymphoscintigraphy using an injection of radiocolloid, followed by intraoperative LN mapping using blue dye. According to reports in the literature, blue dye and radiocolloid particles can pass through the first echelon LNs due to their small size (20), leading to more extensive dissection and increased complications (27). Blue dye is often avoided in facial melanoma for esthetic and surgical reasons (28). On the other hand, due to the need for preoperative preparation or intraoperative operation, these methods may increase the operation time and morbidity. Given the situation described above, new techniques for finding SLNs are needed.

SLN biopsy done by pCEUS, which has been a focus of research over recent years, especially for breast cancer, has shown a promising performance (29). However, only a few studies focused on percutaneous pCEUS in SLN in CMM. Also, the only human study did not support its use in the SLNs in CMM (23). Microbubble-based US contrast agents, such as Sonazoid and Sonovue, have a mean bubble diameter of 2.5 µm, which is much less than red blood cells (mean 7.2 µm). Consequently, the bubbles can easily pass through the blood capillary and LCs (17). Also, studies have shown that the contrast enhancement of the lymphatic system was confined within the first draining LN (i.e., the SLNs) without passing to the next tier of the LN (20-22,30). The safety of pCEUS has been confirmed in animal and human studies (17,23).

In our study, the detection rate of SLN was 48/53, which demonstrates the feasibility of SLN detection with pCEUS in patients with CMM, and which is similar to results reported for patients with breast cancer (17,19). All SLNs detected by pCEUS were located at the groin, consistent with previous reports on SLNs of CMM in the distal lower extremities found in the ipsilateral inguinal region (31). Among the other 5 patients with no detected SLNs, 4 had abnormal signs on gray-scale ultrasound; thus, regional CLND was completed, and postoperative pathology confirmed LN metastases. Consequently, we speculated that detection failed because LCs were blocked by tumor cells. It is worth noting that among these 4 patients, 2 developed popliteal LN metastases, suggesting that the SLNs of CMM could be located in the popliteal fossa (31). As for another patient with no detected SLN, one enhanced LC was visualized, but follow-up failed before drainage to any LN. Also, no metastatic LNs were found on regional CLND, which may be due to the use of an inadequate contrast dose.

Our results are contrary to Rue Nielsen et al., whose study did not support the use of pCEUS for the detection of SNs in CMM in humans due to the low detection rate (23). Based on our analysis, we assume this might be related to the following factors: (I) the number of spots in a subcutaneous injection (in our study, we selected four points around the lesion rather than two points); (II) whether adequate local massage was performed before scanning [it was reported that massaging the peritumoral area resulted in a qualitatively appreciable increase in the rate of flow of contrast agent within the LCs and a more rapid enhancement of the SLNs (20)]; and (III) the lower mechanical index values applied in our study (MI: 0.06 vs. 0.13). Also, the destruction of microbubbles may be reduced to a greater extent.

We also found multiple LDPs in this study, which has also been reported in previous animal models (21,22). This prompted us to enlarge the scanning area when tracking the enhanced LCs, to avoid missing SLNs. Furthermore, in an animal model, the number of enhanced LCs was reported to be associated with the number of injection points, and multiple injection points increased the number of enhanced LCs, where lymphatic drainage from each site led to the SLN(s) (20). Hence, we thought that SLNs were more accurately detected by multipoint injection than by single-site injection.

Another advantage of SLNs localization by US was that the enhancing pattern could preliminarily predict the state of the SLNs. In this paper, we observed four enhancing patterns of SLNs. The first type was the uniform enhancement of the entire LN, which suggests no metastasis in the LN. Also, the contrast agent was distributed evenly within the LN (17,18,20,22). The second type was an annular enhancement, which we classified as a benign sign. As is well known, the normal direction of internal drainage of LNs is from the cortex to cortex, which appears to be enhanced in pCEUS from the peripheral region to the central zone (17).

Consequently, we speculated that this might be due to the long distance from the lesion to the regional LN, resulting in a relatively insufficient contrast dose. Considering that no adverse reactions occurred in this study, the contrast agent dose should be increased as appropriate in future studies. The third type was an overall uneven enhancement. The previous study supported that SLNs that contained metastases demonstrated areas of enhancement (normal LN parenchyma) and areas that were not enhanced due to tumor infiltration and displacement or destruction of normal tissue (17,18,20). The last type was no enhancement, which suggests metastatic SLN. Metastases replaced the normal LN parenchyma, or the main LCs were blocked, resulting in failure of the contrast agent filling (18,22).

Our study showed that the sensitivity and specificity of pCEUS for the diagnosis of SLN metastasis were 90.9% and 75.0%, respectively. According to the existing literature, the lower specificity may be due to the following reasons. First, benign lesions such as lymphoid follicle hyperplasia and lymphatic sinus dilation could block lymphatic drainage, resulting in the retention of contrast media in the lymphoid parenchyma, which is characterized by uneven enhancement (32). Some previous studies have reported that the tumor thrombus blocked the end of afferent LCs, thus preventing the contrast agent from entering the SLN. However, no tumor was found in the SLN, thus showing no enhancement in pCEUS (18). Combining pCEUS with gray-scale ultrasound, Doppler ultrasound, or intravenous CEUS may be a suitable method to improve diagnostic specificity (33,34), which is our next planned research topic.

There are several limitations to our study. First, we did not compare pCEUS with lymphoscintigraphy and blue dye. Still, in animal models of melanoma and human breast cancer studies, pCEUS for SLN has been reported to have good correlations with these standard detection techniques (18-22). Second, as this was a preliminary study that verified the application of pCEUS in SLNs of CMM, we only selected patients with CMM of the lower extremities with relatively fixed lymphatic reflux. The evaluation of SLNs at other sites needs further verification.

In conclusion, pCEUS could effectively identify LCs and localize SLNs for guiding SLNBs in patients with CMM of the lower extremities. Also, the enhancement pattern of SLNs can predict metastasis of SLNs with high sensitivity and rather low specificity. In further studies, patients with lesions located at other sites need to be included to clarify the practicability of the technique. pCEUS with gray-scale ultrasound, Doppler ultrasound, and intravenous CEUS should be used in combination, and their ability to improve the specificity of diagnosis of metastatic SLNs should be investigated.
