Predictive value of thrombus susceptibility for cardioembolic stroke by quantitative susceptibility mapping

Introduction

Cardioembolic stroke is a common but sometimes misdiagnosed cause of acute ischemic stroke. Reliable and straightforward biomarkers of cardioembolic stroke are crucial in clinical practice.

Arterial and cardiac thrombi are distinct in content and structure. Arterial thrombi are rich in platelets, while cardiac thrombi are rich in erythrocytes and fibrin (1). When oxyhemoglobin in erythrocytes is converted to deoxyhemoglobin, methemoglobin, and hemosiderin, the increased paramagnetic susceptibility enhances the blooming hypointense signal known as the susceptibility vessel sign (SVS), on T2*-weighted and susceptibility-weighted imaging (SWI) in magnetic resonance imaging (MRI) (2-5). Many studies have demonstrated that the SVS is correlated with cardioembolic stroke (2-4). Moreover, empirical evidence has shown that several detailed SVS characteristics, such as two-layered SVS, SVS width or diameter, and overestimation ratio, are valuable in predicting cardioembolic stroke (5-8). These characteristics affect varied local susceptibility, indicating that quantitative evaluation of susceptibility can be informative in characterizing thrombus properties and discriminating stroke subtypes. Quantitative susceptibility mapping (QSM) is a potential approach for this evaluation by quantifying the paramagnetic contents in thrombi (9-14). QSM can map the underlying susceptibility of each voxel as a scalar quantity based on gradient-recalled echo (GRE) phase images and has proved valuable in studying iron distribution in neurodegenerative diseases, demyelination in multiple sclerosis, microbleed burden, and cerebral perfusion-related oxygen extraction fraction (13,15-20).

In this study, we aimed to utilize QSM to assess thrombus’s susceptibility value in acute ischemic stroke patients and explore the relationship of thrombus susceptibility with cardioembolic stroke.

Methods

Study participants

Stroke patients were consecutively enrolled from November 2018 to February 2020 in the present study with the following inclusion criteria: (I) age ≥18 years; (II) acute ischemic stroke confirmed by magnetic resonance angiography (MRA) with documented middle cerebral artery (MCA) occlusion; (III) time from onset to MRI scan less than 48 hours.

The study was conducted following the Declaration of Helsinki (as revised in 2013). This study was approved by the ethics committee of Beijing Tiantan Hospital, and written informed consent was obtained from all participants (or guardians of the participants).

Clinical assessments

In addition to MRI studies, transthoracic echocardiography, 24-hour electrocardiography (ECG) monitoring, serum B-type natriuretic peptide, complete blood count, chemistry, and coagulation tests were performed on all recruited patients. Ischemic stroke etiology was determined by two neurologists who were blinded to the QSM findings. The TOAST (Trial of Org 10172 in Acute Stroke Treatment) classification system was used to diagnose ischemic stroke subtypes. There are five categories: large-artery atherosclerosis, cardioembolism, small-artery occlusion, a stroke of other determined etiology, and stroke of undetermined etiology (21).

MRI protocol

All MR images were acquired with a 3.0T MRI scanner (Philips Ingenia, Best, the Netherlands) using a 32-channel head coil. The MRI protocol included 2D diffusion-weighted imaging, 2D T2-weighted and 3D T1-weighted structural imaging, 3D fluid-attenuated inversion recovery imaging, 3D time-of-flight MRA, and 3D multi-echo SWI. The 3D SWI acquisition used a flow-compensated 3D 4-echo GRE sequence with TE1 =6 ms, delta TE =6.7 ms, TR =30 ms, flip angle =15°, FOV =230×230×140 mm³, acquisition voxel size =0.6×0.6×1.5 mm³, and reconstruction voxel size =0.48×0.48×0.75 mm³. The raw magnitude and phase images of all echoes were saved for QSM calculation.

SVS measurement

Two investigators performed the SVS measurement, and QSM region of interest (ROI) analyses (JC and XMN) blinded to the clinical data. The SVS was defined as a hypointense signal on SWI in the corresponding symptomatic occlusive vessels, and the diameter of the vessels should exceed that of the contralateral vessels (2). The diameter of the SVS-related hypointense signal was obtained by measuring the maximum radial length of the hypointense vessel on SWI (6).

QSM calculation

The quantitative susceptibility maps were calculated using the STI Suite v2.2 toolbox (22) in MATLAB (Mathworks, Natick, MA, USA). The binary brain mask was generated from the magnitude image of the 1st echo using the brain extraction tool provided by FSL (FMRIB, Oxford University, UK) (23). The phase images from the multi-echo acquisition were processed using Laplacian-based phase unwrapping, variable-kernel sophisticated harmonic artifact reduction for phase data (known as V-SHARP) for background phase removal, and iterative LSQR QSM (24,25). The quantitative susceptibility maps were saved in a nifti-1 (Neuroimaging Informatics Technology Initiative, https://nifti.nimh.nih.gov/nifti-1/) format and loaded in a 3D slicer for ROI drawing and ROI statistics (26). The ROI for susceptibility measurement was drawn on the central axial slice of the hyperintense thrombus in the corresponding symptomatic occlusive vessels using the 3D slicer segmentation module (Figure 1) (27). The thrombus susceptibility value [in units of parts per million (ppm)] and thrombus volume of the ROIs were extracted using the 3D slicer quantification module.

Figure 1 A demonstration of thrombi measurements on SWI and QSM images. (A) A 25-year-old female patient with cardioembolic stroke imaged 3 hours following the onset of right hemiparesis and aphasia. DWI demonstrates acute left MCA infarctions (A1), accompanied by MCA occlusion on MRA (A2). SWI showed an SVS with a diameter of 5.62 mm in the occluded vessel (A3, yellow arrow). QSM maps show a hyperintense signal in the thrombus (A4, yellow arrowhead), with a mean susceptibility value of 0.455 ppm measured in the ROI (A5, in red contour). (B) A 50-year-old female patient with right hemiparesis and aphasia; her stroke subtype is classified as large artery atherosclerosis. There are left hemisphere infarctions on DWI (B1), left MCA occlusion on MRA (B2), and an SVS with a diameter of 4.38 mm on SWI (B3, yellow arrow). The signal in the thrombus on QSM maps is low (B4, yellow arrowhead), with a mean susceptibility value of 0.231 ppm measured in the ROI (B5, in red contour). DWI, diffusion-weighted imaging; MCA, middle cerebral artery; MRA, magnetic resonance angiography; SWI, susceptibility-weighted imaging; SVS, susceptibility vessel sign; QSM, quantitative susceptibility mapping; ROI, region of interest.

Statistical analysis

Continuous variables are presented as mean ± standard deviation or median, and categorical variables are presented as percentages. The Student’s t-test and Mann-Whitney U test were performed on continuous variables; Pearson’s χ² test was used to compare categorical variables between groups. Spearman’s method was used to analyze the correlation between the diameter of the hypointense signal on SWI and the susceptibility of the hyperintense signal on QSM. The receiver operating characteristic (ROC) methodology was used to define the optimal cutoff value and compare the SVS diameter and thrombus susceptibility in predicting cardioembolic stroke. We calculated the diagnostic values [sensitivity, specificity, positive predictive value (PPV), negative predictive value (NPV), and 95% confidence interval (CI) for diagnosing cardioembolism based on the SVS, diameter, and susceptibility. To control for potential confounders of cardioembolic stroke, multivariate logistic regression analysis was utilized to examine the association between susceptibility and cardioembolism, where age, sex, National Institutes of Health Stroke Scale (NIHSS) score, time to MR scan, and MCA branch occlusion were adjusted. The Kendall W test was used to measure interobserver agreement concerning the SVS diameter and QSM values. Statistical significance was set at P<0.05. Statistical analyses were performed using SPSS Version 24 (IBM, SPSS; Chicago, IL), except that the ROC analysis was performed using MedCalc V.19.1 (MedCalc Software, Belgium).

Results

A total of 153 patients were registered during the study period. Of these, 21 patients were excluded because of severe image artifacts (n=15) or incomplete clinical data (n=6). Therefore, 132 patients were included in the final analysis.

The participants were 86 males (65.2%) and 46 females (34.8%) with a mean age of 62.15±12.67 years (range, 25–87 years). The median baseline NIHSS score was 13 (interquartile range, 10–17). The mean time from stroke onset to the MR scan was 11.02±10.80 hours (range, 0.85–48 hours). Intravenous alteplase treatment (IVT) was administered to 61 patients (46.2%) before the MRI scan. The most common etiology of ischemic stroke was large artery atherosclerosis in 67 of the participants (50.8%), followed by cardioembolism in 54 (40.9%), undetermined etiologies in 6 (4.5%), and other etiologies (including cerebral vasculitis, dissection, and hypercoagulable state) in 5 (3.8%). Compared with the noncardioembolism group, patients with cardioembolism were older, with a higher proportion of females, higher NIHSS scores, and a shorter time between stroke onset and the MR scan distribution of IVT was similar between groups. Baseline characteristics are summarized in Table 1.

The SVS was present in 93 (70.5%) patients with symptomatic MCA occlusion, which was more frequent among patients with cardioembolism than those with noncardioembolism (Table 1).

The hyperintense signal on QSM in the corresponding MCA occlusion was present in 116 (87.9%) patients. The susceptibility of the hyperintense thrombus on QSM and the diameter of the hypointense SVS on SWI were measured (Figure 1). The interobserver agreement of the mean thrombus susceptibility value measurement and SVS diameter measurement by the Kendall W value were 0.57 and 0.6, respectively. The susceptibility of thrombus was significantly higher in patients with cardioembolic stroke than other stroke subtypes (0.44±0.09 ppm versus 0.28±0.11 ppm, P<0.001). The thrombus susceptibility was significantly correlated with the SVS diameter, with a correlation coefficient of 0.55 (P<0.001).

ROC curve analysis was performed to investigate the diagnostic efficiency of the thrombus susceptibility and the SVS diameter in predicting cardioembolic stroke. The susceptibility ROC area under the curve (0.88) was greater than that of the diameter (0.70, P<0.001, Figure 2). The optimal cutoff value for thrombus susceptibility and the SVS diameter for cardioembolism was 0.35 ppm and 4.1 mm, respectively. In this setting, QSM susceptibility (≥0.35 ppm) yielded a sensitivity, specificity, PPV, and NPV of 85.2%, 80.8%, 75.4%, and 88.7%, respectively, for cardioembolic stroke and was superior to the SVS for cardioembolism identification (Table 2).

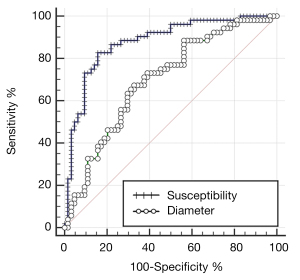

Figure 2 Comparison of ROC curves of thrombus susceptibility to SVS diameter for predicting cardioembolic stroke. ROC, receiver operating characteristic; SVS, susceptibility vessel sign.

Multivariate analysis revealed that SVS susceptibility (≥0.35 ppm) was independently associated with cardioembolism after controlling for the effects of age, sex, NIHSS score, the time between onset to the MR scan, and site of occlusion (Table 3; odds ratio, 20.75; 95% CI, 7.19–59.87; P<0.001).

Discussion

The present study demonstrated that the magnetic susceptibility of the thrombus in occluded MCA can be quantified using QSM and is significantly associated with cardioembolic stroke. The susceptibility value could more accurately discriminate cardioembolic stroke from other stroke etiologies than the SVS characteristics on SWI.

The current study showed that the SVS on SWI was a sensitive predictor of cardioembolic stroke, with a sensitivity of 90.7%. It was consistent with many previous studies, which demonstrated the SVS and susceptibility property value for predicting stroke etiology and vessel recanalization (2-4,6-8). The SVS originates from the local magnetic susceptibility increase; the correlation between increased susceptibility and cardioembolism is based on the theory that cardiac thrombi (usually due to atrial fibrillation, then left ventricular dysfunction, followed by blood stasis) are rich in erythrocytes and fibrin, while arterial thrombi (typically associated with atherosclerotic plaque rupture that triggers the aggregation of platelets) are rich in platelets (28). The deoxyhemoglobin and methemoglobin in erythrocytes are all paramagnetic materials, leading to the increased magnetic susceptibility of cardiac thrombi compared to arterial sources. By taking advantage of the paramagnetic property of deoxyhemoglobin, SWI enhances the visualization of the thrombus with the blooming hypointense signal in the corresponding symptomatic occlusive vessels (13).

However, SWI fundamentally suffers from the inherent blooming effect (e.g., sometimes it cannot distinguish the SVS from the background or cannot observe the susceptibility distribution in bulk hypointense signals). QSM, on the other hand, is insensitive to the scan parameter and tissue-susceptibility-dependent blooming artifacts and offers a quantitative measurement of tissue susceptibility (13). This study confirmed that the magnetic susceptibility of the thrombus was positively correlated with the SVS diameter. Moreover, the thrombus susceptibility value showed higher accuracy than the SVS diameter for predicting cardioembolic stroke, indicating that thrombus susceptibility can be used as an imaging biomarker of cardioembolism in acute ischemic stroke. Similar findings have been reported in intracranial hemorrhage studies, in which susceptibility values showed improved accuracy in assessing both hematoma and microbleed burden (17,29).

Cardioembolic stroke is easily misdiagnosed in clinical practice. Atrial fibrillation, the most common risk factor for cardioembolism, is frequently paroxysmal and asymptomatic and may evade detection by routine ECG monitoring. This study demonstrated that acute ischemic stroke patients with QSM thrombus susceptibility ≥0.35 ppm were more likely to have cardioembolism. Therefore, for an acute ischemic stroke patient with increased susceptibility in occluded MCA but without cardioembolism evidence, prolonged ECG monitoring, echocardiography, and other cardiac examinations should be considered. These cardiac examinations may prompt the discovery of cardioembolic stroke and a change in treatment strategies to prevent future embolic events.

Our study had several limitations. First, it was a single-center pilot investigation with relatively small sample size. Some baseline characteristics were not similar between the cardioembolism and noncardioembolism groups. Although logistic regression analysis was used to control these possible confounding factors, the imbalance cannot be ruled out. Second, 61 (46.2%) patients received IVT before the MRI scan. However, all of the patients recruited in this study had MCA occlusion with blood clots that did not dissolve or break up after IVT. In this setting, fibrin content may have changed with tissue plasminogen activator, but deoxyhemoglobin and hemosiderin content may have not. Thus, susceptibility quantification may not have changed dramatically before the clot was fully dissolved.

Conclusions

The susceptibility of the thrombus in the occluded MCA can be quantified using QSM. Thrombus susceptibility (≥0.35 ppm) showed a higher diagnostic performance than the SVS for the discrimination between cardioembolism and other stroke subtypes. Susceptibility measurements of thrombi may help predict cardioembolic stroke in patients with acute MCA occlusion.

Acknowledgments

Funding: This study was supported by the National Natural Science Foundation of China (81701139).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/qims-21-235). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by the ethics committee of Beijing Tiantan Hospital, and written informed consent was obtained from all participants or guardians of the participants.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
