Comprehensive assessment of in vivo lumbar spine intervertebral discs using a 3D adiabatic T_1ρ prepared ultrashort echo time (UTE-Adiab-T_1ρ) pulse sequence

Introduction

Low back pain (LBP) is a leading cause of disability in adults in the United States with socio-economic costs of the condition estimated at $100 billion annually (1,2). Though the precise etiology of LBP is not fully understood, intervertebral disc (IVD) degeneration is recognized as one of the major contributors to the condition (3-6).

The healthy IVD has a distinct morphological and biochemical composition: its central nucleus pulposus (NP) is a gelatinous core of proteoglycans and water, its peripheral annulus fibrosus (AF) consists of a series of concentric rings of lamellae type-1 collagen fibers, and the cartilaginous endplate (CEP) is a thin layer of hyaline-like cartilage on either side of the IVD. The CEP is adjacent to the vertebral bodies above and below IVDs (7). With aging and degeneration, the IVD undergoes changes to its morphology and biochemistry including proteoglycan loss, dehydration, CEP degradation, loss of disc height, annular tears, and extrusion (8-10).

Magnetic resonance imaging (MRI) is widely used in clinical practice to image lumbar IVDs (11). Conventional MRI sequences, such as the T₂-weighted fast spin echo (T₂w-FSE), are highly effective for evaluating IVD morphological changes. However, these sequences are not normally used to quantify the effects of biochemical changes in IVDs, which limits their sensitivity and specificity in the assessment of IVD degeneration, especially in the early stages of this condition. Quantitative MRI techniques, including measurement of T₂, T_1ρ, magnetization transfer, and diffusion metrics, offer promising avenues for this purpose (12). Among them, T_1ρ describes spin-lattice relaxation in the rotating frame in the presence of an external spin-lock RF pulse. T_1ρ is a unique biomarker that reflects low frequency motional biological processes including those arising from macromolecule–water interactions, such as those between proteoglycans and water, when the strength of the locking RF pulse is properly set (13,14). Many studies have demonstrated that quantitative T_1ρ mapping is a promising technique for detecting biochemical changes in IVDs during the process of degeneration (14-18). To date, research on T_1ρ measurements of IVDs has focused on changes in the NP (16,18-22), and the AF (20-22). The CEP may be degraded, affecting nutrient availability and cell metabolism in the remainder of the IVD and, thus, contribute to degeneration of the NP and AF (9). To the best of our knowledge, only one T_1ρ measurement study of the CEP has been performed to evaluate its normal state, change with age and contribution to IVD degeneration (23). This is because conventional clinical sequences, such as gradient recalled echo and FSE sequences, with relatively long echo times (TEs) cannot capture the fast decaying MR signal from the CEP with a short T₂ relaxation time (24).

To address this problem, we propose the use of a three-dimensional (3D) ultrashort TE sequence with adiabatic T_1ρ preparation (UTE-Adiab-T_1ρ), which can provide T_1ρ mapping of the entire lumbar IVD, including the CEP (25). The TE of the UTE-Adiab-T_1ρ sequence can be as short as 32 µs (25), and signals from both long T₂ tissues in the disc (e.g., the NP and inner AF) as well as very short T₂ tissues (e.g., the CEP) (26) can be detected by this sequence. Moreover, the Adiab-T_1ρ preparation is much less sensitive to the magic angle effect than conventional continuous-wave T_1ρ preparations (25,27-29). This is an important feature of the proposed UTE-Adiab-T_1ρ sequence because collagen fibers in both the AF and CEP are highly ordered and have different orientations to the main magnetic field (i.e., B0). This can result in different degrees of magic angle effect with confounding changes in measured T₂/T₂* values that are unrelated to disease (24,30).

The CEP is a barrier that resists disc pressure and provides a gateway for the transport of disc nutrients and metabolites. Quantitative T_1ρ measurement to study the relationship between CEP dysfunction and IVD degeneration has only been possible following the introduction of the UTE method to image the CEP (24,30,31). This may also provide valuable research options in the future. In this feasibility study, 17 human subjects (mean age ± standard deviation: 43±16 years; range: 25–71 years; 9 women, 8 men) were recruited. Each lumbar IVD was manually segmented into seven sub-regions [i.e., outer anterior AF (OAAF), inner anterior AF (IAAF), outer posterior AF (OPAF), inner posterior AF (IPAF), superior CEP (SCEP), inferior CEP (ICEP), and NP]. The T_1ρ values of these sub-regions were correlated with modified Pfirrmann grades and subjects’ ages. In addition, T_1ρ value differences between subjects with and without LBP (No-LBP) were compared.

Methods

All scans were performed on a 3T clinical MRI scanner (MR750, GE Healthcare Technology, Milwaukee, WI, USA). A four-channel phased array spine coil was used for signal reception (the body coil was used for signal excitation). In our study, only two channels covering the lumbar spine region were activated during the scan. A 5 s calibration scan was performed to correct the signal variation in the clinical images induced by inhomogeneous coil sensitivity.

Subjects

The study received Institutional Review Board approval and written informed consents were obtained from all participants. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). From December 2019 to March 2020, a total of 17 participants (mean age ± standard deviation: 43±16 years; range: 25–71 years; 9 women, 8 men) recruited by use of a study flyer met the inclusion criteria. The inclusion criteria specified that participants must be actively walking, be between ages 18 and 90 years, have no LBP or have experienced a single or recurrent episodes of LBP. Exclusion criteria were previous spine surgery, traumatic lumbar spine injury, spine tumor, infectious spine lesion, contraindications to MR imaging, radicular pain, and neurologic deficits of the lower limbs in the past six months. No participants recruited were subject to the exclusion criteria. Six participants (mean age ± standard deviation: 60±13 years; range: 38–71 years; 2 women, 4 men) reported LBP.

MRI pulse sequences

Key features of the 3D UTE-Adiab-T_1ρ sequence are shown in Figure 1. A set of spin-locking preparations containing an even number of adiabatic full passage pulses is followed by multiple 3D UTE acquisition spokes with an equal time interval τ between them to provide fast data acquisition (25). A 3D Cones trajectory is used for UTE spatial encoding during the data acquisition (32). Spin lock time is defined as the total duration of the train of adiabatic full passage pulses (i.e., spin lock time equals to the product of the duration of a single adiabatic full passage pulse and the number of adiabatic full passage pulses). Repetition time (TR) is the time between sequential adiabatic T_1ρ preparations. The 3D k-space data was regridded with a Kaiser-Bessel kernel. After Fourier transform, the final UTE images were produced by multichannel image combination using a sum-of-squares method.

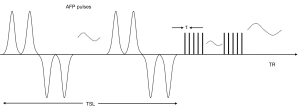

Figure 1 Diagram of the 3D UTE-Adiab-T_1ρ sequence. A train of adiabatic full passage preparation pulses is used to generate T_1ρ contrast during the period TSL. This is followed by multiple 3D UTE data acquisition spokes separated by time τ. The cycle is repeated every TR. UTE-Adiab-T_1ρ, ultrashort echo time sequence with adiabatic T_1ρ preparation; AFP, adiabatic full passage; TSL, spin lock time; TR, repetition time.

The signal S(TSL) at the acquisition time is given by:

S(TSL)=S0e−TSLT1ρ+C[1]

where S₀ is the initial signal intensity, TSL is the spin lock time, and C is a constant describing non-T_1ρ related signals, such as the background noise and artifacts generated during data acquisition and image reconstruction (25).

Numerical simulations were conducted to determine optimized sequence parameters for in vivo studies. The final sequence parameters used in the in vivo study were: TR =2,000 ms, flip angle =6°, and number of spokes =41. More details about simulation studies and the corresponding results can be found in the Supplemental Material for this paper (Appendix 1).

Both 3D UTE-Adiab-T_1ρ and clinical 2D T₂w-FSE sequences were used in the sagittal plane to scan the lumbar spine of each subject in the study. The sequence parameters were: (I) UTE-Adiab-T_1ρ sequences: bandwidth of the adiabatic pulse =1,150 Hz, peak amplitude of the adiabatic pulse =12 µT, number of adiabatic full passage pulses =0, 4, 8, and 12, duration of a single adiabatic full passage pulse =8.64 ms, τ =5 ms, TE =0.1 ms (the minimum TE is limited by the transmitter and receiver switching time as well as the coil ring down time), TR =2,000 ms, flip angle =6°, field of view =280×280×56 mm³, matrix =320×320×14, bandwidth =250 kHz, spin lock time =0, 34.56, 69.12, and 103.68 ms, number of spokes =41, total scan time =17 min 36 s; (II) T₂w-FSE sequence: TE =102 ms, TR =4,041 ms, slice thickness =3.5 mm, field of view =340×340 mm², matrix =384×384, bandwidth =250 kHz, slice number =14, scan time =1 min 50 s.

T_1ρ calculation and disc segmentation

To correct for subject inter-scan motion during scan, 3D non-rigid motion registration was performed on the UTE-Adiab-T_1ρ images with the Elastix software using both affine and B-spline transformation (33,34). Quantitative T_1ρ maps of the five lumbar IVDs (i.e., L1/L2 to L5/S1) visualized in each subject were generated offline with Matlab 2018b (MathsWork Inc, Natick, MA, USA). The Levenberg-Marquardt algorithm was used to provide nonlinear fitting of Eq. [1] using images acquired with the 3D UTE-Adiab-T_1ρ sequences. Before data fitting, the 3D UTE-Adiab-T_1ρ images were smoothed with a 3D Gaussian filter (kernel size 3×3×3 and standard deviation 0.6) to improve image SNR for more accurate T_1ρ quantification.

A total of 85 IVDs from the 17 subjects were analyzed. Each IVD was manually segmented into seven regions (i.e., OAAF, IAAF, OPAF, IPAF, SCEP, ICEP, and NP) by two observers (a musculoskeletal radiologist with seven years’ experience and a trained PhD student), as shown in Figure 2. Regions of interest (ROIs) from each sub-region were drawn on subtraction images (second image subtracted from the first) obtained from T_1ρ weighted images with spin lock times =0 and 69.12 ms. These were copied and pasted onto the original T_1ρ weighted images to allow fitting of the T_1ρ data. As can be seen in Figure 2, the CEP is highlighted on the subtraction image. This demonstrates the feasibility of imaging the CEP and providing data about it for quantification using the 3D UTE-Adiab-T_1ρ sequence. For each IVD, the T_1ρ value of each sub-region was averaged from five or six central sagittal slices.

Figure 2 Disc segmentation. Sagittal lumbar spine UTE-Adiab-T_1ρ images are shown with TSLs of 0 (A) and 69.12 (B) ms; (C) shows subtraction of (B) from (A), which highlights the CEP and allows better segmentation; (D) shows the seven ROIs within a disc. UTE-Adiab-T_1ρ, ultrashort echo time sequence with adiabatic T_1ρ preparation; TSL, spin lock time; OAAF, outer anterior annulus fibrosus (AF); IAAF, inner anterior AF; OPAF, outer posterior AF; IPAF, inner posterior AF; SCEP, superior cartilaginous endplate (CEP); ICEP, inferior CEP; NP, nucleus pulposus.

IVD degeneration grading

The 85 discs were graded independently by two observers (same as aforementioned) using the modified Pfirrmann system. This is a widely used method of determining the degree of disc degeneration through qualitative assessment of the morphology and signal intensity of the NP and AF using clinical T₂w-FSE images (35). The number of discs in each grade is shown in Table 1.

Statistical analysis

All statistical analyses were performed using SPSS (Version 24.0, IBM SPSS, Chicago, IL, USA). To test the inter-observer reproducibility for the ROI segmentation, intra- and interclass correlation coefficients (ICCs) with 95% confidence intervals were calculated to evaluate the inter-agreement of T_1ρ values of all the ROIs for the two observers. An ICC >0.90 was considered excellent agreement. The agreement of modified Pfirrmann grades between observers was evaluated with Cohen’s Kappa analysis. The correlations between T_1ρ values of sub-regions and the corresponding modified Pfirrmann grades of IVDs as well as subjects’ ages were analyzed with Spearman’s Rank Order Correlation. For each sub-region, T_1ρ values between different grades were compared using the one-way analysis of variance (ANOVA) method. Finally, T_1ρ differences between subjects with and without LBP were evaluated using Student’s t-test.

Results

Representative T_1ρ fitting curves of the OAAF, SCEP, and NP are shown in Figure 3. The ICCs of T_1ρ values of the OAAF, IAAF, OPAF, IPAF, SCEP, ICEP, and NP between the two observers were 0.97, 0.94, 0.95, 0.90, 0.96, 0.91, and 0.97, respectively. In addition, the Kappa value between the modified Pfirrmann grades given by the two observers was 0.81. These results demonstrate good inter-observer reproducibility for both ROI segmentation and modified Pfirmann grading.

Figure 3 Representative T_1ρ fitting curves of three sub-regions (i.e., OAAF, SCEP and NP) within a disc in a healthy 37-year-old male subject. Intensity shown along the y-axis is normalized by the maximum signals of the four UTE-Adiab-T_1ρ data. The Levenberg-Marquardt algorithm was used to provide nonlinear fitting. OAAF, outer anterior annulus fibrosus; SCEP, superior cartilaginous endplate; NP, nucleus pulposus.

Figure 4 shows representative T_1ρ maps of lumbar IVDs from four subjects, with the corresponding clinical T₂w-FSE images. These images demonstrate that the UTE-Adiab-T_1ρ sequence can be used to measure T_1ρ values of the whole IVD, including the CEP. In comparison, the CEP regions showed very low signal and their signals were not distinguishable from noise on the T₂w-FSE images. As can be seen in Figure 4, more degraded discs with higher modified Pfirrmann grades (Figure 4E-4H) generally showed lower T_1ρ values in NPs (Figure 4A-4D).

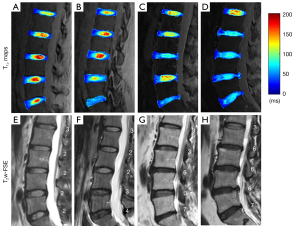

Figure 4 Representative T_1ρ maps (first row) and corresponding T₂w-FSE images (second row) from four subjects (first column, 29-year-old woman; sond column, 32-year-old woman; third column, 60-year-old woman; fourth column, 55-year-old man). The modified Pfirrmann grades for each disc are shown on the T₂w-FSE images. T₂w-FSE, T₂ weighted fast spin echo.

The T_1ρ values of IVDs and the number of discs in each grade (using modified Pfirrmann grades) are summarized in Table 1. Spearman’s analysis showed that correlations between T_1ρ values of the OPAF, SCEP, ICEP, and NP and modified Pfirrmann grades were significant (P<0.05). T_1ρ values of the OPAF, SCEP, and ICEP showed moderate positive correlations with grades with R equal to 0.51, 0.36, and 0.38, respectively. In contrast, the T_1ρ of the NP was inversely correlated with grades with an R of −0.94, which is consistent with reported trends for the NP (16,18,19). The corresponding scatter plots of T_1ρ values for the OPAF, SCEP, ICEP, and NP as a function of the modified Pfirrmann grade are shown in Figure 5.

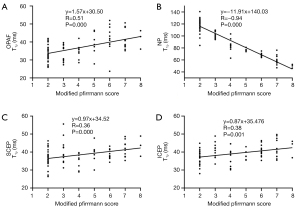

Figure 5 Spearman’s correlation coefficients between modified Pfirrmann grades and T_1ρ values of OPAF (A), SCEP (B), ICEP (C), and NP (D). A strong negative correlation is observed for the NP, and moderate positive correlations are observed for the OPAF, SCEP, and ICEP. OPAF, outer posterior annulus fibrosus; SCEP, superior cartilaginous endplate (CEP); ICEP, inferior CEP; NP, nucleus pulposus.

Because the sample sizes of the modified Pfirrmann grades 4 (n=9), 5 (n=7), and 8 (n=3) were too small to be treated as independent groups, the discs were classified into four separate groups by grade (i.e., group 1: grade 2; group 2: grades 3 and 4; group 3: grades 5 and 6; group 4: grades 7 and 8). T_1ρ values of the seven sub-regions in each group and the corresponding ANOVA analysis results can be found in Tables S1,S2, respectively. Representative bar plots for the OPAF, SCEP, ICEP, and NP are shown in Figure 6. In the NP, T_1ρ differences between every pair of groups were significant. T_1ρ values of group 4 in the OPAF, SCEP, and ICEP showed significant differences compared with the T_1ρ of groups 1 and 2 (P<0.05). T_1ρ differences between group 3 and groups 1 and 2 in the OPAF, group 3 and group 4 in the SCEP, and group 1 and group 3 in the ICEP were significant.

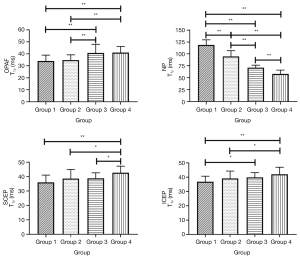

Figure 6 Mean T_1ρ values of the OPAF, SCEP, ICEP, and NP regions for four different modified Pfirrmann grade groups (i.e., group 1: grade 2; group 2: grades 3 and 4; group 3: grades 5 and 6; group 4: grades 7 and 8), respectively. *, P<0.05; **, P<0.01. OPAF, outer posterior annulus fibrosus; SCEP, superior cartilaginous endplate (CEP); ICEP, inferior CEP; NP, nucleus pulposus.

The T_1ρ values of the OAAF and OPAF showed positive correlations with ages (R=0.52 and 0.71, respectively), and the T_1ρ value of the NP showed an inverse correlation with age (R=−0.76), consistent with the trend reported in reference (14). The corresponding scatter plots of T_1ρ values of the OAAF, OPAF, and NP as a function of the age can be found in Figure S2.

As can be seen in Table 2, T_1ρ differences of the OPAF, ICEP, and NP between the LBP and No-LBP groups were significant (P=0.005, 0.020, and 0.000, respectively). As shown in Figure 7, the mean T_1ρ values of the OPAF and ICEP in all the subjects with LBP were greater than those without LBP, while the mean T_1ρ of the NP of those subjects with LBP was lower.

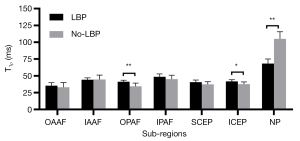

Figure 7 Mean T_1ρ values of the seven sub-regions in the LBP and No-LBP groups. Significant differences between the two groups are seen for the NP, ICEP and OPAF regions. *, P<0.05; **, P<0.01. LBP, low back pain; No-LBP, without LBP; OAAF, outer anterior annulus fibrosus (AF); IAAF, inner anterior AF; OPAF, outer posterior AF; IPAF, inner posterior AF; SCEP, superior cartilaginous endplate (CEP); ICEP, inferior CEP; NP, nucleus pulposus.

Discussion

The study demonstrates the feasibility of using the 3D UTE-Adiab-T_1ρ sequence to measure the T_1ρ of an entire lumbar IVD, especially of the CEP. The sequence can capture very short T₂ CEP signals and has the advantage of being less sensitive to the magic angle effect than the conventional continuous-wave T_1ρ method (25,27-29). With images acquired with the 3D UTE-Adiab-T_1ρ technique, T_1ρ maps of entire lumbar IVDs were generated for 17 subjects. The T_1ρ of the NP showed a significant negative correlation with the modified Pfirrmann grade (R=−0.94). T_1ρ values of the OPAF, SCEP, and ICEP showed moderate positive correlations with the modified Pfirrmann grade (R=0.51, 0.36, and 0.38, respectively). T_1ρ values of the NP and OPAF also showed significant correlations with age (R=−0.76 and 0.71, respectively), and the T_1ρ value of the OAAF showed a moderate correlation with age (R=0.52). T_1ρ value differences of the OPAF, ICEP, and NP between LBP and No-LBP groups were significant (P=0.005, 0.020, and 0.000, respectively). These findings indicate that the UTE-Adiab-T_1ρ technique has considerable potential for the comprehensive assessment of IVD degeneration.

The T_1ρ value changes with different modified Pfirrmann grades may reflect biochemical composition differences during degeneration in the lumbar IVD. As with previous studies, the inverse correlation between the T_1ρ of the NP and the modified Pfirrmann grade may reflect loss of proteoglycans during the process of degeneration (18-21). The T_1ρ of the OPAF showed a positive correlation with the modified Pfirrmann grade, consistent with loss of collagen integrity in the OPAF region during IVD degeneration. This trend can also be seen in representative T_1ρ maps of IVDs in Figure 4. The OPAF regions of IVDs with higher grades (e.g., L2/L3~L5/S1 in Figure 4D) show greater T_1ρ values than IVDs with lower grades (e.g., L2/L3~L5/S1 in Figure 4A). This may be because a portion of the proteoglycans of the NP “spread” into the OPAF as a result of compression during the process of degeneration. However, the positive correlations between T_1ρ values of the SCEP and ICEP and modified Pfirrmann grades imply a proteoglycan content decrease during the disc degeneration. This finding is in agreement with Sarma’s study, in which the authors found that T_1ρ values increased almost linearly with proteoglycan depletion in cartilage (36). Our results demonstrate that T_1ρ values of the OPAF, SCEP, ICEP, and NP may be useful indicators of lumbar IVD degeneration.

The good correlations between T_1ρ values of the OAAF, OPAF, and NP and age imply that the UTE-Adiab-T_1ρ measurements of these sub-regions may be valuable indicators of age-related disc degeneration. In addition, T_1ρ values of the OPAF, ICEP, and NP may provide information about the mechanism of LBP since these T_1ρ values showed significant differences between the LBP and No-LBP groups.

There are very few studies that measure the T₂ and T_1ρ values of the CEP. Ling et al. reported that both T₂ and T_1ρ values of the CEP were around 30 ms in a 1.5T study (23). Cao et al. reported an unexpectedly high value of T₂ in the CEP which was around 60 ms (37). This could have been caused by partial volume effects since their spatial resolution was quite low. T₂* values of CEPs measured using UTE sequences were around 15 ms (24,30). In our study, the CEP T_1ρ values ranged from 30 to 45 ms, which is higher than the previously reported T₂* values. The CEP may contain both short and long T₂ water components. Multi-compartment T_1ρ quantification is interesting and could be done with either a continuous wave prepared UTE sequence or a UTE-Adiab-T_1ρ sequence using different TEs (e.g., 0.1 vs. 2–3 ms) (38).

Following each Adiab-T_1ρ preparation, 41 UTE spokes were acquired to speed up the data acquisition. However, this long train of spokes can introduce signal variation along the spokes in a single TR, which may affect the image quality. A variable flip angle design may solve this problem which will be studied in future.

The image resolution of our UTE-Adiab-T_1ρ sequence is relatively low compared to the thickness of the CEP (i.e., approximately 0.6–1.0 mm). There is always a trade-off between spatial resolution, scan time, and image SNR. We expect a more advanced RF coil with higher SNR performance will be available in future to allow improvement of spatial resolution without compromise of scan time or SNR.

There are several limitations to this study. First, the sample size was relatively small and designed to assess technical feasibility rather than clinical utility. A future study with more subjects will be conducted. Second, no biochemical or histological validation was performed in this study. This could be included in the future, using fresh cadaveric specimens. Third, the scan time of the T_1ρ measurement protocol with four UTE-Adiab-T_1ρ sequences was about 17 min, which is long for use in the clinical practice. Advanced acceleration techniques including compressed sensing and deep learning can be used to address this problem (39,40). T_1ρ values may vary with different types of sequence. It would not be surprising if UTE quantification shows similar differences since UTE sequences detect signals from both short and long T₂ components while clinical sequences only image long T₂ components. In general, comparisons should be conducted with similar sequences, although this may be challenging with studies performed using different vendors’ systems.

Conclusions

The 3D UTE-Adiab-T_1ρ technique provides volumetric T_1ρ mapping of the entire IVD, especially of the CEP. This provides comprehensive assessment of IVD degeneration and may improve understanding of the origin of LBP.
