Middle cerebral artery thrombus susceptibility-weighted imaging mapping predicts prognosis

Introduction

Thrombus formation of the intracranial vessels is the most common cause of acute cerebral infarction. Eighty percent of cerebral blood flow comes from the middle cerebral artery (MCA), which is the most preferred site of thrombosis leading to embolic brain infarction. Recanalization of the occluded blood vessels within 6 h by early thrombolytic or thrombectomy therapy can increase brain tissue reperfusion and save the ischemic penumbra, which is important to clinical prognosis (1). Some papers demonstrate that the composition of the thrombus can affect recanalization; for instance, red thrombus can be easily recanalized after thrombolytic or thrombectomy (2-4). In addition, the location, length of thrombus could influence the formulation of the treatment plan (5,6). Therefore, timely thrombus detection and accurate assessment including location, length, and composition of thrombus play a crucial role in the choice of the treatment plan and in the clinical prognosis assessment.

Despite the fact that the thrombus of the intracranial vessels can be found in all three methods of digital subtraction angiography (DSA), magnetic resonance angiography (MRA), and computed tomography angiography (CTA), the questions about its composition and formation times still could not be answered (7-11). To solve these two problems, the application of susceptibility-weighted imaging (SWI) in the detection of thrombus in acute ischemic stroke is becoming an area of intense research interest (12-14). SWI can show an intravascular thrombus as a hypointense susceptibility vessel sign (SVS) which has a classical manifestation as a thickened and dark intravascular susceptibility artifact. SVS indicates the increment of locally increased deoxyhemoglobin from the red blood cells (RBCs) trapped in occlusive vessels (4,13,15). SVS has been investigated in a large amount of research which supports the presence of acute or subacute thrombus (16,17). Some studies have shown that SVS can provide useful information regarding the thrombus location, the presence of single or multiple thrombi (even in distal intracranial arteries), and the thrombus burden (18,19). Linked to the local presence of intra-arterial thrombus, SVS is associated with arterial occlusion (20) and disappears with the occurrence of arterial recanalization (14,21).

Susceptibility weighted imaging mapping (SWIM) is calculated based on the 3D multi-echo gradient-echo sequence and combines both phase and magnitude information to quantify susceptibility distribution. It has been widely used in the evaluation of brain iron deposition in a variety of metabolic diseases (22-25), and the detection of microbleeds (26,27) or oxygen saturation changing in stroke patients (28-30). However, there is no report focusing on the changes in thrombus susceptibility in MCA.

Based on the knowledge that the composition of thrombus is different and only the acute or subacute stage of the thrombus can show SVS on SWI, we hypothesized that the susceptibility not only could reflect the composition of thrombus but also predict the formation time of thrombus. Susceptibility, thrombus length, and clot burden score (CBS) might have correlations with clinical status and early prognosis.

In this paper, we tried to answer the following two questions: whether the susceptibility of thrombus in MCA varies between segments, portions, or stroke onset times; whether there are any relationships between susceptibility, thrombus length, CBS, diffusion-weighted imaging-Alberta stroke program early CT score (DWI-ASPECTS), and National Institutes of Health stroke scale (NIHSS).

Methods

Patients

The current study was approved by the local Institutional Review Board (IRB) of Tianjin First Central Hospital. Written consent signed by the patients or their relatives were stored in the hospital database to be reviewed. Clinical and imaging data of 153 patients with acute or subacute stroke (onset time was less than 72 h which was defined as the time interval from the onset of stroke symptoms to MRI examination) from November 2013 to December 2016 were collected and retrospectively analyzed. All the patients were treated with anticoagulation alone, without rTPA or thrombectomy. Inclusion criteria included the following: adult patients (over 18 years old); the time interval (from stroke onset to admission) less than 72 h; complete MRI data including T1-weighted images (T1WI), T2-weighted images (T2WI), T2 fluid-attenuated inversion recovery (T2 FLAIR), diffusion-weighted images (DWI), time of flight-MRA (TOF-MRA), SWI, and complete clinical data including admission and discharged NIHSS; DWI restriction showing high intensity and corresponding ADC being low intensity; unilateral MCA occlusion in the TOF-MRA and SVS on SWI. Exclusion criteria included the following: patients with bilateral MCA occlusion or intracranial lesions, including cerebral vascular malformation, brain tumors, traumatic brain injury or surgery, cerebral hemorrhage, or infarction with hemorrhagic transformation. Detailed inclusion and exclusion criteria are shown in Figure 1. Finally, a total of 56 patients were included in this study.

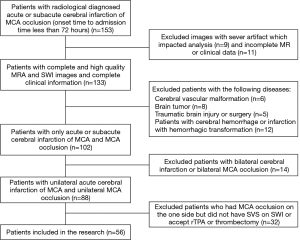

Figure 1 Flow chart for the patients inclusion and exclusion. MCA, middle cerebral artery; SWI, susceptibility-weighted imaging; SVS, susceptibility vessel sign; rTPA, recombinant tissue plasminogen activator.

Image acquisition

A MAGNETOM Trio Tim 3T MR scanner (Siemens Healthcare, Erlangen, Germany) with an 8-channel head coil was used for MRI examination. The examining sequences for all cases included T1WI, T2WI, T2 FLAIR, DWI, TOF-MRA, and SWI. The detailed sequences’ information is summarized in Table 1.

Table 1 Imaging parameters of MR sequences
Full table

Imaging processing and analyzing

Primary SWI data with complete phase and magnitude images were processed using one button with SMARTv1.0 (susceptibility mapping and phase artifacts removal tool; Detroit, MI, USA) software within 30 s. The processing steps are detailed below. First, the unwanted low signal regions outside the brain were removed by a Brain Extraction Tool (BET) in FMRIB Software Library (FSL) (31). Second, the background phase was reduced by a 96×96 homo-dyne high-pass filter. Finally, SWIM data were generated by a truncated k-space division with a regularization threshold of 0.1 (32). The SWIM data were then observed and measured by signal processing in nuclear magnetic resonance (SPIN) (Detroit, MI, USA) software. The portions of M1 (initial and horizontal segment), M2 (Sylvian segment), and M3 (cortical segment) were marked, and susceptibility was manually measured. The detailed measurements are displayed in Figure 2A. The susceptibility of each segment was used to calculate the overall mean susceptibility of the multi-segmental thrombus. Thrombus length and CBS were measured on the SWI MinIP images along the segment of thrombus (5,33,34). The detailed measurements are shown in Figure 2B,C and Figure 3. DWI-ASPECTS was evaluated depending on the DWI and ADC images, according to the criteria of CT-ASPECTS (35,36). All of the measurements were repeated 3 times to calculate an average value by a neuroradiologist of 10-year experience and one of 5-year experience who both specialize in diseases of the central nervous system. The two readers were blinded to clinical data. The mean value of the two readers would be used if there were good consistency between them.

Figure 2 The detailed measurements. (A) The region of interest (ROI) was drawn in the center along the thrombus, the susceptibility value of each point could be calculated directly by the SPIN software to obtain the average value and standard deviation of the susceptibility values in the ROI finally (Red+ represents ROI). (B) The length of thrombus was measured 3 times on the susceptibility-weighted imaging (SWI) MinIP images and the mean value of these was recorded. The corresponding score was deducted from the thrombus at the corresponding position. (C) ROI along the susceptibility vessel sign (SVS) on SWIM was drawn to calculate the repetition of susceptibility 3 times, and the mean value was recorded. Clot burden score (CBS) was graded by the following standard [5]: a score of 10 is normal; 3 points (as indicated) are subtracted for SVS found in the supraclinoid internal carotid artery (ICA); 2 points for SVS in each of the proximal and distal halves of the middle cerebral artery (MCA) trunk (M1); 1 point for SVS in the A1–A4 segment; and 2 points for SVS in the M2–M4 branches.

Figure 3 The SWI and SWIM images of thrombi at different sites. (A,B) Female, 66 years old. susceptibility-weighted imaging (SWI) MinIP images shows low signal (white arrow in A) and susceptibility weighted imaging and mapping (SWIM) shows high signal (white arrow in B) thrombus in the right middle cerebral artery (MCA) (M2) with clot burden score (CBS) recorded as “9”; (C,D) Male, 57 years old. SWI MinIP shows low signal (white arrow in C) and SWIM shows high signal (white arrow in D) thrombus in the left MCA branch segment (M1, M2) with CBS recorded as “8”; (E,F,G,H) Male, 84 years old. SWI MinIP shows multiple low signal (white arrow in E,G) and SWIM shows high signal (white arrow in F,H) thrombi in the left MCA branches (M1, M2, M3), with CBS recorded as “4”.

Statistical analysis

The data of this study were analyzed by SPSS 22.0 software. The intraclass correlation coefficient (ICC) was performed to test the agreement of quantitative parameters between the two readers. If the ICC value was less than 0.4, the consistency of reliability analysis was considered poor. If the ICC value was greater than 0.75, the consistency was considered good (Table S1). The clinical variables and parameters were tested for normal distribution using the Kolmogorov-Smirnov test method (Table S2). If the values of susceptibility fit the normal distribution, mean ± standard deviation (SD) was used to describe them, and one-way ANOVA test was used to separately compare the differences among the different locations and different segments. If not, median (P25, P75) and Kruskal-Wallis H tests were used. The Spearman correlation analysis was used to analyze the relationship between susceptibility and stroke onset time. The relationships between the length of thrombus, CBS, susceptibility, DWI-ASPECTS, admission NIHSS, and discharge NIHSS were analyzed by Spearman correlation analysis (Table S3). Before this step, the residual analysis was used to find whether there were any outliers. P<0.05 was considered statistically significant. The correlation coefficient (r_s) ranged from −1 to 1. If |r_s| was less than 0.3, a poor correlation was concluded, if |r_s| was larger than 0.3 but less than 0.5, week relationship was concluded. If |r_s| was over 0.5 but less than 0.8, a moderate correlation was concluded. If |r_s| was over 0.8, a strong correlation was concluded.

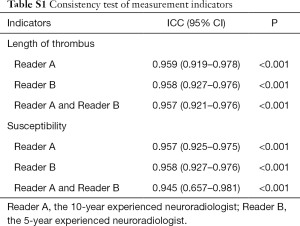

Table S1 Consistency test of measurement indicators
Full table

Table S2 K-S test for normal distribution of variables
Full table

Table S3 The correlation coefficient between variables
Full table

Results

The baseline characteristics of the enrolled patients are summarized in Table 2. For the 56 patients, the median length of MCA thrombus was 16.13 (10.58, 29.03) mm. The mean susceptibility of thrombus was 387.168±104.612 ppb. The median CBS related to the portion of thrombus was 8 (6, 8). The median onset time was 21 (14, 28.3) h.

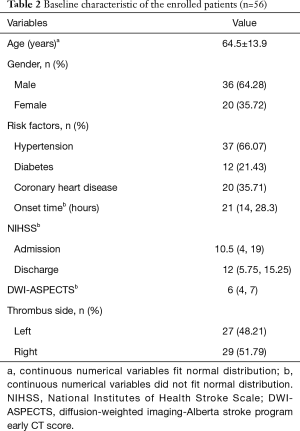

Table 2 Baseline characteristic of the enrolled patients (n=56)
Full table

The comparison of susceptibility among thrombi of different segments

Based on the locations of SVS on SWI, MCA thrombi were segmented. There were 31 (55.36%) cases with 1 segment, 19 cases (33.93%) with 2 segments, and 6 cases (10.71%) with 3 segments. Among all thrombi, 17 segments were located at M1, 42 were located segments at M2, and 28 segments were located at M3. The susceptibility among different portions and different segments of thrombi showed no statistical difference (All P>0.05) (Table 3).

Table 3 Susceptibility (ppb) (mean ± SD) of the middle cerebral artery (MCA) thrombi in different groups
Full table

The relationship between susceptibility and onset time, length of thrombus, and CBS

When there were 2 or 3 thrombi in different segments of MCA in 1 patient, the mean value of thrombi susceptibilities was considered as the mean susceptibility of this patient because the consistent susceptibility of each segment was proven. The mean susceptibility had no correlations with onset time, thrombus length, and CBS (P=0.803, 0.110, 0.611) (Figure S1).

Figure S1 The point-and-figure charts between thrombus susceptibility and the onset time, thrombus length, clot burden score (CBS). No correlation was found between susceptibility and the onset time (A), thrombus length (B), and CBS (C) (P=0.803, 0.110, 0.611).

The effects of susceptibility, length of thrombus, and CBS on clinical severity and early clinical prognosis

The susceptibility was weakly yet negatively correlated with DWI-ASPECTS (r_s=−0.382, P=0.004) (Figure 4A), and weakly positively correlated with NIHSS at admission and discharge (r_s=0.403, P=0.002; r_s=0.430, P=0.001) (Figure 4B,C).

Figure 4 The point-and-figure charts of relationship between thrombus susceptibility and diffusion-weighted imaging-Alberta stroke program early CT score (DWI-ASPECTS), admission National Institutes of Health Stroke Scale (NIHSS), discharge NIHSS. (A) The susceptibility was weakly negatively correlated with DWI-ASPECTS (r_s=−0.382, P=0.004). (B) The susceptibility was weakly yet positively correlated with NIHSS at admission (r_s=0.403, P=0.002) and (C) weakly yet positively correlated with NIHSS at discharge (r_s=0.430, P=0.001).

A negative correlation was found between the length of MCA thrombus and DWI-ASPECTS (r_s=−0.457, P=0.000) (Figure 5) (Figure S2). There was no statistically significant correlation between the length of MCA thrombus and admission and discharge NIHSS (r_s=0.295, 0.224; P=0.026, 0.100) (Figure S2).

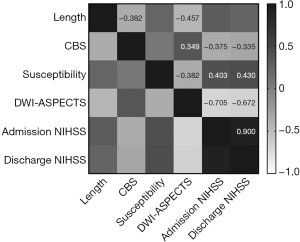

Figure 5 The relationship and correlation coefficient of length, clot burden score (CBS), susceptibility of thrombus, diffusion-weighted imaging-Alberta stroke program early CT score (DWI-ASPECTS), admission National Institutes of Health Stroke Scale (NIHSS), and discharge NIHSS of stroke patients. The susceptibility and length were weakly yet negatively correlated with DWI-ASPECTS (r_s=−0.382, −0.457; P=0.004, 0.000). The susceptibility was weakly yet positively correlated with admission NIHSS and discharge NIHSS (r_s=0.403, 0.430; P=0.002, 0.001). CBS was weakly yet positively correlated with DWI-ASPECTS (r_s=0.349, P=0.008) and weakly yet negatively correlated with admission and discharge NIHSS (r_s=−0.375, −0.335; P=0.004, 0.012). The CBS was weakly yet negatively correlated with apparent thrombus length of middle cerebral artery (MCA) (r_s=−0.382, P=0.004).

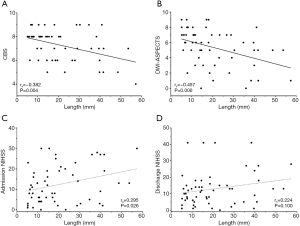

Figure S2 The point-and-figure charts of relationship between thrombus length and other variables. (A) The clot burden score (CBS) was weakly yet negatively correlated with thrombus length of middle cerebral artery (MCA) (r_s=−0.382, P=0.004). (B) The length of MCA thrombus was negatively correlated with diffusion-weighted imaging-Alberta stroke program early CT score (DWI-ASPECTS) (r_s=−0.457, P=0.000). (C,D) There was no statistically significant correlation between the length of MCA thrombus and admission and discharge National Institutes of Health Stroke Scale (NIHSS) (r_s=0.295, 0.224; P=0.026, 0.100).

There was a weak positive correlation between CBS and DWI-ASPECTS (r_s=0.349, P=0.008), but a weak negative correlation with the admission and discharge NIHSS (r_s=−0.375, −0.335; P=0.004, 0.012) (Figure 5) (Figure S3). The CBS was weakly yet negatively correlated with thrombus length of MCA (r_s=−0.382, P=0.004) (Figure 5) (Figure S2).

Figure S3 The point-and-figure charts of relationship between clot burden score (CBS) and diffusion-weighted imaging-Alberta stroke program early CT score (DWI-ASPECTS), admission National Institutes of Health Stroke Scale (NIHSS), discharge NIHSS. (A) CBS was weakly yet positively correlated with DWI-ASPECTS (r_s=0.349, P=0.008); (B,C) CBS was weakly yet negatively correlated with the admission and discharge NIHSS (r_s=−0.375, −0.338; P=0.004, 0.012).

Discussion

There were two main findings in this study. Firstly, all the susceptibility remained consistent regardless of different segments, portions, or onset time. Secondly, susceptibility and CBS were related to cerebral infarction severity, and they could, to some extent, predict clinical severity and short-term clinical prognosis.

In this study, the susceptibility among different segments and different portions of MCA thrombi showed no statistical difference but did indicate the similar component of the whole thrombus. Aoki et al. (36) suggested that the presence of SVS may represent acute or subacute thrombi, given the time required from oxyhemoglobin to deoxyhemoglobin within hyperacute clots. Susceptibility was related to the component of paramagnetic deoxyhemoglobin, which can be seen in the acute or subacute stage of thrombus formation. Therefore, the results support the notion that thrombus is formed in a similar processing stage of platelet aggregation and blood cell coagulation.

We found no relationship between the susceptibility and the onset time. This might indicate that there was no difference for the susceptibility of thrombus when detected on SWI regardless of being acute or subacute stroke (less than 72 h). In other words, it implies that the amount of deoxyhemoglobin in the thrombus remained similar. However, the formation and evolution of thrombus are extremely complex (37,38), and the onset time we acquired cannot fully represent the real-time of thrombus formation. The relationship between susceptibility and thrombosis evolution remains to be further studied. Susceptibility was weakly correlated with DWI-ASPECTS, admission, and discharge NIHSS in the current study. This result might indicate that susceptibility does not only reflect the component of thrombus but also may have a relationship with the degree of clinical severity.

MCA thrombus load mainly depended on thrombus length, location, and composition. We found that the length of the MCA thrombus was weakly yet negatively correlated with DWI-ASPECTS. Studies (36) have found that DWI-ASPECTS has a close correlation with the injury volume and is also associated with early prognosis after intravenous thrombosis, which could be used as an independent factor in predicting the cerebral function post-infarction (36,39).

This study found a weak correlation between thrombus length of MCA and admission NIHSS, but no correlation with discharge NIHSS. The longer the thrombus, the more severe the clinical status. The admission NIHSS was related to the area and location of cerebral infarction. Yet, the discharge NIHSS was not only affected by the admission NIHSS score but was also affected by patient treatment. As a result, thrombus length might not be considered an independent predictor of short-term clinical outcome of cerebral infarction.

We found that CBS associated with the portion of MCA thrombus was not only weakly yet positively associated with DWI-ASPECTS, but also weakly yet negatively correlated with admission and discharge NIHSS. It was verified that the thrombus load was not only related to the thrombus length but also inseparable from the location of the thrombus (5,33,34). When thrombus occurred only in MCA branch, CBS was higher than those occurring only in the MCA trunk. Therefore, thrombus occurring in the MCA branch might cause a smaller range of cerebral infarction and less brain damage than thrombus occurring in the trunk. The less the damage after infarction, the better the short-term clinical prognosis.

There were three shortcomings in the current research. First, there was no follow-up data to show the natural evolution of thrombus on SWI. Second, there was no available pathology from thrombectomy to support the consistent susceptibility with a similar component. Third, there was no 3-month follow-up after to evaluate the long-term prognosis of the patients. Therefore, more data should be collected to show the natural evolution and changes of susceptibility during this processing, and the relationship between susceptibility and long-term prognosis.

In conclusion, susceptibility remained consistent regardless of the different segments, portions, or onset time, which indicates a similar component of whole thrombus and formation stage. Susceptibility can be an important parameter related to cerebral infarction along with CBS, and they may, to some extent, help predict clinical severity and short-term clinical prognosis
