Radiomics derived from T2-FLAIR: the value of 2- and 3-classification tasks for different lesions in multiple sclerosis

Zhuowei Shi1#, Yuqi Ma2#, Shuang Ding3, Zichun Yan1, Qiyuan Zhu1, Hailing Xiong4, Chuan Li5,6, Yuhui Xu1, Zeyun Tan1, Feiyue Yin1, Shanxiong Chen2*, Yongmei Li1*

1Department of Radiology, The First Affiliated Hospital of Chongqing Medical University, Chongqing, China; 2College of Computer and Information Science, Southwest University, Chongqing, China; 3Department of Radiology, Children’s Hospital of Chongqing Medical University, National Clinical Research Center for Child Health and Disorders, Ministry of Education Key Laboratory of Child Development and Disorders, Chongqing Key Laboratory of Pediatrics, Chongqing, China; 4College of Electronic and Information Engineering, Southwest University, Chongqing, China; 5College of Computer and Information Science, Southwest University, Chongqing, China; 6Big Data and Intelligence Engineering School, Chongqing College of International Business and Economics, Chongqing, China

Contributions: (I) Conception and design: Z Shi, Y Ma; (II) Administrative support: S Chen, Y Li; (III) Provision of study materials or patients: Y Li; (IV) Collection and assembly of data: Y Xu, Z Tan, F Yin; (V) Data analysis and interpretation: Y Ma, S Ding, Z Yan, Q Zhu; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work as co-first authors.

*These authors contributed equally to this work.

Correspondence to: Shanxiong Chen, PhD. College of Computer and Information Science, Southwest University, No. 2 Tiansheng Road, Beibei District, Chongqing 400715, China. Email:; Yongmei Li, MD. Department of Radiology, The First Affiliated Hospital of Chongqing Medical University, No. 1 Youyi Road, Yuzhong District, Chongqing 40016, China. Email:

Background: White matter (WM) lesions can be classified into contrast enhancement lesions (CELs), iron rim lesions (IRLs), and non-iron rim lesions (NIRLs) based on different pathological mechanism in relapsing-remitting multiple sclerosis (RRMS). The application of radiomics established by T2-FLAIR to classify WM lesions in RRMS is limited, especially for 3-class classification among CELs, IRLs, and NIRLs.

Methods: A total of 875 WM lesions (92 CELs, 367 IRLs, 416 NIRLs) were included in this study. The 2-class classification was only performed between IRLs and NIRLs. For the 2- and 3-class classification tasks, all the lesions were randomly divided into training and testing sets with a ratio of 8:2. We used least absolute shrinkage and selection operator (LASSO), reliefF algorithm, and mutual information (MI) for feature selection, then eXtreme gradient boosting (XGBoost), random forest (RF), and support vector machine (SVM) were used to establish discrimination models. Finally, the area under the curve (AUC), accuracy, sensitivity, specificity, and precision were used to evaluate the performance of the models.

Results: For the 2-class classification model, LASSO classifier with RF model showed the best discrimination performance with the AUC of 0.893 (95% CI: 0.838–0.942), accuracy of 0.813, sensitivity of 0.833, specificity of 0.781, and precision of 0.851. However, the 3-class classification model of LASSO with XGBoost displayed the highest performance with the AUC of 0.920 (95% CI: 0.887–0.950), accuracy of 0.796, sensitivity of 0.839, specificity of 0.881, and precision of 0.846.

Conclusions: Radiomics models based on T2-FLAIR images have the potential for discriminating among CELs, IRLs, and NIRLs in RRMS.

Keywords: Magnetic resonance imaging (MRI); multiple sclerosis (MS); radiomics

Submitted Sep 09, 2023. Accepted for publication Jan 02, 2024. Published online Jan 23, 2024.

doi: 10.21037/qims-23-1287


Multiple sclerosis (MS) is a chronic autoimmune disease characterized by focal lesions mainly involving white matter (WM) (1). MS patients exhibit remarkable heterogeneity of lesion types and these lesions have been proven to correspond to different histopathological types. Neuropathological studies have shown that MS lesions can be classified into four categories: acute active lesions, chronic active/smoldering lesions, chronic inactive, and remyelinated lesions (2,3). Acute active lesions, also called contrast enhancement lesions (CELs), show enhancement on T1-weighted (T1w) post-contrast magnetic resonance imaging (MRI), representing the breakdown of blood-brain-barrier (BBB) and acute inflammation (4). Chronic active/smoldering lesions, also called iron rim lesions (IRLs), display no contrast enhancement. The IRLs are characterized by an iron-laden rim of activated macrophages/microglia, indicating ongoing innate inflammation and tissue damage, and can be visualized as the paramagnetic rim on quantitative susceptibility mapping (QSM) (5). The chronic active lesions are associated with brain atrophy, aggressive tissue damage, disease progression, and disability and have been suggested as a potential therapeutic target (6-9). The chronic inactive and remyelinated lesions have the same characteristic of neither contrast enhancement nor paramagnetic rim, which can be classified into one category, called non-iron rim lesions (NIRLs). Thus, rapid and accurate identification of CELs, IRLs, and NIRLs is of great importance for predicting disease progression, judging prognosis, and developing or monitoring treatment.

Currently, conventional identification of CELs and IRLs is invasive and time-consuming. The former requires injecting the contrast agent, while the latter depends on the susceptibility-weighted sequence. Radiomics is an emerging technology and can extract massive quantitative imaging features such as intensity, shape, and texture from medical images. These extracted features can be converted to mineable high-dimensional data and thus offering deep information regarding the lesion’s microenvironment, which cannot be observed by clinicians with naked eyes (10). Radiomics is widely used in the diagnosis, differential diagnosis, prognosis, and prediction of cognitive impairment and disability progression of MS (11-14). However, to our knowledge, there is limited research using machine learning to establish lesion classification models in MS.

In this study, we investigated 2- and 3-class classification radiomics tasks based on T2-FLAIR images. The 2-class classification radiomics task was only performed between IRLs and NIRLs, as most MS patients were in chronic stage. CELs and IRLs are the focus of clinical practice and research, as well as being the important imaging biomarkers. Thus, we aimed to construct an effective and noninvasive model for discriminating between IRLs and NIRLs or among CELs, IRLs, and NIRLs. We present this article in accordance with the TRIPOD reporting checklist (available at



Forty-five patients with relapsing-remitting MS (RRMS) were consecutively enrolled in this retrospective study from April 10, 2019 to December 24, 2022 in the First Affiliated Hospital of Chongqing Medical University. The inclusion criteria were as follow: (I) a confirmed diagnosis of RRMS according to the 2017 revised McDonald diagnostic criteria (15). (II) Absence of other neurodegenerative diseases and contraindications for MRI scans. (III) Free of corticosteroid treatment for at least three months before MRI examination. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by the Institutional Review Board of the First Affiliated Hospital of Chongqing Medical University, and all patients provided written informed consent.

MRI data acquisition

All MRI exams were performed on the same 3T scanner (MAGNETOM Skyra, Siemens, Erlangen, Germany, 32-channel head coil). MRI sequences were acquired as follows: (I) sagittal 3-dimensional (3D) T1w magnetization-prepared rapid gradient echo (MPRAGE) before and after gadolinium [repetition time (TR) =2,300 ms, echo-time (TE) =2.26 ms, inversion time (TI) =900 ms, 192 slices, field of view (FOV) =256 mm, voxel size =1.0 mm × 1.0 mm × 1.0 mm], (II) sagittal 3D fluid-attenuated inversion recovery (FLAIR) (TR =5,000 ms, TE =388 ms, TI =1,800 ms, 192 slice, FOV =256 mm, voxel size =0.5 mm × 0.5 mm × 1 mm), (III) 3D-GRE imaging for QSM (TE1/TE2/TE3/TE4 =7.5 ms/15 ms/22.5 ms/30 ms, TR =36 ms, 64 slices, FOV =220 mm, voxel size = 0.5 mm × 0.5 mm × 2.0 mm), (IV) the 3D MPRAGE performed 10 minutes after gadolinium injection (0.1 mmol/kg).

Lesion segmentation and QSM processing

FLAIR and QSM images were registered to pre-contrast T1wMPRAGE images using statistical parametric mapping (SPM12;; MATLAB toolbox). WM lesions were manually outlined slice by slice on registered FLAIR images by one experienced radiologist (with 6 years’ experience) using open-source image analysis software (ITK-SNAP, version 3.8). Then the regions of interest (ROIs) were examined and corrected by one senior neuroradiologist (with 30 years’ experience). Finally, the classification of WM lesions performed by two experienced raters jointly and in case of disagreement, the senior radiologist would make the decision. The classification steps were: (I) identification of CELs on post-contrast T1wMPRAGE images, (II) distinction of IRLs and NIRLs based on QSM images for non-enhancement lesions. IRLs were defined as hyperintense ring-like signals or dots at the lesion edge, encircling it fully or partially, visible on at least two contiguous slices (16). To avoid partial-volume effects, only supratentorial lesions with a volume more than 64 voxels on T1 images were included further analysis. Furthermore, confluent lesions were excluded. The example of lesion segmentation is detailed in Figure S1.

QSM was reconstructed by sepia (SEPIA version on the MATLAB platform (2018a, Mathworks), as previously described (17).

Radiomics feature extraction and selection

In our study, we utilized the pyradiomics package (18) of Python to extract high-dimensional features in the binary classification. Firstly, two experience radiologists were assigned to independently extract imaging radiomics features from the delineated ROIs, and the intraclass correlation coefficient (ICC) was calculated among the features. Only features with ICC ≥0.80 were retained. Next, Mann-Whitney U test was applied to identify features with significant differences (P<0.05). Lastly, least absolute shrinkage and selection operator (LASSO), reliefF, and mutual information (MI) methods were used to screen the features which exhibited significant differences after ICC and U test.

For the 3-class classification task, we employed the same methodology as mentioned above for feature extraction of CELs, IRLs, and NIRLs. The features selected after ICC test were subjected to analysis of variance (ANOVA). Finally, we utilized LASSO, reliefF, and MI methods respectively to identify the most significant features for model construction.

Radiomics classifier model construction

In this study, a random split of data in an 8:2 ratio was employed to create training and testing datasets. The training dataset was utilized to train random forest (RF), support vector machine (SVM), and eXtreme gradient boosting (XGBoost) classifiers respectively for constructing the imaging radiomics classifier model. To determine the optimal model combination, grid search and cross-validation methods were employed. The GridSearchCV class provided by Scikit-learn was utilized to iterate through different parameter combinations. Five-fold cross-validation performed on the training dataset to select the parameter combination that yielded the best model performance. The testing dataset was used to evaluate the performance of the model. Receiver operating characteristic (ROC) curves were used to assess the diagnostic performance of the imaging radiomics model.

Statistical analyses

All statistical analyses were performed with Python software (version 3.8.0). Continuous variables were expressed as mean value ± standard deviation or median with interquartile range as appropriate. Mann-Whitney U test and ANOVA were used to identify differential features among different lesion-groups. Scikit-learn module (version 1.2.0) in Python was utilized for feature selection and machine learning model construction. Additionally, the area under the curve (AUC), accuracy, sensitivity, specificity, and precision were also calculated to better evaluate the performance of models. For the 3-class classification, we took the Micro-average method for a comprehensive evaluation. P<0.05 was considered statistically significant.


Demographic and radiomics features extraction

The study’s workflow is presented in Figure 1. A total of 45 patients with 875 WM lesions were included in this final analysis (92 CELs, 367 IRLs, and 416 NIRLs, respectively). There were 85 confluent lesions and 176 lesions of less than 64 voxels excluded. Figure 2 shows examples of three types of MS lesions. Demographic information is listed in Table 1.

Figure 1 Workflow of this study. Delineating MS lesion by one radiologist on original FLAIR images. Radiomics feature extraction, selection, and model construction for 2- and 3-class classification. IRL, iron rim lesion; NIRLs, non-iron rim lesions; ICC, intraclass correlation coefficient; CELs, contrast enhancement lesions; LASSO, least absolute shrinkage and selection operator; MI, mutual information; XGBoost, eXtreme gradient boosting; RF, random forest; SVM, support vector machine; AUC, area under the curve; ACC, accuracy; MS, multiple sclerosis; FLAIR, fluid-attenuated inversion recovery.
Figure 2 Example of three types of lesions. CELs show hypointense in pre-contrast T1 (A), enhancement in post-contrast (B), and hyperintense in T2-FLAIR (C). The IRL displays T1 hypointense (D), T2-FLAIR hyperintense (E), and hyperintense iron ring on QSM (F). NIRLs appear hypointense on T1 (G), T2-FLAIR hyperintense (H), and isointense on QSM (I). The white arrows point to lesions at the same location of different sequences. CELs, contrast enhancement lesions; T2-FLAIR, T2-fluid-attenuated inversion recovery; IRL, iron rim lesion; NIRLs, non-iron rim lesions; QSM, quantitative susceptibility mapping.

Table 1

Patient demographic

Demographic Test set (n=35) Training set (n=10) P
Age (years) 27.3±7.1 28.9±9.5 0.565a
Sex (male/female) 5/30 1/9 0.725b
Disease duration (years) 2 (1.5) 3 (2.25) 0.097c
Disease-modifying therapy 10 4 0.491b
EDSS scores 0 (1) 1 (1.125) 0.059c

P<0.05 considered statistically significant. Data were shown as mean ± standard deviation or median (interquartile range) or n. a, P obtained using independent sample t-tests; b, P obtained using the Chi-square test; c, P obtained using the Mann-Whitney U tests. EDSS, Expanded Disability Status Scale.

Radiomics feature selection

For the 2-class task, 783 ROIs were utilized (367 IRLs and 416 NIRLs) and 1,111 radiomics features were extracted for each ROI. After ICC test, only 854 features remained, which were further screened using Mann-Whitney U test, resulting in 140 features. For these 140 features, we applied three different methods (LASSO, reliefF, and MI) to select the important radiomics features. After the above steps, totally 7 (LASSO), 8 (reliefF), and 10 (MI) features were finally selected. These selected features are detailed in Table S1.

For the 3-class task, all the 875 ROIs, comprising 92 CELs, 367 IRLs, and 416 NIRLs, were utilized. Same as 2-class task, 930 features were remained after ICC test. Subsequently, ANOVA performed, resulting in 167 features. Finally, LASSO, reliefF, and MI were performed to screen the important features. After the above steps, we ultimately selected 7 (LASSO), 5 (reliefF), and 10 (MI) features for model construction and they are listed in Table S2. The feature coefficients are also shown in Figure 3.

Figure 3 Feature selection using the LASSO algorithm for 2- and 3-class classification. Figure (A,D) showed the choice of the optimal penalty coefficient λ in LASSO regression for 2- and 3-class classification respectively. Figure (B,C) reflected the most important feature and their corresponding coefficients that were identified by LASSO in binary classification; (E,F) the seven features identified in the LASSO coefficient profile and the most predictive subset of the features and corresponding coefficients for the three classifications. MSE, mean squared error; Oc, original_glcm_ClusterTendency; Os, original_gldm_SmallDependenceHighGrayLevelEmphasis; Wf, wavelet-LHH_firstorder_10Percentile; Wgj, wavelet-LHL_glcm_JointAverage; Lfg, log-sigma-1-0-mm-3D_firstorder_RootMeanSquared; Wgg, wavelet-HLH_glszm_GrayLevelNonUniformity; Wgl, wavelet-LLL_glszm_LargeAreaEmphasis; Lfm, log-sigma-1-0-mm-3D_firstorder_Median; Lg, log-sigma-1-0-mm-3D_glszm_GrayLevelVariance; Lfg, log-sigma-1-0-mm-3D_firstorder_RootMeanSquared; Wgg, wavelet-LLH_glszm_GrayLevelNonUniformity; Lgs, log-sigma-1-0mm_3D_gldm_SmallDependenceHighGrayLevelEmphasis; Wfm, wavelet-LLH_firstorder_Mean; Lgc, log-sigma-1-0-mm-3D_glcm_ClusterTendency; LASSO, least absolute shrinkage and selection operator.

Comparison of radiological classifier models

The data in this study were segregated into training and testing sets through a random allocation process based on an 8:2 ratio. Both 2- and 3-class task had nine different combinations of three classifiers and three features selection algorithms. Table 2 present the representative performance metrics for nine models in 2-class task in the testing dataset. LASSO feature selection combined with RF model showed the best performance with the AUC of 0.893 (95% CI: 0.838–0.942), accuracy of 0.813, sensitivity of 0.833, specificity of 0.781, and precision of 0.851, followed by LASSO with XGBoost (AUC =0.884).

Table 2

Performance metrics of different models for 2-class classification in the testing set

Model AUC (95% CI) Accuracy Sensitivity Specificity Precision
LASSO-XGBoost 0.884 (0.828–0.932) 0.825 0.865 0.766 0.847
ReliefF-XGBoost 0.694 (0.606–0.776) 0.646 0.641 0.652 0.720
MI-XGBoost 0.803 (0.732–0.870) 0.741 0.750 0.727 0.793
LASSO-RF 0.893 (0.838–0.942) 0.813 0.833 0.781 0.851
ReliefF-RF 0.726 (0.643–0.805) 0.690 0.696 0.682 0.753
MI-RF 0.798 (0.732–0.862) 0.741 0.794 0.667 0.768
LASSO-SVM 0.733 (0.650–0.809) 0.719 0.781 0.609 0.750
ReliefF-SVM 0.749 (0.667–0.824) 0.741 0.783 0.652 0.758
MI-SVM 0.730 (0.646–0.800) 0.652 0.761 0.561 0.707

AUC, area under the curve; CI, confidence interval; LASSO, least absolute shrinkage and selection operator; MI, mutual information; XGBoost, eXtreme gradient boosting; RF, random forest, SVM, support vector machine.

In the 3-class task, the testing set exhibited a range of AUC from 0.725 to 0.920. Our investigation revealed that LASSO features selection with XGBoost classifier displayed the highest classification performance with the AUC of 0.920 (95% CI: 0.887–0.950), accuracy of 0.796, sensitivity of 0.839, specificity of 0.881, and precision of 0.846, followed by LASSO with RF (AUC =0.890). Results of other models in 3-class task are presented in Table 3. The ROC curves for 2- and 3-class task are shown in Figure 4. For a comprehensive assessment of the model, we conducted the calibration curves and display them in Figures S2-S4.

Table 3

Performance metrics of different models for 3-class classification in the testing set

Model AUC (95% CI) Accuracy Sensitivity Specificity Precision
LASSO-XGBoost 0.920 (0.887–0.950) 0.796 0.839 0.881 0.846
ReliefF-XGBoost 0.725 (0.655–0.793) 0.631 0.572 0.786 0.617
MI-XGBoost 0.883 (0.843–0.922) 0.767 0.722 0.860 0.812
LASSO-RF 0.890 (0.848–0.926) 0.739 0.720 0.843 0.809
ReliefF-RF 0.725 (0.652–0.800) 0.648 0.582 0.791 0.657
MI-RF 0.865 (0.819–0.906) 0.699 0.616 0.820 0.754
LASSO-SVM 0.811 (0.760–0.854) 0.636 0.555 0.764 0.744
ReliefF-SVM 0.743 (0.680–0.806) 0.625 0.550 0.780 0.645
MI-SVM 0.776 (0.708–0.833) 0.619 0.540 0.769 0.668

AUC, area under the curve; CI, confidence interval; LASSO, least absolute shrinkage and selection operator; MI, mutual information; XGBoost, eXtreme gradient boosting; RF, random forest; SVM, support vector machine.

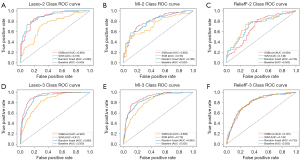

Figure 4 ROC curve analysis for different models. Figure (A-C) showed the ROC of binary classification, and they were obtained by LASSO, MI, and reliefF algorithm respectively. Figure (D-F) displayed the ROC of three classifications using LASSO, MI, and reliefF respectively. ROC, receiver operating characteristic; AUC, area under the curve; LASSO, least absolute shrinkage and selection operator; MI, mutual information.


In this study, we tried to explore the feasibility of applying the radiomics-based model to classify CELs, IRLs, and NIRLs in RRMS. Three selection methods (LASSO, reliefF, and MI) and three classifier models (XGBoost, RF, and SVM) were chosen and their performance was evaluated, as choosing the correct algorithm can improve the reliability and robustness of models. Our study provides a potential method for rapid and non-invasive identification of different MS lesions. Several studies reported that texture analysis based on conventional MRI or susceptibility-weighted imaging (SWI) showed promising results in distinguishing between acute and chronic lesions (11,19). However, to our knowledge, the 3-class radiomics classification model for MS lesions was less considered. In contrast to previous studies, we built a radiomics model for differential diagnosis of IRLs and NIRLs or between CELs, IRLs, and NIRLs, and achieved reliable performance.

As mentioned above, the breakdown of BBB represents the radiological marker of acute inflammatory and disease activity in MS. Due to the transient opening of BBB, the CELs usually exist for 3 weeks and converted to chronic MS lesions (20). Given that most MS patients are in the chronic phase, we only investigated the IRLs and NIRLs for the 2-class classification task. Among the nine models, LASSO with RF reached the best performance with an AUC of 0.893. Our results showed that the radiomics model could distinguish IRLs from NIRLs based on FLAIR images. IRLs have been previously described as inactive centers and characterized by a rim of activated microglia/macrophages (8,21). However, NIRLs contain two types of MS lesions (chronic inactive and remyelinated), and neither of them display inflammation cells and they are accompanied by different degrees of remyelination (22). Consequently, FLAIR image characteristics may modify during the evolution from IRLs to NIRLs, while these changes cannot be found by naked eyes. Our previous research has proven that the radiomics model based on FLAIR images can predict MS lesion evolution (23). Thus, our results may provide a new method of quickly and accurately identifying IRLs for clinical practice.

The LASSO with XGBoost model outperformed other models showing satisfactory performance for 3-class classification. For RRMS patients, relapsing is the most common clinical case (24), and assessing the activity of MS lesions is particularly important for judging prognosis and treatment efficacy. Therefore, a 3-class classification was developed and our results supported the potential application of the radiomics model based on FLAIR images to identify CELs, IRLs, and NIRLs respectively. The CELs have been accepted as a surrogate marker of BBB breakdown and many research has shown that acute inflammatory cell infiltration within CELs would lead to acute axonal transection and oligodendrocyte loss (25,26). Furthermore, different degrees of edema on FLAIR images can be observed in part of CELs, which is related to inflammatory mediators such as cytokines, chemokines, and other reactive oxygen species (26,27). However, IRLs have been proven to come with inflammatory cells that mainly locate at the paramagnetic rim. The reasons above may partially explain the feasibility of this experiment and the results of the 3-class classification model once again demonstrated that radiomics models based on FLAIR images can identify in depth information of different types of lesions, thereby achieving rapid and accurate differential diagnosis.

In the current study, we used three feature selection methods and three classifier models and combined them in pairs to explore the best model. Interestingly, both 2- and 3-class classification models revealed that LASSO is the most suitable features selection algorithm. In radiomics researches, high-dimensional feature vectors can lead to feature redundancy, which may diminish the diagnostic performance of predictive models. However, by adding the H penalty term of the linear model coefficients to the loss function, LASSO method encourages coefficients associated with weakly correlated features to become zero. This approach effectively compresses and reduces the dimensionality of MRI-based radiomics features, allowing further selection of valuable image-based features for model construction. Due to the small sample size of this study, common machine learning methods were employed rather than deep learning methods such as convolutional neural networks. For the 2- and 3-class task, both LASSO with XGBoost or RF demonstrated excellent performance, and the difference between RF and XGBoost was slight. However, the SVM showed unsatisfactory results, no matter what feature selection method was used. Choosing the correct and appropriate algorithm can improve the reliability and robustness of models. Thus, this study compared the performance of different algorithm combinations and evaluated the diagnostic efficacy among models.

To our knowledge, it is the first time to apply a 3-class classification model of radiomics in MS lesions. Previous studies performed 3-class classification tasks to discriminate among benign, borderline, and malignant ovarian tumors and achieved good performance (28). Identification of CELs without gadolinium-based contrast agents is significant in clinical practice (29,30), and our study provides a potential method to achieve this goal.


This study has some limitations. First, the number of RRMS included is limited and our model lacks validation from external data. Future studies will increase the sample size of CELs and add the multicenter data. Second, we chose the method of manually outlining MS lesions and one of the aims of this study was to apply the radiomics-based model to quickly classify different types of lesions. Manual lesion segmentation is time-consuming, but current lesion segmentation software mostly identifies and creates a mask for all WM lesions (31). If we want to analyze the individual lesion, we need to manually segment the lesion mask into individual ROIs. Therefore, we chose manual segmentation from the beginning for the advantage of high accuracy for ROIs.


On balance, the current study demonstrated that the radiomics model based on FLAIR images might be useful to provide complementary differential diagnosis information and new insight to effectively distinguish among CELs, IRLs, and NIRLs in MS. The excellent performance of radiomics models could contribute to minimizing the workload, better monitoring the disease, and reducing the use of contrast agents.


Funding: This study was supported by the Key Project of Technological Innovation and Application Development of Chongqing Science and Technology Bureau (CSTC2021 jscx-gksb-N0008), Chongqing Medical Scientific Research Project (Joint project of Chongqing Health Commission and Science and Technology Bureau) (2023ZDXM006), and Fundamental Research Funds for the Central Universities of China (SWU2009107).


Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by the Institutional Review Board of the First Affiliated Hospital of Chongqing Medical University, and all patients provided written informed consent.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See:
