Development and validation of a radiomics model based on T2-weighted imaging for predicting the efficacy of high intensity focused ultrasound ablation in uterine fibroids

Introduction

Uterine fibroid is a common benign tumor with more than 50% morbidities in reproductive-aged women, and some patients experience abnormal menstruation, anemia and other symptoms, seriously affecting the quality of life (1-3). High intensity focused ultrasound (HIFU) is a non-invasive therapy with few or without adverse events (4,5). HIFU ablation can induce the coagulated necrosis of uterine fibroids, which has been widely used in the treatment of uterine fibroids and some malignant tumors (6-8). The non-perfused volume ratio (NPVR) after HIFU procedure is an indicator of the efficacy of ablation in uterine fibroids, which is associated with the difference of T2-weighted imaging (T2WI) signal intensity. The intensity of T2WI signal is classified as hypointense, isointense, hyperintense and hybrid intense types (9,10). The T2WI signal intensity has been employed to predict the ablation efficacy of HIFU in treatment of uterine fibroids. However, the intensity classification could not fully reflect the characteristics of the fibroids (10,11).

Radiomics analysis is developing rapidly in recent years for medical images analysis (12,13). It can extract a large number of features from medical images to quantify phenotypic characteristics of tumors for diagnosis, clinical prognosis, treatment selection, or other decision support (12-16). Currently, it has been widely used in the differential diagnosis and analysis of benign and malignant tumors (17-21). A study has shown promising results for predicting the efficacy of HIFU ablation therapy in patients with adenomyosis using T2-weighted imaging-based radiomics model (19). Unfortunately, there remains lack of studies that using radiomics features of T2WI images to predict the efficacy of HIFU ablation for uterine fibroids due to the complexity of radiomics analysis (10,21). In order to investigate the predictive effectiveness of T2WI-based radiomics, we performed a retrospective study for the patients with uterine fibroids treated by HIFU ablation. The patients were divided into the two groups: higher ablation rate (NPVR ≥80%) and lower ablation rate (NPVR <80%) after HIFU ablation. This study aims to develop and validate a radiomics model based on the T2WI images to preoperatively predict efficacy of HIFU ablation of uterine fibroids. The clinicians can use this model to automatically predict HIFU treatment outcome so as to guide patient selection. We present this article in accordance with the TRIPOD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-23-916/rc).

Methods

Patients

One hundred and seventy-eight patients with symptomatic uterine fibroids were consecutively enrolled from the imaging and interventional radiology clinic, and these patients were treated with ultrasound-guided HIFU (USgHIFU) in Shanghai Xuhui Central Hospital between February 2017 and December 2021. The inclusion criteria were as follows: premenopausal or perimenopausal women who (I) were above 25 years old; (II) diagnosed with clinical symptomatic uterine fibroids with diameters ≥3 cm; (III) received magnetic resonance imaging (MRI) examinations before and after HIFU therapy, and (IV) had no previous history of surgery or drug treatment. The exclusion criteria were as follows: women who (I) were pregnant or during menstrual period; (II) had contraindications of MRI exam or contrast agents containing gadolinium; (III) had a uterine malignant tumor; (IV) had pelvic inflammation disease or uncontrollable systemic disease; (V) could not lie in the prone position for 2–3 hours, and (VI) had history of high dose abdominal radiotherapy or severe connective tissue diseases. All data were collected retrospectively. The average age of all the patients was 40.28±6.58 years (range, 25 to 49 years), and a total of 200 fibroids from 178 patients were selected and included in the subsequent analysis (Figure 1). The non-perfusion volume ratio was acquired by the contrast-enhanced MRI (3D_VIBE_T1WI, three-dimension volumetric interpolated breath-hold examination T1-weighted image) sequence before and after the HIFU. The procedure time, sonication time, acoustic energy and average acoustic power of the HIFU ablation were collected also retrospectively and analyzed.

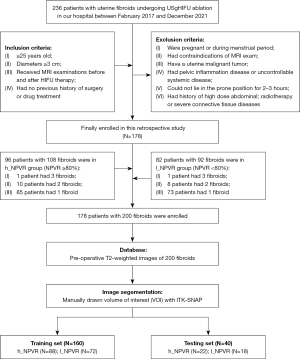

Figure 1 Flowchart summarizing patient enrolment process and study cohorts. The ratio of the training set to the testing set was 8:2. USgHIFU, ultrasound-guided high-intensity focused ultrasound; MRI, magnetic resonance imaging; HIFU, high-intensity focused ultrasound; NPVR, non-perfused volume ratio; h_NPVR, higher NPVR; l_NPVR, lower NPVR.

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of Shanghai Xuhui Central Hospital (No. 2019-094) and individual consent for this retrospective analysis was waived.

USgHIFU equipment and procedure

The USgHIFU procedure was performed using a JC-200 extracorporeal USgHIFU system (Chongqing Haifu Tech Co, Ltd., Chongqing, China), which was equipped with a diagnostic ultrasonic probe (frequency 5 MHz, Esaote, MyLab 70, Genoa, Italy). It had a single 20-cm diameter focused piezoelectric ceramic ultrasound transducer with a focal length of 14 cm and operating at a frequency of 1.0 MHz generated the ultrasound energy (the ultrasonic power range, 50 to 400 W). The transducer can be moved smoothly in six directions (X-axis: right and left; Y-axis: cranial and caudal; Z-axis: inferior and superior) by using computer control. The corresponding movement ranges were 120, 120, and 180 mm for three directions, respectively.

The patients underwent bowel preparation after 12 hours of fasting. Each patient was shaved from the anterior abdominal wall down to the public crest. A Foley catheter was inserted into the patient’s urinary bladder before the treatment. During the HIFU procedure, they took up a prone position on the treatment table. If the bowels were found to be laid between the transducer and the targeted fibroid, it could be pushed away from the acoustic pathway by filling the bladder with urine or using extracorporeally a degassed water balloon to avoid intestinal damage. All patients were administered an intravenous sedative and analgesic (0.8–1.0 µg/kg fentanyl; 0.02–0.03 mg/kg midazolam hydrochloride) to maintain conscious sedation. Their vital signs were monitored during the therapeutic procedure. Patients were requested to inform the operator if there was any pain or discomfort (1).

The therapeutic strategy was that the target regions of focused ultrasound were deployed on a deeper layer of the fibroid initially. Then, the focal ablation gradually moved from its sub-deep layer toward superficial layers. The initial treatment was at 100 W, and the highest power was 400 W. The duration of each sonication was 1–3 seconds, followed by a 2- or 3-second cooling period for HIFU treatment. The acoustic power and therapeutic energy were determined based on the patients’ feedback or/and the grayscale changes on the sonographic images. After a targeted focus ablation was completed, the focus was moved to the next neighboring target based on the treatment plan. When the grayscale change (echo enhancement) covered most of the fibroid, the treatment was considered completed. Treatment would be stopped or the focal spot would be changed if the patient felt severe or intolerant pain or complained of nerve numbness or pain radiating to the lower leg (1). One of the authors (Y.X.), who has had more than 15 years’ HIFU ablation experience, performed all patients’ procedures. All patients had only one treatment session.

Magnetic resonance (MR) equipment and examination

A Siemens 3.0 T MRI scanner (Verio Tim, Siemens Medical Systems, Erlangen, Germany) was used for pre- and post-HIFU therapy image evaluation. Patients were in supine position on an MRI bed and 4-channel abdominal coils were performed. All patients underwent MRI using a standardized protocol including T1WI, T2WI, diffusion-weighted imaging (DWI), pre- and post-contrast 3D-T1WI images at the axial, coronal, and sagittal planes. The scan sequences and parameters were as follows: sagittal T1WI: repetition time (TR) =720 ms, echo time (TE) =12 ms, field of view (FOV) =260 mm × 260 mm, slice thickness =4 mm, slice gap =1.2 mm, slice =25, number of excitation (NEX) =1, bandwidth =260 Hz/Px, flip angle =140°, acquisition time =79 s. Transverse and sagittal T2WI: TR =5,000 ms, TE =85 ms, FOV =260 mm × 260 mm, slice thickness =4 mm, slice gap =1.5 mm, slice =23, NEX =1, bandwidth =200 Hz/Px, flip angle =150°, acquisition time =88 s. Transverse DWI: TR =5,300 ms, TE =93 ms, FOV =260 mm × 260 mm, slice thickness =4 mm, slice gap =1.2, slice =23, b₁ =0 s/mm² and b₂ =1,000 s/mm², NEX =4, bandwidth =1,158 Hz/Px, acquisition time =101 s; transverse, sagittal and coronal 3D_VIBE_T1WI: TR =4.4 ms, TE =1.5 ms, FOV =240 mm × 280 mm, slice thickness =4mm, slice =40, NEX =1, bandwidth =400 Hz/Px, flip angle =9°, acquisition time =18 s. The type, number, location, diameter, and T2WI signal intensity of all fibroids were determined by MR images.

Evaluation of HIFU treatment efficacy and measurement of signal

The axial, sagittal, and coronal 3D_VIBE_T1WI MRI were taken within 24 hours following HIFU ablation, and the images were analyzed to assess the non-perfused volume (NPV). The MRI scanning protocol and parameters were the same as those used for the pre-treatment MRI. The NPV and fibroid volumes were determined from the 3D_VIBE_T1WI images by manually contouring the total non-perfused area and tumor area on each imaging slice. The NPV ratio (NPVR), defined as the NPV divided by the fibroid volume, was then calculated. We defined the higher ablation rate group was NPVR ≥80% [higher NPVR (h_NPVR)], and the lower ablation group was NPVR <80% [lower NPVR (l_NPVR)] (Figure 2) (21,22).

Figure 2 The ablation effect of different types of uterine fibroids. The NPVR ≥80% (A,B) and NPVR <80% (C,D): an intramural fibroid on the left lateral wall with T2WI hybrid intensity (A); a submucosal and a subserosal fibroid on the right lateral wall with T2WI hypointensity (B); an intramural fibroid with T2-weighted imaging isointensity (C) and an intramural fibroid with T2WI hybrid intensity (D). The minimum scale in these pictures is 10 mm. NPVR, non-perfused volume ratio; T2WI, T2-weighted imaging.

Pre-HIFU treatment T2WI images was used to measure the maximum diameter, T2WI signal intensity value, and to classify the fibroid type and location. The largest layer on the axial T2WI images was selected to measure the maximum diameter. Three consecutive layers of images were selected from the centre of fibroids, and the region of interest (ROI) was drawn along the edge of the fibroids and the rectus abdominis muscle of the same layer. Each measurement was carried out three times, and the average intensity value was taken as the final. T2WI signal intensity ratio = T2WI signal intensity value of fibroids/T2WI signal intensity value of rectus abdominis.

ROI segmentation and radiomics analysis

The fibroids (ROIs) in pre-treatment T2-weighted images and in post-treatment contrasted T1-weighted images were delineated by two radiologists together with more than 10 years’ experience. The inconsistent annotation was determined by the third senior radiologist. The delineation of ROIs in pre- and post-treatment images were separate and were done in different time. All of them did not know the results of NPVR, especially. The annotation tool is ITK-SNAP (v3.6.0, http://www.itksnap.org/pmwiki/pmwiki.php), which is an open-source software. The ROIs were recognized and outlined manually by the polygon model tool in ITK-SNAP based on the fibroids’ boundaries shown in the T2-weighted images slice by slice, and a 3D ROI was obtained for each subject, as shown in Figure 3. After manual annotation, the original images and the ROIs are resampled to the same resolution. Then, the radiomics analysis was performed based on fibroid regions by a clinical research platform (23), uAI Research Portal (uRP) (Shanghai United Imaging Intelligence, Shanghai, China) (Version:20220715). The main processing procedure includes feature extraction, feature selection and model construction to distinguish the ablation efficacy.

Figure 3 ROI extraction of uterine fibroids using the ITK-SNAP software. (A) A subserosal fibroid with low intense signal on the right lateral wall of uterus in T2WI; (B) the red part shows the mask of the fibroid delineated manually in T2WI; (C) the NPVR reached 100% in contrast-enhanced T1-weighted imaging; (D) 3D visualization of fibroid in ITK-SNAP. The minimum scale in these pictures is 10 mm. ITK-SNAP is a free, open-source, multi-platform software application from http://www.itksnap.org/pmwiki/pmwiki.php. ROI, region of interest; T2WI, T2-weighted imaging; NPVR, non-perfused volume ratio; 3D, three-dimensional.

From each ROI, radiomics features was extracted based on the original and filtered T2-weighted images. The original features consist of 104 features, including 18 first-order features, 14 shape features, 21 gray-level co-occurrence matrix (GLCM) features, 14 gray-level dependence matrix (GLDM) features, 16 gray-level run-length matrix (GLRLM) features, 16 gray-level size-zone matrix (GLSZM) features and 5 neighboring gray-tone difference matrix (NGTDM) features. We applied 25 filters on original images, including log, mean, normalize, binomialblurimage, boxmean, boxsigmaimage, curvatureflow, laplaciansharpening, discretegaussian, recursivegaussian, shotnose, specklenoise, additive, Gaussian noise and wavelet. For wavelet decomposition, high- and low-pass filters were applied stepwise to the x, y, and z coordinates. As a result, a total of eight decompositions were obtained from one ROI, namely LLL, LLH, LHL, LHH, HLL, HLH, HHL, and HHH (L and H represent low- and high-pass filters respectively). Combining original and filtering features, 2,264 radiomics features were finally extracted from each ROI (Figure 4).

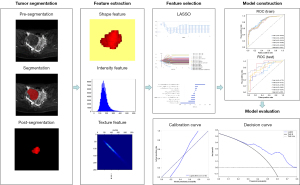

Figure 4 The radiomics flowchart by uRP. On the medical images, segmentation is performed to define the fibroids region. From this region the features are extracted, e.g., fibroids shape, intensity, and texture features. And then these features are used for analysis, of which those important features will be selected and used to construct predictive model. Finally, the model is evaluated. uRP is a clinical research platform for radiomics analysis from Shanghai United Imaging Intelligence, Shanghai, China. LASSO, least absolute shrinkage and selection operator; ROC, receiver operator characteristic curve; uRP, uAI research portal.

For feature selection, each feature was given the same priority and a pre-processing was applied with a Z-score normalization before using the least absolute shrinkage and selection operator (LASSO). LASSO is a type of linear regression method utilized for feature selection and regularization. It involves adding a penalty term to the most function of the linear regression model, which helps prevent overfitting by shrinking the coefficients towards zero. The LASSO parameter α was set to 0.05 to prevent the overfitting problem. The logistic regression classifier was applied to build the prediction model (Figure 5). The five-fold cross validation method was applied to effectively evaluate the prediction model.

Figure 5 Radiomics feature selection. (A) AUC in LASSO; (B) LASSO coefficient profiles of the 2,264 radiomics features, resulting in 11 non-zero coefficient features; (C) the 11 most significant feature subsets selected by LASSO and their correlation coefficients. AUC, area under the curve; LASSO, least absolute shrinkage and selection operator.

Data and statistical analysis

SPSS software (SPSS 18.0; SPSS Inc., Chicago, IL, USA) was used for statistical analysis. The Kolmogorov-Smirnov (K-S) statistical test was used to test for normality, data were described as the mean ± standard deviation (SD) for normally distributed data or median with a quartile range for non-normally distributed data. The Student’s t-test, Mann-Whitney test and Chi-square test were employed for data analysis. The receiver operating characteristic (ROC) curve, area under the curve (AUC), specificity, sensitivity and accuracy were used to evaluate the performance of the model. The closer the AUC was to 1, the better the identification ability. A P value less than 0.05 was considered statistically significant.

Results

General clinic data

Ninety-six patients (aged 40.16±6.71 years) with 108 fibroids were in h_NPVR group, among them one patient had three fibroids, ten patients had two fibroids, and the remaining patients had one fibroid. The mean maximum diameter was 6.07±1.76 cm (range, 3.48 to 11.62 cm). The subserosal, intramural and submucosal fibroids were 3, 60 and 45, respectively. Eighty-two patients (aged 40.43±6.46 years) with 92 fibroids were in l_NPVR group, among them one patient had three fibroids, eight patients had two fibroids, and the remaining patients had one fibroid. The mean maximum diameter was 6.44±2.06 cm (range, 3.82 to 12.01 cm). The subserosal, intramural and submucosal fibroids were 2, 70 and 20, respectively. There was no statistically significant difference for the patient age, fibroids maximum diameter, location and T2 signal intensity typing between the two groups (P=0.785, P=0.168, P=0.231, P=0.209), yet with statistically significant difference for the fibroids T2WI signal value and signal ratio as shown in Table 1 (P<0.001, P<0.001).

The average procedure time was 123.83±43.16 and 151.28±43.57 minutes, median sonication time was 2,428 (1,201) and 3,467 (1,558) s, median acoustic energy was 564.570 (592.080) and 829.905 (671.962) kJ in the h_NPVR group and l_NPVR group, respectively (P=0.001, P=0.000, P=0.004). The average acoustic power was 265.62±68.49 and 262.86±67.24 W in the h_NPVR group and l_NPVR group (P=0.831) (Table 1).

Radiomics feature extraction, feature election and model construction

After feature selection, a total of 11 most significant features were selected by LASSO, including four GLSZM features, three GLCM features, one NGTDM feature, one GLRLM feature, one first-order feature and one shape feature. The selected feature name and the correlation coefficients are shown in Figure 5. Based on the 11 selected features, the logistic regression classifier was built for each fold and the performance for each fold was shown in Table 2. To summarize the overall performance, the mean AUC was 0.817 [95% confidence interval (CI): 0.755–0.882], for training set and 0.805 (95% CI: 0.670–0.941) for testing set, which showed a strong classification ability. The Delong test showed that there was no significant difference in the area under the ROC curve between the training set and testing set (as shown in Table 2 and Figure 6).

Figure 6 The ROC curves of different models. (A,B) Training dataset; (C,D) testing dataset. (A,C) Five-fold cross validation; (B,D) mean of five models. ROC, receiver operator characteristic; AUC, area under the curve.

Verification of the prediction model

The calibration curves of the prediction model exhibited a high degree of consistency between the predicted outcomes and actual observations in both the training and test cohorts, as depicted in Figure 7A,7B. The decision curve analysis plots demonstrated that the model provided significant clinical net benefit in both the training and test cohorts, as shown in Figure 7C,7D.

Figure 7 Calibration curves and decision curves for prediction model in training cohorts and testing cohorts. Calibration curves for prediction model in training cohorts (A) and testing cohorts (B). The ideal prediction is depicted by the black dashed line, while the blue line showcases the model’s predictive ability. The closer these lines fit to the dashed line, the higher the model’s accuracy in making predictions. Decision curve for the prediction model in training cohorts (C) and testing cohorts (D). In this study, assuming no patients undergo HIFU ablation is denoted by the black line representing net benefit. Conversely, assuming all patients receive HIFU ablation is represented by the grey line. The blue line represents the anticipated net benefit obtained from predicting outcomes using the model. HIFU, high-intensity focused ultrasound.

Discussion

The evaluation of NPVR by T1WI contrast-enhanced imaging has become an important indicator of the success of HIFU ablation of uterine fibroids, and the higher the NPVR, better the clinical efficacy. Sixty percent, 70%, 75%, 80%, or 90% of the NPVR have been set as the criteria for technical success in different studies (24-26). Park et al. (27) reported that an immediate NPVR of at least 80% was safe in USgHIFU ablation of uterine fibroids, which could achieve a greater tumor volume shrinkage compared with lower NPVR. While Mindjuk et al. (28) found that the NPVR results of more than 80% were correlated with higher clinical success rates, Bitton et al. (29) considered >80% of the NPVR as the image biomarker for the largest improvement in symptoms after HIFU treatment. Therefore, the NPVR 80% was chosen as the criterion for separating l_NPVR from h_NPVR in our study (30).

A series of MRI parameters, such as T2 signal intensity, DWI apparent diffusion coefficient (ADC) value, Ktrans (31), etc., have been employed for predicting the efficacy of HIFU ablation (30,32). Previous studies showed that T2 signal intensity of uterine fibroids was negatively correlated with the NPVR of focused ultrasound ablation (9,30,33). Different from International Federation of Gynecology and Obstetrics (FIGO) classification system (33), which emphasizes the relationship between the fibroids and the adjacent mucosa, muscular and serosal layer, the Funaki classification (9) pays more attention to the MRI T2 signal intensity of fibroids. Funaki et al. (9) classified the T2 signals of uterine fibroids into three types: hypointensity, iso-intensity and hyperintensity. And they reported the hypointense signal type could achieve the best ablation effect; the isointense signal type had relatively satisfactory ablation efficacy and potential recurrence; whereas hyperintense signal type had the worst ablation effect. However, in clinical practices the high NPVR could be achieved in some of T2 hyperintense fibroids, whereas some of T2 hypo- or iso-intense fibroids did not have good ablation effect after focused ultrasound therapy (34). The fibroids with T2 hypointense or isointense signal are mainly composed of collagen fibrous tissue with insufficient blood supply, which would result in more deposition of acoustic energy (7,33). The fibroids with T2WI hybrid intense signal usually indicate complex pathological changes, such as cystic, necrosis and calcification (33,35). The content of water, representing T2 hyperintense signal, in the degenerated uterine fibroids makes it easy for focused ultrasound energy to penetrate the focused region (36,37). Although the blood flow of fibroid has heat-sink effect on thermal ablation in radiofrequency therapy, the perfusion has only a small impact on the thermal dose volume during HIFU procedure in comparison with ultrasound absorption because of a shorter time of sonication (38). Our previous data showed that the T2 signal intensity of fibroids with a poor blood supply were lower than those of the fibroids with a rich blood supply (30). The T2 signal was related to the variation of cell density, collagen fiber content, blood supply types and water content of the tumors (31,39), however its intensity could not accurately reflect the complex texture of uterine fibroids. A single qualitative classification based on T2 signal intensity could not accurately evaluate the heterogeneous conditions, although it is still considered as primary imaging biomarker to predict the efficacy of HIFU ablation in treatment of uterine fibroids (29). The key issue should be addressed to precisely select the patients suitable to HIFU ablation of the uterine fibroids before treatment for clinically curative response.

The radiomics studies has shown its advantages on the differential diagnosis of uterine fibroids (40-42). Kurban et al. (41) collected 75 patients with 212 uterine fibroids who were successfully treated by uterine artery embolization (UAE) and developed a radiomics model of treatment response to UAE. A five-variable predictive ROC model was developed to evaluate the diagnostic accuracy of the signal intensity ratio and heterogeneity ratio on T2-weighted MRI, contrast enhancement ratio on T1-weighted MRI, location, and baseline fibroid volume. The five-variable ROC model showed high diagnostic accuracy with an AUC of 0.85, sensitivity of 82%, and specificity of 71%. Lakhman et al. (42) reported that T2WI based radiomics was feasible in distinguishing leiomyosarcoma (LMS) and atypical uterine fibroids. Thus, the radiomics analysis of T2 signal could quantify and figure out the overlooked but potentially valuable texture features of fibroids through a large number of imaging information. Radiomics models are superior to conventional clinical models for the tumor characteristic analysis (21), which would probably be helpful for HIFU ablation efficacy prediction, since there was no statistically significant difference in T2WI signal intensity typing between the h_NPVR group and the l_NPVR group in our study (P=0.209) (Table 1).

Our study selected a total of 11 valuable radiomics features based on T2WI, including four grayscale region matrix (GLSZM) features, three grayscale co-occurrence matrix (GLCM) features, one neighborhood grayscale difference matrix (NGTDM) feature, and one grayscale run matrix (GLRLM) feature, with only one first-order feature and one shape feature (Figure 5). Wei et al. (20) extracted 20 sets of 745 quantitative features from preprocessed T2WI images and evaluated the correlation between NPVR and the radiomics features of uterine fibroids using a multiple linear regression model. The final regression model R2 for NPVR was found to be 0.422, and the independent and valuable parameter was the size zone non-uniformity (SZN) parameter in the grayscale region matrix (GLSZM). The larger the SZN parameter value, the greater the heterogeneity of the image. In our study, both the glszm_smallerarealowgraylevelemphasis and ngtdm_contrast features showed the best significance at the time of modeling in the LASSO feature selection results. The small area low gray level emphasis (SALGLE) obtained from the grayscale size region matrix (GLSZM), measures the proportion in the image of the joint distribution of smaller size zones with lower gray-level values. The GLSZM quantifies the clusters of homogeneous intensity regions within the tumor (43). The ngtdm_contrast is one of the features of the neighborhood gray tone difference matrix (NGTDM) group. NGTDM, as a higher-order statistical parameter, detects the signal intensity and spatial correlation between adjacent voxels and describes the dynamic range of intensity at the local level, which is better for quantifying the heterogeneity within the ROI (44). In our research, both the GLSZM and NGTDM features were significantly correlated with NPVR of fibroids. These results indicated that higher-order feature parameters had higher overall effectiveness in predicting HIFU efficacy than first-order features and shape features.

In our study, there was no statistically significant difference in the maximum diameter, location and T2 signal intensity typing of fibroids between the h_NPVR group and l_NPVR group (P>0.05), and the acoustic power were very close between the two groups (265.62±68.49 vs. 262.86±67.24 W) (P>0.05). The procedure time, sonication time and acoustic energy in the h_NPVR group were lower than that of the l_NPVR group, respectively (P<0.05). These results are consistent with many previous reports (9,11,20,45). The results of our study showed that the eleven radiomics characteristic of T2 signal of fibroids are effective indicators for predicting the HIFU efficacy (Figure 5), and the radiomics model constructed based on this had the good application value in both of the training set (AUC =0.817, sensitivity of 71.1%, and specificity of 68.1%) and the testing set (AUC =0.805, sensitivity of 69.1%, and specificity of 67.1%) (Figure 6 and Table 2). The Delong test showed that there was no significant difference in the area under the ROC curve between the training set and testing set (Figure 6 and Table 2). Wang (21) developed a machine learning model for prediction of malignancy in T2 hyperintense mesenchymal uterine tumors based on T2WI features and clinical information, and the results showed that comparing with the T2WI-based radiomics model (AUC =0.76) and the clinical model (AUC =0.79), the combined model significantly improved the AUC value to 0.9. Zheng (37) enrolled 205 patients with uterine fibroids treated by HIFU, and extract radiomics features from T2-weighted images and ADC, and combined the selected radiomics features and clinical parameters to established the clinical-radiological model, radiomics model, and radiomics-clinical model. The results showed that the multi-parametric MRI-based radiomics model outperformed T2WI-based radiomics model, which achieved an average AUC of 0.769, and showed satisfactory prediction performance for NPVR classification. The radiomics-clinical model demonstrated best prediction performance for HIFU treatment outcome, with an average AUC of 0.802 and an accuracy of 0.762 in the testing cohort. These studies had showed that the radiomics was of great value for identifying the malignant tumor and assessing HIFU ablation efficacy of the fibroids. Without considering the influence of clinical and other radiological parameters on the results, our study demonstrated that T2WI-based radiomics model had the positive outcome in predicting the HIFU ablation efficacy of uterine fibroids.

The limitations of our study are: (I) a relatively small sample size from one medical center, and there might be bias in patient selection; (II) only T2WI images was leveraged, thus the feature extraction was not comprehensively enough; (III) some laboratory parameters such as luteinizing hormone, follicle stimulating hormone and serum estradiol were not evaluated; (IV) lack of validating application of different MRI scanning parameters from the other vendors in this radiomics model. Therefore, it is expected that the multi-center clinical trial with large samples will be performed in the future, and a more comprehensive and perfect prediction model can be established based on multi-parameter MRI and laboratory parameters. In conclusion, our preliminary study demonstrated that radiomics model based on T2WI, using the high-order textural features instead of the first-order and shape features, had a good effectiveness in predicting the efficacy of HIFU ablation in the treatment of uterine fibroids with higher coefficients, which would be helpful for physicians to develop appropriate strategy of HIFU ablation.

Conclusions

Our study showed that the radiomics model based on T2WI is feasible and effective for predicting the efficacy of HIFU ablation in treatment of uterine fibroids. The preoperative radiomics evaluation can potentially be used to screen the uterine fibroids with high ablation rate for improving HIFU postoperative efficacy.

Acknowledgments

We thank Dr. Wu Shun Felix Wong from School of Women’s and Children’s Health, The University of New South Wales, NSW, Australia, for language editing of the manuscript.

Funding: This work was supported by the Foundation for State Key Laboratory of Ultrasound in Medicine and Engineering, Chongqing, China (No. 2020KFKT020) and the grant from Shanghai Xuhui District Science and Technology Committee, Shanghai, China (No. 2020-020).

Footnote

Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-23-916/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-23-916/coif). X.P., L.C. and X.C. are full-time employees of Shanghai United Imaging Intelligence Co., Ltd. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of Shanghai Xuhui Central Hospital (No. 2019-094) and individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
