Minimal pericardial effusion on iodine 131 whole-body scan could be a false-positive finding

Introduction

Iodine 131 (¹³¹I) whole-body scan (WBS) is critical to the management of patients with differentiated thyroid cancer (DTC) in clinical practice. It can detect normal thyroid remnants and recurrent or metastatic disease. However, ¹³¹I WBS may lead to false-positive results due to a variety of physiological or pathological reasons, which may make it difficult to correctly interpret ¹³¹I WBS and determine whether there is disease recurrence or metastasis. Generally, the false-positive findings on ¹³¹I WBS can be categorized as physiological false-positive uptake, pathological false-positive uptake, or retention of ¹³¹I and contamination (1). For the retention of ¹³¹I, pericardial effusion has been reported in previous reports, but the ¹³¹I uptake is generally faint or the volume of the pericardial fluid is moderate or large (2-7). Here, we report a case of papillary thyroid carcinoma (PTC) in a 33-year-old woman who showed intense uptake of ¹³¹I with a minimal pericardial effusion after ¹³¹I treatment.

Case presentation

All procedures performed in this study were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient for publication of this case report and accompanying image. A copy of the written consent is available for review by the editorial office of this journal.

A 33-year-old woman with PTC was admitted to our department for radioiodine therapy (RT) after total thyroidectomy and left side lymph node dissection. The pathology results showed that the right lobe was Hashimoto thyroiditis, the left lobe was PTC with the tall cell variant, and the tumor diameter was 1.2 cm. Among the lymph nodes of the left cervical region, 7 of 37 were involved. Her risk stratification for the prediction of persistent or recurrent disease before ¹³¹I therapy was intermediate according to the 2015 American Thyroid Association (ATA) guidelines (8). The patient was in a state of euthyroidism, with a thyroid-stimulating hormone (TSH) level of 2.35 µIU/mL (normal range, 0.27–4.20 µIU/mL), a free triiodothyronine 3 (FT3) level of 5.65 pmol/L (normal range, 3.10–6.80 pmol/L), and an FT4 level of 20.9 pmol/L (normal range, 12.0–22.0 pmol/L) before surgery. She was then admitted to our department for RT 4 weeks after surgery.

After withdrawing from thyroid hormone treatment for 3 weeks after thyroid surgery, the patient’s serum thyroglobulin (Tg) level, serum antithyroglobulin antibody (TgAb) level, and TSH level was 14.00 µIU/mL (reference range, 1.4–78 µIU/mL), 15.80 IU/mL (reference range, 0–115 IU/mL), and 47.800 µIU/mL, respectively. Four days after oral administration of 5.55 GBq (150 mCi) of ¹³¹I, a whole-body planar scan showed two intense foci of ¹³¹I: one in the thyroid bed (arrowhead, Figure 1A,1B) and the other in the chest with a heart-like pattern (arrows, Figure 1A,1B). Subsequently, single-photon emission computerized tomography and computed tomography (SPECT/CT) was performed, which revealed a lesion in the thyroid bed representing residual thyroid tissue and another in the pericardium, particularly in the superior pericardial recess (arrows in Figure 1C-1E) and the anterior inferior sinus of the pericardium (arrows in Figure 1F-1H), with minimal pericardial effusion. The maximum intensity projection (MIP) image (Figure 1I) also showed heart-like pattern foci in the pericardium. After 5 days of levothyroxine therapy, the patient underwent echocardiography, which showed normal results (Figure 1J).

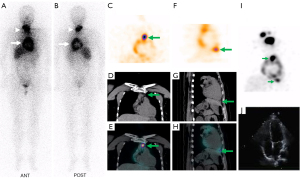

Figure 1 Posttherapeutic ¹³¹I WBS and SPECT/CT findings. ¹³¹I WBS showed two foci of ¹³¹I (A,B, arrow and arrowhead; A: anterior view; B: posterior view). SPECT/CT was performed and revealed minimal pericardial effusion in the superior pericardial recess (C-E, arrows; SPECT: C; CT: D; SPECT/CT fusion: E) and the anterior inferior sinus of the pericardium (F-H, arrows; SPECT: F; CT: G; SPECT/CT fusion: H). In the maximum intensity projection image (I), heart-like pattern foci were observed in the pericardium, especially in the superior pericardial recess and anterior inferior sinus of the pericardium. After 5 days of levothyroxine therapy, the patient underwent echocardiography, which had normal findings (J). WBS, whole-body scan; SPECT, single-photon emission computed tomography; CT, computed tomography; ¹³¹I, iodine-131.

After 3 years of follow-up, there was no sign of metastatic or recurrent disease, her inhibitory Tg level was less than 0.04 ng/mL, the TgAb level was less than 10 IU/mL, and the imaging examinations were negative. Her echocardiography showed normal results. Therapeutic evaluation showed an excellent response from RT. She became pregnant and gave birth to a healthy baby 2 years after RT.

Discussion

¹³¹I WBS is a highly sensitive method for detecting metastatic or recurrent disease in patients with DTC (9). The correct interpretation of ¹³¹I WBS is essential for the appropriate management of patients with thyroid cancer. The abnormal uptake outside the thyroid bed in ¹³¹I WBS must be studied carefully, and the false-positive results of these findings need to be considered. Further imaging modalities are often required to explain the unexpected uptake of ¹³¹I, but the lack of data for anatomical location on planar imaging protocols makes it difficult to direct further management. In this context, SPECT/CT is a highly valuable tool for determining the exact anatomic localization of the ¹³¹I acid foci as detected on planar imaging protocols (10). Meanwhile, some studies have reported that SPECT/CT also has a higher sensitivity and specificity than ¹³¹I WBS (11,12). In one study, the false-positive findings on ¹³¹I WBS were categorized as physiological false-positive uptake, pathological false positive uptake, retention of ¹³¹I, and contamination (1). For the retention of ¹³¹I, it was reported that pleural or pericardial effusions can accumulate ¹³¹I via the passive diffusion of ¹³¹I (13) or by partially active transport (14). There are some case studies and reviews of false-positive radioiodine uptake occurring due to the rapid development of pericardial effusion secondary to thyroid hormone withdrawal-related hypothyroidism (2-7). However, in other case studies, the radioiodine uptake was reported to be consistently faint or the volume of the pericardial fluid moderate or large. Our case indicated that an increase in ¹³¹I activity may not be associated with the volume of the pericardial fluid and that even minimal pericardial effusion may contribute to an extreme false-positive finding. Moreover, our case demonstrated that SPECT/CT imaging can be helpful for identifying the cause of increased activity due to its ability to clearly visualize pericardial effusion on the corresponding CT images.

Acknowledgments

We thank the patient and her family for their collaboration.

Funding: None.

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-23-1375/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures performed in this study were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient for the publication of this case report and accompanying image. A copy of the written consent is available for review by the editorial office of this journal.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
