Letter to the Editor

Underestimation of liver hemangioma perfusion fraction by standard intravoxel incoherent motion diffusion magnetic resonance imaging

Yì Xiáng J. Wáng1^, Akmal Sabarudin2

1Department of Imaging and Interventional Radiology, Faculty of Medicine, The Chinese University of Hong Kong, Hong Kong SAR, China; 2Diagnostic Imaging and Radiotherapy Program, Faculty of Health Sciences, The National University of Malaysia, Kuala Lumpur, Malaysia

^ORCID: 0000-0001-5697-0717.

Correspondence to: Yì Xiáng J. Wáng, MMed, PhD. Department of Imaging and Interventional Radiology, Faculty of Medicine, The Chinese University of Hong Kong, 30-32 Ngan Shing Street, Shatin, New Territories, Hong Kong SAR, China. Email: yixiang_wang@cuhk.edu.hk.

Submitted Nov 21, 2023. Accepted for publication Dec 20, 2023. Published online Jan 12, 2024.

doi: 10.21037/qims-23-1651

Liver hemangioma is one of the most common benign liver lesions. It is frequently diagnosed as an incidental finding on imaging, as most patients are asymptomatic. Hemangiomas are thought to be congenital in origin, non-neoplastic. Histologically, hemangioma is a mesenchymal lesion consisting of blood-filled vascular cavities of different sizes, surrounded by a simple layer of flat endothelial cells, supported by fibrous connective tissue. The cavernous hemangioma is the most common histological subtype and corresponds to the classic description of the hemangioma in imaging. Cavernous hemangioma consists of large vascular spaces with a central cavernous zone, and not very extensive connective tissue. Capillary hemangioma presents smaller vascular spaces and more extensive connective tissue. Capillary hemangioma is also known as fast-flow hemangioma and accounts for 16% of all hemangiomas. Due to its being a vascular lesion, liver hemangioma has been typically shown to be associated with very high blood volume and blood flow (1-9). Dynamic computed tomography (CT) studies consistently demonstrate liver hemangioma has much higher values of blood volume and blood flow compared with liver tissue or liver solid tumors (Table 1) (1-7).

Table 1

A comparison of blood volume and blood flow of liver hemangioma compared with liver tissue and liver solid tumors

Authors Parameters measured
Boas et al. (1) Perfusion CT HAC (mL/mL %): cirrhotic liver, −13±7; HCC, 10±11; hemangioma: 64±23
Boas et al. (1) Perfusion CT PVC (mL/mL %): cirrhotic liver, 31±14; HCC, 23±17; hemangioma: 33±29
Gadupudi et al. (2) Perfusion CT blood volume (mL/100 g): liver, 13.1; hemangioma, 26.8
Gadupudi et al. (2) Perfusion CT blood flow (mL/100 g/min): liver, 215.7; hemangioma, 765.9
Gadupudi et al. (2) Perfusion CT blood volume (mL/100 g): liver, 15.1; HCC: 19.3
Gadupudi et al. (2) Perfusion CT blood flow (mL/100 g/min): liver, 132.2; HCC, 462.2
Singh et al. (3) Perfusion CT blood volume (mL/100 g): liver, 26.9±9.5; HCC, 34.5±12.2; hemangioma, 42.9±16.8
Singh et al. (3) Perfusion CT blood flow (mL/100 g/min): liver, 168.4±44.9; HCC, 345.9±69.5; hemangioma, 554.6±211
Li et al. (4) CT total perfusion volume (mL/100 mL/min): liver, 79.1±34.7; hemangioma, 132.7±132.7
Guo and Yu (5) CT blood flow: liver, 39.8±18.7; hemangioma, 106.2±19.3
Zhang et al. (6) PET blood-pool imaging (SUV): liver, 3.69±0.53; hemangioma, 6.83±1.38

Boas et al. (1) used the concept of HAC and PVC. HAC indicates similarity of a lesion’s enhancement curve to the aortic enhancement curve, and PVC indicates similarity of a lesion’s enhancement curve to the portal venous enhancement curve. An enhancement curve that has the same shape as the aortic enhancement curve, but only half the amount of enhancement, is considered to have 50% HAC. The HAC and PVC are equal to hepatic artery and portal vein blood volumes, in a simple perfusion model that assumes rapid blood flow and no vascular permeability to contrast. Blood volumes or coefficients are expressed in units of blood volume in a voxel (mL) divided by total volume of the voxel (mL) or as a percentage. Zhang et al. (6) used an albumin-binding PET radiotracer blood pool agent to measure SUV of hemangioma. Higher SUV is associated with larger perfusion volume. CT, computed tomography; HAC, hepatic artery coefficient; HCC, hepatocellular carcinoma; PVC, portal vein blood supply coefficient; PET, positron emission tomography; SUV, standardized uptake value.

On magnetic resonance imaging (MRI), liver hemangioma presents very high intensity signal on T2-weighted images, a low intensity signal on T1-weighted images and a high value of the apparent diffusion coefficient (ADC) (10). The mean T2 relaxation time of liver hemangioma has been reported to be 100 ms (0.35 T) (11), 153.9 ms (3.0 T) (12), 166.5 ms (13), or 178 ms (1.5 T) (14). The mean ADC of liver hemangioma has been reported to be 1.69×10−3 mm2/s (1.5 T, b=50, 600 s/mm2) (15), 1.87×10−3 mm2/s (3.0 T, b=0, 500 s/mm2) (16), 1.94×10−3 mm2/s (3.0 T, b=0, 800 s/mm2) (17), and 2.04×10−3 mm2/s (3.0 T, b=0, 500 s/mm2) (18). Recently, Wáng et al. (19-21) proposed that in vivo ADC measure is strongly associated with T2 relaxation time. Wáng et al. (20) divided T2 time into short T2 time band (<60 ms), intermediate T2 time band (60–80 ms), and long T2 time band (>80 ms, all 3 T values). For the short T2 time band, there is a negative correlation between T2 time and ADC. For the long T2 time band, there is a positive correlation between T2 time and ADC. Considering that a number of studies have shown that liver cyst has a longer T2 than liver hemangioma (12,22) and thus liver hemangioma will have a shorter T2 than the gallbladder, the position of liver hemangioma on the T2-ADC curve is shown in Figure 1. It appears that the measured ADC for hemangioma is higher than the ADC predicted from T2 if hemangioma were a solid/cellular tumor. This reflects the liquid nature of the hemangioma. In a gadolinium-enhanced dynamic MRI study, Nam et al. (23) reported that ADC values were higher in the rapidly contrast enhancing hemangiomas than in the intermediately or the slowly contrast enhancing hemangiomas. Higher ADCs of rapidly enhancing hemangiomas will be related to richer intralesional vascular perfusion.

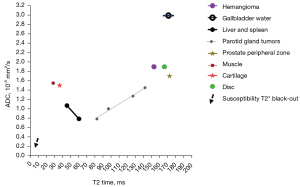

Figure 1 Relationship between T2 and ADC at 3 T. The graph is initially from Wáng et al. (20,21). Data sources for spleen, parotid gland tumors, and prostate see Wáng and Ma (20). Data sources for muscle, cartilage, liver, and intervertebral disc see Wáng et al. (21). Hemangioma is assumed to have a T2 of 153 ms and an ADC of 1.9×10−3 mm2/s. Dotted arrow denotes susceptibility T2* black-out, which is observed with structures having a very short intrinsic T2 signal due to very short T2*. In this graph, dotted arrow is for illustration only, and does not reflect true quantitative values for susceptibility T2* black-out. ADC, apparent diffusion coefficient.

Intravoxel incoherent motion (IVIM) theory in MRI was proposed to account for the effect of vessel/capillary perfusion on the aggregate diffusion weighted magnetic resonance signal. The fast component of diffusion is related to micro-perfusion, whereas the slow component is linked to molecular diffusion. The standard IVIM modeling is based on Eq. [1]:

SI(b)/SI(0)=(1−PF)×exp(−b×Dslow)+PF×exp(−b×Dfast)

where SI(b) and SI(0) denote the signal intensity of images acquired with the b-factor value of b and b=0 s/mm2, respectively. Three parameters can be computed. Dslow (or D) is the diffusion coefficient representing the slow molecular diffusion (unaffected by perfusion). The perfusion fraction (PF, or f) represents the fraction of the compartment related to (micro)circulation, which can be understood as the proportional ‘incoherently flowing fluid’ (i.e., blood) volume. Dfast (or D*) is the perfusion-related diffusion coefficient representing speed. IVIM has been applied to evaluate the perfusion component of liver hemangioma, and the literature results of the liver hemangioma IVIM perfusion compartment are shown in Figures 2,3 (17,24-34). The data in Figures 2,3 are based on a PubMed systematic literature search for all English research articles which reports IVIM results of liver hemangioma, as well as liver tissue or a liver solid tumor [hepatocellular carcinoma (HCC) or liver metastasis] for comparison.

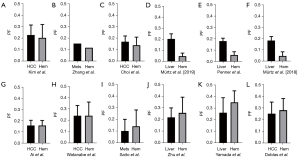

Figure 2 Literature results of IVIM measured PF of Hem, relative to liver tissue, HCC or liver Mets. Results are expressed as mean ± standard deviation, except that the median result of Zhang et al. is expressed. For the data of (A-F), liver, HCC or metastatic tumor PF is higher than hemangioma PF, whereas for the data of (I-L), PF of liver, HCC or metastatic tumors is lower than hemangioma PF. Data (G,H) reported similar PF for HCC and hemangioma. Data are from Kim et al. (17), Watanabe et al. (24), Choi et al. (25), Ai et al. (26), Penner et al. (27), Mürtz et al. [2019]. (28), Mürtz et al. [2018] (29), Zhang et al. (30), Saito et al. (31), Zhu et al. (32), Yamada et al. (33), and Doblas et al. (34). Data of Zhang et al. were approximated from the graphs in the reference. Penner et al. and Mürtz et al. used an abbreviated IVIM protocol with three b-values. PF, perfusion fraction; HCC, hepatocellular carcinoma; Hem, hemangioma; Mets, metastatic tumors; IVIM, intravoxel incoherent motion.

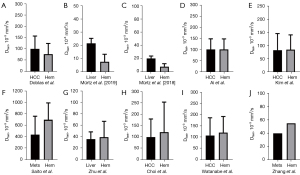

Figure 3 Literature results of IVIM measured Dfast of Hem, relative to liver tissue, HCC or liver Mets. Results are expressed as mean ± standard deviation, except that the median result of Zhang et al. is expressed. For the data of (A-C), liver or HCC Dfast is higher than hemangioma Dfast, whereas for the data of (F-J), Dfast of liver, HCC or metastatic tumor is lower than hemangioma Dfast. Data (D,E) report similar Dfast for HCC and hemangioma. Data are from Kim et al. (17), Watanabe et al. (24), Choi et al. (25), Ai et al. (26), Mürtz et al. [2019] (28), Mürtz et al. [2018] (29), Zhang et al. (30), Saito et al. (31), Zhu et al. (32), and Doblas et al. (34). Data of Zhang et al. were approximated from the graphs in the reference. Penner et al. and Mürtz et al. used an abbreviated IVIM protocol with three b-values.

While IVIM data fitting can be unstable and the outcomes depend on many factors such as image quality, b-value number and distribution, the fitting method, the threshold b-value, etc. (35), 6 out of 12 studies showed lower hemangioma PF than its comparator (being PF of liver tissue or a solid liver tumor), two studies reported very similar PF for hemangioma and HCC, while 4 out of 12 studies showed higher hemangioma PF than its comparator’s PF. Notably, with the four studies which showed higher hemangioma PF, the magnitudes of difference were smaller than what we would expect from Table 1. This means, if we estimate PF based on the results from other imaging studies such as CT perfusion, then we would expect hemangioma PF in Figure 2 will be higher to a much greater degree than the PF of liver or a solid tumor. For the results of Saito et al. (31), note that while HCCs are mostly hypervascular to the liver tissue, depending on their origin liver metastatic tumors can be both hypervascular or hypovascular relative to the background liver tissue (36,37).

Literature analysis in Figure 3 shows that 3 out of 10 studies showed lower hemangioma Dfast than its comparator’s PF, while 5 out of 10 studies showed higher hemangioma Dfast. Two studies reported very similar Dfast for hemangioma and HCC. The data fitting of Dfast is known to be much more unstable than that of PF (35,38). To our knowledge, blood flow speed in the hemangioma has not been measured with a physiological method. Note that perfusion CT blood flow, referring to the volume flow rate of blood through the vasculature (expressed as mL/100 g/min), is not a pure flow speed parameter. Perfusion CT mean transit time (MTT), which is the average time for blood to traverse between the arterial inflow and the venous outflow (measured in seconds), has been measured shorter for HCC relative to background liver parenchyma (39,40). Singh et al. (3) reported comparable MTTs for the periphery of HCC and for the periphery of hemangioma. However, conceptually MTT may also be affected by travel distance, and flow speed may be slower in the central part of a hemangioma. Though radioisotope imaging has consistently measured a high blood volume for hemangioma, the filling speed of radioisotope agents in the hemangioma is often delayed (7-9). The microbubble ultrasound blood pool agent (SonoVue) results of Haendl et al. (41) might have suggested that liver hemangioma has a longer MTT than that of liver metastatic tumors. Schwarz et al. (42) used SonoVue to measure signal rising time and reported the value of 9.3±3.8 seconds for malignant tumors and 23.4±16.2 seconds for hemangioma. Rising time will be related to the flow speed and the contrast agent distribution volume. How IVIM derived Dfast correlate to blood flow speed in the physiological sense remains unknown.

HCC is visually associated with ‘early wash-in and quick wash out’ on standard tri-phase contrast-enhanced CT, and perfusion CT studies show much shorter MTT for HCC [Singh et al. (3): 6.8±2.8 seconds for HCC periphery and 11.4±4.2 seconds for background liver; Sahani et al. (39): 8.1±3.1 seconds for HCC and 14.9±2.3 for background liver]. This is partially related to that HCC receives most of its blood supply from branches of the hepatic artery. Therefore, HCC should be commonly associated with a much higher Dfast relative to adjacent liver tissue. However, literature reported mixed HCC IVIM Dfast results. Mürtz et al. (28), Mürtz et al. (29), Woo et al. (43), Hectors et al. (44) and Shan et al. (45) reported lower HCC Dfast relative to adjacent liver tissue. Zhu et al. (32) and Kakite et al. (46) reported higher HCC Dfast relative to adjacent liver tissue.

It has been noted that PF for HCC is also underestimated with standard IVIM imaging, and we described that the underestimation of measured PF for HCC is at least partially caused by the elongation of T2 of HCC relative to the liver (47). The same will apply to the case of hemangioma, the much higher T2 of hemangioma (say, 154 ms) relative to the liver (say, 42 ms) can contribute to the underestimation of measured hemangioma PF by standard IVIM imaging. The analysis in this letter further adds to the uncertainties on how IVIM measure results can correlate to other physiological measures (35,48-50).

In real practice, there are a small percentage of ‘‘variants’’ and ‘‘atypias’’ of hemangioma (51). For example, in rare cases, hemangioma may degenerate with extensive fibrosis, and these are called thrombosed or hyalinised hemangioma or sclerosed hemangioma (52). The discussion in the letter mainly concerns typical hemangiomas.

Acknowledgments

Funding: This work was supported by the Hong Kong GRF Project (No. 14112521).

Footnote

Conflicts of Interest: Both authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-23-1651/coif). Y.X.J.W. serves as the Editor-in-Chief of Quantitative Imaging in Medicine and Surgery. The other author has no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
