Cervical artery tortuosity—a reliable semi-automated magnetic resonance-based method

Introduction

Subclinical connective tissue disorders have long been a topic of interest concerning the pathophysiology of spontaneous cervical artery dissection (sCeAD) (1-4). As clinical stigmata of connective tissue disorder are undependable, today’s assessment of these underlying conditions depend on complex analyses, such as proteomics-based approaches (2,5). Therefore, there is obvious need for more readily available and easy to use biomarkers to, for instance, identify patients at risk of dissection recurrence on a long-run. Arterial tortuosity, defined by elongation and increased twisting and turning of arterial vessels, is known to be increased in hereditary connective tissue disorders with higher tortuosity indices directly correlating to the probability of arterial dissection in such patients (6-10). Therefore, we aimed to establish a reliable method to assess extracranial vessel tortuosity.

Methods

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the institutional ethics committee of the Medical University of Innsbruck (EK#UN5072;325/4.1) and all patients provided appropriate informed consent.

Patient cohort

A sub-sample of the ReSect study was used to establish our imaging methodology (2,11,12). In short, the ReSect study is a prospective cohort study and primarily consists of patients with sCeAD treated at the Medical University of Innsbruck between 1996 and 2016. For study inclusion, dissection related intramural hematoma in T1-weighted fat-saturated magnetic resonance imaging (MRI) was mandatory for each patient. During a study-specific in-house visit, a 3-Tesla contrast-enhanced MRI was performed, using the step-by-step process as listed below. Additionally, healthy controls without pre-existing cerebro- or cardiovascular disease were collected within the ReSect study.

Imaging methodology

MRI was performed on the Neuroimaging Research Core Facility, which is a 3-Tesla whole body system (Verio, Siemens, Erlangen, Germany) employing a 12-channel head coil, a neck-coil and a large flex body array coil, each consecutively covering brain, neck, torso and pelvis. All patients were scanned head first in the supine position. Every subject underwent a whole brain MRI for structural clarification. For the arterial magnetic resonance angiography (MRA, Angio3D), standard procedure 3D MRA was performed. In short, the same flash 3D sequence was acquired twice, one before and one after contrast agent injection. For each patient, two overlapping 3D imaging blocks were coronal attained, one covering the anatomical area from top of the brain to the aortic arch and the second part from there on downwards to the aortic bifurcation. As contrast-enhanced MRA is very sensitive to contrast arrival in the region of interest (ROI), two different timings of bolus injections were operated, for each imaging block, respectively.

Segmentation and analysis

The raw MRA images were first up-sampled using MATrix LABoratory (MATLAB) 9.4 (The MathWorks, Natick, MA, USA). Vessel segmentation was performed using the up-sampled MRA-imaging data of all cervical arteries using ITK-SNAP (http://www.itksnap.org/) (13). The segmentation procedure in ITK-SNAP consists of the following steps.

(I) ROI determination

An example for the following procedure is depicted in Figure 1. First, as the ROI corresponds to a rectangular cuboid in ITK-SNAP, we determined the coordinates of its corners (Figure 1A). To define these coordinates, the axial view of our up-sampled MRA images was used (Figure 1B). Then, to identify a start- (y_max) and end-point (y_min), the artery was visually traced to the point of exit from the corresponding proximal or distal vessel. The cursor inspector in ITK-SNAP consequently delivers the y_max and y_min coordinates (Figure 1C). To obtain x_min and z_min values, we began by using the y_min slice of the MRA images and applied the ITK-SNAP cursor, which divides each slice into four rectangles. A user then continuously traced the studied artery downwards towards y_max and consequently modified the cursor position so that the studied vessel remained in the lower left rectangle (Figure 1D, panel D1). The final cursor position delivered x_min and z_min. The last coordinates, x_max and z_max, are obtained in the same way, but the studied artery had to remain in the upper right rectangle of the ITK-SNAP cursor (Figure 1D, panel D2).

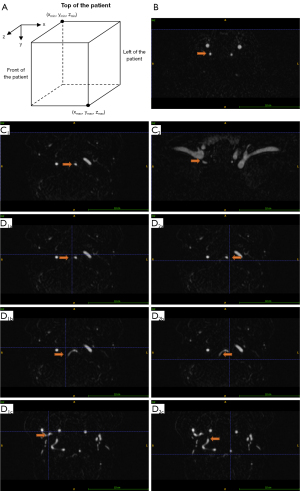

Figure 1 Determination of the ROI. (A) Schematic illustration of ROI cuboid; (B) identification of studies artery; (C) definition of start and end-point (y_max, y_min) coordinates of the artery; (D) cuboid side characterization (x_min/z_min and x_max/z_max). The red arrows highlight the artery of interest currently being analyzed. ROI, region of interest.

(II) Segmentation

Still using ITK-SNAP, the segmentation is initiated by activating the Active Contour (Snake) Segmentation Mode. After inserting the aforementioned ROI parameters, 3D segmentation can be started. First, after selecting the Threshold mode in ITK-SNAP, the “Lower threshold only” option is to be selected. ITK-SNAP subsequently delivers the automatic segmentation threshold (AST) value, which derives from the distribution of intensity values in the ROI. In vertebral arteries, due to the smaller diameter, we chose a corrected AST (AST ×0.75). Next, the AST is set as the lower threshold. Consequently, the cursor is set in the center of the investigated artery and, with the bubble radius set at 2, a bubble is added at the cursor (Figure 2A). “Continuous Update Option” is selected and run, which initiates the segmentation in a 3D-view (Figure 2B). If the artery is fully segmented, the data can be exported as surface mesh. If not, an additional segmentation is done by reapplying the above-mentioned steps the attain ROI values but only containing the unsegmented part of the artery and either smaller correction of the AST (e.g., AST ×0.5) is needed or manual segmentation correction via the paintbrush tool is done.

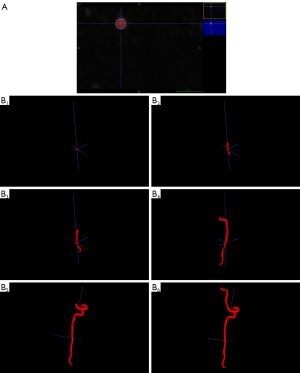

Figure 2 Initiation and progression of vessel segmentation within the ROI using ITK-SNAP. (A) First bubble set manually in studied artery; (B) automatic progression of vessel segmentation. ROI, region of interest.

(III) Centerline determination

The centerline of the studied artery is determined through the Vascular Modeling Toolkit (VMTK) (http://www.vmtk.org/; version 1.4.0). In VMTK, we highlight the beginning and end of the segmented artery. Thereafter, the centerline is computed. We refer to (http://www.vmtk.org/tutorials/Centerlines.html) for the technical details. In the data supplement, in the file “vmtk.txt” (https://cdn.amegroups.cn/static/public/qims-23-1057-vmtk.txt), we present the employed by use VMTK commands (data supplement 1: vmtk.txt; https://cdn.amegroups.cn/static/public/qims-23-1057-vmtk.txt). VMTK generates the centerline as a sequence of points with the coordinates (x_i, y_i, z_i), i = 1,..., N (Figure 3).

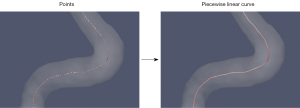

Figure 3 Centerline generated by VMTK. VMTK, Vascular Modeling Toolkit.

(IV) Distance metric (DM) calculation

The DM is the ratio between the length following said centerline and the straight-line distance between its two endpoints. Assuming that the centerline is a piecewise linear curve with the knots (x_i, y_i, z_i) , the DM is then calculated by the following formula:

DM=∑i=1N−1(xi+1−xi)2+(yi+1−yi)2+(zi+1−zi)2(xN−x1)2+(yN−y1)2+(zN−z1)2[1]

The scripts that are used in our method can be found in the data supplement (data supplement 2: main.m; https://cdn.amegroups.cn/static/public/qims-23-1057-main.m).

Validation

To assess reproducibility and validity, a two-step validation process was performed. First, all vessels of each included subject were segmented by two blinded independent users, both being inexperienced in neurovascular anatomy or neuro-radiological imaging interpretation, to assess inter-user variability of our methodology. The second step included a two-part visual appraisal of vessel tortuosity using 3D rotatable maximum intensity projection images of the MRA done by two blinded expert neuro-radiologists (S.M. and E.R.G.), which to-date is considered the gold standard of tortuosity interpretation. Both visual graders received the identical subset of subjects. Initially, both graders were tasked to allocate 18 subjects concerning their overall impression of cervical artery tortuosity into three groups: (I) no tortuosity; (II) medium tortuosity; and (III) high tortuosity. The selection process for these subjects consisted of splitting the DM values obtained through our method and picking subjects with all four cervical arteries in either the first-, second-, or third-DM value tertile at random. Lastly, both graders were tasked to do the same but only grading the anterior or posterior circulation in six subjects respectively (i.e., 12 total).

Variable definitions

Tortuosity

Tortuosity was assessed through the DM, with the DM being the ratio between the real length (along the center line) of the vessel and the straight-line distance between the start- and endpoint of the vessel.

Results

Cohort

In total, 174 individuals, 148 patients with sCeAD and 26 healthy controls, took part in the ReSect study. After excluding those without magnetic resonance (MR) (i.e., due to agoraphobia), data of 249 vertebral artery (VA) and 277 internal carotid artery (ICA) MRAs were used to establish our methodology.

Vessel segmentation

Through our step-wise method explained in detail in the methods section a total of 526 arteries were segmented. Examples of segmented vessels are given in Figure 4.

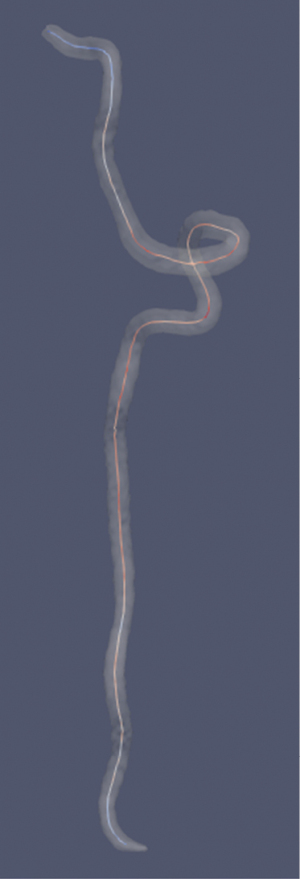

Figure 4 Examples of segmented VA and the corresponding centerline for one patient. VA, vertebral artery.

Inter-user variability of segmentation

Table 1 depicts the inter-user variability of DM values of individual cervical arteries between the two neuro-anatomically inexperienced raters. Throughout all measurements, the inter-user variability remained below 1% and was especially low for vertebral arteries. No marked side-by-side difference could be reported.

Clinical applicability—overall visual grading of all cervical arteries

The results of the first round are given in Table 2. In short, both experienced neuroradiologists correctly attributed increased tortuosity to each patient and graded tortuosity in every subject identically. In comparison to our method however, the gold standard of tortuosity interpretation (visual grading by experienced neuroradiologists) underestimated the tortuosity in 7 of the 18 (38.9%) subjects when having to give an overall opinion of all four cervical arteries.

Clinical applicability—individual grading of all anterior and posterior circulation

The above-mentioned difference between visual grading and our method of tortuosity assessment remained when neuroradiologists were tasked with solely grading the anterior or posterior circulation or anterior circulation separately. One of 6 (16.7%) of anterior and 2 of 6 (33.3%) of posterior circulation subjects tortuosity was different in visual rating compared to our vessel segmentation measurement (Table 3).

Discussion

Neuro-radiological assessments of the cervico-cerebral vasculature are becoming more elaborate over time. Increased cervical artery tortuosity can for one pose an issue in acute management of stroke patients due to the more complicated passage of micro-catheters in endovascular thrombectomy but has recently additionally been discussed used as a potential biomarker in neurovascular research. Therefore, the necessity for reliable methods to objectively assess cerebrovascular images in the future is clear. One example, which has become a topic of interest recently, is extracranial vessel tortuosity, especially in patients with sCeAD (14,15). Previous studies of cervical artery tortuosity, however, mostly depended on 2D-analysis of contrast enhanced computer tomography- or MR-images, hampering the validity of tortuosity measures which heavily depend on 3D-assessment. Therefore, we present an optimized method, including additional self-improved scripts with the following key strengths: First, it is reliable, as the inter-user-variability of DM values in two independent users, inexperienced in neurovascular anatomy or neuro-radiological imaging interpretation who segmented 526 individual cervical arteries, was below 0.5% throughout. Second, it delivers more detailed measures of vascular tortuosity compared to visual rating by experienced neuro-radiologists. Even though our visual raters were in line with our segmentation method concerning the yes or no answer of vascular tortuosity being present in almost all of the cases, they were less likely to adequately differentiate between medium and high-grade tortuosity, especially if they were tasked to give an overall assessment of all cervical arteries. When addressing possible limitations of our method, segmentation errors and definition of start- and end-points of segmented arteries were the most pressing. These initial road-blocks could adequately be accounted for through our in-house developed standard operating procedures and MATLAB scripts, which is emphasized by our inter-user variability measurement. Lastly, applicability to larger cohorts has yet to be proven, but is highly probable due to the previously elaborated usability and low inter-user variability of unexperienced users.

Conclusions

We present a reliable method to assess cervical artery tortuosity derived from MRA images applicable in clinical routine and future research investigating the potential correlation of sCeAD and connective tissue disorder.
