Dosimetric comparison between stereotactic body radiotherapy and carbon-ion radiation therapy for prostate cancer

Introduction

Prostate cancer, a common malignant tumor in the male urogenital system that occurs in the prostatic epithelium, is a major public health issue (1,2). With advances in the development of prostate-specific antigen (PSA) screening, prostate-specific membrane antigen (PSMA), genetic testing, molecular imaging, and other technologies (3-6), the incidence rate of prostate cancer is increasing year by year, as shown in Table 1 (7,8).

Localized prostate cancer is a chronic disease and is not life-threatening in the short term. An effective mode of treatment can improve the quality of life of patients while improving their survival rate and reducing toxicity and side effects (9). As one of the radical treatments for localized prostate cancer, radiotherapy is not significantly different from surgery in terms of tumor control rate, survival rate, and incidence of toxicity and side effects (10-12), while it has the advantages of broad indications, fewer complications, good curative effect, and is accepted by most patients (13,14).

At present, most stereotactic body radiotherapy (SBRT) is done on the CyberKnife (CK) (15). It integrates real-time image guidance and dynamic tumor tracking technology, and has the advantages of short treatment time, high conformity index (CI) of target volume, high dose gradient, high treatment accuracy, low toxicity and side effects, and high local control (LC) rate (16,17), and is one of the latest and most advanced photon radiotherapy equipment.

The ¹²C⁶⁺ beam used in carbon-ion radiation therapy (CIRT) has high linear energy transfer (LET), and its relative biological effect is about 2.5–3 times that of X-ray. The reversed dose distribution and spread-out Bragg peak (SOBP) enable it to release a large amount of energy in the target volume, which can achieve targeted tumor killing (18,19).

When compared with conventional radiotherapy (X-ray and γ-ray), both SBRT and CIRT have the advantages of high single dose, less fractions, and good protection of normal tissues. It was found that, on the premise of ensuring the efficacy and quality of life, increasing the single dose can reduce the total dose required (20). In this paper, we aimed to preliminarily explore the dosimetric advantages and heterogeneity of SBRT and CIRT, and provide theoretical and evidence support for clinicians, physicists, and patients to select the treatment methods.

Methods

Clinical data

In strict accordance with the inclusion criteria for the retrospective study, we included the positioning images [computed tomography (CT)] of 16 patients with localized prostate cancer who sought medical treatment at the Department of Radiotherapy of the 940th Hospital of Joint Logistics Support Force of Chinese People’s Liberation Army, the Department of Radiotherapy of the First Hospital of Lanzhou University, and the Department of Radiotherapy of Lanzhou University Second Hospital from March 2014 to April 2021 (12 cases, 2 cases, and 2 cases, respectively). The pathology diagnosis was confirmed using prostate needle biopsy. In terms of case selection, we identified patients suitable for SBRT and CIRT treatments. Among the 16 patients, not all of them had been treated with CK and CIRT, and for this study, we considered patients who would be suitable for these two treatments. A clinician approved by the Chief Physician was responsible for outlining of the tissue for all cases in the study.

The main clinical symptoms were progressive dysuria, frequent urination, urgency of urination, increased nocturia, and even urinary incontinence. The average age was 73 years (43–89 years), and the average size of the primary tumor was 62.91 mm (47.57–90.84 mm). According to the guidelines of the National Comprehensive Cancer Network (NCCN), there were 5, 6, and 5 patients with low-, medium-, and high-risk of localization, respectively. In this retrospective study, all the positioning images were of treatment-naive patients. Lymph node or distant metastasis was excluded, and there was no contraindication to radiotherapy. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of the 940th Hospital of Joint Logistics Support Force of Chinese People’s Liberation (No. 2022KYLL074). Written informed consent was obtained from all participants.

The new senior engineer of Gao Bank developed the CK treatment plan in this study, and engineer Ma XY drew up the CIRT treatment plan. Both of these professionals have more than 10 years of relevant work experience. Chief Physician Li was responsible for the review.

Position fixation and CT scan

Before positioning and scanning, a special vacuum negative pressure pad or thermoplastic phantom was made for patients. All patients were placed in a naturally relaxed supine position, with their hands crossed, holding their elbows and placed above the forehead, and their lower limbs naturally flat. Positron emission tomography/computed tomography (PET-CT) simulated positioner (Siemens, Germany), CT simulated positioner, and MRI were used for positioning and scanning. The scanning range was from the upper edge of the lumbar vertebra 3 to 5 cm below the ischial tubercle. The layer thickness and layer spacing of CT scanning were both 2–5 mm. The positioning images were uploaded to the CK MultiPlan4.0 treatment planning system (TPS) workstation in medical digital image and Digital Imaging and Communications in Medicine (DICOM) format to delineate the contours of target volume and organs at risk (OARs).

Target volume delineation and prescribed dose

In accordance with the International Commission on Radiation Units and Measurements (ICRU) Report 83 (21), we delineated the target volume and OARs using the CK MultiPlan 4.0 TPS workstation, and the delineated tissue contours were imported into the CIRT TPS ci-Plan. As CT and MRI could not accurately detect all foci in the prostate (22), the gross tumor volume (GTV) was usually not delineated.

After CT image reconstruction, the clinical target volume (CTV), planning target volume (PTV), and OARs were directly delineated. The CTV of localized low-risk patients included the whole prostate, and the CTV of medium- and high-risk patients included the prostate and 1–2.5 mm proximal end of the external seminal vesicle gland (23). To eliminate the uncertainties caused by organ movement, positioning errors, and dose distribution, PTV was expanded outward on the basis of CTV. As the prostate is close to the rectum, PTV was expanded outward by 3 mm along the direction of rectum, and expanded outward uniformly by 5 mm along the other directions (24). Manual correction was performed according to individual differences.

According to the target volume delineation principles of the OARs in the Radiation Therapy Oncology Group (RTOG) (25), we included the rectum, bladder, intestinal tract, and femoral heads in the delineation range of OARs (26,27). The rectum was delineated horizontally from the ischial tubercle to the junction of rectum and sigmoid colon. The whole bladder was delineated. The delineated intestinal tract included the corresponding layer of PTV and all small intestine and colon (including intestinal walls and contents), and the delineated femoral heads included femoral heads and femoral neck structures on both sides.

In this study, we designed two different treatment plans for the same patient with the biological equivalent dose (BED) of 161.28 Gy/Gy [relative biological effectiveness (RBE)]. The prescribed doses of SBRT and CIRT were 35.47 Gy/5f and 57.6 Gy (RBE)/16f, respectively (28). Based on E=αD+βD2=(α)(nd)[1+d/(α/β)], we deduced that BED=E/α=nd[1+d/(α/β)]=D1(1+d1α/β)=D2(1+d2α/β), n1d1(d1+α/β)=n2d2(d2+α/β) where D represents the total dose of radiotherapy; d represents fractional dose; n indicates the count.

We obtained the prescription doses of SBRT and CIRT by combining the clinically effective prescription doses. However, the use of this method also has some limitations, for example, in the case of identical BEDs, both need to meet the requirements of clinical use.

Through a literature review, we identified that the most commonly used CK segmentation methods are 35–36.25 Gy/5f, and the most commonly used CIRT is 57.6 Gy (RBE)/16f for radiotherapy in prostate cancer. As our study was based on clinical use, we used the CIRT BED as the reference. We additionally determined the prescription dose and segmentation method of CK to analyze the heterogeneity of their dosimetric distribution. As BED=E/α=nd[1+d/(α/β)]=D1(1+d1α/β)=D2(1+d2α/β), in order to facilitate comparative analysis of the differences between the two during data processing, we analyzed equivalent doses in 2 Gy/f (EQD₂), which was converted into 2 Gy/f for conventional radiotherapy, and we did not use BED. Since the volume covered by 95% of the prescription dose cannot be calculated in CK, we used the CI algorithm of the CK system TPS in SBRT, namely: CI=PIVTIV, In statistics, for intuitive analysis, it is converted to a value less than 1.

Plan design

We formulated the SBRT plan in the CK MultiPlan4.0 TPS (CyberKnife, Accuray Inc. Sunnyvale, CA, USA). We adopted the reverse design principle and 6 MV X-ray energy and used the gold mark/spine tracking method. The positioning center was the geometric center of the tumor, the size of the applicator was about 2nd/3rd of the maximum diameter of the tumor (29), the dose rate was 800 MU/min, and 95% PTV was required to receive at least 95% of the prescribed dose. As per the RTOG standard (30), the dose limits of normal tissues are shown in Table 2. The parameters were optimized and evaluated according to the isodose curves and dose-volume histogram (DVH) diagrams while ensuring the coverage of the target volume.

In the CIRT plan (HIMM-1ci-Plan), we adopted the forward design principle and dual-field interpenetrating irradiation. The single Bragg peak is sharp and narrow—in order to be suitable for the treatment of tumors of different sizes, Bragg needs to be appropriately spread out. In this study, we used uniform scanning technology for carbon ion treatment as per the Treatment Room 2 of the Heavy-Ion Medical Machine (HIMM) facility in Wuwei to scan the beam into wide beam. The beam was horizontally expanded with triangular wave and other scanning methods, the Bragg peak of the beam was longitudinally widened using the ridge filter, and we used the multi-leaf collimator (MLC) for conformal irradiation of the maximum cross section.

As per the RTOG standards, 95% isodose lines should cover 100% PTV (27); the dose limits of normal tissues are shown in Table 2. The dose drops steepness at the rear edge of the ¹²C⁶⁺ beam field was better than that at the side edge. When the PTV dose conditions were met, the exposure dose of OARs in the adjacent target volume was reduced as far as possible to meet the clinical treatment requirements (31).

Plan evaluation

Based on the recommendations of the RTOG guidelines (25) and the ICRU Report 83 (21), we evaluated the treatment plan from the perspective of the dose distribution of the target volume, the CI, the homogeneity index (HI), and the dose distribution of OARs. The dosimetric parameters of SBRT and CIRT cannot be directly compared in radiobiology and need to be converted into EQD₂ according to the linear-quadratic (L-Q) model; this is also applicable to CIRT (32). The α/β value of the tumor target volume was 1.5 Gy (33,34), that is, 5 Gy for the rectum, 10 Gy for the bladder, and 8 Gy for the intestinal tract (35).

Evaluation of PTV dosimetric parameters

We conducted a comprehensive plan evaluation based on the isodose curves and DVH diagrams. According to the ICRU Report 83, the maximum exposure dose of the target volume is D2, the minimum exposure dose is D98, the average exposure dose is expressed in D_mean, and D95 is used to evaluate the coverage of the target volume dose. In this study, we used D98, D95, D90, D50, D5, D2, D_mean, CI, and HI to evaluate the dose distribution of PTV, where D2 represents the minimum exposure dose received by 2% volume.

CI: the CI of PTV in CIRT is shown in Formula [1], where PTV95 represents 95% of the PTV volume, PTV represents the volume of PTV, and V95 represents the volume covered by 95% of the prescribed dose. The CI of the PTV of CK is shown in Eq. [2], where PIV represents the volume of all tissues wrapped by the prescribed dose, and TIV represents the target volume wrapped by the prescribed dose. CI can objectively reflect the conformity of radiotherapy dose distribution to the size and shape of the target volume. When CI is closer to 1, it means higher conformity and better dose distribution (21,36). The CI of CK is normalized.

CI=(PTV95)2PIV⋅V95[1]

CI=PIVTIV[2]

The HI, which can be used to analyze and quantify the homogeneity of dose distribution in the target volume, is shown in Eq. [3]. When HI is closer to 0, it means more homogeneous dose distribution in the target volume.

HI=D2−D98Dmean[3]

Evaluation parameters of OARs

• Bladder: D_max, D_mean, D50;
• Intestinal tract: D_max, D_mean, D50;
• Rectum: D_max, D_mean, D40, D20;
• Bilateral femoral heads: D_max, D_mean, D15, D5.

Statistical analysis

We used IBM SPSS 22.0 software for the statistical analysis of all data in this study, and the data are expressed as mean ± standard deviation (x¯±s). The volume dose parameters of PTV and OARs were collected according to the DVH diagrams. The samples in normal distribution were tested using paired-samples t-test; the samples not in normal distribution were tested using paired-samples rank sum test. The difference was statistically significant when P<0.05.

Results

In this study, we formulated a total of 32 treatment plans for 16 patients with localized prostate cancer. We performed the dosimetric analysis on the target volumes and OARs, and all doses were converted into EQD₂. In the CK treatment plan, 3 cases still failed to cover 95% PTV volume (87.12–92.82%) with 95% prescribed dose, while CIRT could cover 100% PTV volume with 95% prescribed dose. The transverse, sagittal, and coronal dose distribution of SBRT and CIRT of one case are shown in Figure 1, and DVH of one case is shown in Figure 2.

Figure 1 Isodose curves of two TPSs for a patient (A-C: SBRT, D-F: CIRT). TPS, treatment planning system; SBRT, stereotactic body radiotherapy; CIRT, carbon-ion radiation therapy.

Figure 2 DVH diagram of two TPSs for a patient (A: SBRT, B: CIRT). CTV, clinical target volume; PTV, planning target volume; DVH, dose-volume histogram; SBRT, stereotactic body radiotherapy; CIRT, carbon-ion radiation therapy; TPS, treatment planning system.

Dosimetric analysis of PTV

The PTV related parameters of the two treatment plans are shown in Table 3. In this study, the volume percentages covered by 95% prescribed dose of the PTVs of SBRT and CIRT were 93.24±4.00 and 100±0.00, respectively (P<0.001); HI was 0.45±0.08 and 0.09±0.03, respectively (P<0.001); CI was 0.89±0.04 and 0.81±0.04, respectively after normalization (P<0.001); D98 was 62.29±10.90 and 76.71±1.81, respectively (P<0.001); D95 was 69.93±9.21 and 80.64±0.00, respectively (P<0.001); D90 was 78.13±7.49 and 82.60±0.88, respectively (P=0.029); D50 was 112.61±6.05 and 84.98±1.84, respectively (P<0.001); D5 was 144.01±1.87 and 88.06±2.37, respectively (P<0.001); D2 was 146.75±1.87 and 89.53±2.79, respectively (P<0.001), and D_mean was 109.31±4.89 and 84.77±1.48, respectively (P<0.001), which all had significant clinical implication.

When PTV dose volume was more than 90%, the target volume dose of CIRT was significantly higher than that of SBRT, and this was the opposite when PTV dose volume was less than 90%. With respect to the SBRT target volume, the overall dose was higher, the CI was closer to 1, and the conformity was better. With respect to the CIRT target volume, the coverage was better, the HI was closer to 0, and dose distribution was more homogeneous. Details are given in Table 3 and Figure 3. One of the advantages of SBRT is the rapid dose drop. The hemispherical beam distribution in CK disperses the dose such that a high dosage is concentrated in the target area while the dosage in the surrounding normal tissue is low, resulting in a large dose gradient. Uniform dose distribution is also a requirement of using CIRT, and the presence of the Bragg peak in CIRT flattens the dose distribution in the tumor target area.

Figure 3 PTV volume dose histogram, line chart, and CI and HI box plots of 16 patients. *, P<0.05, ***, P<0.001. RBE, relative biological effectiveness; SBRT, stereotactic body radiotherapy; CIRT, carbon-ion radiation therapy; PTV, planning target volume; CI, conformity index; HI, homogeneity index.

Analysis of dosimetric parameters of OARs

Exposure dose of bladder

The D_max (maximum exposure dose) of SBRT and CIRT was 46.52±5.90 and 70.04±2.69 (P<0.001), D_mean (average exposure dose) was 12.64±3.97 and 4.45±2.77 (P<0.001), and D50 was 11.16±3.60 and 0.13±0.31 (P<0.001), respectively, all of which had significant differences. The relevant parameters are shown in Table 4 and Figure 4. There were individual hotspots in the bladder in the CIRT treatment plan, resulting in the D_max being significantly greater than that in SBRT; the D_mean and D50 of CIRT were significantly lower than those of SBRT, so the overall exposure dose of the bladder was lower.

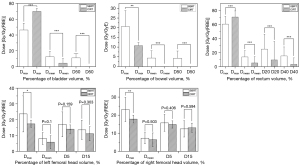

Figure 4 Volume dose histogram of OARs of 16 patients. *, P<0.05; **, P<0.01; ***, P<0.001. D_max, maximum irradiation dose; D_mean, average irradiation dose; D50, minimum dose of 50% volume wrap; D20, minimum dose of 20% volume wrap; D40, minimum dose of 40% volume wrap; SBRT, stereotactic body radiotherapy; CIRT, carbon-ion radiation therapy; OARs, organs at risk.

Exposure dose of intestinal tract

The D_max of SBRT and CIRT was 20.65±12.52 and 10.81±22.96 (P=0.008), D_mean was 4.43±2.18 and 0.06±0.21 (P<0.001), and D50 was 4.33±2.24 and 0.00±0.00 (P<0.001), respectively, all of which had significant differences. The relevant parameters are shown in Table 4 and Figure 4. The exposure dose of intestinal tract of CIRT was significantly lower than that of SBRT, and the average dose was basically close to 0 Gy (RBE), which realized better intestinal protection. Two patients had large tumor target volume, which was partially surrounded by the intestine, resulting in a larger D_max.

Exposure dose of rectum

The D_max of SBRT and CIRT was 60.69±5.31 and 70.76±6.51 (P<0.001), D_mean was 13.87±5.39 and 5.26±4.64 (P<0.001), D40 was 15.33±6.85 and 3.31±5.63 (P<0.001), and D20 was 25.02±9.35 and 9.57±12.99 (P<0.001), respectively, all of which had significant differences. The relevant parameters are shown in Table 4 and Figure 4. The rectum D_max of SBRT was lower, and the other exposure doses of CIRT were lower. The dose distribution was similar to that of the bladder.

Exposure dose of left/right femoral head

The left femoral head under SBRT and CIRT: D_max was 23.72±11.41 and 17.37±2.31 (P=0.03), D_mean was 8.11±3.73 and 5.83±4.02 (P=0.1), D15 was 13.60±6.05 and 11.18±4.43 (P=0.303), D5 was 17.11±7.88 and 14.05±2.68 (P=0.159), respectively; right femoral head: D_max was 23.15±6.63 and 17.86±2.13 (P=0.004), D_mean was 7.28±3.09 and 6.46±3.73 (P=0.503), D15 was 12.45±4.50 and 13.04±2.57 (P=0.594), D5 was 15.77±4.62 and 14.88±1.99 (P=0.406), respectively. The relevant parameters are shown in Table 4 and Figure 4. The D_max of left/right femoral head of CIRT was significantly lower than that of SBRT; there was no significant difference in D_mean, D15, and D5, but the exposure dose of CIRT was lower, which had better protection for the femoral head.

Discussion

Prostate cancer is age-dependent to a certain extent. According to statistics, more than 85% of patients have an onset age of over 65 years. It is estimated that the proportion of elderly people over 65 years old in China will exceed 20% of the total population by 2040, and the incidence rate will increase gradually, so effective treatment method will benefit a large number of patients. There is a large difference in the α/β value between the tumor and surrounding OARs, and hence, there is a difference in radiation sensitivity, which makes it possible to perform hypo-fractionated radiotherapy (37).

In recent years, image-guided radiotherapy, precise planning, and precision radiotherapy treatment reflect the advances made in radiotherapy for prostate cancer (38,39). SBRT technology represented by CK has been widely used in clinical practice. High single dose, less fractions, accurate real-time target volume image tracking technology, and short treatment cycle improve the treatment comfort of patients and the quality of radiotherapy (40). Many research centers in China and abroad have shown that SBRT can achieve the same or better survival and curative effect in a shorter treatment course (41-44), which improves the quality of life of patients to a certain extent.

After nearly 30 years of clinical use, CIRT technology has gradually evolved. Compared to photon technology, it can significantly improve the overall survival (OS) and LC rate of the tumor, significantly reduce the toxicity and side effects on the gastrointestinal tract and achieve good curative effect (45-49). Its greatest advantage is reversed dose distribution and high biological effect. It changes the ¹²C⁶⁺ beam energy and adjusts the position of the Bragg peak to achieve high dose coverage of the tumor target volume, reduce the exposure to the surrounding normal tissues, and provide best protection for OARs. It is a novel radiotherapy method and has become a research hotspot in China and abroad in recent years, but further follow-up studies on a large number of cases is required to determine its clinical efficacy in China.

At present, both SBRT and CIRT are accurate radiotherapy technologies with several reports on their clinical efficacy, and their advantages have been confirmed. However, there are only a handful of reports on the dosimetric analysis of the same disease treated with these two technologies. In this study, we used the same BED, combined two different rays and different treatment methods, and further analyzed the advantages of SBRT and CIRT in individualized treatment from the perspective of dosimetry. In this study, however, after the optimization calculation of CK, 95% of the prescribed dose failed to cover 95% of the PTV volume as the primary foci of individual patients were surrounded by the intestine, or the primary foci were close to the rectum and bladder, or the volume of the primary focus was too large.

Dose distribution of target volume

Both treatment plans in this study fulfilled the clinical prescribed dose requirements and met the radiotherapy standards for prostate cancer. Under the same BED conditions, the average dose of SBRT target volume was higher, which may be related to the dose algorithm of CK to some extent. In the design of the treatment plan, 70% isodose line was required to cover at least 95% of the target volume, that is, 70% isodose line was the prescribed dose. Increasing this value can reduce the average exposure dose and improve the dose homogeneity of the target volume, but the dose may not meet the clinical treatment requirements, affecting the conformity of the target volume. At the same time, with the same BED, less fractions and higher single dose will lead to higher prescribed dose, resulting in an increase in the overall exposure dose.

The conformity of SBRT target volume was better, which may be related to the physical characteristics of CK itself. In this study, the CK radiation beams ranged from 300–496. The scattered beam made the dose concentrate mainly on the tumor target volume, and the dose gradient was steeper. However, CIRT had better coverage of the target volume and a more homogeneous dose distribution. The energy transfer value of ¹²C⁶⁺ beam is a function of the incident depth. Most of the energy could be deposited at a specific tissue depth within a clear range, and the physical advantages of SOBP were fully reflected in the DVH diagram.

Dose distribution of OARs

Radiotherapy, however, inevitably causes radiation-related complications during treatment. Neal et al. (50) estimated that the influencing factors of the toxicity and side effects of radiotherapy on the rectum, bladder, and femoral head were 20, 5, and 1, respectively, but there are only a few reports on the toxicity and side effects on the femoral head and intestine (51). Therefore, it is necessary to reduce the exposure dose of the rectum and bladder during radiotherapy, and the dose value can affect the treatment effect to a certain extent.

From the perspective of the anatomical structure, the target volume is located between the bladder and rectum. Some patients had large foci that are close to the bladder and rectum, resulting in high-dose hotspots on the side close to the focus, thus making the D_max of CIRT significantly greater than CK. It has been reported that when the exposure dose of the bladder exceeds 60 Gy, symptoms such as urgency of urination, hematuria, and cystitis may occur (52). In terms of D_mean and D50, CIRT showed good physical characteristics, lower overall exposure dose, and better protection of bladder than CK. The dose distribution characteristics of the rectum were consistent with those of the bladder. It is important that the bladder is adequately full, and the rectum is emptied before radiotherapy. In this study, the maximum exposure doses of the bladder and rectum treated with CK were lower than 54.56 and 63.73 Gy (both converted to EQD₂) reported by Chatzikonstantinou et al. (53).

In terms of intestinal protection, except for two patients with partial target volume surrounded by the intestinal tract, which led to the D_max of CIRT being higher than that of CK, the D_max was lower for other patients. In this case, CK could disperse the dose, which was more advantageous for intestinal protection. However, the D_mean of CIRT was significantly lower than that of CK—it was basically close to 0 Gy (RBE) and better for intestinal protection.

For the left/right femoral head, the D_max of CIRT was significantly lower than that of CK, and there was no significant difference in the D_mean; however, the dose of CIRT was lower, which may be related to the long distance of the femoral head from the target volume. In CIRT, the femoral head is located in the beam plateau region, which reduces the exposure dose. The CK beam has a hemispherical spatial distribution, so the overall exposure dose is higher than that of CIRT.

The RBE of carbon ions is complex and related to energy, LET value, tumor type, and therapeutic dose. In this study, we have only discussed the difference in dosimetric distribution of two different treatment plans at the same equivalent biological dose at the dosimetric level; we did not consider the influence of LET and RBE. This is also a limitation of this study. Another shortcoming of this study is that, due to the TPS system, the dose distribution map in CK cannot be displayed in the form of a cloud map, and the position of the sagittal bitmap also cannot be presented in the form of a mirror image, resulting in an inconsistency in the form of representation between the two. Due to the low incidence of prostate cancer in Gansu Province, we collected cases from several other units, and after screening for the two indications, the number of localized prostate cancer cases that were suitable for SBRT and CIRT treatment was not very large. Due to the limitation of the number of cases, we chose to conduct a holistic study and analyze all cases. We are considering separate studies for patients with different risk levels.

Conclusions

In this study, we found that both SBRT and CIRT met the clinical requirements of target volume and OARs in radiotherapy for localized prostate cancer. The PTV of prostate cancer under SBRT had better conformity and significantly higher dose in target volume, while the CIRT plan had higher coverage of target volume and more homogeneous dose distribution, and better protection for OARs, except for individual dose hotspots in the bladder and intestinal tract. Therefore, we recommend that the treatment techniques should be selected according to the local lesion volume and other specific conditions of low-, medium-, and high-risk patients with localized prostate cancer. In view of the limited number of cases included in this preliminary study, the results may be biased. Additionally, human factors can vary greatly among different clinicians. In future, studies with large clinical data are required to verify and support our conclusions.

Acknowledgments

Funding: This study was supported by the Infirmary Project of the 940th JLSF Hospital (No. 2022yxky019).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-23-340/coif). The authors report that this study was supported by the Infirmary Project of the 940th JLSF Hospital (No. 2022yxky019). The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of the 940th Hospital of Joint Logistics Support Force of Chinese People’s Liberation (No. 2022KYLL074). Written informed consent was obtained from all participants.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
