The relationship between hematoma morphology and intraventricular hemorrhage in supratentorial deep intracerebral hemorrhage

Introduction

Spontaneous intracerebral hemorrhage (ICH) is the least treatable form of stroke, has a high mortality rate, and accounts for approximately 10–30% of all strokes worldwide (1). Intraventricular hemorrhage (IVH), which occurs in 30–50% of patients with spontaneous ICH, is a strong independent predictor of poor outcomes, increasing mortality by up to 80% (2-6). Understanding the risk factors and pathophysiology of IVH may help to identify optimal therapeutic strategies. Multiple risk factors contributing to IVH after ICH, including the location and volume of hematoma, baseline arterial pressure, and moderate to severe white matter lesions, have been identified (4-9). Compared with lobar ICH, deep ICH involves an anatomical juxtaposition with the ventricles which makes them highly prevalent areas of IVH. A greater volume of hematoma evidently results in an extension into the ventricles because the ventricular system provides an outlet for hematoma expansion with less resistance than the brain parenchyma (4-7).

Prior studies have suggested that morphological features of hematoma, such as margin irregularity, are associated with hematoma expansion (10,11), but few studies have analyzed the relationship between hematoma morphology and IVH. Therefore, the objective of this study was to explore the association of quantitative parameters of hematoma morphology and the presence of IVH with the initial computed tomography (CT) scan of the patients with spontaneous supratentorial deep ICH. To this end, we used hematoma segmentation software that can provide three-dimensional (3D) volumetry and quantification. We present this article in accordance with the STROBE reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-23-266/rc).

Methods

Study patients

We conducted a retrospective review of a consecutive cohort of patients with ICH admitted to Peking University First Hospital between January 2017 and August 2022. Patients were included if they met the following criteria: (I) age ≥18 years; (II) spontaneous supratentorial deep ICH including the thalamus, globus pallidus, putamen, caudate head, and anterior and posterior limbs of the internal capsules; and (III) baseline noncontrast cranial CT obtained within 48 h of symptom onset. We excluded secondary hemorrhage due to other etiologies, such as aneurysm, vascular malformation, tumor, head trauma, venous infarction, or hemorrhagic transformation of ischemic infarction. We also excluded those patients with isolated IVH. Considering an association of ICH and chronic kidney disease and chronic liver disease, we excluded any patients with these comorbidities, the diagnosis of which was apparent in their medical history (12,13). This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the Ethics Committee of Peking University First Hospital (No. 2022-743). Individual consent for this retrospective analysis was waived.

Clinical data collection

Clinical data were abstracted from medical records, including demographics (age and sex), medical history (hypertension, diabetes mellitus, previous stroke, use of antiplatelet agents or anticoagulants within 72 h of onset), admission Glasgow Coma Scale (GCS) score, admission systolic blood pressure (SBP), admission diastolic blood pressure (DBP), admission glucose level, time to initial CT, and the modified Rankin Scale (mRS) score at discharge.

Imaging analysis

All CT images were acquired using a standard scanning parameter of 5-mm-thick slices (GE HealthCare, Chicago, IL, USA). The presence of IVH and parenchymal hematoma location were assessed based on the initial CT images. For further quantitative measurement, the CT scans were then postprocessed using 3D-Slicer 4.11 (http://www.slicer.org), an open-source medical image computing platform. Hematoma was automatically identified pixel by pixel in each slice after the thresholds were set at a range of 50 to 100 Hounsfield units (HU). Then a 3D model was constructed, and the volume and surface area were automatically computed (14) (Figure 1).

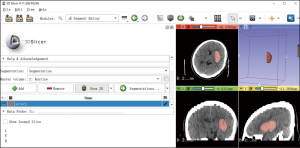

Figure 1 The hematoma model reconstructed using 3D-Slicer software. 3D, three-dimensional.

To assess the irregularity of the hematoma shape, we used the following sphericity definition as a shape irregularity index (15):

SphericityIndex(SI)=π1/3(6V)2/3Area[1]

where “V” represents the volume (in cubic centimeters) and “Area” represents the surface area (in square centimeters) of the hematoma. The SI quantifies the irregularity of the hematoma shape from a range of 0 (very irregular surface) to 1 (perfectly regular surface) on a continuous scale (Figure 2) (16,17).

Figure 2 Axial CT images and 3D models with corresponding SI values of 2 patients with ICH. (A,B) Axial CT image and 3D model of a patient with ICH and a regular hematoma shape. (C,D) Axial CT image and 3D model of a patient with ICH and an irregular hematoma shape. 3D, three-dimensional; CT, computed tomography; SI, sphericity index; ICH, intracerebral hemorrhage.

We measured the largest diameter on the CT slice with the largest area of hematoma (A) and the largest diameter 90° to A on the same slice (B), as mentioned in the classic ABC/2 method (18). We calculated the A/B ratio to assess the shape of the hematoma.

To describe the relative location of hematoma and ventricles, we measured the acute angle formed by the largest diameter of the hematoma and the midline of brain on the slice with the largest area of hematoma, which we termed the largest diameter-midline angle (LMA). As shown in Figure 3, a large LMA indicates that the hematoma is nearly perpendicular to the ventricles, while a small LMA indicates that the hematoma is nearly parallel to the ventricles.

Figure 3 The LMA and 3D model of 2 patients with ICH. The LMA angle is the acute angle formed by the largest diameter of the hematoma and the midline of brain on the slice with the largest area of hematoma. (A,B) The LMA and 3D model of a patient with thalamic ICH. (C,D) The LMA and 3D model of a patient with putaminal ICH. The red area is the hematoma, and the blue area is the ventricular system. LMA, largest diameter-midline angle; 3D, three-dimensional; ICH, intracerebral hemorrhage.

Two experienced neurologists assessed all the images independently. The intraclass correlation coefficient (ICC) of the hematoma volume, SI, LMA, and A/B ratio were 0.991 (P<0.001), 0.969 (P<0.001), 0.796 (P<0.001), and 0.711 (P<0.001), respectively. The average values of these parameters were used in the subsequent analyses. With regard to the categorical variables such as hematoma location and the presence of IVH, a joint decision of both reviewers was made in cases of disagreement.

Statistical analysis

Continuous variables are expressed as mean± standard deviation (SD) or median and interquartile range (IQR). Categorical variables are presented as frequencies with percentages. The demographic, clinical, and radiological characteristics were compared between patients with IVH and those without IVH using the chi-squared test, Fisher exact test, Student’s t-test, or Mann-Whitney test as appropriate. The relationship between the quantitative parameters of hematoma morphology and the presence of IVH was assessed with univariate and multivariate logistic regression models. In the multivariable analyses, model 1 was adjusted for age and sex while model 2 was adjusted for age, sex, medical history (hypertension, diabetes mellitus, previous stroke, use of antiplatelet agents or anticoagulants within 72 h of onset), admission SBP, admission DBP, admission glucose, time to initial CT, and thalamic involvement. The association of the quantitative parameters of hematoma morphology and poor outcome at discharge was assessed using a univariate logistic regression analysis. Poor outcome was defined as an mRS score of 3–5 or death. For all statistical analyses, statistical significance was set at P<0.05. All statistical analyses were conducted using SPSS version 23.0 (IBM Corp., Armonk, NY, USA).

Results

Baseline characteristics

In total, 114 patients with spontaneous supratentorial deep ICH were included in the study. Of these, the hematoma was located in the thalamus in 50 (43.9%) patients, the lenticular nucleus in 49 (43.0%), the internal capsule in 11 (9.6%), and the caudate nucleus in 4 (3.5%). Moreover, 41 patients (36.0%) had IVH on the initial CT scan. The baseline clinical and radiological characteristics of the patients with and without IVH are shown in Table 1. In brief, a higher proportion of patients with severe ICH (GCS score 3–8) and thalamic involvement and higher admission glucose level were observed in the IVH group. The median hematoma volume was 8.0 mL (IQR, 5.6–14.6 mL) in patients with IVH compared to 4.3 mL (IQR, 1.5–11.9 mL) in patients without IVH. Compared with patients without IVH, those with IVH had a lower SI and A/B ratio and a larger LMA.

Association of the quantitative parameters of hematoma morphology and IVH

Table 2 details the association of the quantitative parameters of hematoma morphology and the presence of IVH. Lower SI and larger LMA were significantly associated with IVH in the unadjusted model. After adjustments were made for age, sex, and other confounding variables, SI [0.1-unit odds ratio (OR) =0.252; 95% CI: 0.089–0.709; P=0.009] and LMA (10-unit OR =1.281; 95% CI: 1.007–1.630; P=0.04) were still independently associated with IVH. There was no significant association between hematoma volume, A/B ratio, or IVH in the multivariable analyses.

Association of the quantitative parameters of hematoma morphology and poor outcome at discharge

There were 60 patients (52.6%) who had a poor outcome at discharge. Univariate analysis showed that hematoma volume (OR =1.162; 95% CI: 1.079–1.251), SI (OR =0.359; 95% CI: 0.209–0.616), A/B ratio (OR =0.290; 95% CI: 0.121–0.693), and LMA (OR =1.141; 95% CI: 1.003–1.298) were significantly associated with poor outcome at discharge.

Discussion

In this study, we found that SI and LMA, 2 parameters used for the quantitative evaluation of hematoma morphology, were independently associated with the presence of IVH in patients with supratentorial deep ICH. Patients with a lower SI and a larger LMA may thus be at a higher risk of IVH.

IVH is widely acknowledged to be an important predictor of poor outcome in ICH, with multiple pathophysiological mechanisms involved. The development of hydrocephalus is generally considered to be the most severe consequence of IVH (1,2). However, other studies have reported that in patients with IVH without obstructive hydrocephalus, the extent of IVH is still associated with clinical outcome, which suggests the involvement of other mechanisms besides the disturbance of cerebrospinal fluid circulation, such as the impairment of ependymal and subependymal structures and inflammatory intraventricular processes (19,20).

However, the mechanisms underlying the process by which parenchymal hematoma enters the ventricular system are much less well understood. Some studies have indicated that hematoma location and volume, along with arterial blood pressure fluctuation,are associated with hematoma extension into the ventricles (4-7). However, there is limited information concerning the relation between hematoma shape and IVH. Our data showed that SI, which quantitatively indicates the irregularity of the hematoma shape, was associated with IVH. In previous reports, several authors categorized the shape of the hematoma into round and irregular (21-23), and the most commonly used method of classification was the 5-point categorical scale proposed by Barras et al. (24). As the shape of the hematoma is extremely variable, the simple categorical scale is neither as objective nor as accurate as is SI. Prior studies have demonstrated that the irregularity of hematoma shape is closely associated with hematoma expansion (10,11,25-27), and margin irregularity may reflect multiple origins or bleeding sources within the hematoma, which would be more likely to progress along multiple tracks and manifest as an irregular edge (10,24). Therefore, we speculated that the association between SI and IVH is potentially mediated by hematoma expansion.

We propose a novel parameter, LMA, to describe the relative position of supratentorial deep hematoma and ventricles. Interestingly, we found that LMA was associated with IVH. ICH is often considered to be a dynamic process rather than a static event (10,11,26-30). Hematoma growth occurs in a nonuniform pattern (31,32), and the largest diameter represents the main direction and trend of hematoma development. In addition, we reconstructed a 3D model of the hematoma and ventricles, which showed the anatomical relationship between them more intuitively. The presence of a larger LMA may suggest that the hematoma is oriented toward the ventricles and can easily break into the ventricles, which may explain the association between LMA and IVH. Previous research points to ICH volume as a risk factor of IVH (4). In our study, the patients with IVH had a larger hematoma volume than those without IVH. However, this difference became statistically nonsignificant after adjustments were made for confounders, which may be due to the fact that we only included those patients with supratentorial deep ICH and excluded those with lobar ICH and larger hematoma volume. However, owing to the small sample size of this study, further confirmation is required.

Our study found an association of the 4 parameters of hematoma morphology and poor outcome at discharge, supporting their potential value for predicting ICH outcome. However, as a retrospective study, patients’ outcome was measured at discharge, and a small sample size limited the application of multivariable analysis. The relationship between hematoma morphology and ICH prognosis warrants further study.

As IVH was an independent predictor of poor outcome after ICH, our study found an association between the irregularity of hematoma shape and the relative position of hematoma and ventricles with IVH, a fact which may aid in screening those ICH patients with a high risk of poor outcome. Additionally, these findings may improve our understanding of the development of IVH and provide insights into the potential mechanism of IVH. Our work also reinforces the merit of quantitative evaluation based on a 3D reconstruction model in the study of IVH.

Our study had several limitations. First, although we found an association between hematoma shape and IVH on the initial CT scan, we employed a retrospective design, and thus the temporal relation between hematoma shape and IVH could not be established. Therefore, further prospective study is needed to clarify their relationship. Second, our study was performed in a single center with a small sample size; however, this dataset was homogeneous with regard to the study protocol. Furthermore, we excluded patients with lobar ICH, which limits the generalizability of our results. Third, a previous study reported that the risk factors of IVH after ICH include the location and volume of hematoma, baseline arterial pressure, and moderate-to-severe white matter lesions (4-9). In our study, the multivariate analysis indicated that SI and LMA were significantly associated with IVH after adjustments were made for age, hematoma location, and baseline arterial pressure. However, we used a cross-sectional analysis and thus cannot establish a temporal relationship. Further studies are needed to assess the predictive value of the radiological parameters of hematoma and compare them with the currently employed predictors.

Conclusions

SI and LMA, 2 parameters of hematoma morphology, were found to be independent risk factors of IVH in patients with supratentorial deep ICH. Due to the retrospective nature of our study design, further prospective research with larger sample sizes is needed to validate our results.

Acknowledgments

Funding: This work was supported by the National Natural Science Foundation of China (No. 81400944) and the Interdisciplinary Clinical Research Project of Peking University First Hospital (No. 2021CR37).

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-23-266/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-23-266/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the Ethics Committee of Peking University First Hospital (No. 2022-743). Individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
