Quantitative apparent diffusion coefficient metrics for MRI-only suspicious breast lesions: any added clinical value?

Introduction

Breast magnetic resonance imaging (MRI), as a functional imaging technique, shows the highest sensitivity (96%) for detecting breast cancer and has become an indispensable imaging modality for detecting breast lesions (1). Consequently, breast MRI can detect suspicious breast lesions yet undetected by mammography and ultrasound. Breast Imaging Reporting and Data System (BI-RADS), proposed by the American College of Radiology (ACR) (2), has been widely used in breast MRI. It applies categories 0 to 6 for the final assessment and breast lesions designated as suspicious for cancer (i.e., BI-RADS category 4 or 5) require further pathologic examination. Herein, we defined breast lesions of category 4 or 5, visible on breast MRI but not detected by initial mammography and ultrasound, as “MRI-only” breast lesions.

Such lesions are often small, poorly characterized in literature and lack typical morphologic features, making decision-making and clinical management difficult. Second-look ultrasound (SLU) is primarily suggested for their biopsy. However, the detection rate of SLU is variable, ranging from 50.7% to 69% (3-5), due to differences in physician experience and equipment limitation. Therefore, MRI-guided vacuum-assisted breast biopsy (VABB) was required for histological verification for lesions undetected by SLU. Although magnetic resonance (MR)-guided VABB is a valuable and safe technique (6), it presents a range of issues. MRI-compatible biopsy system is relatively expensive and not readily available. Furthermore, operation of breast MRI-guided biopsy is complex and time-consuming, requiring high expertise of the operator. The positive predictive value (PPV) of MRI-guided biopsy is less than 50% (7). This suggests that almost half the patients received unnecessary invasive biopsies for MRI-only lesions. Therefore, non-invasively and precisely diagnosing MRI-only lesion to avoid unnecessary biopsy is of great clinical significance.

Diffusion-weighted imaging (DWI), as a non-invasive non-enhanced MRI technique, has been increasingly incorporated into conventional MRI protocols (8). Apparent diffusion coefficient (ADC) derived from DWI can quantitatively analyze water diffusion in the microenvironment of breast tumors (8). Lots of previous studies confirmed its value in detection, differentiation, prognosis and efficacy evaluation of breast lesions (9-11). However, few studies (12,13) investigated DWI sequences in diagnosing MRI-only lesions. Spick et al. (12) evaluated the role of DWI in MRI-only breast lesions and found that additional application of DWI in MRI-only lesions could prevent false positives and reduce unnecessary biopsies. In recent years, some scholars noticed the role of quantitative ADC metrics on breast lesion differentiation. Texture and radiomic analysis based on ADC maps can quantitatively differentiate benign from malignant tumors and have been demonstrated to provide information about the heterogeneous biology of breast cancer but are limited by technical standardization and complex, time-consuming postprocessing (14,15). Consequently, a more direct and general method for clinical use is warranted. Kim et al. (16) proposed a quantitative assessment of heterogeneity in ADC values (i.e., ADC_min, ADC_max, ADC_mean, and ADC_{heterogeneity}) and stated that these metrics could provide biological clues to molecular subtypes of breast cancer. Can the straightforward method of measuring ADC_{heterogeneity} have some added value for further discriminating MRI-only breast lesions? Therefore, in our current work, we quantitatively assessed the heterogeneity of ADC values in addition to ADC_mean, aiming to further explore the diagnostic value of conventional DWI sequences for MRI-only lesions. We present this article in accordance with the STARD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-23-331/rc).

Methods

Study population

This retrospective study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the Institutional Review Board of Beijing Hospital (No. 2022BJYYEC-388-01). The requirement for written informed consent was waived due to the retrospective nature of the study. Between January 2018 and December 2021, 1,485 female patients who underwent breast MRI at our hospital were enrolled. The inclusion criteria for this study were: (I) breast lesions evaluated as BI-RADS category 4 or 5 on MRI and confirmed pathologically; (II) imaging and pathology data are complete and available; and (III) negative initial mammographic and ultrasound findings. A total of 99 patients with 112 lesions were included in the study. We excluded the following patients: (I) who were biopsied or treated before MRI examination (n=6); (II) who lacked DWI sequence in the scan protocol (n=2) or whose lesions were invisible on DWI (n=10). Finally, a total of 81 patients with 90 lesions were included in the study.

MRI acquisition

MRI breast examinations were performed on 3.0T MRI (Discovery 750; GE Medical Systems, GE HealthCare, Anaheim, CA, USA) using a dedicated 8-channel phased-array breast coil. MRI studies used state-of-the-art breast MRI acquisition protocol, including fat-suppressed T2-weighted fast spin-echo sequence, DWI with ADC maps and fat-suppressed T1-weighted sequences before and after intravenous gadolinium-based contrast agents for dynamic contrast-enhanced (DCE) imaging with an injection rate of 2.5 mL/s (Table 1).

MRI interpretation and measurements

All cases were randomized and were reviewed on the MRI postprocessing workstation (AW4.6, GE HealthCare) by two radiologists (with 10 and 15 years of experience in breast MRI diagnosis, respectively) who independently interpreted the MRI characteristics of MRI-only lesions and were blinded to the clinical and pathological information. In case of disagreement, discussion between the two readers was performed to reach a consensus.

DCE evaluation

According to the 2013 version of BI-RADS MRI lexicon, the following morphological features were evaluated: for masses, size (the longest diameter), shape (oval or round/irregular), margin (circumscribed/not circumscribed), and internal enhancement (homogeneous/heterogeneous or rim enhancement); for non-mass enhanced lesions, distribution (focal/others) and internal enhancement (homogeneous/heterogeneous or others).

Kinetic features of all lesions were assessed by time-intensity curve (TIC). TIC was generated from dynamic series using Functool Software (AW4.6, GE HealthCare) and was categorized into three types: plateau, persistent, and washout. The two radiologists manually and independently drew a region of interest (ROI) between 2 and 4 mm² on the brightest enhanced area, avoiding bleeding and necrotic regions.

The above morphological and kinetic characteristics were termed BI-RADS parameters.

DWI analysis

ADC maps were generated from DWI. Using T2-weighted imaging and DCE images as reference, the radiologists visually identified hyperintensity on DWI images with high b-value corresponding to the enhancing lesions on DCE. Subsequently, two-dimensional (2D) ROIs were manually delineated around the tumor contours at the slice of largest cross-sectional area of the lesion on ADC maps while avoiding bleeding, necrosis, cystic areas and tumor margin. ADC values for each ROI were calculated based on pixels. Finally, the minimum, mean, and maximum ADC values from each ROI were recorded as ADC_min, ADC_mean, and ADC_max. ADC_{heterogeneity} was calculated using the formula (16):

ADCheterogeneity=(ADCmax⁡−ADCmin⁡)/ADCmean[1]

Hereafter, ADC_min, ADC_mean, ADC_max, and ADC_{heterogeneity} were generally called ADC parameters.

Reference standard

For these 90 MRI-only lesions, SLU was subsequently performed. If SLU failed to detect the lesion, open surgery directed by the lesion location and depth on MRI was performed to obtain and remove the pathologic tissue. Intraoperative fast frozen pathology was applied for tissue confirmation. For patients with nipple discharge, methylene blue dye was injected into lactiferous duct through nipple to assist surgery during operation.

Two experienced pathologists evaluated the pathological specimens in consensus. According to pathological findings, the lesions were divided into two groups: benign and malignant.

Statistical analysis

All statistical analyses were performed using IBM SPSS version 26 (IBM, Chicago, IL, USA) and MedCalc version 15.6.1 (MedCalc Software bvba, Ostend, Belgium). A P value <0.05 (two-tailed) was considered statistically significant. Correction for multiple comparisons was performed using a Bonferroni correction, and P values <0.0042 adjusted with the Bonferroni method were considered significantly different.

Continuous variables were presented as means ± standard deviations, while categorical variables were presented as frequency. Univariate analysis was performed using the chi-square test or Fisher’s exact test to compare qualitative variables between benign and malignant lesions. For comparing quantitative variables, Kolmogorov-Smirnov test was used to evaluate the normality of distribution, and the Student’s t-test or Mann-Whitney U test was applied to assess statistical differences between the two pathological groups. Based on the significant qualitative or quantitative variables identified by univariate analysis, receiver operating characteristic (ROC) curves were generated using logistic regression models to obtain the area under the ROC curve (AUC) and, furthermore, the sensitivity and specificity at the best cut-off point were determined by identifying the maximum Youden’s index.

Results

Basic characteristics of patients and breast lesions

Patient selection protocol is presented in Figure 1. The age of patients was 50.9±11.0 (range, 29–72) years, and the size of lesions was 17.5±16.4 (range, 4–77) mm. Methods of obtaining pathology include SLU-guided biopsy (n=37), MRI-directed surgery (n=50), and methylene blue-assisted surgery (n=3). Nine patients had two lesions, of whom four had two benign lesions in the ipsilateral breast, two had two malignant lesions in ipsilateral breast, two had one benign lesion in each breast, and one had a benign lesion in one breast and a malignant lesion in the other.

Figure 1 Flow diagram of patient selection process. MRI, magnetic resonance imaging; BI-RADS, Breast Imaging Reporting and Data System; DWI, diffusion-weighted imaging.

Table 2 presents the histopathologic information of MRI-only breast lesions. Two representative cases of MRI-only lesions are shown in Figures 2,3.

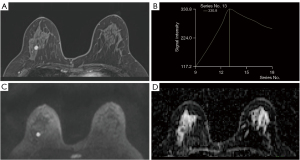

Figure 2 A 46-year-old patient with an MRI-only mass of 8 mm in the right breast. The contrast-enhanced T1-weighted image (A) showed the MRI-only lesion with oval shape, circumscribed margin and homogeneous enhancement. The kinetic curve showed a washout pattern with a peak of maximal signal intensity value of 330.8 about 1.5 minutes (B). On the DWI image (C) and ADC map (D), the minimum, maximum, and mean ADC values was 154.32×10⁻⁶, 952.42×10⁻⁶, and 752.33×10⁻⁶ mm²/s, respectively. The histopathological diagnosis was IDC. The horizontal coordinates of (B) are the serial numbers of one pre-contrast and seven post-contrast images at 1-minute intervals. The curve was generated from series 9 (mask) and series 12–18 (post-contrast). Series 10–11 were post-processed images automatically generated by the scanning system and were skipped during the TIC generation. MRI, magnetic resonance imaging; DWI, diffusion weighted imaging; ADC, apparent diffusion coefficient; IDC, invasive ductal carcinoma.

Figure 3 A 32-year-old patient with an MRI-only non-mass lesion in the left breast. On contrast-enhanced T1-weighted image (A), the non-mass lesion exhibited heterogeneous enhancement with a segmental distribution. The kinetic curve showed a persistent pattern (B). On the DWI image (C) and ADC map (D), the minimum, maximum, and mean ADC values was 1,173.25×10⁻⁶, 1,241.36×10⁻⁶, and 1,361.43×10⁻⁶ mm²/s, respectively. The histopathological diagnosis was plasma cell mastitis. The horizontal coordinate unit of (B) is minute. MRI, magnetic resonance imaging; DWI, diffusion weighted imaging; ADC, apparent diffusion coefficient.

BI-RADS parameters of MRI-only lesions

Table 3 shows the results of univariate analysis of all BI-RADS parameters.

For all lesions, there was no significant difference in tumor size between benign and malignant lesions (14.8±14.2 vs. 19.6±17.8 mm, P=0.16). When washout pattern was defined as malignancy, there was significant difference in kinetic pattern between benign and malignant lesions (P=0.005) with AUC of 0.650 [95% confidence interval (CI): 0.542, 0.748], sensitivity of 60.78%, specificity of 69.23%, PPV of 0.721, and negative predictive value (NPV) of 0.574. When washout or plateau patterns were defined as malignancy, there was significant difference in kinetic pattern between benign and malignant groups (P<0.001), resulting in AUC, sensitivity, specificity, PPV, and NPV of 0.673 (95% CI: 0.566, 0.768), 96.08%, 38.46%, 0.671, and 0.882, respectively.

In mass lesions, our results revealed that MRI findings of mean size, shape, margin, and internal enhancement were not significantly different between benign and malignant lesions (P=0.07–0.85).

In non-mass lesions, there was significant difference in distribution between benign and malignant lesions (P<0.001), resulting in AUC of 0.620 (95% CI: 0.464, 0.761), sensitivity of 74.07%, specificity of 50.00%, PPV of 0.690, and NPV of 0.562. The mean sizes between benign and malignant non-mass lesions had significant difference (23.5±17.3 vs. 30.4±18.6 mm, P=0.004) with AUC, sensitivity, specificity, PPV, and NPV of 0.738 (95% CI: 0.585, 0.857), 70.37%, 77.78%, 0.676, and 0.636, respectively. Combining tumor size and distribution, a BI-RADS model was generated, in which AUC was 0.745 (95% CI: 0.593, 0.863) with sensitivity, specificity, PPV, and NPV of 62.96%, 88.89%, 0.769, and 0.632, respectively.

ADC parameters of MRI-only lesions

Table 4 presents the univariate analysis of ADC parameters for MRI-only lesions. Table 5 demonstrates the results of ROC analysis.

Overall, ADC_mean performed best among all ADC parameters, regardless of mass or non-mass, with AUCs ranging from 0.809 to 0.825.

For all lesions, malignant lesions had significantly lower ADC values than benign ones [ADC_min: (704.22±226.34)×10⁻⁶vs. (894.95±291.91)×10⁻⁶ mm²/s, P=0.001; ADC_mean: (894.45±181.73)×10⁻⁶vs. (1,142.51±244.46)×10⁻⁶ mm²/s, P<0.001; ADC_max: (1,051.12±281.70)×10⁻⁶vs. (1,294.51±288.80)×10⁻⁶ mm²/s, P<0.001]. Combining ADC_min, ADC_mean, and ADC_max, ROC analysis yielded AUC of 0.824, with sensitivity, specificity, PPV, and NPV of 78.43%, 79.49%, 0.833, and 0.738, respectively.

In masses, ADC_mean and ADC_max were significantly lower in the malignant group than in benign group [ADC_mean: (853.58±156.54)×10⁻⁶vs. (1,113.19±257.64)×10⁻⁶ mm²/s, P<0.001; ADC_max: (996.21±271.87)×10⁻⁶vs. (1,247.14±246.41)×10⁻⁶ mm²/s, P=0.002]. AUC obtained for differentiating benign from malignant MRI-only lesions was 0.833, with sensitivity, specificity, PPV, and NPV of 83.33%, 80.95%, 0.833, and 0.810, respectively.

In non-mass lesions, ADC_min [(745.89±208.38)×10⁻⁶vs. (962.44±199.44)×10⁻⁶ mm²/s, P=0.001] and ADC_mean [(930.78±197.29)×10⁻⁶vs. (1,176.72±230.63)×10⁻⁶ mm²/s, P<0.001] were significantly lower in malignant group than in benign group. For differentiating benign and malignant lesions, we obtained AUC of 0.815 (sensitivity, 74.07%; specificity, 83.33%; PPV, 0.870; NPV, 0.682).

ADC_{heterogeneity} had no significant difference between benign and malignant tumors in all MRI-only lesions, masses, or non-mass lesions (P=0.43–0.62).

Added value of ADC parameters to BI-RADS parameters

For all lesions, the ADC parameters had an increased AUC compared to BI-RADS parameters (0.824 vs. 0.650, P=0.006 when the washout pattern was defined as malignant tumor; 0.824 vs. 0.673, P=0.006 when the washout or platform pattern was defined as malignant tumor). When the washout pattern was defined as malignant, the combination of significant BI-RADS and ADC parameters resulted in an AUC of 0.841 for differential diagnosis, with sensitivity, specificity, PPV, and NPV of 76.47%, 82.05%, 0.854, and 0.762, respectively. When the washout or platform pattern was defined as a malignant tumor, AUC obtained by combining significant BI-RADS and ADC parameters was 0.848 (sensitivity, 80.39%; specificity, 82.05%; PPV, 0.848; NPV, 0.727).

For non-mass lesions, combining significant BI-RADS and ADC parameters resulted in AUC, sensitivity, specificity, PPV and NPV of 0.862 (95% CI: 0.727, 0.947), 77.78%, 88.89%, 0.900, and 0.640, respectively.

ROC curves for all significant BI-RADS and ADC parameters are provided in Figure S1.

Discussion

Herein, we discriminated benign from malignant MRI-only suspicious lesions based on BI-RADS features and DWI characteristics. We investigated the additional value of ADC parameters which reflect ADC_{heterogeneity} in the differential diagnosis of MRI-only lesions. Our findings showed that AUC of ADC parameters for diagnosing MRI-only lesions was higher than that of BI-RADS features. Conventional DWI acquisition may provide added value in differentiating MRI-only lesions. However, ADC_{heterogeneity} has no significant additional value in our study.

BI-RADS features (qualitative morphological and kinetic features) contribute to lesion characterization in general clinical settings. However, for MRI-only lesions which are usually small, the value of morphological and kinetic features remains controversial in our clinical practice experience. Therefore, on the one hand, we compared the performance of quantitative ADC parameters with qualitative morphological and kinetic features; on the other hand, we aimed to verify the value of morphological and kinetic features in MRI-only lesions. However, our study did not find any helpful BI-RADS-based morphological features for further discriminating MRI-only lesions. The two kinetic pattern criteria for differentiating MRI-only lesions produced moderate AUCs of 0.650 (95% CI: 0.542, 0.748) and 0.673 (95% CI: 0.566, 0.768), respectively. The above results demonstrated that the BI-RADS features are of limited value for further discriminating MRI-only lesions.

In the subgroup analysis, our findings revealed that MRI-only masses had no pathognomonic BI-RADS features, and we noticed that these masses were small, almost none exceeding one centimeter. Diagnosing small masses is challenging, and our results are consistent with previous studies focusing on subcentimeter masses. For example, Xie et al. (17), in their analysis of qualitative and quantitative features of DCE-MRI in small masses, found that only kinetic patterns defining washout or plateau pattern as malignancy in DCE-MRI qualitative features could provide significant value for diagnosing small breast cancer. Similarly, Meissnitzer et al. (18) demonstrated that the morphological characteristics of small MRI lesions may be useless in differentiating benign from malignant lesions. For non-mass lesions, PPV of BI-RADS characteristics for lesion diagnosis varied significantly among studies, which may be related to factors such as subjectivity of readers and different disease types in various studies (19). In the present study, we showed that the distribution (e.g., segmental and linear) and size of non-mass lesions were proper BI-RADS features for differentiating MRI-only lesions. However, when combining the two parameters, the AUC was only 0.745 (95% CI: 0.593, 0.863).

DWI is the most valuable and robust adjunct to DCE, and their combination has high diagnostic sensitivity and specificity (16,20). It has also been pointed out that DWI with ADC maps can be used as a non-enhanced technique for breast cancer diagnosis and help reduce adverse events with contrast agents. This is consistent with our study that ADC parameters combined with BI-RADS features demonstrated higher diagnostic performance (AUC =0.841–0.848) for MRI-only lesions than DWI or BI-RADS parameters alone.

ADC values can quantitatively evaluate the diffusion restriction of water molecules in lesion tissues. Many studies confirmed the value of ADC in differentiating benign from malignant tumors (11,21). ADC_mean was higher in benign than in malignant lesions, which is consistent with our findings. Simultaneously, our study showed that ADC_mean had the highest diagnostic performance among all the significant ADC parameters (AUC =0.809–0.825), regardless of tumor type (mass or non-mass). This result is consistent with the finding of McDonald et al. (22), who concluded that ADC_mean is a simple and sufficient biomarker and is able to improve the diagnostic ability of breast MRI compared to complex ADC measurement methods. Recently, the value of ADC_min in diagnosing breast cancer has aroused the attention of some scholars (23-25). ADC_min values represent the highest cellular area composed of tumor stroma. They can reflect the most malignant area in malignant lesions, while ADC_max values represent the lowest cellular area and are susceptible to fibrosis and necrosis. Hirano et al. (26) found that ADC_min was the best ADC parameter to distinguish benign and malignant breast masses by evaluating the efficacy of ADC_min, ADC_mean, ADC_max, and ADC difference in the differential diagnosis of breast masses, and the diagnostic performance of ADC_min combined with ADC difference was superior to ADC_mean. This differs from our current findings in that ADC_mean in our study was still the best parameter in diagnosing breast masses. The discrepant results may be related to the small lesion size and less necrosis of masses in our study. In addition, it is related to the different ROI delineation methods. Hirano et al. (26) determined ADC_min by selecting the lowest value from multiple small ROIs. Our study selected the lowest value of pixels in large single-slice 2D ROIs, referring to previous study (16). Furthermore, we found that ADC_min performed only inferior to ADC_mean in the diagnosis of non-mass lesions, indicating that ADC_min can probably reflect the most aggressive component of non-mass lesions.

ADC_{heterogeneity} represents a quantitative imaging biomarker of intratumoral heterogeneity, and few studies investigated the diagnostic ability of ADC_{heterogeneity} for breast lesions. According to Zhuang et al. (27), ΔADC (i.e., ADC_max − ADC_min) was useful in predicting the proliferative status of Ki-67 in breast invasive ductal carcinomas (IDC) and had the highest AUC for assessing the Ki-67 labeling index. Additionally, Yoon et al. (28) demonstrated that a higher ADC_{heterogeneity} was significantly associated with the invasive component of ductal carcinoma in situ. However, our current study fails to reflect the value of ADC_{heterogeneity} in the differential diagnosis of MRI-only lesions. This may be due to the small size of MRI-only masses and their limited voxels. Meanwhile, non-mass lesions are mixed with adipose and glandular tissues which probably affect the evaluation of tumor heterogeneity. Additionally, the delineation of single-slice ROIs may not accurately reflect internal tumor heterogeneity.

There are several limitations of this study. First, this was a single-center retrospective study with a small number of patients and possible selection bias. Second, the International Breast DWI working group of the European Society of Breast Radiology (EUSOBI) (8) recommends the use of a small ROI in the darkest part of the lesion on the ADC map to improve inter-reader agreement, whereas in our study we used large 2D ROIs to delineate tumors on ADC maps. This is because the MRI-only lesions in our sample were rather small, particularly the masses, whose average size was only 7.4 mm and in which necrosis was rarely observed. Therefore, rather than a small ROI corresponding to the darkest part, we employed a 2D ROI covering the whole lesion section in ADC measurements. Third, our DWI protocol used an in-plane resolution of 2.1×3.5 mm², which was greater than the upper limit of 2×2 mm² recommended by the International Breast DWI working group of the EUSOBI, and images with this resolution may lack the necessary texture or details required to effectively reflect heterogeneity. Fourth, the performance evaluation for multivariate analysis did not employ cross-validation in this study, and therefore the ROC analysis of the multivariate models might be overfitted. Fifth, six ipsilateral breast lesions were included in our study, which probably included homologous lesions. Finally, we used only four simple ADC parameters to investigate their diagnostic performance for MRI-only lesions. Whether texture parameters and radiomics are helpful for the differentiation of MRI-only lesions deserves further research.

Conclusions

DWI quantitative parameters may significantly improve diagnostic ability of BI-RADS-based features of breast MRI and provide additional value for the discrimination of MRI-only suspicious lesions. Furthermore, ADC_mean is the best ADC parameter for differential diagnosis of MRI-only suspicious lesions. However, no added diagnostic value for ADC_{heterogeneity} was found in this study.

Acknowledgments

Funding: None.

Footnote

Reporting Checklist: The authors have completed the STARD reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-23-331/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-23-331/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This retrospective study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the Institutional Review Board of Beijing Hospital (No. 2022BJYYEC-388-01). The requirement for written informed consent was waived due to the retrospective nature of the study.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
