A deep learning-based model for automatic segmentation and evaluation of corneal neovascularization using slit-lamp anterior segment images

Introduction

The cornea is a transparent, avascular tissue located in the anterior of iris and pupil. Defects in any corneal layer (consisting of corneal epithelium, Bowman’s layer, the corneal stroma, Descemet’s membrane, and the corneal endothelium) will interrupt light entering the eye. Corneal neovascularization (CoNV), a clinical sign of abnormal vessels invading into the cornea and tipping the balance of angiogenic and antiangiogenic factors, is often accompanied with corneal opacity and contributes to varying degrees of visual decline (1).

CoNV resulting from limbal stem cell barrier damage occurs due to a wide variety of etiologies, including ocular inflammation, infection, trauma, chemical injury (e.g., alkali), ischemia, corneal graft rejection, congenital abnormalities, or systemic disorders such as Stevens-Johnson syndrome (2,3). It also can be categorized into superficial neovascularization, vascular pannus, and deep stromal vascularization according to the location of vessels (4). The existence of CoNV disrupts corneal relative immune privilege, and causes a positive feedback cycle of inflammation and increased vascularization (2). Thus, proliferation or regression of corneal neovessels is one of the most crucial aspects of disorder assessment and monitoring.

Clinical observation methods on CoNV range from slit-lamp bio-microscope photography, in vivo confocal microscopy (IVCM), and anterior segment optical coherence tomographic angiography (AS-OCTA) to corneal fluorescein angiography (FA) and indocyanine green angiography (ICGA). Manually circumscribing the blood vessel network with the cursor based on anterior segment slit-lamp photographs and then calculating the percentage of neovascularization area in the total corneal area can enable an initial quantitative evaluation of CoNV in a straightforward way (5,6), which is non-invasive and relatively simple to operate, but tracing vessels manually is laborious and easily affected by operator-subjective effects. IVCM is mainly used for describing the characteristics of CoNV such as red blood cell traffic and lymphatic vessels; the need for direct surface contact between the cornea and the microscope objective lens, limited view field, and long acquisition time are the limitations of its clinical use (7). FA and ICGA, the “gold standard” for detecting CoNV currently, can quantify vessels in a semiautomatic way and clearly distinguish afferent or efferent vessels (8,9), but rely relatively heavily on equipment and technicians. Moreover, dye intravenous injections can introduce certain serious adverse reactions such as potential anaphylaxis, meaning that patients with contraindications are unable to undergo these examinations (10,11). AS-OCTA is a good non-invasive, quantitative tool for objective CoNV assessment. The combination of en-face OCTA scan and cross-sectional plane provides multi-dimensional mapping and depth of corneal vessels; however, due to a limited image resolution with a small field of view, it may be inapplicable to evaluate the neovascularization of large areas (12-15).

In general, although there are various methods of CoNV detection, they are limited by hospital level and clinical technicians, besides, many patients are not willing to undergo invasive examinations such as angiography. Slit-lamps are commonly available in ophthalmology clinics, but although previous studies have shown that manually tracing vessels based on anterior slit-lamp images is an effective method to evaluate CoNV, it is time-consuming and volitional. Aiming to establish a non-invasive quantitative method and inspired by the application of highly accurate deep learning (DL) algorithms in ocular conditions [e.g., keratoconus (16), glaucoma diagnosis (17), dry eye disease (18), diabetic retinopathy (19), or corneal nerve evaluation (20,21)], we developed IterNet, a DL-based model that is trained on automatic segmentation and evaluates different individuals’ CoNV using slit-lamp anterior segment photographs, to extract and quantify corneal neovessels rapidly so as to assist ophthalmologists in disease condition assessment.

Methods

Data collection

To our knowledge, this is the first study to use a DL model to segment corneal vessels, and public datasets for this subject are absent, therefore, a private dataset was used in this study.

A total of 80 slit-lamp anterior segment images with CoNV were collected at Tianjin Medical University Eye Hospital from December 2021 to July 2022. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Institutional Review Board of the Tianjin Medical University Eye Hospital [No. 2021KY(L)-53] and the requirement for individual consent for this retrospective analysis was waived. The images were taken with the digital camera (Topcon SL-D701; Topcon, Tokyo, Japan) attached to the slit-lamp, the illumination was set at a 45° angle from the display system during acquisition of all images, and magnification was set at 10 times to clarify the entire cornea. A clear picture captured from each eye was presented as 1 sample, pictures with obvious blur were excluded (see in the supplementary appendix online), and all pictures were saved in JPG format with 3,264×2,448 pixels without compression before being processed.

Image processing

All images were cropped first along the cornea limbus, and were then resized into a valid area of 576×576 pixels. For algorithm development, the 80 images were randomly divided into a training set and a testing set containing 60 and 20 images, respectively. Visible corneal neovessels excluding blurred images of the training set images were labelled manually with a cursor by 2 independent ophthalmologists using Java-based ImageJ software (National Institutes of Health, Bethesda, MD, USA), and any discrepancy in the image labeling results was resolved by a simple majority vote with senior physicians. Based on the corresponding binary ground truth results, a calculation of CoNV area could be obtained by ImageJ software. Each sample in the training set included an original cornea image, manually labelled image, mask image, and ground truth result, as shown in Figure 1.

Figure 1 CoNV image annotation example. (A) Cropped original cornea image; (B) manually labeled annotated image; (C) mask image; (D) ground truth image without background. CoNV, corneal neovascularization.

Architecture of DL-based model

In our experiment, we applied IterNet, which is based on U-Net with the additional ability to find obscured details of the vessel from actual segmented vessel images rather than raw input images. A previous reference noted that U-Net could extract the feature of vessels efficiently and has good performance in ocular fundus vessel segmentation (22,23). In order to make better use of well-extracted features from the U-Net model to infer the missing pieces in them, mini-U-Nets were added to the model architecture. In brief, mini-U-Nets were added after the base module U-Net for initial segmentation, where the input of each refinery module is the output of the second last layer of its preceding module, thus, the false vessel patterns exposed and the loss function of each vessel segmentation output can be fixed according to the correct labels during the process of training. Afterwards, the base module can consistently adjust parameters to improve output, and the vessels segmentation task can realize deeper than U-Net. Meanwhile, due to the skip-connection features of the architecture, IterNet can learn from 10–20 labelled images without prior training.

The structure of IterNet consists of 2 main architectures, as shown in Figure 2. One architecture is U-Net, a module based on the encoder-decoder idea, which has a total of 19 convolutional layers. The learning of the base module plays an important role in mapping from the original corneal images to the CoNV images. This helps to obtain a sketchy neovascularization segmentation map. The other architecture is mini-U-Net, which is a simplified version of U-Net consisting of 12 convolutional layers, the main responsibility of which is to process details such as micro-vessels, branches, or terminal backbones of vessels. Mini U-Net is applied iteratively in this network, the number of iterations is set to 3, and it contributes a better completion of the false vessels correction. The output of the third mini-U-Net is recognized as the final output of this network.

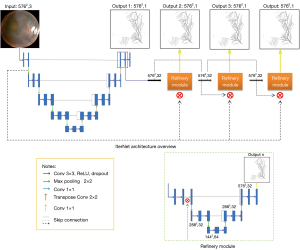

Figure 2 IterNet architecture overview: consists of 1 basic U-Net and 3 refinery modules (mini-U-Net). The size of final output is consistent with input in 576×576 pixels. ReLU, rectified linear unit; Conv, convolution.

As the model deepens in this process, the problem of gradient disappearance is unavoidable. To address this problem, a path from the upper layer to the lower layer is added in the network to obtain an efficient back-propagation. Thus, IterNet has three kinds of skip connections. The first is an intra-module connection, which serves to connect the encoding and decoding layers of each module. This connection introduces the feature information of the coding layer on the corresponding scale into the upsampling process, which has a higher feature resolution, thus, more accurate segmentation results can be obtained. The second is the connection from the base module to the refinery modules, it is an access of feature acquisition from the first layer of the base U-Net, which is very closely approximating the original corneal image. The feature is linked with the feature from each refinery module’s first layer. The third is the connection among refinery modules, which concatenates the features of the lower modules to the upper modules.

Owing to 1 anterior segment photograph representing each sample, the total number of images we collected was limited. Meanwhile, IterNet can be seen as the same module running in a single forward path multiple times. In order to meet demand with possible variations such as color, shape, and position of vessels, data augmentation is essential to adapt the model to different environments, color ranges, and so on. Thus, we used extracted image patches with the size of 128 pixels to train the network to avoid overfitting during the training process.

The experimental platform is Tesla P100-PCIE-16GB graphics processing unit (GPU), and relies on the Tensorflow framework and Keras implementation. The training process is based on Python 3.7.6 (Python Software Foundation, Wilmington, DE, USA) and uses Adam optimizer; the batch size is set to 32, learning rate is 0.001, and the epoch is 300. The detailed configuration environment is listed in Table 1.

Evaluation metrics

To objectively and quantitatively evaluate the performance of IterNet, we conducted comparison on the network segmentation results and the manually labelled ground truth images by ophthalmologists from the aspects of accuracy, sensitivity, and specificity. The metrics were calculated as follows. First, we used 4 cases to evaluate the IterNet segmentation results of each pixel: (I) true positive (TP) indicates that a real vessel point is predicted as a vessel point in the network system; (II) true negative (TN) indicates that a background point is predicted belong to background; (III) false positive (FP) indicates a real background point is mistakenly predicted as a vessel point; (IV) false negative (FN) indicates that the vessel point is predicted as a background point. Then, based on above pixel-level results, the system calculated accuracy, sensitivity, specificity, and precision metrics. In our study, accuracy was defined as the percentage of pixel points the network correctly predicted in overall image pixel points, and precision was the percentage of true vessel pixel points in proportion to the whole vessel pixel points; sensitivity and specificity indicated the result of true vessel or background pixel points that were precisely predicted by IterNet, respectively. The F score is a comprehensive evaluation value equivalent to the harmonic mean function of precision and recall (sensitivity is generally represented as “recall” during F score calculation), it will be close to 1 (the maximum value, F∈[0, 1]) only when these 2 are both high. The definitions of the above evaluation indicators are as follows (β value is set to 1):

Accuracy=TP+TNTP+FP+TN+FN[1]

Specificity=TNTN+FP[2]

Sensitivity=TPTP+FN[3]

Precision=TPTP+FP[4]

Fβ=(1+β2)Precision*Recallβ2*(Precision+Recall)[5]

Dice coefficient was used to measure the similarity between the network segmentation result and the ground truth, according to the following definition:

Dice=2*TP(TP+FN)+(TP+FP)[6]

During model training, loss functions of each output (Out n) were defined as follows:

Ln=−ynlog⁡(pn)−(1−yn)log⁡(1−pn)[7]

where y_n (y_n∈[0, 1]) represents whether the ground truth for the label is correct for the pixel n, and p_n is the predicted probability that the pixel n is a vessel pixel. The total loss functions value is the sum of each output.

We logged the total pixels count of vessels from manually-labelled ground truth images and automatically segmented images, regarded as the morphometric parameter and used for further comparison analysis and calculation.

Statistical analysis

The software packages SPSS version 22.0 (IBM Corp., Armonk, NY, USA) and MedCalc version 19.0.4 (MedCalc Software, Ostend, Belgium) were used for statistical analysis. The agreement between the automated segmentation results and the manually labelled work was evaluated using Bland-Altman plot. The correlation between the manually labelled vessels pixel count and the IterNet segmented vessels pixel count was assessed by Pearson’s test. The receiver operating characteristic (ROC) curve and the precision-recall curve were performed with Python version 3.7.6. A 2-tailed P value <0.05 was considered statistically significant.

Results

As illustrated in Figure 3, the automated segmentation network extracted visible corneal vessels to a relatively large degree, and showed morphological variation of vessels which are consistent with the original morphology compared with manually labelled vessels.

Figure 3 Examples of CoNV segmentation by IterNet. The images in the first column are input images (A); the second column shows images with manually traced corneal vessels (B); and the final column are images from the output of the segmentation network (C). CoNV, corneal neovascularization.

To specifically evaluate IterNet performance, the ROC curve of the CoNV segmentation network result on the testing set was illustrated (Figure 4A), and as can be seen from the curves, the area under the IterNet ROC is larger than U-Net ROC. The other evaluation metrics of IterNet including sensitivity, specificity, accuracy, precision, and Dice coefficient were higher than those of U-Net, as shown in Table 2. Besides, the areas under precision-recall curves of IterNet and U-Net were 0.921 and 0.889, respectively.

Figure 4 Performance evaluation of IterNet. (A) The ROC curve of IterNet and U-Net models. The AUC of IterNet and U-Net is 0.989 and 0.987, respectively. (B) Bland-Altman plots for comparing the pixels counts of manually labeled vessels and IterNet segmented vessels for the testing set, showing a good coherence between manual work and automated segmentation result. SD, standard deviation; ROC, receiver operating characteristic; AUC, area under the ROC curve.

The Bland-Altman plot for evaluating the consistency between IterNet segmentation results and the ground truth is presented in Figure 4B, and the 95% agreement limits between them are between 865.4 and −562.4 [concordance correlation coefficient (CCC) =0.989]. The Pearson’s correlation coefficient of pixel count between manually labelled vessels and IterNet segmented vessels was 0.981 [95% confidence interval (CI): 0.976–0.996, P<0.01].

Based on the above analysis results, after all the images has been processed in a normalization method (cropped images were resized into a valid size pixels), the percentage of automated segmentation vessels pixel count in proportion to the whole mask image can be used for condition assessment and therapy monitoring, resembling an “area” ratio. For example, as shown in Figure 5, the images of a patient with CoNV were analyzed via IterNet: the percentage of vessels that had invaded into the cornea had fallen from 4.766% (12,206 pixels) to 0.801% (2,052 pixels) after treatment, denoting the therapeutic effect quantitatively, accordingly, 5.012% (12,837 pixels) reduced to 0.768% (1,967 pixels) in manually labelled images, which indicates a minor difference of value difference between automatic segmentation and manual work.

Figure 5 An example of CoNV regression after treatment. The images in the upper (A-C) and lower (D-F) rows illustrate conditions pre- and post-treatment, respectively (B,E: manually labelled annotation; C,F: IterNet segmentation). Circles in dotted lines represent the range of the whole cornea. CoNV, corneal neovascularization.

Discussion

In this study, we described a fully automated method for the objective segmentation of corneal neovessels using slit-lamp anterior segment images. The automatic segmentation results showed a high agreement with the manually labelled ground truth performed by ophthalmologists, and the morphometric parameter calculation of segmented vessels pixels count realized a quantitative description of CoNV, which could be used for comparative studies in the future.

A literature review of previous studies revealed that the quantitative analysis of CoNV included a semiquantitative method and a semiautomatic method. Lai et al. classified corneal angiogenesis into 4 grade scales dependent on the numbers of vessels of the entire cornea (0, no vertical vessel; I, 1–6 vessels; II, 7–15 vessels; III, more than 15 vessels), which was regarded as an indicator of therapeutic effect in the study (24). Obviously, it was not sufficient enough when the area or length of vessels changed rather than numbers. Other semiquantitative methods such as dividing cornea into several quadrants and assessing vessels with scores according to the density or extent beyond the limbus face the same problem (25-27). Some researchers tend to apply the method of staining corneas with anti-CD31/PECAM-1 (the typical blood vessel molecular marker) antibody and fluorescein-conjugated secondary antibody, then observe and evaluate corneal vessels by the image analysis program Cell^F (Olympus Soft Imaging Solutions GmbH, Münster, Germany) (28-30), which is a comprehensive semiautomatic method but only available in animal experiments. In clinical practice, the combined use of imaging systems (FA, ICGA, or AS-OCTA) and image editing software such as ImageJ or Enhance is appealing; however, it is worth noting that the fluorescein sodium leakage may affect vessel observation and assessment, and AS-OCTA may produce artifacts which are recognized as abnormal vessels (15,31,32). Compared with the aforementioned approaches, the automated segmentation model IterNet using slit-lamp images can avoid invasive operation and obtain a relatively thorough evaluation of vessels in the whole cornea.

Manual vessel tracing based on color images is not unusual in studies (5,6,33). Dastjerdi et al. proposed a computer-assisted method using Photoshop (Adobe, San Jose, CA, USA) to trace vessels and a written MATLAB program (MathWorks, Natick, MA, USA) to calculate corneal neovessel parameters (34), but the tracing work is time-consuming and low in repeatability due to the fact that manual operation by ophthalmologists may produce different performances in different situations. In comparison, the IterNet model performed vessel extraction repeatedly and achieved stable and consistent results. It was estimated that the developed network system takes less than 2 minutes to accomplish vessel segmentation and morphometric parameter quantification with the process on a GPU, which reduces time sharply and shows great potential value of application in assisting clinical practice.

There were several limitations to our study. First, the results of IterNet performance evaluation indicate that the algorithm produced a relatively low sensitivity and precision for corneal neovessel segmentation compared with manually labelled results. In similarity with AS-OCTA, of which the results may not include the vessels with minimal flow or blocked signal from corneal opacities (13,35), vessels located in the deep stromal layer or covered by opacities were indistinguishable in slit-lamp images and hard to be outlined accurately. Although we manually labelled as many vessels as possible, the results were still less exhaustive than those of FA or ICGA, and the algorithm was prone to mistake vague vessels for false patterns and fix them. Second, because the cornea is not a horizontal plane, any anterior segment photographs taken may be influenced by illumination position or low contrast, which means that not all the vessels are captured clearly and increases difficulty in segmentation, especially in serious cases with CoNV. Therefore, the quality of images acquired for model processing needs to be guaranteed, and those with poor quality may produce a decrease in performance of the model in real-world practice. In a recent research on retinal vessel segmentation, a method was proposed based on the multi-scale retinex algorithm and multi-scale Gaussian-matched filtering method, showing more small blood vessels and better integrity of vascular structure, which may help to improve image processing to compensate for image quality (36). This might be a possible solution to improve slit-lamp images.

We recognize the limitations of our preliminary study. It would have been more comprehensive to be evaluated by a prospective study of CoNV with comparisons with angiography techniques or AS-OCTA. Nevertheless, this is still an innovative attempt to apply a DL-based model in corneal vessel segmentation and evaluation, demonstrating a great performance and the potential to aid in further making a quantitative estimation of abnormal neovessels in various corneal diseases.

What is more interesting is that corneal neovessels evaluation may be actualized at local clinics or even at home. Previous studies have shown that smartphones with camera attachments can capture ocular fundus images for screening and monitoring fundus lesions such as diabetic retinopathy (37,38). Inspired by which, patients with corneal disorders may undergo an initial assessment by means of IterNet, dependent only on the requirement of a clear and complete corneal picture. The combination of artificial intelligence (AI) and modern technologies will greatly improve health self-management, and we believe this advancement will be necessary for the large aging population in the near future.

Conclusions

Based on slit-lamp anterior segment images, we presented a fully automatic method for segmenting corneal neovessels and evaluating their quantitative parameters, which shows good performance. Compared to existing CoNV assessment methods, IterNet realized a combination of accuracy and efficiency, and is a novel application of computer-aided diagnosis. In addition, the equipment required is commonly available, and the entire process is noninvasive; it is also a breakthrough in the management of corneal diseases. Further validation of the IterNet model in a larger population in a clinical setting is required, and it is necessary to compare it with other imaging techniques. Further research is required to validate the potential of the model to improve the management of patients with CoNV.

Acknowledgments

Funding: This work was funded by the Natural Science Foundation of China (No. 81970769) and Tianjin Key Medical Discipline (Specialty) Construction Project (No. TJYXZDXK-037A).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-23-99/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Institutional Review Board of the Tianjin Medical University Eye Hospital [IRB No. 2021KY(L)-53] and the requirement for individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
