Clinical value of quantitative analysis of contrast-enhanced ultrasonography in the differential diagnosis of benign and malignant pelvic tumors

Introduction

Among pelvic tumors, cervical cancer, endometrial cancer, and ovarian cancer are among the top 10 most common cancers in women (1). Among these, ovarian cancer is considered to be a “silent killer”, as most patients present with few symptoms or are diagnosed at the advanced stages (III and IV) (2,3). Consequently, early detection, diagnosis, and treatment are critical to in the management of this disease and women’s health generally. Traditional ultrasonography and Doppler ultrasonography have limited use in examining smaller lesions, and improving the early diagnosis of malignancy is pivotal to enhancing the efficacy of treatment.

Contrast-enhanced ultrasonography (CEUS) has been widely applied in the diagnosis of liver, thyroid, breast, and renal diseases, and its diagnostic value for tumors has been consistently recognized (4-7) due to its high sensitivity and specificity. However, only a few studies thus far have conducted qualitative or quantitative analyses of the differential diagnosis of pelvic tumors. Furthermore, there is a crossover of quantitative indices in benign and malignant lesions and a lack of a uniform standard for each index (8,9). Qualitative analysis is also susceptible to considerable subjective and operational differences, which limits its clinical application (10). In this study, a comprehensive quantitative analysis of multiple indicators in identifying benign and malignant pelvic tumor lesions was conducted. Overall, the findings of this study have the potential to improve the diagnostic accuracy of CEUS and may serve as a more reliable reference for the clinical management of tumors. We present this article in accordance with the STARD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-23-582/rc).

Methods

Sample sources

This study retrospectively reviewed a total of 155 patients admitted to Guangzhou Women and Children’s Medical Center for pelvic tumors between April 2021 and September 2022. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by ethics committee of Guangzhou Women and Children’s Medical Center (No. 194A01). Informed consent was obtained from all patients.

Inclusion criteria

The inclusion criteria of patients were as follows: (I) a pelvic tumor detected with general ultrasonography; (II) a pelvic tumor confirmed via surgery and biopsy; (III) a negative urine pregnancy test result; and (IV) no contraindications to imaging, such as severe allergy, severe cardiopulmonary system disease, pregnancy, or lactation. In addition, junctional lesions and hyperplastic active lesions were classified as malignant tumors to facilitate statistical analysis.

Equipment and methods

Equipment

The Mindray Resona 70B Diasonograph (probe model: SC5-1U and V11-3HU; Mindray Company, Shenzhen, China) was used as the examination apparatus in this study. CEUS was performed using cadence-contrast pulse sequencing (CPS) imaging technology. To reduce microbubble destruction, the machine parameters were set to the following: acoustic power (AP), 1.29%; mechanical index (MI), 0.082; frequency (F), 2.2; frame rate (FR), 9; and dynamic range (DR), 105.

Contrast agent

The ultrasound contrast agent SonoVue (Bracco, Milan, Italy) was used and prepared as follows: 1.5 mL for a single transabdominal examination and 2.4 mL for a single transvaginal examination through the antecubital vein.

Conventional ultrasonography and CEUS imaging

Transabdominal ultrasonography and transvaginal ultrasonography were performed, and the location, size, borders, internal echogenicity, blood flow, spectral pattern, and resistance index of the lesion were recorded. The imaging mode was then switched to the contrast imaging mode. The specific location of the lesion was used to decide the type of examination (transabdominal CEUS or transvaginal CEUS), with the lesion placed in the center of the image and the focus adjusted to the base level of the lesion. The image depth was adjusted to 8–12 cm according to the location of the pelvic mass. Time gain compensation was adjusted to achieve a homogeneous signal intensity of the mass. All settings were kept constant throughout each examination. The time of contrast agent injection was also recorded. The enhancement of the lesion and its surrounding tissue and its dynamic course were monitored in real time. Finally, the imaging data obtained from the CEUS process were saved. The target lesion was observed continuously for 2–3 minutes.

Image analysis

The CEUS images were analyzed two physicians with more than 5 years of experience in ultrasonic diagnosis. The time, level, pattern, and mode of enhancement were observed and recorded for the lesions. Based on the myometrium profile, the enhancement time of the lesion was categorized into early, simultaneous, and late. The enhancement pattern was categorized into uniform and nonuniform, while the enhancement level was categorized into high, intermediate, low, and no enhancement. An automatic machine quantitative analysis software was used to draw a region of interest (ROI) for each myometrium and lesion as well as to obtain the time-intensity curve (TIC) for the ROI (Figure 1). Data with goodness of fit (GOF) >0.8 were selected to record the contrast arrival time (AT), time to peak (TTP), peak intensity (PI), and ascent slope (AS) for the myometrium and the lesion (Figure 2). Subsequently, the AT difference (AT_d), the PI difference (PI_d), and the AS difference (AS_d) between the corrected myometrium and the lesion of the same patient were calculated as follows:

ATd=lesionAT−myometriumAT[1]

PId=lesionPI−myometriumPI[2]

ASd=lesionAS−myometriumAS[3]

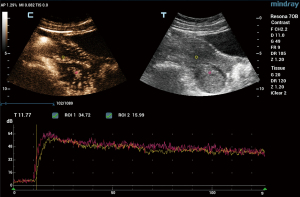

Figure 1 The ROI was plotted for the myometrium (yellow circle) and lesion (pink circle) to obtain the TIC of the ROI (horizontal coordinate: time; longitudinal coordinate: PI). AP, acoustic power; MI, mechanical index; TIS, tissue; C, contrast; T, tissue; F, frequency; D, depth; G, gain; FR, frame rate; DR, dynamic range; Z, zoom; T 11.77, time 11.77; ROI, region of interest; dB, decibel; TIC, time-intensity curve; PI, peak intensity.

Figure 2 The data after the TIC of the ROI was obtained, with data with GOF >0.8 being selected (horizontal coordinate: time; longitudinal coordinate: PI). AP, acoustic power; MI, mechanical index; TIS, tissue; ROI, region of interest; GOF, goodness of fit; BI, base intensity; AT, arrival time; TTP, time to peak; PI, peak intensity; AS, ascending slope; DT, descending time; DS, descending slope; AUC, area under TIC (Mindray Company); TIC, time-intensity curve; F, frequency; D, depth; G, gain; FR, frame rate; DR, dynamic range; T, time; dB, decibel.

Statistical analysis

The SPSS version 26 (SPSS Inc., Chicago, IL, USA) was used to perform data analysis. Quantitative data are expressed as mean ± standard deviation (SD). The independent samples t-test was used where P<0.01 was considered statistically significant. The cutoff values for the benignity and malignancy of each index were determined using receiver operating characteristic (ROC) curves.

Results

From April 2021 to September 2022, 155 patients with pelvic tumors who underwent conventional transabdominal or transvaginal ultrasonography examination in Guangzhou Women and Children’s Medical Center were recruited. The flowchart for patient selection is illustrated in Figure 3. There were 3 pregnant patients, 1 patient with atrial septal defect, and 20 patients who did not have any pathological findings who were excluded from the study. Finally, a total of 131 patients were enrolled in this investigation, including 109 (83.2%) patients with benign lesions and 22 (16.8%) patients with malignant and junctional lesions. All the lesions underwent histological verification, and the characteristics are listed in Table 1.

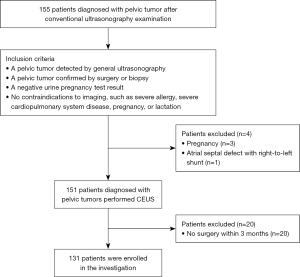

Figure 3 Flowchart for selection of patients with pelvic tumor. In total, 131 out of 155 patients were included according to the selection criteria. CEUS, contrast-enhanced ultrasonography.

All patients were females with a mean age of 39.21±0.96 (range, 19–72) years. The patients in the malignant group were older (46.32±10.48 vs. 37.78±10.50 years, P=0.001) and had larger lesion PI values (56.90±9.36 vs. 43.15±8.41, P<0.01) than did those in the benign group (Table 2).

The AT_d was significantly lower in the malignant group than in the benign group (−0.632±1.28 vs. 0.686±2.41 s, P=0.014). Moreover, the PI_d (13.569±12.21 vs. −7.003±8.77, P<0.01), AS (2.819±1.15 vs. 2.019±0.85, P=0.005), and AS_d (1.205±1.27 vs. −0.179±0.90, P<0.01) values were significantly higher in the malignant group than in the benign group (Table 3).

According to the ROC curve, the area under the ROC curve (AUC) value of the PI curve was 0.899, with a 95% confidence interval (CI) of 0.813–0.986. When the cutoff value was 51.59, the sensitivity and specificity reached 90.9% and 86.2%, respectively (Figure 4). The AUC value of the PI_d curve was 0.949, with a 95% CI of 0.911–0.987. When the cutoff value was 4.47, the sensitivity and specificity were 90.9% and 91.7%, respectively (Figure 5). The AUC value of the AS curve of the lesion was 0.728, with a 95% CI of 0.606–0.851. When the cutoff value was 2.15, the sensitivity and specificity were 72.7% and 61.5%, respectively (Figure 6). The AUC value of the AS_d curve was 0.847, with a 95% CI of 0.763–0.930. When the cutoff value was 0.097, the sensitivity and specificity were 86.4% and 72.5%, respectively (Figure 7, Table 4).

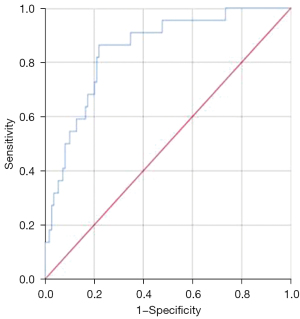

Figure 4 ROC curve for the lesion PI: AUC, 0.899; 95% CI, 0.813–0.986; cutoff value, 51.59; sensitivity, 90.9%; and specificity, 86.2%. ROC, receiver operating characteristic; PI, peak intensity; AUC, area under the ROC curve; CI, confidence interval.

Figure 5 ROC curve for PId: AUC, 0.949; 95% CI, 0.911–0.987; cutoff value, 4.47; sensitivity, 90.9%; and specificity, 91.7%. ROC, receiver operating characteristic; PId, peak intensity difference; AUC, area under the ROC curve; CI, confidence interval.

Figure 6 ROC curve for lesion AS: AUC, 0.728; 95% CI, 0.606–0.851; cutoff value, 2.15; sensitivity, 72.7%; and specificity, 61.5%. ROC, receiver operating characteristic; AS, ascent slope; AUC, area under the ROC curve; CI, confidence interval.

Figure 7 ROC curve for ASd: AUC, 0.847; 95% CI, 0.763–0.930; cutoff value, 0.097; sensitivity, 86.4%; and specificity, 72.5%. ROC, receiver operating characteristic; ASd, ascent slope difference; AUC, area under the ROC curve; CI, confidence interval.

Discussion

Currently, the common imaging methods for diagnosing pelvic masses are two-dimensional (2D) ultrasonography, computed tomography (CT), and magnetic resonance imaging (MRI), with ultrasound scores being used as a method of differentiation between benign and malignant masses (11,12). However, the use of CEUS in the diagnosis of pelvic masses has received little attention. CEUS allows for real-time dynamic observation of microcirculatory perfusion of the lesion. In addition, it uses software analysis and quantitative comprehensive evaluation of multiple indicators to improve the differential diagnosis of pelvic tumors based on their morphology and perfusion characteristics.

The phenomenon of neovascularization is quite commonly observed in pelvic malignant tumors. The lack of an intermediate muscular layer in new vessels causes low resistance. In addition, this neovascularization alters the amount and rate of blood perfusion, which manifests as a unique pathological angiogram of malignant tumors (13). Thus, this perfusion pattern of malignancy exhibits contrast perfusion preceding myometrial perfusion and hyperenhancement, which is consistent with previous findings (14-21). The uterine arteries originate from the internal iliac artery, and their main trunk divides bilaterally into superior and inferior branches at the level of internal ostium of the uterus. The superior branch of the uterine artery travels up along the lateral border of the uterus to its base, where it gives off branches and nourishes the uterus, fallopian tubes, and ovaries, and anastomoses with the ovarian artery. This indicates that the perfusion patterns of the uterus and ovaries are similar in the event of the occurrence of a benign or malignant pelvic tumor.

In line with the findings of earlier research (22), the PI, AT_d, and AS values of the lesion in this study were all significantly higher in the malignant lesions than in benign lesions. Additionally, the myometrium was used as a reference in this study. Since blood perfusion is strongly influenced by individual differences in heart rate and vascular distribution, the parameters PI_d and AS_d were set to reduce any error arising due to these individual differences. The results demonstrated that the PI_d and AS_d values calculated for the same patient could effectively characterize the differences between benign and malignant tumors, with the PI_d and AS_d values being significantly higher in malignant tumors than in benign tumors. According to the generated ROC curves, when the PI_d cutoff value was 4.47, the sensitivity and specificity of PI_d were 90.9% and 91.7%, respectively. Moreover, when the AS_d cutoff value was 0.097, the sensitivity and specificity of AS_d were 86.4% and 72.5%, respectively. Both PI_d and AS_d had high sensitivity, specificity, positive predictive value, negative predictive value, and accuracy, along with the largest AUC value and the highest diagnostic efficacy. These findings suggest that CEUS has considerable clinical value for the qualitative diagnosis of malignant pelvic lesions.

There were certain limitations to this study. As we employed a single-center, retrospective design with a small number of cases, there might have been a bias in the selection of case types, especially for malignant tumors. Therefore, further prospective studies involving extensive data should be conducted. Continued investigation of pelvic masses that are challenging to characterize using conventional ultrasonography may improve the differential diagnosis and deliver more effective clinical assistance in the future.

Conclusions

A quantitative analysis of CEUS images can provide a novel, simple, and more accurate method for the differential diagnosis of benign and malignant pelvic masses in clinical practice. The sensitivity and specificity of both PI_d and AS_d were higher compared to other parameters in the same patient. Despite these findings, we believe that further studies are needed to evaluate the applicability of CEUS in the assessment of pelvic tumors.

Acknowledgments

Funding: The authors would like to acknowledge funding support from the Guangzhou Women and Children’s Medical Center (No. SL2022A03J01144).

Footnote

Reporting Checklist: The authors have completed the STARD reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-23-582/rc

Conflicts of Interest: All authors completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-23-582/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the ethics committee of Guangzhou Women and Children’s Medical Center (No. 194A01). Informed consent was obtained from all patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
