Ultrasonographic reliability and repeatability of simultaneous bilateral assessment of diaphragm muscle thickness during normal breathing

Introduction

The diaphragm was considered a key muscle placed in the trunk separating the thoracic cavity from the abdomen (1). From an anatomical point of view, its muscular region is shaped like a double dome divided into two parts by a central tendinous region. The medial region of this muscle is related to the lumbar vertebrae L2–L4 with their respective ligaments and its lateral region is related to the last six ribs (2). According to this location, it is the main muscle involved in the respiratory process, being responsible for up to 70% of pulmonary ventilation at rest (1). In addition, it is one of the muscles responsible for stabilizing the trunk together with the pelvic floor muscles and the abdominal wall (3), as well as their motor control, although the exact mechanisms by which the diaphragm stabilizes the trunk remain still unknown (4).

Therefore, assessment of both the morphology and function of the diaphragm may be crucial as it plays a key role and may be affected after certain surgical procedures or different neuromuscular (5) and/or respiratory conditions (6).

There are many techniques used in the evaluation and identification of the diaphragm such as computed tomography, radiography (7), electromyography (6), magnetic resonance imaging, fluoroscopy, plethysmography, and ultrasonography, among others (8).

Nevertheless, ultrasonography shows many advantages over the aforementioned techniques as it is a non-invasive imaging technique (9,10), not emitting ionizing radiation and allowing real-time imaging (10), which does not require patient transport for the test (11), offering the possibility of repeated images and spending relatively little time (2). Despite all its advantages, the main limitation of ultrasound is that this tool is an operator-dependent imaging technique which requires a certain degree of specialized training and adequate experience of the examiner performing the assessment (6,11).

Among ultrasound techniques, the rehabilitative ultrasound imaging (RUSI) technique may be considered the approach used by physical therapists in the evaluation of the morphology and function of the different body structures. According to the term “Point of Care Ultrasound” (12), the motor control reeducation by RUSI may be considered a useful biofeedback method for patients with different conditions.

Indeed, ultrasound is a useful tool that allows physical therapists to quantitatively assess the movement and functionality of the diaphragm in both patients with musculoskeletal conditions and healthy subjects, as it may be used as a predictor of multiple alterations (3). Nevertheless, the function of the diaphragm evaluated by transdiaphragmatic pressures were weakly related to the thickening fraction of this muscle (13) and the application of diaphragmatic ultrasonography displayed controversies about its diagnostic value in critical care fields (14). Thus, the improvement of the diaphragm thickness evaluation may be the first aim to improve the ultrasound reliability and repeatability avoiding some systematic errors of measurement previously reported, and the use of ultrasonography as a visual biofeedback tool to reeducate the diaphragm contraction during normal breathing may be considered as a secondary purpose for future studies (4).

The diaphragm may be measured by ultrasound in different ways and modes, but there is a lack of consensus to which method is most advantageous, being B-mode considered as the preferred method to determine diaphragm thickness (15). Commonly, the thickness of the diaphragm is assessed in the apposition zone as the region of the trunk where the abdominal contents meet the lower part of the rib cage (16,17). In this area, the diaphragm appears on the ultrasound image as a structure with 3 parts which may be distinguished: a central hypoechogenic area, that corresponds to the diaphragm muscle tissue, delimited by 2 hyperechogenic lines, that correspond to the perimuscular connective tissue as the most superficial edge and the diaphragmatic pleural membranes and the peritoneum as the deepest edge (18).

Recently, our research group evaluated the thickness of the diaphragm muscle in this region using a thoracic orthosis that allowed a unilateral fixation of an ultrasound probe improving the reliability and repeatability of the manual probe fixation with adequate concurrent validity during normal breathing (4). Unilateral RUSI visual biofeedback of each hemi-diaphragm separately in conjunction with inspiratory muscle training may improve lung function parameters (19). Nevertheless, the inspiratory activity of both hemi-diaphragms is bilaterally performed at the same time, and its simultaneous evaluation with a thoracic orthosis could improve its assessment as well as its re-education with visual biofeedback of both hemi-diaphragms at the same time (4,19). This fact may be especially important due to the human diaphragm contractile properties were well illustrated by single bilateral contraction while unilateral contraction stimulation was misleading to distortion secondary to abnormal changes of the diaphragm geometry (20). These considerations led us to investigate firstly the reliability and repeatability of the bilateral ultrasound measurements of both right and left hemi-diaphragms at the same time and secondly the use of the bilateral probes fixation thoracic orthosis in order to determine its effectiveness as a visual biofeedback tool in future studies (4,19). Therefore, the purpose of this study was to evaluate the reliability and repeatability of the simultaneous thickness measurements of both hemi-diaphragms bilaterally during normal breathing using a thoracic orthosis that allowed bilateral fixation of both right and left ultrasound probes. We present this article in accordance with the Guidelines for Reporting Reliability and Agreement Studies (GRRAS) reporting checklist (21) (available at https://qims.amegroups.com/article/view/10.21037/qims-23-329/rc).

Methods

Study design

This study was carried out from May 1, 2021, to November 30, 2022, according to the GRRAS (21). The study was approved by the ethics committee of the Hospital Clínico San Carlos (Madrid, Spain) (No. 20.655-E_BS). All participants included in the study received an information sheet and signed an informed consent, complying with the Declaration of Helsinki (as revised in 2013) (22) and Spanish Law 14/2007 on Biomedical Research. The research respected the Spanish Organic Law 3/2018, of December 5, on the Protection of Personal Data and Guarantee of Digital Rights.

A patent registry was carried out as a utility model for the bilateral thoracic orthosis including both right and left holding devices for 2 ultrasound probes in the Spanish Patent and Trademark Office (number of application: U202200045; publication number: ES1288519; issue date: 30 March, 2022). These holding devices were used to fix both right and left ultrasound probes within the thoracic orthosis to measure diaphragm bilateral thickness at the same time during normal breathing (4). This research project was funded and supported by grant PID2020-117162RA-I00 funded by MCIN/AEI/10.13039/501100011033 from the Ministry of Science and Research as well as the State Agency for Investigation of the Spanish Government under the 2020 Call for Innovation, Development and Research (“I+D+i Projects”) within the framework of the State Programs for Knowledge Generation and Scientific and Technological Strengthening of the I+D+i System and I+D+i oriented to the Challenges of Society (grant No. PID2020-117162RA-I00).

Sample size calculation

The sample size calculation was analyzed by the version 3.1.9.2 of the G*Power^© (University of Dusseldorf; Germany), using bivariate statistical correlation tests. According to a prior similar study assessing the reliability of ultrasound thickness measurements unilaterally (4), a coefficient of 0.4 was used to establish a moderate correlation between the measurements of 2 examiners obtained with the thoracic orthosis that used 2 ultrasound probes simultaneously to measure the thickness of the diaphragm bilaterally at transcostal level. Attending to bilateral tests, α error of 0.05 and power of 0.80, a total sample size of 46 participants was obtained as the required sample size calculation.

Recruitment and sampling

A total sample of 63 healthy participants was recruited for eligibility through consecutive sampling at the Faculty of Nursing, Physiotherapy and Podiatry of the Complutense University of Madrid (Spain). Nevertheless, 17 participants were excluded because they presented poor visualization of the diaphragm muscle interfaces in the ultrasound images, complicating diaphragm thickness measurements (4,19).

Study participants

Inclusion criteria comprised healthy participants from 18 to 65 years without neuromuscular alterations in the year prior to the beginning of the study. Exclusion criteria comprised all those participants with low back pain, skin alterations, pregnancy, surgeries or pathologies of the lower limb, respiratory, neurological, neuromuscular, rheumatic or congenital lumbar alterations, a body mass index (BMI) above 31 kg/m² (4).

Protocol

The thoracic orthosis was made of neoprene allowing complete thoracic mobility. In addition, this tool presented 2 cavities that allowed the introduction of the ultrasound gel, being able to visualize bilateral and simultaneously the last 2 intercostal spaces by two holding devices (4) that fixed 2 ultrasound probes perpendicularly at both right and left intercostal spaces in the mid-axillary line (Figure 1).

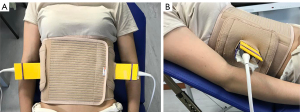

Figure 1 Thoracic orthosis for simultaneous bilateral diaphragm muscle thickness measurement during normal breathing using the RUSI technique. (A) Visualization of the designed thoracic orthosis that allowed the fixation of 2 ultrasound probes for the measurement of diaphragm muscle thickness in healthy participants during relaxed breathing activity using the RUSI technique. (B) Fixation of the ultrasound probe to the designed thoracic orthosis. RUSI, rehabilitative ultrasound imaging.

Two high-quality ultrasound tools (Ecube i7; Alpinion Medical System; Seoul, Korea) and 2 linear probes (Broadband Linear type L3_12T, 38.4 mm field of view, 128 elements) were used for B-mode evaluation of the diaphragm. A preset of frequency at 12 MHz, gain at 64 points, depth at 3 cm, dynamic range at 64 points and focus at 2-cm depth was used. Intra-examiner (same examiner), inter-examiner (2 examiners), intra-session (same day 1 hour apart) and inter-session (alternate days 1 week apart in the same time slot) reproducibility and reliability were analyzed by randomization of the order of examiners, who presented more than 4 years of experience with the RUSI technique for diaphragm evaluation (4). The images obtained were supervised by a physician with also more than 4 years of diaphragm ultrasound assessment as well as saved, coded, and analyzed with the ImageJ software (23). The mean of 3 repeated measurements were used for data analysis (23).

Descriptive data and outcome measurements

The following socio-demographic descriptive data were considered: sex (dichotomous variable divided into male or female participants), age (quantitative variable measured in years), height [quantitative variable measured in meters (m)], weight [quantitative variable measured in kilograms (kg)], BMI [quantitative variable measured in kilograms/meters² (kg/m²)], International Physical activity Questionnaire (IPAQ) scores [quantitative variable measured in metabolic equivalents per minute per week (MET minutes/week)] whose reliability presented an intraclass correlation coefficient (ICC) of 0.93 [95% confidence interval (CI): 0.86–0.97] (24) and smoking habit (dichotomous variable divided into yes or no). Following the methodology of a prior similar study (4), physical activity score and smoking habits were not considered exclusion criteria and were considered baseline data to describe the study sample in order to promote the reproducibility of future studies with similar or different samples features,

Furthermore, the thickness of the diaphragm muscle was considered the main outcome measurement as a quantitative variable measured in centimeters (cm) and performed bilaterally and simultaneously (both left and right last intercostal spaces) in maximum inspiration (T^ins), maximum expiration (T^exp) and their difference (T^ins − T^exp; maximum inspiration − maximum expiration) during relaxed breathing determined by the RUSI technique (Figure 2). These outcomes were previously measured with an orthotic device probe fixation at one hemi-diaphragm in an isolated manner showing excellent reliability with an ICC from 0.852 to 0.996, standard error of measurement (SEM) from 0.0002 to 0.054 cm, and minimum detectable change (MDC) from 0.002 to 0.072 cm (4).

Figure 2 Diaphragmatic thickness visualized by RUSI technique in B-mode with the designed thoracic orthosis at the anterior axillary line in the last intercostal space. (A) Diaphragmatic thickness (white arrow) in maximum inspiration during a relaxed breathing pattern. (B) Diaphragmatic thickness (white arrow) in maximum expiration during a relaxed breathing pattern. RUSI, rehabilitative ultrasound imaging.

Data analysis

The Statistical Package of Social Sciences (SPSS), version 24.0 (IBM; Armonk, NY, USA), was used for data analysis. Firstly, the normality of the values of the descriptive data and outcome measurements was checked using the Kolmogorov-Smirnov statistical test. Secondly, data were described by mean and standard deviation (SD) completed by the upper and lower limits for the 95% CI. Finally, intra-examiner (same examiner), inter-examiner (2 examiners), intra-session (same day 1 hour apart) and inter-session (alternate days 1 week apart in the same time slot) reliability and repeatability between each pair of measurements of diaphragm muscle thickness were analyzed at T^ins, T^exp and T^ins − T^exp (4). Indeed, ICC were calculated and classified as poor (ICC <0.40), weak (ICC =0.40–0.59), good (ICC =0.60–0.74), excellent (ICC =0.75–1.00) (25). Furthermore, measurement errors were calculated and determined by standard errors of measurement (SEM) using the formula SEM = SD * √(1−ICC) (26) and MDC applying the formula MDC = √2 * 1.96 * SEM for a 95% CI according to Bland & Altman (27). Lastly, statistically significant differences between each pair of measurements were analyzed by the Student’s t-test and Wilcoxon test for paired samples according to parametric or non-parametric data, respectively, considering a P value <0.05 for a 95% CI (4).

Results

Descriptive data

From 46 healthy subjects who participated finally in this reliability and repeatability study, 21 participants were female (45.7%) and 25 participants were male (54.3%) presenting weight and height mean ± SD (95% CI) of 66.42±12.01 (63.85–70.99) kg and 1.72±0.08 (1.69–1.74) m, respectively. In addition, their median and interquartile range were 24 and 3 years, respectively for age; 21.84 and 3.7 kg/m², respectively for BMI; and 3,113.5 and 2,765.38 MET minutes/week, respectively for the IPAQ questionnaire. Only 4.3% were smokers versus 95.7% who were non-smokers.

Intra-session and intra-examiner reliability and repeatability

The proposed procedure within the orthosis device that allowed bilateral fixation of both ultrasound probes presented an excellent intra-session and intra-examiner reliability and repeatability for RUSI diaphragm thickness according with the ICC =0.983–0.997, SEM =0.002–0.004 cm and MDC =0.006–0.012 cm without statistical differences (P>0.05) between each pair of measurements, as shown in Table 1.

Inter-session and intra-examiner reliability and repeatability

The proposed protocol for the bilateral and simultaneous assessment of the diaphragm thickness showed excellent inter-session and intra-examiner reliability and repeatability for RUSI diaphragm thickness (ICC =0.919–0.990; SEM =0.004–0.007 cm; MDC =0.011–0.020 cm) and no statistically significant differences (P>0.05) were observed between each pair of measurements, as shown in Table 2.

Intra-session and inter-examiner reliability and repeatability

The proposed bilateral and simultaneous evaluation of the diaphragm thickness within the orthosis showed a good to excellent intra-session and inter-examiner reliability and repeatability (ICC =0.614–0.811; SEM =0.011–0.028 cm; MDC =0.032–0.079 cm) and no statistically significant differences (P>0.05) were observed in thickness difference between maximum inspiration and expiration (T^ins − T^exp) measurements of right diaphragm, as shown in Table 3. Nevertheless, significant differences (P<0.05) were observed between each pair of measurements for the rest of outcomes.

Inter-session and inter-examiner reliability and repeatability

The measurement protocol for the bilateral and simultaneous diaphragm thickness by the thoracic orthosis that allowed fixation of the ultrasound probes presented an excellent inter-session and inter-examiner reliability and repeatability for RUSI diaphragm thickness with ICC =0.812–0.984, SEM =0.006–0.012 cm and MDC =0.017–0.035 cm, without statistically significant differences between each pair of thickness measurements of the right and left diaphragm at T^ins (P>0.05), as shown in Table 4. Nevertheless, significant differences (P<0.05) were presented between each pair of measurements for the rest of outcomes.

Discussion

Thus, our study findings suggested that simultaneous evaluation of both hemi-diaphragms with the thoracic orthosis presented good to excellent reliability and repeatability. In spite of systematic errors were presented for some inter-examiner evaluations, the use of this thoracic orthosis allowing bilateral fixation of 2 ultrasound probes to both right and left hemi-diaphragms at the same time could be recommended for normal breathing re-education as a visual biofeedback.

As mentioned above, the main disadvantage of ultrasound carried out by manual probe fixation was the variability of the imaging test based on the experience and knowledge of the technique by the examiner who performed the assessment (6,11). The unilateral fixation of the ultrasound probe improved reliability avoiding systematic errors of measurement to determine thickness of each hemi-diaphragm during normal breathing and was applied to improve respiratory function by unilateral visual re-education of each hemi-diaphragm in athletes with lumbopelvic pain (4,19). Currently, our study findings support the use of the thoracic orthosis for the simultaneous and bilateral diaphragm thickness evaluation, recognizing some systematic errors during inter-examiner assessments, and overall it use for simultaneous re-education interventions of both hemi-diaphragms by visual biofeedback. Concretely, unilateral ultrasound evaluations of diaphragm thickness by a thoracic orthosis (ICC =0.852–0.996; SEM =0.0002–0.054 cm; MDC =0.002–0.072 cm) improved the reliability and repeatability of manual probe fixation (ICC =0.714–0.997; SEM =0.003–0.023 cm; MDC =0.008–0.064 cm) avoiding most systematic errors of measurement (4). Also, the bilateral and simultaneous assessment of the diaphragm thickness using a thoracic orthosis presented an adequate reliability and repeatability (ICC =0.614–0.997; SEM =0.002–0.028 cm; MDC =0.006–0.079 cm), although showing more systematic errors of measurement compared to the unilateral probe fixation measurements of each hemi-diaphragm separately by a thoracic orthosis (4).

Despite the described thoracic orthosis for the simultaneous and bilateral diaphragm thickness evaluation presented excellent reliability and repeatability for all intra- and inter-rater evaluations, systematic errors were only shown for inter-rater evaluations. Specifically, systematic errors (P<0.05) were presented for all intra-session and inter-rater measurements at T^ins and T^exp of both hemi-diaphragms and T^ins − T^exp of left diaphragm, but not for the thickness difference of right diaphragm (P>0.05) between maximum inspiration and expiration (T^ins − T^exp). In addition, systematic errors (P<0.05) were also presented for all inter-session and inter-rater measurements at T^exp and T^ins − T^exp of both hemi-diaphragms, except for thickness measurements of the right and left diaphragm (P>0.05) at maximum inspiration (T^ins). These systematic errors may be due to the bilateral variability of the diaphragm position and rib cage (28,29), anatomical variations (2), and the lack of adaptability of the thoracic orthosis secondary to its material deformation during normal breathing and inter-raters criteria for bilateral probe fixation (4,19) to permit an adequate simultaneous thickness evaluation of both right and left hemi-diaphragms at the same time.

Indeed, reliability and repeatability for intra-session evaluations using the thoracic orthosis were excellent and similar to evaluate each hemi-diaphragm thickness separately by unilateral probe fixation (ICC =0.935–0.996; SEM =0.0002–0.012 cm; MDC =0.005–0.035 cm) (4) and simultaneous thickness of both hemi-diaphragms by bilateral probes fixation (ICC =0.919–0.997; SEM =0.002–0.007 cm; MDC =0.006–0.020 cm), without systematic errors (P>0.05) between each pair of measurements. Nevertheless, inter-session evaluations were excellent using unilateral probe fixation (ICC =0.852–0.982, SEM =0.001–0.054 cm, MDC =0.002–0.072 cm) (4), while varied from good to excellent using the bilateral probes fixation (ICC =0.614–0.984; SEM =0.006–0.028 cm; MDC =0.017–0.079 cm) showing more systematic errors of measurement. Thus, the thoracic orthosis with the unilateral probe fixation may be more reliable avoiding systematic errors of measurement for diaphragm thickness assessments (4), while the thoracic orthosis with bilateral probes fixation could be more advisable for diaphragm visual biofeedback interventions allowing breathing reeducation for both hemi-diaphragms at the same time due to their visual biofeedback did not seem to be influenced by these measurement errors and may permit an adequate visualization of both right and left diaphragm layers during normal breathing (4,19).

Diaphragmatic breathing reeducation by RUSI visual biofeedback with the thoracic orthosis could facilitate bilateral probes fixation using 2 ultrasound machines permitting the visualization of both ultrasound screens at the same time, explaining thickening of both right and left hemi-diaphragms during inspiration as well as correcting paradoxical breathing patterns, for example in patients suffering from low back pain or improve lung function (19). Otherwise, it might be acknowledged that systematic errors occur, but that the validity and reliability of the manual approach could still be sufficient to guide therapy (4), although more than one clinician should be necessary to fix both probes and manage both ultrasound tools at the same time.

Future research lines

The thoracic orthosis studied and investigated in this study, apart from being useful and reliable for measuring the thickness of the diaphragm muscle bilaterally and simultaneously in healthy subjects during the normal and relaxed respiratory cycle, may also be useful as a biofeedback tool to improve motor control of the diaphragm muscle. This intervention may be useful to improve respiratory function in patients suffering from low back pain (4,19), due to the role of the diaphragm as a stabilizer of the lumbar region, which presented smaller thickness and smaller excursion and a higher position in patients with this condition (27).

Furthermore, it would be interesting to perform a progression in the training and evaluation of the diaphragm in different postures, since all trunk stabilization training seems to start with exercises in weightless positions and ends in more upright positions (29).

Lastly, the replication of this study in the next future in samples with similar or different physical activity levels and smoking habits could be useful due to these features could modify the diaphragm thickness and thus the reliability of ultrasound measurements (4).

Limitations

One of the limitations of the present study may be the position of diaphragm assessment due to the thickness of the diaphragm varied depending on the evaluation position according to its location in the rib cage as well as the effect and pressure that viscera can exert on diaphragmatic movement and position (29). Another limitation was the exclusion of some participants secondary to poor visualization of the diaphragm muscle interfaces in the ultrasound images which complicated diaphragm bilateral and simultaneous thickness measurements. Anatomical variations of the diaphragm insertions may be common and differed between both right and left hemi-diaphragms (2). In spite of the authors of the manuscript declared financial interests in the context of a patent application, they acknowledged systematic errors of measurement for inter-rater assessments with the orthosis device for bilateral probe fixation. Finally, the moderate correlation for the sample size calculation was established based on a prior similar study assessing the reliability of ultrasound thickness measurements unilaterally within a thoracic orthosis (4), although a strong correlation could have been used in order to strengthen the accuracy of this study. Despite the ICC was classified as good from 0.60 to 0.74 to determine our study findings and conclusions according to prior recommendations (25), we acknowledge that other classifications could be more exigent suggesting a lower ICC range.

Conclusions

Good to excellent reliability and repeatability was shown for simultaneous thickness measurements of both hemi-diaphragms bilaterally during normal breathing. Despite systematic errors were presented for some inter-examiner assessments, the use of the thoracic orthosis that allowed bilateral fixation of ultrasound probes could be recommended for simultaneous hemi-diaphragms breathing re-education by visual biofeedback.
