Ex vivo magnetic resonance elastography of the small bowel in Crohn’s disease

Introduction

Crohn’s disease (CD) and ulcerative colitis (UC) represent the two forms of inflammatory bowel disease (IBD) that are both characterized by inflammation of the gastrointestinal tract (1). Over the last decades, the prevalence of IBD has substantially increased in many countries and regions, which poses a substantial and growing social and economic burden on governments and health systems (2). In patients with CD, symptomatic intestinal strictures are caused by current active inflammation, chronic fibrosis after repeated or persisting inflammation, or a mixture of both active inflammation and fibrosis (3).

The most established and accurate imaging modality for detection of intestinal strictures in CD and treatment planning is magnetic resonance enterography (4). Primarily inflammatory strictures are treated by anti-inflammatory medication, whereas primarily fibrotic strictures require endoscopic intervention or surgery. However, the ability of conventional magnetic resonance enterography to differentiate active inflammation and fibrosis within strictures is limited and, thus, the basis for treatment decisions is restricted (4). Therefore, to ensure sound therapeutic decision making, new imaging techniques that allow exact characterization of CD-affected intestinal tissue are required. A potential candidate is elastography—an image-based tool for the differentiation of soft tissues on the basis of their specific viscoelastic properties (5).

Elastography comprises a medical imaging technique such as magnetic resonance imaging (MRI) or ultrasound (US), mechanical vibrations in the audible range to induce shear waves in the tissue of interest, and inversion algorithms to generate stiffness maps from shear wave patterns (5). In the field of ultrasound elastography (USE), strain elastography (6-10) and shear wave elastography (7,11-14) have been used to determine tissue stiffness. Data from pilot studies suggest that USE can supplement the evaluation of bowel strictures in CD patients for the detection of fibrosis (6-9,11,14) and, in conjunction with other US imaging modalities, contribute to the differentiation of fibrosis and inflammation (9,13).

For magnetic resonance elastography (MRE), a number of studies investigating disorders of abdominal organs such as liver (15-22), spleen (23-25), kidney (26-29), and pancreas (30-34) have been performed. However, studies investigating MRE of the gastrointestinal tract are limited. Initial work has shown that viscoelastic parameters are altered in the inflammatory phase of acute appendicitis (35). Subsequent studies demonstrated the feasibility of in vivo intestinal MRE in IBD, reporting altered stiffness in suspected fibrotic CD lesions (36,37). Compared with USE, MRE has higher accuracy due to acquisition of full 3D wave fields (5) and allows straightforward determination of viscosity as an additional potential biomarker for inflammatory diseases (38-40).

In this study, we performed MRE on surgical specimens of healthy terminal ileum and terminal ileum affected by CD using a compact tabletop MRI device that provides volume-based stiffness and viscosity parameters in small tissue samples (41,42). Overall, our study aims at providing reference values for viscoelastic properties of the normal human terminal ileum and investigating how they change in the presence of CD lesions towards the development of MRE as a new imaging modality for exact differentiation of CD lesions.

Methods

Patients

In this prospective single-center study, a total of 12 patients were included. The patients in the study group (n=7) underwent surgery due to terminal ileal CD. The patients in the control group (n=5) underwent segmental resection of healthy ileum during closure of a protective ileostomy. All patients underwent surgery at the Department of Surgery, Campus Benjamin Franklin, Charité – Universitätsmedizin Berlin, Germany, between September 2019 and January 2021. Inclusion criteria were an adequate segment of ileum affected by CD in the study group and of healthy ileum in the control group based on macroscopic intraoperative inspection by the study surgeon. Exclusion criterion was an age of <18 years at the time of surgery. The MRE findings in a specimen from a thirteenth patient were excluded due to a defective cable connection between the scanner and the computer. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the ethics committee of the Charité – Universitätsmedizin Berlin (No. EA4/007/19), and written informed consent was obtained from each patient.

Surgical specimens and sample preparation

Patients in the study group underwent either ileocecal resection due to ileocecal CD or resection of an ileotransversostomy in cases with a history of prior ileocecal resection. The control group consisted of patients with segmental resection of healthy ileum during closure of a protective ileostomy. For each patient, the entire surgical specimen was macroscopically inspected directly after removal by the study surgeon to visually identify areas of ileum affected by CD (study group) and healthy ileum (control group). From the areas identified in this way, circular segments of ileum measuring 7.5 mm in width were surgically removed by the study surgeon and prepared for MRE investigation (Figure 1A,1B). The remaining specimen was formalin-embedded for routine histopathological evaluation. The circular tissue sample was picked up with a surgical thread and carefully transferred into the sample tube (length, 200 mm, outer diameter, 9 mm, inner diameter, 7 mm) (Figure 1C). After sealing with plastic plugs to prevent drying, the sample tube was connected to the piezo actuator (Figure 1D) and inserted into the magnet of the scanner (Figure 2). MRE examination was initiated within 30 minutes of specimen resection in all cases included in this study.

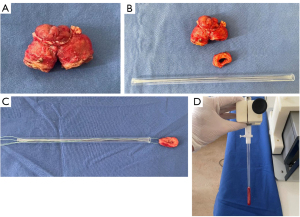

Figure 1 Sample preparation for MRE examination from surgical specimen. (A) Example of entire surgical specimen of a segmental resection of healthy ileum during closure of a protective ileostomy. (B) Removal of a circular segment of ileum from the entire specimen, an empty sample tube is shown in the foreground. (C) Placement of the circular segment of ileum by pulling it into the sample tube using a surgical thread. (D) Sample tube with inserted tissue sample connected to piezo actuator. MRE, magnetic resonance elastography.

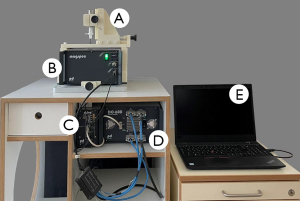

Figure 2 Setup of the Benchtop MRI scanner customized for automated MRE exams. (A) Mounting for the piezo-based driver with inserted sample tube (see also Figure 1D). (B) 0.5-T permanent magnet. (C) MRI control unit. (D) External gradient amplifier supplying imaging gradients and piezo driver. (E) Computer for scanner control and image calculation. MRI, magnetic resonance imaging; MRE, magnetic resonance elastography.

MRE

As described in detail in the study by Braun et al. (41), a tabletop MRI scanner (Pure Devices GmbH, Würzburg, Germany) with a 0.5-T permanent magnet with a 10-mm bore was customized for MRE by a four-channel external gradient amplifier (DC 600, Pure Devices GmbH, Würzburg, Germany) and an integrated MRI system-controlled piezoelectrical driver (Piezosystem Jena GmbH, Jena, Germany). The vibration frequencies used for shear wave induction were empirically determined in a preparatory examination based on the mechanical properties of ileum. The lower frequency limit was chosen so that the observed shear wavelength was approximately equal to the radius of the test tube. The upper frequency limit was determined by the damping property of the tissue so at least one shear wavelength was visible. These limits resulted in frequencies f of 1,000, 1,500, 2,000, 2,500, and 3,000 Hz which were consecutively induced from the walls of the sample tube, generating concentric shear waves emanating towards the center of the tissue. Wave images were acquired using a spin-echo-based MRE sequence (41) with trapezoidal bipolar motion-encoding gradients (MEGs) of 0.2 T/m amplitude, polarized along the cylinder axis (thru-plane) and synchronized to vibration frequency f; 20 ms encoding time was set for all frequencies, resulting in a variable number of MEG cycles from 20 to 60 for frequencies from f=1,000 to 3,000, respectively. Further acquisition parameters were: repetition time (TR): 700 ms, echo time (TE): 30 ms, field of view (FoV): 9.6×9.6 mm², matrix size: 64×64, in-plane resolution: 150×150 µm², and slice thickness: 3.0 mm. The total acquisition time for all 5 vibration frequencies, each of which sampled with 4 wave dynamics, was approximately 15 min per sample.

According to the study by Tzschätzsch et al. (43), shear wave speed (c in m/s) and penetration rate (a in m/s) as markers of stiffness and viscosity were calculated by fitting the analytical solution of shear waves in a z-infinite cylinder (44) from the complex-valued wave images after phase unwrapping and temporal Fourier transformation. Damping ratio γ=G^''/2G^', with G^' and G^'' denoting the real and imaginary part of the complex shear modulus G^*, was derived from c and a by:

G∗=ρ(1c−i12πa)2[1]

with the density ρ of the tissue samples (1,000 kg/m³) (5,45). Additionally, frequency-independent viscosity η and dimensionless power-law exponent α were derived from the dispersion of c and a using Eq. [1] and the two-parameter viscoelastic spring-pot model (5):

G∗=μ1−αηα(iω)α[2]

Here, μ and η represent linearly dependent fit variables, which can be converted to an independent parameter of elasticity or viscosity by assuming either a specific viscosity or shear modulus (5). Further information and an introductory overview of the current state of development of elastography including preclinical as well as clinical applications can be found in the study by Sack (45).

Statistical analysis

Values were reported as median ± mean absolute deviation (MAD). The MAD indicates how far the samples deviate from their median on average and is calculated as follows:

MAD=1n∑i=1n|xi−x¯|[3]

with n elements and the median x¯ of the sample. A two-sided Wilcoxon rank sum test (Matlab Statistics and Machine Learning toolbox R2020b, The MathWorks, Inc., Natick, Massachusetts, USA) was applied for the comparison of continuous distributions with equal medians. For calculation of the diagnostic accuracy of the respective viscoelastic parameters, area under the receiver operating characteristic curve (AUC) analysis with 95% confidence interval (CI) was performed (IBM SPSS Statistics for Windows, Version 25.0, IBM Corp., Armonk, New York, USA). For significance testing, a P value <0.05 was considered to indicate a statistically significant difference.

Results

Demographic and clinical characteristics of the patients included are summarized in Table 1. For healthy ileum and ileum affected by CD, shear wave speeds c and shear wave penetration rates a were calculated for all vibration frequencies from the respective complex wave images (Figure 3) by fitting to the averaged radial profile of the complex wave field maps. Visual inspection alone already revealed consistent differences with a higher penetration rate for ileum samples affected by CD while no apparent oscillations were visible, indicating critical damping (17). Table 2 summarizes all frequency-dependent values of c, a, and damping ratio γ. Figure 4 shows group values of c, a, and γ for all vibration frequencies for ileum affected by CD and the control group of healthy ileum. Specimens affected by CD were found to have a significantly lower viscosity-related penetration rate a (Figure 4A) than healthy ileum (P<0.05) for all vibration frequencies, reflecting a higher viscous attenuation. Consistently, damping ratio γ was higher in CD than healthy specimens, both averaged over all frequencies (healthy: 0.58±0.12, CD: 1.04±0.55, P=0.03) and with significance at 1,000 and 1,500 Hz (Figure 4B). No significant difference was observed for stiffness-related c (Figure 4C) between healthy ileum and ileum affected by CD at any frequency.

Figure 3 Experimental wave images and fit of wave numbers. For healthy tissue (top two rows) and tissue affected by CD (bottom two rows), the real part of the complex-valued wave images after unwrapping and temporal Fourier transformation are depicted for all vibration frequencies, respectively. Fits of complex wave profiles based on Bessel functions are shown below the wave images. From the fitted complex wave number shear wave speed c and penetration rate a are calculated. Already by visual inspection, consistent differences of a decreased penetration rate (higher damping) for CD affected ileum can be identified. CD, Crohn’s disease.

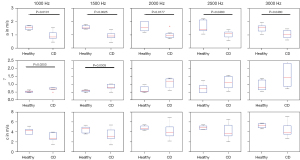

Figure 4 Boxplots of frequency-dependent parameters for the groups of healthy and CD-affected ileum for all vibration frequencies. (A) Shear wave penetration rate a. (B) Damping ratio γ. (C) Shear wave speed c. Significant differences between the groups were found for a and damping ratio γ as indicated by bars with associated P values. CD, Crohn’s disease.

Figure 5 presents the analysis of the frequency dispersion of c and a for one sample each of healthy (Figure 5A) and CD-affected tissue (Figure 5B), obtained by fitting the rheological spring-pot model to the experimental data. This fractional power-law model (5) is based on two independent parameters when assuming a specific shear modulus (µ=1 kPa): (I) the dimensionless power-law exponent α that ranges between 0 (the limit of elastic-solid behavior) and 1 (the limit of viscous-fluid behavior) and (II) the viscosity-related parameter η with the unit of Pa·s. Values of α and η are also summarized in Table 2. The power-law exponent α in CD-affected ileum (α=0.73±0.06) was significantly higher compared to healthy ileum (α=0.55±0.05, P=0.02, Figure 6A). Additionally, with values larger than 0.5, α indicated predominantly viscous properties of both healthy and CD-affected ileum. Consistent with our frequency-resolved analysis of penetration rates a and damping ratio γ, the spring-pot model showed η to be significantly reduced in CD-affected tissue compared to healthy control tissue (2.62±1.37 vs. 10.60±12.60 Pa·s, P=0.02) (Figure 6B).

Figure 5 Rheological modeling of the frequency dispersion of shear wave speed c and penetration rate a. (A) Representative sample of healthy tissue. (B) Representative sample of CD-affected tissue. The solid curves of the fits to c and a are parameterized by the two independent parameters viscosity η and structure parameter α of the spring-pot model (see Methods section). SP, spring-pot; CD, Crohn’s disease.

Figure 6 Boxplots of the two frequency-independent spring-pot model parameters for the groups of healthy and CD affected ileum. (A) Dimensionless power-law exponent α. (B) Viscosity-related parameter η. Both show significant differences indicated by bars with corresponding P values. CD, Crohn’s disease.

Diagnostic accuracy for the prediction of CD was calculated based on a with an AUC of 0.94 (95% CI: 0.81–1.00) at 1,000 Hz, 1.00 (95% CI: 1.00–1.00) at 1,500 Hz, 0.91 (95% CI: 0.74–1.00) at 2,000 Hz and 0.86 (95% CI: 0.62–1.00) at 2,500 Hz and 0.86 (95% CI: 0.64–1.00) at 3,000 Hz (P<0.05). Based on η, diagnostic accuracy for the prediction of CD was AUC =1.00 (95% CI: 1.00–1.00, P<0.01).

Discussion

To the best of our knowledge, this is the first study investigating resected intestinal sections from CD patients using multifrequency MRE and analyzing elastic and viscous tissue properties. The setup we used in this study was less biased than other inversion-based MRE techniques (46) due to the cylinder geometry of the samples and the noise-insensitive, analytical solution for elasticity reconstruction. The consistency of our method was confirmed in a well-characterized tissue-mimicking phantom providing values in agreement with shear oscillatory rheometry (47). Due to this consistency, tabletop MRE was used in previous studies (41,48-50) as a reference method and was employed here without further calibration. Shear wave speed c, shear wave penetration rate a, and damping ratio γ were determined as surrogate markers of stiffness, viscosity, and dissipation, respectively. Tissue areas affected by CD showed a lower penetration rate and higher damping ratio than areas without CD. Consistent with the observed higher spring-pot-based viscosity and power-law exponent, these findings suggest that viscous properties of ileum tissue are significantly altered in the presence of CD. In patients, MRE measures values that can be converted to the higher frequency range used in this study by using viscoelastic models (45). MRE in chronic IBDs was performed in a frequency range between 40 and 70 Hz and based on tomoelastography reconstruction (37).

Compared to MRE findings reported in the literature for other soft tissues, we observed an unusually high damping ratio of γ>0.5 in healthy samples and even exceeding 1 in CD specimens, suggesting critical damping of the induced oscillations. Lower values on the order of γ=0.22 were reported for brain tissue (51) in the lower frequency range of in vivo MRE (60 Hz) while c and a values reported for liver tissue in a similar frequency range as used in our study were around 0.35 (52). This marked dissipative behavior of intestinal tissue seems to reflect the functional property of mechanical flexibility and mucus production of intestinal walls.

The lower penetration rate we observed in inflamed intestinal tissue is consistent with published data. Marticorena et al. (35) showed a significantly increased loss angle (which his related to γ) in acute appendicitis, consistent with Reiter et al. (37), who showed an increased loss angle in patients with IBD. A direct comparison of quantitative values obtained with in vivo MRE and tabletop MRE is hampered by the different frequency ranges. Especially, soft tissues with predominantly viscous properties, such as the ileum specimens investigated in our study, display marked dispersion of shear wave speed and wave penetration, resulting in higher values at higher frequencies.

Published data indicate that a change in viscosity of soft tissues due to inflammation seems to correspond to an active early stage of inflammatory responses whereas changes in stiffness occur during a chronic fibrotic stage (36,38,40). Both in CD-related fibrogenesis and in liver fibrosis, active inflammatory responses precede fibrosis (53,54). However, in most intestinal areas affected by CD, the nature of affection is mixed (3). Thus, in predominantly chronic disease (i.e., fibrosis), there is usually some level of active inflammation and vice versa. Consistent with the significant change in viscosity we observed here, all ileum samples affected by CD used in our study showed primarily active inflammatory aspects of CD manifestation based on macroscopic evaluation by the study surgeon. On the other hand, the long median interval between initial diagnosis of CD and surgery of 18 years in our study patients makes chronic changes such as fibrosis with higher stiffness very likely. In Reiter et al. (37), this aspect appears to be reflected by an increase in stiffness that accompanies the changes of viscous attenuation in the investigated tissue affected by CD. In contrast, in the present study, differences in c did not reach significance, which is consistent with the results of some USE studies. While Baumgart et al. (6) also observed higher stiffness in regions affected by CD, Chen et al. (11), Serra et al. (10), and Lu et al. (13) did not observe a correlation of stiffness with fibrosis scores. Instead, Lu et al. (13) found increased stiffness of intestinal walls to correlate with smooth muscle hypertrophy. As smooth muscle hypertrophy plays a major role in the development of fibrostenotic CD (55), the lack of muscle activity in our ex vivo specimens could explain that tissue stiffness was not significantly altered. Overall, these results underline the need to systematically investigate different confounding factors that influence viscoelastic parameters in intestinal tissues altered by CD.

Beyond stiffness, our study provides evidence that viscosity is a potentially sensitive imaging marker in CD. The accuracy for diagnosing the involvement of CD in terminal ileum was good (AUC ≥0.86) to high (AUC =1.00) for frequency-averaged a and spring-pot-based η, respectively. This analysis is consistent with AUC =0.84 for the diagnosis of IBD by in vivo MRE based on the loss angle of the complex modulus (37).

Although we obtained encouraging results, the present study has limitations. First, we did not perform histological characterization and quantification, which limits our interpretation of parameter changes with respect to inflammation and fibrosis. Next, our group sizes were small. Investigation of larger groups combined with histopathological analysis would improve the statistical power of the results and better allow to disentangle the respective effects of active inflammation and fibrosis on stiffness and viscosity. However, intraoperative macroscopic evaluation by the surgeon is a standard procedure to define the extent of CD affection of the ileum providing the reference standard in our study.

Nevertheless, this study shows MRE to be a sensitive tool for analyzing the viscoelastic properties of small bowel specimens immediately after surgical removal. Strikingly, bowel tissue exhibits markedly viscous and dissipative mechanical properties, resulting in critically damped shear waves in a frequency range between 1 and 3 kHz. Even with the small number of examinations we performed, wave penetration, damping ratio, and spring-pot-based viscosity consistently showed ileum affected by CD to be markedly more viscous and dissipative than healthy ileum. This demonstrates the capability of MRE to sensitively quantify significant differences in viscoelastic parameters between healthy ileum and ileum affected by CD.

In this way, our work demonstrates the potential of MRE as an imaging technique to complement conventional magnetic resonance enterography in the characterization of CD lesions and provide additional information for better therapeutic decision-making. On this basis, future studies are warranted with comprehensive in vivo and subsequent ex vivo MRE mapping and histopathological correlation including characterization and exact quantification of inflammation and fibrosis.

Conclusions

MRE is feasible and able to determine viscoelastic properties of small bowel and, furthermore, to quantify differences in viscoelastic properties between healthy terminal ileum and terminal ileum affected by CD.
