Impact of deep learning-based image reconstruction on image quality and lesion visibility in renal computed tomography at different doses

Introduction

As a first-line imaging technology for detecting renal lesions, computed tomography (CT) involves a short examination time and is low cost (1). However, artifacts that might be generated during CT imaging affect the diagnosis of kidney diseases (2). Given the diverse manifestations of renal lesions and the relatively complex multiphase scanning scheme, high-quality renal CT images are necessary for accurate diagnosis. Adaptive statistical iterative reconstruction-Veo (ASiR-V) was developed based on a physical model of an iterative reconstruction process, resulting in improved image quality and noise reduction (3). However, some studies revealed that ASiR-V images might be limited by a waxy, plastic, and unnatural appearance (4,5). Artificial intelligence in medical imaging can distinguish noise from anatomical structures and remove that noise from the raw image to achieve better image quality and decrease the radiation dose (4,6). By improving the ability to identify anatomical structures, deep learning-based image reconstruction (DLIR; TrueFidelity, GE Healthcare) can significantly improve image quality compared with traditional model-based iterative reconstruction methods (5,7,8). DLIR has been applied to some phantom and clinical studies, providing satisfactory noise reduction and better image quality than those of ASiR-V (9-11). This study evaluated the impact of DLIR algorithms on renal CT image quality and lesions at a routine dose (120 kV) and a low dose (80 kV).

Methods

Patients

From January 2020 to May 2021, 101 patients with enhanced renal CT scanning images were included in this prospective study. As the radiation dose received by patients can vary, scans of different doses were performed (69 cases in the routine-dose group at 120 kV; 32 cases in the low-dose group at 80 kV). Patients were included if they planned to undergo an enhanced renal CT examination and had a normal weight, with a body mass index (BMI) of 18.5−23.9 kg/m² as recommended for Chinese adults (12). Patients were excluded if they had a severe allergy to iodized contrast media, had cardiac insufficiency, were pregnant, or had impaired renal function (glomerular filtration rate <60 mL/min/1.73 m²). The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by Shandong University, and informed consent was obtained from all the patients.

CT data acquisition and image reconstruction

A 256-row CT scanner (Revolution CT; GE Healthcare, Chicago, IL, USA) was used for scanning. The main scanning parameters were the following: scanning mode, spiral; pitch, 0.992:1; noise index, 8.0; collimation, 1.25 mm; tube rotation time, 0.5 s; routine-dose group, 120 kV/SmartmA (100–500 mA); and low-dose group, 80 kV/SmartmA (100–600 mA). After the precontrast phase, the abdominal aorta at the level of the porta hepatis was monitored for threshold trigger scanning. The trigger threshold was 120 HU. The corticomedullary, nephrographic, and excretory phases were initiated with delays of 30 s, 70 s, and 3 min, respectively, according to a bolus-tracking program (SmartPrep; GE Healthcare). The amount of nonionic contrast agent containing 300 mg iodine/mL was 1.5 mL/kg for patients’ body weight (450 mg iodine/kg) and was injected at a rate of 3.0 mL/s. The renal nephrographic phase images were reconstructed at 120 and 80 kV using ASiR-V (30% and 70%) and DLIR at low, medium, and high reconstruction strengths (DLIR-L, DLIR-M, and DLIR-H, respectively). The reconstruction thickness and interval were 1.25 mm.

Radiation dose

The volume CT dose index (CTDIvol; mGy) and the scanning dose-length product (DLP; mGy·cm) in the nephrographic phase of the dose report were recorded, and the effective dose (ED) was calculated with k=0.015 mSv/(mGy·cm) (13).

Quantitative image analysis

Image analysis was performed on Advantage Workstation 4.6 (GE Healthcare). All patient information and scanning parameters were hidden. The reconstructed images were linked to enable the simultaneous review of identical anatomic levels. The region of interest (ROI) used had a diameter of 3 to 5 mm, bilateral measurements were repeated twice, and the average values were recorded. A radiologist with more than 3 years of working experience drew the ROIs on the subcutaneous fat of the abdominal wall, bilateral renal parenchyma, and proximal renal vein at the level of the renal hilum. Measurements avoided calcification, thrombosis, local lesions, and artifacts. The CT number and noise of each measurement were recorded. The noise of subcutaneous fat was included as the background noise.

The signal-to-noise ratio (SNR) was calculated as follows:

SNR=HUtarget/Noisetarget[1]

The contrast-to-noise ratio (CNR) relative to fat was calculated as follows (14):

CNR=(meanHUtarget−meanHUfat/Noisefat)[2]

The noise reduction rate (NRR) relative to ASiR-V 30% was calculated as follows:

NRR=(NoiseASiR-V30%−Noisetarget)/NoiseASiR-V30%×100%[3]

Qualitative image analysis

Two radiologists with 5 years of experience performed blind evaluations, 1 of whom repeated the evaluation after 2 weeks. In cases of discordance between the two radiologists, a final consensus was achieved. The 4-point subjective scale (1 to 4 points) was used (Table 1) to grade the differentiation of the renal boundary, the conspicuity of the renal hilum, sharpness, artifacts, and subjective noise. The overall image quality based on the above 5 aspects was calculated, with the total score ranging from 5 (worst) to 20 (best). When the overall image quality score was ≥12, which was more than 60% of the maximum of the overall image quality score, the images were considered to be of acceptable diagnostic quality (15). Correspondingly, the proportion of acceptable images was calculated.

DLIR lesion evaluation

Cases with renal lesions of DLIR at 120 and 80 kV groups were evaluated. The lesions included suspected primary tumors, metastases, and other cystic or solid lesions. The lesion conspicuity and noise were graded (Table 1), and the conspicuity-to-noise ratio (C/N) at every reconstruction strength was calculated as follows:

C/N=scoreconspicuity/scorenoise[4]

C/N was used to evaluate the varying degrees of improvement in lesion conspicuity and noise reduction at different reconstruction strengths. When the images showed much-improved details of lesion visibility, C/N >1. When the images showed much-improved decreasing noise, C/N <1.

Statistical analysis

SPSS 19.0 (IBM Corp., Armonk, NY, USA) was used for statistical analysis. The data are expressed as the mean ± standard deviation. After using the Kolmogorov-Smirnov test to determine if the data followed a normal distribution, analysis of variance (ANOVA) was used to compare differences. For the evaluation between lesions and the reconstruction strength, a linear trend was tested with the Cochran-Armitage trend test. The Kruskal-Wallis test was used for data that did not conform to a normal distribution. Intraclass correlation (ICC) analysis was used to evaluate the consistency between and within observers. ICC <0.4, 0.4−0.8, and >0.8 indicated weak, moderate, and strong agreement, respectively. A 2-tailed P value <0.05 was considered statistically significant.

Results

Characteristics of participants and radiation dose

There were 101 cases evaluated in this study (59.93±1.26 years; 65 males; 36 females; BMI 22.24±2.78 kg/m²). In the 120 kV group (69 cases), the DLP was 363.96±190.24 mGy·cm, the CTDIvol was 11.89±4.96 mGy, and the ED was 5.50±2.85 mSv. In the 80 kV group (32 cases), the DLP was 77.02±28.22 mGy·cm, the CTDIvol was 2.53±0.82 mGy, and the ED was 1.15±0.42 mSv. There were no significant differences in age, sex, or BMI between the 120 and 80 kV groups (P>0.05), while the difference in radiation doses was statistically significant (P<0.001) (Table 2). The radiation dose in the 80 kV group was 79% lower than that in the 120 kV group (P<0.001).

Quantitative image analysis

Noise, SNR, CNR, and NRR were significantly different between the 5 reconstructions at both 120 and 80 kV (P<0.001) and between each reconstruction, except for ASiR-V 70% vs. DLIR-M. Furthermore, DLIR-H exhibited the lowest noise and the highest SNR, CNR, and NRR at both 120 and 80 kV (Table 3; Figure 1).

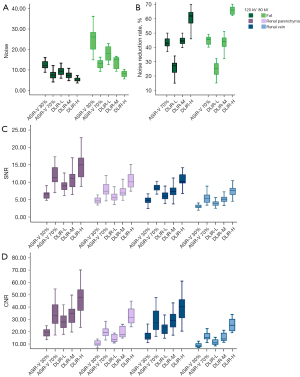

Figure 1 Quantitative image analysis of ASiR-V and DLIR. At 120 and 80 kV, noise, SNR, and CNR were significantly different between all reconstructions (P<0.001) and were also statistically significant between each reconstruction, except ASiR-V 70% vs. DLIR-M. ASiR-V 30%/70%, adaptive statistical iterative reconstruction-Veo 30%/70%; DLIR-L, deep learning-based image reconstruction at low reconstruction strength; DLIR-M, deep learning-based image reconstruction at medium reconstruction strength; DLIR-H, deep learning-based image reconstruction at high reconstruction strength; SNR, signal-to-noise ratio; CNR, contrast-to-noise ratio.

Qualitative image analysis

The inter- and intraobserver correlation coefficients were 0.874 (95% confidence interval: 0.840–0.902; P<0.001) and 0.924 (95% confidence interval: 0.797–0.972; P<0.001), respectively (Table 4).

Overall image quality at 120 kV

The overall image quality and the proportion of acceptable images were significantly different between the 5 reconstructions (P<0.001) and between each reconstruction, except for ASiR-V 30% vs. DLIR-L and ASiR-V 70% vs. DLIR-M. The overall image quality and the proportion of acceptable images were as follows (from the highest to the lowest): DLIR-H, DLIR-M, ASiR-V 70%, DLIR-L, and ASiR-V 30% (Table 5; Figure 2).

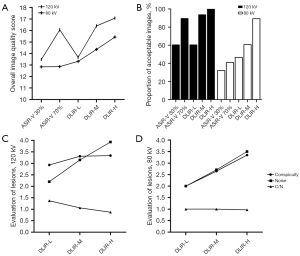

Figure 2 Overall image quality of ASiR-V and DLIR and the evaluation of lesions using DLIR. The overall image quality and the proportion of acceptable images were significantly different between each reconstruction at 120 kV, except ASiR-V 30% vs. DLIR-L and ASiR-V 70% vs. DLIR-M and significantly different between each reconstruction at 80 kV, except among ASiR-V 30%, ASiR-V 70%, and DLIR-L (A,B). The lesion conspicuity, noise, and C/N were significantly different between the DLIR groups at 120 kV (P<0.001) (C). The conspicuity of lesions and noise were significantly different between the DLIR groups at 80 kV (P<0.001), but C/N was not significantly different (D). ASiR-V 30%/70%, adaptive statistical iterative reconstruction-Veo 30%/70%; DLIR-L, deep learning-based image reconstruction at low reconstruction strength; DLIR-M, deep learning-based image reconstruction at medium reconstruction strength; DLIR-H, deep learning–based image reconstruction at high reconstruction strength; C/N, conspicuity-to-noise ratio.

Overall image quality at 80 kV

The overall image quality was significantly different between 5 reconstructions (P<0.001) and between each reconstruction, except among ASiR-V 30%, ASiR-V 70%, and DLIR-L. Differences in the proportion of acceptable images were statistically significant between the 5 reconstructions (P<0.05) and between each reconstruction. The overall image quality and the proportion of acceptable images were as follows (from the highest to the lowest): DLIR-H, DLIR-M, DLIR-L, ASiR-V 70%, and ASiR-V 30% (Table 5; Figure 2).

Comparisons between the DLIR groups at 80 kV and the ASiR-V groups at 120 kV

Significant differences were identified in noise, SNR, CNR, overall image quality, and the proportion of acceptable images between the DLIR groups at 80 kV and ASiR-V at 120 kV (P<0.001). However, there were no significant differences between DLIR-H at 80 kV and ASiR-V 70% at 120 kV or between DLIR-M at 80 kV and ASiR-V 30% at 120 kV (Tables 3,5; Figures 1,2).

Evaluation of lesions of DLIR

A total of 45 cases with renal lesions (30 and 15 cases in the 120 and 80 kV DLIR groups, respectively) and 103 lesions were evaluated (83 and 30 lesions in the 120 and 80 kV DLIR groups, respectively).

The lesion conspicuity, noise, and C/N significantly differed between DLIR reconstruction strengths at 120 kV (P=0.01; P<0.001; P<0.001). For the lesion conspicuity, noise, and C/N at 120 kV, significant linear trends dependent on DLIR reconstruction strengths were confirmed (P_trend =0.005; P_trend <0.001; P_trend <0.001). The C/N for DLIR-L, DLIR-M, and DLIR-H was 1.37, 1.06, and 0.87, respectively.

The conspicuity of lesions and noise were significantly different between the DLIR reconstruction strengths at 80 kV (P<0.001; P<0.001), but C/N was not significantly different (P=0.941). For the lesion conspicuity and noise at 80 kV, significant linear trends dependent on DLIR reconstruction strengths were confirmed (P<0.001; P<0.001), but not for C/N (P_trend=0.758; Table 6; Figure 2).

Discussion

DLIR has the potential to reduce noise and improve image quality (3-6,14,15). Using DLIR could decrease the radiation dose and maintain diagnostic performance. In this study, compared with ASiR-V, DLIR not only improved the objective image quality (higher noise, NRR, SNR, and CNR) but also provided better subjective image quality (higher overall image quality score and a proportion of acceptable image). DLIR-H exhibited the best image quality, even at a low dose and with significant artifacts (Figure 3). The overall image quality and the proportion of acceptable image quality in DLIR-H and DLIR-M were higher than those of ASiR-V at both 120 and 80 kV. Moreover, DLIR-H had the highest level of noise reduction and subjective image quality. DLIR-H at 80 kV achieved an image quality close to that of ASiR-V 70% at 120 kV. These results suggested that DLIR was better at identifying noise and optimizing images than was ASiR-V.

Figure 3 Image quality comparison of ASiR-V 30%, ASiR-V 70%, DLIR-L, DLIR-M, and DLIR-H. Images of DLIR and ASiR-V at 120 kV (A,B) and 80 kV (C,D). After intervention therapy in 2 patients, prominent radial and streak-like artifacts were apparent, and several ovoid hypoenhancing lesions were observed in the kidney (B,D). Three lesions of different sizes are marked with white arrows, black arrowheads, and black arrows. DLIR-H displayed slight blurring of lesions smaller than 5 mm (black arrow; E). ASiR-V 30%/70%, adaptive statistical iterative reconstruction-Veo 30%/70%; DLIR-L, deep learning-based image reconstruction at low reconstruction strength; DLIR-M, deep learning-based image reconstruction at medium reconstruction strength; DLIR-H, deep learning-based image reconstruction at high reconstruction strength.

Based on prior studies, we evaluated the impact of DLIR on lesion visibility and noise (16,17). Trend tests are important for improving the performance of statistical and visual analysis (18,19). Accordingly, we tested and showed trends dependent on DLIR reconstruction strengths for lesion visibility and noise. We also introduced C/N to evaluate the differences in the improvement of lesion visibility and noise reduction. We found that the 2 were simultaneously improved but to varying degrees, as DLIR reconstruction strengths increased at 120 kV. At 120 kV, DLIR-L and DLIR-M (C/N >1) tended to optimize lesion conspicuity to a better degree than they reduced the noise. DLIR-H (C/N <1) tended to reduce the noise to a better degree than it optimized the lesion visibility. At 80 kV, the lesion display and noise reduction yielded increasing trends dependent on DLIR reconstruction strengths. However, it was hard to evaluate lesions based on relatively high-noise images, and the difference in improvement for both was not significant.

Previous studies reported that images using a high-strength denoising algorithm displayed a slight blurring, and the blurring of small lesions (<5 mm) at the highest reconstruction strength was revealed in DLIR (17,20,21) (Figure 3E). Our results showed that the improvement in noise reduction at DLIR-H might be better than the improvement in lesion display. This finding might explain the loss of details in DLIR-H images at the edges of small lesions. Therefore, DLIR-M might perform better than DLIR-H on small lesions with a 1.25-mm slice thickness. The strengths of DLIR in balancing the degree of lesions and denoising should be considered for clinical tasks (17).

This study had several limitations. First, the influence of DLIR on diagnostic accuracy and confidence under different pathological conditions still remains to be evaluated under specific diagnostic requirements. Second, the influences of applying DLIR to overall renal scanning remain to be explored in multiple phases. Third, only 1.25-mm images were evaluated in this study. Whether the blurring of small lesions could be improved at high reconstruction strength warrants studies with a thinner slice thickness. Fourth, C/N is a new concept, and its ability to improve to reveal the difference in improvement for lesion visibility and noise reduction at different DLIR reconstruction strengths needs to be confirmed in future studies. Fifth, although DLIR exhibited good image quality under low-dose renal CT scanning in a normal-weight population, its use in the overweight and obese population should be studied further. Finally, more raters are needed to conduct the subjective evaluations, and larger sample sizes are required to verify the conclusions of this study.

Conclusions

DLIR significantly improved the overall quality of renal CT images and lesion display compared with ASiR-V, even at a low dose. Therefore, DLIR is a potential denoising and reconstruction method with promising clinical value.

Acknowledgments

Funding: None.

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-22-852/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by Shandong University, and informed consent was obtained from all the patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
