The impact of motion induced artifacts in the evaluation of HR-pQCT scans of the scaphoid bone: an assessment of inter- and intraobserver variability and quantitative parameters

Introduction

Scaphoid fractures are the most common carpal fractures. Depending on the localization and grade of dislocation, treatment consists of either conservative therapy with cast immobilization or surgical treatment with osteosynthesis. Missed scaphoid fractures are a significant problem as they might end up as non-unions, leading to severe osteoarthritis of the wrist joint (1). The overall risk for developing a scaphoid non-union range between 2–5% (2). Eighty percent of these non-unions are related to a delayed or incorrect diagnosis (3).

Established imaging methods for diagnosing scaphoid fractures are X-ray, bone scan, magnetic resonance imaging (MRI), and computed tomography (CT), with MRI being the most sensitive and specific method for fracture detection. The CT also has a high specificity but a lower sensitivity; however, it is often preferred to the MRI as it is cheaper and more readily available (1,4,5). High-resolution peripheral quantitative computed tomography (HR-pQCT) represents an innovative option in detecting scaphoid fractures (6-8). Since the first results have only recently been published, its use is not yet widely established in this field. Initially, HR-pQCT was designed to measure bone density and quantify the three-dimensional microarchitecture of bone (9). Its clinical value is remaining still marginal due to several reasons, including technical issues, a lack of standardization in scan acquisition and evaluation, and it’s cost-related limited availability (10). However, in recent years HR-pQCT has made significant progress in many scientific fields, e.g., in the assessment of the influence of rheumatologic diseases on joint surfaces (11,12), of bone microarchitecture and bone strength in secondary osteoporosis and metabolic bone disorders (10), the effect of several anti-osteoporotic drugs on bone quality (13) as well as in the evaluation of fracture healing (14-16) and research on fracture mechanisms of the distal radius (17,18).

HR-pQCT has the best signal-to-noise ratio and the highest spatial resolution of all tools used in in-vivo routine clinical diagnostics. A resolution of 61 µm voxel can be achieved on peripheral extremities. Since radiosensitive organs are only marginally exposed, HR-pQCT generates only a small radiation exposure for the patient with less than 5 µSv effective radiation dose per stack (19-21).

Due to the high resolution, small fissures in the scaphoid bone can be detected more sensitively than with the conventional CT (6,22). Furthermore, the analysis of the bone mineral density and micro-architecture could help to provide insights into fracture mechanisms, the non-union etiology (7), and its biology (23) and quantify the healing process of scaphoid fractures (16).

However, a disadvantage of this imaging method is the comparatively long scan time compared to conventional CT, which predisposes the captured scans to significant motion artifacts (24). For classifying the severity of motion artifacts, the manufacturer provides a visual grading scale (VGS) described by Sode et al. (25), which divides HR-pQCT scans into five categories ranging from “no visible artifacts” to “severe motion artifacts”. Pialat et al. (24) evaluated the influence of motion artifacts of the radius and the tibia scans referring to the VGS and demonstrated considerable error in density and microarchitecture measurements with subject motion.

The influence of motion artifacts on the microarchitecture of scaphoids using the classification described by Sode et al. (25) has not yet been evaluated. The scaphoid bone differs from the radius and tibia in both its shape and micro-architecture (26). Due to its thin cortex and the fine trabecular network motion might have a different impact on image quality. Moreover, the subjectivity when classifying the bone into grade 1 to grade 5 seems higher for the scaphoid than for the radius and tibia (7).

This study aimed to investigate the feasibility of the VGS for the scaphoid bone by assessing its inter-and intraobserver variability and the influence of motion-induced artifacts on bone density and microarchitectural parameters.

Methods

Study design and population

The current prospective study is based on scaphoid HR-pQCT scans of 22 patients with unilateral conservatively treated scaphoid fractures (aged >18 years) presenting between May 2018 and December 2020. All patients received up to six scans of their fractured and contralateral scaphoid within 1 year (2, 4, 6, 12 weeks, 6 months, and 1 year after trauma). The rationale of scanning the contralateral side during every follow-up visit was to get as much image data as possible to explore the influence of motion artifacts. The fractured wrists were immobilized for four to twelve weeks depending on the fracture type, the clinical symptoms, and the bone consolidation in the follow-up X-rays (Figure 1). Depending on the length of immobilization, the first, second and third scans of the fractured side were performed with the patient immobilized in a bellow elbow fibreglass cast, including the thumb; all other scans were performed without a cast.

Figure 1 The fractured and the contralateral scaphoids were scanned 2, 4, 6, 12 weeks, 6 months and 1 year after trauma. Cast immobilization of the fractured wrist ranged between 4 to 12 weeks (blue line). T, trauma; S1–6, scan 1–6.

Patients were excluded in case of pregnancy, a previous ipsilateral scaphoid fracture in medical history, or in case of pre-existing conditions that affect the musculoskeletal system in any form.

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by institutional ethics board of the Medical University of Innbruck, Austria (No. 1259/2017) and informed consent was taken from all the patients.

Scan acquisition

Scans were obtained with a second-generation HR-pQCT (XtremeCTII, Scanco Medical, Switzerland). The scans were visualized with three stacks of 10.2 mm with the scaphoid centered (Figure 2A,2B). During scanning, the wrist was immobilized in a thumb-up position with the manufacturer’s standard motion restraining holders and the appropriate inflatable pads as previously described (7,24) to obtain reproducible scans and minimize motion during acquisition (Figure 3A-3C). Pre-settings of all scans included a resolution of 60.7 µm isovoxels resulting in 504 slices, an integration time of 46 ms, and a voltage and intensity of 68 kV and 1,460 µA, respectively. The scanning time for one scaphoid was approximately six minutes. According to the manufacturers settings, the radiation dose was 5 µSv per stack, so the maximum radiation dose was 180 µSv in the case of six bilateral scans.

Figure 2 Scans visualized with three stacks of 10.2 mm with the scaphoid centered. (A) HR-pQCT scout view of a right wrist with the scaphoid centered between three stacks of 10.2 mm each. (B) 3D reconstruction of a scaphoid with the proximal stack colored in yellow, the middle stack in green, and the distal stack in red. HR-pQCT, high-resolution peripheral quantitative computed tomography.

Figure 3 Positioning of the patient (A-C). The wrist immobilized in a thumb-up position with the manufacturer’s standard motion restraining holders and the appropriate inflatable pads to obtain reproducible scans and minimize motion during acquisition. These images are published with the participant’s consent.

The Scanco medical software package was used for direct post-processing, containing VMS (multiprocessing virtual memory-based operating system, ©Hewlett-Packard, Palo Alto, USA) and image processing language IPL (Image Processing Language, Scanco Medical AG, Bruttisellen, Switzerland).

Image quality grading and variability assessment

Visual grading was performed on fully reconstructed scans with the image processing software ImageJ Version 1.49 (https://imagej.nih.gov/ij/docs/faqs.html). All scans were assessed by three experienced observers (SB, LH, KS) frequently performing research with HR-pQCT over years. To avoid detection bias, none of the selected observers was involved in the scan acquisition before, and all data were anonymized previously. Scans were graded according to the manufacturer’s VGS (Scanco Medical, Switzerland), ranging from grade 1 (no motion artifacts) to grade 5 (extreme motion artifacts) (Figure 4A-4E). The scaphoid of each stack was evaluated slide by slide and graded according to the most severe occurring motion artifact.

Figure 4 Visual grading scale of the scaphoid. (A) Grade 1, no visible motion artifacts. (B) Grade 2, slight horizontal streaks (yellow arrow). (C) Grade 3, prominent horizontal streaks are visible, but the cortex is intact (yellow arrow). (D) Grade 4, prominent horizontal streaks, minor disruptions of the cortex continuity (yellow arrow), and minor trabeculae smearing (green arrows). (E) Grade 5, prominent horizontal streaking, considerable disruption of the cortical continuity (yellow arrow), considerable trabecular smearing (green arrow). S, scaphoid; C, capitate.

To examine the intraobserver variability, the second evaluation of 33 randomly chosen scans (99 stacks) was performed by each observer at least 2 weeks after the initial reading. The interobserver variability was calculated from the first results of the observers, the intraobserver variability was calculated from the first and the second reading of each observer.

Selection of paired exams of the non-fractured scaphoids for quantitative analysis

All fractured scaphoids were excluded for quantitative analysis since the natural remodelling in the fractured scaphoids changed the bone structure over the repeated scans. Repeated acquisitions from each patient were considered in pairs as already published by Pialat et al. (24). Each patient’s chronologically first grade 1 scan served as an internal reference. Five pairs were constituted if a patient had six scans (with at least one grade 1 scan). In case of discrepancies in visual grading between the observers, image quality was defined by the median value of the three observer’s ratings.

Contouring, segmentation, and quantitative analysis of the non-fractured scaphoids

Depending on the severity of motion artifacts, every 5^th to 10^th slide was contoured using the manufacturer’s automatic contouring algorithm. Due to contouring problems previously described by Bevers et al. (7), the lower threshold for binarization was changed from the default to 105 per 1,000, and a manual correction was performed in all cases. The slices in between were interpolated using the manufacturer’s morphing algorithm and, if needed, manually corrected.

The manufacturers’ dual-threshold algorithm did not allow for reliable and accurate distinctions between cortical and cancellous bone. This might be due to the high variability of the cortical layer thickness and low differences between cortical and cancellous bone mineralisation and thickness. Also, manual contouring of the inner border of the cortex was not feasible as a clear distinction between cortex and dense cancellous bone was not always possible. Therefore, the contouring process of the cancellous bone was modified. Semi-automatic contouring of the outer shell combined with a ten-voxel erosion step provided reproducible and sufficient contouring of the cancellous bone compartment (Figure 5A-5C). The erosion step was based on the try and error procedure. The value of 10 voxels was the best compromise to remove as much cortical bone as possible while preserving the cancellous bone.

Figure 5 Representation of different contouring strategies. (A) In the scaphoid, the provided dual-threshold algorithm did not achieve good contouring between the complex structure of cortical (outer green circle) and cancellous bone (inner green circle). This might be due to the high variability of the cortical layer thickness and low differences between the mineralization and thickness of cortical and cancellous bone. (B) Also, manual contouring of the inner border of the cortex (green circle) was not feasible as a clear distinction between cortex and dense cancellous bone was not always possible (yellow arrows). (C) Solution: semi-automatic contouring of the outer shell combined with a ten-voxel erosion step provided reproducible and sufficient contouring (green circle) of the cancellous bone compartment.

Contoured bones were quantitatively analyzed using the manufacturers’ provided evaluation software. The lower threshold was set at 320 mgHA/ccm with a Gaussian filter at σ=0.8 and support =1.0 according to the standard image processing specifications (27).

Since the positioning of the wrists within the manufacturer’s restraining holders was not exactly reproducible among the repeated scans, the respective stacks of one patient were not entirely identical. Therefore, of the six repeated scans, only those axial slides were compared that were depicted in all proximal, middle, and distal stacks of this patient, respectively (Figure 6).

Figure 6 Only those axial slides were compared that the proximal, middle and distal stacks had in common. green field, compared/evaluated area.

Measurement parameters included the total volume (TV), the bone volume (BV), trabecular bone volume fraction (Tb.BV/TV), trabecular number (Tb.N), trabecular thickness (Tb.Th), trabecular separation (Tb.Sp), inhomogeneity of trabecular network (Tb.1/N.SD), connective density (Conn.D), structural model index (SMI), mean trabecular bone mineral density (Tb.BMD) and apparent density. TV and BV were used to calculate Tb.BV/TV but were not included in the statistic since small positioning discrepancies among the six scans resulted in different volumes within the stacks.

Statistical analysis

Statistical analysis was performed with SPSS (IBM Corp. Released 2019. IBM SPSS Statistics for Windows, Version 26.0, Armonk, NY, USA).

Interobserver variability between the three observers was assessed using the Fleiss’-Kappa test. For intraobserver variability, Cohen’s Kappa coefficient was calculated. P values <0.05 were considered significant. The strength of agreement was determined according to the classification of Landis and Koch 1977 (28).

Mean percent difference and standard deviation between motion degraded pairs (1-2, 1-3, 1-4, 1-5) and the reference pairs (1-1) were calculated, and Dunnet’s test was used to confirm significant changes in image quality among the quality grades. P values <0.05 were considered significant.

To prove that the time interval of one year between the first and last scan did not influence bone density and microarchitecture, the first measurement results of the non-fractured scaphoids were compared with those one year after trauma using a paired t-test.

Results

Patients’ demographics are shown in supplemental digital content 1 (Table S1).

Descriptive data

A total of 771 stacks of five to six repeated scans of 22 patients’ contralateral and fractured wrists were included in the study. After the exclusion of three scans of different patients, each consisting of four stacks (due to an operator error), 759 stacks (253 proximal, middle, and distal stacks, respectively) were included for variability assessment (Figure 7). Among the 759 stacks, 62.5% were rated as grade 1 or grade 2, grade 4 or grade 5 were allocated in only 18.6%. Figure 8 shows the percentages of acquisitions across the quality grades for the proximal, middle, distal, and totality of all stacks.

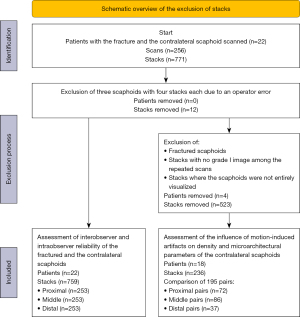

Figure 7 Schematic overview of the exclusion of stacks.

Figure 8 The percentages of acquisitions across the quality grades for the proximal, middle, distal, and totality of all stacks. The y-axis shows the relative results, the values within the bars represent the absolute number.

Among the 378 stacks of the fractured scaphoids, 62.7% were rated as grade 1 or grade 2, grade 4 or grade 5 were allocated in 16.7%. Among the 174 stacks of the fractured scaphoids immobilized with a cast, 70.5% were rated as grade 1 or grade 2, grade 4 or grade 5 were allocated in 10.3%. Among the 381 stacks of the contralateral non-fractured scaphoids, 62.2% were rated as grade 1 or grade 2, grade 4 or grade 5 were allocated in 20.1%.

Interobserver variability

For variability analysis, fractured and contralateral scaphoids were included. The overall interobserver agreement among the three observers for both the fractured and the contralateral scaphoids (n=253) revealed fair to a moderate agreement with kappa values of 0.47, 0.40, and 0.39 for the proximal, middle, and the distal stack, respectively (P<0.001 in all cases). For only the fractured scaphoids (n=126, ~50%), agreement was fair to moderate with kappa values of 0.43, 0.35, and 0.42 for the proximal, middle, and distal stack respectively (P<0.001). For those fractured scaphoids immobilized with a cast (n=59, ~24%), agreement was fair to moderate with kappa values of 0.41, 0.36, and 0.40 for the proximal, middle, and distal stack, respectively (P<0.001). For the contralateral scaphoids (n=127, ~50%), agreement was fair to moderate with kappa values of 0.50, 0.45, and 0.36 for the proximal, middle, and distal stack, respectively (P<0.001). The lowest interobserver reliability was observed for grade 3. Table 1 shows the kappa value at each quality grade.

Merging observer’s gradings into subgroups with good-quality scans (stacks rated with grades 1 and 2) and poor-quality scans (stacks rated with grades 3, 4 and 5) revealed a substantial interobserver agreement with kappa values of 0.65, 0.62, and 0.63 for the proximal, middle, and distal stacks, respectively (P<0.001 in all cases).

Merging observer’s gradings into subgroups with good-quality scans (stacks rated with grades 1, 2 and 3) and poor-quality scans (stacks rated with grades 4 and 5) revealed a moderate to a substantial interobserver agreement with kappa values of 0.58, 0.54, and 0.66 for the proximal, middle, and distal stacks, respectively (P<0.001 in all cases).

Intraobserver variability

For variability analysis, fractured and contralateral scaphoids were included. The overall average intraobserver variability was fair to moderate, with kappa values of 0.42, 0.43, and 0.37 for the proximal, middle, and distal stack, respectively (P<0.05). Table 2 shows the intraobserver variability of the three observers in detail.

For only the fractured scaphoids (n=16/33), agreement was fair to moderate with kappa values of 0.33, 0.41, and 0.23 for the proximal, middle, and distal stack, respectively. Most kappa values were not significant. For those fractured scaphoids immobilized with a cast (n=7/33), agreement was slight to moderate with kappa values of 0.20, 0.44, and 0.25 for the proximal, middle, and distal stack, respectively. Most kappa values were not significant.

For the contralateral scaphoids (n=17/33), agreement was moderate with kappa values of 0.50, 0.44, and 0.46 for the proximal, middle, and distal stack, respectively (P<0.05).

Merging observer’s gradings into subgroups with good-quality scans (stacks rated with grades 1 and 2) and poor-quality scans (stacks rated with grades 3, 4 and 5) revealed a moderate to a substantial intraobserver agreement with average kappa values of 0.67, 0.69, and 0.50 for the proximal, middle and distal stack, respectively (P<0.05).

Merging observer’s gradings into subgroups with good-quality scans (stacks rated with grades 1, 2 and 3) and poor-quality scans (stacks rated with grades 4 and 5) revealed a moderate to a substantial intraobserver agreement with average kappa values of 0.59, 0.69, and 0.68 for the proximal, middle, and distal stacks, respectively (P<0.05 in all cases).

Paired analysis of the contralateral non-fractured sides

After excluding the scans of the fractured sides, stacks with no grade 1 scan among the repeated scans and stacks where the scaphoids were not entirely visualized, 236 stacks (87 proximal, 104 middle, and 45 distal stacks) of 18 patients were included for pairwise analysis; 195 pairs (72 proximal, 86 middle, and 37 distal pairs) were compared (Figure 7). The average relative differences in parameters of each quality grade compared to the internal grade 1 reference are presented in Figure 9. Supplemental digital content 2 shows the detailed results in Table S2.

Figure 9 Relative differences between the image quality grades and the internal grade 1 reference of Tb.BV/TV, Tb.N, Tb.Th, Tb.Sp, inhomogeneity of Tb.1/N.SD, Conn.D, apparent density and Tb.BMD. Tb.BV/TV, trabecular bone volume fraction; Tb.N, trabecular number; Tb.Th, trabecular thickness; Tb.Sp, trabecular separation; Tb.1/N.SD, inhomogeneity of trabecular network; Conn.D, connective density; Tb.BMD, trabecular bone mineral density.

The relative difference of Tb.BV/TV tended to increase with poorer image quality. The difference did not exceed four percent, and Dunnett’s test reached significance between the relative differences of grade 1 and grade 3 and between grade 1 and grade 4 with a P value of <0.001 and 0.026, respectively.

Tb.N and Tb.Th increased by 15.5% (±5.9%) and 6.8% (±1.8%) from grade 1 to grade 5, respectively, Tb.Sp and Tb.1/N.SD decreased by 13.7% (±6.2%) and 21.4% (±10.4%) from grade 1 to grade 5, respectively. Conn.D increased by 21.6% (±29.9%) and Tb.BMD decreased by 4.9% (±2.2%) from grade 1 to grade 5. All differences between grade 1 and grade 5 were significant (P<0.001). Relative differences of apparent density at grade 1 was −0.5% (±2.0%), between grade 1 and grade 3 2.0% (±3.4%) and between grade 1 and grade 5 1.7% (±3.0%). A significant difference was only observed between grade 1 and grade 3 (P<0.05). The mean SMI at grade 1 was −1.5 (±1.7) and slightly increased with poorer image quality (supplemental digital content 3: Table S3).

Influence of time

There was no significant difference between the first and last scans of the non-fractured scapoids after one year for Tb.BV/TV, Tb.N, Tb.Th, Tb.Sp, Tb.1/N.SD, Conn.D, Tb.BMD and apparent density indicating that the one-year follow-up period did not influence density and microstructural parameters in our patient population.

Discussion

Motion artifacts in in-vivo HR-pQCT scans are challenging, especially in small bones such as the scaphoid. Motion during scan acquisition can lead to considerable degraded image quality and introduce error, particularly regarding microarchitecture (24,25,29,30). Moreover, the high subjectivity and consequently low reproducibility in artifact grading might limit the current grading system (7,27).

The anatomy of the scaphoid compared to the distal radius and the proximal tibia is different. Macroscopically, they differ in size and shape. Regarding the density and microarchitecture, scaphoids seem to have a thinner cortical shell and a higher degree of mineralization (7,26,31,32). The thin cortical shell may cause cortical interruptions to be detected earlier than in the radius and tibia during motion, resulting in poorer grading of scans according to the manufacturer’s visual grading system (Scanco Medical, Switzerland). Considering quantitative analysis, motion could have a different influence on bone density and microstructural parameters.

This study examined the influence of motion-induced artifacts on the inter-and intraobserver variability for visual grading and on the histomorphometry of the scaphoid.

Inter- and intraobserver variability analysis revealed high subjectivity in rating. If each grade was considered individually, the interobserver and intraobserver agreement among the three observers was only fair to moderate. When pooling the results in two groups with excellent (grades 1 and 2) and poor quality (grades 3 to 5), substantial agreement for interobserver variability and moderate to substantial agreement for intraobserver variability was obtained. Interestingly lowest kappa value for interobserver reliability was reached ad grade 3. This could be related to the difficulty distinguishing between slight and prominent horizontal streaking and between no or minimal trabecular smearing. Regarding the intraobserver reliability lowest kappa value was reached by observer 2. Both aspects underline the high subjectivity and the revealed limitation of this grading. Bevers et al. (7) analyzed 85 scaphoids regarding image quality with a one observer standard and post hoc grading. Scans were separated into a good quality group, including grades 1–3, and a poor quality group, including grades 4 and 5. Subjectivity in grading was higher than previously described as the standard grading missed 85.7% of the scans assessed as poor quality in the post hoc assessment (versus 12% described for the distal radius). However, since for the standard grading, only the single preview slice with a lower resolution, and for the post hoc grading, multiple high-resolution slices were evaluated, results are not comparable to our intraobserver variability. In the study of Pialat et al. (24) inter- and intraobserver variability for the distal radius and the distal tibia acquired with a first-generation HR-pQCT were higher than our results. The Cohen’s Kappa score between two trained observers was 0.57 and for intraobserver variability 0.68 and 0.74, respectively. The study of Pauchard et al. (29) examined the interclass correlation (ICC) between four graders of the own laboratory and two operators from two extern laboratories on distal radii and tibiae using the first generation HR-pQCT. ICC between the intern observers was 0.75 and between all six operators 0.77, indicating good rater agreement.

The poorer results regarding interobserver- and intraobserver variability in this study might be emerged from the different anatomy compared to the radius and the tibia (26). Small cortical interruptions are earlier visible than in the radius or the tibia due to the low cortical thickness. Moreover, in extremely fine trabecular network as in the proximal and distal pole of the scaphoid, trabecular smearing can only be assessed to a limited extent.

For quantitative analysis, the fractured wrists were excluded since the natural remodelling in the fractured scaphoids changes the bone structure over time. The non-fractured scaphoid motion artefacts significantly influenced the densitometric and microarchitecture results. Tb.BV/TV, Tb.N, Tb.Th, Conn.D, and apparent density increased, while Tb.Sp, Tb.1/N.SD and Tb.BMD decreased with poorer image quality. In the literature, the influence of motion on measurements of the distal radius and the distal tibia is higher for most parameters than our scaphoid measurements. In the study of Pialat et al. (24), the mean percent difference and standard deviation of Tb.N, Tb.Th, Tb.Sp and Tb.1/N.SD for grade 3 were 12.8% (SD ±6.4%), −10.4% (SD ±5.0%), −11.1% (SD ±5.0%) and −8.7% (SD ±7.5%), respectively and for grade 5 25.8% (SD ±10.7%), −14.7% (SD ±6.4%), −20.4% (SD ±6.8%) and −12.9% (SD ±9.7%), respectively. Mean percent difference for Tb.BMD was 0.8% (SD ±1.5%) for grade 3 and 6.6% (SD ±3.6%) for grade 5. Interestingly, opposite our results Tb.Th decreased while Tb.BMD increased with poorer image quality. However, it must be noted that the study was conducted with a first-generation HR-pQCT which defers technically in several aspects. Firstly, first-generation HR-pQCT has a longer scanning time in the standard patient evaluation protocol. Secondly, its X-ray beam characteristics are different, potentially leading to differences in beam hardening. Thirdly, it uses a different filtering approach; while the first-gernation HR-pQCT applies an edge-enhancing filter, the second generation HR-pQCT applies a smoothing filter. Forthly, for direct measurements, first-generation HR-pQCT uses different thresholds for segmentation of bone from soft tissue (33).

Any motion artifact (scans classified with grade 2 or higher) will affect the density measurements and microarchitecture of the scaphoid. A nearly error-free quantitative analysis in this context can therefore only be achieved with grade 1 scans. The decision on which grades to include for analysis should be based on the research question. The motion-induced discrepancies must be evaluated in the context of possible biologically relevant changes based on therapeutic or metabolic influences (24). Since the scaphoid has rarely been the focus of HR-pQCT studies, little is known about the biological variability of the individual parameters under physiological conditions and pathological or iatrogenic influences. The separation into a good and poor quality group results in higher feasibility regarding quality assessment. Especially for grade 1 and grade 2, high feasibility and minor microarchitecture errors are to be expected. However, a more strict selection leads to a higher dropout rate and a higher necessary number of study patients to achieve a valid number of cases.

High image quality is essential for histomorphometry analysis and should be a central point in every HR-pQCT study. A rigorous, standardized, and reproducible study protocol and a well-coordinated team form the basis for reliable results. After repeated scanning, previous studies showed an overall higher image quality (24,29). Therefore, for poor-quality scans, rescans are recommended. Bevers et al. (7) improved the quality of scaphoid scans when using a cast with a thumb part. Also, in this study, scans of wrists immobilized with a cast achieved slightly better results than wrists without cast immobilization. Automated methods for assessing motion artifacts (29,34) and contouring (7) can help create objective reproducible results but face practical problems in small objects like the scaphoid. Overcoming this limitation should be the focus of future studies.

The strength of this study includes the high number of analyzed stacks and the number of repeated scans per patient, which allowed up to five pairwise comparisons per stack.

Limitations of the study include the time intervals between the scans. The last imaging was performed one year after the first acquisition, which could lead to a selectional bias. Bone microarchitecture changes over time, e.g., due to illnesses and medication or changes in repetitive mechanical stress on the wrist joint (11-13,31,35). Kawalilak et al. (31) showed significant changes in the microarchitecture of the distal radius in postmenopausal women within one year. However, the present study population consisted of a healthy and on average younger study population. Moreover, a comparison of the density and the microarchitecture parameters between the first and the last follow-up revealed no significant differences.

Furthermore, since the positioning of the scaphoids within the restraining holders was not reproducible, one patient’s stacks were not identical among the repeated scans. Therefore, of the six controls, only those areas were compared that the proximal, middle, and distal stacks, respectively, had in common. However, rotation errors or stack shifts could not be compensated thereby.

In clinical practice, it may be more relevant to evaluate the entire scaphoid rather than the three stacks separately. Moreover, analyzing the whole bone may alleviate the problem of rotation errors. However, this study intended to evaluate the inter- and intraobserver reliability of the VGS in anatomically different areas of the scaphoid, with the poles in the proximal and the distal stack and the scaphoid waist in the middle stack. Since image quality can vary considerably within a scan due to the long scanning time, the authors considered it reasonable to evaluate the stacks individually to obtain more accurate results.

Conclusions

This study shows a significant influence of motion on the densitometric and microarchitectural parameters of the scaphoid. High image quality must be a central point in studies focusing on histomorphometry of small objects like the scaphoid.

The high inter- and intraobserver variability limit the VGS. Our results suggest strict selection criteria regarding the quality assessment of HR-pQCT scans to avoid misinterpretation of quantitative analysis in this emerging field of science. Future research may focus on other classification systems or automated techniques leading to more consistent and reproducible results. Under the present circumstances, the use of density and microarchitectural data of scaphoids should be limited to cases without or with minimal motion artifacts.
