Unenhanced magnetic resonance imaging of papillary thyroid carcinoma with emphasis on diffusion kurtosis imaging

Introduction

The incidence of thyroid cancer has increased rapidly worldwide (1). Papillary thyroid carcinoma (PTC) is the most common type of thyroid cancer, accounting for approximately 90% of all thyroid malignancies (2). In 2015, the American Thyroid Association (ATA) guideline proposed a “less is more” concept, which entails conducting less-extensive surgeries and less unnecessary biopsies to provide responsibly individualized therapy for patients (3). Although several international societies have developed ultrasound-based risk stratification systems to maximize the diagnostic performance of thyroid ultrasound, there are still some limitations (4). One study investigated the unnecessary thyroid nodule biopsy rates under 4 representative ultrasound risk stratification systems including the ATA, American College of Radiology (ACR), European Thyroid Association (ETA), and Korean Thyroid Association/Korean Society of Thyroid Radiology (KTA/KSThR) (5). It was found that 25% to 55% of suspicious malignant thyroid nodules according to ultrasound diagnosis were ultimately benign after biopsy (5). This suggests that it is necessary to further improve the diagnostic accuracy of thyroid cancer, especially PTC, with noninvasive imaging modalities.

As an imaging modality with superior soft tissue contrast, magnetic resonance imaging (MRI) not only allows multiplanar assessment of the morphology of the nodules, but also provides various types of functional information. Some preliminary studies have been conducted with conventional unenhanced sequences in the assessment of PTC. In one report (6), the signal intensity of PTCs on T2-weighted imaging (T2WI) was found to be lower than that of benign nodules due to the dense fibrosis within PTCs. However, other morphological features such as tumor component (solid or cyst-solid), margin, and taller-than-wide sign were not evaluated in the study, but these are considered critical in diagnosing malignancy by ultrasound (7-9). Diffusion-weighted imaging (DWI) has been successfully used in diagnosing PTCs (6,10,11). Conventional DWI explores Gaussian diffusion distribution of free water with a mono-exponential model, which may not accurately reflect water diffusion in complex microstructures (12). In contrast, diffusion kurtosis imaging (DKI) based on non-Gaussian distribution can provide more information on the microstructural complexity of biological tissues than can conventional DWI (13,14). DKI has shown promising diagnostic value in differentiating benign from malignant tumors in various organs (15-20). To the best of our knowledge, only a single preliminary study comparing DKI to DWI in the diagnosis of thyroid nodules in a small group of patients has been conducted thus far (21). However, no previous studies have evaluated whether the combination of DKI and conventional unenhanced MRI can increase the diagnostic efficacy in PTC. Thus, the purpose of this study was to investigate the value of unenhanced MRI with DKI in patients with PTCs. We present the following article in accordance with the STARD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-22-172/rc).

Methods

Patients

This prospective study was reviewed and approved by the Institutional Review Board and Ethics Committee of Xiamen Branch, Zhongshan Hospital, Fudan University. The study was conducted in accordance with the principles of the Declaration of Helsinki (as revised in 2013). Written informed consent was obtained from all participants.

Between June 2019 and July 2021, a total of 98 consecutive patients suspected of having PTC or thyroid nodules that caused compressive or structural symptoms were referred for a magnetic resonance (MR) examination to help guide individual treatment decisions. The inclusion criteria were as follows: (I) primary thyroid nodules without prior treatment, (II) pathologically confirmed thyroid nodules with surgical specimens, and (III) a nodule diameter of 10 mm or more for adequate image quality on DKI. Of the total patients, 21 were excluded after their MRI examination and surgery. The exclusion criteria were as follows: (I) patients who underwent biopsy before MRI examination (n=6), (II) a time interval between MRI examination and surgery of 2 weeks or more (n=2), (III) patients whose DKI images were inadequate for evaluation due to severe motion artifacts or magnetic susceptibility artifacts (n=8), (IV) and patients who had a nearly pure cystic nodule (n=5). Finally, 77 patients (22 males and 55 females; age: 46±12 years; age range: 19 to 76 years) were enrolled in our study, comprising 41 PTCs and 36 benign thyroid nodules (Figure 1). According to the eighth edition of the American Joint Committee on Cancer (AJCC) Tumor-Node-Metastasis (TNM) staging system (22), 36 of the 41 PTCs were stage I (87.8%) and 5 were stage II (12.2%). The distribution of pathological T classification was 34 (82.9%) with T1, 4 (9.8%) with T2, 2 (4.9%) with T3, and 1 (2.4%) with T4. The distribution of pathological N classification was 11 (26.8%) with N0, 17 (41.5%) with N1a, and 13 (31.7%) with N1b. All of the PTCs were classified as M0 in clinical M classification. Among the 36 benign thyroid nodules, there were 26 follicular adenomas, 4 nodular goiters, 4 follicular hyperplasia nodules, and 2 nodules of lymphocytic thyroiditis.

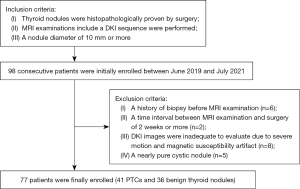

Figure 1 Flowchart of the study population. MRI, magnetic resonance imaging; DKI, diffusion kurtosis imaging; PTC, papillary thyroid carcinoma.

As this study applied a multivariate analysis, the sample size calculation was based on an absolute minimum ratio of 5 individuals to every variable (23). The estimated final sample size for our exploratory study was at least 60 patients, with a total of 12 variables evaluated in the study.

MRI protocol

All MRI examinations were performed on a 3.0 T scanner (Discovery MR750w, GE Healthcare, Milwaukee, WI, USA) equipped with an 8-channel head and neck combined coil. A dielectric pad was placed on the anterior portion of the neck to reduce B₁ field inhomogeneity and dielectric artifacts. The scan sequences included axial T1-weighted fast spin echo [repetition time/echo time (TR/TE) =500/9.6 ms; field of view (FOV) =22 cm × 22 cm; matrix size =256×224; slice thickness/gap =4/1 mm; number of excitations (NEX) =2], T2-weighted fast spin echo (TR/TE =2,760/85 ms; FOV =22 cm × 22 cm; matrix size =288×192; slice thickness/gap =4/1 mm; NEX =2), DWI, and DKI. The detailed parameters of the 2 diffusion sequences are summarized in Table 1. Spatial saturation bands were applied to remove signals from overlying fat and adjacent tissues. Postcontrast MRI was also performed in all cases but not evaluated since the focus of this study was on an unenhanced protocol.

Image analysis

All the images were assessed in consensus by 2 radiologists (JZ and QT), with 30 and 6 years of experience in head and neck imaging, respectively, who were blinded to the pathological information. The radiologists evaluated the following characteristics in MR images: (I) tumor maximum diameter; (II) location, categorized as left, right, or isthmus; (III) component, categorized as solid or cystic-solid; (IV) regular or irregular margin; and (V) taller-than-wide sign. Irregular margin was defined as either infiltrative or lobulated. Taller-than-wide sign was defined as an anteroposterior to transverse ratio of greater than 1. The anteroposterior dimension of the nodule was defined as the diameter on the axis perpendicular to the anterior surface of the thyroid gland. The transverse dimension of the nodule was defined as the diameter on the axis perpendicular to the anteroposterior dimension. For a few cases with inconsistent results, the 2 radiologists discussed with each other to reach an agreement.

DWI and DKI were further processed by the 2 radiologists independently using FuncTool software on the GE AW4.6 Workstation to generate apparent diffusion coefficient (ADC), mean diffusivity (MD), and mean kurtosis (MK) maps. The average time required for the postprocessing was 5 min. For the thyroid nodule, a circular region of interest (ROI) was manually delineated to encompass the entire solid portion of the nodule with the most significant enhancement at the largest cross-section area, with care being taken to exclude artifacts or cystic portions. Subsequently, the ADC, MD, and MK values and the signal intensities on T1WI and T2WI were extracted from the ROI. The signal intensity ratio (SIR) on T1WI and T2WI was calculated as a ratio of the signal intensity in the thyroid nodule to that in the paraspinal muscle.

Histopathological analysis

Operative specimens of the thyroid tumors obtained after radical thyroidectomy or lobectomy were collected by a pathologist with 6 years of experience. All specimens were fixed in formalin and embedded in paraffin. The section of each thyroid tumor was stained with hematoxylin and eosin (HE). Histopathological analysis was performed using a microscope (Leica, Wetzlar, Germany) by the same pathologist who was blinded to the MRI findings.

Statistical analysis

Student’s t-test was used for continuous variables, and the chi-squared test or Fisher exact test was used for categorical variables. Factors with a P value of less than 0.05 were enrolled into the multivariate logistic regression analysis to explore independent risk factors of PTC. The Hosmer-Lemeshow test was performed to explain the goodness of fit of the multivariate logistic model. Odds ratios and 95% confidence intervals (CIs) were calculated. Receiver operating characteristic (ROC) curve analysis was performed to evaluate the diagnostic effectiveness of the continuous variables that were statistically significant in the multivariate analysis. The area under the curve (AUC), optimal cutoff value and the corresponding sensitivity and specificity were calculated. The interobserver agreement for quantitative measurements was assessed by calculating the intraclass correlation coefficient (ICC) under the following criteria: <0.40, poor; 0.40–0.59, fair; 0.60–0.74, good; and 0.75–1.00, excellent. A 2-sided P value of less than 0.05 was considered statistically significant. All statistical analyses were performed using SPSS software (version 22.0, IBM Corp., Armonk, NY, USA) and MedCalc 19.3.1 (Mariakerke, Belgium).

Results

The clinical and MRI characteristics are summarized in Table 2. According to our data, patients with PTCs were younger (P=0.001) and tended to be female (P=0.049). These patients also had a smaller tumor diameter (P<0.001), a solid component (P<0.001), and an irregular margin (P<0.001) compared to those with benign nodules. No significant difference in location (P=0.853) or taller-than-wide sign (P=0.792) was noted between PTCs and benign nodules.

The T1WI SIR, T2WI SIR, ADC, MD, and MK values of all lesions are shown in Table 3. The ADC and MD values of PTCs were significantly lower than those of benign nodules (both P<0.001), while the MK value of PTCs was significantly higher than that of benign nodules (P<0.001; Figures 2,3). The AUCs of ADC, MD, and MK in diagnosing PTC were 0.913 (95% CI: 0.826–0.965), 0.886 (95% CI: 0.793–0.947), and 0.841 (95% CI: 0.740–0.915), respectively. The optimal cutoff values of ADC, MD, and MK in identifying PTC were 1.58×10⁻³ mm²/s (sensitivity 87.8%, specificity 83.3%), 1.92×10⁻³ mm²/s (sensitivity 85.4%, specificity 88.9%), and 0.78 (sensitivity 70.7%, specificity 91.7%), respectively. No significant differences in T1WI SIR (P=0.095) or T2WI SIR (P=0.815) were noted between PTCs and benign nodules. The interobserver agreements of the quantitative parameters were all excellent: T1WI SIR (ICC: 0.914; 95% CI: 0.868–0.945), T2WI SIR (ICC: 0.953; 95% CI: 0.927–0.970), ADC (ICC: 0.903; 95% CI: 0.852–0.938), MD (ICC: 0.898; 95% CI: 0.844–0.934), and MK (ICC: 0.887; 95% CI: 0.828–0.927).

Figure 2 A 40-year-old female with PTC (arrow) in the left thyroid lobe. (A) Axial T2-WI showed a 16-mm solid nodule with locally irregular margin and a positive taller-than-wide sign: the SIR was 3.13. (B) Axial T1WI: the SIR was 1.35. (C) ADC map; ADC value =0.93×10⁻³ mm²/s. (D) MD map; MD value =1.59×10⁻³ mm²/s. (E) MK map; MK value =0.84. (F) Histopathological HE staining (×100). PTC, papillary thyroid carcinoma; T2WI, T2-weighted imaging; SIR, signal intensity ratio; T1WI, T1-weighted imaging; ADC, apparent diffusion coefficient; MD, mean diffusivity; MK, mean kurtosis; HE, hematoxylin and eosin.

Figure 3 A 44-year-old female with thyroid adenoma (arrow) in the right thyroid lobe. (A) Axial T2-WI showed a 28-mm solid nodule with a regular margin and a negative taller-than-wide sign: the SIR was 4.58. (B) Axial T1-WI: the SIR was 1.33. (C) ADC map; ADC value =2.78×10⁻³ mm²/s. (D) MD map; MD value =3.05×10⁻³ mm²/s. (E) MK map; MK value =0.39. (F) Histopathological HE staining (×40). T2WI, T2-weighted imaging; SIR, signal intensity ratio; T1WI, T1-weighted imaging; ADC, apparent diffusion coefficient; MD, mean diffusivity; MK, mean kurtosis; HE, hematoxylin and eosin.

In the multivariate analysis, only MD (odds ratio: 25.321; 95% CI: 3.998–160.382), smaller diameter (odds ratio: 13.751; 95% CI: 2.100–90.055), and irregular margin (odds ratio: 16.003; 95% CI: 2.550–100.442) were independent risk factors for PTC (Figure 4). The combined predictor of lower MD, smaller diameter, and irregular margin was generated from the logistic regression equation. The significance level of the Hosmer-Lemeshow test was 0.448, suggesting an acceptable goodness of fit of the model.

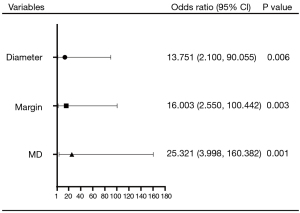

Figure 4 Binary logistic regression model for the prediction of PTC. MD, smaller diameter, and irregular margin were independent risk factors for PTC. CI, confidence interval; MD, mean diffusivity; PTC, papillary thyroid carcinoma.

Figure 5 shows the ROC curve of the combined predictor of MD, diameter, and margin in diagnosing PTC. The AUC of the combined predictor of lower MD, smaller diameter, and irregular margin was 0.996 (95% CI: 0.945–1.000), with the optimal cutoff value of 0.69 (sensitivity 95.1%, specificity 100.0%).

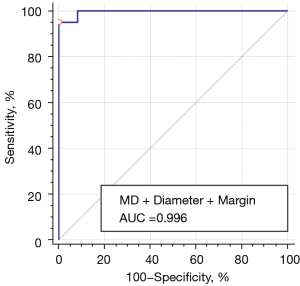

Figure 5 ROC curve of the diagnostic performance of the combined predictor of MD, diameter, and margin in identifying PTC. The AUC was 0.996 (95% CI: 0.945–1.000). The optimal cutoff value was 0.69 (sensitivity 95.1%, specificity 100.0%). MD, mean diffusivity; AUC, area under the curve; ROC, receiver operating characteristic; PTC, papillary thyroid carcinoma; CI, confidence interval.

Discussion

The results from our study suggest that a decreased MD value with smaller diameter and irregular margin of thyroid nodules might indicate PTC with a high predictive value. The combination of conventional unenhanced MRI and DKI can be easily acquired in clinical practice to help diagnose PTC without the need for a contrast agent.

We found a lower MD value in PTCs than in benign nodules, which was consistent with the findings reported by Shi et al. (21). The possible explanation for this is that the cell density of PTCs is higher than that of benign nodules, resulting in a decrease of intercellular space. Fibrosis, calcified psammoma bodies, and irregular papillary architecture might also hamper the diffusion of water molecules (12). MK describes the deviation of the water diffusion property from Gaussian behavior, which is considered to reflect the heterogeneity and irregularity of the intracellular microstructure (13,14). Shi et al. (21) reported that a higher MK value in PTCs reflected a higher degree of cellular microstructural heterogeneity. However, the results of our multivariate analysis did not indicate that MK was an independent predictor for PTC although it was significantly higher in PTCs than benign nodules in the univariate analysis. The reason for this might be that, except for the different statistical approaches, the DKI protocol in our study was based on a tensor method, while Shi et al. (21) used a multi-b value method. These are 2 different types of DKI protocols that have been frequently used in previous studies (24-27). The tensor method applies at least 15 diffusion directions which allows better assessment of anisotropic directionality of diffusion and kurtosis behavior (14) while making the final estimates for the DKI metrics less sensitive to motion artifacts (13). Moreover, the heterogeneity of the cases in our cohort might have influenced the results, as DKI is a sequence for depicting the heterogeneity in the tissues.

In our study, irregular margin was proven as a reliable predictor of PTC among radiological features, which was consistent with previous studies (8,28-30). The histopathological mechanism of irregular margin might be the invasive and heterogeneous growing pattern of PTCs. It is important to note that an irregular margin indicates that the demarcation between nodule and parenchyma is clearly visible but demonstrates an irregular, infiltrative, or spiculated course rather than a poorly defined margin (7). In some studies, thyroid nodule size was found to be inversely related to malignancy risk, as larger nodules have lower malignancy rates (31,32). However, this has been contested by other studies (33,34). The 2015 ATA guideline and 2017 ACR Thyroid Imaging Reporting and Data System (TI-RADS) recommend diagnostic fine-needle aspiration (FNA) of the thyroid nodule based on nodule size and features of high-risk imaging on ultrasound, such as microcalcification, nodule hypoechogenicity, solid component, irregular margin, and a taller-than-wide shape (7,9). In other words, nodules with high-risk imaging features for thyroid cancer should be considered for FNA even at a smaller size, whereas nodules without these imaging features might be considered for FNA at a larger size.

Additionally, there was no significant difference in either T1WI SIR or T2WI SIR between PTCs and benign nodules in this study. In their study, Noda et al. (6) reported that T2WI SIRs were significantly lower in PTCs than in benign nodules. The explanation was that the presence of dense fibrous tissue within PTCs caused the reduction of T2WI SIR. In this study, a higher T2WI SIR in PTCs might be attributed to loose or edematous papillary architecture under microscopic observation, while lower T2WI SIRs in benign nodules might be attributed to the dense arrangement of follicles, coarse calcification, and fibrous tissue hyperplasia. Furthermore, various forms of degeneration and components such as stromal fibrosis, hemorrhage, calcification, and hyaline degeneration in benign nodules may also affect the T1WI signal (35,36). Accordingly, we believe that the SIR of the thyroid nodules on T1WI and T2WI might not be as useful as has been previously reported. Interestingly, taller-than-wide sign is one of the most important sonographic features in the identification of benign and malignant thyroid nodules (8,37,38), but no significant difference was found between PTCs and benign nodules in our study. Taller-than-wide sign was first described by Kim et al. (39), and it was speculated that benign nodules grow in normal tissue planes, whereas malignant nodules (taller-than-wide) grow across normal tissue planes. However, Yoon et al. (40) suggested that the mechanism of taller-than-wide sign was as follows: compared to benign masses, malignant lesions exhibit no or minimal compressibility when an ultrasound probe is applied. In their study, Seo et al. (41) also found the compressibility of masses to be greater in benign than in malignant lesions. In contrast to ultrasound, no compression is imposed on the thyroid tissue during MRI examination, which might partially explain our results.

There were some limitations in our study. First, the small cohort size with a limited variety of thyroid nodules is a major limitation. A larger cohort with different histological types of benign and malignant nodules is desirable to further evaluate the diagnostic criteria. Second, thyroid nodules less than 10 mm in size were not included in this study due to inadequate image quality on DKI. Since most papillary microcarcinomas (<10 mm) are indolent and nonprogressive, active surveillance is more recommended than is immediate surgery (2,42). Hence, it has a relatively small influence on the clinical decision-making process. Third, 5 mainly cystic nodules were excluded in the study due to a lack of sufficient solid components for measurement. Finally, we did not analyze the enhancement patterns of thyroid nodules. Because the emphasis of this study was on unenhanced MRI without contrast administration, a comparison between unenhanced and enhanced MRI of PTC needs to be explored in the future.

Conclusions

Lower MD values in combination with smaller diameter and irregular margin are potential predictive biomarkers for PTC. Unenhanced MRI including conventional sequences and DKI is a promising noninvasive protocol to diagnose PTC without the need for a contrast agent. Further investigations with a larger sample size of patients and specimens should be conducted to verify our results.

Acknowledgments

Funding: This work was supported by the Medical and Health Guided Project of Xiamen (No. 3502Z20199126), the Science and Technology Guided Project of Fujian Province (No. 2019D025), and the Scientific Research Cultivation and Medical Innovation Project of Fujian Province (No. 2019CXB33).

Footnote

Reporting Checklist: The authors have completed the STARD reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-22-172/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-22-172/coif). PYW is an employee of GE Healthcare and was involved in the data postprocessing and interpretation of this study. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).This prospective study was approved by the Institutional Review Board of Xiamen Branch, Zhongshan Hospital, Fudan University, and written informed consent was obtained from all patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
