The feasibility of superparamagnetic iron oxide–enhanced magnetic resonance imaging for assessing liver lesions in patients with contraindications for iodine CT contrast media or gadolinium-based MR contrast media: a retrospective case-control study

Introduction

The significance of magnetic resonance imaging (MRI) for the detection and characterization of liver lesions has been widely accepted ever since hepatocyte-specific contrast media became available (1-3). However, patients with asthma, renal dysfunction, or severe allergic reactions to hepatocyte-specific contrast media cannot benefit from these technical advantages. For most of these patients, often contrast-enhanced CT cannot be used (4-6). When contrast media is not available, plain CT or MRI is used to evaluate the lesion; however, these techniques have limitations in both the detection and characterization of the lesions.

Superparamagnetic iron oxide (SPIO, Resovist^®, FUJIFILM Toyama Chemical Co., Ltd., Japan) was widely used before the availability of hepatocyte-specific MRI contrast agents. In particular, it was used to differentiate arterial portal shunts or pseudo-lesions from neoplastic lesions. Although the number of countries where SPIO is available has decreased in recent years, its use in the detection of liver lesions has been reported to be as good as or better than that of dynamic CT (7-10). SPIO can be used safely in asthma patients. In addition, since SPIO is metabolized according to normal iron metabolism and does not affect renal dysfunction, it can also be used in patients with renal dysfunction. However, it has been reported that the diagnostic accuracy for hepatocellular carcinoma (HCC) is improved by adding diffusion-weighted images (DWI) to the SPIO-enhanced MRI (11). However, SPIO is sometimes taken up by well-differentiated HCC, including early-stage HCC (12), and it may not be possible to detect these lesions using either SPIO-enhanced MRI or diffusion-weighted imaging (12). In such cases, the evaluation of tumor blood flow is a significant clue to decide the therapeutic strategy. We have previously evaluated the blood flow of HCC or hepatocellular nodules by SPIO and reported its effectiveness (13-15). On the other hand, the better or equal detection of the metastatic lesion with SPIO-enhanced MRI has been reported than with enhanced CT or enhanced MR using nonspecific extracellular contrast media (10,16-18). It has also been reported that SPIO-enhanced MRI plus diffusion-weighted imaging provides even better diagnostic performance of liver metastasis than contrast-enhanced CT (19).

Here, we retrospectively evaluated the feasibility of SPIO for patients who, because of bronchial asthma, renal dysfunction, or a history of contrast media allergy, could not be analyzed with hepatocyte-specific contrast media, non-specific extracellular MR contrast media, or iodine CT contrast media. We present the following article in accordance with the STROBE reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-22-74/rc).

Methods

Ethical approval

This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The institutional ethics review board of Tokyo Medical University (No. T2020-0339) approved this retrospective case-control study and individual consent for this retrospective analysis was waived.

Subjects

By searching the radiology reporting system, the subjects were selected from a group of 537 patients who underwent SPIO-enhanced MRI between January 1, 2008, and December 31, 2020. The exclusion criteria were as follows; 1. Not performing perfusion study, 2. Absence of contraindications of contrast media such as a history of bronchial asthma, renal dysfunction, and a history of adverse reaction by Gd-based contrast media or iodinated contrast media, 3. Without a final diagnosis of the liver lesion or determination of the absence of the lesion (Figure 1). Out of a total of 537 patients, 500 patients were not administered SPIO rapidly, and dynamic imaging was not acquired. The remnant 37 patients were administered SPIO rapidly, and dynamic imaging was acquired, namely in the perfusion study. Further, 11 of 37 patients were excluded because the SPIO-enhanced MRI was not due to contraindication of Gd-based and iodinated contrast media, or no final diagnosis of the liver lesion. Finally, these subjects consisted of 26 patients (18 men and eight women), and their mean age was 73 years old (20–92 years). Concerning the purpose of the examination, 17 patients were evaluated for recurrence after HCC treatment, two for evaluation of the presence or absence of HCC in hepatitis type C, five for detection of metastatic liver tumors, and two for the characterization of liver lesions. The underlying diseases were five cases of hepatitis type B, nine of hepatitis type C, one of both hepatitis type B and C, one of nonalcoholic steatohepatitis, one of alcoholism, three of colorectal cancer, two of pancreatic cancer, and four for nothing in particular (Table 1). A definitive diagnosis of the liver lesion was made by biopsy, surgery, angiography-assisted CT, contrast-enhanced US, or the observation of clinical course. The lesions that showed no change or a decreased size by the plain CT or SPIO-enhanced MRI after six months or more, and no enhancement by the contrast-enhanced US, were clinically diagnosed as therapeutically approachable lesions or benign lesions. On the other hand, the lesions were diagnosed as HCC if viral hepatitis was detected, enhancement on contrast-enhanced US or hypervascularity on CT hepatic arteriography were found, and there was evidence of corona enhancement in its delayed phase.

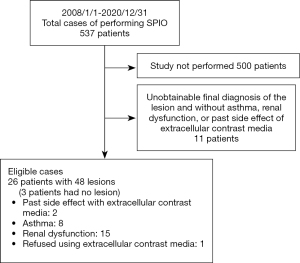

Figure 1 Participant selection flowchart.

MRI acquisition

A superconductive 1.5 Tesla MR system (Avanto, Siemens, Germany) was used. Pre-contrast MRI included T1-weighted images (in and opposed phase) and T2-weighted images. As previously reported, a total volume of 1.3-mL SPIO (36.2-mg Fe) was injected via the cubital vein at a rate of 3 mL per second, followed by 40-mL saline at the same speed (14,15). The scanning of perfusion study was started at 4 s after the beginning of SPIO injection, scanning took 50 s, and a hundred phases were obtained. Enhanced T1-weighted images that were short TE were obtained 3 min after the injection of SPIO, whereas T2-weighted images and T2*-weighted images were obtained 10 min after SPIO injection. The details of the imaging sequences are described in Table 2.

Analysis

A certified radiologist with more than 30 years of experience diagnosed each lesion based on the images and clinical information. Since some cases had multiple liver lesions; a maximum of three lesions were evaluated per patient. We first focused on the suspected or definite malignant lesions because the goal was to detect the lesions that required therapy. Therefore, when three or more malignant lesions were present, the largest three lesions were selected. In cases with malignant and benign lesions, malignant lesions were first selected, and then, if fewer than three malignant lesions were found, benign nodules were also included, starting from the largest ones, up to a total of three lesions (malignant and benign combined). If there was no malignant lesion, benign lesions were pointed out, from the largest to the smallest, up to three lesions. In cases where local treatment was performed, local recurrence was classified as a malignant lesion and, in the absence of recurrence, the lesion was classified as benign.

Two certified radiologists (each with 10 years of experience) independently conducted the image interpretation experiments. The observers were provided the following information before interpretation: what kind of the underlying liver disease or presence of extrahepatic malignant tumor, and the history of therapy, for example, radiofrequency ablation or resection. This information is often provided in daily clinical work; hence, the effect of this information on the image interpretation would be minimum. First, the observers performed image interpretation with datasets lacking the perfusion study and indicated the liver lesion on the printed enhanced T2*-weighted images (the flip angle was 30°). Then, they classified the lesions into the following four categories: (I) no lesion; (II) benign lesion; (III) possible malignant lesion; (IV) definitive malignant lesion. In other words, category 1 indicates that the patient has no lesions. One month after the initial interpretation, the observers performed an interpretation study with a full dataset that this time included a perfusion study. The radiological diagnostic criteria were based on the following possibilities: (I) hemangioma shows obvious hyperintensity on T2-weighted image and hyperintensity on enhanced T1-weighted image of short TE 3 min after SPIO injection (20); (II) cysts show obvious hyperintensity on T2-weighted images, no enhancement on enhanced T1-weighted image of short TE, and hyperintensity on apparent diffusion coefficient (ADC) map. The lesion showing intermediate hyperintensity on the T2-weighted image and restricted diffusion (hyperintensity on DWI and hypointensity on ADC map) was considered malignant (21,22). The post-therapeutic lesions that showed hyperintensity on the T2-weighted image, and iso- or hypointensity on the DWI, were considered to have no recurrence and in a good therapeutic course (23), and were eventually classified as a benign lesion. The decreasing signal intensity on the T2-weighted image due to SPIO accumulation was observed in well-differentiated HCC or focal nodular hyperplasia (FNH). The observers referred to the morphological findings, such as a central stellate scar or septal fibrosis, to distinguish HCC from FNH. A perfusion study was used to evaluate the lesion hemodynamics. If the arterial blood flow increased in the post-therapeutic lesion, the lesion was considered a recurrence, and the observers classified the lesion as malignant. If the lesion signal decreased, even in untreated lesions, indicating an increase in arterial blood flow in the perfusion study, and the lesion showed restricted diffusion on the DWI, it was diagnosed as malignant.

The side effect associated with SPIO was evaluated based on the medical record. The physical condition was certainly evaluated just after the MRI examination and around 1 week after this MRI exam. Regular hematology or urinalysis has not been done for this study.

Statistical analysis

Receiver operating characteristic (ROC) analysis was performed to evaluate the diagnostic performance of SPIO-enhanced MRI with or without a perfusion study. The diagnostic agreement of the observers was evaluated with a weighted kappa test. The agreement rates were defined as follows: 0≤rate≤0.4, poor agreement; 0.4<rate≤0.6, moderate agreement; 0.6<rate≤0.8, good agreement; 0.8<rate≤1.0 excellent agreement.

Results

The records of 26 patients were evaluated, including eight patients with asthma, two patients with a history of side effects with Gd-based contrast media, 16 patients with renal dysfunction [five with G5, three with G4, five with G3b, and three with G3a with Kidney Disease Improving Global Outcomes (KDIGO) staging criteria for chronic kidney disease (CKD)] (24). None of these patients experienced any adverse effects associated with the use of SPIO (Table 1).

The final diagnoses were four liver metastatic nodules (one was proven by surgery, and three were confirmed by clinical course), 10 HCC nodules (four were proven by biopsy including three moderately differentiated and one well-differentiated, and six were confirmed by the clinical course), one FNH, 24 HCC post-treatment lesions (without recurrence), one meta-treatment lesion (without recurrence), and two were cysts; three patients had no lesion (Table 1). A representative case is shown in Figure 2.

Figure 2 A 77-year-old man with HCC and renal dysfunction (Kidney Disease Improving Global Outcomes staging criteria for chronic kidney disease staging G4). The HCC located in the left lobe was treated with radiofrequency ablation. (A) T2-weighted image shows a slight hyperintense lesion on the left lateral lobe (large arrow). A small arrow indicates the ablated region. (B) HCC shows a slight hyperintense lesion on a DWI (large arrow). The ablated region shows hypo-intensity (small arrow). (C) The contrast between tumor and liver increased in the post-contrast-enhanced T2-weighted image compared to the pre-contrast-enhanced image (A). (D) The contrast between tumor and liver on the T2* weighted image was the highest among the acquired images. (E-G). These consecutive images are pre-contrast, 23 s, and 34 s after injection of SPIO in the perfusion study. The signal drop is seen at 23 s after injection of SPIO (large arrow). The ablated region shows no signal change (small arrow), indicating no recurrence. However, the signal of recurrence tumor shows a quick recovery at 34 s. (H) The contrast-enhanced US reveals that the tumor is hypervascular (white arrow), while the ablated region (black arrow) shows no enhancement. HCC, hepatocellular carcinoma; DWI, diffusion-weighted image; SPIO, superparamagnetic iron oxide.

Regarding the diagnostic performance of liver lesions, when the perfusion study was excluded from the evaluation, the area under the curve (Az) values were 0.473 (P=0.794, 95% CI: 0.275–0.672) and 0.602 (P=0.305, 95% CI: 0.407–0.798) for observers 1 and 2 (Figure 3). When the perfusion study was included in the evaluation, the Az values were 0.782 (P=0.011, 95% CI: 0.565–0.998) for observer 1 and 0.784 (P=0.004, 95% CI: 0.591–0.977) for observer 2 (Figure 3). These findings indicate that, for both observers, the confidence level significantly increased when the perfusion study was included (P=0.001 and 0.012 by observers 1 and 2). However, the agreement of the observer was moderate (k=0.419) when the perfusion study was not included in the assessment. The agreement decreased to k=0.340 when the perfusion study was included in the assessment, and it was a poor agreement.

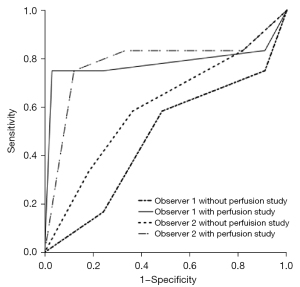

Figure 3 Receiver operating characteristic analysis curve showing the diagnostic performance of the SPIO-enhanced MRI for liver lesions. When the perfusion study was excluded from the evaluation, the Az values were 0.473 for observer 1 and 0.602 for observer 2. When the perfusion study was included in the evaluation, the Az values were 0.782 for observer 1 and 0.784 for observer 2. For both observers, the confidence level increased when the perfusion study was included. SPIO, superparamagnetic iron oxide.

Discussion

Although this study was based on a small number of cases, it has demonstrated the feasibility of SPIO-enhanced MRI in patients who are unable to undergo contrast-enhanced CT or contrast-enhanced MRI with Gd-based contrast media. Previous studies have reported that the Az value of dynamic CT for HCC was around 0.66–0.95 (7-9,25), while the metastatic tumor was around 0.69–0.93 (16,18,19,26). These results were dependent on the lesion size. This study included HCC and metastatic tumors; moreover, the post locoregional therapeutic lesion was also included. Therefore, the diagnosis may be more difficult. Hence, we believe that the usefulness in patients who cannot use iodine contrast agents or hepatocyte-specific MR contrast agents, addressed in the present study, cannot be ignored.

While a limitation of SPIO-enhanced MRI is its inability to visualize tumor blood flow, the addition of a perfusion study increased diagnostic confidence for liver lesions, which is consistent with results previously reported for other imaging techniques (7-9,16,18,19,25,26). In this study, a substantial proportion of patients were evaluated for therapeutic results after locoregional treatment of HCC, which was thought to be due to the need to evaluate vascularity to assess local recurrence or residual tumor.

Although SPIO is excellent for tumor detection, it has limitations in assessing the residual arterial blood flow after locoregional therapy of liver tumors without perfusion studies. Therefore, tumor treatment efficacy has been judged by whether sufficiently ablated margins are obtained compared to the preoperative images or whether a restricted diffusion area suggests recurrence or residual tumor on the DWIs. If there is some viable component after transarterial chemoembolization (TACE), the lesion shows restricted diffusion (23). However, the efficacy of diffusion-weighted imaging for the presence of recurrence after RFA has not been established (27,28). Reports are showing that it is effective in HCC, while there are negative reports in metastatic tumors (29,30). In this study, only a qualitative evaluation was performed, and a quantitative evaluation, such as the measurement of ADC values, was not performed. However, since we could confirm the effectiveness of visual evaluation of arterial blood flow, thus, our findings show that adding a perfusion study to SPIO-enhanced MRI increases diagnostic performance to levels near those seen with iodine CT (7-9,16,18,19,25,26), suggesting that this approach is a reasonable alternative in patients with contraindications.

This study showed that SPIO could be safely used in patients with asthma, renal dysfunction, and a history of adverse effects from Gd–based contrast agents. In this study, SPIO was used in patients with eGFR <60 mL/min/1.73 m² instead of an iodine contrast medium. Although there is no consensus on using an iodine contrast medium for patients with renal dysfunction, it is accepted that patients with renal dysfunction with eGFR <30 mL/min/1.73 m² should be treated with prophylactic saline infusion (24). In patients undergoing chemotherapy, we should be cautious about contrast media administration, as it may be difficult to continue treatment due to the decreased renal function. In such cases, SPIO-enhanced MRI may be an option for patients who are hesitant to receive CT or Gd-based contrast media.

A limitation of this study is the small number of cases. We only included patients who could not tolerate contrast-enhanced CT or hepatocyte-specific MR contrast agents, which resulted in only a few cases. We believe that additional cases should be studied in the future. In addition, the perfusion study reported here is currently available for only six slices and does not cover the entire liver. Therefore, it is necessary to determine the imaging range in the pre-contrast examination. In this respect, there is a bias. In addition, for six of 51 nodules, the lesion to be evaluated was out of the imaging range due to inappropriate breath-holding, so we were unable to assess the performance of SPIO-enhance MRI for these nodules. In the future, it is expected that a sufficient number of examinations will increase the number of images available for analysis.

Conclusions

SPIO-enhanced MRI for liver lesion assessment was feasibly performed in patients with renal dysfunction, asthma, or a history of adverse effects to iodine contrast agents or Gd-based contrast media, thereby providing an alternative MRI approach for these patients. A perfusion study should be included in SPIO-enhanced MRI to detect the target lesion.

Acknowledgments

Funding: None.

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-22-74/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-22-74/coif). Kazuhiro Saito reports personal fees from Bayer, grants and personal fees from Eisai, grants and personal fees from Daiichi Sankyo, grants and personal fees from FUJIFILM Toyama Chemical, personal fees from Siemens, grants and personal fees from Nihon Medi-Physics, outside the submitted work. Yoichi Araki reports personal fees from Siemens. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The institutional ethics review board of Tokyo Medical University (No. T2020-0339) approved this retrospective case-control study and individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
