Sensitivity and specificity of amide proton transfer-weighted imaging for assessing programmed death-ligand 1 status in non-small cell lung cancer: a comparative study with intravoxel incoherent motion and ¹⁸F-FDG PET

Introduction

Non-small cell lung cancer (NSCLC) accounts for approximately 85% of all lung cancer cases, has a five-year survival rate of only 15%, and is considered the leading cause of cancer-related deaths globally (1,2). Programmed death-ligand 1 (PD-L1) is a transmembrane protein, and its engagement with programmed cell death protein 1 (PD-1) represents an essential immune checkpoint that has been proven to manipulate the immune response against cancer (3). Recent studies have shown that PD-L1 inhibitors exhibit a survival benefit compared to conventional standard therapy in patients with NSCLC (4-6). Currently, immunohistochemistry is a common method used for the clinical measurement of PD-L1; however, this procedure requires biopsied or surgical tissue specimens, which are correlated with the risk of morbidities and collected by invasive procedures (7). Therefore, it is important to find an alternative noninvasive method to measure PD-L1 status, especially in cases where immunohistochemistry has failed or no tissue is available (8).

2-[¹⁸F]-fluoro-2-deoxy-D-glucose positron emission tomography/computed tomography (¹⁸F-FDG PET/CT) has the ability to serve as a valuable predictive biomarker for the detection of genetic mutations (9). Several researchers have found a positive association between the maximum standardized uptake value (SUV_max) and PD-L1 expression in NSCLC (10,11). However, considering the inadequacy of CT in terms of reflecting only the morphological features of lesions, it is difficult for ¹⁸F-PET/CT to reflect the microscopic features of lesions from a perspective other than metabolic information. PET/magnetic resonance imaging (MRI) allows multimodal quantitative MRI sequences to be scanned in parallel with PET imaging, providing a more multidimensional reflection of lesion information. Diffusion-weighted imaging (DWI) is an MRI imaging sequence that can reflect the diffusion movement of water molecules in tissues (12). Previous studies have shown that the apparent diffusion coefficient (ADC), a quantitative parameter of DWI, was negatively correlated with PD-L1 expression in head and neck squamous cell carcinomas to some extent (13,14). Intravoxel incoherent motion (IVIM) is an extension of conventional DWI that can obtain both the water molecule diffusion and microperfusion information of a lesion in a single scan due to the introduction of multiple b-values (15). Amide proton transfer-weighted imaging (APTWI), known as the indigent version of molecular imaging, is a magnetic resonance (MR) imaging technology proposed by Zhou et al. that is based on the chemical exchange between amide protons and water protons and can achieve the noninvasive quantitative assessment of mobile protein and peptide concentrations in tissues without the use of contrast agents (16). Currently, although a small number of studies have separately explored the value of IVIM or APTWI in the noninvasive assessment of subtypes, cell proliferation, or epidermal growth factor receptor (EGFR) expression in lung cancer (17-20), to our knowledge, no report has applied IVIM or APTWI in the evaluation of PD-L1 expression status in NSCLC.

In the present study, we aimed to investigate the contributory value of ¹⁸F-FDG PET, DWI, IVIM, and APTWI-related parameters for the noninvasive prediction of PD-L1 expression status in NSCLC, offering an optional reference for the clinical management of these patients. We present the following article in accordance with the STARD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-22-189/rc).

Methods

Study participants

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This prospective study was complied with ethical committee standards and approved by the ethics committee of the Zhengzhou University People’s Hospital & Henan Provincial People’s Hospital (No. 2018067) and informed consent was taken from all individual participants. From December 2020 to January 2022, a series of 140 patients underwent chest multiparametric ¹⁸F-FDG PET/MRI due to suspected lung cancer on clinical examination or CT. The following patients were excluded: (I) patients with claustrophobia or other diseases that prevent them from completing all the sequences (n=5); (II) patients with inadequate DWI, IVIM or APTWI imaging quality for analysis due to severe artifacts (n=15); (III) participants who have received relevant treatment prior to scanning (n=7); (IV) patients with histological results that were not NSCLC (n=11); (V) patients who were not tested for PD-L1 expression (n=14); and (VI) patients with unclear histological results (n=12). Ultimately, 76 patients were enrolled in the present study (Figure 1).

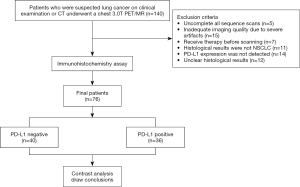

Figure 1 Flow diagram of the patient selection process. CT, computed tomography; PET, positron emission tomography; MR, magnetic resonance; NSCLC, non-small cell lung cancer; PD-L1, programmed death-ligand 1.

Image acquisition

A hybrid 3.0 T PET/MR system (uPMR 790, UIH, Shanghai, China) with a 12-channel phased-array body coil was used in this study. All patients were placed in the supine position with the head first and were scanned from the upper thoracic inlet to the lower lung margin, and a breathing strap was attached to the patient’s abdomen to monitor breathing. ¹⁸F-FDG was obtained by FracerLab FX-FDG (GE Minitrac, Chicago , USA) and had a pH of 4.5–8.5 and purity of >95%. All patients fasted for a minimum of 6 hours prior to the scan to ensure that their serum glucose levels were <6.5 mmol/L when injecting ¹⁸F-FDG (0.11 mCi/kg). The scan was initiated 60 minutes after injection of ¹⁸F-FDG. A 3D T1-weighted spoiled gradient-echo sequence with Dixon-based water-fat separation imaging (WFI) was used to do the MR-based attenuation correction (MRAC). During the MRAC processing, the corrected images were segmented into four classes: soft tissue, fat, lung, and air (21,22). Four categories of soft tissue, fat, lung and air are segmented in the MRAC processing of the corrected images. The time of PET acquisition was 27 min, and OSEM was used to reconstruct the PET images. The PET is reconstructed according to the following parameters: voxel size =2.6×2.6×2.0 mm³, number of iterations =2, subsets =20. In parallel with PET scanning, T1-weighted imaging (T1WI), T2-weighted imaging (T2WI), and DWI were performed first. Then, all slices containing lesions were selected from DWI images, and their positions, layer thickness, and layer spacing were copied to IVIM and APTWI for the corresponding scanning. Table 1 showed details of the protocol.

Data generation

All Data were transferred to the UIH Workstation (uWS-MR: R005) and analyzed by two nuclear medicine physicians (NM and FF, with 6 and 15 years of experience), independently. The metabolic parameters were postprocessed using fused PET/MRI software, where the volume of interest (VOI) was automatically extracted and a 40% SUV_max was applied as a threshold to calculate the total lesion glycolysis (TLG), metabolic tumor volume (MTV), and SUV_max (23). Postprocessing of MRI parameters was performed with specialized software in the advanced analysis toolkit. The parameter of DWI was generated using the following equation:

Sb/S0=exp(−b×ADC)[1]

where ADC is the apparent diffusion coefficient, b is the diffusion sensitizing factor, and S₀ and S_b are the signal intensities (SIs) under different b values (0 s/mm² and other values, respectively) (12). The IVIM parameters were drawn from the following formula:

Sb/S0=(1−f)×exp(−bD)+f×exp[−b×(D*+D)][2]

where D, D*, and f represent the true diffusion coefficient, pseudo diffusion coefficient, and perfusion fraction, respectively (15). The APTWI parameter was derived from the following equation:

MTRasym(3.5ppm)=[Ssat(−3.5ppm)−Ssat(+3.5ppm)]/S0[3]

where the magnetization transfer ratio was defined as 1 − S_sat/S₀, MTRasym (3.5 ppm) was the magnetization transfer ratio asymmetry at 3.5 ppm downfield from the water signal, and S_sat and S₀ represent the SIs obtained with and without selective saturation, respectively (16). Referring to the PET/MR fusion image, the region of interest (ROI) was manually delineated layer by layer along the medial side of the tumor margin on each axial T2WI image with tumor, avoiding areas of obvious necrosis. The software automatically copies all ROIs to each parameter map to calculate the average values based on the gross tumour volume (GTV).

PD-L1 expression

All sections were stained with the Dako PD-L1 22C3 pharmDx kit (Monoclonal mouse anti-human antibody, Clone 22C3, Dako North America, Inc., Carpinteria, CA, USA) using the Dako Autostainer Link 48 Platform (Dako), and the specific protocol of immunohistochemical staining for PD-L1 expression was carried out as previously described procedures (24). The tumor proportion score (TPS), which is the percentage of viable tumor cells showing membrane PD-L1 staining relative to all live tumor cells, was used to assess the level of PD-L1 expression, where TPS ≥1% was defined as PD-L1 positive (8). All histopathology analyses were performed by two experienced pathologists (QY. L and DJ. L, with 5 and 10 years of experience) who were blinded to the imaging findings and clinical information, and in the case of a disagreement, the two pathologists had a mutual discussion to reach a consensus.

Statistical analysis

Statistical analyses were performed with MedCalc (Version 15.0; MedCalc Software, Ostend, Belgium), R (Version 3.5.3; R Foundation, Auckland, Zealand), and SPSS (Version 23.0; IBM, New York, USA) software, and P<0.05 was considered statistically significant. Interobserver agreement was assessed by the intraclass correlation coefficient (ICC), where r≥0.75 was excellent agreement, 0.60≤r<0.75 was good agreement, 0.40≤r<0.60 was fair agreement, and r<0.40 was poor agreement (25). The Shapiro-Wilk test was applied to test the normality of the data, where normally distributed data (mean ± SD) were compared using the independent-sample t-test and non-normally distributed data (median and interquartile range) were compared using the Mann-Whitney U test. The area under the receiver operating characteristic (ROC) curve (AUC) was used to describe the diagnostic efficacy, and the differences were compared using the DeLong test. Parameters that were statistically significant (P<0.1) in the univariate logistic regression analysis were enrolled in the following multivariate analysis. Multivariate logistic regression models are used to determine the best combination of parameters. A control model was built by bootstrapping (1,000 samples), which we tested with multiple regressions and verified its performance with calibration curves, decision curve analysis (DCA), and ROC curves.

Results

Participants details

A total of 76 patients with 76 lesions were included in this study, including 42 males and 34 females, with a mean age of 64 years, ranging from 34 to 81 years, and with a mean lesion size of 14.14 cm³, ranging from 1.77 to 229.85 cm³. The details of participants are provided in Table 2 and Figure 2, respectively.

Figure 2 Multiparametric PET-MRI images and immunohistochemistry images of different patients. (A-H) A 74-year-old man with squamous cell carcinoma (white arrow, smoker, maximum diameter 36 mm, grade III, stage IVA, PD-L1 negative, and TPS =0%). (I-P) A 73-year-old man with adenocarcinoma (white arrow, smoker, maximum diameter 38 mm, grade III, stage IVA, PD-L1 positive, and TPS =95%). (A,I) Maps of T2WI; (B,J) pseudocolored maps of ADC; (C,K) pseudocolored maps of D; (D,L) pseudocolored maps of D*; (E,M) pseudocolored maps of f; (F,N) pseudocolored maps of MTRasym (3.5 ppm); (G,O) pseudocolored maps of ¹⁸F-FDG PET; and (H,P) immunohistochemistry maps of PD-L1 expression (×200). PET-MRI, positron emission tomography/magnetic resonance imaging; PD-L1, programmed cell death-ligand; TPS, tumor proportion score; T2WI, T2-weighted imaging; ADC, apparent diffusion coefficient; D, diffusion coefficient; D*, pseudo diffusion coefficient; f, perfusion fraction; MTRasym (3.5 ppm), magnetization transfer ratio asymmetry at 3.5 ppm; ¹⁸F-FDG, 2-[¹⁸F]-fluoro-2-deoxy-D-glucose.

Interobserver agreement

The ADC, D, D*, f, and MTRasym (3.5 ppm) measured by the 2 readers had an excellent interobserver agreement. The ICC were 0.918 (95% CI: 0.870–0.949), 0.892 (95% CI: 0.826–0.933), 0.841 (95% CI: 0.748–0.900), 0.894 (95% CI: 0.832–0.934), and 0.865 (95% CI: 0.786–0.915). Therefore, the 2 readers’ mean results of above parameters were applied for analyses.

Comparison of different groups

MTRasym (3.5 ppm), SUV_max, MTV, and TLG were higher and D and f were lower in PD-L1-positive NSCLC than in PD-L1-negative NSCLC (all P<0.05), and there was no significant difference in ADC and D* between the two groups (P=0.840, 0.529). Detailed comparisons of different parameters are shown in Table 3.

Regression analyses

Sex, age, maximum diameter, smoking status, subtype, stage, grade, and derived parameters were all enrolled in regression analyses. Univariate analysis showed that sex, maximum diameter, stage, grade, ADC, D, f, MTRasym (3.5 ppm), SUV_max, MTV, and TLG were predictors (all P<0.1), and multivariate analysis showed that only SUV_max, D, and MTRasym (3.5 ppm) were independent predictors (P=0.016, 0.007, and 0.004, respectively) (Table 4).

Diagnostic efficiency

The ROC analysis showed that SUV_max, MTV, TLG, D, f, and MTRasym (3.5 ppm) all had a positive effect on predicting PD-L1 expression in NSCLC, and the AUCs were 0.801, 0.741, 0.789, 0.743, 0.667, and 0.766, respectively (all P<0.05). The combination of independent predictors [SUV_max, D, and MTRasym (3.5 ppm)] had the strongest predictive potential (AUC =0.946; sensitivity, 86.11%; specificity, 92.50%; P<0.001), and the differences between AUC [SUV_max + D + MTRasym (3.5 ppm)] and AUC (SUV_max), AUC (MTV), AUC (TLG), AUC (D), AUC (f), and AUC [MTRasym (3.5 ppm)] were all significant (Z=3.372, 3.293, 2.996, 3.688, 4.626, and 3.517, respectively; P=0.001, 0.001, 0.003, <0.001, <0.001, and <0.001 (Table 5, Figure 3).

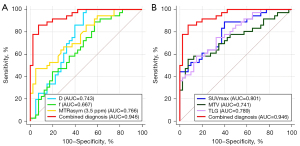

Figure 3 ROC curves of different parameters. (A) ROC curves of D, f, MTRasym (3.5 ppm), and the combination of independent predictors. (B) ROC curves of SUVmax, MTV, TLG, and the combination of independent predictors. D, diffusion coefficient; f, perfusion fraction; MTRasym (3.5 ppm), magnetization transfer ratio asymmetry at 3.5 ppm; AUC, the area under the ROC curve; ROC, receiver operating characteristic; SUVmax, maximum standardized uptake value; MTV, metabolic tumor volume; TLG, total lesion glycolysis.

Validation of model

In the control model based on bootstrapped samples, the combination of SUV_max, D, and MTRasym (3.5 ppm) also had the maximum predictive value. And in ROC analysis, the model had an AUC of 0.919 (95% CI: 0.891–0.937), the calibration curve indicated that the model had high consistency in predicting PD-L1 expression in NSCLC, and the DCA showed that the model could provide a high net benefit for relevant patients (Figure 4).

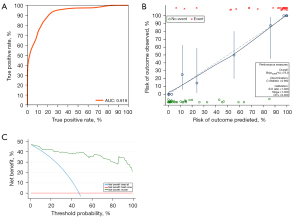

Figure 4 Different curves for predicting PD-L1 expression status in the validation model. (A) ROC curves, (B) calibration curves, and (C) decision curve analysis. AUC, the area under the ROC curve; E:O, expected value: forecast value; CITL, intercept distance; PD-L1, programmed cell death-ligand; ROC, receiver operating characteristic.

Discussion

As a nonspecific tracer, the uptake of ¹⁸F-FDG in tissues is closely related to glucose metabolism (Glut1) and hypoxia (HIF-1α) (11,26). Previous studies have found that NSCLC patients with higher levels of PD-L1 expression usually contain more Glut1 and HIF-1α, so the uptake of ¹⁸F-FDG is greater (11,25,26). In the present study, SUV_max, MTV, and TLG, three indicators used to reflect ¹⁸F-FDG accumulation, were significantly increased in PD-L1-positive NSCLC patients compared with PD-L1-negative NSCLC patients, which is consistent with the above findings and further corroborates the value of metabolic parameters in the noninvasive prediction of PD-L1 expression. However, in multivariate regression analysis, only SUV_max was an independent predictor of PD-L1 expression among the three parameters, and several studies also have shown that MTV and TLG are not useful in the assessment of PD-L1 expression (10,27). We speculate that this may be related to the spatial heterogeneity of PD-L1 expression within the tumor (14), which is difficult to accurately characterize by MTV and TLG, reflecting the overall metabolic burden of the lesion. In addition, the different thresholds selected for the calculation of MTV and TLG in different studies may also be one of the reasons for the controversial diagnostic reliability (23).

DWI is the most commonly used quantitative MRI sequence in clinical practice, and the magnitude of its parameter ADC reflects the degree of the restricted diffusion movement of water molecules in tissues (12). There is increasing evidence that different ADC values can not only reflect the tumor microstructure but also predict the expression of biological indicators such as Ki-67, EGFR mutation, and Bcl-2 (14,28). In terms of the prediction of PD-L1 expression, to the best of our knowledge, only a few studies have conducted relevant explorations in head and neck squamous cell carcinomas, and the results showed that there was a weak negative correlation between ADC and PD-L1 expression due to the relatively active metabolism and proliferation of PD-L1-positive cells (13,14). However, the differences in ADC values between the PD-L1-positive and PD-L1-negative groups of NSCLC in this study were not statistically significant, and we speculate that, in addition to differences in tumor types, the rich microcirculatory perfusion of lung cancer may have contributed to this result. Unlike ADC, D in this research was not only able to discriminate between the PD-L1-positive and PD-L1-negative groups of NSCLC but was also one of its independent predictors. This may be because D removes the bias caused by microcirculatory perfusion and thus has the ability to more accurately reflect the diffusion movement of water molecules, providing a better differential diagnosis and higher specificity (15). Yuan et al. compared the values of ADC and D in assessing EGFR expression in lung adenocarcinoma and showed that the latter had higher diagnostic efficacy than the former (20). This result supports the above inference to some extent, suggesting that information on the diffusion of water molecules, which is not affected by microperfusion, may more accurately reflect the relevant microenvironmental changes in lung cancer.

Blood perfusion information can also reflect PD-L1 expression to some extent. Meyer et al. and Tekiki et al. used dynamic contrast-enhanced MRI for the evaluation of head and neck and oral squamous cell carcinomas, respectively, and the results showed that with the increase in PD-L1 expression, the blood perfusion level showed an increasing trend (29,30). The f value is one of the parameters used by IVIM to reflect microcirculatory perfusion, whose magnitude is mainly related to the density of microvessels within the target area (15,31). Kang et al. showed that pancreatic cancers with a lack of blood supply had significantly lower f values than normal pancreatic tissue (32), and Shi et al. also found a significant decrease in the f value with the application of antiangiogenic factors in NSCLC (33). However, more studies related to lung tumors have shown the opposite result; that is, lung lesions with higher malignancy and a richer blood supply tend to have lower f values instead (31,34), which is generally consistent with the results of the present study. One possible explanation is that the presence of T2 contribution and relaxation effects have an effect on the f value (35). In addition, the complex luminal structure of the lung may also influence the f value to some extent, but this still needs further investigation (31). D* is another perfusion-related parameter of IVIM that is mainly related to blood flow velocity (15). Currently, most studies have found that the reproducibility of D* measurement is poor due to pulsation artifacts from the heart or great vessels, so it is difficult to assess pulmonary lesions effectively (31,34). In this study, there was no significant difference in D* between the PD-L1-negative and PD-L1-positive NSCLC groups, which is generally consistent with the above findings, indicating that the value of D* still needs to be further explored. In addition, some recent studies have suggested that the existing IVIM technique still has limitations in separating perfusion and diffusion component and that this limitation cannot be addressed by high signal-to-noise images, or by an extensive array of b-value images, which may also contribute to the above results (36-38).

As a relatively novel MRI molecular imaging method, APTWI presents semiquantitative amide proton maps describing the heterogeneous metabolism of mobile proteins and peptides that can reflect the histopathological and genetic changes in tumors (16,17,39). Previous work has shown that higher APTWI signals indicate a high level of mobile protein and peptide metabolism, which was associated with more active cell proliferation, more microscopic necrosis (40), greater microvascular density (41), and an appropriate pH level (42). In the present investigation, compared to NSCLC patients who were PD-L1 negative, NSCLC patients who were PD-L1 positive had higher MTRasym (3.5 ppm) values, most likely due to active tumor cell proliferation (13,14), more necrosis (10), and higher microvascular density (29,30).

A control model with 1,000 bootstrapped samples was built to check the reliability of the multi-factor model, which means that 1,000 samples were randomly selected at the original data and one was chosen as the data result of the control model (43). This was repeated 70 times (the number of patients in the original model), resulting in a control model. The control model yielded the same findings [the combination of SUV_max, MTRasym (3.5 ppm), and D] with good accuracy (AUC =0.919) and consistency.

Several limitations of this research should be taken into account. First, this was a single-center study, and the sample size was relatively small, which may have contributed to selection bias. Second, the expression level of PD-L1 may vary depending on the PD-L1 antibody clone (44), and in this study, only a single antibody was used for the immunohistochemistry of PD-L1, which may have some influence on the experimental results. Third, respiratory motion and cardiac and macrovascular pulsations are evident in the chest, and despite the use of respiratory navigation techniques in this study, the display of the lesion was still affected by the cardiac and macrovascular pulsations artifacts, which may cause inaccuracies in some of the MRI-related parameters, especially IVIM and APTWI. Finally, The APTWI sequence used in this study is two-dimensional, and although we copy the position, layer thickness, and layer spacing of the previous sequence layer by layer during the scanning process, this may still introduce errors. Currently, 3D scanning of APTWI has been reported (45), and in the future, we will refine the related technology and conduct further research.

In conclusion, multiparametric ¹⁸F-FDG PET/MRI is beneficial for the noninvasive assessment of PD-L1 expression status in NSCLC patients, and the combination of SUV_max, D, and MTRasym (3.5 ppm) may serve as a prognostic biomarker to guide immunotherapy.
