Unsupervised computed tomography and cone-beam computed tomography image registration using a dual attention network

Introduction

In clinical practice, physicists usually make treatment plans based on computed tomography (CT) images, and then verify patient positions in the treatment room based on cone-beam computed tomography (CBCT) images. Due to positioning errors and anatomy changes, there are certain offsets between the real position and the planned position of target in treatment room. Therefore, registration between CT and CBCT images is important that it can provide the offset of treatment site when patient is on the treatment couch, which is crucial for the success of modern radiotherapy.

Traditional registration methods usually employed iterative optimization algorithms to search for the best displacement vector (1). These include elastic models (2,3), deformable registration via attribute matching and mutual-saliency weighting (DRAMMS) (4), statistical parametric mapping (SPM) (5), Demons algorithm (6), standard symmetric normalization (SyN) (2,7), large diffeomorphic distance metric mapping (LDDMM) (8), diffeomorphic registration using B-splines (9). These algorithms are mostly time-consuming due to the large amount of iterations in data manipulation.

Recently several deep-learning-based deformable image registration methods were proposed (10). They roughly fall into three categories, i.e., supervised registration, semi-supervised registration, and unsupervised registration. Supervised registration requires the deformation field generated by traditional algorithms as a teaching signal (11-13), or the images transformed by the deformation field as training samples (14). The semi-supervised registration method deals with the problem of the insufficient number of medical image labels and uses part of the data as the supervising information (15). In order to make the best use of the unlabeled image data, several unsupervised registration networks have been proposed. In (16), a method based on Generative Adversarial Network (GAN) is developed, which replace the similarity function with a discriminator. Compared with GAN, U-Net-like architecture is easier to converge with fewer data. For example, VoxelMorph (17) and VTN (18) have achieved excellent results in medical image registration. These unsupervised registration networks are similar to U-Net. However, due to the inherent locality of convolutional operations, the architecture of convolutional networks is often limited in modeling explicit long-range spatial relationships present in images (19).

Although U-Net-like frameworks overcome this limitation, the influence from distant voxels decays rapidly as the number of convolutional layers deepens (20). There is a large voxel difference between CT and CBCT, so we expect the convolutional network to see long-range relationships between voxels in the two images. Therefore, some researchers hope to improve this problem through attention mechanism. For multi-modal image registration tasks, the required accuracy is hardly met due to the large variation of image intensity. Therefore, several researchers introduced the attention mechanism to assist convolution in the cross-modal registration problem. The cross-attention mechanism was used to realize the information exchange between multi-modal images (21,22). The convolutional block attention module (CBAM) was integrated into VTN (23). The spatial attention was introduced to further enhance the prominent areas of the feature map (24). And the binary spatial attention module (BSAM) was introduced to the spatial information extraction in the jump connection (25). Compared with the conventional deep learning network, the network with attention mechanism achieved better results.

In this study, an unsupervised dual attention network (UDAN) is proposed for CT-CBCT image registration. The U-Net-like encoder and decoder are used to extract and fuse features. Besides, a dual attention module (DAM) is placed between the encoder and decoder. DAM mainly consists of two parts: a scale-aware position attention block (SP-BLOCK) and a scale-aware channel attention block (SC-BLOCK). Dilated convolution and residual structure are first used to obtain multi-scale position and multi-scale channel features, respectively. Then these features are weighted using a non-linear combination to weaken the influence of intensity differences between the two image modalities.

This paper is organized as follows. In section Methods, details of the proposed unsupervised dual attention registration network are introduced. In section Results, performance of our method and the other six methods, i.e., ANTs (7), ELASTIX (26), B-spline (9), VTN (18), VoxelMorph (17), and CycleMorph (27) are summarized. In addition, the ablation studies of the proposed method are also reported. In section Discussion, the advantages and disadvantages of the proposed method are discussed. We present the following article in accordance with the MDAR checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-21-1194/rc).

Methods

The overall network structure is shown in Figure 1. First, the CT and CBCT images are passed to the encoder, DAM, and decoder. Then, the deformation field is generated and the input CT image is warped using the spatial transformation function. Next, the similarity between the transformed CT image and the CBCT image is calculated as the loss function. Finally, the similarity and regularization terms of the deformation field are back-propagated to update the network parameters.

Figure 1 Overview of the registration network. DAM, dual attention module; SP-BLOCK, scale-aware position attention block; SC-BLOCK, scale-aware channel attention block; g(·), the network for computing the deformation field ∅, including Encoder and Decoder.

Assuming there are a moving image I_M and a fixed image I_F. In a d-dimensional space Ω, the goal of deformable image registration is to find optimal parameters ϕ to align I_M and I_F. For I_M and I_F, ϕ can be obtained via a network g(·),

ϕ=g(IM,IF)[1]

As shown in Figure 1, the input of the network is the concatenation of I_M and I_F, the output of network is the deformation field ϕ in dimension of 3×48×512×512. In the encoder, six consecutive convolution layers with kernels size of 3×3 are used to extract different levels of information, and an activation function ReLU is used after each convolutional layer. The dimension of the encoder output is 512×3×32×32. Then these outputs are sent to DAM for attention calculation. In the decoder, the convolution layer with kernels size of 3×3 followed by ReLU is used again to process feature mapping. The feature maps of each layer of the encoder are spliced into the feature maps of the symmetrical layer in the encoder.

Dual attention module

DAM is introduced to adaptively utilize images’ high-dimensional features with different scales. To better integrate the features obtained by DAM and improve efficiency, DAM is placed between the encoder and the decoder. DAM consists of two parts, SP-BLOCK and SC-BLOCK. A detailed introduction of these two parts is given below.

SP-BLOCK

The SP-BLOCK enhances the correlation of similar features by weighting and aggregating multi-scale features at different positions. The structural details of SP-BLOCK are shown in Figure 2. Given a feature map P∈ℝ(C,X,Y,Z), inspired by the success of the residual structure (28), three discriminative consecutive residual blocks are used to obtain P^a, P^band P^c with multi-scale position information. The sizes of C, X, Y, and Z are 512, 3, 32, and 32, respectively. Moreover, in addition to the necessary layer jump connections in each residual block, dilated convolution (29) with different dilation rates is added. The dilation rates in the three-layer residual blocks are 1, 2 and 3, respectively. This structure can expand the receptive field without introducing additional parameters, obtain information of different scales, and enhance the network’s ability to perceive different scales. Then P^a, P^b and P^c are reshaped to (C,X×Y×Z). Given P^a and P^b, a position attention map, S∈ℝ(X×Y×Z,X×Y×Z), is obtained via a Softmax operation,

sji=exp(Pia⋅Pjb)∑i=1X×Y×Zexp(Pia⋅Pjb)[2]

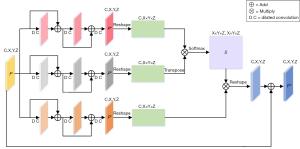

Figure 2 The detailed architecture of SP-BLOCK. DC, dilated convolution; SP-BLOCK, scale-aware position attention block.

where s_jimeasures the correlation from i^th position to j^th position. Next, the matrix product of P^c and S is made, and reshape the result to (C,X,Y,Z). Finally, the output of SP-BLOCK is obtained,

PjP=α∑i=1X×Y×Z(SjiPiC)+Pj[3]

where α is a scale parameter. It is initially set to 0 and gradually increased. As shown in Eq. [3], for each position, a weighted sum of the features from all positions, i.e., the multi-scale global context, is selectively integrated into the multi-scale features.

SC-BLOCK

The SC-BLOCK acquires multi-scale channel features, then weights these channel features to selectively enhance the correlation between different channels. The structural details of SC-BLOCK are shown in Figure 3. Unlike the SP-BLOCK, the consecutive residual block is executed only once for P because the channel attention took the dependence between channels into account. We denote the output of the consecutive residual block as P^d, which is reshaped into (C,X×Y×X). The channel attention map C∈ℝ(C,C) is obtained by performing matrix multiplication between P^d and the transpose of P^d,

Cji=exp(Pid⋅Pjd)∑i=1Cexp(Pid⋅Pjd)[4]

Figure 3 The detailed architecture of SC-BLOCK. DC, dilated convolution; SC-BLOCK, scale-aware channel attention block.

where c_ji measures the correlation from i^th channel to j^th channel. After that, the matrix product of the transformed P^d and C is obtained in the dimension of (C,X×Y×X). Finally, the output of SC-BLOCK is calculated,

PjC=β∑i=1C(cjiPid)+Pj[5]

where β is a scale parameter. Eq. [5] shows that each channel’s features are the weighted sum of the global channel features and the original input of the multi-scale features. It allows the network to integrate the features of different channels with consideration of the structural relationship among channels.

Spatial transformation function

The spatial transformation function is used to warp I_M to ϕ(I_M) (30), which allows the evaluation of the similarity between ϕ(I_M) and I_F. Denoting the voxel of I_M as p, the voxel ϕ(p) after transformation can be achieved. Since image values are only defined at integer positions, linear interpolation is performed based on eight neighboring voxels:

ϕ(IM(p))=∑q∈N(ϕ(p))IM(p)∏d∈{x,y,z}(1−|ϕd(p)−qd|)[6]

where N(ϕ(p)) represent the neighbors of ϕ(p).

Loss function

The loss function consists of two parts: L_sim, which penalizes the difference between a fixed image and a moving image after the deformation field, and L_smooth, which penalizes the local spatial variation of the deformation field. L_simis the normalized cross-correlation (NCC) (17), and its definition is:

Lsim=ρ(IF,ϕ(IM))=∑Ω∈V(∑Ω∈V(IF−I∧F)(ϕ(IM)−ϕ(I∧M)))2(∑Ω∈V(IF−I∧F))(∑Ω∈V(ϕ(IM)−ϕ(I∧M)))[7]

where I∧F and I∧M are normalized images with mean intensities removed, and ϕ(I_M) is the image transformed by the deformation field. The regularization term is used to punish the excessive deformation and the unsmooth deformation field, the definition is:

Lsmooth=∑Ω∈V‖∇ϕ‖2[8]

The overall loss function is:

Lall=−Lsim+λLsmooth[9]

where λ represents the regularization term coefficient.

Ethical statement

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by the Institutional Ethics Committee of The Affiliated Cancer Hospital of Zhengzhou University, Henan Cancer Hospital. And the informed consent was waived in this retrospective study.

Experiments data

The 4D-lung dataset was used for the test (31,32). This data set includes four-dimensional fan beam CT (4D-FBCT) and cone-beam CT (4D-CBCT), which were obtained during chemotherapy of 20 patients with locally advanced non-small-cell lung cancer during radiotherapy. The planned CT image was obtained using a 16-slice spiral CT scanner (Brilliance Big Bore, Philips Medical Systems), with a slice thickness of 3 mm and an axial resolution of 512×512 (in-plane spacing approximately 1 mm). The CBCT image was obtained on a commercial CBCT system (On-Board Imager^TM, Varian Medical Systems, Inc.), and the size was 512×512×50. Two operations were performed before CT and CBCT image registration:

• Pair the data. All images were resampled to the same pixel spacing and slice thickness. The slice thickness was 2.34 mm and pixel spacing was 1.16 mm. The field of view (FOV) of the CT irradiation area was larger than that of CBCT, the FOV of CT was cropped to match the FOV of CBCT.
• Align the data (18). The lung in both CT and CBCT images were aligned. Rigid registration was performed using ANTs (7) to reduce the excessive deformation.

Experiment settings

To evaluate the effectiveness of UDAN, two experiments were performed (The code of the network structure and the pre-trained model can be found in https://github.com/Eric-Hu88/UDAN). The first experiment was to compare our method with three traditional widely-used deformable registration algorithms [ANTs (7), ELASTIX (26), B-Spline non-rigid registration (9)], and three deep-learning-base deformable registration algorithms [VoxelMorph (17), VTN (18) and CycleMorph (27)]. In the second experiment, the effectiveness of SC-BLOCK and SP-BLOCK was investigated by six variants of UDAN:

• Baseline: UDAN’s backbone network without dual attention module;
• Baseline with P-BLOCK: UDAN’s backbone network with position attention block (P-BLOCK) (33);
• Baseline with C-BLOCK: UDAN’s backbone network with channel attention block (C-BLOCK) (33);
• Baseline with SP-BLOCK: UDAN’s backbone network with SP-BLOCK;
• Baseline with SC-BLOCK: UDAN’s backbone network with SC-BLOCK;
• UDAN: The proposed registration network.

P-BLOCK and C-BLOCK were simplified versions of SP-BLOCK and SC-BLOCK that did not use dilated convolution and residual structure.

Implementation details

CT and CBCT images of total 20 patients were used. Due to the limited number of patients in the dataset, directly using a portion of the data as a validation set will reduce the generalization of the model. In the process of cross-validation, 50% patients were used for training and 25% patients were used for validation to tune hyper-parameters, 50% of patients for training and 25% of patients for validation were synthesized into the final training set, then trained the model by the proposed network with pre-tuned hyper-parameters and the remaining 25% of patients were used for testing. The total amount of data was 86 pairs of CT and CBCT images. The number of slices per one set of CT and CBCT images was 48. The network was trained for 1,000 epochs. ADAM optimizer with the initial learning rate of 4×10⁻⁴ was used and multiplied by 0.5 after 400 epochs. Regularization parameter λ was set to 0.9. The networks were trained and tested on a computer cluster equipped with NVIDIA Tesla V100 GPU with 32 GB of memory.

Evaluation metric

Following previous study (17,18), five metrics, dice similarity coefficient (DICE), target registration error (TRE), structural similarity index (SSIM), TIME, and negative Jacobian percentage were used to evaluate the registration performance. They are:

• Dice similarity coefficient (DICE): experienced radiologists manually delineated the position of tumor in the data and calculated the DICE coefficient of the tumor before and after registration.
• Target registration error (TRE) of anatomical: for each pair of CT and CBCT data, a professional radiologist manually marked around 23 significant anatomical landmarks, which were distributed throughout the lungs.
• Structural similarity index (SSIM): the structural similarity between the registered image and the fixed image.
• TIME: the time spent on registering a pair of CT and CBCT images.
• Negative Jacobian percentage |J_ϕ|≤0(%): in the deformation field generated by the network, areas with negative Jacobian determinants were considered folding, and the percentage of the area to the whole was the negative Jacobian percentage (34).

Results

Table 1 showed the results of performance comparison between our method and the six existing methods. Our method achieved 2.07 mm on TRE, 86.34% on SSIM, and 89.74% on DICE. Compared to the six existing methods, our method obtained the best performance on four metrics. Figure 4A showed the visual comparison between our method and the six existing methods, red regions indicated the warped tumor labels in CBCT after registration, it can be seen that the proposed UDAN yields the tumor label that was closer to the CT tumor label. The checkerboard overlaps between the CT image and the CBCT image were provided in Figure 4B. Apparently, the proposed UDAN reduced the dislocation of organ boundaries and bone structure compared to the other six existing methods. Also, the registered image pairs were fused and presented in Figure 4C. The R channel was the CT image and presented in red color, while the B channel was the deformed CBCT image and presented in blue color. When the two images match perfectly, a purple image was displayed. In the example shown in Figure 4C, the results of ANTs (7), Elastix (26), and B-splines (9) displayed several red or blue areas. Compared with traditional algorithms, the VoxelMorph (17), VTN (18), and CycleMorph (27) algorithms based on deep learning achieved excellent results. However, our method was more competitive for the details of the parts where artifacts exist. CycleMorph maintained a low percentage of negative Jacobian using cyclic consistency, but did not show better performance in the other metrics. Paired t-tests indicated that the decrease of TRE, the increases of DICE and SSIM in our method were statistically significant (P<0.05) compared to those of the other methods tested. Although the B-Spline algorithm achieved the lowest negative Jacobian percentage, it was worse in the other metrics.

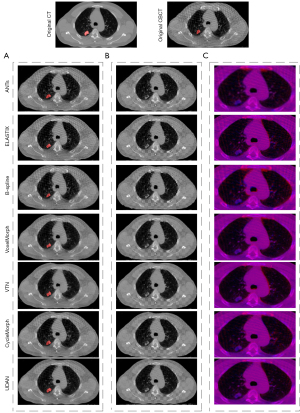

Figure 4 The comparison of registration results between our method and the other mainstream methods. (A) The registered images, where the red area is the CBCT tumor segmentation label deformed by the deformation field; (B) the checkerboard display of registered images; (C) the red and blue channel overlay of the registered images, zoomed in on the lungs and parts of the surrounding area. CT, computed tomography; CBCT, cone-beam computed tomography.

The effect of several important elements in our framework was investigated through a set of ablation experiments. Table 2 listed the results of the comparison between the proposed method and its five variants. The best scores were shown in boldface. When using the proposed UDAN, TRE, SSIM, and DICE reached the highest level. TIME increased but was close to the average. As shown in Figure 5, with the application of the DAM, the dislocation of organ boundaries and bone structure was reduced in Figure 5B, and red and blue areas were less in Figure 5C. In addition, we also performed paired t-tests for different variants. The results showed that when the complete DAM module was added to the baseline network, the TRE, DICE, and SSIM indicators achieved the best results with statistical significance. The negative Jacobiavn percentage indicator was not the best, but its value was second to the best.

Figure 5 The comparison of registration results among UDAN variants. (A) The registered images; (B) the checkerboard display of registered images; (C) the red and blue channel overlay of the registered images, zoomed in on the lungs and parts of the surrounding area. CT, computed tomography; CBCT, cone-beam computed tomography; UDAN, unsupervised dual attention network.

Discussion

In this paper, we have proposed an unsupervised registration network with a dual attention module. Compared with the other six existing methods, the slice junction of our method was relatively smooth, and there were fewer dislocation boundaries. While presented in the overlay of the red and blue channels, the proposed method displayed more purple areas than the other six existing methods. In summary, our method provided high accuracy in registering CT and CBCT images in the tested cases.

With the introduction of SC-BLOCK and SP-BLOCK, the registration accuracy is improved apparently. SP-BLOCK and SC-BLOCK are the enhanced versions of P-BLOCK and C-BLOCK that use dilated convolution and residual structure. By using dilated convolutions with different dilation rates, the high-dimension feature receptive field is gradually increased and the search space of feature matching is reduced. This can effectively alleviate the problem of inaccurate feature matching caused by the different voxel intensities between CT and CBCT images. When all blocks are added to the network, the registration accuracy reaches the best value.

High-dimension features usually contain rich detailed information. For the complex high-dimension features, DAM is effective to process them. DAM not only takes both low-dimension features and high-dimension detailed information into account but also processes the semantic information of the high-level features while maintaining the integrity of the low-level location information. DAM weights features in different levels which makes them adaptively match the corresponding structural information in fixed and moving images.

There are certain problems in the current study. One is the limited data used for training. In future work, we plan to take advantage of unsupervised registration and make more use of unlabeled clinical data. Another problem is that the output could be affected considerably by the quality of CBCT images. The registration accuracy of the proposed model with high-quality CBCT images is better than that with low-quality CBCT images. We plan to improve the quality of CBCT images by preprocessing them while preserving the anatomical structure of CBCT. Enhancing the image quality of CBCT might be a feasible way to obtain higher registration accuracy.

The proposed method is not limited to the CT and CBCT medical image registration. It would be applied in other clinical registration tasks, such as 4DCT registration with automatically detected landmarks. Also, it would be beneficial to compare our proposed method with the advanced deep-learning based methods proposed in the other medical image processing fields (35). In the future, comparing the proposed method with various advanced registration methods and testing it in other clinical scenarios will be our next work.

Conclusions

An unsupervised CT-CBCT medical image registration model for CT and CBCT images is developed and evaluated based on publicly available data. The proposed method shows an apparent advantage over the existing methods. The introduction of SP-BLOCK and SC-BLOCK in the DAM can enhance the capability of capturing high-level semantic information and low-level spatial information in CT and CBCT image pairs. It provides an effective way to accelerate the automated image registration between CT and CBCT images in routine clinics.
