Using air cholangiography to reduce postendoscopic retrograde cholangiopancreatography cholangitis in patients with malignant hilar obstruction

Introduction

Perihilar cholangiocarcinoma (PHC) is an uncommon malignancy with a poor prognosis that accounts for more than 60% of bile duct carcinomas (1-3). Although doubt still exists around the effectiveness of preoperative biliary drainage in patients with malignant biliary obstruction, it has been shown that preoperative drainage reduces jaundice and bacterial translocation, improves liver function and nutritional status, and enhances the ability of the liver to regenerate postoperatively (4). Despite controversy concerning the 2 primary drainage approaches, which include endoscopic retrograde cholangiopancreatography (ERCP) and percutaneous transhepatic biliary drainage (PTBD), studies have concluded that ERCP is more suitable than is PTBD in terms of compliance among perihilar tumor patients (5-7). In the case of inoperable hilar biliary obstruction, ERCP is one of the major palliative methods for treating obstructive jaundice or cholangitis. Biliary drainage not only relieves jaundice and associated pruritus but improves related symptoms such as anorexia, diarrhea, and disturbed sleeping patterns. It can also enhance a patient’s quality of life (1,8).

In this study, we found post-ERCP cholangitis to be a major problem for hilar biliary obstruction patients. It has been reported that early cholangitis increases when both lobes are opacified using contrast (diluted iodine contrast agent), but only if 1 is drained (9). The present study performed both air contrast cholangiography (ACC) and the more established iodine contrast cholangiography (ICC) to reduce post-ERCP cholangitis. We present the following article in accordance with the Strengthening the Reporting of Observational Studies in Epidemiology (STROBE) reporting checklist (available at https://dx.doi.org/10.21037/qims-21-462).

Methods

Study design

This retrospective study was performed at a tertiary university hospital that treats more than 1,500 cases of ERCP annually. In the past, conventional cholangiography had been performed using an iodine contrast, but starting in 2015, we began using air as a contrast for performing cholangiography for hilar structures. The technical and clinical characteristics between ACC and ICC were assessed, and the endoscopic data and clinical presentation of patients who underwent endoscopic biliary drainage of hilar structures were collected.

Patients

This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). It was approved by the Ethics Committee of Nanjing Drum Tower Hospital of the Nanjing University Medical School (Nanjing, China). Written informed consent for inclusion in the study was obtained from each patient prior to undergoing ERCP.

Our study screened for patients who, from January 2012 to December 2018, had been diagnosed with hilar structures including PHC, gallbladder carcinoma, hepatic cancer, and metastatic tumors. Patients who underwent preoperative or palliative ERCP drainage were enrolled. Patients who underwent PTBD or received self-expandable metallic stent (SEMS) placement as an initial drainage procedure were excluded as were patients who received emergency ERCP.

The ERCP procedure

All ERCP procedures were carried out by 6 experienced endoscopists who had cumulatively performed more than 1,000 ERCPs in the past. Preprocedure, computed tomography, and magnetic resonance cholangiopancreatography (MRCP) specifics were obtained for all the included patients and were used to confirm the diagnosis and grade of hilar block. This information was also used to preselect the intended lobe or segment for drainage (based on the liver volume being drained and ductal dilatation). Prophylactic intravenous antibiotics (third generation cephalosporins) were initiated 1 hour before the procedure and continued for 3 days. The ERCP was performed using the standard procedure noted in our previous paper (10). After bile duct cannulation had been successfully performed, a hydrophilic guidewire (Radifocus Guide Wire M, RF-GA35263M, TERUMO, Japan) was advanced through the malignant stenosis into the preselected intrahepatic dilated duct based on MRCP under fluoroscopic guidance. A papillotome was then passed over the guidewire across the stenosis until bile was aspirated (minimum 5–10 mL) to confirm the position and to decrease the intraductal pressure. ACC was then performed by injecting 10 to 15 mL of air, and the opacified ductal system was compared with the segment intended for drainage using MRCP images. If the guidewire failed to pass through the structure into the dilated duct, iodine contrast was injected to obtain a roadmap (these patients were then enrolled into the ICC group). A cytology brush (Cytomax II, Cook Medical LLC, Bloomington, IN, USA) was then used for cytopathologic examination. After the targeted bile duct was cannulated, an endoscopic nasobiliary drainage (ENBD) tube (with or without plastic stent) was placed in the bile duct. The stents used were 7- and 8.5-Fr biliary plastic stents, and the drainage tube was a 7-Fr ENBD tube. In our institution, we prefer a unilateral ENBD to the future lobe as an initial preoperative drainage procedure with hilar cholangiocarcinoma (Figure 1), a method that is accepted in Japan (7,11). For palliative treatment, a plastic stent (with or without ENBD) was implanted in the dilated bile duct (Figure 2).

Figure 1 Single ENBD preoperative drainage for PHC. This patient, a 66-year-old male, had Bismuth type IIIa strictures caused by hilar cholangiocarcinoma. His initial serum bilirubin level increased to 12.2 mg/dL. One 7-Fr ENBD catheter was inserted into the left lateral bile duct (future remnant lobe), and the externally drained bile was replaced by a nasointestinal tube. His serum bilirubin level decreased to 2.0 mg/dL at 42 days post-ENBD, and he had undergone segments 1, 5–8 hepatectomy. (A) Axial computed tomography with contrast shows the mass in the right liver. (B) Coronal computed tomography shows dilated left bile duct. (C) Cholangiography contrast in the common bile duct shows the distal part of the structure. (D) Air cholangiography of the left intrahepatic duct. (D) ENBD drainage for left intrahepatic duct. (E) ENBD drainage for left intrahepatic duct. ENBD, endoscopic nasobiliary drainage; PHC, perihilar cholangiocarcinoma.

Figure 2 Palliative drainage for perihilar cholangiocarcinoma (Bismuth type IV). (A) Air cholangiogram of the right and left intrahepatic duct. (B) Plastic stents were inserted into the right and left intrahepatic duct.

Patient follow-up

After completing the ERCP procedure, patients were admitted to a ward for at least 1 week. Their symptoms, physical signs, amylase, full blood picture, and blood biochemistry were recorded. The candidates for curative surgery were admitted until their surgery date. For palliative drainage, if the total bilirubin level decreased more than 20%, the ENBD was removed or another ERCP was performed to replace the ENBD catheter with a plastic stent. After being discharged, patients were followed up in the hospital’s outpatient clinic after 1 month. If the patient presented with cholangitis, additional ERCP or PTBD was performed if necessary. Considering cholangitis is directly related to the ERCP operation due to poor retention and drainage of the intrahepatic bile duct with the contrast agent (bacteria introduced), we only conducted a 1-month follow-up.

Definitions

Cholangitis is considered to be present in patients who present with the onset of fever (a temperature higher than 38 °C) and elevated total bilirubin, with or without septic shock syndromes (e.g., hypotension and tachycardia). The diagnostic criteria and severity classification criteria of the Tokyo Cholangitis Guidelines are not applicable to the diagnosis and classification of postoperative cholangitis. Post-ERCP pancreatitis (PEP) and post-ERCP bleeding and perforation were defined by consensus criteria as noted in our previous studies (10,12).

Outcomes

The primary end point was cholangitis in the ACC and ICC groups. Secondary end point included the success rate of ERCP and its related complications.

Statistical analysis

In our study, quantitative variables are described as mean ± standard deviation (SD), and a Student’s t-test and Mann-Whitney U test were used if the variables did not conform to normal distribution. Qualitative variables are presented as numbers and were compared by Pearson’s chi-square test. All tests were two-tailed, and P values smaller than 0.05 were considered statistically significant. All statistical analyses were performed using SPSS Statistics 23 software (IBM Corporation, Armonk, NY, USA).

Results

Patients

During the study period, 141 patients were admitted for biliary evaluation and drainage. Among them, 130 were diagnosed with PHC. Sixty-one patients were excluded for the following reasons: initial PTBD (n=48), placement of metal stent (n=3), emergency ERCP (n=3), and previous drainage (n=7). Two ERCP procedures were unsuccessful due to the failure of selective cannulation of the future remnant lobe and were converted to PTBD. Subsequently, a total of 80 patients were included in this study, 35 of whom received ACC, and 45 who received ICC (Figure 3). Prior to 2015, 27 procedures were performed, 3 of which included cholangiography with ACC and 24 with ICC. After 2015, 53 procedures were performed, 32 with ACC and 21 with ICC. Among the 80 patients, 45 were scheduled for preoperative drainage and the remaining 35 were scheduled for palliative drainage.

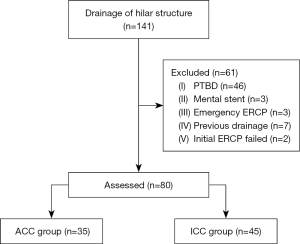

Figure 3 Flow diagram. PTBD, percutaneous transhepatic biliary drainage; ACC, air contrast cholangiography; ICC, iodine contrast cholangiography.

The demographic parameters and purpose for ERCP did not significantly differ between the 2 groups (Table 1). Of the 35 patients in the ACC group, 1 (2.9%) was diagnosed with Bismuth-Corlette (B-C) type I, and 8 (22.9%), 14 (40.0%), and 12 (34.3%) were diagnosed with B-C type II, III, and IV, respectively. The tumors in the ICC group were classified as B-C type I (n=0), II (n=7), III (n=20), and IV (n=18). There were no significant differences between the ACC and ICC groups (Table 1). The initial serum total bilirubin level in the ACC group was 12.4±7.3 mg/dL, which was comparable to the findings for the ICC group (P>0.05).

Technical characteristics

Table 2 shows the technical characteristics of the ACC and ICC groups. There were no differences between the 2 groups in terms of the number of patients who underwent endoscopic sphincterotomy (EPT), ENBD, and endoscopic biliary stenting (EBS); or in the remaining technical characteristics.

Outcomes and adverse events

Two patients (1 in the ACC group and 1 in the ICC group) did not complete a follow-up after being discharged. One patient in the ICC group, who obtained a plastic stent for palliative drainage, died 2 weeks post-ERCP (initial total bilirubin level 50.5 mg/dL). Table 3 shows the total bilirubin level improvement and the incidence rate of overall complications in the 2 groups, including PEP, cholangitis, hemorrhage, and perforation. In total, 19 patients (23.8%) presented with cholangitis following the ERCP procedure (4 ACC, 15 ICC; 11.4% vs. 33.3%; P=0.03). One patient in the ICC group, who obtained a plastic stent for palliative drainage, was diagnosed cholangitis and died 2 weeks post-ERCP (initial total bilirubin level 50.5 mg/dL). Among the other 18 patients with cholangitis, 8 (1 ACC, 7 ICC) were treated with additional ERCP or PTBD, while the remaining 10 only received antibiotics. For the 8 patients who received additional ERCP or PTDB, the location was the other intrahepatic bile duct (4 cases, including the 1 ACC), the other segment (2 cases), and the original drainage location (2 cases). The total bilirubin level decreased more than 50% 1 month after the ERCP procedure for 30 ACC and 38 ICC patients. The rate of decline in the ACC group and ICC group was 0.43±0.45 and 0.47±0.36 mg/dL, respectively (P>0.05). Two patients in each group developed post-sphincterotomy bleeding, 1 of whom (in the ACC group) was diagnosed as moderate in this regard with a blood transfusion requirement and endoscopic hemostasis. A total of 11 patients (13.8%) met the criteria of mild PEP, including 2 in the ACC group and 9 in the ICC group. There was no statistical difference in the PEP rates between the ACC and ICC groups (P=0.10).

Discussion

Malignant hilar obstruction requires a more challenging endoscopic drainage operation than do other types of ERCP. Cholangitis is the most common post-ERCP complication and occurred in 36–65% of cases reported in a recent meta-analysis (13). One of the main risk factors of post-ERCP cholangitis is inadequate drainage of all obstructed intrahepatic ducts (14). It is important for endoscopists to avoid filling all intrahepatic segments and to drain all segments that are filled with contrast in the case of malignant hilar strictures. Fluid contrast can easily introduce bacteria into the intrahepatic duct, and it can be technically difficult to completely drain all segments filled with contrast. It was reported that air, rather than the typical iodine contrast, can be used as a contrast for cholangiograms and can reduce the incidence of cholangitis when a metal stent is being placed (15,16). Accordingly, we hypothesize that ACC may be applicable for PHC patients receiving ENBD and EBS drainage. Our study showed that ACC was significantly associated with a lower incidence of post-ERCP cholangitis in the ENBD and EBS for malignant hilar biliary obstruction patients (11.4% vs. 33.3%; P<0.05). In other words, we found that the rate of cholangitis was significantly reduced in the ACC group of our study. Based on our experience, the main reason for these results were as follows: selective cannulation into the dilated intrahepatic bile duct was followed by ACC, which enabled better implantation of the ENBD (particularly in our preoperative group), and assisted ENBD/EBS placement was conducted with minimal intervention and procedure duration. Two prospective randomized controlled studies have found similar results. Sud et al. (17) found that using ACC was as safe and as effective as dye cholangiography in patients with malignant hilar biliary obstruction, and it decreased the risk of post-ERCP cholangitis (4% vs. 16.6%; P<0.05). In the study of Zhang et al. (18), they also confirmed that ACC can reduce the incidence of cholangitis (5.6% vs. 33.3%, P=0.04). In our study, 8 patients were treated with additional ERCP or PTBD (1 ACC, 7 ICC). Since there was only 1 ACC patient, we were unfortunately unable to further refine the analysis.

Kawashima et al. (19) also reported that the only significant risk factor associated with post-ENBD cholangitis was if EPT had been previously conducted. In their study, the incidence of cholangitis was 43.8% (21/48 patients). In our study, only minor EPT was performed to prevent PEP and to assist in inserting the stent and/or ENBD catheter.

Air embolism is a rare but lethal complication of air insufflation during ERCP. However, no cases of air embolism have been directly associated with ACC (20). To the best of our knowledge, no reports have been published to date denoting the occurrence of an air embolism in an ACC procedure (15-17).

It is important to note that this study also included some limitations: it was a retrospective study that included a small sample size, the follow-up period was only 1 month, and we did not report the overall patient survival rates. The efficacy and safety of ACC should thus be further investigated in prospective multicenter studies.

Conclusions

In summary, ACC significantly reduced the incidence of cholangitis in patients with malignant hilar obstruction. Accordingly, the use of this procedure deserves further consideration and evaluation.

Acknowledgments

Funding: None.

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://dx.doi.org/10.21037/qims-21-462

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/qims-21-462). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was conducted with approval from the Ethics Committee of The Second Hospital of Nanjing, Nanjing University of Chinese Medicine. Written informed consent was obtained from all participants.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
