Cardiac remodeling and subclinical left ventricular dysfunction in adults with uncomplicated obesity: a cardiovascular magnetic resonance study

Introduction

The global prevalence of overweight and obesity has increased markedly in recent decades. Since the beginning of the 21st century, obesity has become an epidemic in China, with an estimated increase of 0.32% per year in young and middle-aged adults (1). Being overweight or obese increases the risk of cardiovascular disease and heart failure. One study showed that elevated body mass index (BMI) was associated with an increased risk of heart failure in the absence of a threshold (2). Obesity-related comorbidities, such as hypertension, diabetes, and coronary heart disease, are major contributors to heart failure. However, even in the absence of any clinically apparent cardiovascular risk factors, individuals with obesity exhibit notable subclinical structural and functional changes that predispose them to future heart failure (3-5).

Ejection fraction is the most widely used parameter to evaluate global ventricular systolic function. However, it may not be an optimal marker for the evaluation of cardiac dysfunction in the obese population. Kenchaiah et al. (2) found that approximately half of their obese patients with heart failure had a preserved left ventricular ejection fraction (LVEF), as assessed by echocardiography. In another study with 5,098 participants, LVEF was also found to be insensitive to myocardial changes related to obesity (6). It is worth noting that most studies to investigate the effects of obesity on cardiac structure and function have used echocardiography (5,7,8). However, because acoustic windows become more limited as BMI increases, echocardiography may have reduced accuracy in patients with obesity. Furthermore, the measurement of left ventricular (LV) morphology based on Simpson’s biplane method has limitations in terms of computing LV mass and volume (9). Cardiovascular magnetic resonance imaging (CMR) based on three-dimensional (3D) cine images of the heart aids in assessing ventricular geometry and function with high accuracy and reproducibility (10). Currently, CMR tissue tracking is widely used to identify subclinical myocardial dysfunction, owing to its high sensitivity in measuring global and regional cardiac mechanics through the tracking of myocardial motion (11). Early detection of subclinical cardiac changes resulting from obesity is critical for the initiation of management to prevent the progression of cardiac failure.

The aims of this study were to use CMR to explore changes in cardiac geometry and function in individuals with obesity unaccompanied by any clinically apparent cardiovascular risk factors, and to determine the association between adiposity distribution and cardiac changes.

We present the following article in accordance with the Materials Design Analysis Reporting (MDAR) checklist (available at https://dx.doi.org/10.21037/qims-21-724).

Methods

Study population

Forty-eight individuals with obesity (defined as BMI ≥27.5 kg/m²; range, 27.5–34.9 kg/m²) and 25 healthy controls (HCs; BMI <23 kg/m²) were prospectively recruited to the study between September 2019 and February 2021. Individuals were excluded if they had any of the following: hypertension, diabetes (based on an oral glucose tolerance test), a history of cardiovascular diseases or any cardiovascular procedures, major systemic diseases that could affect the myocardium (e.g., connective tissue diseases and sarcoidosis), endocrine diseases (e.g., hyperthyroidism and hypothyroidism), metabolic diseases (e.g., a history of alcohol abuse and amyloidosis), obstructive sleep apnea, and/or any contraindication to CMR.

This study complied with the Declaration of Helsinki (as revised in 2013) and was approved by the Institutional Review Board of the West China Hospital in Sichuan University. Written informed consent was obtained from all study participants.

Baseline data collection

Baseline data were collected for all participants and included a medical history, anthropometric measurements (weight and height), heart rate, and blood pressure (BP). BP was measured twice by an experienced researcher using an automatic oscillometric cuff sphygmomanometer in the sitting position after 15 minutes’ rest. The mean of two consecutive readings was calculated. Heart rate was assessed using a 12-lead electrocardiogram (ECG) and recorded on a Vitaport system (Temec Instruments BV, Kerkrade, the Netherlands) at 256 Hz at rest. Fasting blood glucose (FBG) and serum lipid profiles, including total cholesterol, triglycerides, high-density lipoprotein (HDL), and low-density lipoprotein (LDL), were also measured.

Mean arterial pressure (MAP; mmHg) was calculated as follows: MAP = (SBP + 2DBP)/3, where SBP and DBP are systolic and diastolic BP, respectively. Fasting insulin (FINS) was measured in 45 participants with obesity.

Homeostasis model assessment of insulin resistance (HOMA-IR) was calculated as follows: HOMA-IR = [FBG (mmol/L) × FINS (mU/L)]/22.5.

Assessment of obesity

Waist circumference (WC) was measured midway between the last rib and the iliac crest, and hip circumference was measured at the largest diameter of the hip. WC and hip circumference were measured to the nearest 0.5 cm. The waist-to-hip ratio (WHR) and the waist-to-height ratio (WHtR) were calculated. WC, WHR, and WHtR are indices predictive of central obesity. BMI was calculated as weight (kg) divided by height squared (m²). According to the Chinese criteria (1), BMI was categorized into three groups: healthy weight (BMI 18.5–23.0 kg/m²), overweight (BMI 23.0–27.5 kg/m²), and obese (BMI ≥27.5 kg/m²). Total fat, visceral adipose tissue (VAT), and body fat percentage (BF%) were measured by dual X-ray absorptiometry (Lunar iDXA; GE Medical Systems Lunar, Madison, WI, USA). Body surface area was calculated using the Du Bois formula (12).

CMR protocol

Participants underwent CMR examination in a supine position. CMR images were acquired using a 3-T whole-body scanner (MAGNETOM Skyra; Siemens Healthcare, Erlangen, Germany) with an 18-channel phased-array body coil. With a standard ECG-triggering device, data were acquired during the end-inspiratory breath-hold period. A segmented breath-hold balanced steady-state free precession (bSSFP) sequence was used to obtain 8–14 continuous cine images from the base to the apex in the short-axis view, and LV two- and four-chamber cine images in the long-axis view. The bSSFP parameters were as follows: TR/TE 3.3/1.22 ms; flip angle 41°; slice thickness 8 mm; field of view 360 mm × 320 mm; and matrix size 208×166. Contrast medium (gadobenate dimeglumine; MultiHance; 0.5 mmol/mL; Bracco, Milan, Italy) was injected into the right antecubital vein with a power injector (Stellant; MEDRAD) at a flow rate of 3.0 mL/s, which was followed by injection of 20 mL saline. Late gadolinium enhancement (LGE) images were obtained after contrast injection using a segmented phase-sensitive inversion recovery (PSIR) turbo FLASH sequence over a mean duration of 10–15 minutes. The PSIR sequence parameters were as follows: TR/TE 3.0/1.24 ms; flip angle 40°; slice thickness 8 mm; field of view 340 mm × 284 mm; and matrix size 256×184.

CMR image analysis

All CMR data were imported into a commercially available software program (cvi42 version 5.11.3; Circle Cardiovascular Imaging, Calgary, Canada). Two radiologists with more than 3 years of experience (JL and LQP) analyzed the measurements while blinded to participant status (i.e., obesity vs. control group).

Quantification of epicardial adipose tissue (EAT)

EAT is represented by regions of high signal intensity between the myoepicardium and parietal pericardium. To acquire quantitative EAT, short-axis and long-axis four-chamber cine slices were imported into the tissue char module in cvi 42. EAT volume was measured on the short-axis cine slices during the end-diastolic phase. The myoepicardial and parietal pericardial contours were manually delineated per slice, extending from the mitral valve hinge down to the ventricular apex. The EAT area was measured on the single four-chamber view cine images during the end-diastolic phase. Regions of high signal intensity between the myoepicardium and parietal pericardium were semi-automatically traced and calculated after the exclusion of blood vessels (Figure 1A-1C).

Figure 1 Quantification of epicardial adipose tissue (EAT) and left ventricular (LV) myocardial thickness. The EAT area is delineated on (A) a short-axis steady-state free precession (SSFP) image with blood vessels excluded, (B) a four-chamber view in an individual with obesity, and (C) in a normal-weight individual. (D) Three-dimensional LV thickness was acquired using short-axis SSFP images. (E,F) Representative images of myocardial thickness in healthy (E) and obese (F) individuals.

Geometry and global systolic function

The endo- and epicardial contours of the LV myocardium on the short-axis cine images were manually traced during the end-diastolic and end-systolic phases of the cvi42 short-3D module. Parameters of LV global systolic function and geometry, namely LVEF, LV end-diastolic volume (LVEDV), LV end-systolic volume (LVESV), stroke volume (SV), cardiac output (CO), and LV mass at end-diastole, were computed automatically. LV mass was indexed to height^2.7 [LV mass index (LVMI); g/m^2.7] (13). Concentricity was calculated as the ratio of LV mass to LVEDV (g/mL). Mean LV regional values for 16 myocardial segment thicknesses (excluding the apex) were also automatically computed [American Heart Association standard 17-segment model (14); Figure 1D-1F]. Finally, the LV maximum myocardial thickness (LVMMT) was calculated.

Myocardial strains

The long-axis two- and four-chamber and short-axis cine slices were uploaded into the 3D tissue-tracking module for LV myocardial strain analysis. The endo- and epicardial contours were manually delineated per slice during the end-diastolic phase in all series, with the papillary muscles and moderator bands excluded. LV global myocardial strain parameters were acquired automatically, and included the radial, circumferential, and longitudinal peak strains (PS), peak systolic strain rates (PSSR), and peak diastolic strain rates (PDSR). LV strain is defined as the degree of myocardial deformation from the initial length of the myocardium (L₀; in end-diastole) to its maximum length (L; in end-systole), and is calculated using the following formula: Myocardial strain = (L – L₀)/L₀. Strain rate represents the rate of shortening of length (15). Longitudinal, circumferential, and radial strain and strain rate can be calculated for different dimensions of myocardial deformation.

Reproducibility

Intra- and interobserver variability in indices of EAT, LV geometry, traditional function, and myocardial strain were analyzed in 20 randomly selected participants (obesity group, n=12; HCs, n=8). To determine intraobserver variability, one radiologist (JL) measured the same image twice within a period of 1 month. To evaluate interobserver variability, a second radiologist (HXP), who was blinded to the measurements made by the first observer, reanalyzed the measurements.

Statistical analysis

All statistical analyses were performed with SPSS version 23 (IBM, Armonk, NY, USA). Normally distributed continuous data from the obesity and HC groups were expressed as the mean ± SD and compared using Student’s t-tests. Binary variables were analyzed using crosstab chi-square tests. Pearson’s correlation coefficient was used to determine correlations between adiposity (estimated by BMI, total fat, VAT, BF%, EAT volume, EAT area, WC, WHR, and WHtR), insulin resistance, and parameters of LV geometry, function, and strain. Correlations between cardiac geometry and BP, as well as relationships between cardiac geometry, function, and ventricular strain were also assessed in patients with obesity. Multivariable linear regression was used to estimate the association between insulin resistance and adiposity (BMI, BF%, VAT, WC, and WHR) and LV geometry, global systolic function, and strain. Adjustments were made to the basic unadjusted model. Model 1 included age and sex for BMI, and age, sex, and height for insulin resistance, BF%, VAT, WC, and WHR. In Model 2, to determine the association between obesity and cardiac remodeling and function independent of BP, MAP was added to the outcomes to adjust for BP. HOMA-IR was also added to assess the association of adiposity with cardiac remodeling and function. Intraclass correlation coefficients (ICCs) were used to evaluate both inter- and intraobserver variability. Two-sided P<0.05 was considered statistically significant.

Results

Baseline characteristics

This study included 48 individuals with obesity (BMI 29.8±2.1 kg/m²) and 25 HCs (BMI 21.2±1.3 kg/m²), the baseline characteristics of whom are presented in Table 1. The mean age, height, proportion of males, FBG, serum lipid profiles, and heart rate were comparable between the two groups. Compared with the HCs, participants with obesity had higher BP, but the BP values were still within the normal range. Furthermore, the obesity group had greater adiposity (EAT volume and area, total fat, BF%, VAT, WC, hip circumference, WHR, and WHtR) than the HC group.

Comparison of CMR findings between the obesity and HC groups

Parameters of LV geometry (LVEDV, LVESV, LV mass, LVMI, and LVMMT) were greater, but the LV mass/volume ratio was similar, in the obesity group compared with the HC group (Table 2). With regard to global systolic function, individuals with obesity had an increased SV (98.6±18.5 vs. 83.6±15.2 mL; P<0.001) and CO (7.3±1.8 vs. 6.1±1.4 L/min; P<0.001), but similar LVEF (62.6%±4.6% vs. 62.3%±4.5%, P=0.779), compared with the HCs. Regarding LV strain, the obesity group had lower global PS in three spatial directions and circumferential and longitudinal PDSRs than the HC group (Figure 2).

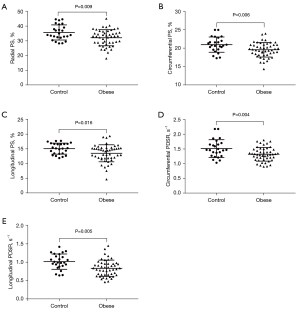

Figure 2 Strain and strain rates in individuals with obesity and healthy controls. (A) Global radial, (B) circumferential, and (C) longitudinal peak strain (PS). (D) Circumferential and (E) longitudinal peak diastolic strain rate (PDSR).

Associations between cardiac geometry and BP in obese individuals

In the obesity group, MAP was positively correlated with LVEDV, LVESV, LV mass, and LVMMT, but not with LVMI or the LV mass/volume ratio (Table 3).

Associations between cardiac geometry, function, and ventricular strain in individuals with obesity

In individuals with obesity, there was a weak positive correlation between LVEF and radial PS (r=0.297; P=0.041), whereas negative correlations were observed between radial PS and LVEDV, LVESV, and LV mass. Further, LVMMT and LV mass were negatively correlated with longitudinal PS. No cardiac geometric or functional parameters were correlated with circumferential PS (Table 4).

Association between HOMA-IR and adiposity in individuals with obesity

Pearson’s correlation was used to evaluate associations between HOMA-IR and indices of adiposity (BMI, total fat, VAT, BF%, EAT volume, EAT area, WC, WHR, and WHtR) in 45 participants with obesity. HOMA-IR was only mildly correlated with BMI (r=0.327, P<0.05) and BF% (r=0.295, P<0.05), and shared no significant correlations with any of the other indices of adiposity.

Associations between HOMA-IR and LV geometry, function, and strain in individuals with obesity

Of all the LV geometry, function, and strain parameters, only HOMA-IR was inversely associated with circumferential PS (P<0.05) in the unadjusted model. Multivariate regression analysis showed that, even after adjusting for age, sex, height, and MAP (Model 2), HOMA-IR was inversely associated with both circumferential PS (β=–0.276; 95% CI: –0.540 to –0.013; P=0.04) and circumferential PDSR (β=–0.036; 95% CI: –0.068 to –0.005; P=0.026; Table 5).

Associations between adiposity and LV geometry, function, and strain in individuals with obesity

Pearson’s correlation showed that BMI was positively correlated with LVMMT and the LV mass/volume ratio in the obesity group. In contrast, BF% was negatively correlated with parameters of LV geometry (LV mass, LV mass/volume ratio, LVMMT, LVEDV, and LVESV) and SV. VAT was positively correlated with LV mass, the LV mass/volume ratio, and LVMMT, but negatively correlated with longitudinal PS, longitudinal PDSR, and circumferential PDSR. Furthermore, WC was positively correlated with LVMMT. The WHR showed positive correlations with LVMMT and the LV mass/volume ratio (Table 6).

Regression analysis demonstrated that BMI was positively correlated with LVMMT and the LV mass/volume ratio in the unadjusted model. This association persisted even after adjusting for age and sex (Model 1; LVMMT, β=0.2, 95% CI: 0.066–0.344, P=0.004; LV mass/volume ratio, β=0.013, 95% CI: 0.003–0.024, P=0.015). After adjustment for age, sex, MAP, and HOMA-IR, only the relationship between BMI and LVMMT remained significant (Model 2; β=0.197; 95% CI: 0.039–0.355; P=0.016; Figure 3A). BF%, VAT, WC, and WHR were not significantly associated with parameters of cardiac remodeling after adjustment for different variables in Model 1 or Model 2 (Table 7).

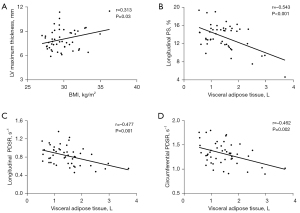

Figure 3 Association between adipose distribution and left ventricular (LV) cardiac geometry and strain in the obesity group. (A) Body mass index (BMI) was correlated with LV maximum thickness. (B-D) Visceral adipose tissue (VAT) was correlated with longitudinal peak strain (PS; B), longitudinal peak diastolic strain rate (PDSR; C), and circumferential PDSR (D).

Regression analysis revealed that, after adjusting for age, sex, height, MAP, and HOMA-IR (Model 2), VAT was independently associated with LV global longitudinal PS (β=–2.684; 95% CI: –4.084 to –1.213; P=0.001), longitudinal PDSR (β=–0.192; 95% CI: –0.311 to –0.074; P=0.002), and circumferential PDSR (β=–0.165; 95% CI: –0.293 to –0.036; P=0.014; Table 8; Figure 3B-3D).

Intra- and interobserver variability

Intra- and interobserver variability for EAT quantification, cardiac geometry, function, and strain is summarized in Table 9. The ICCs for intra- and interobserver variability were 0.883 and 0.790, respectively, for EAT volume, and 0.945 and 0.929, respectively, for EAT area. Good intra- and interobserver agreement was observed for cardiac geometry measurements, global systolic function (ICC 0.919–0.997 and 0.843–0.989, respectively) and LV strains (ICC 0.750–0.942 and 0.769–0.919, respectively).

Discussion

In the present study, we compared LV geometric and functional characteristics, determined using CMR, between individuals with obesity in the absence of clinically apparent cardiovascular risk factors and HCs. Although their LVEF was within the normal range, compared to the HCs, participants in the obesity group had impaired myocardial contractility, with diminished PS and PDSR, and myocardial remodeling, as evidenced by increased LV size, myocardial mass, and thickness. Adiposity was correlated with cardiac geometry and functional measurements in individuals with obesity, with BMI independently related to LV remodeling and VAT independently correlated with strain assessment in adjusted models. VAT was potentially a better predictor of subclinical dysfunction than BMI in individuals with obesity. Further, HOMA-IR was found to be inversely correlated with circumferential PS and PDSR in the obesity group, even after adjustment for age, sex, height, and MAP. This study has demonstrated the deleterious effects of obesity on myocardial geometry and subclinical LV dysfunction.

LV remodeling in obesity

Cardiac remodeling is defined as molecular, cellular, and interstitial changes resulting from genomic expression, as well as clinical manifestations of changes in size, shape, and heart function from cardiac load or injury (16). In the present study, the chamber size (LVEDV, LVESV), myocardial mass, and wall thickness were greater in the obesity group than the HC control group, which is consistent with the results of previous echocardiography and CMR studies (3,17-19). However, one study that used echocardiography reported that LVMI and chamber size did not differ significantly between an uncomplicated obesity group and a lean group (8). Accurate LV geometry evaluations using echocardiography are limited due to their dependence on operator experience, minimal acoustic windows, and low spatial resolutions. Furthermore, the geometric assumptions based on Simpson’s method are compromised, especially under conditions of deformed ventricular dimensions and geometries (9). CMR is a 3D imaging modality with superior reproducibility and better imaging quality compared to echocardiography. Therefore, it is the preferred technique for evaluating parameters of ventricular geometry, particularly in non-symmetric ventricles (20). In 1986, Messerli proposed that increased body mass needed higher CO and intravascular volumes to meet the increased metabolic demands (21). Recently, another study reported that increased CO resulting from a higher BMI was affected by SV independent of heart rate in young adults (22). In the present study, an elevated hemodynamic state was found in the obesity group, with higher SV and CO, which is concordant with previous studies (4,19,22). In individuals with obesity, a state of chronic volume overload can cause a compensatory increase in cardiac preload. Also, in the present study, BP was higher in the obesity group than the HC group, indicating increased LV afterload. Generally, higher BP, even within the normal range, can contribute to myocardial remodeling (6). Our data showed that MAP was moderately correlated with LV chamber size, mass, and wall thickness. Similarly, Alpert et al. reported that cardiac load conditions were associated with LV chamber dilation and hypertrophy (myocardial mass and wall thickness) (18).

Obesity and cardiac dysfunction

The present study did not find any significant differences in LVEF between adults with uncomplicated obesity and HCs, which is consistent with results of previous reports (4,5,23). However, impaired LV contractility was detected during strain analysis, with global radial, circumferential, and longitudinal PS being lower in the obesity group than the HC group. These results indicate that PS has higher sensitivity than LVEF as marker for subclinical myocardial contractile dysfunction. Similar results were reported by Homsi et al. (23), who reported that their obesity group had lower mean LV longitudinal and circumferential strain on CMR than their non-obesity group. However, previous echocardiographic studies revealed decreased longitudinal strain, increased or decreased radial strain, and reduced or no marked changes in circumferential strain among children with obesity (24,25). The apparent inconsistencies between earlier studies and the present study may be attributable to differences in the study populations, sample sizes, and the different imaging modalities used. Also, obese individuals had decreased subclinical diastolic function with lower global longitudinal and circumferential PDSR than HCs. In contrast, subclinical systolic function, represented by PSSR, was not significantly different between the two groups. In children, it has also been demonstrated that although circumferential PDSR is decreased in obesity, there are no significant changes in PSSR on CMR imaging (3). Previous studies have also confirmed that obesity is associated with decreased diastolic function, as evidenced by an increase in the half-time of mitral valve pressure, left atrial diameter, and LV end-diastolic pressure, and a reduced deceleration slope with preservation of systolic function (7,19). However, a recent echocardiography study indicated that both diastolic function (early diastolic strain rate) and systolic function (global systolic longitudinal strain rate) were decreased in obese adolescents who were either metabolically healthy or unhealthy (BMI 35–40 kg/m²) (26). The differences between that echocardiographic study and the present study are that our study population was older and had a lower BMI, and we also used a different imaging modality (CMR) to scan the patients. Together, the findings reported above indicate that cardiac dysfunction caused by mild to moderate obesity in adults can lead to impaired diastolic function.

In this study, impaired LV contractility, as evidenced by reduced radial and longitudinal PS, was negatively correlated with LV myocardial remodeling parameters, including cardiac cavity size and hypertrophy (myocardial mass and myocardial thickness). Previous studies have also shown that myocardial dysfunction is caused by an increased LV load and hypertrophy (7,17,18,27,28). Diffuse myocardial fibrosis observed on T₁-weighted mapping was also found to have adverse effects on ventricular function (23,29). In the present study, none of the participants in the obesity group had LGE in the myocardial LV. However, quantitative assessment of ventricular fibrosis using T₁-weighted mapping CMR is more sensitive compared with LGE (30); thus, we could not determine whether a fibrotic change of the LV myocardium was the main factor in the present study. Moreover, the EAT volume and area were greater in the obesity group than the HC group. EAT located within the pericardium was recognized as VAT with a putative paracrine function that directly affects the myocardium through the uptake and release of free fatty acids and the release of adipokines and cytokines, and sharing the same coronary microcirculation. Previous studies have shown that increased EAT is associated with lipotoxicity, myocardial steatosis, and interstitial myocardial fibrosis, and thereby affects cardiac structure and function (27,29).

Subclinical LV dysfunction in individuals with obesity may also be explained by insulin resistance. In this study, insulin resistance was greater with increased BMI, and was associated with circumferential PS and PDSR even after adjustment for age, sex, height, and MAP. A study of sucrose-fed rats suggested that insulin resistance directly induced cardiac contractility impairment (31), whereas a clinical study in women showed that the link between insulin resistance and myocardial fatty acid metabolism could reduce myocardial contractile function in obesity (32).

Associations between adiposity distribution and cardiac remodeling and dysfunction

BMI is used as a measure of general adiposity; however, there are limitations to its use in evaluating the effects of obesity on specific organs (6). Therefore, in this study, we also analyzed the correlations of various parameters of adiposity with cardiac remodeling and dysfunction in the obesity group. These analyses showed that BMI was independently associated with myocardial thickness in adults with obesity, even after adjusting for age, sex, MAP, and HOMA-IR. This finding is consistent with that of a CMR obesity study conducted in children (3). Among the adiposity indices, VAT was independently associated with LV subclinical dysfunction, represented by global longitudinal PS, as well as longitudinal and circumferential PDSR. This observation is consistent with one in a previous report, in which VAT was demonstrated to be a better predictor of LV diastolic cardiac function than BMI (4). The results suggest that VAT may be a better indicator of LV subclinical dysfunction in individuals with obesity than BMI, and it may be an important indicator in both determining initial treatment strategies and evaluating the efficacy of treatment. The present findings may be explained by the fact that VAT is a metabolically active tissue that can affect cardiac morphology and function by secreting various cytokines and chemokines (33).

Study limitations

This study has several limitations. First, the study was a cross-sectional in design. It is still unclear whether LV remodeling and subtle contractile impairment can cause heart failure with the progression of obesity, and whether these changes can be reversed. Therefore, longitudinal studies to explore dynamic cardiac changes and factors potentially involved in the reversal of these changes in individuals with obesity are needed in future. Second, previous studies have reported that various key inflammatory markers and insulin resistance are consistently associated with obesity and obesity-related comorbidities (34-38). In the present study, FINS was not measured in 3 of the 48 participants in the obesity group and in none of the HCs; consequently, these individuals were not included in the HOMA-IR analysis. Moreover, because of data incompleteness, we could not include or analyze inflammatory markers in the present study. Third, although this study evaluated myocardial fibrosis based on LGE images, quantitative T₁-weighted mapping values are more sensitive indicators of interstitial fibrosis. In future studies, these values should be measured to gain an understanding of the mechanisms underlying myocardial damage in obesity.

Conclusions

Extensive LV geometric remodeling and marked changes in cardiac strains were observed in adults with obesity in the absence of clinically apparent cardiovascular risk factors. Tissue tracking with CMR revealed subclinical impairment of ventricular function with preserved LVEF in these individuals. BMI was found to be independently related to LV remodeling in individuals with obesity. Finally, HOMA-IR and VAT were found to be potentially superior to BMI as predictors of subclinical dysfunction, as assessed by strain, in obesity.
