Frontal lobe hemorrhage in a patient with lenticulostriate artery territory infarction and middle cerebral artery occlusion after recanalization: a case study and literature analysis

Introduction

The risk of reperfusion injury should be considered in the interventional management of cerebrovascular stenosis or occlusion. Although reperfusion can salvage brain tissue from ischemic necrosis, it can also lead to reperfusion injury, such as irreversible severe cerebral edema or hemorrhagic transformation (1).

The lenticulostriate arteries (LSAs), which stem from the middle cerebral artery (MCA), are the main perforators supplying the internal capsule, the basal ganglia, and a part of the corona radiata of the brain. Because LSAs are terminal vessels and lack collateral connections (2), the lenticulostriate territory is a common site of cerebral infarction (3) and hemorrhagic transformation (4). Revascularization of a stenotic or occlusive proximal artery is well known to carry a high risk of bleeding in the lenticulostriate infarct region.

This study describes the case of a patient with an acute infarction of the left corona radiata with MCA horizontal (M1) segment occlusion who experienced hemorrhage in the ipsilateral frontal lobe following intravascular recanalization. This study offers a new perspective on understanding the effect of chronic ischemia on reperfusion injury leading to hemorrhagic transformation.

Case presentation

A 61-year-old male with a history of myocardial infarction and poorly controlled arterial hypertension suffered a transient attack on the left side of his body on the day before his presentation at the clinic. During the attack, the patient felt dizziness and weakness in his left arm and leg after approximately 10 minutes of walking in a park. He visited the emergency department the next evening, having experienced left facial drop and speech difficulties for 4 hours. A physical examination showed a National Institute of Health Stroke Scale (NIHSS) score of 2. MRI with diffusion-weighted imaging demonstrated acute and multiple focal infarcts in the right corona radiata (Figure 1A). MR angiography revealed an occlusion of the MCA M1 segment, with a residual stump at its origin (Figure 1B).

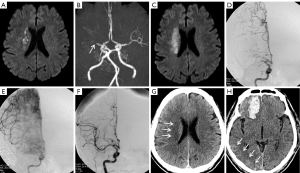

Figure 1 Radiographic findings of bleeding in the non-infarct region after recanalization. (A) Brain MRI scan showing focal infarcts in the right corona radiata. (B) MR angiography image showing occlusion of the M1 segment of the middle cerebral artery (MCA), with a residual stump (white arrow) at its origin. (C) A second MRI scan from 3 days later showing more infarcts in the same corona radiata region. (D) Digital subtraction angiography (DSA) image depicting the occluded MCA at the M1 segment and the robust leptomeningeal arteries connecting the anterior cerebral artery (ACA). (E) A DSA image showing the compensatory collateral flow from the ACA not reversely filling the distal M1 segment of the MCA and the lateral LSAs. The frontal lobe and the frontotemporal watershed region appeared to be in the venous phase, while the basal ganglia and temporal lobe stayed in the arterial phase. (F) Anterograde blood flow in the MCA and imaging of the LSAs were restored immediately after balloon angioplasty (Gateway, 2.0×9.0 mm) to recanalize the blocked M1 segment. (G) CT scan showing no hemorrhage or hyperdensity in the infarcted area (white arrows) 3 hours after treatment intervention. (H) CT scan showing a parenchymal hematoma of approximately 26 mL in the right frontal lobe and mild hyperdensity in the temporo-occipital cortex (white arrows) 3 h after the operation.

The patient was given conventional medical treatment, including dual antiplatelet (aspirin 100 mg/day and clopidogrel 75 mg/day, both with a loading dose of 300 mg) and atorvastatin therapy. Three days later, the patient developed hemiparesis of the left limb with grade 2 muscle strength and a positive Babinski sign; the NIHSS score increased to 8. Emergency MRI scans of the brain illuminated more infarcts in the same corona radiata region (Figure 1C). The patient was subsequently diagnosed with progressive ischemic stroke with MCA occlusion.

After signing informed consent, the patient successfully underwent emergent endovascular therapy. Cerebral angiography was performed via a femoral approach. After successful femoral sheath implantation, a bolus of unfractionated heparin was injected intravenously at 3,000 unit and then at 1,000 unit every hour. After general anesthesia administration and heparinization, angiography revealed proximal occlusion of the MCA M1 segment and robust leptomeningeal branch anastomosis of the ipsilateral anterior cerebral artery (ACA) in the right temporal lobe (Figure 1D). Compensatory collateral flow from the ACA did not reversely fill the distal M1 segment and LSAs. The images of the basal ganglia and temporal lobe were slightly delayed compared to those of the ipsilateral frontal lobe and the frontotemporal watershed region (Figure 1E). The occluded M1 segment was then recanalized with the use of a 2.0×9.0 mm Gateway balloon (Boston Scientific, San Leandro, CA, USA). Under roadmap guidance, an over-the-wire balloon was advanced through the lesion with a 0.014 microwire (200 cm). Balloon angioplasty was performed with the nominal diameter set at 6 atmospheres for 30 seconds. After angioplasty of the stenosis was performed with the Gateway balloon, anterograde blood flow in the MCA and imaging of the LSAs (Figure 1F) were restored immediately.

Three hours after the operation, the patient underwent CT scans after experiencing symptoms of stupor and somnolence. No hemorrhage or hyperdensity was observed in the infarcted area of the corona radiata (Figure 1G). There was, however, a hematoma of approximately 26 mL in volume in the right frontal lobe parenchyma, with mild hyperdensity observed in the right temporo-parieto-occipital junction of the cerebral cortex (Figure 1H). Protamine was not administered for heparin neutralization, because the heparin used during the procedure would have already been naturally metabolized. Due to the low-risk signals on subsequent CT scans, such as the location and volume of the hematoma and no change of blood volume, hematoma evacuation and platelet transfusion therapy were not considered. After 2 weeks of nonsurgical treatment without antiplatelet drugs, the hematoma was absorbed, and the muscle strength of the left limb improved to grade 3.

This research is a retrospective and observational case study. All procedures in this study involving human participants were performed in accordance with the ethical standards of the institutional and/or national research committee(s), and adhered to the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient for the publication of this study and the accompanying images. A copy of the written consent is available for review by the editorial office of this journal.

Discussion

Vascular structure and autoregulation

A cortical leptomeningeal network is composed of pial arteries and arterioles at neocortical surface (5). With the help of this network, the ACA and the MCA bring extensive collateral blood flow to their watershed regions. When a pressure gradient occurs in the network due to stenosis or arterial occlusion, these preexisting arterial collaterals are circuited, and then gradually grow over time (6). Even a tiny arteriole can develop into a larger artery and play a significant compensatory role (7). Parenchymal arterioles originate from the arterial network on the surface of the brain parenchyma and plunge perpendicularly into the cortex (5). The vast majority of parenchymal arterioles do not bifurcate on the pial surface before plunging into the parenchyma (8). The walls of arteries and arterioles comprise three typical coaxial coats: the tunica intima, tunica media, and tunica adventitia. The tunica adventitia consists of fibroblasts, collagen fibers, and nerve bundles (2,9). Extracranial, large intracranial, and pial arteries on the brain surface are richly innervated by sympathetic and parasympathetic nerve fibers (10,11) that travel along the tunica adventitia and control vasoconstriction (12).

Cerebral autoregulators include intraluminal pressure, peripheral ions and molecules, and neurotransmitter signals from sympathetic and parasympathetic nerve fibers. Pressure on the vessel walls can immediately affect muscle tone (13), and regulate the structural and functional reorganization of endothelial and smooth muscle cells (14-16). When blood pressure exceeds the limit of myogenic autoregulation, the remaining autoregulation of small arteries and large arterioles depends on the sympathetic autonomic innervation of the tunica adventitia (17). When perivascular sympathetic nerve fibers are denervated, cerebral autoregulation and collateral arteriogenesis become reduced in patients with chronic cerebral hypoperfusion (18). Due to being completely enveloped by astrocytic end-feet (19) and lack of tunica adventitia (2,20), parenchymal arterioles are mostly deprived of sympathetic autoregulation, and less subject to chronic hypoperfusion.

Reperfusion lesions

Ischemia–reperfusion injury can further damage brain vasculature and parenchyma. Due to the lack of vascular smooth muscle in capillaries, the regulation of capillary flow primarily depends on arteriolar and arterial vascular smooth muscle (21). As autoregulation is impaired by chronic ischemia, these resistant arterioles and arteries expand to their maximum extent under hypoperfusion, and constrict less in the condition of suddenly restored normal intraluminal pressure. Consequently, the capillaries are exposed directly to unbuffered arterial blood pressure (21). As the venous endothelium is part of the blood–brain barrier, the venous component of the blood–brain barrier appears to be the most common site of rupture (22,23) in response to violent conditions, including hypertension (24).

Vasogenic damage leads to “fenestration” in capillary (1). When a certain degree of vasogenic damage occurs, protein components leak from the capillary lumen into the extravascular space, thereby increasing the density of the ischemic region on CT scans (25). Contrast agents may also leak from the lumen into the infarct region when reperfusion occurs. After endovascular treatment, approximately 39% to 57% of patients show hyperdensity on CT scans, which represents contrast agent leakage (26,27). The non-ionic contrast agents widely used in neuroangiography have molecular weights of approximately 600 to 1,500 Daltons (Da) (28). Both the molecular weight and radius of these agents are between that of macromolecular substances (e.g., albumin, and hemoglobin) and ionic or micromolecules (e.g., Na⁺, K⁺, and H₂O). In mild capillary injury, which impacts capillary permeability, contrast agents may leak from the lumen, whereas macromolecular albumin (approximately 6,900 Da) does not. In moderate capillary damage, both contrast and albumin may leak out, but hemoglobin (approximately 65,000 Da) does not. In severe lesions, the integrity of the endothelial cells in capillary vessels is destroyed, and all components, including hemoglobin, albumin, and contrast agents, can be extravasated, in what is known as hemorrhagic transformation (1).

In this study, postoperative CT scans showed a hematoma in the right frontal lobe and mild hyperdensity in the cortex of the right temporo-occipital watershed area; however, these two areas did not show infarction on MRI scans, nor were there any corresponding clinical symptoms. These findings suggest that vasogenic lesions may result from arterial autoregulation impairment without parenchymal ischemic injury. In the frontotemporal lobe, the robust leptomeningeal arteries played an active role in improving blood supply to the MCA territory prior to endovascular therapy. After recanalization, these collateral arteries with impaired autoregulation dilated significantly, allowing blood to flood the capillaries. Eventually, the integrity of the capillaries was destroyed by excessive blood flow, and hemorrhagic transformation occurred in the right frontal lobe without ischemia. Due to arterial autoregulation impairment, vascular lesions occurred in the temporo-occipital cortex, but to a lesser degree than in the frontotemporal lobe. Consequently, the capillaries transformed into “fenestrated” capillaries, thus allowing the non-ionic contrast agents to leak from the lumen. Contrast agent leakage caused a slight hyperdensity on CT scans.

Impact of reperfusion on LSAs

The LSAs mostly originate from the M1 segment of the MCA trunk at an almost right angle. The LSAs have an average diameter of 480 µm (with a range of 100 to 1,280 µm) and travel an average of 1.50 to 4.35 mm into the subarachnoid space (the extracerebral LSA segment) before penetrating into the parenchyma (the intracerebral LSA segment) (29). The caliber of the LSAs in the intracerebral segments is mostly <350 µm at the origin, and about 30 µm at the terminal (2). The LSAs are usually divided into medial and lateral arteries, the latter of which typically have bigger calibers and longer extracerebral segments than the former (2,30). Compared with the pial arterial network on the neocortical surface, LSAs have shorter extracerebral segments and lack an arterial network. This implies that sympathetic autoregulation exerts less of an impact on LSAs than on pial arteries and arterioles due to the limited length of the tunica adventitia containing nerve bundles. Therefore, in chronic hypoperfusion caused by proximal arterial stenosis or occlusion, the cumulative dilatation effect on the LSAs is less than that on pial arteries and arterioles. When the stenosis or occlusion is relieved and perfusion resumes, the LSAs are less over-dilated relative to pial arteries and arterioles, resulting in a lesser increase in capillary flow.

In this study, progressive cerebral infarction occurred in the right corona radiata supplied by the lateral LSAs. However, after intravascular recanalization, hemorrhagic transformation occurred in the ipsilateral frontal lobe, which was sufficiently supplied by the ACA. Further, the infarct region did not show contrast agent leakage, which is indicative of reperfusion injury. This phenomenon may be explained as follows. As an extracerebral segment, the pial arteries are richly innervated by sympathetic and parasympathetic nerve fibers (10,11) which influence autoregulation and collateral arteriogenesis in chronic cerebral hypoperfusion (18). Due to the extremely short extracerebral segment of LSAs (29), chronic cerebral hypoperfusion caused by stenosis or occlusion exerts little influence on the autoregulation capability of these arteries, and the cumulative effect of reperfusion on arterial dilatation is limited. In this case, therefore, there was no significant increase in luminal blood flow to the LSAs after angioplasty, and no hemorrhagic transformation occurred in the area of the previous infarct in the corona radiata.

Conclusions

The effect of chronic cerebral ischemia in the context of reperfusion injury may be more obvious in the neocortical area than in the LSA territory.
