Development and testing quantitative metrics from multi-parametric magnetic resonance imaging that predict Gleason score for prostate tumors

Introduction

Clinical management of prostate cancer (PCa) critically depends on knowing the cancer’s potential aggressiveness and ability to metastasize (1-3). PCa staging and nomograms that predict clinical outcomes, such as biochemical recurrence after treatment (4-6), conventionally use a wide variety of clinical indicators (4-17), including prostate-specific antigen (PSA) (7-9), seminal vesicle involvement (10,11), tumor volume (12-16), magnetic resonance imaging (MRI) (17-21), cancer spread (10,11,14), and Gleason score (22) after biopsy or prostatectomy. Some of this input information, like PSA (8), is not consistently predictive of outcome. Other input, such as assessment of imaging or histology slices, rely on the experience and judgement of radiologists and pathologists (17-20), creating opportunity for inter-reader variability. A quantitative approach could reduce such variability.

PCa has been studied using multi-parametric MRI (MP-MRI) via the Prostate Imaging Reporting and Data System (PI-RADS) protocol (17-20). In the PI-RADS approach, radiologists apply a series of learned rules to the visualized PCa to generate a PI-RADS score for the lesion. Currently research (20) employing the PI-RADS approach successfully assesses tumors for lymph node involvement, extra-prostatic extension, and clinically significant disease, but only weakly correlates with Gleason score. A more quantitative and less subjective approach for assessing MP-MRI may raise the evaluation accuracy and consistency.

Recently (23-25), pilot studies of hyperspectral target detection techniques were applied to hypercubes derived from spatially registering MP-MRI. These studies predicted Gleason score using image-based signatures, measured tumor volume, and calculated tumor eccentricity or shape and correlated with Gleason score. Instead of comparing image-based signatures (23) to determine Gleason score, this study uses the spatially registered hypercubes to compute the degree of disease through the summed z-score and signal to clutter ratio (SCR) and relates them to Gleason score. For each modality in MP-MRI, z-score and SCR computes the ratio of the tumor signal value minus the mean background (or normal prostate) to the standard deviation of normal prostate. Normalizing the tumor signal partially mitigates (23) varying MRI pulse sequences, magnetic fields, injection of contrast, etc. among patients. Normalizing to this background presumes that the variation within a given patient’s normal prostates are roughly similar for all patients. Z-score and SCR differ in how they gather the information from among the different MP-MRI modalities.

The goal of this study to see if quantitative measures from spatially registered MP-MRI such as z-score and modified versions of SCR are correlated with Gleason score, a proven indicator of clinical outcome. The goal is to develop a non-invasive, objective measure for assessing PCa and provide guidance for disease management. This is merely a retrospective pilot study that will hopefully lead to more definitive research.

We present the following article in accordance with the TRIPOD reporting checklist (available at https://dx.doi.org/10.21037/qims-21-761).

Methods

Overall method description

Figure 1 shows the overall scheme to compare Gleason score derived from histology with z-score and SCR generated from spatially registered MRI. Gleason score is determined from pathology analysis of the histopathology slides from radical prostatectomy (blue arrows). In the MP-MRI arm of the study (red arrows), spatially registered hypercubes are assembled from the individual MRI pulse sequences. The prostate is outlined and in scene signatures are derived from the hypercube and provide input for the z-score and SCR computation. Noise in the SCR is reduced. The z-score and SCR following noise reduction through eigenvalue filtering and also regularizing the covariance matrix (CM) is compared to the histology-based Gleason score.

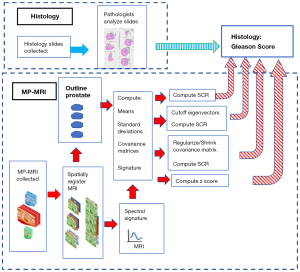

Figure 1 Overall scheme to compare Gleason score derived from histology (blue arrows) with z-score and SCR generated from spatially registered MRI (red arrows). SCR, signal to clutter ratio; MP-MRI, multi-parametric magnetic resonance imaging.

Study design and population

The Cancer Imaging Archive (TCIA) (26,27) affiliated with The National Institutes of Health (NIH) stored collected patient data from prostate tumor MRI and histology from wholemount prostatectomy specimens. The local institutional review board (IRB) approved this publicly available, single institution retrospective study. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Due to previous protections implemented by TCIA, this retrospective, anonymized study was exempt from further IRB review and individual consent for this retrospective analysis was waived.

Whole mount prostatectomy and histology

Three-dimensional (3D) models of each prostate (28,29) were generated by segmenting the prostate capsule on in vivo triplane T2-weighted (T2W) MRI, and extracting from the high-resolution 3D surfaces. Commercially available 3D computer aided design software helped design each mold. The design accounted for the deformation of the endorectal coil. A 3D printer (Dimension Elite 3D printer, Stratasys, Inc.) deposited styrene to fabricate each mold. The specimen was fixed at room temperature in formalin for 2 to 24 h after radical prostatectomy, then placed in the customized 3D mold, and sliced in axial 6 mm sections. Using the customized mold for histopathology, the whole mount histopathology patient specimens were sectioned corresponding to the axial plane of the MRI sections. Two experienced pathologists independently, and blinded from MRI analysis, shortly after the prostatectomy in 2008 to 2009, mapped the slides for individual tumor foci, dimensions, and classified the tumor blobs into Gleason scores, not the International Society of Urological Pathology (ISUP) grading. Individual blobs in a given patient’s histology slide can have differing Gleason scores. As in previous efforts (23-25) and to better reflect the patient’s status, a patient’s Gleason score is a weighted average (based on histology blob size) of the Gleason scores assessed by the pathologist. Future studies with greater patient samples may find that ISUP correlates better with z-scores and SCR.

MRI

The MRI collection is composed of Diffusion Weighted Images (DWI), dynamic contrast enhanced (DCE), and structural (T1, T2) images. The pulse sequences were described in earlier studies (27-29). These studies (28-30) were performed with an endorectal coil (BPX-30, Medrad; Pittsburgh, PA, USA) tuned to 127.8 MHz and a 16-channel cardiac coil (SENSE, Philips Medical Systems; Best, the Netherlands). The MRI used a 3 Tesla (T) magnet (Achieva, Philips Medical Systems). Prior bowel preparation was not used. Standard methods were used to insert the endorectal coil. The MRI protocol used triplanar T2W turbo spin echo, DW MRI, 3DMR point resolved spectroscopy, and axial pre-contrast T1-weighted axial 3D fast field echo DCE MRI sequences. Their detailed sequence parameters were defined in a prior study (29).

Image processing, pre-analysis

The presence of elevated vasculature that feeds the rapidly growing tumor helps distinguish lesions from normal tissues. DCE displays the time evolution of contrast material over several hundred seconds after its injection and shows uptake in the tissues. The vasculature is porous to contrast material. The contrast material enters the tumor’s extravascular space (but not the cells) and can fill and empty of MRI contrast material more quickly than the normal prostate organ. DCE analysis and exploitation of the unique tumor physiology can identify a portion of the tumors. A simple two compartment model (31,32) describes the tracer concentration in the tissue that supplies and empties through the tumor vasculature. The model is used to create the washout k_ep image.

In the superior-inferior direction, the slices were resampled to 6-mm spacing based on the patient’s table position. Fine-tuned rigid registration (minor transverse translation, resampling) was applied between the structural, diffusion, and DCE due to the short time intervals between scans (<20 minutes). The MRI images were digitally resampled (23-25) to 1-mm resolution in the transverse direction. Individual slices were scaled, translated, resliced and spatially registered at the pixel level to create a “cube”. Multiple axial cubes in three dimensions were “stitched” together by sequentially connecting them together into a narrow 3D image. Four dimensions (3D body volume plus the fourth dimension composed of MRI sequences) object is thereby re-expressed as a 3D mosaicked cube. Each voxel is treated as a vector composed of MRI modality rather than a scalar value. Multispectral MRI data contain 7 components (23-25) [T1 (pre contrast), T1 (maximum contrast), T2, automated diffusion coefficient (ADC), DWI-high B (B=1,000 s/mm²), Washout or k_ep from DCE].

Overall quantitative metrics description: z-score and SCR

To generate a quantitative metric (33-36) for assessing the degree of disease (and used in many fields), a z-score is computed using the digital values from MRI. Figure 2 schematically illustrates the z-score computation for three modalities, specifically Washout or exit rate of contrast material derived from kinematic analysis of DCE (Figure 2A,2D), the “high B” component of the DWI (Figure 2B,2E), and ADC (Figure 2C,2E). These three MRI modalities have been spatially registered to each other. The red cross hairs in Figure 2A-2C, the horizontal profiles in Figure 2D-2F, and the downward pointing arrows in Figure 2A-2E correspond to the same set of point(s) in the patient’s body (horizontal pixel 120 in Figure 2D-2F). Prostate tumors show hyperintense regions in the Washout (Figure 2A) and DWI (Figure 2B) and hypointense region in the ADC (Figure 1C). The red crosshairs in Figure 2A-2C denote a point in the prostate tumor. Prostate tumor exhibits an elevated value S_i − µ_i (solid green) relative the prostate mean MRI µ_i (solid blue line) and the added standard deviation σ_i (dashed green line) (see Eq. [2]).

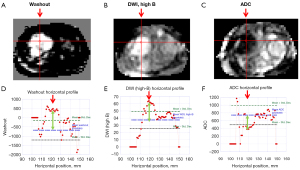

Figure 2 The z-score computation for three modalities, specifically Washout or exit rate of contrast material derived from kinematic analysis of dynamic contrast enhancement images (DCI) (A,D), the “high B” component of the diffusion weighted image (DWI) (B,E), and automated diffusion coefficient (ADC) (C,F).

Specifically, the z_score for given for each modality i is (36):

z_scorei=(Si−μiσi)2[1]

and i ranges from i=1,2,3…M (M=7 in this study), where S_i is the tumor signature or value in the modality i (mean over the T tumor pixels), µ_i is the mean value for normal prostate in MRI modality i, where

Si=1T∑qTxi,q,μi=1N∑pNxi,p,σi=1N(∑pN(xi,p−μi)2)1/2[2]

and σ_i is the standard deviation for the normal prostate in modality i, and p ranges over all N prostate voxels. S, the in-scene tumor signature, is selected from yellow voxels in a three-color display of the spatially-registered MP-MRI (red is Washout, green is DWI, high-B, blue is ADC) (23-25). The background voxels needed for µ and CM were taken from digitally outlining the prostate on the spatially-registered MP-MRI. A simple way of combining all MP-MRI modalities i is to sum the individual z-score_i, i.e.,

z_score=∑iMz_scorei[3]

The z score (Eq. [3]) is the Euclidean distance (34-36) between the tumor or target and the prostate or background. The simple sum of z-score_i (Eq. [2]) from each modality i is only one quantitative metric that incorporates all MP-MRI contributions into characterizing the prostate tumor. Another, the SCR (32-34) is given by

SCR=(S−μ)TCM−1(S−μ)[4]

that is a matrix multiplication over MP-MRI modalities, the superscript T denotes a vector transpose operation, CM is the covariance matrix, and the superscript −1 denotes a matrix inverse operation. Note: the SCR (Eq. [4]) is commonly expressed in decibels (dB) [SCR(dB) =20 log10(SCR)]. The CM_i,j is given by

CMi,j=∑pN(xp,i−μi)(xp,j−μj)[5]

for the sum over N x_i and x_j voxels in the prostate for MRI modalities i and j. The SCR (Eq. [4]) is the Mahalanobis distance (34-36) or Euclidean distance in the “whitened space” between tumor and normal prostate.

CM is a symmetric square M × M matrix and, therefore, diagonalizable (37) and composed of variations (cross variations) along the diagonal (non-diagonal) directions. SCR (Eq. [4]) is identical to z-score (Eq. [3]) if CM is the identity matrix.

After diagonalization, eigenvector generation, the whitening transform linearly combines, and rotates the M MRI modalities. The SCR (Eq. [4]) maximizes the z-score. However, the CM contains noise components resulting in inaccurate and undesired quantitative metrics (38). To reduce the CM noise, two options are invoked, namely filtering out the high noise/low value eigenvalue components (section “Filtering noise”) (38,39), and regularizing or shrinking the CM (section “Regularization and shrinkage”) (38).

Filtering noise

To reduce the noise, image information is decorrelated by using principal component analysis and removing the noise in the low eigenvalue channels (38,39). CM is a square symmetrical matrix that is decomposed into three parts (37),

CM=ΛTλΛ[6]

Similarly, the inverse covariance matrix CM⁻¹ is a square symmetrical matrix that is decomposed into three parts,

CM−1=ΛTλ−1Λ[7]

namely the eigenmatrix Ʌ, transpose of the eigenmatrix Ʌ^T, and diagonal matrix λ with eigenvalues λ²₁, λ²₂, λ²₃ … λ²_M populating the diagonal

λ−1=[1λ120.....0001λ2200............01λM−120001λM2][8]

Conventionally, the eigenvalues are ordered according to size ranging from the largest λ₁ to the smallest λ_M. The images corresponding to the eigenvalues and eigenvectors range from high signal and variation (1,2) to low variation and very noisy (M−1, M). The eigenvalues span a huge range of values. The lowest value eigenvalues (M−1, M) elevate the noise due to the inversion in the inverse matrix CM⁻¹ (Eq. [8]). Figure 3 depicts a specific display of eigenvalues from analyzing the CM for a spatially registered 7 component MP-MRI from a particular patient and masking for prostate. Filtering out the noisy eigenvectors means removing the lowest valued eigenvalues from the inverse matrix, i.e.,

λFiltered−1=[1λ120..0001λ2200.........00000....00][9]

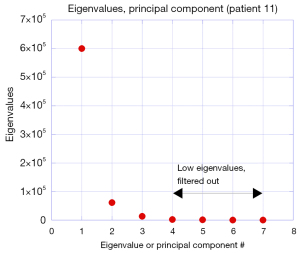

Figure 3 Eigenvalues from analyzing the covariance matrix for a spatially registered 7 components MP-MRI from patient #11. Lowest value eigenvalues are filtered out of covariance matrix to remove noise. MP-MRI, multi-parametric magnetic resonance imaging.

and inserting Eq. [9] into Eq. [7]

CMFiltered−1=ΛTλFiltered−1Λ[10]

resulting in

SCRFiltered=(S−μ)TCMFiltered−1(S−μ)[11]

After inserting Eq. [10] into Eq. [4].

Regularization and shrinkage

Another approach for reducing noise is through regularization and shrinkage (38). That is shrinking the difference in the highest and lowest eigenvalues by adding a diagonal component that is controlled by the parameter γ and thereby perturbing the CM into the regularized CM_Reg(γ)

CMReg(γ)=(1−γ)CM+γTra(CM)MI[12]

by control value γ where Tra denotes the trace operator and I is the identity matrix. γ ranges from γ=0.0 or no CM modification to γ=1.0 or CM is proportional to the identity matrix. The goal of regularization is to perturb the CM(γ) so as to maximize the normal distribution, or equivalently minimize the discriminant function d(γ) [=−ln(normal distribution)], i.e.,

dReg(γ)=∑iN(xi−μ)TCMReg(γ)−1(xi−μ)+ln(det(CMReg(γ)))[13]

where the sum is over all N samples in the prostate ensemble and det denotes the determinant operation. A search is conducted among the γ’s (range 0<γ<1) for the lowest discriminant function that can be achieved with γ_min and results in a regularized SCR_Reg:

SCRReg(γ=γMin)=(S−μ)TCMReg−1(γ=γMin)(S−μ)[14]

A less well studied CM regularization CM_mod(γ) instead corrects the CM by

CMMod_Reg(γ)=(1−γ)CM+γV[15]

V is not the identity matrix I but instead is a diagonal matrix filled up with the square of the standard deviations from M modalities and is given by

V=[σ120....000σ220............0σM−12000...0σM2][16]

And using Eqs. [15,16] the modified discriminant function d_{mod_Reg} (γ) is

dmod_Reg(γ)=∑iN(xi−μ)TCMmod_Reg(γ)(xi−μ)+ln(det(CMmod_Reg(γ)))[17]

is computed for 0<γ<1. A minimum d_mod(γ_min) is found at γ_min. resulting in a SCR_{mod_Reg} (Eq. [18]) using a modified regularization procedure (using Eqs. [15-17]).

SCRmod_Reg(γ=γmin)=(S−μ)TCMmod_Reg−1(γ=γmin)(S−μ)[18]

It should be noted that γ=0 results in the standard SCR (Eq. [4]) and γ=1 results in the z-score (Eq. [3]).

Figure 4 shows the dependence of discriminant function d_Reg(γ) (Eq. [13]) and d_{mod_Reg}(γ) (Eq. [17]) on the parameter γ for patient #11. The minimum discriminant function and modified discriminant function in this case occurs at γ=0.30 and γ=0.40, respectively.

Figure 4 Discriminant and modified discriminant function for patient #11 as a function of γ. Minimum discriminant (γ=0.30) and modified discriminant (γ=0.40) denoted by red and blue arrows, respectively.

Results

A total of 26 consecutive patients enrolled in the study between July 2008 and July 2009. All patients showed biopsy-proven adenocarcinoma of the prostate. Median patient age was 60 years (range, 49 to 75 years). Median PSA was 5.8 ng/mL (range, 2.3 to 23.7 ng/mL). Median Gleason score was 7 (range, 6 to 9). No restrictions were placed on tumor location within the prostate. A robotic assisted radical prostatectomy was performed at a median time of 60 days (range, 3 to 180 years) after the MRI without any intervening treatment. The histology assessment of the prostate specimen was done right after the prostatectomy. One patient was excluded due to failure to uptake the MRI contrast material. Table 1 summarizes relevant patient features for this study including Gleason score, contrast uptake, and tumor volume derived from analysis of the histology of wholemount prostatectomy.

From analysis of 25 patients (1 patient excluded due to no contrast uptake), Figure 5 shows the Pearson correlation coefficient R (red, filled dot) and P values (blue, half-filled square) for fitting filtered SCR (Eq. [11]) against the Gleason score. The correlation (shown in red) shows a maximum value, whereas the P value shows a minimum. Cutting off 3 and 4 of the lowest value eigenvectors from the CM calculation yielded acceptable (P<0.05) filtered SCR_Filter for fitting to the Gleason score. The Pearson correlation coefficients for 3 and 4 remaining eigenvectors were 0.44 and 0.50, respectively. The P values for 3 and 4 eigenvectors were 0.027 and 0.015, respectively. Table 2 displays a summary for Pearson correlation coefficient and P values of cutoffs with Gleason score.

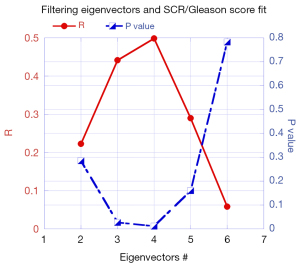

Figure 5 Correlation coefficient (R) (red, filled dot) and P values (blue, half-filled square) for fitting filtered SCR and Gleason score. SCR, signal to clutter ratio.

Figure 6 shows a scatterplot (25 patients) of filtered SCR (Eq. [11]), regularized SCR_Reg (Eq. [14]), modified regularized SCR_{mod_Reg} (Eq. [18]), and z-score (Eq. [3]) against Gleason score. Processing 25 patients, yielded the Pearson correlation coefficients from fitting the histology derived Gleason scores to MP-MRI-based z-score, SCR_Reg from regularized covariance, SCR_{mod_Reg} from modified regularized CM, and SCR_Filter from filtering out 4 eigenvectors 0.48, 0.52, 0.39, and 0.50, respectively. Regularization and shrinkage and modified regularization calculation for 25 patients yielded an average minimum γ’s of γ_min =0.316±0.0464 and γ_min =0.373±0.0452, respectively.

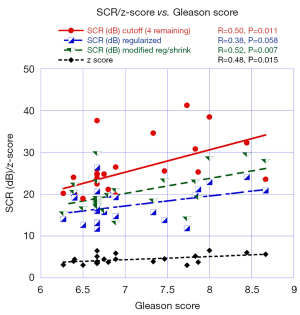

Figure 6 Scatter plot for 25 patients SCR with cutoff filter (red, filled dot), SCR regularized (blue, half-filled square), SCR modified regularized (green, half triangle), and Z-score (black, filled diamond) against Gleason scores. Correlation coefficients R and P values also shown. SCR, signal to clutter ratio.

In addition, the P values from comparing histology derived Gleason scores and MP-MRI-based z-score, SCR_Reg from regularized covariance, modified regularized SCR_{mod_Reg} and SCR_Filter from filtering out 4 eigenvectors are 0.015, 0.052, 0.007, and 0.011, respectively. Table 2 summarizes the Pearson correlation coefficient and P values of z-score and regularization with Gleason score.

Discussion

The metrics, z-score and SCR that use the regularized, modified regularized, and filtered CM, correlate with the Gleason score. For the SCR calculation, however, it is essential to reduce the noise by filtering or regularizing the CM. Inserting unregularized CM into the SCR calculation yields huge ratios albeit with poor correlation with Gleason score. By deriving quantitative metrics from digital values from the images instead of evaluating the visual appearance of the image, it is hoped that reliable assessments of patient images can accurately ascertain a patient’s disease status.

Although the Pearson correlation coefficients between z-score, SCR and Gleason score are not close to 1.0, they remain statistically significant with low P values. To provide perspective, depending on the study, the far better studied connection between PSA and Gleason score Pearson correlation coefficient varies from R=0.59 (8) to R=0.43–0.46 (9) to having P=0.75 and showing no statistical significance (7). The connection between PI-RADS and Gleason score also shows variation among studies. Bastian-Jordan (18) demonstrated the incidence of clinically significant disease for different PI-RADS grades. PI-RADS score was not associated with significant differences regarding Gleason score distribution within the target (19). However, the relationships between PI-RADS score and postoperative extracapsular extension, lymphovascular invasion, and seminal vesicle involvement were significant (P<0.001, P=0.032, and P=0.007, respectively) (20).

A previous pilot study used image-based transformed spectral signatures (24) derived from spatially registered MP-MRI to predict Gleason scores. This current study instead uses z-scores and modified SCR to determine Gleason scores. Analysis of spatially-registered MP-MRI offers two independent direct measures (Gleason score signatures and z-score/SCR) to assess Gleason scores. These measures may complement and supplement more indirect indicators of tumor aggressiveness such as tumor volume and eccentricity. It may be clinically advantageous to combine predictions from signatures and z-scores/modified SCR in a complementary fashion such as in a nomogram or a multivariable fit.

No algorithm proscribes the cutoff for filtering eigenvalues. An empirical approach (38,39), as in this study, determines the optimal filtered value by comparing the SCR calculation to Gleason score. The cutoff is often chosen to reside at the “shoulder” in the eigenvalues to filter out the noise. The eigenvalue number cutoff of 3 or 4 found in this study resides at the shoulder (see Figure 3 as an example), following previous efforts.

Regularization of the CM is often invoked in order to mitigate the rank deficiency matrix singularity due to undersampling relative to the number of features or components (38). In this study, however, the number of samples (roughly 2,000) far exceeds the 7 components. Nevertheless, regularization and modified regularization greatly increased the correlation between Gleason score and SCR.

The modified regularized CM is not well studied relative to the regularized CM (38). This modified regularized CM was previously suggested for study but not examined (38). Figure 4 shows the discriminant function for the modified regularized covariance is larger than the discriminant function for the ordinary regularized covariance. However, employing the modified regularization relative to the customary regularization resulted in increasing the Pearson correlation coefficient (R=0.38 to 0.52) and reducing the P value (P=0.058 to 0.007) in this study. To understand the result, it should be noted that γ=1 for the ordinary regularization procedure (Eqs. [12,13]) results in

SCRReg(γ=1)=∑iM((Si−μi)σMean)2[19]

where σ_mean corresponds to the mean standard deviation (Tra(CM)/M, Eq. [12]). Eq. [19] uses a single value of σ_mean rather than M different σ_i’s. Evidently, it is important to correct for variations within each MRI modality through the individual standard deviations (Eqs. [1,3,18] with γ=1.0) in order to predict the Gleason score. This study combines different modalities with significantly varying standard deviations. The standard deviation for images from different wavelengths in hyperspectral imagery, however, do not vary much and so normal regularization may be sufficient, unlike this study.

To optimize regularization and modified regularization, this study varied the γ to search for the minimum discriminant score (Eqs. [13,17]). The search can be computationally burdensome. Due to the narrow range of the minimum γ’s for regularization and modified regularization (γ_min =0.316±0.0464 and γ_min =0.373±0.0452) and the broad minimum in the discriminant functions, it may be advantageous to choose a single γ, γ=0.3 and γ=0.4 for regularization and modified regularization, respectively. Choosing a single γ instead of searching for an optimal γ should speed up the calculation resulting in minimal loss of accuracy and precision.

If additional studies (using greater number of patients, conducted prospectively) confirm that SCR/z-scores, eccentricity significantly correlate with Gleason score, then clinical implementation is feasible. The biggest issue is generating spatially registered hypercubes from MP-MRI in a timely manner. However, software development should enable autonomous spatial registration that would reduce the time for assembling the hypercubes. Identifying tumors by the radiologist to generate tumor signature is simplified for spatial-registered hypercubes by using color processing previously discussed in an earlier study (25). The clinical implementation is non-invasive and reduces possible side effects for the patient.

The eigenvalue filtering and covariance regularization processes discussed in this paper are not the only way to reduce noise or singularities in the CM (40). The other approaches more directly reduce [relative to regularization (38)] the difference in the disparity between the highest and lowest eigenvalues. Such other approaches may generate improvement in correlating CM-based approaches with Gleason score and should be investigated.

This study suffers from a number of limitations. The patients from this study originated from a single institution (NIH). Variations in clinical implementation were, therefore, not examined and its effect on this study is uncertain. This is a retrospective, not a prospective study thereby limiting the conclusions. Although a small number of patients were assessed, consecutive patients were analyzed and statistically significant P values showing potential clinical value were achieved.

Conclusions

Z-score and SCR using filtered and regularized covariance matrices derived from spatially registered MP-MRI correlates with Gleason score with statistically significant low P values.
