Body composition assessment: comparison of quantitative values between magnetic resonance imaging and computed tomography

Introduction

Body composition may be an important feature in many clinical settings as it can be associated with efficacy and toxicity of therapies, with patient functional status as well as with surgical complication rates and survival (1-3). Many studies have calculated body composition in different ways, ranging from a simple waist-to-hip ratio or body mass index (BMI) to a complex profiling, usually reserved for research settings, based on fat-referenced magnetic resonance imaging (MRI) (4).

Since water, fat and proteins compose the soft tissues of the human body, body composition measurements include segmentation of muscle, visceral fat and subcutaneous fat, frequently performed on a single axial computed tomography (CT) particularly in oncology research (5-9). Since the muscles at the level of L3 include the psoas muscle, the paraspinal muscles and the abdominal wall muscles, the skeletal muscle area (SMA) at this level is considered an optimal approximate for the entire body skeletal muscle (5), and allows to calculate skeletal muscle index (SMI), as SMA divided by square height. The distinction of subcutaneous adipose tissue (SAT) and visceral adipose tissue (VAT) is important because the two types of fat accumulation are associated with different metabolic risks (10-12).

All these measurements can be performed by using semi-automatic or fully automatic segmentation methods on CT. Since CT imaging is based on the use of X-rays, its use may be a hurdle to clinical research in healthy volunteers, as well as in patients that are evaluated solely by MRI (13).

Compared to CT, MRI shows better soft tissue definition, especially for fat, and thus it may offer easier segmentation of fat and muscles (14,15), although its use for body composition assessment is still limited because of the costs involved and the need for more complex post-processing techniques (4).

However, in clinical and research settings where either CT or MRI are available, it would be of benefit to know whether body composition measures evaluated on routine clinical abdominal MRI and CT at the level of the third lumbar vertebra (L3), may be as reliable.

Therefore, the primary objective of this study was to retrospectively compare measurements of SMI, VAT and SAT at the level of L3, on subjects who underwent clinical CT and MRI examinations within a 3-month period. The secondary objective was to compare the automatic and semi-automatic quantifications of the same values for the sole CT images.

We present the following article in accordance with the MDAR checklist (available at https://dx.doi.org/10.21037/qims-21-619).

Methods

Patient selection

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the regional ethics committee of Canton Ticino and individual consent for this retrospective analysis was waived. The study population was retrospectively selected among subjects who underwent both a CT and an MRI scan for medical purposes at our Institution within no more than 3 months between them between 2020 and 2011. We did not go furtherly backwards because the techniques of acquisition could have been different, thus influencing the quality of segmentation (16). The mean, median and standard deviation (SD) of time interval between the two exams were calculated and evaluated for significance. The height of the patients was recorded. The weight of the patients was recorded, where available, at the two time-points and mean, median and SD were calculated. Clinical indication to perform the examination was also recorded. Exclusion criteria were: presence of extensive artifacts due to metallic prostheses (for CT and MRI) or bowel movements (for MRI); images not including the whole waist circumference at the level of L3 (for CT and MRI); CT acquired with low-dose technique; lack of sequence without contrast medium at CT.

Body surface area (BSA) was calculated according to the Du Bois formula (17). BMI was calculated as weight/height². Patients were then further divided into three groups for separate analyses according to WHO definition of obesity (18) into: underweight (BMI: <18.5), normal weight (BMI: 18.5–24.9), overweight or obese (BMI: >25). A further distinction was made between sarcopenic and non sarcopenic patients according to the criteria derived from Martin and colleagues (19), as shown in Table 1.

CT and MRI acquisition

CT and MRI examinations were acquired on different scanners at different Institutions, but they were all available in digital format on the local picture archiving and computer system (PACS). The CT series used for extraction were acquired without iodinated contrast medium; the MRI sequences used were T1-weighted and T2-weighted without fat saturation, acquired on 3T machines.

CT and MRI data extraction

An axial image at the level of L3 was stored in Digital Imaging and Communications in Medicine (DICOM) format for the CT series (1 image), for the T1-weighted series (1 image) and for the T2-weighted series (1 image). The images were coded and stored in a dedicated folder, where the reader was not able to associate images from the same patient. The set of three images was then uploaded into the Slice-O-Matic software v5.0 (Tomovision, Canada).

• CT semi-automatic segmentation: by using either the morpho mode or the region growing mode, semi-automatic segmentations were drawn by one person with 1 year of experience in imaging evaluation (CZ). In case of doubts regarding segmentation, a senior radiologist with >15 years of experience (SR) double-checked the segmentations. The morpho mode uses mathematical morphology to segment and edit the images. Mathematical morphology segmentation is done by computing the watershed of the gradient that gives a mosaic-like appearance to the image. Each region of this mosaic may then be filled with the appropriate tag value, corresponding to the tissue type (mainly muscle, subcutaneous fat and visceral fat). The final step done by the software is to merge the areas of these regions together. CT attenuation thresholds were −29 to 150 Hounsfield units (HU) for skeletal muscle; −190 to −30 HU for SAT; −150 to −50 HU for VAT.
• CT automatic segmentation: the Automatic Body composition Analyzer using Computed tomography image Segmentation (ABACS) module, commercially available as adjunctive tool to Slice-O-Matic, was used. The algorithm behind ABACS follows a two-step approach: in the first step, a muscle region mask is determined using a template-based segmentation methodology, wherein a binary template defining an initial shape of the muscle is deformed via non-rigid registration to closely match the muscle region in the binarized version (obtained by thresholding within the muscle −29 to 150 HU range) of the input slice. The deformation process is guided by a statistical shape prior model. This aids the disambiguation of the muscle tissue from the neighboring organs with overlapping HU ranges, leading to an accurate segmentation of the muscle region mask. The second step involves masking the input slice with the estimated muscle region segmentation and determining the final muscle, subcutaneous, and VAT regions of interest using the corresponding pre-defined HU ranges for these tissues. Specifically, the pixels within the muscle region mask have attenuation values ranging from −29 to 150 HU. The pixels lying ‘outside’ of the outer boundary of the muscle mask that have attenuation values in the −190 to −30 HU range, comprise the SAT while the pixels that are ‘inside’ the interior of the inner of the boundary of the muscle mask and have attenuation values in the −150 to −50 HU range are used to define the VAT ROI (20,21). The software is available commercially from Voronoi Health Analytics Inc., (Coquitlam, Canada; https://voronoihealthanalytics.com) and is integrated into the SliceOmatic (TomoVision, Magog, Canada; https://tomovision.com) software as a module.
• MRI semi-automatic segmentation: MRI images were segmented by using the morpho mode of Slice-O-Matic.
• By using either the morpho mode or the region growing mode, semi-automatic segmentations were drawn by one person with 1 year of experience in imaging evaluation (CZ). In the case of doubts regarding segmentation, a senior radiologist with >15 years of experience (SR) double-checked the segmentations. The following quantitative measurements were recorded: SMA (including the psoas, erector spinae, quadratus lumborum, transversus abdominis, external obliques, internal obliques, and rectus abdominis muscles) expressed in cm²; SAT expressed in cm²; and VAT expressed in cm². The SMI was then calculated by normalizing SMA by the square height (m²) and reported as cm²/m². For CT images, the mean values of densities in HU, as reported by the software, were also recorded.

For the set of CT images only, SMA, SAT and VAT were also calculated by using the automatic segmentation.

An example of semiautomatic segmentation of SMA, SAT and VAT on CT and MRI images is shown in Figure 1.

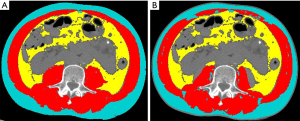

Figure 1 Semi-automatic segmentation of SMA (red) used to calculate SMI, VAT (yellow) and SAT (light blue) from axial images at the level of L3 in the same patients. (A) Non-iodinated CT. (B) MRI T1-weighted sequence. (C) MRI T2-weighted sequence. As shown in this example, main tissues are well depicted on all the images, although some minor differences can be seen within the segmentation of the psoas muscles and abdominal wall (minor missing dots in MRI images), of the SAT (with MRI missing some dots on the surface), and of the VAT (with bowel representing a confounding element). SMA, skeletal muscle area; SMI, skeletal muscle index; VAT, visceral adipose tissue; SAT, subcutaneous adipose tissue; L3, the third lumbar vertebra; CT, computed tomography; MRI, magnetic resonance imaging.

The single axial measures of SAT and VAT were used to calculate the whole body volumes (in liters) of skeletal muscle and VAT, according to the formulas proposed by Shen et al. (6).

Statistical analysis

Quantitative variables were presented as mean with SD, or as median with their interquartile ranges, as appropriate. Qualitative data were presented as absolute numbers with percentages.

Quantitative MRI measurements were compared with CT measurements by using Pearson correlation analysis and by Bland-Altman agreement analysis (22). Linear regression analysis explain how the values on the Y-axis vary with the values on the X-axis in a predictable way which can be represented by a straight line. The more the points cluster around the line, the more the model works well and the values on the Y-axis are predictable. In Bland-Altman plots, the central line represents the average difference between methods: the more the points are closer to the central line, the more the differences between the two groups of values are homogeneous and similar to the average difference. Intersperse points show variability in differences between values.

If in the Bland-Altman plots the difference between pairs of measurements increased with the mean, a logarithmic transformation (natural logarithm) of the measurements was performed, as suggested (22). Analysis was performed on total sample, further divided according to BMI and sarcopenia. Different subgroups were built and separately analyzed in order to assess whether these issues could affect the comparison between methods. Furthermore, the following compartments were calculated for the 4 sets of images: (SAT + VAT)/SMI; SAT/VAT; SMI/SAT.

All statistical analyses were carried out with the Stata 15 (StatCorp. LP, College Station, TX, USA).

Results

According to inclusion and exclusion criteria, 27 patients were excluded and the final cohort consisted of 123 patients (69 males and 54 females) with a mean age of 66±12 years, with different clinical indications for undergoing the imaging examinations. Baseline characteristics of the study population are summarized in Table 2. Height (and SMI) were available for 122/123 patients. The mean time between the two time-points was 36.1, and there was no significant difference for time interval (P=0.47). Weight at the two time-points was available in 93/123 patients, and the mean difference was −0.2 kg (P=0.9). The largest difference in weight between the two time-points was encountered in 3 patients: 1 was due to heart failure (first exam) that was then treated by diuretic therapy (−12 kg); 1 was associated to a large pseudocyst, that was then drained (−7 kg); 1 was associated to a chronic abuse of ethyl (−10 kg). Details about segmentation values of the 3 outlier patients are included in Table S1.

Assessment of SMI, SAT and VAT areas and their values on CT and MRI are listed in Table 3.

Mean and SD of calculated volumes of SMA from CT images with semiautomatic and automatic segmentations and with MRI on T1 and T2 images were 23.6±5.4; 23±5; 22.7±5.2 and 22.1±4.9 liters, respectively. Mean and SD of calculated volumes of VAT from CT images with semiautomatic and automatic segmentations and with MRI on T1 and T2 images were 14.8±7.2; 14±7.3; 14.1±6.8; 15.1±7.2 liters, respectively.

SMI

By performing linear regression analysis, CT and MRI derived measurements of SMI showed a high correlation (r²=0.81 for T1; r²=0.89 for T2). The Bland-Altman analysis comparing the SMI calculated from CT and MRI images showed an average difference of 0.041 for T1-weighted images (95% confidence interval: 0.020 to 0.062; limits of agreement: −0.192 to 0.274), and 0.072 for T2-weighted images (95% confidence interval: 0.055 to 0.088; limits of agreement: −0.109 to 0.252), respectively (Figure 2).

Figure 2 Bland-Altman plots and linear regression analysis, showing the average on the logarithmic scale of the difference between SMI measured by CT and MRI. (A) Bland-Altman plot of lnCTSMI and by MRI T1-weighted (lnMRT1SMI) images. (B) Linear regression analysis of lnCTSMI and lnMRT1SMI images. (C) Bland-Altman plot of lnCTSMI and lnMRT2SMI images. (D) Linear regression analysis of lnCTSMI and by MRI T2-weighted images. The linear regression analysis (B,D) shows a clustering of points around the straight line, demonstrating that the MRI measurements of SMI are predictable starting from the CT measurements. The central line of the Bland-Altman plots represents the average difference between the two methods. In this analysis (A,C) most of the dots are equally distributed above and below the central line; moreover the measurements difference is more homogeneous comparing the MRI T1-weighted images to CT images than MRI T2 images to CT images. SMI, skeletal muscle index; CT, computed tomography; MRI, magnetic resonance imaging; lnCTSMI, the difference between SMI measured by CT; lnMRT1SMI, the difference between SMI by MRI T1-weighted; lnMRT2SMI, the difference between SMI by MRI T2-weighted.

SAT

By performing linear regression analysis, CT and MRI derived measurements of SAT showed a high correlation (r²=0.81 for T1; r²=0.81 for T2). The Bland-Altman analysis comparing SAT calculated from CT and from MRI images showed an average difference of 0.0174 for T1-weighted images (95% confidence interval: 0.141 to 0.206; limits of agreement: 0.197 to 0.544), and 0.201 for T2-weighted differences (95% confidence interval: 0.167 to 0.236; limits of agreement: −0.190 to 0.593), respectively (Figure 3).

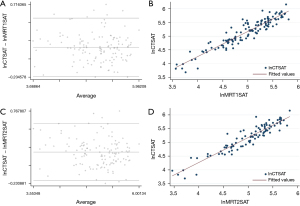

Figure 3 Bland-Altman plots and linear regression analysis, showing the average on the logarithmic scale of the difference between SAT measured by CT and MRI. (A) Bland-Altman plot of lnCTSAT and lnMRT1SAT images. (B) Linear regression analysis of lnCTSAT and lnMRT1SAT images. (C) Bland-Altman plot of lnCTSAT and lnMRT2SAT images. (D) Linear regression analysis of lnCTSAT and lnMRT2SAT images. The linear regression analysis (B,D) shows a clustering of points around the straight line, but shows also some points distant from the central line. Accordingly, the Bland-Altman plots (A,C) show that there are some outliers dots comparing MRI T1-weighted images to CT images as well as comparing MRI T1-weighted images to CT images. SAT, subcutaneous adipose tissue; CT, computed tomography; MRI, magnetic resonance imaging; lnCTSAT, the difference between SAT measured by CT; lnMRT1SAT, the difference between SAT by MRI T1-weighted; lnMRT2SAT, the difference between SAT by MRI T2-weighted.

VAT

By performing linear regression analysis, CT and MRI derived measurements of SAT showed a high correlation (r²=0.94 for T1; r²=0.93 for T2). The Bland-Altman analysis comparing VAT calculated from CT and from MRI images showed an average difference of 0.040 for T1-weighted images (95% confidence interval: −0.001 to 0.081; limits of agreement: −0.428 to 0.508), and −0.084 for T2-weighted images (95% confidence interval: −0.131 to −0.036; limits of agreement: −0.623 to 0.456), respectively (Figure 4).

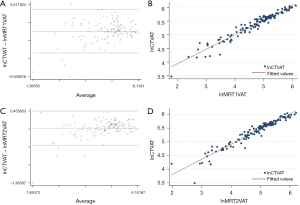

Figure 4 Bland-Altman plots and linear regression analysis, showing the average on logarithmic scale of the difference between VAT measured by CT and by MRI. (A) Bland-Altman plot of lnCTVAT and lnMRT1VAT. (B) Linear regression analysis of lnCTVAT and lnMRT1VAT images. (C) Bland-Altman plot of lnCTVAT and lnMRT2VAT images. (D) Linear regression analysis of lnCTVAT and lnMRT2VAT images. The linear regression analysis (B,D) shows a clustering of points around the straight line, demonstrating that the MRI measurements of VAT are predictable starting from the CT measurements. The Bland-Altman plots (A,C) show that there are some outliers dots comparing MRI T1-weighted images to CT images as well as comparing MRI T1-weighted images to CT images, being MRI measurements more prone to overestimate the VAT values. VAT, visceral adipose tissue; CT, computed tomography; MRI, magnetic resonance imaging; lnCTVAT, the difference between VAT measured by CT; lnMRT1VAT, the difference between VAT by MRI T1-weighted; lnMRT2VAT, the difference between VAT by MRI T2-weighted.

Assessment of SMI, SAT and VAT values on CT, MRI T1-weighted and MRI T2-weighted images, performed on subgroups derived according to BMI and sarcopenia, are shown in Table 4.

Table 5 shows results of Bland-Altman agreement analysis, comparing MRI measurements and CT measurements for each sub-group. Results are reported as average difference with relative 95% confidence interval and limits of agreement.

CT segmentation

The comparison of values calculated by using the semi-automatic vs. the automatic segmentation method showed differences on the logarithmic scale of 0.025 for SMI (95% confidence interval: 0.003 to 0.047; limits of agreement: −0.221 to 0.272); 0.053 for VAT (95% confidence interval: 0.013 to 0.092; limits of agreement: −0.394 to 0.499), and 0.094 for SAT (95% confidence interval: 0.054 to 0.134; limits of agreement: −0.364 to 0.552), respectively (Figure 5). An example of semi-automatic and automatic segmentation of SMA, SAT and VAT on the same CT image is shown in Figure 6.

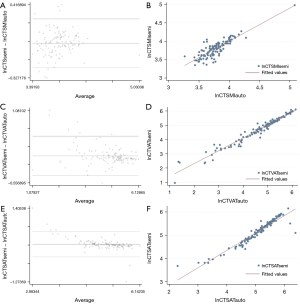

Figure 5 Bland-Altman plots and linear regression analysis, showing the average on the logarithmic scale of the difference between computed tomography (CT) values extracted by semi-automatic segmentation and automatic segmentation. (A) Bland-Altman plot for SMI (lnCTSMIsemi − lnCTSMIauto). (B) Linear regression analysis for SMI. (C) Bland-Altman plot for VAT (lnCTVATsemi − lnCTVATauto). (D) Linear regression analysis for VAT. (E) Bland-Altman plot for SAT (lnCTSATsemi − lnCTSATauto). (F) Linear regression analysis for SAT. CT, computed tomography; SMI, skeletal muscle index; lnCTSMI, the difference between SMI measured by CT; VAT, visceral adipose tissue; lnCTVAT, the difference between VAT measured by CT; SAT, subcutaneous adipose tissue; lnCTSAT, the difference between SAT measured by CT.

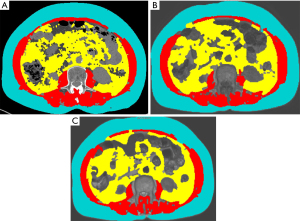

Figure 6 SMA (red) used to calculate SMI, VAT (yellow) and SAT (light blue) on the same CT image. (A) Segmentation performed by semi-automatic tool. (B) segmentation performed by automatic tool. In this example, the automatic segmentation failed to include some small muscle areas (as the lateral part of the psoas muscles and some small dots within the anterior abdominal wall), likely due to low densities related to fat infiltration. SMA, skeletal muscle area; SMI, skeletal muscle index; VAT, visceral adipose tissue; SAT, subcutaneous adipose tissue; CT, computed tomography.

Discussion

Body composition assessment is gaining increasing attention in many clinical settings, because of its role in metabolism of drugs, advent of therapy complications, cardiovascular and metabolic risk (4,23). Sarcopenia is a condition characterized by loss of muscle mass and muscle strength. Muscle mass decrease is directly responsible for functional impairment with loss of strength, increased likelihood of falls, and loss of autonomy (24). Cachexia is a multifactorial syndrome characterized by severe body weight, fat and muscle loss and increased protein catabolism due to underlying diseases; this condition is clinically relevant since it increases patients’ morbidity and mortality (24).

The CT scan offers a good evaluation for body composition analysis, thanking its accuracy in quantification of muscle and fat, and its fast acquisition. In the oncological setting, where patients are usually evaluated over time by CT (25-28) a retrospective evaluation of skeletal muscle from clinical CT examinations is indeed an opportunistic source of significant information regarding sarcopenia and fat distribution (23). In these patients CT scan offers also the opportunity to assess the attenuation values of muscle and fat, which give information about the functional status of these tissues. For instance, low attenuation values within the muscle, indicate high fat infiltration and lower performance. However, for some categories of patients, such as patients with pancreatic and hepatic lesions, MRI is frequently used for imaging assessment instead of CT, as demonstrated in this study cohort, where the most frequent indications to perform the exams were evaluations of pancreatic and hepatic lesions. We therefore deemed it important to evaluate whether MRI can be as reliable as CT in evaluation of body composition quantitative values. With this regard, Tandon et al. demonstrated that CT and MRI were comparable in the evaluation of SMI in 61 liver transplant donors, and conclude that MRI can be used interchangeably with CT to quantify L3 skeletal muscle cross-sectional area (29), although in their study there were some significant outliers, mostly favoring the use of CT (29,30). Therefore, the question of whether or not CT and MRI measurements of skeletal muscle are comparable was still open and needed further evaluations. Higgins et al. performed a comparison of body composition values in 58 patients who underwent CT and MRI as pre-operative assessment for renal cell carcinoma. The authors demonstrated a strong correlation of measurements of skeletal muscle and adipose tissues, thus supporting the use of axial MRI images for comprehensive measurement of body composition (31). Khan et al. assessed the reproducibility and concordance of CT and MRI segmentation analyses of SMA at mid-L3 on a small sample of 9 patients with renal cell carcinoma, demonstrating a strong correlation of SMA at mid-L3 between CT and T2-weighted MRI (32).

Wang et al. assessed the validity and reliability of abdominal SMA measurement by comparing CT and MRI based on the fat image of IDEAL-IQ sequence at the lumbar level mid-L3, demonstrating that MRI exhibited good interobserver reliability and excellent agreement with CT for quantification of abdominal SMA (33). Sinelnikov et al. investigated the correlation between CT and MR measurements of SMA in the abdomen of 12 patients, and demonstrated that SMA at CT correlated closely with MR, with T2-weighted images showing the highest correlation (r=0.98; P<0.01) (34). According to the abovementioned studies, in a larger cohort of 123 subjects, we demonstrated that SMI, derived from SMA, measured by CT and MRI at the level of L3 showed a high correlation (r²=0.81 for T1; r²=0.89 for T2).

The interchangeability of the two techniques would be of great help when the same patient undergoes CT and MRI at different time-points, also for the assessment of fat distribution. Indeed, the variation of VAT over time may help to evaluate patients after bariatric surgery (35), or under dietary restrictions (36), or included in weight loss programs, or under physical exercise regimens (15). In a study focused on 31 patients, accuracy of MRI measurement of VAT was compared to CT and the authors demonstrated an accuracy of T1-weighted and T2-weighted MRI of 89% and 91% compared to CT (37). CT and MRI have both been used as tools to investigate the distribution of SAT and VAT (38,39). If CT offers an opportunistic evaluation of fat infiltration by attenuation values, MRI using Dixon technique may give information as reliable. However, Dixon sequences have to be planned in advance, and for the calculation of fat infiltration, both the water-only and the fat-only should be available on the PACS. In our cohort of 123 patients, the VAT measurements by MRI and CT showed a high correlation, both with T1-weighted images, and with T2-weighted images, with an average difference of 0.040 for T1-weighted images and −0.084 for T2-weighted images. This good performance of quantification from both sequences is likely due to the semi-automatic segmentation allowing selection and exclusion of the intra-bowel hyperintensity, which may fall in the same grey level intensities of fat using an automatic segmentation method. Nonetheless, looking at the Bland-Altman plots, the lowest median difference in VAT assessment, was shown by the comparison of MRI T2-weighted images and CT images, being T2-weighted images more prone to overestimate VAT. This difference may be due to the intrinsic characteristic of the T2-weighted images, where the hyperintensity of fat within the visceral cavity may allow an easier identification for the radiologist’s eye compared to T1-weighted images and non-contrast CT images. This is indeed confirmed by the assessment after division in sub-groups according to BMI, where the overestimation of T2-weighted images is more evident in underweight patients.

Despite its prognostic value, body composition is rarely assessed as a default to improve risk stratification before surgery and chemotherapy, or to personalize lifestyle interventions during cancer therapy. This may be due to a lack of time-efficient, clinic-friendly assessment tools that produce accurate muscle and adipose tissue quantifications. Automated analysis of body composition has the potential to substantially reduce this workload and to accelerate research in body composition. For this reason, we compared the results in body composition assessment of a semi-automatic and automatic segmentation.

In our cohort, the two segmentation methods showed high agreement of the measurements. This is in accordance with the results of Cespedes Feliciano et al., who in a large cohort of 5,990 patients demonstrated a strong agreement between manual and automatic segmentations overall, as well as within subgroups of age, sex, BMI, and cancer stage, although the automatic segmentation performance was lowest for some patients (<2%) who were underweight or had anatomic abnormalities (20). It is probable that we did not encounter this finding because one of our exclusion criteria was the presence of extensive artifacts or bowel motion, which can alter the segmentation (40), particularly with the automatic tool. In a recent study, Dalah et al. compared automatic and semi-automatic segmentation of VAT and SAT determined on T2-weighted MRI in 55 overweight/obese adults, demonstrating that semi-automatic segmentation showed a stronger correlation with bioelectrical impedance analysis, compared to manual segmentation (41). Therefore, although automatic segmentations are correlated with semi-automatic segmentations and can be used as well, it may be important to consider a visual check of the images before segmentation, mainly when using the automatic segmentation.

This study has some limitations. First, the selection of patients was not based on the clinical indication, but on the availability of CT and MR scans of the same patient. This might have affected the typology of patients selected, as demonstrated by the high number of oncological patients. Oncological patients may be prone to rapid changes in body composition for disease-related problems, such as cachexia, as well as for therapy-related complications (nausea, vomiting, etc.). However, we restricted the period for the inclusion of the two examinations to 3 months, specifically to reduce the possibility of major changes in body composition, even in oncological patients; furthermore, we evaluated the changes in weight between the two exams, when this data was available. Second, we did not assess any inter-reader agreement. However, since the primary objective of the study was to assess differences in quantitative measurements between two different imaging modalities, we tried to keep all the other variables as constant as possible, including the number of readers. Third, we could not perform a comparison of MRI measurements made with more sophisticated evaluations, such as fat-referenced acquisitions. However, this type of assessment, which shows great promise for a precise quantification of body composition and the related risks, needs dedicated acquisition and can therefore be included only in a prospective way. Since the main objective of this study was to assess whether MRI and CT quantitative measures of body composition assessed at the level of L3 are comparable for use in retrospective studies, a prospective acquisition was beyond our scope. Furthermore, we do know that body composition analysis may rely on changes of organ/tissue areas overtime, and not only on a single time evaluation. Therefore, in a more comprehensive evaluation of patients, the assessment of body composition at the level of L3, as done in this study, may not reflect changes at the whole body level (42). Nevertheless, in such evaluations, additional assessments may be planned in advance, according to the clinical setting under evaluation.

Finally, we did include examination over a large time span and this may potentially influence the quality of segmentation; nevertheless, it is known that contrast medium may influence the quality of segmentation (16) and all the CT scans were performed without contrast medium.

In conclusion, our results demonstrate that quantification of SMI, SAT and VAT at MRI from T1-weighted and T2-weighted images, is correlated to corresponding values at CT. Therefore, these results support the use of either CT or MRI to quantify body composition parameters, irrespective of the intrinsic physical differences between them. Eventually, on one hand this will allow not to exclude assessments in retrospective studies where either one is present at a pre-determined time point, on the other, in prospective studies, it will avoid patients undergoing unnecessary additional exams, since either one can be performed, according to clinical indication.

Furthermore, semi-automatic and automatic quantification of body composition values at CT are correlated, but a visual check of images is advisable, especially when using automatic segmentation.

Acknowledgments

We thank Dr. Susan J. West’s help for the language editing.

Funding: None.

Footnote

Reporting Checklist: The authors have completed the MDAR checklist. Available at https://dx.doi.org/10.21037/qims-21-619

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/qims-21-619). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by regional ethics committee of Canton Ticino and individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
