Changes in quantitative elastography assessment of the adjacent lumbar disc after segmental fixation of the spine: a case description of a burst fracture of L4

Introduction

Vertebral burst fractures are usually due to traumatic high-energy distraction of the vertebra. They often require pedicle screw fixation to stabilize the spine during the healing process but once the fusion of the fractured vertebra has occurred, the posterior fixation can be removed or shortened to restore part of the spinal mobility. The importance of sparing fusion levels to ensure optimal functional results has been demonstrated (1,2). In surgical planning, the rule is therefore to ensure the osteosynthesis stability while limiting the number of levels included. Immobilization or fixation of a vertebral segment may be responsible for degeneration of the intervertebral disc and in case of surgical treatment the adjacent disc (3,4). Therefore, we can ask whether removal of a vertebral fixation could decrease the stress on adjacent segments (5). Ultrasound shearwave elastography is a new innovative and non-invasive technique allowing evaluation of soft tissue’s elastic modulus through the measurement of shear wave speed (SWS). This non-invasive imaging method has shown its added value in breast (6) or in liver oncology (7) and, more recently, in musculoskeletal pathologies assessment (8). In particular, Langlais et al. found that SWS measured in annulus fibrosus was significantly higher in progressive adolescent idiopathic scoliosis than in asymptomatic population (9), which is associated with a stiffer tissue. The same authors defined a corridor of normality (2.3–3.7 m/s) for the asymptomatic population and observed that annulus SWS tended to normalize 1 year after fusion surgery in severe adolescent idiopathic scoliosis. The aim of this case was to analyze the effect of removing the posterior fixation in a case of burst fracture on the mechanical properties of the bridged and adjacent intervertebral discs.

Case presentation

Patient information, diagnosis, and therapeutic intervention

A 13-year-old female was treated for a burst (Dennis) Type B Fracture at L4 secondary to a 3 m fall in sports climbing activities. Surgical treatment was decided upon as more than one third of the height of the vertebral body is affected. She had no neurological deficit. A transpedicular L4 corpectomy and anterior L3/4 fusion with a cage was performed by posterior approach associated with a posterior L3/5 fixation (10) (Figure 1). Postoperative course was uneventful. The patient underwent a rehabilitation protocol with physiotherapy at a rate of 2 sessions per week for 5 weeks. The objective was to rehabilitate walking, reduce pain and improve lumbar mobility. All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient for publication of this case report and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.

Figure 1 Pre and postoperative imaging. Preoperative CT (A: lateral view) showed a burst fracture of L4 of type B according to the Dennis classification. Analysis of the L4 vertebra showed that more than one third of the height of the vertebral body is affected. Postoperative X-rays (B: AP view, C: lateral view) after L4 transpedicular corpectomy and posterior fixation with one single posterior approach. Postoperative lateral X-rays after distal removal in standing position (D: lateral view). Extension (E: lateral view) and flexion (F: lateral view) dynamic X-rays show range of mobility in the last two mobile lumbar discs.

Timeline and clinical/imagery findings

After assessment of the L3/4 anterior fusion by a CT-scan at 1 year, the L5 posterior fixation was removed. The patient had not undergone rehabilitation with physiotherapy. Ultrasound elastography of the anterior annulus fibrosus were performed according to an already validated protocol (9,11) (Figure 2). Shear Wave Speed (SWS) was measured in the anterior part of the annulus fibrosus of L4/5 and L5S1 discs. Three clips of about 10 s (about 10 elastography frames per clip) were recorded for each disc, i.e., L4/5 and L5/S1. The average SWS value was calculated in each region of interest to obtain a single SWS value (from three clips × 10 frames = 30 frames per disc) for L4/5 and L5/S1. The size of the region of interest (ROI) was also adapted to the disc and to the elastographic signal, to avoid signal saturation or missing signal. ROI was between 1 and 3 cm². Acquisitions were performed, by the same operator, one year after fracture treatment (before L5 fixation removal), then 6 months and 1 year after L5 fixation removal. Frontal and lateral X-rays were also acquired at each time point of the treatment. Dynamic flexion-extension bending films were done 1 year after L5 fixation removal. Two years after L5 fixation removal, the patient was symptoms-free and had a normal function. Dynamic X-rays showed a restoration of disc mobility at the L4/5 level without signs of instability or disc degeneration (Figure 1). Although SWS was within the normality corridor before removal of L5 fixation, it decreased at 6 months and 1 year after L5 fixation removal (Figure 3).

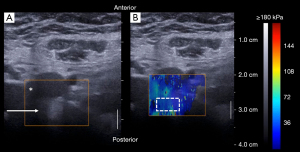

Figure 2 Elastography assessment. Example of ultrasound (A) and elastography image (B) of L4/5 intervertebral disc. In the ultrasound image, we could see the aortic bifurcation (*) and annulus fibrosus lamellae (arrow). The rectangle on elastography image shows the region of interest in the annulus fibrosus. The colouring of the scale bar represents the value of the Young’s modulus in Pascal. This value is specified along the scale.

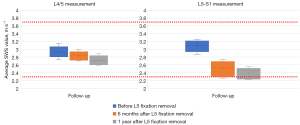

Figure 3 Box plots represents the SWS value of L4/5 and L5-S1 before and after L5 screws removal. Red dashed lines represent the limits of the corridor of normality (2.3–3.7 m/s).

Discussion

In this case, SWS decreased after screws removal for the two studied disc levels. L4/5 disc was bridged by the posterior instrumentation before removal of the L5 screws, and therefore it remained unloaded. L5/S1 disc, on the other hand, was free; hence, it was likely overloaded before fixation removal, to compensate for the reduced mobility of the instrumented segment. Loadings of both these discs changed towards physiological patterns after L5 fixation removal. With posterior-only approaches, biomechanical properties variations of the anterior annulus fibrosus may be only due to the removal of L5 fixation.

To perform the procedure, the adolescent should be relaxed, and constant pressure should be applied to the probe to clear the bowel contents and gas. It is advisable to first detect the aortic bifurcation, which corresponds to the L4 vertebra in 64% of subjects (12). Then the probe can slide caudally, to measure L4/5 and L5/S1. The lamellar structure of the annulus fibrosus is only visible if the probe is in the same plane as the disc. The learning curve for in vivo annulus fibrosus imaging is not long, but care must be taken to obtain stable and good quality images. A limitation of the technique is that the measurement is only of the anterior part of the annulus fibrosus in the lumbar region. The thoracic cage does not allow us to carry out measurements above L2. The measurements were carried out by the same operator, however there may be intra-operator variations. The feasibility study describing the protocol used in this case found an intra-operator repeatability of 5.0% and an intra-class correlation coefficient greater than 0.9 for each operator (11).

This study demonstrates the feasibility of using shear wave elastography in the pre- and postoperative biomechanical assessment of the lumbar annulus fibrosus. These results suggest that the stress reduction due to the removal of posterior fixation may influence the biomechanical parameters of the intervertebral discs and in particular the properties of the lumbar annulus fibrosus. This is a new point to consider in the advantage/disadvantage discussions of fracture treatment strategy (i.e., corset or osteosynthesis or arthrodesis). This report paves the way for further studies on intervertebral discs biomechanical characterization by elastography in various pathological conditions.
