Dark-blood late gadolinium-enhancement cardiac magnetic resonance imaging for myocardial scar detection based on simplified timing scheme: single-center experience in patients with suspected coronary artery disease
Introduction
Detection and assessment of myocardial scar is crucial in diagnosis, prognosis and treatment guidance in patients with suspected or known coronary artery disease (CAD) (1-5). Cardiac magnetic resonance (CMR) by using late gadolinium enhancement (LGE) is considered the standard for scar detection (6,7), presenting a hyperenhancement pattern to be distinguished from viable myocardium. Despite various efforts to improve the acquisition technique for spatial resolution or coverage (8,9), one important limitation of LGE CMR is that myocardial scar and ventricular blood pool are often hyperenhanced to a similar degree following administration of contrast agent (6,7). This may lead to poor delineation and interpretation of infarcted myocardium, particularly in the subendocardial area, as it is immediately adjacent to the bright left ventricle (LV) cavity (10).
Recent technical advances in dark-blood (DB) LGE CMR provide improved tissue delineation with signal suppression of the blood pool based on T2-preparation pulse that is relatively independent from the blood flow velocities (11-15). However, they require additional scout scans to visually or manually determine the optimal imaging parameters for the DB sequence. In addition, these new techniques are not generally available on all clinical systems, and all DB-methods are currently not standard of care in routine examinations.
In this study, we sought to examine scar detectability using DB-LGE in comparison to conventional bright-blood methods in patients with suspected CAD, and to further verify the principle on 3 T with simplified timing scheme based on fixed parameters for accommodation in a clinical setup.
We present the following article in accordance with the STARD reporting checklist (available at https://dx.doi.org/10.21037/qims-21-704).
Methods
Study population
The study population comprised consecutive patients older than 18 years with known or suspected coronary artery disease who were referred for stress CMR. Additional inclusion criteria included: (I) history of previous myocardial infarction; (II) abnormal left ventricular wall motion from previous echocardiogram or CMR; (III) left ventricular ejection fraction (LVEF) less than 50% from previous echocardiogram or CMR. Patients who presented at least one of these conditions were recruited to increase the chance of having myocardial scar. We excluded patients with claustrophobia and those who could not complete CMR examination. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by the Siriraj Institutional Review Board (SIRB) of the Faculty of Medicine Siriraj Hospital, Mahidol University, Bangkok, Thailand. All patients provided written informed consent prior to participation.
CMR imaging

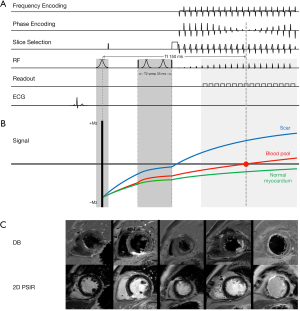

All patients underwent CMR function, perfusion and LGE acquisitions at 3.0 T (Ingenia, Philips Healthcare, Best, The Netherlands) using standard torso and posterior receiver coils. For LGE imaging the previously introduced DB method (15) with two-dimensional (2D) phase-sensitive inversion recovery (PSIR) preceded by a T2-preparation (T2-prep) pulse was employed. A simplified timing scheme with 35 ms T2-prep echo time and 150 ms inversion delay time (TI) was adapted on 3 T according to literature reports (16,17). This was first tested in five clinically confirmed CAD cases with documented scars (Figure 1) and was then fixed for the rest of the patient cohort. It was compared with two widely used bright-blood LGE scan protocols: conventional three-dimensional (3D) gradient-echo inversion recovery (3D-IR) that was routinely performed in our hospital, and conventional 2D PSIR. The imaging parameters are summarized in Table 1. All three techniques were applied in a randomized order in the study population, and all LGE images were acquired at end diastole during breath-holding obtained 10 to 15 minutes after injection of 0.2 mmol/kg of gadobutrol (Gadovist, Bayer HealthCare Pharmaceuticals, Leverkusen, Germany) contrast medium.
Table 1
Method | Conventional bright-blood LGE | Dark-blood LGE | ||
---|---|---|---|---|
3D-IR | PSIR | DB | ||
Basic sequence | 3D gradient-echo IR | 2D PSIR | 2D T2-prepared PSIR | |
FOV (mm2) | 270×270 | 270×270 | 270×270 | |
Matrix size | 152×148 | 168×207 | 168×207 | |
Pixel size (mm2) | 1.78×2.19 | 1.61×1.74 | 1.61×1.74 | |
Slice thickness (ACQ) (mm) | 10.0 | 8.5 | 8.5 | |
Slice thickness (REC) (mm) | 8.5 | – | – | |
Slice gap (mm) | 0 | 0 | 0 | |
# of slices | 10 | 10 | 10 | |
Echo time (TE) (ms) | 1.17 | 3.00 | 3.00 | |
Repetition time (TR) (ms) | 3.5 | 6.1 | 6.1 | |
Flip angle (degree) | 15 | 25 | 25 | |
Inversion time (TI) (ms) | 200–300 | 300–400 | 150 | |
T2-prep TE (ms) | NA | NA | 35 | |
Parallel imaging acceleration | SENSE 2.5 | SENSE 1.3 | SENSE 1.3 | |
Breathhold time (s) | ap. 20 | ap. 16×10 | ap. 16×10 |
ap., approximately; LGE, late gadolinium enhancement; IR, inversion recovery; PSIR, phase-sensitive inversion recovery; FOV, field of view; 3D, three-dimensional; 2D, two-dimensional; mm, millimeter; ACQ, acquired; REC, reconstructed; NA, not available.
Qualitative assessment: scar detection and confidence reading
CMR analysis was done in a blinded fashion to the clinical findings by two readers (Y Kaolawanich and S Nakyen) with more than 10 years’ experience in CMR. All three LGE methods were evaluated in a random order without knowing the findings of the other CMR techniques for (I) scar presence, (II) location, and (III) extent. Scar location refers to a per-segment analysis of its presence in the left anterior descending artery (LAD), left circumflex artery (LCX) or right coronary artery (RCA) territories based on a 17-segment model according to the American Heart Association (18), excluding the apical cap. Scar extent was assessed by the transmurality index with grade 1 (1–25% of the wall), grade 2 (26–50%), grade 3 (51–75%) and grade 4 (76–100%). Consequently, grade 1 and 2 were classified as non-transmural (≤50%), while grade 3 and 4 as transmural (at least 51%). For scar presence and transmurality, two independent readers performed first-line reading. In case of disagreement, it was resolved by a third reader (R Krittayaphong).
Confidence in scar detection and associated image quality was assessed using a 5-point scale: 1 = non-diagnostic with significant artifact, 2 = minimally diagnostic with strong artifact, 3 = diagnostic with moderate artifact, 4 = high diagnostic confidence with minimal artifact, 5 = excellent diagnostic confidence with no artifact. CMR images were analyzed on the ISP workstation (IntelliSpace Portal 9.0, Philips Healthcare, Best, The Netherlands).
Consensus between all three readers was used as gold standard. This in combination of the per-segment analysis allowed comparative assessment taking scar location into account at both patient and segment levels for the presence or absence as well as the pattern of the myocardial scar. In addition, scar detection rate is defined as the rate of scars detected by each individual technique compared to the expert consensus as gold standard.
Quantitative assessment: contrast ratio (CR)

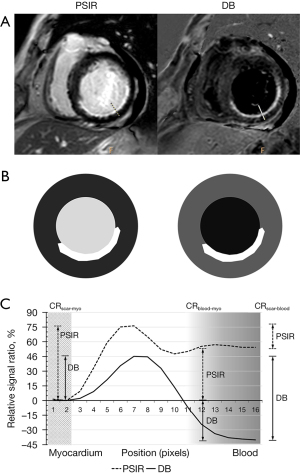

For quantitative scar analysis, regions of interest (ROIs) were manually drawn on slices, where scar was identified, in areas of scar hyperenhancement, a remote area of normal myocardium, and in the blood pool. For calculation of the signal ratio (SR) and CR, the manufacturer’s applied scaling in the stored DICOM data was removed by converting the data to floating point values as this reflects the true magnetic resonance (MR) signal range directly after reconstruction. A linear intensity correction was applied to compensate for the negative value in the PSIR images (19) and relative SR was calculated referencing to the normal myocardium. For scar, SRscar = [(Sscar + 2,048))/(Smyocardium + 2,048)]·100−100, where Sscar indicated signal intensity of the ROI in arbitrary units. These were applied for all three LGE methods with no scaling for comparison purpose. Subsequently, CR was derived for the difference of the relative signal between scar and blood pool (CRscar-blood = SRscar − SRblood), between scar and normal myocardium (CRscar-myo), and between blood and normal myocardium (CRblood-myo).
Statistical analysis
Continuous data with normal distribution are presented as mean ± standard deviation (SD) and as median (interquartile range) with non-normal distribution. Discrete data are presented as number (percentage). Scar presence, confidence reading, general image quality was evaluated using Friedman test, while CR was analyzed by repeated measures ANOVA. Intra- and inter-observer agreement was evaluated by Kappa (κ) analysis. A P value of less than 0.05 was considered statistical significance. The data were analyzed using SPSS Statistics version 23 (SPSS, Inc., Chicago, IL, USA).
Results
Patient characteristics
Clinical characteristics of the patients are shown in Table 2. Average age of the entire cohort at CMR exam was 66.8±10.2 years, 30.4% female in a total of 46 patients, and mean LVEF was 48.7%±18.8%. Among 41 patients with suspected coronary artery disease, myocardial scar was identified in 30 patients (73.2%) according to expert consensus based on findings of all LGE techniques. Detailed findings of cardiac function and perfusion were analyzed but not reported here as they are not part of this study.
Table 2
Variables | Mean ± SD or n (%) |
---|---|
Clinical characteristics | |
Age (years) | 66.8±10.2 |
Male gender | 32 (69.6) |
Weight (kg) | 69.2±10.4 |
Height (cm) | 164.0±8.0 |
Body mass index (kg/m2) | 25.8±4.1 |
Hypertension | 28 (60.9) |
Diabetes mellitus | 16 (34.8) |
Hypercholesterolemia | 28 (60.9) |
Smoking | 4 (8.7) |
Prior myocardial infarction | 8 (17.4) |
Prior revascularization | 10 (21.7) |
History of chest pain | 16 (34.8) |
History of dyspnea | 16 (34.8) |
History of heart failure | 7 (15.2) |
Beta-blockers | 23 (50.0) |
Calcium antagonists | 8 (17.4) |
Nitrates | 6 (13.0) |
ACEI/ARB | 18 (39.1) |
Antiplatelet | 20 (43.5) |
Statins | 27 (58.7) |
CMR variables | |
LVEF (%) | 48.7±18.8 |
LVEDVI (mL/m2) | 107.9±40.5 |
LVESVI (mL/m2) | 61.6±43.5 |
LVMASSI (g/m2) | 57.8±21.5 |
ACEI, angiotensin converting enzyme inhibitor; ARB, angiotensin receptor blocker; CMR, cardiac magnetic resonance; LVEF, left ventricular ejection fraction; LVEDVI, left ventricular end-diastolic volume index; LVESVI, left ventricular end-systolic volume index; LVMASSI, left ventricular mass index; SD, standard deviation.
Scar detection and transmurality
LGE using routine 3D-IR, PSIR, and proposed DB method were successfully completed in all 46 patients with no imaging failures. No images were deemed non-diagnostic with significant artifact. General image quality was rated highest in DB-LGE (3.91±0.63) compared to 3D-IR (3.51±0.76, P<0.001) and PSIR (3.83±0.72, P=0.376). Confidence scores for scar detection were significantly higher for DB-LGE (4.33±0.57) compared with 3D-IR (3.74±0.82, P<0.001) and PSIR (3.97±0.78, P=0.025). In general, the blood pool was completely and consistently nulled in all cases in DB-LGE. While the normal myocardium was partially nulled, scar showed hyperenhancement, which improved tissue delineation and visual inspection, in comparison to 3D-IR and PSIR. Figure 2 exhibits case images in a series of exams with myocardial scar. In Figure 2A and Figure 2B slight Gibbs ringing artifact at the edge of the blood pool and myocardial wall in both 3D-IR and PSIR (arrows) was not visible in DB-LGE. In addition, aliasing artifacts that obscured scar visualization (short arrows) was also clearly not evident in the blood suppressed images.
Inter- and intra-observer agreement for scar presence was excellent for all methods (κ ≥0.87, P<0.001). 3D-IR tended to have relatively lower inter-observer agreement for scar transmurality detection (0.652 at the patient level and 0.562 to 0.739 at the segment level), compared to PSIR (0.826 at the patient level and 0.648 to 0.727 at the segment level) and DB (0.778 at the patient level and 0.729 to 0.761 at the segment level). Details can be seen in Tables 3,4. Intra-observer agreement of LAD.
Table 3
Assessment parameters | 3D-IR | PSIR | DB | P value |
---|---|---|---|---|
Scar presence, n (%) | 33 (71.73) | 34 (73.91) | 35 (76.08) | 0.223 |
Confidence score for scar reading, mean ± SD | 3.74±0.82 | 3.97±0.78 | 4.33±0.57 | <0.001a,b,c |
Image quality, mean ± SD | 3.51±0.76 | 3.83±0.72 | 3.91±0.63 | <0.001a,b |
a, significant difference between 3D-IR and PSIR; b, significant difference between 3D-IR and DB; c, significant difference between PSIR and DB. 3D-IR, three-dimensional gradient-echo inversion recovery; PSIR, two-dimensional phase-sensitive inversion recovery; DB, dark-blood; LGE, late gadolinium enhancement; SD, standard deviation.
Table 4
Analysis level | Intra-observer agreement | Inter-observer agreement | |||||
---|---|---|---|---|---|---|---|
3D-IR* | PSIR* | DB* | 3D-IR* | PSIR* | DB* | ||
Patient level | |||||||
Scar presence | 1.000 | 0.870 | 0.869 | 0.948 | 0.893 | 0.945 | |
Scar transmurality | 0.942 | 0.943 | 1.000 | 0.652 | 0.826 | 0.778 | |
Segment level | |||||||
LAD | |||||||
Scar presence | 0.939 | 0.880 | 0.828 | 0.562 | 0.648 | 0.729 | |
Scar transmurality | 1.000 | 1.000 | 1.000 | 0.665 | 0.815 | 0.725 | |
RCA | |||||||
Scar presence | 1.000 | 0.680 | 0.932 | 0.739 | 0.635 | 0.761 | |
Scar transmurality | 0.929 | 1.000 | 1.000 | 0.533 | 0.704 | 0.692 | |
LCX | |||||||
Scar presence | 0.823 | 0.471 | 0.702 | 0.642 | 0.727 | 0.746 | |
Scar transmurality | 0.842 | 0.842 | 0.721 | 0.495 | 0.326 | 0.496 |
*, P values <0.001. 3D-IR, three-dimensional gradient-echo inversion recovery; PSIR, two-dimensional phase-sensitive inversion recovery; DB, dark-blood; LGE, late gadolinium enhancement; LAD, left anterior descending coronary artery; RCA, right coronary artery; LCX, left circumflex artery.
Subendocardial scar assessment

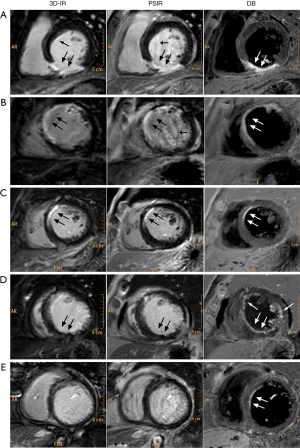

Examples of DB-LGE demonstrating better assessment of subendocardial scar than conventional bright-blood LGE methods are shown in Figure 2C,2E for 3 selected patients. In Figure 2C, a subendocardial scar is clearly present at anterior and anteroseptal wall for all techniques (arrows), whereas its extent is better appreciated due to better tissue contrast and lack of image artifacts. The multi-vessel involvement seen in the DB images of Figure 2D is difficult to assess in the bright blood image (arrows). A subendocardial scar of the anteroseptal wall at the basal level (arrows) seen in DB-LGE in Figure 2E may have been missed entirely in the 3D-IR and PSIR images.
Detection rate

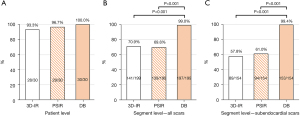

Among 30 identified scar cases according to the reader consensus (73.2% of 41 patients), two were missed by 3D-IR or PSIR, both rated as minimally diagnostic with low detection confidence. Figure 3 illustrates the performance of DB and bright-blood LGE CMR for detection of myocardial infarction (MI) based upon reader consensus (41 patients, 656 segments). Overall, all techniques had a similar detection rate at the patient level, while DB had a highest rate for subendocardial scar detection (99.4%), followed by PSIR (61.0%, P<0.001) and 3D-IR (57.8%, P<0.001).
Scar-tissue contrast

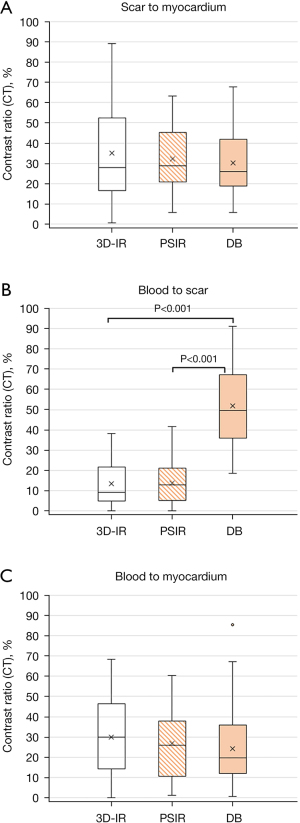

The CR (%) between scar and blood CRscar-blood was significantly higher for DB (51.9±19.8% compared with 3D-IR (13.1±10.6%), P<0.001) and PSIR (14.0±10.0%, P<0.001). There was no significant difference for CRscar-myo and CRblood-myo among all three techniques (Figure 4).
Discussion
This study evaluated DB-LGE using an adapted approach based on T2-prep PSIR (15) and segmented T1-weighted gradient-echo readout with a simplified timing scheme with fixed parameters on 3 T, with comparison to two widely used bright-blood protocols. The results demonstrate that consistent blood suppression in LV and higher scar-blood contrast in DB-LGE improves scar detection in patients with known or suspected CAD, particularly in subendocardial scars, associated with higher confidence and easier interpretation. The proposed approach does not require additional scout scans, ROI measurements or prolonged acquisition, which have benefits for scan operation and clinical workflow (20).
Scar visibility with dark blood
Currently we use 3D segmented-gradient-echo inversion-recovery (3D-IR) sequence (7) in our clinical routine, which covers the entire heart within one single but relatively long breathhold. PSIR images show contrast enhancement over a wide range of values and make nulling of normal myocardium less dependent on the chosen TI, with relatively longer scan time due to alternating RR-triggered acquisition (9). So far, several methods have been proposed to increase the scar-blood contrast including double inversions (21,22), magnetization transfer (11,23), and T2-prepared techniques (12,15). While a detailed explanation and comparison of these techniques are given in the recent review article (24), similar approaches based on T2-preparation so far (12,15) require additional steps before DB-LGE including scout scan and manual ROI drawing to determine the timing parameters as well as manual entry of myocardial and blood pool T1 in sequence user interface (12-15). This process typically takes about one minute and is an added level of complexity in the clinical workflow. The approach applied in this work is adapted from the same principle using user-independent parameter setting with fixed values for 3 T. The inversion time and T2-prep echo time were selected based on the testing results in 5 clinically confirmed CAD cases with scars at the initial phase of this study for differentiation of scar and blood contrast that share a similar T1 but different T2 values. In all patients, DB-LGE exhibited consistently nulled blood. With myocardial scar much brighter than the blood pool, it improves scar-blood contrast and more readily allows for robust scar-blood delineation. As a result, general image quality was highest in DB-LGE compared to 3D-IR and PSIR. This also improves scar visualization and leads to significantly higher confidence in scar detection than conventional 3D-IR and PSIR. Recently, DB-LGE techniques without additional magnetization preparation are proposed, which have achieved similar results at both 1.5 and 3 T (16,17). A direct comparison is not included in the present work and should be investigated in the future studies.
Scar detection rate of DB-LGE
Overall detection rate of myocardial scar was higher in DB-LGE comparing to the standard 3D-IR and PSIR at both patient and segment levels. This is in accordance with its highest confidence and quality rating. 3D-IR tends to interpret more scar as transmural. This is likely due to its lower spatial resolution and associated partial volume effect, particularly at areas close to the ventricular apex (25). Although PSIR has a higher spatial resolution, its similar signal enhancement degree between myocardial scar and blood pool after contrast bolus injection, is deemed as the main difficulty in detecting infarcted myocardium, particularly in the subendocardial area, as also observed in conventional IR-based LGE (6,7,10). This is overcome by DB-LGE with improved scar-blood contrast, which has yielded highest detection rate (99.4% vs. 57.8% for 3D-IR and 61.0% for PSIR, P<0.001) for subendocardial scar (Figure 3). For the two cases, where no scar was seen in 3D-IR or PSIR, DB-LGE revealed positive scar reading and was in consistency to the findings from CMR perfusion and coronary angiography demonstrating myocardial ischemia and significant coronary artery disease, as seen in Figure 5.
Scar-tissue contrast
Scar-to-blood contrast is deemed as one of the most important factors to interpret myocardial scar. Using CR, we have shown that DB-LGE exhibited highest value between scar and blood (51.9%±19.8%), significantly better than that in bright-blood LGE (13.1%±10.6% for 3D-IR and 14.0%±10.0% for PSIR, both P<0.001, Figure 4). We did not measure contrast-to-noise ratio (CNR) directly, because this requires obtaining separate noise maps in each patient to account for influence from parallel imaging or compressed sensing reconstruction (17,26) which will prolong the examination times. Figure 6 shows one example of the conventional PSIR and DB images using T2-prep PSIR in a patient with subendocardial scar. A marked difference of contrast difference between scar and blood with better border delineation to the LV cavity for DB-LGE is illustrated in the corresponding schematic plot (Figure 6B). The measured relative signal profiles referencing to normal myocardium in the same example also demonstrates a clearly improved CR between scar and blood (CRscar-blood), as seen in Figure 6C. Although scar-to-myocardium and blood-to-myocardium contrasts were slightly lower in DB-LGE compared to the other bright-blood techniques, the differences were not statistically significant and this was deemed not to influence image interpretation or scar detection, as reflected by the highest qualitative scores in image quality assessment and confidence reading for DB images.
Limitations
Whilst we have derived detection rate of DB-LGE based on expert consensus, there is no histological confirmation of myocardial scar performed. While recent studies have reported an excellent correlation of DB-LGE with histopathological specimen and provided measures on diagnostic performance (11,27), future studies validating the findings using the proposed method against histology would be of great value (7,28), though it is difficult to achieve in a clinical setup. Scar size was evaluated as transmural extent of myocardial wall thickness and was not used as a metrics for comparison in this study. Though different methods for quantitative size measurement have been seen in the published studies (11,12,26), there is no consensus and one cannot verify which method is more accurate. We did not study the effect of arrhythmia or fat signal or cardiac implants on DB-LGE image quality. While all patients in our study were in sinus rhythm during the examination, fat signal with similar T1 relaxation time to scar could potentially lead to false positive and further investigation incorporating robust fat saturation or separation is needed. For patients with pacemakers or implantable defibrillators, a wideband version of this LGE sequence could help to mitigate potential off-resonance artifacts and would be of interest in the future. DB images were only acquired in the short-axis planes, as was the case for 3D-IR that is currently routinely used in our hospital. Nevertheless, it would be interesting to observe DB-LGE in the other cardiac planes for scar detection and delineation. Last but not least, fixed timing parameters were applied for the DB-LGE approach in this work. These were weighted to prioritize nulling the LV blood pool based on clinically confirmed scars on 3 T at the initial phase of this study. This might lead to suboptimal blood suppression in certain cases, such as in the right ventricle (RV) cavity, where T1 of the deoxygenated blood is shorter than the LV blood (15). In particular, the selection of the timing parameters was not to achieve specific scar-blood ratio, similar as in the other proposed methods (11-17,23,25,28). This could be done via patient-specific, data-driven or even machine learning-aided optimization (20), in which case full automation may be expected to address challenge in routine clinical workflow and to minimize additional examination times. Given these limitations, larger studies in patients are warranted to further assess the diagnostic value and clinical impact of DB-LGE for scar detection, particularly in comparison to other existing methods either without additional magnetization preparation (16,17) or in free-breathing (29) or 3D imaging (30).
Conclusions
In patients with suspected CAD, DB-LGE results in higher confidence in myocardial scar detection with increased overall image quality on 3 T. This approach allows improved scar detection, particularly in detecting subendocardial scars, compared to the current standard bright-blood methods, and thus may be of potential value in patient management of coronary artery disease. Future comparison to other available techniques in large clinical cohorts are warranted.
