Preserved microstructural integrity of the corticospinal tract in patients with glioma-induced motor epilepsy: a study using mean apparent propagator magnetic resonance imaging

Introduction

Brain tumor is an important cause of epilepsy alongside other common causes, such as hippocampal sclerosis (1). Seizure presents frequently as a symptom of many types of brain tumors, especially glioma (2,3). The mechanism of epileptogenesis in glioma is not fully understood, but is believed to be multifactorial (3). Electrographically, seizures arise from the peritumoral cortex in most patients with brain tumors due to changes in that specific area (4,5). The role of peritumoral white matter and the tumor itself is also important. Mechanical compression of peritumoral normal tissue such as white matter leads to ischemia and hypoxia in the affected tissue, which may finally develop into an epileptic focus (6). The internal relationship of genetic factors of the tumor, such as isocitrate dehydrogenase (IDH) mutation, could also be partially responsible for seizures (7). In addition, the tumor itself secretes chemical factors that can alter the peritumoral microenvironment, which gradually leads to seizures (3,6). Therefore, the peritumoral microenvironment is complex and warrants further study.

Motor seizure is a common type of tumor-associated seizure, which is characterized mainly by seizure with motor symptoms and subclassified as either simple or complex. The corticospinal tract (CST) is the principal tract for controlling primary motor activity from the motor cortex. As the CST plays an important role in the conduction of abnormal currents in patients with motor epilepsy, we hypothesized that there may be a potential association between the integrity of the CST and motor epilepsy. However, to date, no studies have investigated this association.

Diffusion tensor imaging (DTI) is a widely used method for analyzing the effects of glioma on surrounding white matter such as the CST (8-14). Apart from the morphological characteristics of the CST, DTI also provides several diffusion indices including fractional anisotropy (FA), mean diffusivity (MD), axial diffusivity (AD), and radial diffusivity (RD). However, the simplified assumption of a Gaussian spin displacement distribution in DTI weakens its ability to interpret changes of the microstructure in and around tumors due to the high heterogeneity and complexity of glioma (9).

Mean apparent propagator magnetic resonance imaging (MAP-MRI) is a recently proposed diffusion model, which connects the diffusion-weighted imaging q-space with the spin displacements (15). It can efficiently measure the probability density function (PDF) of spin displacement and quantify useful metrics of this PDF indicative of diffusion in complex microstructures (9). These metrics include mean squared displacement (MSD), q-space inverse variance (QIV), return-to-origin probability (RTOP), return-to-axis probabilities (RTAP), and return-to-plane probabilities (RTPP), which can increase the ability to differentiate tissues with distinct structural and architectural features with much less variability (16), thus better accounting for the microstructural characteristics in tissue. The RTOP, RTAP, and RTPP describe the probability of the water molecules that return to the origin, axis, and plane, respectively, with a high value denoting a constrained structure. The MSD can be treated as a high angular resolution analogue of the DTI-MD. The QIV can be interpreted as the inverse of the “variance” of q. It is equivalent to MSD for cases with Gaussian distribution; however, for non-Gaussian distribution, QIV performs similarly, which explains why the gray matter performs differently from white matter in QIV (17).

Despite the great potential of MAP-MRI in evaluating the relationship between glioma-related seizures and glioma-induced microstructural changes to the CST, until now, this approach has not been applied to this end. Therefore, the aim of this study was to employ both MAP-MRI and DTI to compare the difference of CST features between glioma patients with motor epilepsy and those without epilepsy.

We present the following article in accordance with the STARD reporting checklist (available at https://dx.doi.org/10.21037/qims-21-679).

Methods

Patients

This prospective study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee Board of Fujian Medical University Union Hospital, and informed consent was provided by all participants.

Patients with suspected gliomas located in or adjacent to the CST pathway were enrolled in this study between March 2019 and January 2021 and underwent preoperative structural and diffusion MRI. Exclusion criteria were as follows: (I) incomplete imaging data or poor image quality such as those with motion artifacts; (II) without pathologically confirmed glioma; (III) both sides of the CST were impacted by a large tumor; (IV) non-motor epilepsy; (V) abnormal muscle strength of the upper or lower limbs; and (VI) minimal distance between the tumor and CST was more than 20 mm.

The screening process for participants is shown in Figure 1. This study finally included 26 glioma patients, with 17 males and 9 females. The participants were then divided into two groups: motor epilepsy [10 patients, median age: 41 years, interquartile range (IQR): 32–48 years] and without epilepsy (16 patients, median age: 50.5 years, IQR: 37.5–62 years). Additionally, 13 gender- and age-matched volunteers aged 33–52 years were recruited as healthy controls.

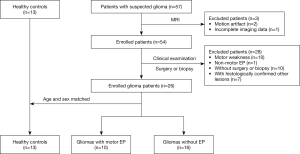

Figure 1 Screening process for the included glioma patients and healthy controls. EP, epilepsy.

Clinical and pathological information

Some clinical information of the participants including gender, age, duration of symptoms, and Karnofsky performance status (KPS) were acquired. The muscle strength in both upper and lower limbs was assessed using a clinical examination (grade 0–5) (18). Pathologically, the type and grade of the tumor were determined according to the World Health Organization (WHO) classification criteria (19). The IDH1R132H mutation status and Ki-67 labeling index (LI) were also evaluated. Epilepsy was diagnosed according to clinical practice guidelines for the diagnosis of glioma-related epilepsy (20).

MRI acquisition

All image acquisitions were conducted on a 3T MR scanner (MAGNETOM Prisma, Siemens Healthcare, Erlangen, Germany) equipped with a 64-channel head coil. The structural MRI protocol included pre-contrast sagittal T1-weighted magnetization-prepared rapid acquisition with gradient echo image (T1-MPRAGE) with a voxel size of 0.9375×0.9375×0.9 mm³, axial T2-weighted (T2W) fast spin-echo (FSE) images, axial fluid-attenuated inversion recovery (FLAIR) T2W images, and subsequent contrast-enhanced axial/sagittal/coronal FLAIR T1-weighted (T1W) images.

A grid sampling scheme was used to acquire 128 diffusion q-space samples, including 14 b values of 250, 500, 750, 1,000, 1,250, 1,500, 2,000, 2,250, 2,500, 2,750, 3,000, 3,250, 3,500, 4,000 s/mm² along 3, 6, 4, 3, 12, 12, 6, 15, 12, 12, 4, 12, 24, and 3 directions, respectively. The other scan parameters were repetition time (TR), 3,900 ms; echo time (TE), 88 ms; slice acceleration factor, 2; n GRAPPA, 2; field of view (FOV), 230×230 mm²; voxel size, 2.5×2.5×2.5 mm³, without gap and acquisition time, 8 min 44 sec. As the eddy current artifact produced by the grid sampling scheme cannot be corrected using eddy current correction, the bipolar pulse was used to handle eddy current at the sequence level (21).

Data postprocessing and evaluation

Calculation of diffusion parameter maps

All diffusion-weighted images underwent motion correction with the Diffusion Kit eddy tool (22). Afterwards, the six independent components of the diffusion tensor were estimated, and FA, MD, AD, and RD were further calculated. The MAP-MRI parameters were calculated using software developed in-house with Python, called NeuDiLab, which is based on an open-resource tool DIPY Toolbox (https://www.dipy.org/) (23). In brief, the MAP was fit with radial order of 6. No denoising was applied to the data prior to MAP fitting, but a positivity constraint and Laplacian regularization with a weighting of 0.05 were applied during fitting (16). These settings were recommended for robust fitting by the author of the DIPY MAP-MRI toolbox. Finally, MAP-MRI parameter maps, including MSD, QIV, RTOP, RTAP, and RTPP, were constructed.

CST tracking and quantification

The fiber pathways of the whole brain were reconstructed in DSI-studio (version 19 December 2019 build, http://dsi-studio.labsolver.org/) using generalized q-sampling imaging (GQI) (24). The restricted diffusion was quantified using restricted diffusion imaging (25). The CST was tracked by two experienced radiologists (with 11 and 8 years of experience) blinded to the patient’s information together with a consensus reached for each participant. The CST was determined by the selection of fibers passing through seed and target regions of interest (ROIs). The seed ROIs were placed at the anterior cerebral peduncles and the target ROIs were placed at the primary motor cortex and its underlying white matter area, with the central sulcus serving as the posterior border (26). Then, the deterministic streamline tracking algorithm, Streamline (Euler), was performed to obtain the whole CST fiber tractography using the default tracking parameters in DSI-studio. To verify the reproducibility of the measurements, 10 glioma patients were randomly selected, and the two radiologists independently repeated the tracking of the CST for them. The tract number, average tract length, and tract volume of the CST were evaluated using the “tract statistics” function in DSI-studio. Subsequently, FA, MD, AD, RD, MSD, QIV, RTOP, RTAP, and RTPP values along the CST were calculated. The relative values of the affected CST were calculated as the ratios of the FA, MD, AD, RD, MSD, QIV, RTOP, RTAP, and RTPP of the affected side to those corresponding values of the healthy side. The relative values for healthy controls were calculated as the ratios of the left side to the right side. Finally, tumor size and the minimum distance between CST and tumor were measured by an experienced radiologist based on the structural MR images and those merged with the CSTs.

Evaluation of the tumor features on MRI

The tumor size was measured by an experienced radiologist who calculated the tumor volumes slice by slice using ImageJ (https://imagej.nih.gov/ij/) on structural MR images. The total tumor size was the sum of the volumes of all tumor slices. The minimal distance between the CST and the tumor were evaluated on the structural MR images (such as T2-FLAIR) with CST marked in white, as shown in Figure S1. Moreover, cortical involvement by the tumor and abnormal peritumoral area affecting the CST were also evaluated.

Statistical analysis

The software SPSS 20.0 (IBM Corp., Armonk, NY, USA) was used for statistical analyses. Intraclass correlation coefficients were calculated to verify the reproducibility of the measurements between the two radiologists. The paired Wilcoxon test was performed to compare the differences between the CST characteristics including the tract number, average tract length, tract volume, AD, RD, FA, MD, MSD, QIV, RTAP, RTOP, and RTPP on the affected side and those on the healthy side for glioma patients, and also between the CST characteristics on the left side and those on the right side for healthy controls. The Mann-Whitney U test was further conducted to compare the relative CST characteristics across participants with motor epilepsy, patients without epilepsy, and healthy controls. A receiver operating characteristic (ROC) curve was finally plotted to further assess the diagnostic performance of each relative CST characteristic for glioma-induced epilepsy.

Results

Demographic characteristics of participants

A total of 39 participants were finally included in this study, including 10 glioma patients with motor epilepsy, 16 glioma patients without epilepsy, and 13 matched healthy controls. The demographic, clinical, and pathological information of participants are listed in Table 1. The time interval between MRI data collection and surgery was less than 4 weeks. No significant difference was found across the three groups for age and gender (P=0.253 and 0.298). In glioma patients, seizures were present in 54.55% (6 of 11) of participants with grade II gliomas, 40% (2 of 5) of participants with grade III gliomas, and 20% (2 of 10) of participants with grade IV gliomas. Compared with glioma patients without epilepsy, the glioma patients with motor epilepsy showed great similarities in the KPS, disease duration, minimal distance between CST and tumor, ratio of cortical involvement, ratio of abnormal peritumoral area affecting the CST, recurrence ratio, tumor grade, and IDH1 mutation ratio (P>0.05 for all), but the tumor size and Ki-67 LI were significantly lower in glioma patients with motor epilepsy (P=0.018 and 0.042).

Reproducibility of the CST measurements

The intraobserver agreement was found to be good between the two radiologists for the randomly selected 10 glioma patients since the intraclass correlation coefficients were between 0.756 and 0.999, as shown in Table S1.

Changes of CST features on the affected side in glioma patients

For all the glioma patients, the MD, RD, MSD, and QIV on the affected CST side were significantly higher compared with those on the healthy side (P=0.028, 0.012, 0.014, and 0.012, respectively). The tract number, tract volume, FA, and RTAP on the affected CST side were significantly lower compared with those on the healthy side (P=0.002, 0.002, 0.030, and 0.004, respectively). The results are shown in Table 2.

For glioma patients with motor epilepsy, no significant difference was found between the affected side and the healthy side for almost all CST features (P>0.05 for all), with the exception of RTPP (P=0.028). For glioma patients without epilepsy, RD, MSD, and QIV on the affected CST side were significantly higher compared with those on the healthy side (P=0.017, 0.039, and 0.044, respectively). The tract number, tract volume, FA, and RTAP on the affected CST side were significantly lower compared with those on the healthy side (P=0.002, 0.002, 0.030, and 0.002, respectively). The results are shown in Table 3.

No significant difference was found in all the CST features between the left and right sides for health controls (P>0.05 for all).

Changes of relative CST features in glioma patients

There was no significant difference for all relative CST features between healthy controls and participants with motor epilepsy (P>0.05 for all). However, compared with glioma patients with motor epilepsy, the relative CST features including the tract number, tract volume, AD, and RTAP in glioma patients without epilepsy were significantly lower (P=0.027, 0.018, 0.040, and 0.027, respectively). These results are shown in detail in Table 4, and the corresponding box and whisker plots are shown in Figure 2. In Figure 3 and Figure S2, 3 representative participants demonstrating the CST changes in glioma patients with motor epilepsy and without epilepsy are displayed.

Figure 2 Changes of relative CST features in glioma patients and healthy controls. Box and whisker plots of the relative morphological (A), DTI (B), and MAP-MRI (C,D) features of the CST which showed that the relative CST features including the tract number, tract volume, DTI-AD, and MAP-RTAP in glioma patients without epilepsy were significantly lower compared with glioma patients with motor epilepsy (*). In contrast, no significant changes were found in all the relative CST features between healthy controls and glioma patients with motor epilepsy. CST, corticospinal tract; DTI, diffusion tensor imaging; MAP, mean apparent propagator; MRI, magnetic resonance imaging; AD, axial diffusivity; RTAP, return-to-axis probabilities; FA, fractional anisotropy; MD, mean diffusivity; RD, radial diffusivity; MSD, mean squared displacement; QIV, q-space inverse variance; RTPP, return-to-plane probabilities; RTOP, return-to-origin probability; EP, epilepsy; HC, healthy control.

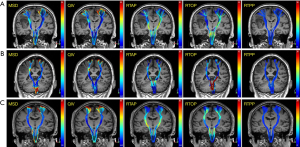

Figure 3 The MAP-MRI features of CST marked on pre-contrast 3D T1W images demonstrating the changes of the CST in glioma patients with motor epilepsy and without epilepsy in 3 representative participants. The patient (A) was a 57-year-old male with oligodendroglioma (WHO grade II), but without epilepsy. On the affected CST side, diffuse and obvious changes were found in MSD (increase), QIV (increase), RTAP (decrease), and RTOP (decrease), whereas change was not obvious in RTPP. The patient (B) was a 70-year-old male with diffuse astrocytoma (WHO grade II) and motor epilepsy. On the affected CST side, a focal increase was found in MSD and QIV, but changes were not obvious in RTAP, RTOP, and RTPP. The subject (C) was a 54-year-old healthy male. All the CST features had good bilateral symmetry. MAP, mean apparent propagator; MRI, magnetic resonance imaging; CST, corticospinal tract; T1W, T1-weighted; WHO, World Health Organization; MSD, mean squared displacement; QIV, q-space inverse variance; RTAP, return-to-axis probabilities; RTOP, return-to-origin probability; RTPP, return-to-plane probabilities.

ROC analysis

A ROC curve was plotted to assess the diagnostic performance of the relative CST characteristics in comparing glioma patients with motor epilepsy and those without epilepsy. In distinguishing the glioma patients with motor epilepsy and those without epilepsy, the relative tract volume had a slightly higher performance with an AUC of 0.781 (sensitivity of 70% and a specificity of 81.25%). Tract number and MAP-RTAP came second, with AUCs of 0.763 and 0.763, respectively (sensitivity of 80% and 80%, and specificity of 75% and 81.25%, respectively). This was followed by DTI-AD, with an AUC of 0.744 (a sensitivity of 70% and a specificity of 75%), as shown in Figure 4. The other relative features had relatively low AUCs, as shown in Table 5.

Figure 4 ROC curves for the differentiation of glioma patients with motor epilepsy from those without epilepsy. ROC curves distinguishing the glioma patients with motor epilepsy and without epilepsy showed that relative DTI-AD and MAP-RTAP had AUCs of 0.744 and 0.763, respectively (A). The tract number and tract volume also had similar AUCs of 0.763 and 0.781, respectively (B). ROC, receiver operating characteristic curve; DTI, diffusion tensor imaging; AD, axial diffusivity; MAP, mean apparent propagator; RTAP, return-to-axis probabilities; AUC, area under the curve.

Discussion

In this study, both MAP-MRI and DTI were employed to compare the CST features between the affected and healthy side, and compare the relative CST features across healthy controls, glioma patients with motor epilepsy, and those without epilepsy. It was found that many CST features changed significantly on the affected side in glioma patients, especially in those without epilepsy. Moreover, some relative CST features also changed significantly in patients without epilepsy.

For glioma patients without epilepsy, RD, MSD, and QIV were found to be significantly higher on the affected CST side, whereas the tract number, tract volume, FA, and RTAP were significantly lower on the affected CST side compared with those on the healthy side. Moreover, the relative CST features including the tract number, tract volume, AD, and RTAP were significantly higher in glioma patients without epilepsy. These changes suggest that the integrity of the CST might have been damaged in glioma patients without epilepsy, but the changes were not significant enough to cause a decrease in muscle strength, as all participants in this study had normal muscle strength. Gliomas vary in nuclear pleomorphism, hypercellularity, endothelial proliferation, and microvascular density, which may result in the disruption of myelin and axonal membranes in and around the tumor location and explain the corresponding imaging changes on the affected CST side.

For glioma patients with motor epilepsy, no significant difference was found between the affected side and the healthy side for almost all CST features except the RTPP, and no significant difference was found for all the relative CST features compared with healthy controls. These changes may indicate that the integrity of the CST is well preserved in glioma patients with motor epilepsy, which may be one reason for the finding that glioma patients with motor epilepsy had better prognoses in previous studies. It was reported that the occurrence of epileptic seizures independently impacted glioma prognosis, as both progression-free survival and overall survival were longer in glioma patients with a history of epileptic seizures for both low-grade glioma and high-grade glioma (6,27-29).

The relative CST features (AD and RTAP) were significantly higher in patients without epilepsy compared with those in patients with motor epilepsy, indicating that axial diffusion changes can serve as markers of glioma-related invasive change. The ROC curve demonstrated that RTAP had an AUC similar to that of AD, indicating that MAP-MRI parameters have a similar sensitivity to the DTI parameter for detecting integrity of the CST. However, for glioma patients with motor epilepsy, only RTPP decreased significantly on the affected side compared with the healthy side, which may indicate that MAP-MRI parameters may be more sensitive in demonstrating the subtle changes in the CST microenvironment for glioma patients with motor epilepsy. These MAP parameters that encode directional information were shown to be suitable for characterizing complex diffusion in anisotropic tissues and had great potential in distinguishing white matter biomarkers for axonal loss or demyelination (16).

Some confounding factors were excluded in this study. Firstly, glioma patients with motor weakness were excluded, as damage of the CST caused by glioma can result in motor weakness (8,12) and some features of the CST were significantly different between patients with motor weakness and those of the normal group (12,26). In addition, it has been reported that CST features such as FA vary across individuals and ages but have good bilateral symmetry (30). Therefore, the relative CST features were taken to minimize the effects of age and individual variation. Furthermore, the minimal distance from tumor to CST, cortical involvement of the tumor, and abnormal peritumoral area affecting the CST may constitute other probable factors. However, in this study, no significant difference was found in the minimal distance between tumor and CST, ratio of cortical involvement, and abnormal peritumoral area affecting the CST between glioma patients with motor epilepsy and those without epilepsy, as shown in Table 1.

In addition, this study revealed that seizures were present in 54.55% (6 of 11) of participants with grade II gliomas, 40% (2 of 5) of those with grade III gliomas, and 20% (2 of 10) of those with grade IV gliomas, which is similar to the findings of previous studies (3,31). As an indicator of cellular proliferation, the Ki-67 LI was found to be significantly lower in patients with motor epilepsy compared with that in those without epilepsy. This finding was also consistent with the previously reported values (6). Smaller tumor size was found in participants with motor epilepsy. We speculate that smaller or slow-growing tumors provide enough time for seizures to develop, whereas fast-growing tumors easily destroy the integrity of the CST, thus affecting the conduction of epileptic currents. This was consistent with a previous study of high-grade tumors (32). However, the reverse was found with low-grade tumors in other studies, where patients with large tumors were more likely to present with seizures than those with small tumors (33). Due to our small sample size, a larger cohort is of great necessity to draw further conclusions.

There are some limitations to this study. Tumor grade, motor weakness, and cortical involvement by the tumor were confounding factors in this study. We followed strict inclusion and exclusion criteria to obtain homogenous data and excluded some of the possible confounding factors such as motor weakness. However, subgroup analyses for other factors were not possible due to the small sample size involved, especially for the participants with motor epilepsy. Therefore, a larger cohort may be needed to draw a further conclusion. Another limitation is that there were 7 participants with abnormal peritumoral areas affecting the CST. An abnormal peritumoral area with T2-hyperintensity can be edema or a non-contrast enhancing tumor, and the diffusion parameters of the CST might be affected if the abnormal peritumoral area is masked with the CST. However, Fisher’s exact test did not reveal a significant difference in the ratio of abnormal peritumoral area affecting the CST between glioma patients with motor epilepsy and those without epilepsy. Therefore, we believe the conclusions are still credible and valuable for clinical practice.

Conclusions

The MAP-MRI is a promising method to evaluate CST changes in glioma patients by providing additional information on microstructural complexity. It can also demonstrate the preserved microstructural integrity of the CST in glioma patients with motor epilepsy, which may further elucidate the mechanism of motor epilepsy associated with glioma.

Acknowledgments

Funding: This work was supported by grants from the National Natural Science Foundation of China (81701655), Joint Funds for the Innovation of Science and Technology, Fujian Province (grant number: 2017Y9024), and University Project Funded by the Education Department of Fujian Province (JK2017019).

Footnote

Reporting Checklist: The authors have completed the STARD reporting checklist. Available at https://dx.doi.org/10.21037/qims-21-679

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/qims-21-679). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the ethics committee board of Fujian Medical University Union Hospital, and informed consent was provided by all participants.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
