Histogram peritumoral enhanced features on MRI arterial phase with extracellular contrast agent can improve prediction of microvascular invasion of hepatocellular carcinoma

Introduction

Hepatocellular carcinoma (HCC) is the fifth most common type of cancer in China and the second leading cause of cancer-related death worldwide (1,2). Liver resection and transplantation are effective treatments for HCC in patients with preserved liver function (3-5). However, the high recurrence rate of 50–70% has a significant impact on the long-term survival outcomes after surgery for HCC (6-8). Microvascular invasion (MVI) is one of the crucial potential risk factors for early recurrence of HCC, even for solitary small HCC (sHCC) (9). Therefore, the definitive diagnosis of MVI in HCC preoperatively can guide treatment choice and avoid wasting medical resources.

Contrary to macrovascular invasion that can be detected by diagnostic imaging, MVI is a histologic finding that can only be diagnosed with histopathologic evaluation postoperatively, and preoperative prediction of MVI is still challenging (10). Many studies have reported that MVI of HCC can be predicted by radiological features, such as peritumoral enhancement, corona enhancement, or incomplete capsule, using contrast-enhanced methods such as computed tomography (CT) or dynamic contrast-enhanced magnetic resonance imaging (MRI) (11-13). However, these predictors of MVI are far from perfect due to limited information or controversial predictive value. Therefore, more detailed investigations of quantitative information are needed for predicting MVI in HCC.

Histogram analysis is a useful and straightforward quantitative method that can be used to calculate the differentiation of pixel gray distribution and is helpful for radiologists to make a more objective diagnosis (14,15). Studies on HCC have shown that MR histogram analysis has progressed on diagnosis, biologic behavior, and therapy response prediction (16-18). Huang et al. suggested that histogram analysis of MRI may be helpful in detecting MVI of HCC (19). In our previous study, the prediction of MVI was greatly improved through quantitative analysis of morphology on hepatobiliary phase images, but the results through histogram analysis on tumor status to predict MVI were unsatisfactory. Some reports have shown that preoperative MVI predictors were mainly found in the arterial phase (AP), but details on tumor status in the AP of MRI have not been elaborated (19,20). In this study, we aimed to improve the diagnostic value of MVI using histogram features of HCC on the AP images of dynamic contrast-enhanced MRI using extracellular contrast agent.

We present the following article in accordance with the STARD reporting checklist (available at https://dx.doi.org/10.21037/qims-21-499).

Methods

Patients

This single-center retrospective study was approved by the Institutional Review Board at our institution and the informed consent requirement was waived. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). From our institution’s medical database, we identified 170 patients with HCC undergoing surgery and preoperative contrast-enhanced MRI between January 2018 and December 2019. In total, 113 consecutive patients were selected based on the following inclusion criteria: (I) histologically confirmed single HCC without evidence of gross vascular invasion on MRI; (II) no treatment before surgery; (III) gadoteric-acid-enhanced MRI within 14 days before surgery; (IV) HCC with full histological description available in the pathological report; and (V) good image quality (Figure 1).

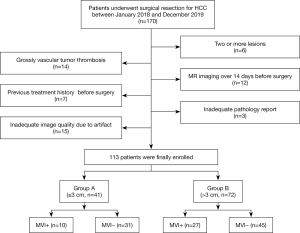

Figure 1 Patient selection for this study. HCC, hepatocellular carcinoma; MVI, microvascular invasion.

Clinical and histopathological evaluation

The clinical data (age, sex and serum markers) were collected from medical records. Pathological characteristics including tumor size, Edmondson-Steiner grade, MVI status and fibrosis stage of background liver from surgical resection specimens were evaluated by two dedicated pathologists (>12 years of experience in abdominal pathology). MVI was defined as the presence of tumor cells in the vascular spaces, indicated by endothelial cell linings, of the surrounding hepatic tissue, microscopically assessed after hematoxylin and eosin (H&E) staining (Figure 2A-2D).

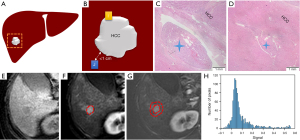

Figure 2 Tumor segmentation for histogram analysis. (A-D) Diagrams of tumor sampling for histology. MVI (asterisk), as identified in H&E-stained sections near the margin of the tumor [I] and in the peritumoral region (≤1 cm) [J]. The arterial phase image (F) was subtracted from the pre-enhancement image (E) to obtain the subtraction image (G). The red region in the subtraction image (G) within 10 mm of the tumor contour was automatically created to obtain the histogram (H). HCC, hepatocellular carcinoma; MVI, microvascular invasion.

MRI

All patients underwent contrast-enhanced MRI using a 3.0-Tesla MR system (Ingenia, Philips Healthcare, Netherlands) with a 32-channel phased-array coil. Firstly, an axial T2-weighted single-shot turbo spin-echo sequence with a fat-suppressed respiratory trigger was performed for routine liver MRI with the following parameters: repetition time (TR)/echo time (TE) =1,000/70 ms, slice thickness/gap =7/1 mm, field of view (FOV) =400 mm × 350 mm, and matrix size =208×207. Secondly, an axial dual-echo T1-weighted fast field-echo with breath-hold was also performed with TR/TE1/TE2 =8.7/1.15/2.3 ms, slice thickness/gap =7/1 mm, FOV =400 mm × 350 mm, and matrix size =252×211. Finally, a fat-suppressed dynamic 3D T1-weighted sequence (TR/TE =3.7/1.32 ms, slice thickness/gap =4/−2 mm, FOV =400 mm × 350 mm, matrix size =252×207) with volumetric interpolation and breath-hold was performed before and after bolus injection of 0.1 mmol/kg gadoteric acid (Hengrui Pharmaceutical Co., Ltd., Jiangsu, China) with a flow rate of 2 mL/s. The dynamic enhanced sequence was performed among several phases including the pre-enhanced phase, AP (25 s), portal venous phase (55 s), equilibrium phase (90 s), and delayed phase (180 s).

Evaluation of radiological features on contrast-enhanced MRI

The conventional T1-weighted dynamic contrast-enhanced images were assessed by two abdominal radiologists (R1 with 3 years and R2 both with 5 years experience). Both radiologists were aware that the lesions were HCC but were blinded to the MVI status and laboratory information. The following MRI features were evaluated by these two radiologists, and identified as potential imaging markers of MVI in previous studies (11,21): (I) tumor diameter, defined as the maximum diameter on pre-enhanced-phase T1-weighted imaging, classified into two size cohorts (≤3 cm and >3 cm); (II) corona enhancement, defined as a detectable enhanced portion of a crescent or irregular shape outside the tumor margin with broad contact to the tumor border on the AP, becoming isointense in the portal vein or delayed phase (22); (III) corona enhancement thickness (CET), if the corona enhancement was visible, we measured the maximum perpendicular distance from the tumor boundary to the edge of the corona enhancement; (IV) CET group, we grouped all cases into CET < cutoff value (including non-CET), and > cutoff value; and (V) radiological capsule appearance, categorized as complete, incomplete or absent. If the opinions of the radiologists differed, any disagreement was resolved by consensus.

Quantitative analysis on contrast-enhanced MRI

For each patient, the tumor outline was traced by a third radiologist with 3-year of experience (R3) and another radiologist with 5-year of experience (R4) examined the results. Neither of these radiologists were involved in the evaluation of radiological features. All the quantitative parameters were extracted with an in-house software package based on MATLAB (MathWorks, Natick, MA, USA). Regions of interest (ROIs) were delineated manually on arterial-enhanced-phase images on the largest tumor cross-sectional area by referring to pre-enhanced-phase images. The intratumoral region was defined as the area within the radiologist-labeled tumor boundaries. The peritumoral ROI was dilated at a radius of 1 cm automatically (it was analyzed as pixel counts multiplied by pixel size) by a topology algorithm from the tumor margin. When the tumor margin was indistinct on arterial-phase images, the ROI was drawn after referencing the tumor margin on pre-enhanced or delay-phase images. To observe the real enhancement degree, the final histogram features were extracted from arterial-phase subtraction images (arterial-phase images minus pre-enhanced-phase images), which were mapped from previous intratumoral and peritumoral ROIs. The peritumoral ROI signal intensity histogram parameters were obtained automatically, along with the calculated parameters such as peritumoral mean(peri-mean), peritumoral median(peri-median), peritumoral mode (peri-mode), peritumoral skewness(peri-skewness), peritumoral kurtosis(peri-kurtosis), peritumoral standard deviation (peri-Std) and peritumoral coefficient of variation (peri-CV). The intratumoral ROI signal intensity histogram parameters were measured and named in the same way (Figure 2E-2H).

Statistical analysis

According to the maximum tumor diameter, we divided all cases into sHCC (≤3 cm), and >3 cm HCC for analysis. All statistical analyses were performed using SPSS version 22.0 for Windows (SPSS Inc., IL, USA). Statistical significance was set at P<0.05. For data with normal distribution, the independent t-test was used to compare continuous variables. The Mann-Whitney U test was used for continuous data with abnormal distribution. The χ² test or Fisher’s test was used for the categorical variables. Univariate and multivariate analyses were performed by logistic analysis. The receiver operating characteristic (ROC) curve was drawn to determine the cut-off value of the parameters using the maximum Youden index. For each ROC curve, the area under the curve (AUC) was calculated. The DeLong test was performed to compare AUCs. The sensitivity, specificity, positive predictive value (PPV) and negative predictive value (NPV) were calculated. The interobserver variability for radiological features was assessed using the Kappa analysis (κ=0.00–0.20, poor agreement; κ=0.21–0.40, fair agreement; κ=0.41–0.60, moderate agreement; κ=0.61–0.80, good agreement; κ=0.81–1.0, excellent agreement).

Results

Clinical data analysis

Clinical and pathological features are shown in Table 1. Thirty-seven (32.7%) patients had pathologically confirmed MVI+ HCC. In all tumors, tumor size in MVI+ patients was significantly larger than in MVI− patients. There were no significant differences in sex, age, hepatitis, cirrhosis, α-fetoprotein, aspartate aminotransferase, alanine aminotransferase, γ-glutamyltransferase, Child-Pugh class, or differentiation grade between MVI+ and MVI− in all tumors.

Evaluation of radiological features

The interobserver agreement between the two radiologists was high using radiological features to predict MVI. The level of agreement for capsule and corona enhancement was excellent (kappa: 0.812 and 0.871) and the agreement for thickness of the corona enhancement and irregular rim enhancement was good (kappa: 0.665 and 0.715). The results for further research were consensus decisions. Among the MRI features, visibility of the corona enhancement had no significant effect on the prediction of MVI. However, CET was able to predict MVI in both cohorts: sHCC (P=0.001) and HCC >3 cm (P=0.009). Furthermore, the optimal cut-off value of 8 mm for CET was acquired from ROC analysis according to the Youden index, and we divided all cases into two groups [CET >8 mm; CET ≤8 mm (including absent)] (Figure 3). There were statistically significant differences for the CET group in predicting MVI in sHCC (P=0.034) and HCC >3 cm (P=0.046), respectively. There was also the difference in the incomplete capsule between MVI+ and MVI− in the HCC >3 cm cohort (P=0.022). These results are shown in Table 2.

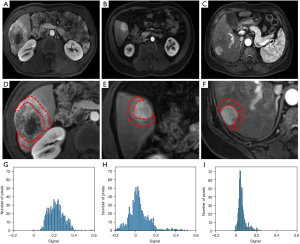

Figure 3 Arterial-phase MR image and differences in distribution of histogram parameters between HCC with and without MVI. (A) Arterial-phase MR image shows HCC with MVI+ and CET >8 mm. (B) Arterial-phase MR image shows HCC >3 cm, MVI− with CET <8 mm. (C) Arterial-phase MR image shows sHCC (size ≤3 cm), MVI+ without corona enhancement. (D) Peritumoral ROI arterial-phase subtraction images for (A). (E) Peritumoral ROI arterial-phase subtraction images for (B). (F) Peritumoral ROI arterial-phase subtraction images for (C). (G) Histogram for (D). (H) Histogram for (E). (I) Histogram for (F). HCC with MVI (G,I) shows a relative frequency at higher signal than that of HCC without MVI (H). The red region in (D-F) indicate peritumoral ROI. HCC, hepatocellular carcinoma; MVI, microvascular invasion; CET, corona enhancement thickness; sHCC, small HCC; ROI, regions of interest.

Histogram evaluation

In both two cohorts (sHCC and HCC >3 cm), significant differences were noted in peri-mean and peri-median calculated from arterial-phase subtraction images between MVI+ and MVI− in all tumors. There were also significant differences in peri-kurtosis in the sHCC, and peri-Std in the HCC >3 cm cohorts. There were no significant differences in any intratumoral parameters. These results are shown in Table 3 and Figure 4.

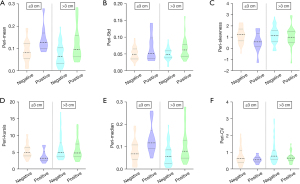

Figure 4 Violin plots of parameters for the MVI negative (MVI−) and MVI positive (MVI+) groups in sHCC (size ≤3 cm) and HCC >3 cm. (A) Peri-mean, (B) peri-std, (C) peri-skewness, (D) peri-kurtosis, (E), peri-median, (F) peri-CV. The peri-mean and peri-median average values for MVI+ were significantly higher than MVI− in both the sHCC and HCC >3 cm groups (P<0.01). The peri-Std average value for MVI+ was significantly higher than MVI- in the HCC >3 cm (P=0.006) group, but was not significantly different for MVI+ and MVI− in sHCC (P=0.065). The peri-kurtosis average value for MVI+ was significantly higher than that for MVI− in sHCC (P=0.043) but was not significantly different for MVI+ and MVI− in the HCC >3 cm group (P=0.596). The peri-CV and peri-skewness average value were not significantly different for MVI+ and MVI− in all HCCs. MVI, microvascular invasion; HCC, hepatocellular carcinoma; sHCC, small HCC; peritumoral mean, peri-mean; peritumoral median, peri-median; peritumoral skewness, peri-skewness, peritumoral kurtosis, peri-kurtosis; peritumoral standard deviation, peri-Std; peri-CV, peritumoral coefficient of variation.

Univariate and multivariate logistic regression analyses

The univariate and multivariate analyses are summarized in Table 4. In the sHCC, peri-mean, peri-median and peri-kurtosis based on arterial-phase subtraction images, CET and CET group (grouping by CET =8 mm) were included in the multivariate analysis. Peri-mean (P=0.004) was the only independent predictive factor for MVI in the sHCC cohort. In the HCC >3 cm cohort, mean, median, and Std of the peritumoral region and three radiological features (incomplete capsule, CET and CET group) were included in the multivariate analysis. Finally, peri-mean (P=0.003) and CET group (P=0.048) were identified as independent predictive factors of MVI (Figure 3A,3B,3G,3H).

Prediction of MVI

The ROC curves based on the selected independent factors in sHCC and HCC >3 cm are shown in Figure 5. The parameters including AUC, sensitivity and specificity for each predictor are listed in Table 5. In the sHCC cohort, peri-mean alone had an AUC of 0.792 (P=0.0001) with a sensitivity and specificity of 100.00% and 54.84%, respectively (Figure 5A). When the peri-mean and CET group were combined, the AUC improved to 0.741 in the HCC >3 cm group, which was better than the CET group alone (AUC =0.611; P=0.01, DeLong test) but not significantly higher than the peri-mean with the AUC of 0.705 (P=0.360, DeLong test) (Figure 5B). When the univariate parameters from both sHCC and HCC >3 cm were pooled for the multiple logistic regression analysis (Figure 5C), peri-mean (OR, 6.198; 95% CI, 1.482–15.382) and CET group (OR, 5.191; 95% CI, 1.324–7.771) were significant factors for MVI in all tumors with an AUC of 0.716 and 0.623, respectively (Figure 5D). When the above two features were combined, the AUC was 0.756 with a sensitivity and specificity of 59.46% and 77.63%, respectively.

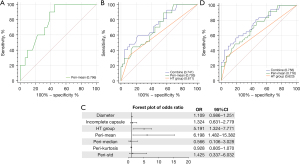

Figure 5 Comparison of ROC curves in predicting MVI for sHCC, HCC >3 cm and OR and 95% CI on the basis of multivariate logistic regression for each parameter. (A). In sHCC, the AUC of the peri-mean was 0.792. (B) In HCC >3 cm, the AUC of the combined model (AUC =0.741) was higher than that of the peri-mean (AUC =0.705) and CET group (AUC =0.611), respectively. (C) OR and 95% CI on the basis of multivariate logistic regression for both sHCC and HCC >3 cm. (D) In all tumors, the combined model demonstrated higher predictive ability with an AUC 0.756 than the peri-mean (AUC =0.716) and CET group (AUC =0.623), respectively. ROC, receiver operating characteristic; MVI, microvascular invasion; HCC, hepatocellular carcinoma; sHCC, small HCC; OR, odds ratio; AUC, area under the curve; CET, corona enhancement thickness; CI, confidence interval.

CET subgroup analysis

According to the CET, we performed a subgroup analysis with the corona enhancement visible cohort. CET >8 or ≤8 mm, showed a significant difference [P=0.01, OR, 3.0 (1.56–5.77)] between MVI+ and MVI− with an AUC 0.727, sensitivity 100%, specificity 45.45%, PPV 66.7%, and NPV 100% (Table 6, Figure 3A,3C,3D,3F).

Discussion

In this retrospective study, we established a quantitative analytical method to predict MVI in patients with HCC based on arterial-phase MRI with extracellular contrast agent. Our results indicated that the mean enhanced degree of the peritumoral region showed better predictive performance, especially for sHCC. Compared with the peri-mean, the combination of parameters including CET group and peri-mean did not significantly improve the predictive power in HCC >3 cm and all tumor sizes.

Histogram parameters from intratumoral and peritumoral regions of HCC were analyzed to examine their possible relationship with MVI. There was no significant difference in histogram features between the MVI+ and MVI− groups in intratumoral regions, which was different to the results of Huang et al. (19). We speculated that the reason of the difference was using arterial-phase subtraction images. Therefore, removing interference from T1-weighted inherent signaling (such as hemorrhage, cystic degeneration, necrosis), and only analyzed the tumor enhancement characteristics. Our results indicated that the intratumoral enhancement quantitative features were not significantly correlated with MVI in both groups. In addition, the autorecognition algorithm was used to perform the ROIs extended to a radius of 1 cm from the tumor margin with regard to the pathological sampling criteria. The histogram characteristics of this region showed significant correlations with MVI.

Occasionally, the subtle signal changes are not easily visible surrounding a tumor for radiologists, histogram features can provide more imaging details and assist doctors in diagnosis as a more sensitive quantitative approach (14,15,19,23). In this study, peri-mean was an independent predictor of MVI in both cohorts (sHCC and HCC >3 cm). These results suggested that the mean degree of the peritumoral enhancement signal was associated with MVI: With the increase in peri-mean value, the possibility of MVI was greater. It may be related to peritumoral hemodynamic changes caused by positive MVI, and the enhancement degree of peritumoral is enhanced, reflecting the increase of peri-mean. Particularly in sHCC, only the peri-mean feature is taken as an independent predictive factor, and the diagnostic efficiency achieved a satisfactory result (AUC: 0.798). In addition, the sensitivity was up to 100%, which may have significant clinical implications. Therefore, for sHCC patients, we suggest that a more cautious treatment strategy should be chosen for those with a peri-mean value higher than 0.083 (cutoff value), to avoid postoperative recurrence caused by non-anatomical hepatectomy. In addition, radiofrequency ablation was also not recommended for these sHCC patients.

The corona enhancement is a vital evaluation parameter on the AP, and was highly suggestive for predicting MVI in previous studies (11,24). However, this approach remains controversial. Reginelli et al. demonstrated that peritumoral enhancement was a non-significant factor for MVI in the hepatic AP of CT scans, similar to our results (25). We hypothesized that this may be due to the lower incidence of the corona enhancement on AP images in HCC patients. In the current study, incidence of the corona enhancement was merely 20.35% (23/113) in all cases, 17.07% in sHCC (7/41), which could have influenced the diagnostic efficiency, especially the sensitivity. We further measured the thickness of the corona enhancement as a new variable, which has not been mentioned in previous studies, and found it was significantly related to MVI in univariate analysis, but not in multivariate analysis. When we regarded the cut-off value (8 mm) as the group value to divide cases into two groups [≤8 mm (including absent) and >8 mm], the CET group was another independent predictor in the HCC >3 cm group besides the peri-mean. In addition, we selected all corona-visible cases to perform a subgroup analysis. An NPV of 100% in HCCs with a CET ≤8 mm was obtained. Therefore, we suggest the following two points regarding the corona enhancement: Firstly, the diagnosis of MVI by the corona enhancement alone was not sufficient, CET should also be considered; secondly, CET <8 mm may be an essential negative biological marker of MVI. Therefore, curative resection should be carefully considered to avoid unnecessary liver transplantation and reduce wastage of medical resources for cases with a relatively smaller corona enhancement after excluding other risk factors.

It is known that tumor size may guide different clinical therapeutic management (26,27). However, few studies have discussed MVI in groups according to tumor size (28,29). Our results showed that different features predicted MVI in the sHCC and HCC >3 cm cohorts. Peri-mean was the most valuable MVI predictor for HCCs, especially for sHCCs. However, it should be noted that CET was also a predictor in the HCC >3 cm cohort. Although the predictive power of the combination of these two parameters was not statistically significant compared with peri-mean alone (P=0.19, DeLong test), the combination still improved the diagnostic performance (AUC =0.756) to some extent for HCC >3 cm. Therefore, individualized evaluation criteria for different sized tumors should be proposed, which would guide more appropriate treatment options for HCC patients.

There were some limitations associated with this study. Firstly, the sample size was small and restricted to solitary HCC, especially sHCCs. Secondly, only three radiological features based on enhanced images were used to compare with the results from peritumoral region quantitative analysis, without importing other multi-parameters such as T2-weighted and diffusion-weighted imaging. Finally, the maximal cross-sectional areas of the tumors were analyzed instead of the whole volume of the lesions, even though it was the main observation slice for the radiologist and could provide more intuitive information, especially in small entities. Thus, further research with a large sample in a multicenter setting is necessary to prove the diagnostic power of the metrics identified and further radiomic analyze.

In conclusion, peritumoral histogram features on arterial-phase subtraction MRI can provide more confident prediction efficiency of MVI in HCC. Peritumoral mean enhanced degree on the histogram is a significant parameter for improving prediction of MVI, especially for sHCC. CET should also be considered rather than whether the corona enhancement is visible for MVI diagnosis in patients with HCC >3 cm.
