Recurrent transient ischemic attacks in a moyamoya syndrome patient with ultra-long imaging follow-up

Moyamoya disease (MMD) is an idiopathic cerebrovascular condition characterized by progressive stenosis or occlusions of distal internal carotid arteries (ICAs) and their major branches, accompanied by the growth of a network of collateral vessels resembling a puff of smoke (1,2). Moyamoya syndrome (MMS) is moyamoya-like vasculopathy that develops in patients with underlying diseases, including neurofibromatosis type 1 (NF-1), Down syndrome, Grave’s disease, therapeutic irradiation, sickle cell anemia, and others (3). It has been reported that the majority of MMS patients experience symptomatic progression over a 5-year period, which may produce transient ischemic attacks (TIAs), ischemic strokes or brain hemorrhage (1,4,5). The outcome for patients is poor without appropriate treatment (3,5). Due to the progressive nature, prompt diagnosis and proper management are crucial to improving the long-term prognosis of patients (6). This study reports a case involving a patient with an ultra-long history of MMS. The patient received noninvasive treatment based on advanced and comprehensive imaging surveillance and, to date, has achieved good clinical outcome.

Case presentation

All procedures involving human participants were performed in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient for publication of this case report and the accompanying images. A copy of the written consent is available for review by the editorial office of this journal.

A 70-year-old woman was admitted to hospital due to mild paresthesia of her tongue. She had a long history of recurrent TIAs occurring over an 18-year period. In 2004, she presented initially with transient hemiplegia, but the weakness in her right limb was relieved in a few seconds. Over the past 18 years, the suspected symptoms of TIA occurred several times, with variable manifestations of partial paresthesia, amaurosis fugax, and numbness of tongue. Only the first episode was serious; subsequent attacks in the following years were comparatively mild. In the 3 years prior to her first ischemia attack, the patient’s medical record showed hyperlipidemia, with no indication of hypertension or hyperglycemia. At that time, she was not taking any medicine for her hyperlipidemia. The patient was also diagnosed with Hashimoto’s thyroiditis in her 30s and had been taking levothyroxine sodium for her hypothyroidism since 2001.

At the time of admission for query stroke in 2004, the patient’s initial brain magnetic resonance imaging (MRI) showed only a few small foci of white matter microangiopathic changes (Figure 1A), with no acute infarction on diffusion-weighted imaging (DWI) (Figure 1B). However, incidental time of flight-magnetic resonance angiography (TOF-MRA) findings of her brain demonstrated occlusion of the bilateral middle cerebral arteries (MCAs) and stenosis of the distal ICAs, with normal anterior cerebral arteries (ACAs) and posterior cerebral arteries (PCAs) (Figure 1C). She was diagnosed with severe intracranial atherosclerosis disease, which was managed conservatively with atorvastatin and aspirin. In the following years, the patient underwent regular imaging surveillance to monitor disease progression. Her recurrent TIAs raised concern, and clinicians considered whether it was feasible for her to receive more aggressive surgery or interventional therapy. In recent years, the condition of her vessels has been reevaluated by multi-sequence MRI, as she is allergic to iodine. The steno-occlusive severity of the patient’s intracranial arteries was assessed by MRA stages for MMD (7). The MRA stages were mainly determined by TOF-MRA maximum intensity projection (MIP) images, with source images used referentially. On the MRA, the steno-occlusive changes of the MCAs, ACAs and PCAs were graded as 3 stages (7): stage 1= no or mild stenosis (<50%), stage 2= moderate stenosis (>50%) but with intact distal segment, and stage 3= severe stenosis without any apparent distal segment. The patient’s moyamoya-type vasculopathy could be classified as stage 3. Surprisingly, the “ivy sign” was not very prominent on fluid-attenuated inversion recovery (FLAIR) images (Figure 2A). It is well known that the “ivy sign” is the result of the slow-flowing leptomeningeal collaterals that can be detected in MMD (8). Although the characteristic “puff of smoke-like” moyamoya vessels were not apparent, her bilateral PCAs were very thick and several branches could be seen originating from the bilateral PCAs and vertebrobasilar arteries (Figure 2B), which could be interpreted as evidence of the development of collaterals from the posterior circulation. High-resolution vessel wall imaging confirmed the intimal thickening and luminal occlusion of MCAs (Figure 2C). The patient’s overall imaging findings were not typical for MMD. With consideration to her medical history, the patient was eventually diagnosed with MMS by a multidisciplinary team (MDT) composed of neurologists, neurosurgeons and diagnostic and interventional radiologists.

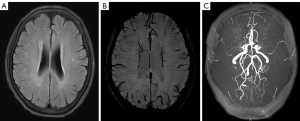

Figure 1 Initial MRI and TOF-MRA after the first onset of TIA in 2004. Only a few small foci of white matter microangiopathic changes appear on FLAIR (A), and no acute ischemic lesions are shown on DWI (B). TOF-MRA (C) demonstrates the occlusion of the bilateral MCAs and stenosis of the distal ICAs. MRI, magnetic resonance imaging; TOF-MRA, time of flight-magnetic resonance angiography; TIA, transient ischemic attacks; FLAIR, fluid-attenuated inversion recovery; DWI, diffusion-weighted imaging; MCA, middle cerebral artery; ICA, internal carotid artery.

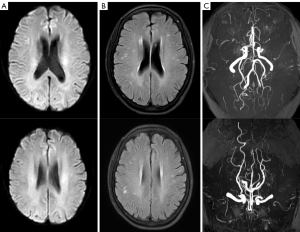

Figure 2 Brain MRI and TOF-MRA in 2013. Nonprogressive small ischemic lesions in the white matter appear on FLAIR (A). TOF-MRA demonstrates the occlusion of the bilateral MCAs and collateral vessels from the bilateral PCAs and vertebrobasilar arteries (B). High-resolution vessel wall imaging shows intimal thickening and luminal occlusion of MCAs (arrow) (C). MRI, magnetic resonance imaging; TOF-MRA, time of flight-magnetic resonance angiography; FLAIR, fluid-attenuated inversion recovery; MCA, middle cerebral artery; PCA, posterior cerebral artery.

In recent years, the patient has been monitored with frequent MRI scans under the latest noninvasive clinically available MRI techniques, such as susceptibility-weighted imaging (SWI) and arterial spin labeling (ASL). Since 2013, ASL and other MRI sequences have been carried out as routine MRI examinations on a 3.0-Tesla MRI scanner (Ingenia, Philips, Amsterdam, The Netherlands) with 16-channel head coils. Multiple brain MRIs have shown nonprogressive small white matter ischemic foci (Figure 3A), while SWI has revealed no associated microhemorrhage (Figure 3B). TOF-MRA has consistently shown the presence of collaterals from bilateral PCAs and vertebrobasilar arteries (Figure 3C).

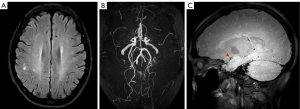

Figure 3 Brain MRI and TOF-MRA in 2021. No concerning progressive imaging findings appear on FLAIR (A), and no associated microhemorrhage appears on SWI (B). TOF-MRA shows the presence of collaterals from the bilateral PCAs and vertebrobasilar arteries (C). MRI, magnetic resonance imaging; TOF-MRA, time of flight-magnetic resonance angiography; FLAIR, fluid-attenuated inversion recovery; SWI, susceptibility-weighted imaging; PCA, posterior cerebral artery.

The patient’s MDT initially considered intervention or revascularization surgery as the optimal treatment to reduce the frequency of recurrent TIAs and the risk of infarction. However, repeated ASL indicated that the patient’s cerebral hemodynamic impairments and collateral blood flow were not consistent with those of typical MMD. The patient’s ASL data were acquired with three-dimensional pseudo-continuous ASL (3D-pCASL) using the following parameters: labeling duration =1.5 s, postlabeling delay (PLD) =1.5/2.5 s, repetition time (TR) =3.7/4.7 s, echo time (TE) =11 ms, field of view (FOV) =240 mm × 240 mm × 85 mm, matrix =64×64, thickness =6 mm, and duration time =5 minutes and 21 seconds/6 minutes and 47 seconds. In 2013, the patient’s 3D-pCASL images showed serpiginous high signal intensity in the bilateral cerebral cortex and sulcus at a PLD of 1.5 s (Figure 4A), and, less prominently, in the bilateral temporal and parietal cortex at a PLD of 2.5 s (Figure 4B). From 2013 to 2020, 3D-pCASL at PLD of 1.5 and 2.5 s continuously demonstrated bright hyperintensity in the cerebral symmetric cortical surface. In 2021, the 3D-pCASL-based dynamic MRA referred to as “four-dimensional magnetic resonance angiography (4D-MRA)” and 3D-pCASL were performed on a new 3.0-Tesla MRI scanner (Ingenia CX, Philips) using 32-channel head coils. The latest ASL images showed hyperintense signal bands in the bilateral hemisphere at a PLD of 1.5 s (Figure 5A) and, much more prominently, at a PLD of 2.5 s (Figure 5B). Meanwhile, 4D-MRA data were acquired with the time-resolved angiography non-contrast-enhanced (TRANCE) technique using the following parameters: TR =9.3 s, TE =4.8 s, FOV =210 mm × 210 mm × 80 mm, spatial resolution =1.2 mm × 1.2 mm × 1.3 mm, matrix =172×130, thickness =1.3 mm, label delay =200 ms, label gap =20 mm, phase interval =200 ms, phases =10, and duration time =2,200 ms. Symmetrical emergence of bilateral PCAs was observed, and intracranial collaterals originating from the bilateral PCAs were clearly shown on the dynamic 4D-MRA (Figure 5C).

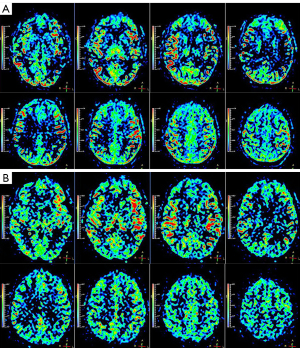

Figure 4 3D-pCASL in 2013. ASL shows serpiginous high signal intensity in the bilateral cerebral cortex and sulcus at a PLD of 1.5 s (A), and, less prominently, in the bilateral temporal and parietal cortex at a PLD of 2.5 s (B). 3D-pCASL, three-dimensional pseudo-continuous arterial spin labeling; ASL, arterial spin labeling; PLD, postlabeling delay.

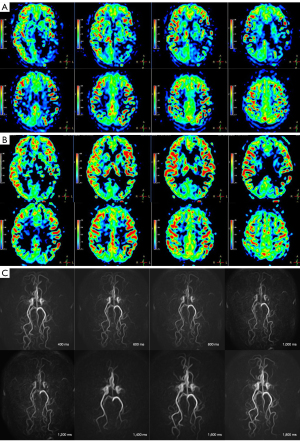

Figure 5 3D-pCASL and 4D-MRA in 2021. ASL shows hyperintense signal bands in the bilateral hemisphere at a PLD of 1.5 s (A) and, more prominently, in the bilateral cortex at a PLD of 2.5 s (B). 4D-MRA (phase interval =200 ms, phase 2 to 9) dynamically shows symmetrical emergence of the bilateral PCAs and collaterals originating from the posterior circulation (C). 3D-pCASL, three-dimensional pseudo-continuous arterial spin labeling; 4D-MRA, four-dimensional magnetic resonance angiography; ASL, arterial spin labeling; PLD, postlabeling delay; PCA, posterior cerebral artery.

Based on MRA assessment and cerebral perfusion results, it was agreed that the patient still had sufficient cortical perfusion and the invasive therapies, such as stent implantation or revascularization surgery, posed a risk of uncontrolled hemorrhage that outweighed any potential benefit. Conservative treatment using thyroxine replacement, lipid lowering (rosuvastatin), and antiplatelet aggregation (clopidogrel) medication was then continued. The patient reported good clinical response with a much lower frequency and severity of TIAs and no progressive imaging findings.

Discussion

Moyamoya is a general term used to describe two different conditions affecting the main branches within the circle of Willis, which present distinctive findings on cerebral arteriography. These two conditions are MMD and MMS. MMS is idiopathic and more commonly seen among adults ranging in age from 20 to 40 years (1,2). Studies have suggested an underlying component rather than a genetic component in MMS, which often occurs alongside autoimmune diseases, such as diabetes mellitus and thyroid disease (Grave disease or Hashimoto’s thyroiditis) (3,9-11). Both conditions possibly may share a phenotype of cerebral vasculopathy, at least to some degree (2,3). Once the diagnosis of MMD or MMS is made, selecting an appropriate therapeutic regimen is the next key step for the prognosis of patients.

The cause of extensive occlusion of bilateral MCAs in our patient is unknown but could be related to her hyperlipidemia and arteriosclerosis, or even to her Hashimoto’s thyroiditis. Treatment options have involved daily aspirin and statins use, as well as lifestyle modifications following the first attack in 2004. Although there has been no obvious progression on surveillance imaging, the patient’s TIA symptoms have not been completely relieved by medicine. Unlike typical MMD with conspicuous smoky vessels, on initial imaging, the patient showed occlusion of bilateral MCAs without regional collaterals but with prominent vessels of the posterior circulation. She was diagnosed with MMS by the MDT according to her atypical imaging findings and complex medical history. Previous reports indicate that the rate of disease progression among moyamoya patients is high, and medicine alone does not halt progression (12). Although there is no established standard regarding the optimal time for surgery, the rate of symptomatic progression is significantly reduced after surgical revascularization (13,14). Given the complicated hemodynamics associated with either MMD or MMS, the assessment of cerebral perfusion state is critical for treatment planning (15). Since changes in hemodynamics are closely associated with disease progression, recurrent TIA may indicate cerebral hemodynamic impairment and imminent risk of ischemic stroke. Cerebral hemodynamic status should be carefully evaluated before and after intervention or surgery (16,17).

ASL can be used as a noninvasive preoperative assessment to qualify cerebral perfusion and to monitor the alterations of hemodynamics (18-20). Moreover, ASL can help grade collateral flow and may complement digital subtraction angiography (DSA) findings (21,22). As regards this patient, hypoperfusion in the bilateral MCA territories was thought to be caused by occlusion of the bilateral MCAs. Unexpectedly, there were serpiginous bright signals in the bilateral cerebral cortex and sulcus on ASL images. The bright intravascular signal known as arterial transit artifact (ATA) on ASL may indicate the presence and degree of collateral perfusion in moyamoya patients (23,24). The ATAs produce hyperintense signals along the cerebral cortical sulcus, which is caused by delayed blood flow due to the stenosis or occlusion of main arteries, or collateral flow accompanying the stenosis or occlusion (25,26). Investigating the cause of the ATA is necessary to evaluate the pathophysiology of patients. As the arterial transit time of collateral blood flow is longer than that of normal anterograde blood flow in moyamoya patients, the intensity of ATA conveys information about the delayed arrival of blood flow and reflects the collateral flow (23,24). Studies have shown that ATAs can evaluate collateral circulation with high specificity (24).

Between 2013 and 2020, the intensity of ATA on the patient’s ASL images at a PLD of 1.5 s was much more significant than that of 2.5 s, which suggested that the antegrade blood flow was comparatively faster. The latest ASL in 2021 showed that the intensity of ATA at a PLD of 2.5 s was much more intensive than before, which may suggest that the arterial transit time of the collaterals is longer than the anterograde blood flow. ATA is dependent on the arterial transit time and is influenced particularly by the labeling time and PLD. The decreased and slow blood flow might induce an ATA; therefore, cortical flow in moyamoya patients may resemble this hemodynamic status. The strength of the ATA alters according to the PLD value because the delayed blood flow due to stenosis or occlusion still remains in the cortical surface (24,27). Regarding this patient, ASL acquisitions with both shorter and longer PLD dramatically demonstrated conspicuous ATA in the bilateral hemispheric cortex, and this status has lasted almost 10 years to date. ATA has been reported to correlate with the development of collateral circulation and to reflect the presence of leptomeningeal collaterals on DSA (28). The balance of hemodynamics and compensated perfusion of this patient relies on slow flow from the collaterals of the posterior circulation, which prolongs the mean transit times of arterial blood flow and creates ATA on 3D-pCASL images. 4D MRA is a 3D-pCASL-based dynamic MRA with long labeling duration, which can ensure visualization of the complete arterial trees from proximal to distal vessels with adequate image quality (29). The patient’s latest 4D-MRA clearly shows the presence of collaterals mainly from the bilateral PCAs. Consequently, preservation and improvement of collateral blood flow can provide protection against future strokes and reduce the frequency of ischemic symptoms while effecting a concurrent reduction in collaterals.

The patient’s MDT concluded that invasive treatment is not the best management option for this patient in light of her comprehensive medical conditions, as there could be a high risk of massive intracranial hemorrhage with aggressive intervention. Persistent conservative therapy with close clinical and imaging surveillance was suggested as a personalized therapeutic strategy. The patient tolerated the conservative management well and has been achieving a good work-life balance without any clinically significant neurological deficits.

Although revascularization surgery or stent implantation is usually suggested as a viable treatment for MMD or MMS in the long term, functional imaging assessment methods coupled with a MDT approach can assist in the creation of a patient-centered management plan. Evaluation of collaterals and hemodynamic perfusion is critical for moyamoya patients. Noninvasive techniques such as ASL can predict the presence and function of collaterals, which is of great significance to the therapeutic planning and surveillance of moyamoya patients. This case of successful conservative management of MMS presents an example of such a patient-centered approach and demonstrates that active treatment does not necessarily mean aggressive treatment in this clinical mode.
