Shear wave elastography and shear wave dispersion imaging in primary biliary cholangitis—a pilot study

Introduction

Primary biliary cholangitis (PBC) is a chronic cholestatic liver disease that can lead to liver fibrosis and cirrhosis, with a rapid fibrosis progression without treatment (1). It is an autoimmune disease with detectable specific anti-mitochondrial antibodies (AMA) in up to 95% of PBC patients (2). Furthermore, alkaline phosphatase (ALP) is often chronically elevated. Based on treatment response, several scores such as the Barcelona (3) or Paris I (4) and II (5) criteria have been developed to evaluate the prognosis and the risk of developing complications such as cirrhosis and hepatocellular carcinoma (HCC).

Liver biopsy is considered the gold standard for the assessment of liver fibrosis and inflammation as surrogates for liver disease severity and prognosis. However, it is an expensive procedure that bears a small but relevant risk for complications such as bleeding, gall bladder perforation or pneumothorax (6). In recent years, non-invasive ultrasound (US)-based liver stiffness measurement (LSM) has been established as an effective method for liver fibrosis detection and staging in chronic liver diseases (7).

The most widely used LSM method is transient elastography (TE), which relies on a mechanical impulse that creates shear waves in the liver tissue. A receiver then evaluates shear wave propagation. TE has shown good diagnostic performance in PBC (8). More recently introduced LSM methods are point shear wave elastography (pSWE) and two-dimensional shear wave elastography (2D-SWE), which are integrated into conventional US systems. The latter allows real time imaging of shear wave propagation in the tissue under B-mode US vision control. A region of interest (ROI) can be placed at any localization in a colored elastogram and shear wave velocity, that correlates with tissue elasticity, can be measured. Results are displayed in meters per second (m/s) or converted into elasticity scores in kilopascals (kPa) (9). Non-invasive LSM has also been investigated in PBC with varying results. Park et al. described a better diagnostic performance of a pSWE-method than laboratory-based liver fibrosis tests in patients with autoimmune liver disease (10). A German group investigated the accuracy of a pSWE system from another manufacturer in 26 PBC patients with lower histologic fibrosis stages and found no correlation with pSWE values (11).

Since nonalcoholic fatty liver disease (NAFLD) is the most common chronic liver disease (7), it can often be a relevant co-factor that can complicate other liver affections such as PBC. Therefore, it is necessary to detect and quantify steatosis in patients with chronic liver disease. TE enables the detection of controlled attenuation parameter (CAP), which is an accurate method for the quantification of hepatic fat accumulation (12). CAP uses an ultrasonic attenuation coefficient that estimates the ultrasonic attenuation on signals acquired by the TE system. Recently, a new method called attenuation imaging (ATI) has been introduced that also uses the attenuation of US beams as a surrogate parameter for the measurement of liver steatosis integrated in a conventional US system. Similar to 2D-SWE for fibrosis, ATI enables steatosis quantification over B-mode visualization of the area in which it is performed. The attenuation of US beams in the tissue is measured. Published results in NAFLD patients are promising (13,14), but no comprehensive data exist in PBC.

Even more recently, a method called shear wave dispersion imaging (SWD) was introduced. In viscoelastic tissue, such as liver, shear wave speed varies depending on shear wave frequency. If a tissue is dispersive, the speed and the attenuation of shear waves will in-crease with frequency (15). Assessment of the dispersion slope of shear waves is directly linked to tissue viscosity. In preliminary studies, it has been suggested that liver viscosity as a surrogate for necroinflammatory activity in the liver can be quantified using SWD (15-17). Tzschätzsch et al. found that shear wave dispersion slope was significantly lower in healthy controls than in cirrhotic patients (18). Since this a novel method with only few published studies with a limited number of patients, its clinical applicability should still be interpreted with caution.

Taken together, published data on non-invasive LSM in PBC patients suggest that shear wave elastography might be an accurate tool for fibrosis detection in these patients. However, data is still sparse. Our study was aimed at providing further evidence in characterizing severity of liver disease in PBC patients using non-invasive SWE and the new methods of ATI and SWD.

We present the following article in accordance with the MDAR reporting checklist (available at https://dx.doi.org/10.21037/qims-21-657).

Methods

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the local Ethics Committees of the Universities of Berlin (EA2/035/07; 03-2015) and twenty-two adult (>18 years) patients with PBC from our outpatient clinic who gave written informed consent were included. PBC diagnosis was established according to EASL clinical practice guidelines on PBC [primarily taking into account elevated ALP and immunological markers such as antimitochondrial antibodies (AMA), anti-gp210 or anti-sp100] (19). Exclusion criteria were signs of right heart failure, cholestasis in US, viral hepatitis, excessive alcohol consumption (>30 g/d in men, >20 g/d in women) or malignancy. Patients fasted for at least 4 hours and then underwent abdominal ultrasound (US) including grayscale US, Doppler measurement of the portal vein, spleen length measurement, 2D-SWE, SWD and ATI examination using Canon Aplio i800 US system (Canon Medical systems Corporation, Otawara, Tochigi, Japan). US examinations were conducted by an experienced sonographer with experience in liver US and sonoelastography (>6,000 US, >2,000 SWEs). Furthermore, patients underwent TE and CAP measurement using Fibroscan^® (Echosens, Paris, France) system.

SWE

Patients were examined in a supine position, 2D-SWE measurement was performed during a transient breath hold. In a right intercostal transducer position, shear wave propagation was observed in real-time visualization until image stabilization with a homogenous color filling and parallel lining of the elastogram was established in order to ensure reliable measurement quality. Large vessels and ascites were avoided according to the guidelines of the European Federation of Societies for Ultrasound in Medicine and Biology (EFSUMB). As recommended, an interquartile range/median (IQR/M) ratio ≤30% was defined as a criterion for a reliable measurement (9). A circular region of interest (ROI) with 1 cm diameter was then placed in the elastogram at least 1 cm below the liver capsule in a depth of 3 to 5 cm as depicted in Figure 1. 2D-SWE value was calculated as a median of 5 reliable 2D-SWE measurements.

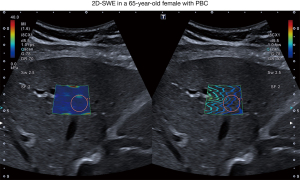

Figure 1 Lines on the right-hand side and a color map on the left-hand side, respectively visualize propagation of shear waves in the liver. A circular ROI is placed in the elastogram to measure stiffness. PBC, primary biliary cholangitis; ROI, region of interest.

SWD

SWD analysis with at least 5 measurements was performed in the same manner as described above for 2D-SWE. Results were displayed in m/s/kHz. Due to the scarcity of reference parameters, grading of inflammation according to cut-off levels is difficult. Sugimoto et al. recently proposed SWD cut-off values in a biopsy-controlled cohort of 111 individuals with suspected NAFLD patients (inflammation grade A1, inflammation grade A2 [≥9.9 m/s/kHz], inflammation grade A3 [≥12.5 m/s/kHz] (16).

ATI

For ATI measurement, the transducer was placed in the same right intercostal position as described for SWE-acquisition using the same probe. Measurement was performed during a transient breath hold. ATI ROI was then placed below the orange colored area avoiding artifacts and large vessels as depicted in Figure 2. A median value of 5 measurements, each with a coefficient of determination ≥0.90, was performed.

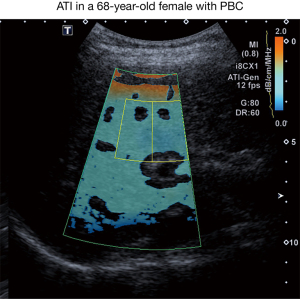

Figure 2 The yellow marked area within the color map represents the ROI. It is placed below the orange color that represents the artefact caused by the liver capsule. The attenuation coefficient was 0.54 dB/cm/MHz (no steatosis). PBC, primary biliary cholangitis; ROI, region of interest.

TE

For TE, the FibroScan^® (Echosens, Paris, France) system was used. From a right intercostal position, a mechanical signal was emitted transcutaneously by a 3.5-MHz probe (or a 2.5-MHz probe in obese) and its propagation in the tissue, which correlates with elasticity, was measured by a receiver. Ten reliable measurements were performed in each patient (a success-rate of ≥60% and an interquartile range of ≤30% were mandatory), results were expressed in kPa. Additionally, CAP was calculated in 10 reliable measurements.

Laboratory results and fibrosis scores

An extended routine liver panel was analyzed in all patients including among others: alanine aminotransferase (ALT), albumin, aspartate aminotransferase (AST), alkaline phosphatase (ALP), bilirubin, gamma-glutamyl transpeptidase (GGT), blood count and international normalized ratio (INR). Furthermore, laboratory-based fibrosis scores FIB-4 and APRI were determined. FIB-4 includes age, aminotransferases and platelets, whereas APRI encompasses AST and platelets (7).

Statistical analysis

Data collection and statistical analysis was performed with IBM SPSS Statistics for Windows (Version 27.0. Armonk, NY: IBM Corp.), using Pearson’s correlation coefficient with a level of significance of P<0.05 where appropriate.

Results

Twenty-two PBC patients were enrolled in the study. Patient characteristics are shown in Table 1. Twenty-one patients were female (95.5%), 1 male (4.5%). Median age was 61 years (range, 38–80 years).

Ultrasound examination

US examination displayed a median spleen length of 99 mm (n=21). Doppler US showed a maximum portal vein velocity of 19 cm/s (n=20). In one patient, Doppler US did not display portal blood flow, a CT scan ruled out portal vein occlusion.

2D-SWE

2D-SWE measurement displayed a median velocity of 1.48 m/s (range, 1.14–2.13 m/s) and stiffness of 6.7 kPa (range, 3.8–14.7 kPa).

SWD and ATI

SWD measurement displayed a median value of 13.9 m/s/kHz (range, 11.6–21 m/s/kHz). Median ATI value was 0.57 dB/cm/MHz (range, 0.5–0.68 dB/cm/MHz). Referring to ATI cut-off values proposed for a biopsy-controlled cohort of patients with various liver diseases, three patients had S1-steatosis, none exhibited more advanced steatosis (20).

TE and CAP

TE was performed in 20 patients (91%), median value was 7 kPa (range, 3.7–14.6 kPa). Based on PBC-specific cut-offs (8), 5 patients were deemed to have F2 fibrosis, 2 patients F3 fibrosis and 3 patients F4 fibrosis. CAP measurements displayed a median level of 208 dB/m (range, 107–276 dB/m). According to cut-off values proposed by Karlas et al. (21), one patient had S2 steatosis (out of n=16). TE measurement was performed in a median time period of 2 months prior to 2D-SWE examination.

Laboratory-based fibrosis scores and liver function tests

Median FIB-4 and APRI were 2.1 (range, 0.59–8.15) and 0.4 (range, 0.2–4.2), corresponding to fibrosis stages F2 and F1, respectively.

Laboratory results are depicted in Table 1. Median total bilirubin was 0.46 mg/dL, alanine aminotransferase (ALT) was 27.5 U/L, aspartate aminotransferase (AST) was 32 U/L, ALP median 104.5 U/L, gamma-glutamyl transpeptidase (GGT) 43.5 U/L, median platelets were 202.5/nL, albumin was 42 g/L, creatinine was 0.8 mg/dL and INR was 1.

Correlation analysis

Comparing 2D-SWE (kPa) with fibrosis related markers such as spleen length and platelet count revealed significant correlations (R=0.661 and R=−0.572, respectively, P<0.05 for both). Accordingly, correlations between 2D-SWE and fibrosis scores FIB-4 and APRI were significant (R=0.704 and R=0.716 respectively, P<0.05 for both). Correlation of 2D-SWE (m/s and kPa) and TE was statistically significant (R=0.745 and R=0.732 respectively, P<0.05 for both).

SWD was significantly correlated with ALP and GGT (R=0.537 and R=0.494 respectively, P<0.05 for both). Results of linear correlation are displayed in Figure 3.

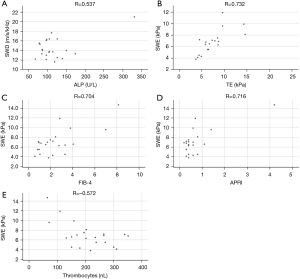

Figure 3 Correlation analysis between laboratory and imaging parameters. (A) Linear correlation of shear wave dispersion (SWD) and alkaline phosphatase (ALP); (B-E) Linear correlation of shear wave elastography (SWE) and transient elastography (TE), FIB-4 score, APRI score and thrombocytes/nL (nanoliter). All P values <0.05.

Besides with 2D-SWE, spleen length was also correlated with the fibrosis surrogates albumin, platelet count, FIB-4 and APRI (R=−0.514, R=−0.615, R=0.803 and R=0.825, respectively, P<0.05 for all).

In the comparative analysis, we did not find a significant correlation of ATI with other parameters.

Conclusions

Non-invasive risk stratification is important in PBC. Besides disease-specific features such as biochemical response (e.g., ALP/bilirubin normalization), liver fibrosis stage is an independent predictor of outcome in patients with PBC (22). All applied techniques of fibrosis and steatosis assessment have been widely investigated in healthy volunteers and various liver diseases and particularly TE and CAP are recommended by guidelines (9,23,24). As in NAFLD, TE is a well-established fibrosis assessment tool in PBC with disease-specific cutoffs (25), thereby serving as a reliable non-invasive reference method for 2D-SWE measurement. Published data on 2D-SWE in PBC is sparse. Recently, Yan et al. described a diagnostic accuracy for staging liver fibrosis of 73.9% comparing 2D-SWE with histologic fibrosis assessment in 157 PBC patients using the Aixplorer US system (SuperSonic Imagine, Aix-en-Provence, France) (26). To our knowledge, our study is the first to address the Canon 2D-SWE system in PBC patients. We observed a significant correlation of 2D-SWE and various non-invasive liver fibrosis surrogate measurement tools such as TE (25) and fibrosis scores. Our findings support evidence that 2D-SWE is an accurate tool for liver stiffness determination in patients with PBC. Of note, measurement of spleen length also correlated with multiple fibrosis markers underlining the importance of a conventional routine US in PBC patients.

Since PBC is characterized by an inflammatory destruction of intrahepatic bile ducts (27), detection and staging of inflammatory activity is crucial in the assessment of disease severity in PBC patients and may aid in treatment decisions. ALP serves as the most important prognostic laboratory parameter for liver disease evaluation in PBC. We observed a significant correlation of SWD and ALP in our cohort suggesting that this new non-invasive method can be a helpful tool in assessing liver disease activity in PBC.

ATI measurement did not correlate with CAP, which also encourages further biopsy-controlled investigation of this method in PBC patients.

A limitation of this study is the small cohort size, so that results of this pilot study can only be interpreted as indicative. Furthermore, no histological correlation could be performed, which is in line with PBC guidelines that do not mandate routine biopsies in PBC patients for disease staging or grading (19,28). Further research with larger cohorts and histological correlation in different underlying liver diseases is encouraged for a better understanding of the clinical impact of SWD and ATI. Both methods are new techniques that have not been investigated widely in chronic liver diseases and reliable reference values still need to be established.

Taken together, the results of this study indicate that the new technique of SWD can have a promising role in assessing (inflammatory) disease activity in PBC patients. Furthermore, our data support prior reports that 2D-SWE is a reliable method for fibrosis measurement in PBC. Since these non-invasive methods can be performed with little extra effort together with routine US, we believe that they have the potential of improving clinical management of PBC patients.
