Application of three-dimensional reconstruction technology in congenital anomalies of the kidney and urinary tract: a case description

Introduction

Congenital anomalies of the kidney and urinary tract (CAKUT) can affect 3.3–11.1% of the population and are associated with gene mutation, gene copy number variation, and environmental factors (1). Kidney malformation has multiple clinical manifestations, including renal underdevelopment, renal dysplasia, renal hypoplasia, polycystic renal dysplasia, ectopic kidney, and horseshoe kidney. Most congenital anomalies can be detected by ultrasound (US), computed tomography (CT), magnetic resonance imaging (MRI), or three-dimensional (3D) imaging. Image reconstruction technology shows kidney deformities more clearly with better spatial resolution (2). In this case report, we used 3D technology to clarify a rare type of renal deformity.

Case presentation

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient for publication of this case report and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.

A 45-year-old woman was admitted to hospital complaining of a 1-month history of dizziness, and a transient ischemic attack was diagnosed. During a lung examination, her left kidney was found to be abnormal. The patient was not known to have kidney abnormalities, and there was no genetic history of this condition in her family. The patient did not present clinical symptoms of low back pain, hematuria, or urinary tract infection, and laboratory tests of renal function and urine routine were within normal ranges. The patient had no history of hypertension. A CT plain scan showed abnormalities in the left renal artery, vein, and ureter, and a reversed renal parenchyma with the collecting system protruding, while the right kidney was completely normal. Enhanced CT suggested that there was an artery in the left kidney, which entered the renal parenchyma in a mesh shape. There were 2 primary thick branches of deep veins, which merged with the reproductive vein at the renal pedicle and then merged into the inferior vena cava. The renal parenchyma was in a state of eversion and folding, and the renal papilla was prominent. Each renal papilla corresponded to a renal calyx, which converged into the renal pelvis on the ventral side (Figures 1,2). Using a software application (Mimics Innovation Suite 19.0, Materialise, Leuven, Belgium), we created a 3D reconstruction of the patient’s kidneys. The 3D-reconstructed images (Figures 3,4) showed that the right kidney was normal in anatomy and that the left kidney was abnormal. In Figures 3,4, it can be seen more intuitively and clearly that the left kidney has poor rotation, irregular physical contours, and an uneven surface; the renal pelvis and ureter are distributed in a “Y” shape. The final clinical diagnosis was CAKUT, and the patient’s clinical symptoms disappeared after conservative treatment. As the patient had no urinary system discomfort and her physical and laboratory examinations were normal, we prescribed a dynamic observation treatment plan with annual renal function and urinary system USs.

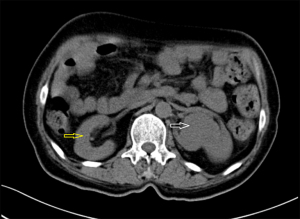

Figure 1 A plain computed tomography scan shows that the right renal parenchyma (yellow arrow), blood vessels, and collecting system are completely normal, while the left renal parenchyma (white arrow) is abnormal, with the collecting system protruding.

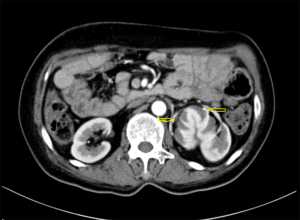

Figure 2 Enhanced computed tomography suggests that there is an artery in the left kidney that enters the renal parenchyma in a mesh shape (yellow arrow).

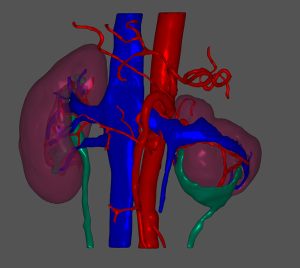

Figure 3 A front view of the kidney after three-dimensional (3D) reconstruction shows that the left kidney has poor rotation, irregular physical contours, and an uneven surface, with malformed blood vessels and collecting system.

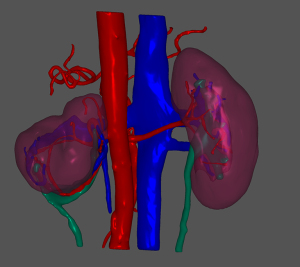

Figure 4 The back of the kidney after three-dimensional (3D) reconstruction shows that the ureter is distributed in a “Y” shape.

Discussion

At present, US, CT, and MRI techniques are widely used in the clinical diagnosis of congenital urinary tract abnormalities. Due to the advantages of simplicity, noninvasiveness, and nonradioactivity, US has been widely used in the field of perinatal diagnosis and newborn screening. Li et al. used US to screen 2,655 newborns, of whom 82 were diagnosed with CAKUT (60 males and 22 females), giving a positive rate of 3.1% (82/2,655) (3). US provides a clear image of the details of the deformity, including position, number, shape, and confluence. Meanwhile, enhanced CT can be used to display the reconstruction of blood vessels, the renal parenchyma, renal pelvis, ureter, and intestine to facilitate surgery.

Moreover, MRI water imaging is gradually replacing intravenous pyelogram (IVP) and becoming the primary method for diagnosing ureteral abnormalities (4). MRI is generally superior to CT due to the lack of ionizing radiation exposure although a study on Bosniak IIF lesions of renal cysts showed that the risk of radiation-induced cancer in CT monitoring has little effect on life expectancy (5). The most commonly used examination for diagnosing congenital urinary tract abnormalities is currently 2D US examination, and while 3D US has a radiation-free advantage in measuring kidney volume, its accuracy is still far behind that of MRI and CT, and more research is needed in the future (6).

3D printing imaging technology, which originated in the 1980s, uses polymer bondable materials, such as powdered metal or plastic, to construct objects by printing them in layers. This technology has a wide range of clinical applications in the medical field, including medical teaching, surgical model planning, and organ bioprinting. In one study on 3D printing, patients who viewed their personal 3D kidney model demonstrated a 16.7% improvement in their understanding of basic kidney physiology (P=0.018), a 50% improvement in understanding kidney anatomy (P=0.026), a 39.3% improvement in understanding tumor characteristics (P=0.068), and a 44.6% improvement in understanding the planned surgical procedure (P=0.026) (7). 3D printing in the case of a patient with a horseshoe kidney tumor before surgery showed abnormal blood vessels, and the tumor was successfully removed (8). Based on CT and MRI data, 3D reconstruction and printing technology can be applied in surgical planning, patient education, and rare or complex cases, and has the potential to be even more broadly used in the urology field (9).

In this case, we only performed a 3D reconstruction based on a plain scan with enhanced imaging. We did not create an actual 3D print due to cost. However, through 3D image reconstruction, we used computer software to provide a 3D explanation to the patient, which assuaged their concerns and doubts and helped develop an active monitoring treatment plan. The patient said that the 3D reconstruction technology allowed her to understand the kidney problems more intuitively and dispelled her worries about the disease.

In summary, traditional inspection techniques can be widely used in CAKUT inspections. As a new technology, 3D imaging and printing is conducive to disease recognition, perioperative preparation, and planning, and is thus worthy of further promotion.
